USER MANUAL SS-5160 Sogo

Exterior view of a modern SOGO brand juice maker with black and silver casing (no visible text or symbols on body)

Extractor de Jugos / Juice Extractor Centrifugeuse de Jus / Centrifugas de Sucos Estrattore di succo / Entsafter

Labeled diagram of a blender with numbered parts for identification

3 HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT ON OFF + SOGO®

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Before using it, put this machine on a stable and even table board, operate according to the instructions given in this booklet.
4. Before juicing, firs confirm that juicing net and rotor clutch are put in position, and there should be no hard contact between juicing net cutter and transparent cover. Put the transparent cover on, fasten tight the handle, then turn on the machine.
5. Before being used, when the motor works in running-in phase, there may be a slight peculiar smell and sparks. This is normal. After the motor works for some period, the above phenomenon will disappear.
6. During juicing, make sure there is not too full juice and residue in the middle part of the juicing container and the residues container. If too full in these containers, please cut off power supply, clean up, then use again.

7. During the usage, do not open the cup cover. In case power supply is on, do not put hand or any ware into the mixing cup or feed port, otherwise, harmful accident may occur or this machine may be damaged.

8. In order to prolong service life of this machine, over-temperature protective device is mounted in the motor. If the motor works for a long time or overloaded, when reach over warning temperature, power supply will automatically cut off. After the motor stops, pull out plug of power supply, wait for the motor to cool (about for 30 min), and then use it again.

9. During operating, please do not leave the machine unattended. Never allow children to operate this appliance.

10. When this appliance is doing the work of mixing, mincing or grinding, leaving the main juicing container empty or otherwise over loaded are both strictly prohibited.

11. After the operation, do not pour the food out until the power supply plug is pulled out.

12. The cutters are very sharp. In order to avoid danger, when cleaning a cutter, please put the cutter under water tap for washing, do not wash it with hand.

13. This machine must not be used for other than its intended purpose.

14. This appliance should be used for domestic use only.

15. If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualify persons in order to avoid a hazard.

16. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

3. Do not use this appliance with a programmer, counter or another device which can automatically turn it on.

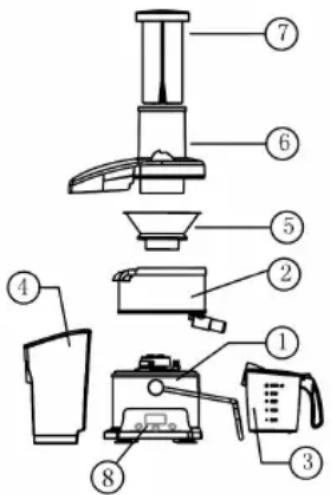

PARTS DIAGRAM NAME AND POSITION OF MAIN COMPONENTS

Labeled diagram of a blender with numbered parts for identification

1. Motor base
2. Juice tray
3. Juice cup
4. Pulp container
5. S/S filter
6. Juice tray cover
7. Pusher
8. Touch Controls

PRODUCT FEATURES

• Extracts juice of fruits and vegetables such as apples, carrots, pears, etc
- 2L pulp container and jug with lid 0.8L for juice
- Keeps the juice separated from the pulp and provides healthy drinks
- Powerful 800W motor and five speed selector to effectively extract the juice from both soft or hard fruits or vegetables
- The feeding tube 80mm allows you to place whole fruits and vegetables with ease
- Allows you to remove dishwasher safe parts for easy cleaning
- Stainless Steel body
- Provides a more durable and long term use
• Voltage / Frequency/Consumption: 220-240V\~ 50/60Hz, 800W
- For the juicer with large diameter, entire apple or pear can be put in for juicing, no cutting apart needed, easy and quick.
- Design is modern, simple, and elegant, with combined structure, easy to operate and clean.
- High speed electric motor with overheating protection is adopted, high efficiency, time saving, energy saving, high service life of the motor.
- Safety lock unit for switching is specially designed, in order to make sure safety and reliability in use.

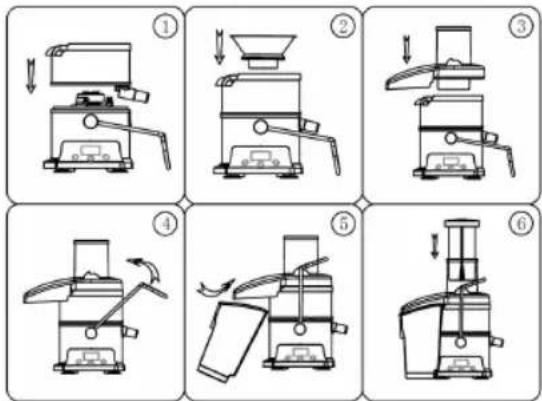

INSTALL THE MACHINE

1. Place the juice tray on the motor base
2. Place the filter on the base unit and press it firmly. Note: be careful of the blade net when taking the filter
3. Fix the cover on the juice tray
4. Lock the handle and lock it on the cover
5. Put the pulp container under the cover
6. Put the pusher down into the feed tube

TOUCH CONTROL

HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT SOGO ON OFF ±

This machine has a touch panel. It has three options:

a) Power on: To switch on the juicer
b) Select mode:

1) Soft Fruit: Grapes, Kiwi, Orange etc
2) Soft Veg: Tomato, Spinach etc
3) Med Fruit: Banana, Mango, Nectarine etc
4) Hard Fruit: Pomegranate, Apple, Pineapple etc
5) Hard Veg: Carrot, Beetroot etc

c) On/off: To start or stop Juicing

Touch the power On button to switch on the machine. Select from the 5 modes as per the requirement. Insert the fruits / vegetable in the feeding tube. Touch the On/Off button to start the juicing and press it again once the juicing is done.

MAINTENANCE AND CLEANING

1. This machine shall be used often, hence keep the motor and other operating parts dry and clean.
2. If not using the appliance for a long time, store it in a dry and well ventilated place so as to prevent the motor from becoming humid and moldy.
3. Turn the power OFF and unplug the appliance before cleaning.
4. Dissemble the appliance. Note: lift off the juicer tray base with the stainless steel filter inside, then, turn the juice tray upside down and remove the filter carefully.
5. All detachable parts can be washed by dishwashing machine except the motor base.
6. Wipe the motor base with a damp sponge cloth.

SPECIFICATION

Model: SS-5160

Voltage / Frequency: 220-240V\~50/60Hz

Power Consumption: 800W

This instruction manual can also be downloaded from our website www.sogo.es

Suggested Recipes for fruit and vegetable juices:

JUICE OF APPLE WITH CARROT

Ingredients:

3 Big Apples (Wash them and remove the stem)

1 Carrot (wash, peel and cut the stem)

Preparation:

1 Once we washed the apples introduce into the juice extractor and extract the juice. (We can mix between red and green apples for best flavor
2 Then we pass the carrot through the juice extractor
3 Mix well both the juices, serve and drink immediately
4 Optionally you can spice up with a sprig of mint or a piece of ginger

PAPAYA JUICE

Ingredients:

1 Large and ripe Papaya (peeled and seeded).

Preparation:

1 With the de-seeding of papaya cut them up into smaller pieces and introduce them into the juice extractor
2 Serve in a glass and take away

GRAPE JUICE

Ingredients:

1 A bunch of Grapes white, black or red (washed and without stems)

Preparation:

1 PIs introduce the washed grapes into the juice extractor to extract the juice
2 Serve fresh and drink

FRESH TOMATO JUICE

Ingredients:

1 kilo of fresh and ripe tomatoes Some stalks of celery

Preparation:

1 We pass the tomatoes and celery through the juice extractor
2 Mix the juices in a bowl and season it with some salt and pepper to taste
3 Serve and drink

WATERMELON JUICE

Ingredients and Preparation:

1 Cut the watermelon to taste taking out the outer skin and seeds
2 Cut into pieces of sufficient size to enter into your juice extractor
3 Once passed through the extractor, serve and drink

CARROT AND CELERY JUICE

Ingredients:

4 Large carrots (wash, peel and cut the stem)

1 Large stalk celery with leaves (wash)

Preparation:

1 Once all the ingredients are thoroughly washed, cut the carrots and pass it through the juice extractor. Then do the same with the celery
2 Serve and drink immediately to take all your vitamins

CARROT JUICE, APPLE, ORANGE AND TOMATO

Ingredients:

1 Carrot
1 Apple
1 Tomato
1 Orange

Preparation:

Wash apples, peel the carrot and go through the extraction of juice, grate the tomato pulp and strain it to get the juice. Mix all the juices and add the squeezed orange juice to it and stir it again. Serve cold and drink it right away to take advantage of all the healthy properties of this juice
