Product type	Electric chopper/grinder
Brand	Sogo
Model	SS-5266
Power supply	220-240 V ~ 50/60 Hz, 500 W
Bowl capacity	3 liters (stainless steel 304)
Number of blades	6 stainless steel blades
Speeds	2 speeds (I: low, II: high)
Display	Digital (operating time)
Main functions	Chop meat, vegetables, dried fruits; blend
Safety	Safety lock if bowl is mispositioned; overload protection; automatic shutdown in case of overheating
Included accessories	Stainless steel bowl 3L, lid, blade set, non-slip mat
Care and cleaning	Bowl, lid and blades washable with soapy water (not dishwasher); motor unit wiped with a damp cloth
Maximum continuous use time	40 seconds, then 2-minute break (after 3 cycles, 15-minute break)
Approximate dimensions (L x W x H)	25 x 20 x 30 cm (estimate)
Approximate weight	2.5 kg (estimate)
Warranty	Legal warranty + after-sales service (www.sogosat.com)

Frequently Asked Questions - SS-5266 Sogo

What is the maximum capacity for chopping meat?

The maximum capacity is 800 g of meat (pork or beef) per batch. Cut the meat into 1 to 2 cm pieces and remove tendons, bones, and skin.

Can I chop ice cubes or coffee beans?

No, this appliance is not designed for very hard foods such as ice cubes, coffee beans, spices, or chocolate. This could damage the blades.

How long can I use the appliance continuously?

Do not exceed 40 seconds of continuous use. Let it rest for 2 minutes between cycles. After 3 cycles, let it rest at least 15 minutes to cool the motor.

How to safely clean the blades?

The blades are very sharp. Wear gloves when disassembling. Wash them with soapy water using a sponge, never in the dishwasher. Always hold by the central axis to avoid cuts.

Can I wash the motor unit with water?

No, the motor unit should never be immersed or rinsed under water. Clean it with a slightly damp soft cloth.

What to do if the appliance does not start?

Check that the top cover is correctly positioned and closed. The appliance has a safety lock: it only works if the bowl and lid are properly installed.

Why does the appliance stop during use?

This may be due to overload or overheating. Unplug the appliance, remove some ingredients and let the motor cool for about 30 minutes before using again.

What is the maximum temperature of liquids I can pour?

Do not pour liquids above 70°C to avoid deformation or leakage of the bowl.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, ensure its electrical specifications are at least equivalent to those of the appliance and place it to avoid tripping hazards.

Where can I find spare parts or get the appliance repaired?

After-sales service is provided by Sogo. Contact www.sogosat.com or by email [e-mail], phone [phone].

USER MANUAL SS-5266 Sogo

EN Instructions for use

FR Mode d'emploi

Download your manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

5. INSTRUCTIONS FOR USE

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

GENERAL PRECAUTIONS

Safety instructions for the user

GENERAL PRECAUTIONS General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors. • Always place the appliance on a flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

Restrictions on use to avoid personal injury

• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Be careful, while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.
• Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its cord out of the reach of children. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not allow children to use the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Instructions to follow when using the appliance

• The appliance cannot be used for blending hard and dry substances, otherwise the blades might get blunt.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to sudden steaming.
• Never remove the lid until the blades have stopped completely.
• This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.

WARNING: The blades are very sharp!

- Avoid contacting moving parts of the appliance while in function.

- Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.

- Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.

- Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.

- Keep hands and utensils out of the container while chopping to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but only when the chopper is not running.

- The unit is equipped with a security function. The unit can only be switched on if the jug is put on the motor base properly. If the unit cannot be switched on, pull the power cable and check the connec-

tion between jug and motor base.

• CAUTION: Do not operate the unit when empty.
• CAUTION: Maximum time of food processing should not exceed 40 sec. of continuous use. In case need to use again, give a pause of 2 minutes. • To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

1. TECHNICAL SPECIFICATIONS

Voltage Frequency Power
AC 220-240V	50-60Hz 500W

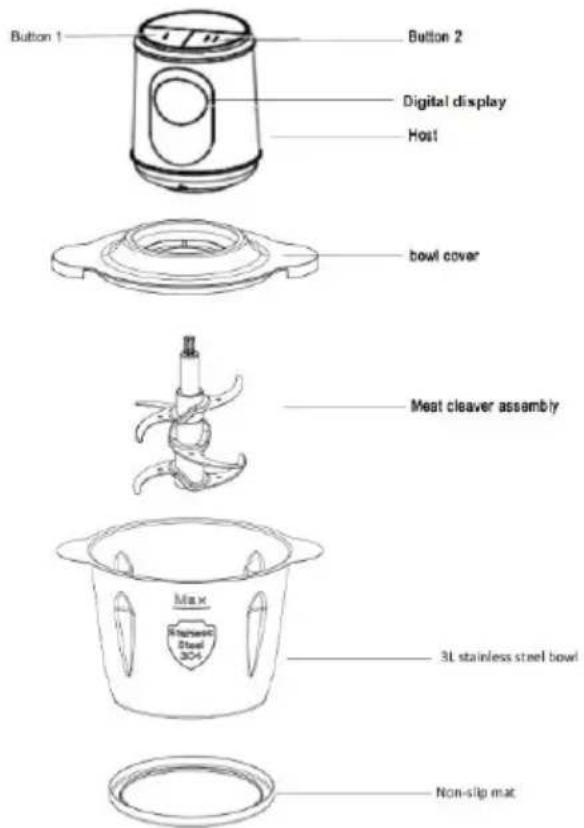

4. DESCRIPTION OF PARTS

1. Speed button I
2. Speed button II
3. Digital display
4. Motor unit
5. Bowl cover
6. Chopping blade assembly (6 blades)
7. 3L stainless steel bowl (304)
8. Non-slip mat

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

1. The blades are covered with a plastic cover to avoid any type of cut injury, so make sure to remove the plastic cover before operating the chopper.
2. Before every single use, clean the bowl, blades, and top cover.
3. Dismount the main motor and top cover and put the ingredients into the bowl.
4. Place the blades in the blade supporter / shaft.
5. Please make sure that the blades are on the blade supporter after filling the bowl with the foods.
6. Place the top cover, and then the motor unit, and make sure they are in correct position.
7. Plug in the switch to the wall outlet and make sure that the plug rating and wall outlet voltage be the same.
8. Hold the motor unit with your hand, press the button to start and release the button to stop functioning of the chopper. Tips: In order to make full use for a long period of the chopper do not use it more than 40 sec. and give 120 sec. rest before to use again.
9. After releasing the switch, do not remove the motor unit immediately. Wait until the blade stops rotating, then unplug from the power outlet and remove the motor unit.
10. The blades are very sharp. To avoid any injury or harm, first remove the blades, then take out the food with the help of a spatula or spoon.

Caution: To avoid deformation or leakage of the bowl, do not pour water or any liquid with a temperature higher than 70°C.

1. Non-slip rubber pad: This unit is equipped with a non-slip rubber pad on the bottom for stability. Make sure to place the bowl on the rubber pad before using the appliance.

Digital display: This unit features a digital display that shows the operating time. It tracks the duration the unit has been in use. However, we recommend using the appliance for a maximum of 40 seconds, followed by a 120-second pause to ensure optimal performance.

OPERATIONAL PROCESS

1. Place the non-slip rubber pad on the bottom of the stainless-steel bowl.
2. Place the stainless-steel bowl on a flat surface.
3. Remove the blade protective sleeve and cover, and place the blade assembly on the blade shaft in the bowl.
4. Add ingredients to the bowl, and pay attention to the processing guide.

- Cut large pieces of food into 1-2 cm pieces.

- Do not chop very hard food, such as coffee beans, ice cubes, spices, or chocolate, otherwise the blade will be damaged.

1. Install the stainless-steel bowl cover on the bowl.
2. Install the motor unit.
3. Plug in the plug and press the speed buttons.
4. This machine can be run with 2 speeds.

I: Low speed: for soft food, press low speed.

II: High speed: for hard food, press high speed.

Speed can be chosen as per choice and requirement.

Note: If the motor runs slowly, remove some ingredients and continue to process them for many times. In case need to stop the motor and let it cool down.

1. Unplug the appliance and remove accessories after use.

Ingredients QTY	Max Processing time	Approx.	Things to remember
Pork 800g Cut into 1 – 2 cm 40s Remove tendon, bones			and skin
Beef 800g Cut into 1 – 2 cm 40s Remove tendon, bones			and skin
Carrot 800g 15s Cut into 2mm size
Celery 350g 20s Remove the skin
Nuts (Almonds) 500g 30-40s Remove the shell

PRECAUTIONS WHILE USING THE CHOPPER

NOTE: To obtain a good result, do not put the meat more than Max. Sign indicated inside the Bowl.

1. Do not connect multiple appliances into a single socket, by connecting so it can produce an electric shock.
2. Please do not use metallic objects to remove the food from the bowl.
3. To avoid any type of risk of electric shock or leakage, always remove the plug from the socket.
4. This appliance cannot be used to process hard food, such as: meat with bones, coffee beans, black pepper, Chinese prickly ash or ice cubes.
5. Before putting the ingredients, make sure that the blades are in the correct position. If the blade does not move quickly within a few seconds, pull out the plug and check whether there is any obstacle. Remove the obstacle if there is any, and in case of extra ingredients, take out the extra ingredients.
6. Blades are very sharp. Please do not touch the blade directly with your hand. Hold from the arbour of the blade while taking it out of the bowl.
7. Never use more than 40 seconds continuously. After using it for 40 seconds, rest about 2 minutes and then start working again. After completing 3 cycles of 40 seconds with a rest of 2 minutes, stop using it for at least 15 minutes. Wait for the motor to cool down and then start working again.

6. CLEANING AND MAINTENANCE

1. After every use, please remove the power cord from the power outlet.
2. In order to avoid any harm or injury from getting cut by the blades, please wear gloves to disassemble.
3. Always assemble the blade with the knife set after cleaning and drying.
4. All accessories can be washed in soapy water or in dishwashing liquid. To protect against scratching the bowl, do not use a metal scraper.
5. Never immerse the motor unit or put it under running water. Simply wipe it with a damp cloth or sponge.
6. If not using for a long time, please store this machine in a dry and well-ventilated place to prevent the motor from getting damp and going mouldy.

Do not clean the motor unit in a dishwasher.

Do not immerse the motor unit in water or any other liquids.

Clean the surface of the motor unit with a soft, damp cloth.

Caution: the blades are very sharp; extreme caution should be taken while cleaning the inside of the bowl.

7. TROUBLESHOOTING

PROBLEM CAUSE SOLUTIONS
The machine does not operate after power on.	The top cover is not placed properly	Put on the top cover and close it firmly.
The machine stops while in use	1. Voltage is too low2. If the motor works for a long time or overloaded, power supply will cut off automatically	1. Check power supply for compliance with rated voltage2. Pull out the plug from power outlet, wait until the motor cool down (About for 30 min) to before use again
There is smell at the first use	It is quite normal for any appliance to emit some smell in the first use.	If the smell persists after few uses, send the appliance to the authorized service center for revision.
The machine is unusually vibrating or noisy	1. The blades are not placed properly.2. The machine is not on to the stable place.3. Voltage is too high.4. The ingredients quantity exceeds the max filling level.	1. Take out all the ingredients, and place the blade properly.2. Keep the appliance on to stable place3. Make sure the power outlet voltage is same as the appliance voltage.4. Remove the power plug from the power outlet, take out the extra ingredients and start it again.

5. MODE D'EMPLOI

AVANT LA PREMIÈRE UTILISATION

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

1. The blades are covered with a plastic cover to avoid any damage, so remove the plastic cover before using the chopper.
2. Before each use, clean the bowl, the blades, and the top cover.
3. Remove the main motor and top cover, then place the ingredients into the bowl.
4. Insert the blades into the blade holder / shaft.
5. After filling the bowl with food, make sure the blades are on the blade holder.
6. Place the top cover and then the motor unit, ensuring they are in the correct position.
7. Plug the switch into the wall outlet and make sure the voltage of the plug and the wall outlet are the same.
8. Hold the motor unit with your hand, press the start button, and release the button to stop the chopper.

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

1. The blades are covered with a plastic cover to prevent cutting injuries, so be sure to remove the plastic cover before using the chopper.
2. Before each use, clean the bowl, blades, and top cover.
3. Disassemble the main motor and top cover, then place the ingredients into the bowl.
4. Place the blades into the holder/shaft of the blades.
5. Make sure the blades are properly placed on the holder after filling the bowl with food.
6. Place the top cover, then the motor, and check that they are in the correct position.
7. Plug the device into the outlet and check that the rated value of the plug and the voltage in the outlet are the same.
8. Hold the motor unit with your hand, press the start button, and release the button to stop the chopper. Tip: To ensure long-term use of the chopper, do not use it for more than 40 seconds and give it a rest of 120 seconds before using it again.
9. After releasing the switch, do not immediately remove the motor unit. Wait until the blades have completely stopped, then unplug the device from the outlet and remove the motor.
10. The blades are very sharp. To avoid any injuries, first remove the blades, then take out the food with the help of a spatula or spoon.

Warning: To avoid deformation or leakage from the bowl, do not pour water or any liquid with a temperature higher than 70°C.

1. Anti-slip rubber base: This device is equipped with an anti-slip rubber base for better stability. Before using the device, check that the container is placed on the rubber base.

Digital display: This device has a digital display that shows the operating time. It tracks the duration of use of the device. However, we recommend using the device for a maximum of 40 seconds, with a pause of 120 seconds to ensure optimal performance.

WORKING PROCESS

5. INSTRUCTIONS FOR USE

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

5. INSTRUCTIONS FOR USE

BEFORE FIRST USE

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
