USER MANUAL SS-3225 Sogo

Exterior view of a gray SOGO hair dryer with purple and pink modules (no text or symbols visible)

SECADOR DE PELO HAIR DRYER SECHE CHEVEUX SECADOR DE CABELO HAARTROCKNER ASCIUGACAPELLI

Caution: please read and preserve these important instructions This manual can be downloaded from our website, www.sogo.es in the following languages. SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

ÍNDICE

1. Important Note P. 15
2. Symbol definition P. 15
3. Safety instructions for the user P. 15

I. General precautions during the use of electrical equipment P. 15
II. Restrictions on use to avoid personal injury P. 16
III. Product use restrictions due to poor condition or breakdown P. 17
IV. Restrictions on use when used with children and elders P. 17
V. IMPORTANT WARNING P. 18
VI. Instructions to follow when using the device P. 19

1. Technical specification P. 21
2. Parts description P. 21
3. Instructions for use P. 22
4. Cleaning and maintenance P. 23
5. Declaration of conformity P. 66
6. Responsibility for disposal, details of the manufacturer and after-sales service P. 67

ÍNDICE

• Hair dryer equipped with Ionic hair drying technology to make the dryer more efficient, powerful, quiet and lightweight. One of the best hair drying technology known to be best for thicker, dry and frizzy hair
  • Equipped with High Speed JETFLOW TECHNOLOGY for quick hair drying experience
• Included professional Magnetic concentrator and magnetic diffusor, to hair dry different kind of hairs with an ease and just by changing the accessories. Diffusers for the perfect curl and concentrators for natural straightening like never before.
• Stylish hanging up hook and to keep your hair dryer always within your reach
• Tripe layered heat protection design to avoid appliance damage and user security
• Automated temperature controller system (PID Controller) to regulate temperature as per atmospheric conditions
• Accessories: 1 Magnetic Nozzle; 1 Magnetic Concentrator, and 1 bag
  • Digital LED light Display
  • 2 Speed settings
• Multiple styler hair dryer with 4-temperature setting: Cool, 60^ ; 80^ ; 100^ C

FRA

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

Two identical illustrations of a hairdryer with labeled ports (S and N), showing internal structure and insertion point (no text or symbols beyond labels)

6. INSTRUCCIONES DE USO

Electric hair dryer with fan blades radiating outward (no text or symbols visible)

Mechanical assembly diagram showing a shaft, housing, and turbine blade components (no text or labels)

Illustration showing a sequence of hair styling techniques with labeled dimensions: 10 cm, 3 cm, and 1 cm.

7. LIMPIEZA Y MANTENIMIENTO

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definitions

1

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
• Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
- Close supervision is necessary when any appliance is being used by or near children.
- Before cleaning or storing your appliance, always unplug the appliance from the power supply.
- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

II. ⚠️! Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- To avoid electric shock, make sure your hands are dry before plugging or unplugging.

• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️ Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard

- In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

- In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians

IV. Restrictions on use when used with children and elders

• Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Children shall not play with the appliance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep the appliance and its cord out of reach of children less than 8 years.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

V. ⚠️ IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️ Instructions to follow when using the device

• This appliance works with high temperature, therefore during the use always hold it by the handle and use extreme caution.
• Do not use the dryer inside a bathroom, shower, sauna, etc.
• Never use hairspray with the dryer on ionization.
• Keep away the small objects or mini particles away from the dryer, to prevent to be sucked in through the protection grid.
• Do not leave the device exposed to the weather (rain, sun, frost...)
• Do not use while bathing.
• Do not place or store appliance where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• If an appliance falls into water, “unplug it” immediately. Do not reach into the water.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
• Never use while sleeping.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not direct hot air toward eyes or other heat sensitive areas.
• Attachments may be hot during use. Allow them to cool before handling.

• Do not place appliance on any surface while it is operating.

• While using the appliance, keep your hair away from the air inlets.

• This hair dryer if it can be fitted on the wall then it should be fitted away and out of reach of persons who are taking a bath or washing themselves.
• When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off: For additional protection, the installation of a residual current device (RCD) having a rated residual operation current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Danger! Risk of electrocution! Make sure that no objects such as hair clips or hair pins are inserted into the appliance. These can cause a short circuit.
• WARNING: Do not use this appliance near water. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• Nozzle and diffusor are with magnetic. Note: keep away from pacemakers, defibrillators, and all other storage media.
• Do not use while sleeping.
• Do not operate it with voltage converter.
• If you see sparks at the air inlet while using hot air, stop using it, unplug it and clean the dust particle, as it might possible that these dust particles can cause sparking.

• Do not touch air outlet and nozzles as they are hot.

• Clean it every single month and wipe it with dry cloth after:
  drying clothing and textile material.
  drying your pet hair.

• Do not use it when air inlet is damaged.
• When using, attention should be paid to keep the distance between hair and air inlet to keep it more than 10 cm, and to prevent hair suction into the air outlet keep it at distance of more than 6cm with hairs, and avoid covering the air outlet or air inlet with hair or hands.
• Do not use for drying clothes and shoes. Do not use the device continuously for a long time (more than 15 to 30 minutes).

READ ALL INSTRUCTIONS BEFORE USING KEEP AWAY FROM WATER

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
220-240V 1600-1800W 50 – 60Hz

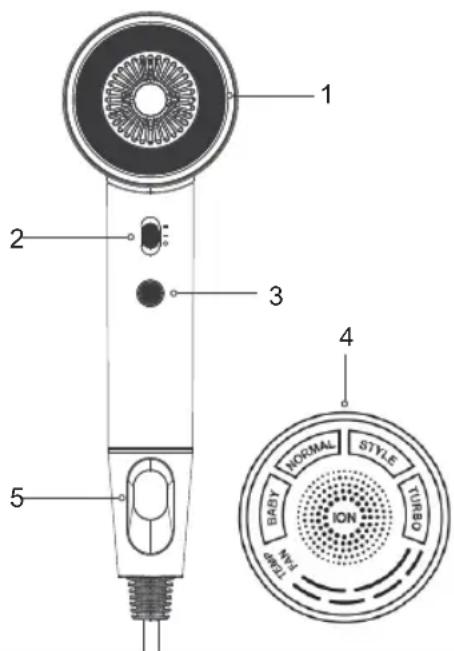

5. PARTS DESCRIPTION

Parts description:

1. Air Outlet: Outlets from where hot air comes out.

2. Power switch
   A. OFF: To turn off the dryer need to bring at this position.
   B. Gentle Wind: To give hairs gentle drying we can use this wind speed.
   C. Strong Wind: To Dry hairs quickly we need to use this wind speed.

3. Panel function button

A. Child or Pet (Cold wind mode 37°C): Because of low temperature, this temperature setting we can use to dry babies and pet hairs.

B. Scalp (Scalp mode 60°C): The person who has scalp problems can use this temperature setting and also this temperature setting we can use to do normal hair drying.

C. Style (Normal and regular temperature mode 80°C): To Give your hair a perfect style we can use this setting.

D. Jet (Quick dry mode 100^ C): To dry the hair quickly we can use this temperature setting.

1. Panel screen

2. Hanging loop

1 2 3 4 5 NORMAL STYLE TURBO BASY ON MINT TURBO

Accessories: 1 Magnetic Diffusor, 1 Magnetic concentrator and 1 Bag.

Magnetic Diffusors and Nozzles: This Hair dryer is equipped with magnetic Diffusors and concentrators, which make very easy to install and uninstall. Not only this but magnetic connection also prevents fall of any accessory. Also with the help of magnetic accessories, we can use them in 360° position rotating them in either way.

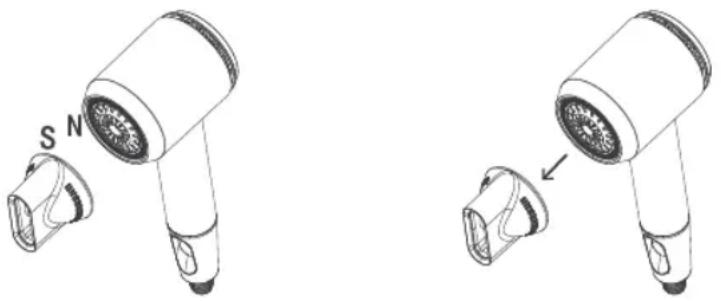

Installation and deinstallation of accessories.

With the magnetic power both of the main accessories can be installed and uninstalled very easily as shown in the pictures given below.

Concentrator Nozzle

This concentrator nozzle, concentrate the air flow and throw directly as we need.

Diffuser

A diffuser gives you more control over your hair. It is kinder and gentler to your hair than conventional blow drying. Diffused heat is perfect for enhancing natural curls and waves or creating some extra volume. Always be careful while using diffusor as it might become hot during use.

Two technical illustrations of a hairdryer with labeled armature (S and N), showing internal components and a close-up view of the handle (no text or symbols beyond labels)

1. INSTRUCTIONS FOR USE

How to use for first time: while using it first time default temperature setting is the lowest one, to change the temperature setting, press the temperature button and select among 4 temperatures setting available. However, when you use it for second time this hair dryer has memory function, so then no need to reset the temperature setting again and again when you use it.

To use it for first time, plug in the wall outlet and make sure the wall outlet voltage is as same as appliance. Bring the power switch on to the Gentle wind or strong wind setting as per your need and then select the temperature.

Note: Make sure to increase the temperature and speed gradually.

Memory function: this hair dryer has memory function, so when you use the hair dryer with certain temperature and settings, and turn it off. So, when you turn it on again to use, then unit will start working with same temperature settings.

Automatic Temperature Controller function (PID Function): This hair dryer is equipped with PID controller function or we can say automatic temperature control function. In this function temperature is being constantly regulated measuring it automatically more than 100 times / second and this prevent to damage user hairs and pores from highly excessive temperatures. Also Inhibit fading of hair colouring.

Hi-Speed Jet flow technology: This hair dryer is equipped with Hi-Speed Multiple Jet flow technology and this technology is based on mixing of multiple types of airs and then throw more warmer and powerful air flow to dry the hairs.

In this technology hair dryer's intake, the air from multiple directions, while passing through the innovative air duct it throws Hot air which comes into the contact with cold flow negative ions and the final air which comes out from hair dryer is warmer and more healthy air.

Electric hair dryer with fan blades radiating outward (no text or symbols visible)

Innovative air duct design: This innovative air duct design is combination of Turbo blades and DC motor, the pressurize turbine blades, increases the air volume by 30% with the help of Powerful DC motor, which generates High Speed and High Pressure air flow and that help in drying of hair quickly without harming.

Mechanical assembly diagram showing a shaft, housing, and housing unit (no text or labels)

Iconic function technology:

This hair dryer has Ionic technology as well, this technology helps you to dry your hair faster than normal hair dryer functioning and even at a lower temperature.

This ionic technology helps you to:

• Nourish Your hair through the ionization process, in which hair dryer emits multiple negative ions and break the water get more coverage in less time with no damage.
  • Fortifies and beautifies the hair from the inside
  • Healthy, shiny and more manageable hair
• Charge ions delivered with warm air, break down water molecules, which are then easily absorbed by your hair.

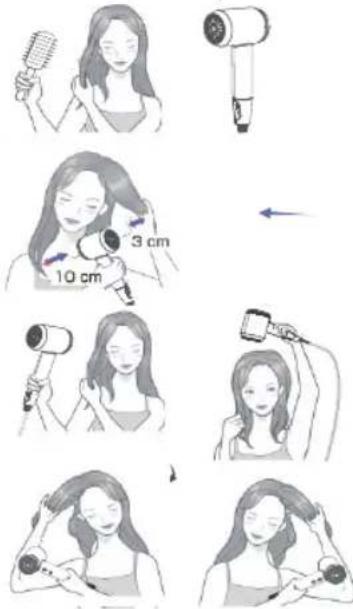

Use of hair dryer:

1. Gently dry the hair with the help of towel.
2. Detangle the hairs with the help of comb.
3. Plug in the dryer into wall outlet.
   Note: Keep air outlets 6 cm and air inlets at least 10 cm away from the hair.
4. Turn it on and select suitable speed and temperature.
   Note: To dry hair quickly, dry them with Jet function.
5. Once the hairs are 70% dry, use cold wind temperature or hot and cold function to dry the hair give them shiny structure.
6. In order to let the warm /cold air, work properly through the hair, dry the right and left side of hair alternatively. Note: Use of Nozzle or concentrator will give you much more better results.
7. Turn off the dryer and remove the plug from wall outlet and let it cool down for little bit, before storing it in a cool and dry place.

7. CLEANING AND MAINTENANCE

1. The back cover and handle filter of hair dryer need to be cleaned regularly and properly to avoid clogging.

2. Make sure to turn it off and let it cool down before cleaning.

3. In case if air outlets have accumulated dust, it can cause sparking,

4. Hot air can be cold or extremely hot.

Note: it is advised to clean it every month.

1. How to clean air outlets: insert the power plug, turn on the dryer and put on hot/cold mode and use a cotton swab to remove the dust and hair from the mesh. Note: while cleaning dust disperse, so make sure to clean it properly, and remove complete dust, before using is again.

Do not close the air outlets with hand while cleaning.

Do not peep into the air outlets while cleaning.

1. Main Body: clean it with dry and damp cloth and wipe it thoroughly.

Note: Do not use nail removers, alcohols or any abrasive agents to clean your hair dryer.

Trouble shooting:

Air outlet	Causes	Solution
Product stopped working suddenly	Temperature control function is turned on.	Turn off the dryer, remove the plug and let it cool down before using it again.
Hot air is extremely hot	There might have dust particles in the air outlet and inlet or it has been blocked by hands or hairs	Clean the air outlet and do not obstruct air inlets and outlets.
Power cord it twisted out of shape	Internal line of power cord is broken	Stop using it and immediately contact to technical service Centre
No power when bending or twisting the cord
No wind
Power plug and cord are extremely hot
There are multiple abnormalities

Illustration showing a woman styling hair with a hairdryer, labeled with dimensions in centimeters.

1. IMPORTANT:

No sign depicting a prohibition symbol for water release, featuring a hand holding a spray above a container (no text present)

Two identical illustrations of a hairdryer with labeled armature (S, N) and a separate view showing the tip and handle (no text or symbols beyond labels)

6. MODE D'EMPLOI

Electric hair dryer with fan blades radiating outward (no text or symbols visible)

Mechanical assembly diagram showing a shaft, housing, and housing with no visible text or symbols

Technologie ionique

Illustration showing a sequence of hair styling techniques with labeled dimensions: 10 cm, 3 cm, and 5 cm.

7. NETTOYAGE ET ENTRETIEN

Prohibition sign showing a showerhead falling over water with no text or symbols

4. ESPECIFICAÇÕES TÉCNICAS

Two identical illustrations of a handheld device with a compass and labeled parts, shown from different angles (no text or symbols present)

6. INSTRUÇÕES DE USO

Illustration of a hair dryer with airflow lines (no text or symbols)

Mechanical assembly diagram showing a shaft, housing, and housing unit (no text or labels)

Illustration showing hair styling technique with a girl holding a brush and a hairdryer, labeled with dimensions 10 cm and 3 cm.

Illustration of a woman holding a hairdryer and a smartphone, both showing her hands (no text or symbols present)

Illustration of a woman performing a hand massage or exercise (no text or symbols present)

Prohibition sign showing a showerhead spraying over water, enclosed in a circle (no text or symbols)

1. TECHNISCHE DATEN

Two technical illustrations of a hairdryer with labeled parts (S, N) and an arrow indicating the tip section (no text or symbols beyond labels)

1. GEBRAUCHSANWEISUNG

Electric hair dryer with fan blades radiating outward (no text or symbols visible)

Mechanical assembly diagram showing a shaft, housing, and housing components (no text or labels)

Ionen-Funktion

Illustration of a woman holding a hairbrush next to a hairdryer (no text or symbols)

Prohibition sign showing a showerhead falling from a pool, no text present

1. SPECIFICHE TECNICHE

Voltaggio Energia Frecuenza
220-240V 1600-1800W 50 – 60Hz

Two technical illustrations of a hairdryer with labeled parts (S, N, and directional arrow), no text or symbols present.

6. ISTRUZIONI PER L'USO

Illustration of a hair dryer with airflow lines (no text or symbols)

Mechanical assembly diagram showing a shaft, housing, and housing unit (no text or labels)

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
