USER MANUAL SS-16930 Sogo

Caution: please read and preserve these important instructions

ATENCIón

Please read these instructions fully before use and preserve them for future reference.

SOPHISTICATED TECHNOLOGY

• The steam cleaner has a special patent for hot and high pressure steam, used for cleaning floors, window and clothes. It can kill the bacteria and remove dust. It has an automatic heating control system to continue producing steam for cleaning. The steam cleaner uses high-pressure pure water without using any chemical product, therefore it is ecological and not polluting.

SAFETY

• This steam cleaner has an automatic safety cut –out for protection against overheating. It operates if the tank is switched on when there is no enough water. It has a central system to keep steam temperature constantly at 130^ C, killing all bacteria at the same time. It is foreseen with an automatic pressure release function.

• When the pressure of the tank is too high, it automatically released. It has also a longer double layer insulated cable, which can prevent the product from water and dust.

DURABLE USAGE

• The steam cleaner is made of aluminium metal, with extreme sick inside pipe. This feature makes the steam cleaner safer. The external part is made of high quality PP material and this makes the product to be resistant and to have a long endurance.

SAVING

• The steam cleaner has a special designed heating pipe and provides a balanced, efficient and economic heating energy. The double -layered construction of this product can prevent heating releasing to save energy.

CONVENIENCE

• The steam cleaner is easy to use. Once the plug is switched on, the heating system starts working, and it will reach the right temperature to produce hot steam. The steam cleaner has different accessories for the different use. All the accessories can be connected and removed easily.

SAFETY WARNING STOP WARNING

• Not for outside use. For inside use only.
• The appliance has to be unplugged after using and before cleaning or making any maintenance operation.
• The filling cap must not be opened during use.
• Do not allow children to use it. Pay attention when it is used near children, pets and plants.
• Never spray in the direction of people, animal or equipment containing electrical components, such as the interior part of ovens.
• Use only as described in this manual and only with original accessories

• Do not use with damaged cord or plug. If the steam cleaner doesn't work as it should, has been dropped, damaged, left outdoors, or has fallen into water, let it checked by a service center before using

• Do not pull or carry by cord, use cord as a handle, pull it around sharp edges or corners and keep cord away from heated surfaces.

• Do not use extension cords or outlets with not suitable current carry capacity
• Do not unplug by pulling the cord. To unplug, take the plug, not the cord.
• Do not handle plug or steam cleaner with wet hands or operate without shoes.
• If the supply cord is damaged, it must be replaced by the manufacturer or by its technical service centre or in any case by qualified personnel.
• Do not put any object into openings and do not use it in case of any plugged openings or nozzles.
• Store the steam cleaner inside, in a cool, dry area
• Keep Your work area well lighted
• Keep the appliance always in horizontal position while working and never turn it more than 45 degrees respect to the vertical axis. Never direct steam towards people, animals, plants and equipment with electrical components.
• Do not dip the steam cleaner into water or other liquid. Always unplug the power cord from the electrical socket when fill in the tank.
• Never put descending, aromatic or detergent products into the tank, as this may damage it or make it unsafe for use.
• Metal tips and nozzles will get hot during use. Do not touch their surfaces. Allow them to cool down before replacing them.
• Any maintenance operation, including the replacement of the power cord, has to be carried out by qualified personnel.
• The cover must be tighten while using the

apppliance.

• Do not use it in swimming pools containing water.

• Before filling, proceed as follows: 1. unplug the power supply 2. release pressure by pressing on the pressure button 3. allow steamer to cool down for about 3 minutes. 4. relieve any residual pressure by acting again on the pressure button 5. unscrew slowly the safety cap and wait for 5 seconds before removing it.

1) CAUTION

Do not overfill the tank. It can create unnecessary steam pressure and instead production.

2)DANGER OF SCALDING!

When the tank is under pressure, push the steam button to release pressure before opening.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
• Do not use this appliance with a programmer, counter or another device which can automatically turn it on because it is dangerous.

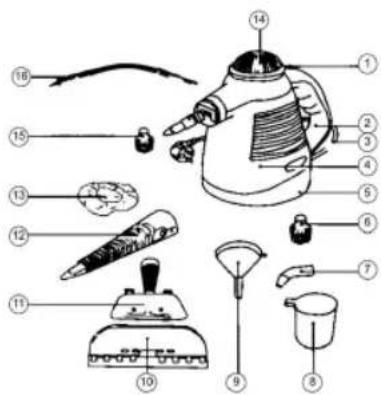

1. Steam Button
2. Handle
3. Cable/plug
4. Tank
5. Electricity indicator light
6. Round brush nozzle
7. Bend nozzle

8. Measuring cup

9. Funnel

10. Flat sprayer

11. Brush sprayer
12. Long nozzle
13. Cotton towel
14. Safety cover
15. Round copper brush
    sprayer
16. Flexible long hose

SETTING

1. Open the packaging
2. Read carefully the instructions manual
3. Check all components of the machine

TECHNICAL SPECIFICATION

Rated voltage/Frequency: 220 - 240V 50 / 60Hz
Alternate current with cable connected with ground. Rated electric current more than 10A
Tank capacity: 450 ml (max)
Rated water capacity: 150-270 ml
Rated power: 900 W
Steam pressure: 0.2-3.5 bar
Steam flow: 28g/min
Temperature: 130^
Fuse switch: 172^
Net weight: 2,4 Kg
Package dimension: 290 × 155 × 230 mm

WIRING DIAGRAM

FUNCTIONS

Sterilization and anti bacteria function

Insert the long sprayer and aim it at the area to be cleaned; push the steam button to remove bacteria.

Clothes cleaning function

Insert the brush sprayer, the towel, aim it at the clothes; push on the steam button and move the

steam cleaner to remove dust from clothes.

Window cleaning function

Insert the brush and the flat sprayer, aim at the window, press the steam button, move the cleaner to clean the window.

Floor cleaning function

Insert the long brush sprayer and the bent or round brush sprayer, aim at the firepress the steam button to remove dirty on the floor.

WORKING OPERATIONS

1. Open the package, check all parts and make sure no component is missing in the package.
2. Please, read the manual carefully before using the appliance. This item is only for inside use.
   3.Put the steam cleaner on the table.Push down the safety cap (f) turn it counter-clockwise in order to take it off, keep the funnel
   4.Use the measuring cup to filthe tank (150ml-270ml = about one and a half cup), put back the safety cover and screw it firmly.
3. Check the electricity and the plug and make sure they match the requirements as described in the manual, then insert the plug.
   6.Wait for the water to heat up for about 4 minutes. Press the steam button slightly to see if the steam start to release.
4. Release the button, insert the accessories according to the different use.
5. Press the steam button again and start cleaning.

push
FIG.6

turn it
counter clockwise
FIG7

ACCESSIONS CONNECTION

Brush sprayer connection

• Insert the brush sprayer to the body, follow the arrow to screw the sprayer in a clockwise way. To remove the sprayer act on the opposite way. Proceed as indicated in Fig. 1 and Fig. 2 in order to assemble the extension (12) to all available accessories

Round or bent sprayer connection Insert the round or bent sprayer to the short sprayer directly. Follow the instructions as showed in fig.3 Adjust the direction of the sprayer.

Flat sprayer connection
Insert the brush sprayer to the short sprayer.
Follow the instructions as showed in fig and 5 about the brush sprayer

Same pattern can be followed to attach rest of the accessories.

WATER ADDING

1. Remove the plug ; cut off electricity
2. Press the steam button to release the pressure until no steam comes out
3. Open slightly the safety cover, release the remaining steam, place the steamer in a cool place for 5 minutes, open the safety cap completely.
4. Use the funnel and measuring cup to add some cool or warm water.
5. Put back the safety cover and screw it tight.

AFTER USE

1. Remove the plug, cut off the electricity
2. Press the steam button to release the remaining steam.
3. Open slightly the safety cover, release the remaining steam, place the steamer in a cool place for 5 minutes, open the safety cap completely.
4. Empty the tank from the remaining water, clean the surface of the steam cleaner.
5. Put back the safety cover and screw it tight.

Note

1. The switch light will be ON when the power is ON.
2. Please, screw the safety cap firmly.

CARE AND CLEANING

Surface cleaning
Switch off the electricity and unplug from the outlet before cleaning.
Wipe the cleaner with a soft, damp cloth with mild detergent, then clean it with a dry cloth.
Do not use other chemical products and keep the surface dry.
Tank cleaning
Switch off the electricity and unplug from the outlet before cleaning.
Clean the tank every 3 months.
Remove the safety cover. Fill the tank up to the maximum level with clear water; risen the inside of the tank and pour the water out. Repeat this operation 2-3 times. The tank will be cleaned.

Note

Do not add any other chemical liquid to the water for cleaning.

Parts cleaning

Wash all parts after using, put them into the box and keep it cool and dry.

ATTENTION:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain Product made in P.R.C. -Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
