USER MANUAL PLASS6335 Sogo

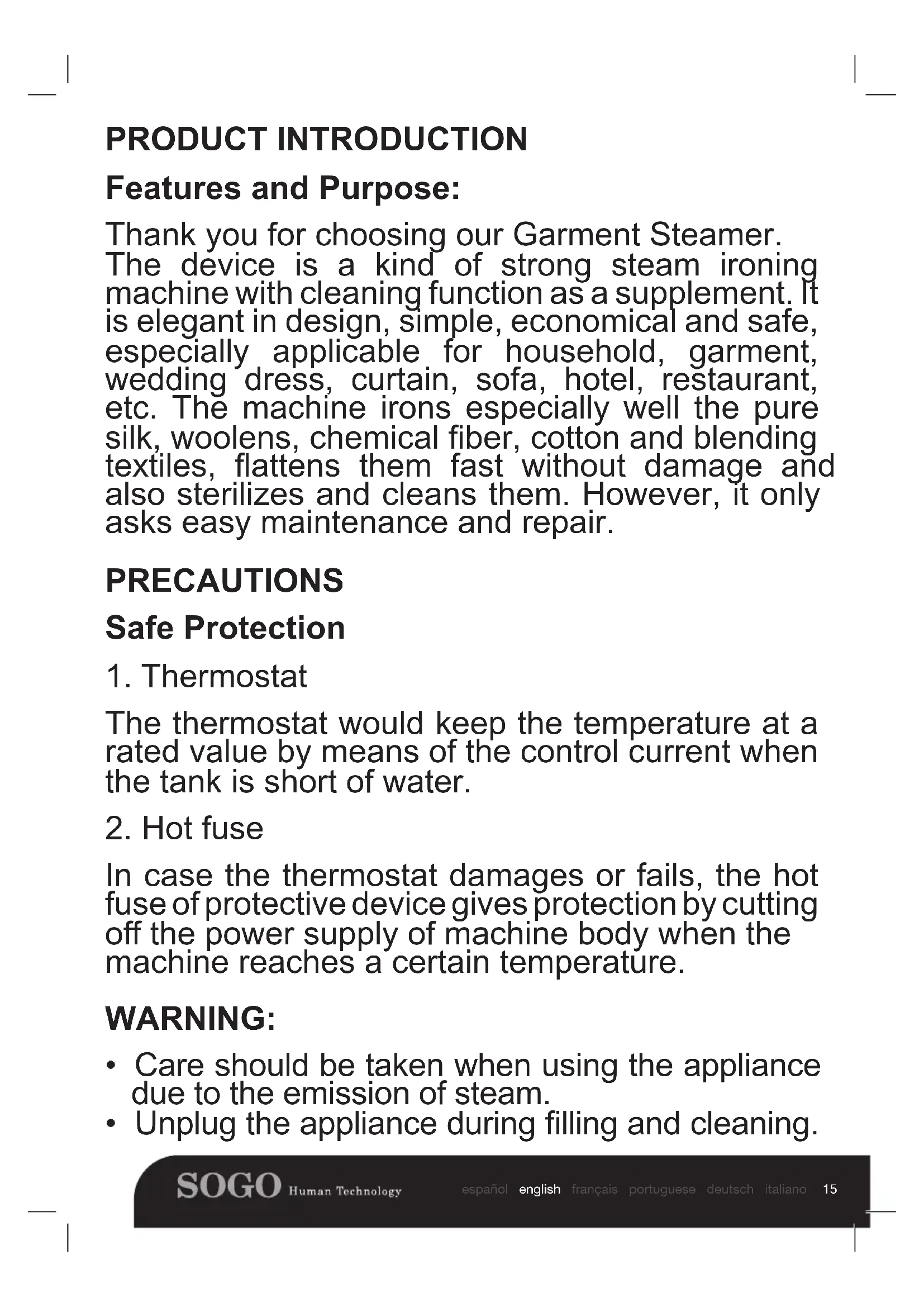

The thermostat would keep the temperature at a rated value by means of the control current when the tank is short of water.

In case the thermostat damages or fails, the hot fuse of protective device gives protection by cutting o󰀨 the power supply of machine body when the machine reaches a certain temperature.

• Care should be taken when using the appliance due to the emission of steam.

• Unplug the appliance during lling and cleaning.16 español english français portuguese deutsch italiano

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not eject the steam directly towards people or animal, or scald may be caused.

• Only use the detachable accessories when there is no steam and they are cooled down to avoid scalds.

• Conduct the installation in accordance with the instructions. Do not dismantle without authorization.

• The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens. NOTICES

• Do not operate the machine unless you read this manual thoroughly. The machine can only be used indoors.17 español english français portuguese deutsch italiano

• The machine can only be used for the purposes described in this manual. Utilization for other purposes is prohibited.

• The water for the machine shall be domestic potable water to avoid contaminating the textiles. Puried water is recommended.

• Make sure the working voltage of the machine accords with your domestic supply voltage and the machine is connected to power supply mounted with 30mA creepage protection switch. Only the rmly grounded 3-pole socket is applicable for the machine. The rated current shall be not less than 15A.

• Thoroughly stretch the power cords before use. Avoid sharing the same power supply with other high-power electric appliances. Do not use wiring board in order to prevent res arising from the wiring board overloaded.

• Before operation, connect all the necessary ironing or cleaning accessories, ll the outer tank to full and then turn on the power supply switch.

• Thoroughly stretch the expansion link to ensure that the steam hose is unobstructed and untwisted and other functions perform well.

• The machine shall be put on a at and stable place.

• Do not ll hot water in the tank, or the tank would deform. Fill water before operation and observe the water level from time to time. Add water to proper volume in case it is below the designed water level.

• Do not directly put the machine under water tap to ll water.

• Do not ll solutions such as detergent into the tank.

• Keep power cords and steam pipes from metals or other heating elements.

• Do not leave the machine operating without attention.18 español english français portuguese deutsch italiano

• The machine shall not be operated by these people (including children): the physically, tactilely or mentally disabled or those who lack of experience and knowledge, unless they are supervised or guided by someone who is responsible for their safety in respect of the application of the machine.

• Children shall be monitored to be prevented from playing with the machine.

• During operation, keep the ironing brush away from people, animal or domestic electric appliance. When the machine is not in use, turn o󰀨 the steam jet switch and put the ironing brush on the support to avoid steam hurting people or damage things.

• During operation, do not touch the steam jet outlet and steam conduit of the ironing brush or drag the power cords.

• Do not put on oor or distort the steam conduit, or accidents may be caused by the steam jammed in the steam conduit when it is squeezed.

• Do not drag the steam conduit by force or to move the machine, or the steam conduit may be damaged or steam may leak.

• Do not pull out or plug in the steam conduit when the machine is still hot but only when the machine is cooled down, thus to avoid scald.

• If the ironing brush falls, has visible damage or is leaking, stop using it.

• To avoid scald by steam, after operation, turn o󰀨 the power supply, pull out the plug and, when the machine is cooled down, pour out the remnant water, and then have the machine packed and stored. However, let the machine air dried before packing and storage. Do not pull put the plug by dragging the power cord.19 español english français portuguese deutsch italiano

• Use dry soft cloth and neutral detergent to clean the machine surface and do not use solvents such as gasoline, alcohol, banana oil, etc. Prevent liquids penetrating into the machine.

• Do not soak the machine, power cord or plug in water or other solutions. Do not keep the machine in places which are damp, exposed or of corrosive gases.

• Keep the machine away from ammable or explosive objects.

• Please clean the lter sieve at regular intervals to keep it available. The machine shall be cleaned or maintained from time to time (every 1 month or 20L water is consumed). (See the following sections for the cleaning and maintenance)

• Push the support pole to move the machine. Do not move the machine by force when it is tough to be moved. Discharge the water before checking the wheels. Turn o󰀨 the power supply and pull out the plug before moving the machine.

• Turn o󰀨 the power supply and pull out the plug before discharging water from or lling water in the tank. Avoid water leakage. Do not open or take down the tank in use.

• If nd any damage on the accessories especially the safe protection and power cord, stop using the machine and inform our professional personnel of service center for repair. Do not repair at your own discretion.

• Before cleaning or repairing the machine, turn o󰀨 the power supply, pull out the plug, release the pressure inside the heating element of the base and let the machine cool down.20 español english français portuguese deutsch italiano Do abide by the following for the safety of yourself and others. Notices Plug the power plug in thoroughly to avoid electric shock, as well as open circuit, short circuit, smoking and ammation caused by over-heat of plug. Use the socket with rated voltage of 220V-240V separately from other electric appliances, otherwise, re may occur due to heat. No watering: danger of short circuit and electric shock. Do not pull or plug the plug with wet hand in respect of electric shock. Do not use broken or loose socket in respect of electric shock, short circuit and ammation Keep away from the steam hole to avoid burn. Do not intend to ret, remove or repair the product in respect of re, electric shock or other injuries. Keep it away from the children or others unable to operate. Do not insert the metal needle into heat dissipation hole or clearance in respect of injury caused by electric shock. Remove the dust on power plug at regular intervals, otherwise, re accident may occur due to poor insulation. Do not put the product in water or damp environment or close to other heat sources, and do not put the inner boiler on the naked re. Do not touch the hot part, especially the surface of steam jet of ironing brush during or after the operation. Hold the plug rather than haul the power cord to pull out the power plug. Do use the attached power cord which shall not be used for other equipment. Do not operate on the unstable platform or cushions which could not receive heat in respect of injury or re caused by fallen ironing brush. If not in use, pull the power plug out of the socket to avoid electric shock, creepage and re arising from damages and insulation ageing. Wash the ironing brush after totally cooling down to avoid scald. Do not put it close to wall or furniture in case the steam leads to color change or distortion of which. Keep it over 30cm away from the wall and furniture.21 español english français portuguese deutsch italiano Product View Speed control: : Steam head : Adjustable hanger : Trousers clip : Transfer connector : Steam hose : Telescopic pole : Plastic knob on pole : Connector : Shield sleeve : Power switch : Water tank : Machine body : Power cable : Universal wheels : Drain outlet knob : Water outlet knob Q. Brush I. Trousers clip S. Pants line clip clip T. Glove Product Accessories The product consists of the machine body (including water tank), ironing brush, hanger, small hanger, pants clip, support pole, Trousers clip, Small ironing board and glove.

I. Assembling and mounting the Telescopic Pole. (SEE FIG.1)

1. Loosen the three plastic knobs by moving them outwards from the telescopic pole.

2. Carefully extend the lower, middle and upper part of the pole once the knobs are loosened.

3. Once all the parts are extended, lock them into place by moving the plastic knob inwards.

Note: The Telescopic Pole must be fully extended during operation of SOGO Garment Steamer to ensure a free ow of steam through the Hose. Note: Overextending the pole may cause it to break.

4. Loosen the Pole Base by turning it counterclockwise.

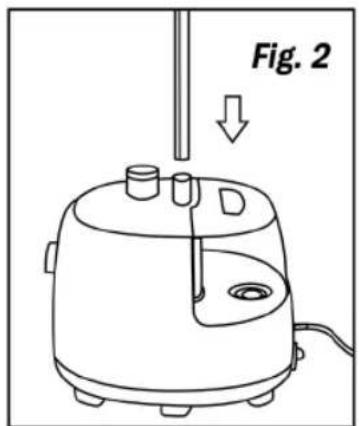

5. Insert the bottom of the Pole into the Pole Base (SEE FIG. 2).

6. Push the Pole down as far as possible.

7. Tighten the Pole Base by turning the ridged knob clockwise.

8. Insert the clothes hanger assembly to the top of the pole & press down until it is stable.

II. Attaching the Hose

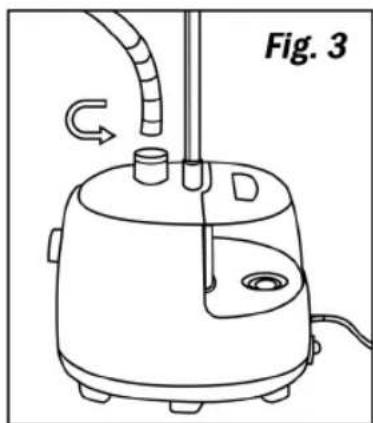

1. Insert Hose onto the Hose Base until the end & turn hose clockwise. (SEE FIG. 3).

2. Hand-tighten only. Do not over-tighten.

3. Hang the Metal Teon Steam Head on the Metal Teon Steam Head Holder.

CAUTION: To prevent steam from causing bodily injury or damage to surfaces, always hang the Metal Teon Steam Head on the Metal Teon Steam Head Holder when not in use. Do not lay the Hose on the oor as condensation may occur, causing unwanted water droplets in the steam. CAUTION: Pulling on the Hose with excessive force will damage it, resulting in a steam leak.

III. Attachments (Upholstery & Lint/Pet Hair Attachment)

1. Turn SOGO Garment Steamer to “OFF” position, and wait until steam no longer emits from the Steam Head.

CAUTION: To avoid burns, do not try to install the attachments while steam is coming from the Metal Teon Steam Head.

2. Align the pegs along the back of the attachments with the holes on the Steam Nozzle.

3. Push as shown in FIGURE 4 until the attachments are rmly in place.

OPERATING INSTRUCTIONS

1. Unplug the Power Cord, and turn the Lighted Switch to the “OFF” position.

2. Remove the Water Tank; turn it upside down and unscrew the Valve Cap

3. Fill the Water Tank with cool water, and screw on the Valve Cap. Make sure it is tight so it prevents water leakage.

4. Place the Water Tank on the Main Unit. You should hear water owing into the Main Unit for a short time.

CAUTION: Do not operate SOGO Garment Steamer with a dry Water Tank. When operating, if you want to add water, rst turn the Switch to “OFF” position before removing the Water Tank to avoid burning yourself.

5. Plug SOGO Garment Steamer into a grounded three-pronged outlet.

WARNING: If a grounded three-pronged outlet is not available, a 3-to-2 prong adapter can be used only if

the adapter itself is properly grounded.23 español english français portuguese deutsch italiano

6. Turn the Switch to “ON” position.

7. Steam should start owing from the Steam Head. Wait for steam to heat su󰀩ciently otherwise you will

create wet spots. Wait at least 30 seconds.

8. To steam a garment, place item of clothing on the hanger and steam directly.

CAUTION: Be careful when handling garments on the Clothes Hanger. Pulling on the garment with too much force may cause SOGO Garment Steamer to tip.

9. Grasp the handle, and place the Steam Head at the top of the garment. Steam will rise along the inside

and outside of the fabric, removing wrinkles. Slowly slide the Steam Head vertically, from the top to the bottom of the garment. You may also reverse this motion and steam from the bottom to the top. Note: Do not allow kinks to form in the hose at any time.

10. Repeat step 9 until the fabric is wrinkle free.

11. Curtains and draperies can be steamed while they are hanging.

Note: a. During steaming, make sure that the hose is fully extended to insure a free ow of steam.

12. When nished using SOGO Garment Steamer, turn the Switch to the “OFF” position.

• Some articles can be steamed better from the underside. This allows the steam to relax the bers of the material, thus removing the wrinkles.

• Pants may be easily steamed by holding them by the cu󰀨.

• When steaming, touch material lightly with the Steam Nozzle and move up and down to remove wrinkles. It is important that the Steam Nozzle makes contact with the garment and/or fabric.

• Always steam with hose in upright position so any condensation is free to ow back into the steamer. If steaming in a low position near oor, frequently extend Hose up and out to keep clear.

• SOGO Garment Steamer helps to eliminate trips to the dry cleaner by helping reduce odors. It will not remove stains from garments.

• Convenient hanger/hook mechanism holds both the clothes and steam head securely.

• Use SOGO Garment Steamer directly on sheets while on the bed to smooth out and remove wrinkles.

• Use SOGO Garment Steamer directly on mattresses and pillow cases to help eliminate dust-mites.

• Use SOGO Garment Steamer directly on upholstery to help refresh and breathe new life into sofas and chairs. Quick Storage

1. Turn the Switch to “OFF”.

2. Unplug the Power Cord.

3. Wrap the Hose around the Telescopic Pole one time.

4. Hang the Steam Head on the Steam Head hanger holder.

5. Loosen the two ridged knobs on the Telescopic Pole by moving them outwards from the Telescopic Pole.

6. Push down on the Pole Top and the Telescopic Pole will collapse to a compact height.

7. Roll SOGO Garment Steamer to a convenient storage location.

Note: It is recommended to drain the water out of the Water Tank after every usage. Cleaning and Long- term Storage We recommend you follow this procedure at least once per month. Use of distilled or de- mineralized water will help to reduce the need for cleaning and prolong the life of SOGO Garment Steamer. However, you can use ordinary tap water as well.

1. Turn the Switch to “OFF”.

2. Unplug SOGO Garment Steamer from the power outlet.

3. Wait for SOGO Garment Steamer to cool completely.

4. Disassemble the Hose and the Telescopic Pole, and set them aside.

5. Remove and drain the Water Tank, rinse the Water Tank with fresh water, and drain completely.

6. Drain the steamer by unscrewing the drain switch and emptying the contents into the sink or tub. Tilt the unit

towards the drain plug to facilitate removal of the water. Then return the drain switch to its original position.

7. Flush the Main Unit by lling the Water Tank with fresh water and draining completely.

8. Follow steps 3-7 of the quick storage section. Cleaning Mineral Deposits One common problem with all

steamers is mineral deposits caused by a high mineral content in many municipal water supplies. Mineral residue inside of the internal pipes and heater can cause intermittent steaming or, in some cases, no steaming at all. Note: To reduce or eliminate the occurrence of mineral deposits, we recommend the use of de-mineralized or distilled water in the Main Unit. However regular tap water can also be used. The section below can be used to reduce mineral deposits. If not using demineralized or distilled water, we24 español english français portuguese deutsch italiano recommend you follow this procedure monthly.

1. Turn SOGO Garment Steamer “OFF” and unplug the power cord.

2. Remove the Hose from the Main Unit.

3. Mix a solution of 50% vinegar and 50% water. Two cups of this solution will be su󰀩cient.

4. Slowly pour the solution into the Water Tank, do not forget to tighten the Valve Cap.

5. Place the Water Tank on the Main Unit. You should hear water owing into the Main Unit for a short time.

6. Allow it to stand for 40 minutes.

7. Drain the solution out from the Water Tank into a sink or tub.

8. Pour clean water in the Main Unit and drain. Repeat this step until the vinegar odor dissipates.

9. Reassemble SOGO Garment Steamer and operate normally.

SOGO Garment Steamer Maintenance Clean and rinse your SOGO Garment Steamer regularly. All steamers need to be cleaned and rinsed on occasion to remove mineral deposits. If steam from SOGO Garment Steamer becomes intermitted or stops altogether please refer to the section on cleaning of mineral deposits. Never use additives. Additives such as salt, perfumes and dyes should never be added to the Water Tank. These substances will corrode or clog internal parts. Steam in a vertical, upright position. Do not use your SOGO Garment Steamer in a horizontal position like an iron. Steam in a vertical up and down motion. This will allow the condensation in the hose to ow back into the Main Unit. Do not pull SOGO Garment Steamer by the power cord. Pulling SOGO Garment Steamer by the power cord may cause the internal wiring to become loose. Never use your foot to turn SOGO Garment Steamer ON/OFF. Damage may occur to the power switch should you turn the unit o󰀨 using excess pressure with your foot. Storing SOGO Garment Steamer. Before storing SOGO Garment Steamer for an extended period (30 days or more), empty all water from the Main Unit. Water becomes stale with time and may clog internal parts. SOGO Garment Steamer Tips & FAQs

• Please ensure that before using SOGO Garment Steamer on a horizontal surface, you shake the hand- held Metal Teon Steam head over the bath tub or basin, especially if you have been using SOGO Garment Steamer beforehand, this will eliminate any possible condensation from saturating the fabric.

• Ensure you empty the Water Tank after every use to maintain your SOGO Garment Steamer and avoid calcium build up.

• We recommend you de-scale your unit at least once every 30 to 60 days or 50 to 75 hours of use. Use a mixture of water and white vinegar (50/50) and allow to soak in the Water Tank overnight. Steam the contents of the entire tank the following morning to ensure any impurities accumulated in the system are eliminated. Rinse after de-scaling to avoid any vinegar odour. Q. Why is the water leaking from the base? A. Ensure the water release valve is securely tightened and that the Main Base is lying horizontal. Some leaking may occur while the unit is on the Shoulder Strap and excessively tipped backward. In that case straighten out the unit and the leaking will stop. CAUTION: For your safety always disconnect the unit from the electrical supply if you notice any water leaking from the unit and wipe it dry before continuing. Q. Why has my SOGO Garment Steamer stopped producing steam? A. Ensure that no “kinks” have developed in the hose cutting o󰀨 the supply of steam. Also refer to the information under Cleaning Mineral Deposits (pg.10). Q. Do I have to use distilled water in my SOGO Garment Steamer? A. While we recommend the use of distilled water to maintain optimum functionality and extend the life of your appliance, tap water can be used in SOGO Garment Steamer. If you have hard water in your area, we strongly recommend the use of distilled water as well as regular maintenance program. (see pg 11 for Cleaning Mineral Deposits) Q. Is SOGO Garment Steamer safe to use on all fabrics? A. SOGO Garment Steamer can safely and gently steam most fabrics. However, we recommend you test a small seam, hem or hidden area of fabric before you steam an entire garment – especially for delicate or vintage fabrics. Q. My new SOGO Garment Steamer had a funny smell when I used it for the rst time. Is that normal? A. Yes, there may be a slight odor emitted during the rst use25 español english français portuguese deutsch italiano

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.
