USER MANUAL SS-10430 Sogo

Exterior view of a modern SOGO rice cooker with digital display and control knobs (no text or symbols on main body)

Freidora Eléctrica Electric Deep Fryer Friteuse électrique Fritadeira eléctrica Friggitrice Elettrica Elektrische Friteuse

Line drawings of two kitchen electric cookers, one open and one closed, with no text or symbols present.

Save these instructions

This instruction manual can also be downloaded from our web page www.sogo.es IMPORTANT!

• Please read the instructions for use and refer to the diagrams of the control/heating element before using the deep fat fryer.
• Check that the voltage stated on the type plate of the deep fat fryer corresponds to the mains voltage.
• Only connect the deep fat fryer to a wall socketoutlet with earthing contact.
• Before using the deep fat fryer for the first time, clean the individual parts thoroughly (see section “cleaning”)
• Never immerse the control/heating element in water and do not clean these parts under running water.
• Ensure that all parts are completely dry before filling the deep fat fryer with oil or liquid fat.
• It is recommended to use frying oil or liquid frying fat. Solid frying fat can also be used. In this case, special care must be taken to ensure that the fat does not spatter and the heating element overheats (see section “Solid frying fat” and “Tips”)
• Never switch on the deep fat fryer if it is not filled with oil or liquid fat.
• Only use oil or fat that does not foam and is suitable for frying. This information is shown on the packaging or label.
• The deep fat fryer must be filled with oil or fat

between the two marks on the inside of he bowl, before switching on the deep fat fryer, always ensure that it is filled with sufficient fat or oil.

- A safety thermal cut-out switches off the deep fat fryer in the event of overheating (see section “Safety”)

• These instructions show the maximum quantities for frying and must not be exceeded (see Table).

- Hot steam is released during frying. Keep a safe distance away from the steam.

- When the deep fat fryer is in use, it must be kept out of the reach of children. Do not allow the cord to hang over the edge of a table or work surface on which the deep fat fryer is standing.

- After use, set the thermostat to the lowest setting (turn the thermostat fully anticlockwise). Disconnect the mains plug and allow the oil or fat to cool down. Do not move the deep fat fryer until it and its contents have cooled down.

- Damaged parts must only be replaced by an authorized customer service center.

- The warranty will be invalidated in the case of unauthorized repairs.

- Please retain these instructions for future reference.

SAFETY Safety thermal cut-out In the event of overheating, the thermal cut-out will switch off the deep fat fryer. This can happen if the deep fat fryer is not filled with sufficient oil or solid frying fat is melted in the

deep fat fryer. In the case of solid fat is melted in the deep fat fryer. In the case of solid fat, the heating element is unable to radiate the produced heat quickly enough. If the safety thermal cut-out switches off the deep fat fryer, proceed as follows:

- Allow the oil or fat to cool down.

- Carefully push in the (reset switch) at the rear of the control element with a small screwdriver. The deep fat fryer is now ready to use again.

Safety switch

The safety switch in the control element ensures that the heating element can only be switch when the control element locks with a click.

Frying with solid fat

We recommend the use of frying oil or liquid frying fat in this deep fat fryer. Solid frying fat can also be used. In order to prevent fat spatter and the deep fat fryer becoming too hot, the following precautions should be taken;

- When using fresh fat, allow the blocks of fat to melt slowly on a moderate heat in a normal frying pan. Carefully pour the melted fat into the deep fat fryer. Plug in the mains plug and switch on the deep fat fryer (see section "frying")

- After, use, store the deep fat fryer with the resolidified fat a room temperature. If the fat is too cold. It can'spatter when reheated! To prevent this happening, poke the solid fat with

a fork several times, take care not to damage the heating element.

- This appliance is for domestic use only. Use as described in this instruction booklet. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Do not use or store the appliance outdoors or commercial purpose.

- Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

- Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

- Do not use this device in the bathroom or near water sources.

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g. stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Do not use the appliance if the cable or plug

is damaged. Should the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Should the appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• Make sure your hands are dry before plug or unplugging.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never use accessories that are not recommended by the manufacturer.
• Do not touch the top and bottom housing of the device. These can become very hot during operation. Use the handle instead.

• Do not cover the appliance with anything.

• The appliance is not intended to be operated by means of an external timer or a separate remote-control system

• Do not toast bread for too long as it may burn and cause a fire. Do not position the device beneath a curtain, wall cabinets or combustible materials.
• The kitchen surface can get hot while operating the device.
• Place the device on a stable and level surface.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

- When this symbol is used, it means "Caution: Hot surfaces"

- Do not put oversized food into the deep fryer. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments

- farm houses

– by clients in hotels, motels and other residential type environments

- bed and breakfast type environments. flatiron is not operating normally. Disconnect from the power supply and have the flatiron serviced by qualified service personnel.

1. The iron must be used and rested on a stable surface.

2. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with appliance.

5. The iron must not be left unattended while it is connected to the supply mains;

6. The plug must be removed from the socked-outlet before the water reservoir is filled with water.

7. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

8. If the supply cord is damaged, it must be replaced by the manufacturer. Its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

3. Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.

2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

More specifically:

DO NOT let children or untrained persons use the appliance without supervision.

NEVER immerse the iron, cable or plug in any

liquid.

DO NOT leave the hot iron touching fabrics or very inflammable surfaces.

DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.

NEVER touch the appliance with wet or damp hands.

DO NOT use the power cord or the appliance in order to pull the plug out of the socket.

DO NOT leave the appliance exposed to the weather (rain, sun, etc.)

DO NOT leave the iron without supervision when it is connected to the power supply.

DO NOT fill the reservoir with water before removing the plug from the socket.

PLEASE NOTE!

Do not use chemical additive, scented substances or decalcifies. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

WARNING: FAILURE TO UNPLUG THE PRODUCT BEFORE CHANGING THE VOLTAGE SELECTION MAY RESULT IN ELECTROCUTION AND POSSIBLY DEATH.

BEFORE USE

First read carefully all instructions before use and retain for later reference.

Before first use, remove the packing materials; tear down the protection films on the lid, outer case (PIs. pay attention to

environment protection!). Then, wash the accessories and the inner pan in warm water. Dry well before use. Make sure that the electrical parts remain dry. The deep fat fryer is equipped with an adjustable thermostat and indicator lamps. The “open” frying system ensures excellent professional results and easy cleaning.

Plug this appliance into an earthed socket only.

This instruction also can get from us after sales service.

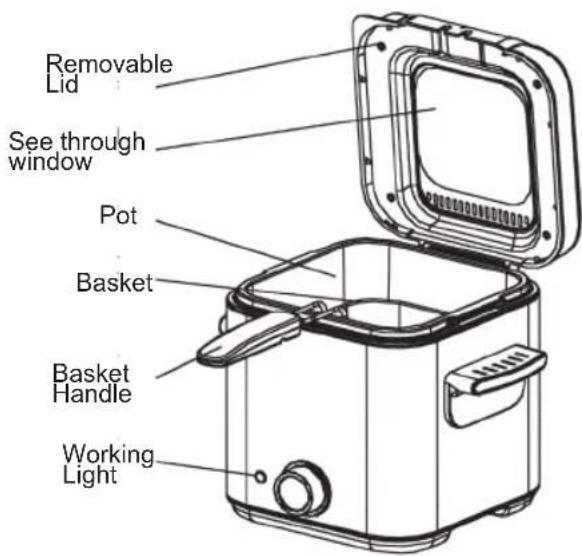

Removable Lid See through window Pot Basket Basket Handle Working Light

This type of fryer may only be used with oil or liquid fat, and is not suitable for use with solid fat. Solid fat may contain water, which can cause hot fat to be sprayed out when heated.

Never switch on the deep fryer without oil or fat, as this could damage the machine. Also, do not place any other liquids such as water or other substances in the pan.

Place the deep fryer on a dry, stable surface. Since the deep fryer becomes hot during use, make sure that it is not too close to other objects.

Remove the lid from the deep fryer and take out the accessories.

Fill the deep fryer with the desired amount of oil or fat. Make sure that it is filled not less than minimum level and not higher than the maximum level as indicated on the inside of the appliance. For best results, we recommend that you do not mix different kinds of oil together.

Choose the temperature, which is suitable for what you are frying. Consult the temperature table.

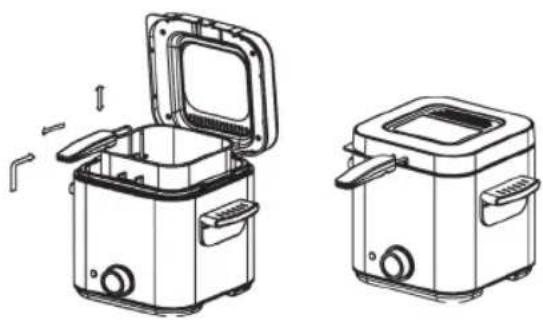

Use the handle to place the basket in the deep fryer.

Place the food to be deep fired into the basket.

For best results, put dry food into the basket.

Lower the basket into the oil slowly to prevent excessive bubbling.

The indicator light will go out when the temperature you have selected has been reached. Always

wait until the selected temperature has been reached. To keep the oil at the selected temperature, the thermostat repeatedly goes on and off, and the indicator light as well.

Raise the basket again when the frying time has elapsed.

Remove the plug from the outlet.

Rinse the handle and the basket after use, and dry thoroughly.

Once the deep fryer has completely cooled off, you can replace the basket in the appliance and store it. Store the deep fryer, with the lid close, in a dark, dry place. In this way, you can leave the oil and the basket in the deep fryer when storing.

Line drawings of two kitchen electric cookers, one open and one closed, with no text or symbols present.

FRYING TIPS

Use a maximum of 200 grams of French fries per liter of oil;

With deepfreeze products, use a maximum of 100 grams because they quickly cool off. Shake deepfreeze products above the sink to remove excess ice.

When using, fries made from fresh potatoes: dry the fries after washing so that no water will go into the oil.

Deep fry the fries in 2 stages. First stage (prefrying): 5 to 10 minutes at 170 degrees °C

Second stage (final frying) 2 to 4 minutes at 190 degrees °C. Drain well.

FRYING TABLE

Type of food Frying temperature (°C)
Pre-fry chips 170
Final fry chips	190
Fondue parmesan	170
Cheese croquettes	170
Meat/fish/potato croquettes	190
Fish	170
Fish sticks	180
Cheese fritters	180
Doughnuts	190
Meat croquettes	190
Meat croquettes	160
Scampi fritters	180180

TO REPLACE THE OIL

Make sure that the deep fryer and the oil have totally cooled off before replacing the oil (remove the plug from the socket!). Replace the oil regularly. This is definitely necessary if the oil becomes dark, or takes on a different odor. In any case, replace the oil once after every 10 times' usage. Replace the oil all at once; do no mix old and new oil. Discarded oil is a burden to the environment. Do not throw in the normal rubbish bin, but follow the guidelines of the municipal waste collector in your area.

electrical parts, may be cleaned in warm soapy water. Dry thoroughly before use.

- Dishwasher cleaning is not recommended.

TECHNICAL DATA

Model: SS-10430

Voltage / Frequency: 230V \~ 50-60Hz

Power Consumption: 900W

Capacity: 1.5L

CLEANING AND MAINTENANCE

• Clean the deep fryer on both the inside and outside regularly.
• Clean the outside of the deep fryer with a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• Never use abrasive cleaners or sponges.
• The basket and the handle can be cleaned in warm, soapy water. Dry well before using again.
• When replacing the oil, you can also clean the inside of the deep fryer. Empty the deep fryer and first clean the inside with a paper towel and then with a cloth dipped in soapy water. Then wipe with a damp cloth and allow to dry thoroughly.
• All components, with the exception of the

CONSIGNES DE SÉCURITÉ IMPORTANTES

Line drawings of two kitchen electric cookers, one open and one closed, with no text or symbols present.

CONSEILS DE CUISSON

Line drawings of two electric food cookers, one open and one closed, with no text or symbols present.

DICAS DE FRITURA

Line drawings of two kitchen electric cookers, one open and one closed, with no text or symbols present.

Line drawings of two electric food cookers, one open and one closed, showing internal components and heat dissipation (no text or symbols)

FRITTIEREN TIPS

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
