USER MANUAL SS-16006 Sogo

Black SOGO vacuum cleaner device with handle and control buttons (no visible text or symbols beyond brand name)

Mini Aspirador de Mano y Soplador Mini Handheld Vacuum cleaner and Blower Mini Aspirateur à main et le Souffleur Mini Aspirador de pó portátil e Soprador Mini Handstaubsauger und Gebläse Mini aspirapolvere manuale con funzione di ventilatore

Illustration of a hand holding a small object with a curved handle, no text or symbols present

Two hand-drawn illustrations showing a person performing a manual task with a curved arrow indicating rotation (no text or symbols)

Illustration of a medical device with multiple inserted tubes and a separate labeled device (no text or symbols present)

Line drawings of a hand holding a device with a bulb and handle (no text or symbols)

Simple line drawing of a stylized animal head with curved arrows indicating rotation or motion (no text or symbols)

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definition

1

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
4- Warning against hot surfaces
5- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.

• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames
• Do not leave the power cord hanging from sharp edges and keep away from hot objects

and flames. Do not wind the cord around the appliance and do not bend it.

• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III.

Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floo, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons i

order to avoid Hazard.

• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians

IV. ▲! Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children shall not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand
• Keep the appliance and its cord out of reach of children less than 8 years.

V. ⚠️ IMPORTANT WARNING

- To avoid a circuit overload when using this product, do not operate another high-wattage

product on the same electrical circuit.

• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. ⚠️! Instructions to follow while using the device

• Never use this unit near bathtub, shower, wash hand basins or other containers with water.
• Caution! Do not allow small children to play with the foil: THERE IS A DANGER OF SUFFOCATION!
• Never use any other connector than the one provided.
• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.
• Never wind the cord around the appliance and do not bend it.
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This device, designed for home use, complies with standards relating to this type of product.

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.

• Make sure to unplug the appliance before cleaning the rotating brushes, trash cans or filters

• It may cause a fire and injury to person if the cleaner vacuums the following items:

A. Heat source: coal fire, cigarette butt
B. Big Sharp Shard - Broken Glass Piece
C. Liquid: hazardous article (solvent, corrosive), acid agent, cleaner and water.
D. Flammable and explosive goods: gasoline and alcohol products.
E. Construction and cement waste

- This vacuum cleaner can only be used for dry purposes. Water, liquid and other wet objects must not be absorbed by the product. Do not spray or spill liquid on the vacuum cleaner. If that happens, the risk of electric shock will increase.

• Please keep the air outlet of appliance away from hair, loose clothing, fingers or other parts. Do not use suction tube, tube extension handles or other tool point at the eyes, ears or put in the mouth.
• If large pieces of paper, paper balls, plastic sheets or sharp objects are found, and anything that is thicker than a straw, please remove them in advance in case that the suction tube is blocked to affect the use of the product.
• Please stop using it at once when the electric leakage or high motor temperature and abnormal sound are found. For example, high temperature in a machine body part, abnormal

sound and smell, weak suction.

• Please check the dust cup regularly, if the dust cup is full, please clean it in time.
• Keep the air outlet unblocked to avoid loss of suction power, motor heating that may lead to the reduction of vacuum cleaner service life.
• Please check the aluminium alloy tube regularly in order to prevent the blockage, if there is a blockage, please clean it up in time to avoid the reduction of suction and affect the performance of appliance.
• Use extra care when cleaning on stairs.
• Keep end of hose, wand and other openings away from your face and body.
• Do not use the appliance without the dust cup or the filter in place

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean the appliance.

4. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency Sound Level
230V 800W		50Hz	<75dB

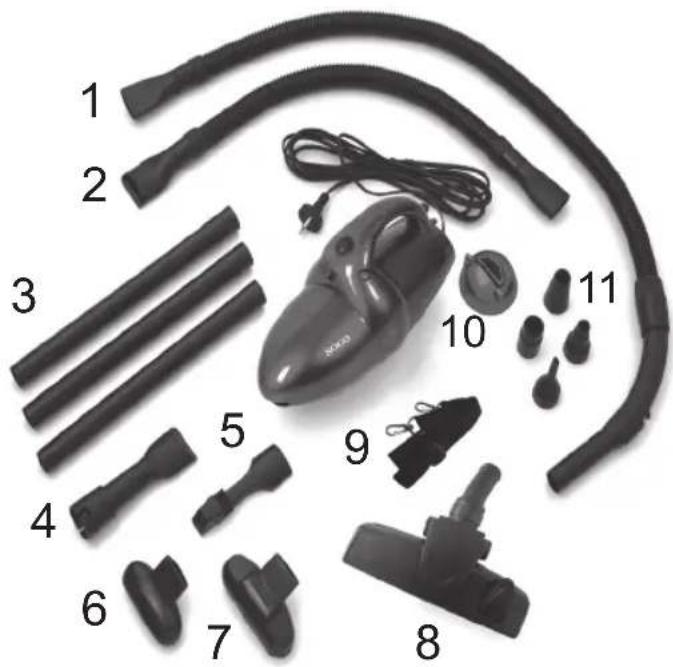

5. PARTS DESCRIPTION

1 Hose with airflow control
2 Short hose
3 3 pcs extension tube
4 Connection tube
5 Combi nozzle
6 Pet brush
7 Upholstery brush
8 Floor brush
9 Belt
10 Back cover B (for blowing)
11 4 pcs blowing attachments

16 18 17 15 13 14 12 RCKO

1 2 3 4 5 6 7 8 9 10 11

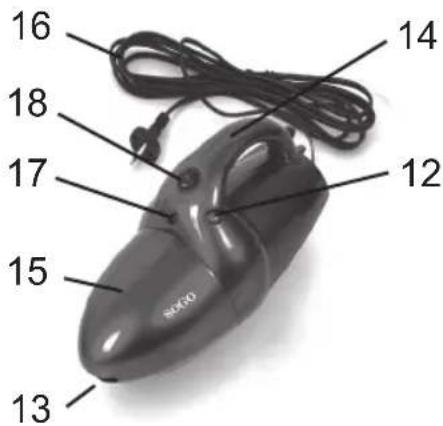

12 Collection Container Release Button
13 Suction Opening
14 Handle
15 Collection Container
16 Power Cord
17 Hole for Attaching Carrying Belt
18. Power Switch

6. INSTRUCTIONS FOR USE

1. To open the Collection Container, push the Release Button. Make sure the Filter is inside, and then attach the Collection Container to the Vacuum Cleaner.

Illustration of a hand holding a small object with a handle, alongside an open mouth (no text or symbols)

1. When cleaning the rear filte, please screw off the bottom cover and take out the filte, you may shake the filter lightly or clear it in soap liquid. Please fix the rear filter back after it is completely dry.

1. To inflate Air Bed by using this Vacuum Cleaner, see picture shown below. (Use accessory 10, 1 and 2)

14 15

1. To use Flexible Hose, push the end of the hose into the Suction Opening, and then attach the desired brush to the opposite end of the Flexible Hose as shown below.

Illustration of a medical device with multiple inserted tubes and a separate view of a surgical instrument (no text or symbols)

1. Insert the Power Plug into the socket, press the button to operate the machine, adjust the wind volume control on the handle to control the volume of wind flo.

Line drawings of a hand holding a device with a magnifying glass (no text or symbols)

1. To use the vacuum cleaner with the shoulder belt, strap the shoulder belt onto the two holes on the appliance. You can carry the vacuum cleaner over your shoulder

Simple line drawing of a stylized animal head with curved arrows indicating rotation or motion (no text or symbols)

1. Hold the appliance firmly with your hand on the Handle.

2. Push the On/Off Power Switch to 'On' position.

3. Start vacuuming.

CAUTION: The Hand Vacuum is a very powerful unit. Make sure that you hold it firmly, otherwise it can slip out of your hand and cause injury.

CHANGING & CLEANING THE FILTER

Warning: Always unplug from electrical outlet before opening the Collection Container.

1. To open the Collection Container, push Button and pull out the Collection Container.

2. Pull out the Filter.

3. Empty the dust from the Filter

4. Rinse the Filter in cold water, and then wait until it dries up before replacing it into the Collection Container.

5. Place the Filter carefully back into the Collection Container.

6. Attach the Collection Container to the Vacuum Cleaner. CAUTION: The Suction Opening must be opened, freed of any obstructions at all time. Otherwise, the motor will overheat and could get damage.

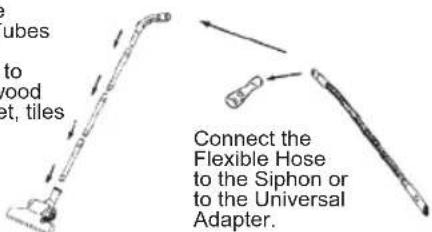

EXTENSION ATTACHMENTS (optional)

Connect the Extension Tubes to the Floor Attachment to clean hardwood floors, carpet, tiles and more!

Connect the Flexible Hose to the Siphon or to the Universal Adapter.

TROUBLE SHOOTING GUIDE

PROBLEM	POSSIBLE REASON POSSIBLE SOLUTION
VACUUM CLEANER WILL NOT OPERATE	1. Power cord is not firml plugged into outlet.2. No power in wall socket.3. Needs	1. Plug unit in firml .2. Clean Filter or call a qualified appliance repai person.3. Empty Filter (see page 5)4. Turn Unit off and unplug from wall socket. Remove Filter and check for object(s) that could be blocking air duct.5. Clean or replace Filter. (see page 5)
VACUUM CLEANER WILL NOT PICK UP	1. Filter is full.2. Unit is clogged.3. Collection Container needs to be emptied.
VACUUM CLEANER SUCTION POWER IS WEAK	1. Filter is full.2. Unit is clogged.3. Collection Container needs to be emptied.
DUST ESCAPING FROM THE VACUUM CLEANER	1. Filter is full.2. Filter is not installed correctly3. Puncture in the Filter4. Filter is blocked.	1. Empty Filter2. Review Filter instructions (see page 5) and replace correctly.3. Replace Filter, (see page 5)
FLEXIBLE HOSE OR BRUSHES WILL NOT PICK UP	1. Hose is clogged. 2. Filter is full.	1. Remove Hose and/ or Brushes. Remove obstruction from Hose2. Empty and clean Filter.3. Make sure Hose and/or Brush is properly installed.

7. CLEANING AND MAINTENANCE

Before cleaning, Always: switch off the appliance, disconnect the apparatus and let it cool

Clean the outside of the apparatus with a sponge or slightly wet linen.

Never plunge the apparatus in water or all other liquid! Do not use abrasive cleaners, gritting, or metal brush or another cutting object.

Warning:

Don't wash the filter in the washing machine

Don't dry it with electrical heater.

Don't clean the out side of vacuum cleaner in petrol

oil-like liquid. Just rub it with water and soft soap liquid.

Don't let the water flow into the vacuum cleane .

STORAGE

• Ensure the unit is completely cool and dry.
• Do not wrap the cord around the appliance, as this will cause damage.
• Keep the appliance in a cool, dry place and out of reach from children.

1. IMPORTANT:

Illustration of a hand holding a device with a circular component, no text or symbols present

Illustration of a medical device with multiple tubes and a separate view showing internal components (no text or symbols)

Line drawings of a hand holding a pen and a small object, both without any text or symbols

Illustration of a hand holding a small object, with no visible text or symbols

Diagram of a hand holding a tool with labeled parts 14 and 15, likely illustrating a mechanical or electrical component.

Illustration of a medical device with multiple inserted pins and a separate view of the device (no text or symbols)

Line drawings of a handheld device and a handheld tool (no text or symbols)

Simple line drawing of a stylized animal head with curved arrows indicating motion or direction (no text or symbols)

COMO OPERAR O SEU PRÁTICO ASPIRADOR

Illustration of two hands holding a cup, one open and one closed, with no text or symbols present.

Illustration of a hand holding a device with a magnified view of the device (no text or symbols present)

Illustration of a hairdryer with multiple clips and a separate head model (no text or symbols)

Line drawings of a medical device with a bulb and attached rod, shown from two different angles (no text or symbols)

Simple line drawing of a stylized animal head with curved arrows above it (no text or symbols)

WIE IHR HANDSTAUBSAUGER BENUTZEN

Illustration of a hand holding a small object with a handle, alongside another hand holding a small object (no text or symbols present)

Diagram showing a device with multiple connectors and a separate 3D model of a vacuum tube (no text or symbols)

Line drawings of a handheld device with a loop and handle, alongside a hand holding a tool (no text or symbols)

Simple line drawing of a stylized animal head with curved arrows above it (no text or symbols)

COME OPERARE L'ASPIRAPOLVERE MANUALE

Illustration of two hands holding a cup, one open and the other closed, with no visible text or symbols.

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
