USER MANUAL Avantspace D2DMS01AVSP Tognana

Black Toguilla portable electronic device with control buttons and a small sensor (no visible text or symbols on body)

IT MANUALE D'USO 1

EN USE AND MAINTENANCE BOOKLET 15

FR LIVRET D'UTILISATION ET D'ENTRETIEN 29

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

To get the best out of your new product, please read this manual carefully before use. Pay special attention to the safety precautions. Keep the manual for future reference.

SYMBOLS

	CAUTION! RISK OF ELECTRIC SHOCK! DO NOT EXPOSE TO RAIN AND HUMIDITY
	CAUTION! THIS APPLIANCE DOES NOT CONTAIN REPAIRABLE PARTS. DO NOT TRY TO REPAIR IT BY YOURSELF. ARRANGE FOR MAINTENANCE TO BE PERFORMED BY A QUALIFIED SERVICE CENTRE USING ONLY IDENTICAL SPARE PARTS. THIS WILL ENSURE THE CONTINUED SAFETY OF THE PRODUCT
	This symbol indicates the presence of components within the product that operate at high voltage; do not open it under any circumstances
	Class II: this symbol indicates that the appliance is double insulated and therefore does not require a grounded plug
	Caution: this symbol informs the user that there are important operations and care instructions to be read for the use of the product
	The crossed-out wheelie bin indicates that the product satisfies the requirements of the new directives introduced to protect the environment (Directive 2012/19/EU of the European Parliament and of the Council, of 4th July 2012, on the management of waste from electrical and electronic equipment (WEEE)), and that it must be disposed of accordingly at the end of its service life. Ask your local authorities for information regarding the areas dedicated to waste disposal. Those who fail to dispose of the product in accordance with that indicated in this paragraph shall be liable in accordance with the regulations in force.
	The symbol indicates that the appliance complies with the safety requirements provided for by EU directives
	The symbol indicates that the appliance is suitable for domestic use only
	All components of this appliance that come into contact with foodstuffs are suitable for contact with foodstuffs

SAFETY WARNINGS

GENERAL

1. Improper use of the product may cause damage or injury.
2. Use the product for the sole purpose for which it has been designed. The manufacturer is not liable for damage or injury caused by improper use.
3. Do not touch the sealing tape on the appliance to avoid burns.
4. Turn off the appliance and disconnect the power to the charging adapter before use, store of the product for long periods and before cleaning.
5. Do not use outdoors.
6. For domestic use only. Not for commercial or professional use. Only for power supply 100-240V \~ 50-60Hz.
7. Do not submerge the body of the product, the charging adapter, or the power cord in water and do not allow water to enter the motor.
8. Do not touch the power cord or plug with wet hands.
9. The appliance is not to be used by children. Keep the product under constant surveillance during use.
10. The product contains sharp parts: keep away from children.
11. Use only the accessories supplied with the product or recommended by the manufacturer.
12. This product is not a toy. Supervise children in order that they do not play with the appliance.
13. This appliance is not intended for people with reduced physical, sensory, or mental capacities, or lacking the necessary experience and knowledge, unless they are supervised or have been trained on the appliance's use by a person responsible for their safety.
14. The appliance contains non-replaceable batteries.

USE

1. Do not vacuum pack liquid food, this type of food is suitable for sealing only.
2. For wet foods (meat, fish, etc.), soak up the excess moisture with a paper towel or wrap them in a disposable plastic bag before vacuum packing them.
3. ATTENTION! Do not touch the sealing tape on the appliance to avoid burns.
4. This appliance does not require any lubricants such as oil or water.
5. After each use, it is best to wait at least 20 seconds to allow the appliance to cool down.
6. Never leave the appliance on unattended.
7. Do not use the appliance in very hot, humid or wet environments, or near flammable materials.
8. The use of accessories that are not recommended or sold by the producer may cause fires, electric shocks, or injury.
9. Do not position it above or near hot gas or electric burners, or in a heated oven.
10. To turn the unit off, press the on/off key.

11. Before use, place the appliance on a solid, flat, and horizontal surface.

12. Do not place the appliance in a fire even when it reaches the end of its service life or is severely damaged: the internal components, such as the batteries for example, may explode.

13. This appliance is intended for domestic use and similar applications, such as:

14. staff kitchens of shops, offices, and other work environments;

15. agritourisms;
16. guests of hotels, pensions, and other residential type environments;
17. bed and breakfast type environments.

PLUG AND CORD

1. Do not let the cord hang over the counter.
2. Be careful not to pull or trip on the power cord. Keep the cord far from sources of heat, hot objects and open flames.
3. Disconnect the cord from the mains before cleaning and when it is not in use. To disconnect the cord from the mains, do not pull on it but rather grab the plug.
4. Check that the cord is fully unwound.
5. The cord must not be twisted or wrapped around the appliance.
6. Regularly check that the cord or plug are not damaged and that the product has not fallen: in this case, do not use it.
7. If the product, cord or plug is damaged, have it checked by an authorised service centre. Do not attempt to repair it yourself. Contact the dealer for repairs, if it is under warranty.
8. Unauthorised repairs or changes shall void the warranty.
9. Use only original accessories and spare parts.
10. Use only the charging adapter included in the packaging.
11. Do not use extension cords, power strips or timer devices.
12. Connect the charging adapter only to domestic power outlets: do not use other methods to supply electrical power.
13. Do not remove the plug of the charging adapter from the power outlet by pulling on the USB cord.

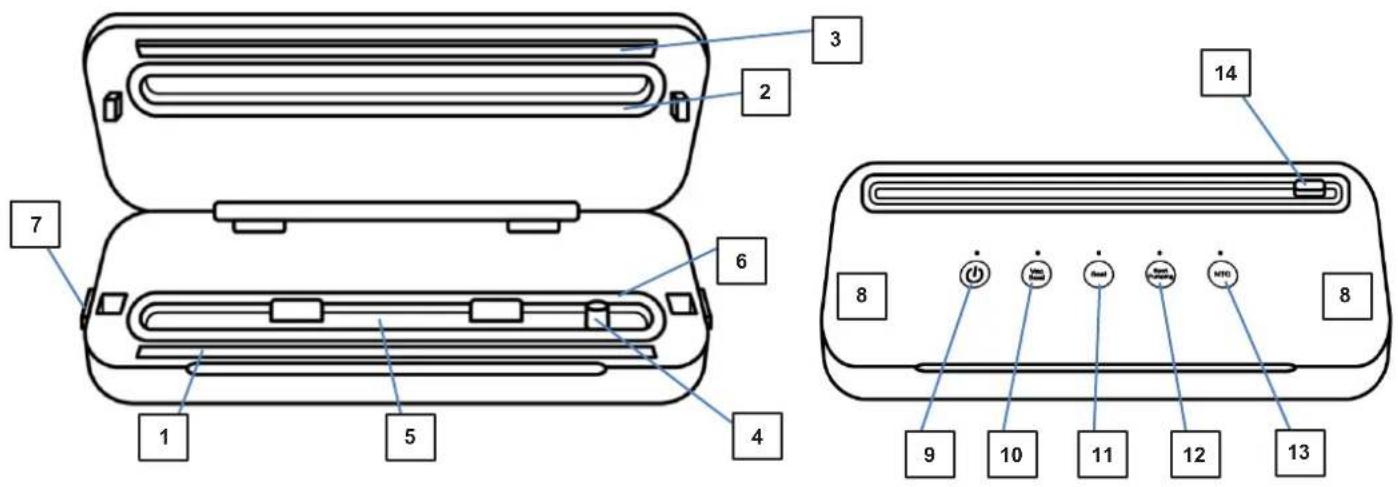

COMPONENTS

3 2 7 6 4 1 5 14 8 9 10 11 12 13

15 16

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

1. Sealing tape
2. Upper seal ring
3. Pressure gasket
4. Suction device
5. Drip tray
6. Lower seal ring
7. Lid release devices
8. Pressure points for lid closure
9. On/off key
10. "Vacuum and sealing" function
11. "Sealing" function

12 "External vacuum packing" function (for external vacuum packing with a flexible hose and adapter)
13 Overheating protection
14 Cutter
15 USB-C cord
16 Charging adapter

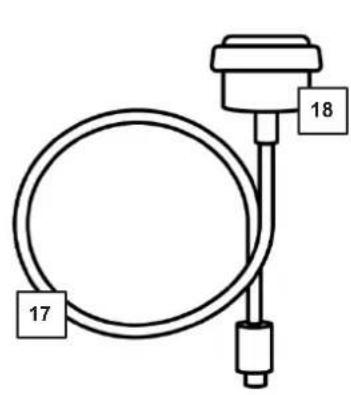

17 External vacuum tube
18 Container / bag adapter with valve

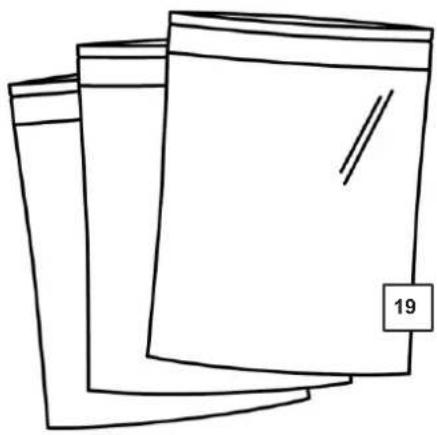

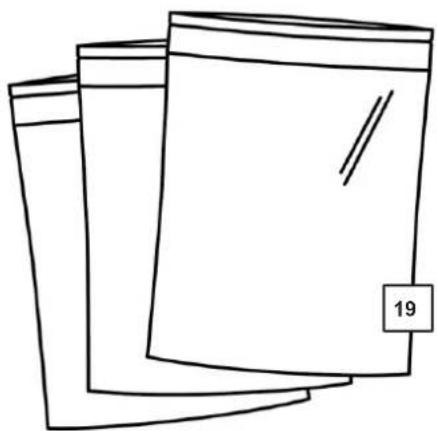

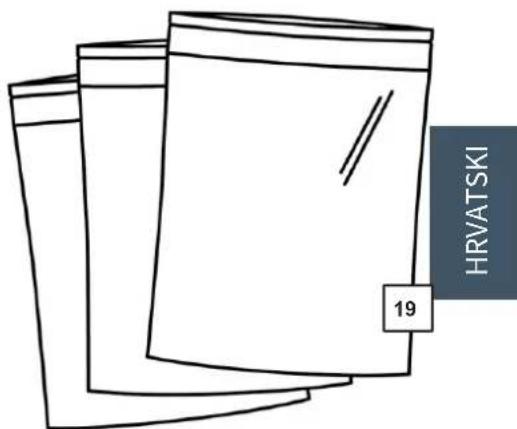

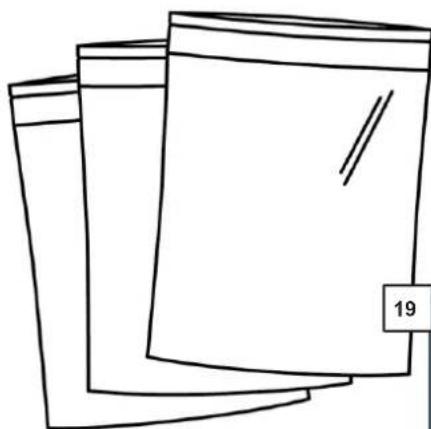

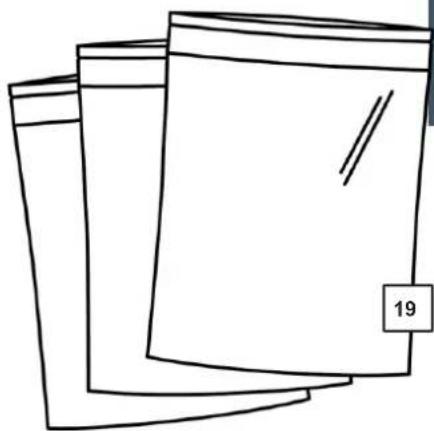

19 10 vacuum bags

SING THE PRODUCT

This appliance is FOR DOMESTIC USE ONLY.

The charging adapter must be connected to an AC power outlet (normal household current). Do not use other power outlets.

DO NOT USE THE USB CORD IF THE POWER CORD OR PLUG ARE DAMAGED.

Use only the charging adapter included in the packaging.

SAFETY RECOMMENDATIONS FOR CHARGING ADAPTER / USB CORD

1. Never pull on the cord.
2. To insert the plug, grab it firmly and guide it into the outlet.
3. To disconnect the appliance from the mains, grab the charging adapter and remove it from the outlet.
4. Before each time the appliance is charged, inspect the USB cord to check for any tears and/or signs of abrasion. If these are found, this means the USB cord needs to be replaced.
5. Never wrap the cord tightly around the appliance as this may unduly stress the cord in the point where it enters the charger, or the charging port of the appliance, and cause it to fray if it breaks.

BEFORE FIRST USE

1. Extract the various components from the packaging, check that they are intact and complete, gently remove any protections and labels. The packaging includes:

• No. 1 Vacuum sealer
- No. 1 USB-C cord
• No. 1 Charging adapter
• No. 1 External vacuum tube
• No. 1 Adapter for containers
• No. 10 vacuum bags

1. Check that all the parts are properly assembled and in position before use.

2. Charge the appliance.

RECHARGING THE BATTERY

1. Connect the USB-C connector of the cord to the motor housing.
2. Connect the USB-C connector to the charging adapter.
3. Connect the charging adapter to the wall socket.
4. The blue light of the on/off key flashes during charging. The light will be steadily lit when the appliance is fully charged.
5. Approximately 4 hours are needed to fully charge the appliance. Do not recharge the device for more than 12 hours.
6. Once charging is complete, disconnect the adapter from both the power outlet and the appliance. Do not turn on the device during the charging operation.

Note:

• The appliance is shipped with the batteries approximately 30% charged. The appliance will work properly without charging it. It is recommended to fully charge the appliance before first use for best performance.
• To maintain optimum performance and battery life, it is recommended to charge the battery in an ambient temperature between 15 °C and 25 °C. This precaution will prevent serious damage to the battery itself.

1	Appliance on/off
2	Start “vacuum and sealing” function
3	Start “sealing” function (without vacuum)
4	Start “external vacuum packing” function (for vacuum packing with flexible hose and adapter)
5	NTC smart temperature control. When the temperature of the sealing tape exceeds the pre-set safety temperature, the appliance automatically goes into safety mode.

1. On/Off button

When this button is pressed, the BLUE light turns on, the appliance is now ready for use.

2. "Vacuum and sealing" button

When this button is pressed, the light turns BLUE and flashes, this means the appliance is sucking the air from the bag. When the bag has a sufficient vacuum, light 3 Seal turns RED, this means the bag is being sealed. Once sealing is complete, the light turns off and only the ON light 1 on/off stays BLUE.

3. Sealing button

This button is needed to seal without any air suction. When sealing only, place the bag outside the suction device. Once sealing is complete, the light turns off and only the ON light 1 on/off stays BLUE.

4. External vacuum button

When you press this button, the device starts to suck; as soon as all the air is sucked in, the indicator light goes out, the appliance stops working and only indicator light 1 on/off stays BLUE.

5. NTC smart temperature control

When the temperature of the sealing tape exceeds the pre-set safety temperature (60°C), the appliance automatically goes into safety mode: the red and blue lights flash alternately and the buttons are disabled. Wait and leave the appliance to cool for 2 minutes, then the appliance will automatically return to normal operating conditions.

Other functions of LED indicator lights

- When the appliance remains idle for 180 seconds without any type of operation being

performed, the power light

turns off automatically.

- To manually turned off the appliance, press the on button on/off for more than 3 seconds, the appliance will then turn off and the light on/off will turn off.

- During charging, the ON light ⏻ flashes BLUE, when charging is complete, the light stays BLUE, but steadily lit. - When the sealing light ⏻ seal flashes RED, the appliance needs to be charged.

CAUTION: Do not expose the battery pack or an appliance to fire or excessive heat. Exposure to fire or temperatures higher than 130^ C may cause an explosion.

INSTRUCTIONS FOR USE

WARNINGS FOR BAG/FILM

- The bag/film must not be wider than 28 cm, or proper sealing will not be possible.

- For this appliance, use only bags/films that are structured on one side (with dots or stripes) and which are made of nylon (PA/PE), otherwise the sealing tape will not be hermetic and the appliance may be damaged. The type of film is always indicated on the packaging. The quality of the sealing changes depending on the type and thickness of the film.

- The supplied bags are free of BPAs but are not suitable for microwaves. DO NOT heat the bag in the microwave. The bag might burst!

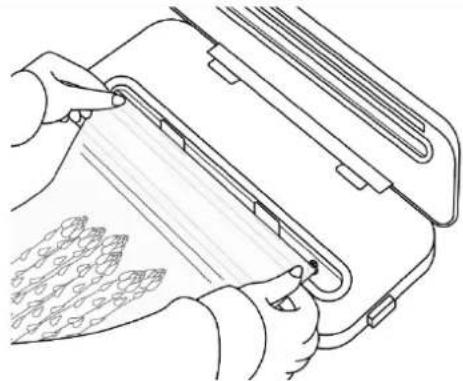

USING THE FILM

1. Use a pair of scissors to cut the necessary section of tubular film for the bag, making as straight a cut as possible, or use the cutter incorporated in the lid of the appliance and proceed as follows: (consider that when the bag is full, there must be at least 6 cm of space from the edge for sealing):

a. Push the cutter to the right or left all the way to the edge
b. Rest the film on the cutter
c. Press down lightly on the cutter and move it from one side to the other over the film to cut it.
d. Place the open end of the bag up inside the appliance so that the opening of the bag is in the center under the lower seal ring. Close the lid of the appliance.
e. Press button 3 SEAL to close and seal the bag.

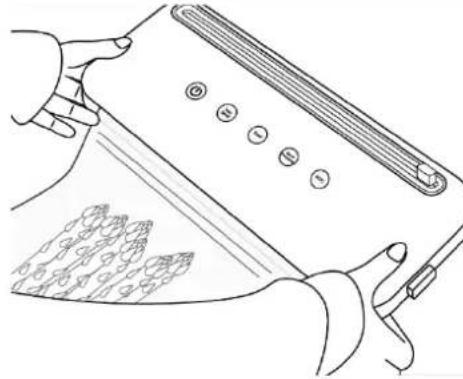

Insert the food inside the bag.Position the open side of the bag at the centre of the tray and cover the top lid.

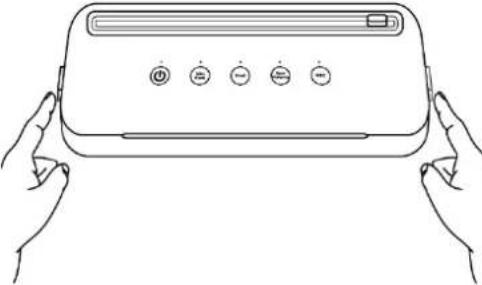

Press on the lid with both hands until you hear a “click” from both sides, indicating it is properly closed. Press the sealing button or vacuum sealing button according to need.
At the end of this operation, press the block buttons on both sides to release the vacuum, then open the lid and remove the bag.ATTENTION! Do not touch the sealing tape on the appliance to avoid burns.

NOTE: The sealing operation can be stopped at any time by pressing the on/off button

Tips for perfect vacuum packing:

1. Place the foods in the bag, leaving at least 4 cm (2 inches) of space between the contents of the bag and the top part of the bag.
2. Do not wet the open end of the bag, otherwise it will be difficult to seal. If the food is liquid, clean it with a paper towel or wrap it in a plastic bag, then proceed with the vacuum packing operation.
3. Before sealing the open end of the bag, it must be clean and straight. Check that there are no other objects on the open end of the bag. During suction, make sure the bag does not fold, do not allow hard objects to slip out of the bag.
4. Before proceeding with suction, check that there is not too much air in the bag pressing delicately on the bag to eliminate any excess air. This will reduce the work load of the appliance.
5. During the suction process, if the vacuum level does not satisfy the requirements, the

appliance will automatically stop working within 2 minutes. Examine the bag for any leaks or incorrect positioning.

1. Check that the seal rings are not torn or deformed, and that there are no small grains around them. If so, replace it with a new one or remove it, clean it, and dry it.
2. To prevent food particles from being sucked into the vacuum pump, place a filter or some paper in the top part of the bag before vacuum packing.
3. For best results, fruit and vegetables can be frozen for some time before vacuum packing.
4. Perishable foods must be refrigerated or frozen after vacuum packing.
5. Pour water into the bag for maximum 2/3 of its capacity, seal the opening (without suction) of the bag. Once frozen, it can be used in the ice bucket or as an ice block to treat sports injuries.
6. Foods such as cheese and cooked foods sold in commercially packaged bags can be kept fresh by simply vacuum packing them after each use.
7. Mixed materials such as flour and rice, used to make baked cakes and fritters, should be packed in a vacuum container.
8. In case of foods with sharp parts, such as fishbones, wrap the sharp parts before vacuum packing to stop them from tearing the bags.
9. Vacuum packing also protects non-food products against oxidation, corrosion and humidity, such as museum pieces, photos, important documents, stamps, books, jewellery, papers, cosmetics and metals.
10. Continuous and intense use may cause the sealing tape to overheat. Stop the appliance for 90 seconds and wait for it to cool.
11. The supplied bags are suitable for temperatures between -20^ and +80^ and can therefore be used for “sous vide cooking”. In sous vide cooking, foods (meat, fish and vegetables) are sealed in a vacuum bag and then cooked inside it at low temperature (around 50 - 90 °C), in either a bain-marie or steam-cooked. This will preserve the aromas and fragrances inside the bag during cooking. The foods do not dry out, the properties of the foods, aromas, or spices are sealed together in the vacuum bag, transferring their flavour to the food.

Important: When the appliance is not in use, it must not be completely closed. Otherwise, the seal ring foam may be deformed and compromise the quality of air suction.

VACUUM PACKING CONTAINERS

1. Connect the flexible hose to the appliance's suction device (4).
2. Apply the adapter to the other end of the flexible hose and place it in the special container valve, holding it pressed.
3. Press the button 4 Spot Pumping. The BLUE light turns on and the appliance sucks the air out of the container. As soon as the air has been eliminated, the light turns off.
4. The adapter can now be removed from the container and from the appliance.

VACUUM PACKING BAGS WITH VALVE

1. Connect the flexible hose to the appliance's suction device (4).

2. Carefully close the bag to be vacuum packed. The vacuum packing function only works if the bag is completely closed. The bag should be positioned in such a way that the bag suction opening is resting on a smooth surface.

3. Apply the adapter to the other end of the flexible hose and insert it in the special bag valve, holding it pressed.

4. Press the button 4 Spot Pumping . The BLUE light turns on and the appliance sucks the air out of the container. As soon as the air has been eliminated, the light turns off.

5. The adapter can now be removed from the container and from the appliance.

CLEANING AND MAINTENANCE

CLEANING

1. Avoid using rough materials to clean the appliance to avoid scratching the surface.
2. Do not submerge the appliance in liquids.
3. Clean the outer surfaces with a soft cloth. If necessary, apply a few drops of a delicate detergent on the cloth and then wipe again with a cloth dipped in water only to remove any detergent residue.
4. Pass a damp cloth over the upper seal ring, lower seal ring, and over the sealing tape.
5. Clean the flexible hose for vacuum packing and the adapter with a soft cloth. In case of tough dirt, these components can also be washed in warm water, adding a touch of washing-up liquid.
6. Clean the drip tray with warm water and a touch of washing-up liquid.
7. Before use, make sure the foam is dry.
8. Thoroughly dry before using it again.
9. It is prohibited to rub with organic solvents and the appliance does not require any lubricant.
10. If the appliance breaks, turn it off immediately, check the cause and eliminate the problem.

Note:

• DO NOT PLACE THE MOTOR BODY IN THE DISHWASHER.
- NEVER SUBMERGE THE MOTOR HOUSING, CHARGING ADAPTER, OR CHARGE CORD IN WATER OR OTHER LIQUIDS.

MAINTENANCE

• Make sure all parts are clean and dry before storing. Never store the appliance when it is still wet.
• In case of non-use for a period of time exceeding 3 months, it is advisable to recharge the device before use.
• Store in a dry place at an ambient temperature of 5^ - 35^ .

Important:

When the appliance is not in use, it must not be completely closed.

Otherwise, the seal ring foam may be deformed and compromise the quality of air suction.

TECHNICAL DATA

• Lithium battery: 7.4V, 2000mAh, 11.1Wh
- Power: 80W
- USB-C cord
- Input voltage: DC5V, 1A
- Battery duration: 80 sealed bags
• Dimensions: 37.5x15x7cm
• Net weight: 1055 g

Charging adapter

• Input: AC 100-240V \~ 50-60Hz, 0.2A max
• Output: DC 5V – 1.0A, 5W

TROUBLESHOOTING

COMMON FAULT	CAUSE	SOLUTION
No reaction during vacuum packing	There is no power	Check whether the battery is flat. If so, recharge the appliance
No suction occurs	Incorrect operation	1. Check that the top and bottom lid are properly closed.2. Check that the appliance and container are properly connected3. The open end of the bag must be placed in the tray
	There is dirt on the sealing tape and on the foam	Remove the dirt and clean
	There is dirt or liquid on the end of the bag	1. Make sure to use bags suitable for vacuum packing2. Check that the open end of the bag is perfectly smooth, without folds, without dirt, hard objects, etc.3. Check the bag for any leaks
Impossible to seal after suction	The pressure does not reach the pre-set level	1. Check the bag for any leaks.2. Check whether the foam is deformed or damaged.3. Make sure the bag is in the right position
	The open end of the bag is wet or sealing is poor	Press button 3 Seal again.
	The sealing tape does not work	Check whether the tape has reached temperature. If not, contact the after-sales service.
	Poor sealing	Check that the open end of the bag is perfectly smooth, without folds, without dirt, hard objects, etc.
	The bag has leaks	Check the bag for any leaks and replace it with a new one.
After closure, air still enters the bag	The bag has filled with air again	Check whether the bag is defective due to poor storage. If necessary, replace it.
	Food chemistry	Fruit and vegetables emit gases during photosynthesis, like fermented foods, and are not suitable for long-term vacuum sealing.
	The food is hot	Cool the hot food before proceeding with sealing.
	Improper operation	The bag is too full to make it flat. Divide the food into several bags
The sealed bag deforms.	Intense and continuous use of the appliance causes the sealing tape to overheat	Stop for a bit, leave the machine to cool.
The sealed end of the bag is not tight	The heating time is insufficient	The bag thickness is not suited to this type of appliance. Use a suitable bag.
Contact us if all problems have been ruled out.

Note: check the above solutions for common errors. In case of other problems, contact the manufacturer or service centre directly, DO NOT repair the appliance by yourself.

PRODUCT CONFORMITY

The manufacturer Tognana Porcellane S.p.A. declares that the product Vacuum sealer Mod. Avant-Space (cod. D2DMS01AVSPD2M6) complies with Directive 2014/30/EU of the European Parliament and of the Council, of 26th February 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The manufacturer Tognana Porcellane S.p.A. declares that the product Vacuum sealer Mod. Avant-Space (cod. D2DMS01AVSPD2M6) complies with Directive 2014/35/EU of the European Parliament and of the Council, of 26th February 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The manufacturer Tognana Porcellane S.p.A. declares that the product Vacuum sealer Mod. Avant-Space (cod. D2DMS01AVSPD2M6) complies with Directive 2011/65/EU of the Parliament and of the Council, of 8th June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Pursuant to Directive 2012/19/EU of the European Parliament and of the Council, of 4th July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out wheelie bin indicates that this appliance is not to be considered urban waste: it therefore needs to be collected separately and sorted for recycling.

Failure to dispose of the appliance as separate waste may constitute a potential hazard to the environment and human health. Said product can be returned to the distributor upon purchase of a new appliance. Improper disposal of the appliance constitutes fraudulent conduct and is subject to sanctions by the Police Authority. For further information, contact the local administration responsible for environmental management.

WARRANTY TERMS

Tognana Porcellane S.p.A., thanks you for your choice and guarantees that its appliances are a product of the latest technologies and research.

The appliance is covered by the standard TWO-YEAR warranty from the date of purchase by the first user. This warranty is without prejudice to the validity of the legislation in force concerning consumer goods (D.L. 6 September 2005 n. 206 art. 128 and following).

In order to make a claim under the Warranty, the consumer must submit the receipt or invoice certifying the purchase of the product.

If the consumer wishes to submit a claim under the Warranty, they must contact the retailer or Tognana Porcellane S.p.A. directly at the following email address: [e-mail], or phone number [phone].

The components or parts found to have ascertained manufacturing defects shall be repaired or replaced free of charge by our authorised service network, during the aforementioned warranty period.

The repair costs, including the cost of the spare parts, the shipping costs for the delivery of a defect-free product or component, shall be borne by Tognana Porcellane S.p.A.

Tognana Porcellane S.p.A. shall also bear the shipping costs for the return of the defective product or component, in the event Tognana Porcellane S.p.A. or the service centre requests the return of the defective product or component. In any case, the consumer shall bear the cost of suitable packaging for the return of the defective product or component.

Tognana Porcellane S.p.A. reserves the right to fully replace the appliance in the event its repair is found to be impossible or disproportionately expensive, with another equivalent (or similar) appliance within the warranty period.

In this case, the warranty period shall remain that of the first purchase: any servicing carried out during the warranty period shall not extend the warranty period itself.

This appliance shall never be considered defective in terms of its materials or manufacture in the event it is adapted, changed, or adjusted to comply with national or local safety and/or technical standards in force in a country other than that for which it was originally designed and manufactured.

This appliance has been designed and built for domestic use only: any other use shall void the warranty.

The warranty does not cover:

• parts subject to wear and tear, or parts requiring periodic replacement and/or maintenance;
  • professional use of the product;
• malfunctions or any defects resulting from incorrect installation, configuration, software / BIOS / firmware updates not carried out by Tognana Porcellane S.p.A. authorised personnel;
  • repairs or servicing carried out by persons not authorised by Tognana Porcellane S.p.A.;
• tampering with the assembly components, or where applicable, with the software.

Additional claims, in particular requests for compensation, shall be excluded unless liability is established by law.

At the end of the Warranty period, or for products not covered by said Warranty, Tognana Porcellane S.p.A. shall remain available to assist with any questions or requests for information by the end Client. Further information can also be found on our Website: www.tognana.com.

INTRODUCTION

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Simple line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

TILISATION DU PRODUIT

CONFORMITÉ DU PRODUIT

CONDITIONS DE GARANTIE

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

Simple line drawing of a coiled tube with labeled connectors (no text or symbols beyond numbers)

Simple line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

CONFORMIDAD DEL PRODUCTO

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

HRVATSKI 19

1. Brtvena traka
2. Gornji brtveni prsten
3. Tlačna brtva
4. Usisni uređaj
5. Posuda za sakupljanje
6. Donji brtveni prsten
7. Uređaji za otpuštanje poklopca
8. Točke pritiska za zatvaranje poklopca
9. Tipka za uključivanje/isključivanje
10. Funkcija "vakuumiranje i brtvljenje"

11. Funkcija "brtvljenja"

12. Funkcija "Vanjsko vakumiranje" (za vakumiranje s fleksibilnom cijevi i adapterom)

13. Zaštita od pregrijavanja

14. Sjekač

15. USB-C kabel

16. Adapter za punjenje

17. Vakuumsku cijev

18. Adapter za spremnike

19. 10 Vakuumskih vrećica

ORIŠTENJE PROIZVODA

Ovaj uređaj je namijenjen SAMO ZA KUĆNU UPOTREBU.

Adapter za punjenje mora biti spojen na AC električnu utičnicu (normalna struja u kućanstvu). Nemojte koristiti druge električne utičnice.

NEMOJTE KORISTITI USB KABEL AKO JE STRUJNI KABEL ILI UTIKAČ OŠTEĆEN.

Koristite samo adapter za punjenje koji se nalazi u pakiranju.

SIGURNOSNI SAVJETI ZA ADAPTER ZA PUNJENJE / USB KABEL

1. Nikada nemojte povlačiti kabel.
2. Za umetanje utikača čvrsto ga uhvatite i uvucite u utičnicu.
3. Kako biste isključili uređaj iz električne mreže, uhvatite adapter za punjenje i izvadite ga iz utičnice.
4. Prije svakog punjenja provjerite ima li na USB kabelu posjekotina i/ili tragova abrazije. Ako se pronađu, to znači da USB kabel treba zamijeniti.
5. Nikada nemojte čvrsto omotati kabel oko uređaja, jer bi to moglo pretjerano opteretiti kabel na mjestu gdje ulazi u punjač ili priključak za punjenje uređaja i uzrokovati njegovo trošenje ako se slomi.

PRIJE PRVE UPORABE

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Line drawing of three overlapping paper sheets with a label '19' on the right (no text or symbols on the sheets themselves)

GESTINA

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Simple line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

Simple line drawing of a cable with two labeled connectors (17 and 18), no text or symbols present.

Simple line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

A TERMÉK MEGFELELŐSÉGE

Simple line drawing of a coiled cable with two labeled connectors (17 and 18), no text or symbols present.

Simple line drawing of three overlapping paper sheets with a label '19' on the bottom right (no text or symbols on the sheets themselves)

QR code image containing encoded data, no visible human-readable text

Scan QRcode to download the digital instruction booklet.

MADE IN PRC

Imported by: TOGNANA PORCELLANE SPA – Via Capitello 22, 31030 Casier (TV) - Italy

Tognana reserves the right to make any changes necessary to improve the product quality and appearance at any time without prior notice.
