USER MANUAL Compact Prime CP.3 ZEISS

ZEISS Compact Prime CP.3/CP.3 XD

Instruction Manual

Gebrauchsanweisung

Close-up of a black N° 2F/30/4F 1mm high-precision camera lens (no visible text or symbols)

4 English

GB

12 Deutsch D

20 Français F

28 Español E

36 Italiano I

44 Русский

52 日本語

60 中文 CHN

RUS

JP

Carl Zeiss AG

Camera Lenses

73446 Oberkochen

Germany

www.zeiss.com/cine

LN_10_210_2004 CHFURFEURSIPCHN 36/05/2017 SHENZHEN

⑧ ⑦ ⑥ ⑤ ④ ③ ② ① SRS2 T6 1.0 1.4 1.8 2.2 2.6 3.0 3.4 4.0 4.4 5.0 5.4 6.0 6.4 7.0 7.4 8.0 8.4 9.0 9.4 10.0 10.4 11.0 11.4 12.0 12.4 13.0 13.4 14.0 14.4 15.0 15.4 16.0 16.4 17.0 17.4 18.0 18.4 19.0 19.4 20.0 20.4 21.0 21.4 22.0 22.4 23.0 23.4 24.0 24.4 25.0 25.4 26.0 26.4 27.0 27.4 28.0 28.4 29.0 29.4 30.0 30.4 31.0 31.4 32.0 32.4 33.0 33.4 34.0 34.4 35.0 35.4 36.0 36.4 37.0 37.4 38.0 38.4 39.0 39.4 40.0

ZEISS Compact Prime CP.3/CP.3 XD

GB

Disclaimer:

To ensure proper and safe use, we recommend that you need these safety and operating instructions first before using the product and then store them in a safe place. Non observance of these instructions could lead to injury or damage.

Carl Zeiss AG reserves the right to change these specifications without any prior notice. A continuously updated version of the instruction manuals can be found at www.zeiss.com/inmanuals.

All rights reserved. This material, or parts thereof, may not be reproduced without prior written permission from Carl Zeiss AG, nor stored in retrieval systems, or transmitted in any form, whether electronically, mechanically, by photocopy, recording or other media. Copyright 2017, Carl Zeiss AG

Technical Data

Versions

ZEISS Compact Prime CP.3 from ZEISS are currently available in two versions:

■ ZEISS Compact Prime CP.3 – without electronic interface
■ ZEISS Compact Prime CP.3 XD (eXtended Data) — with electronic interface

CP.3 lenses are available in and can be modified to have the following mounts:

Mounts CP.3 CP.3 XD
PL ■
PL (with electronic interface) ■
EF ■ ■
F ■ ■
E ■ ■
MFT ■ ■

Further technical information on the lenses can be found on: www.zeiss.com/cine/cp3

Lens components

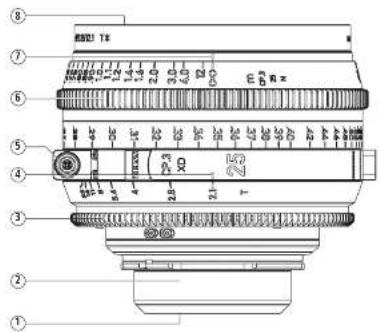

① Rear lens element
② Lens mount
③Aperture ring
④ Aperture index mark
⑤XD version only:
External socket (Female 4-Pin mechanical connector)
⑥ Focus ring
⑦ Focus index mark
⑧ Front lens element

Safety Tips

Safety & Handling

Never point the lens directly towards the sun because there is a significant risk of harming your eye-sight. Always attach the lens cap when the lens is not in use. Otherwise, there is danger of fire!

Storage & Transportation

Use the product only in temperatures ranging between -20°C and 40°C. Store this product only in temperatures ranging between -40°C and +70°C. The product is not completely water resistant, dust resistant or waterproof. Protect the camera and lens appropriately when in the rain and in damp or dusty environments. Should the product be exposed to moisture, remove it from the camera. Allow the device to dry completely before you use it again. Do not attempt to dry the product with the aid of an external heat source, e.g. in a microwave oven or with a hairdryer.

Modification, Service and Repair

You are allowed to do the following modifications: Changing the mount, changing the external socket, adjusting the flange focal distance, switching the scale ring and updating the firmware. Please follow the instructions on our website: www.zeiss.com/cine/manuals

Do not undertake any other unauthorized modifications or repairs on the product yourself. By disassembling it, damage may be caused which is not covered by the warranty. If it needs repair, please contact your authorized dealer and distributor. For this purpose, see www.zeiss.com/cine

European Directive of Regulation

When the product left the factory it was in a completely safe working condition. It meets the electromagnetic compatibility requirements set out in Directive 2014/30/EU and bears the CE test mark.

Disposal

Do not dispose of the product as household waste but please follow the applicable statutory regulations of the relevant country. Consult local authorities about the options for disposal and recycling if necessary.

Warranty

The product is subject to the statutory warranty of 12 months. The warranty can be extended to 24 months by registering the product at: www.zeiss.com/cine/register

Damage to or problems caused by the unauthorized opening of the product are not covered by the warranty. Before submitting a warranty claim, make sure that the possibility of an operator error has been ruled out. Please refer to the support information in this regard at www.zeiss.com/cine

Handling

GB

Intended Use

ZEISS Compact Prime CP.3 lenses are designed for the use on cameras with interchangeable lenses. The usage in any other scenario is not recommended.

Removing the Rear Cap

Remove the rear cap from the lens by turning it clockwise (F) or counter-clockwise (EF, MFT, PL, E).

Attaching the Rear Cap

Attach the rear cap to the lens by turning it counterclockwise (F) or clockwise (EF, MFT, PL, E).

Mounting and Removing the Lens

Please refer to the mounting instructions on the user guide of your camera.

Lens Care Tips

To ensure that your lens is always in perfect condition, the presence of any form of dirt or humidity on the glass surface should be avoided. Dust on the lens can be removed carefully with a soft brush, stains and fingerprints with a soft, dry and clean microfiber cloth. To remove stubborn dirt, we additionally recommend the use of the ZEISS cleaning fluid. Please follow the instructions of the ZEISS Lens Cleaning Kits.

Customer Support

Your nearest ZEISS dealer can be found on the homepage www.zeiss.com/cine
