Product Type	Docking station
Brand	i-TEC
Model	CA5MONITORDOCKPD
Dimensions (L x W x H)	245 x 98 x 37 mm
Net weight	495 g
Power supply	20V/6.5A (130W) with AC adapter
Video connectivity	2x HDMI, 2x DisplayPort, 1x additional HDMI (HDMI 5)
Supported resolutions	Up to 8K/60Hz (DP) and 4K/60Hz (HDMI); 5x 4K/60Hz
Maximum number of monitors	5
USB ports	3x USB-A 3.2 Gen 2 (10 Gbps), 2x USB-C 3.2 Gen 2 (10 Gbps)
USB fast charging	BC 1.2 5V/3A on USB-C ports
Power Delivery charging	Up to 100W via USB-C port (host)
Ethernet	RJ-45 2.5 Gbps (Realtek RTL-8156)
Audio	3.5mm combo jack (input/output)
Security	Kensington lock
VESA mount	Supported
OS compatibility	Windows 10/11, macOS 11+, Android 5+, Chrome OS R51+, Linux Ubuntu
Driver installation	DisplayLink required (Windows, macOS, Ubuntu, Android)
Maintenance	Disconnect before cleaning; use a soft damp cloth; do not use liquid or aerosol products
Safety instructions	Use only the supplied adapter; do not block ventilation; avoid moisture and heat sources

Frequently Asked Questions - CA5MONITORDOCKPD i-TEC

How to install drivers for i-TEC CA5MONITORDOCKPD docking station under Windows?

Before connecting the docking station, download DisplayLink drivers from www.i-tec.cz/setup. Run the installation as administrator, select the language and follow the instructions. The screen may flicker during installation, this is normal. Restart your computer once the installation is complete.

How many monitors does the docking station support and what is the maximum resolution?

The docking station supports up to 5 monitors: 2x DisplayPort + 2x HDMI + 1x additional HDMI (HDMI 5). DisplayPort can reach 8K/60Hz, while HDMI ports can reach 4K/60Hz. With 5 monitors, you can get up to 5x 4K/60Hz.

Is the docking station compatible with a laptop that only has a USB-A port?

Yes, but some features are limited. With USB-A connection, laptop charging is not supported and HDMI 5 port is not available. You can use up to 4 monitors via standard DP and HDMI ports.

Can I charge my laptop via the docking station?

Yes, if your laptop has a USB-C port with Power Delivery support. The station provides up to 100W via the USB-C cable. Note that charging is only possible when the station is connected via USB-C, USB4 or Thunderbolt, not via USB-A.

What to do if the screen flickers during driver installation?

Screen flickering is normal during DisplayLink driver installation. Wait for the installation to finish and restart your computer. If the problem persists, check that you have the latest drivers and updated BIOS.

How to connect a headset or microphone to the docking station?

The docking station is equipped with a 3.5mm combo jack that supports both microphone input and headphone output. Simply plug your headset or headset into this port.

Does the docking station work with macOS and which versions are supported?

Yes, the docking station is compatible with macOS 11 or later. DisplayLink driver installation is also required. You can download the drivers from the i-TEC website.

What is the function of the Kensington lock and how to use it?

The Kensington lock allows physical security of the docking station against theft. It is a standard slot where you can attach a Kensington lock cable (not included). Insert the lock into the slot located on the side panel.

Can I use the docking station with an existing USB-C hub?

It is not recommended to connect the docking station to another hub, as this may cause compatibility issues and performance problems. Connect it directly to a USB-C, USB4 or Thunderbolt port on your computer.

What precautions should be taken for maintenance of the docking station?

Before cleaning the docking station, unplug it from the power outlet. Use a soft, slightly damp cloth. Never use liquid or aerosol products that may contain flammable substances. Also avoid blocking ventilation openings.

USER MANUAL CA5MONITORDOCKPD i-TEC

Abstract graphic with diagonal stripes and a stylized lowercase 'i' (no text or symbols)

i-tec

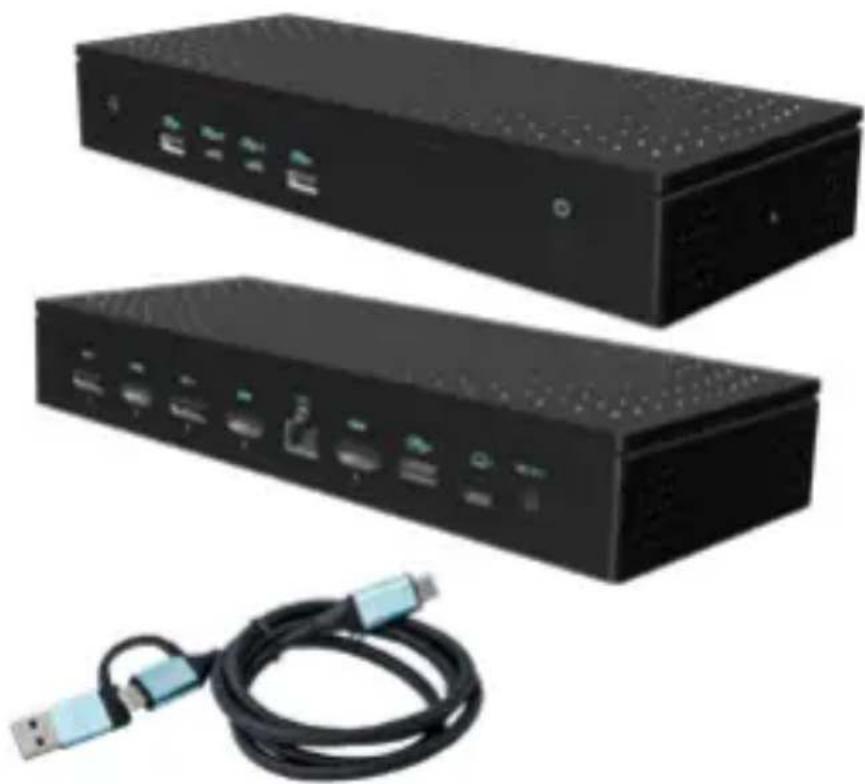

i-tec Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W

Two black electronic devices with ports and connectors, plus a blue USB cable (no text or symbols visible)

User guide • Gebrauchsanweisung • Mode d'emploi

EN Please read the entire instruction manual carefully. Detailed manual is available on our website www.i-tec.pro/en/ in the tab „Manuals, drivers“. In case of any issues, please contact our technical support at: [e-mail]

ENGLISH.... 06-11

DEUTSCH....12-17

FRANÇAIS.... 18-23

ESPAÑOL....24-29

ITALIANO....30-35

ČESKY 36-41

POLSKI....42-47

SLOVENSKY 48-53

LIETUVOS.... 54–59

NEDERLANDS....60-65

SVENSKA.... 66-71

PORTUGUÊS.... 72-77

WEEE....78-79

Declaration of Conformity.... 80–81

FCC....82

DESCRIPTION

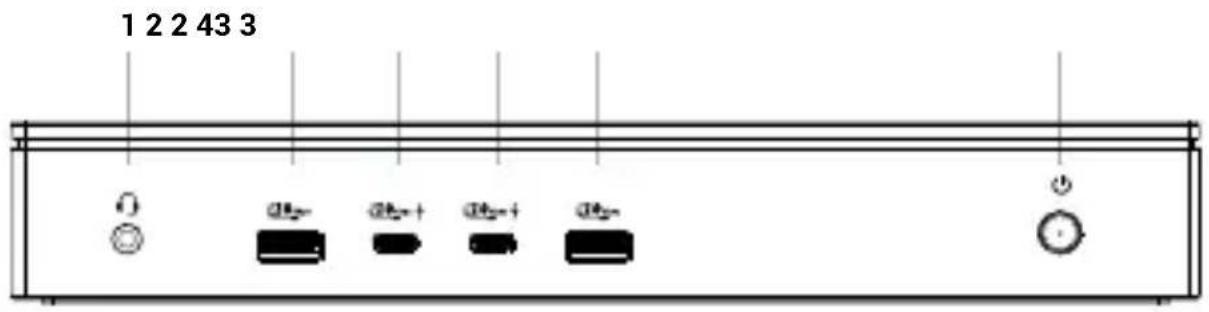

Front panel

1. 3.5mm Combo Jack
2. 2x USB-A 3.2 Gen.2
3. 2x USB-C 3.2 Gen.2 with fast charging support (BC 1.2 5V 3A)
4. ON/OFF button + Led indication

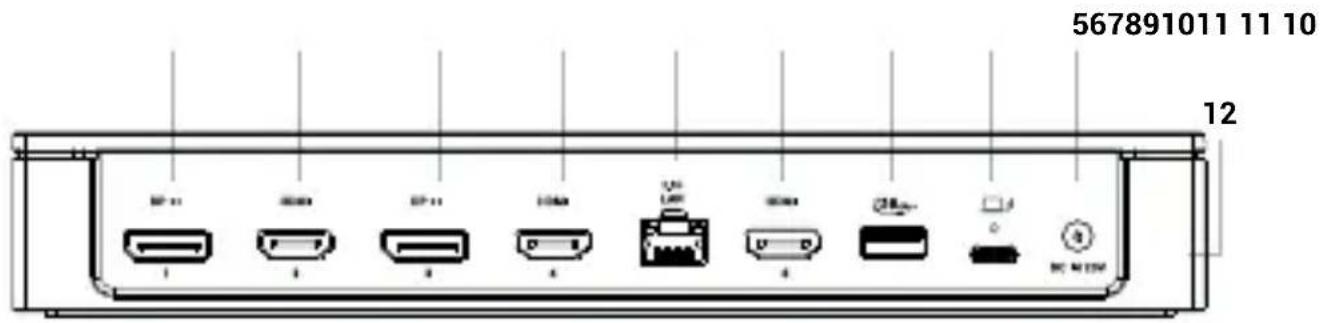

Back panel

1. Power input 20V/6.5A (130W)
2. USB-C port port for connecting USB-C devices up to 100W PD
3. 1x USB-A 3.2 Gen.2
4. 1x HDMI
5. Ethernet RJ-45 2.5GLAN port (Realtek RTL-8156)
6. 2x HDMI
7. 2x DisplayPort ++

Side panel

1. Kensington Lock

SPECIFICATIONS

• 1x USB-C port for connecting USB-C devices
• Docking station technology: displayLink + USB-C DP Alt mode + USB-C PD
  • Power delivery: 100 W *
  • Video ports: 2x HDMI, 2x DP, 1x HDMI**

• Resolution:

• 1 monitor - 1x DP - up to 8K/60Hz or 4K/144Hz

• 1 monitor - 1x HDMI - up to 4K/60Hz
• 5 monitors - 2x DP + 2x HDMI + 1x HDMI** - up to 5x 4K/60Hz

• 3x USB-A 3.2 Gen 2 (10 Gbps)

- 2x USB-C 3.2 Gen 2 (10 Gbps) with fast charging support (BC 1.2 5V 3A)

• 1x RJ-45 2.5 Gbps Ethernet port

- 1x 3.5mm combo connector

- 1x power input (DC 20V/6.5A, 130W)

- LED indicator

- Button to turn the docking station on and off

• Kensington lock support

• VESA mounting support

- USB-C to USB-C/USB-A cable (100 cm)

- MAC address cloning: Yes (using i-tec Docker Pro software)

• WOL: S1, S2, S3

- OS: Windows 10/11, macOS 11 or later, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

- Easy driver installation (Windows, macOS, Ubuntu, Android)

• Product dimensions: 245 x 98 x 37 mm

• Product weight: 495 g

• Package dimensions: 259 x 142 x 89 mm

• Package weight: 1280 g

Hardware requirements:

- Device with a free USB-A, USB-C, USB4 or Thunderbolt™ 3/4 port.

Power Delivery requirements:

- Device with a free USB-C, USB4, or Thunderbolt™ 3/4 port with Power Delivery support

Requirements for video output via HDMI 5:

- Devices with a free USB-C port with "DisplayPort Alternate Mode" support or Thunderbolt™ 3/4 port, USB4.

OPERATING SYSTEM:

• Windows 10/11, macOS 11 or later, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu.
• If the dock is connected via USB-A, laptop and tablet charging is not supported.

NOTE: Depending on the characteristics of your computer, especially the CPU, GPU, and RAM power of the connected device, connecting four or more displays with 4K resolution or higher may limit system smoothness. Expect a maximum of 2x 8K30Hz or 6x 4K60Hz

* Charging external devices is only supported when the dock is connected to a hosted device
* If the dock is connected via USB 3.0, charging of laptops and tablets is not supported
** Video transmission via HDMI 5 is only possible when the dock is connected to laptops with Thunderbolt 3/4 TM, USB4 or USB-C (video-enabled) ports. If connected to USB-A, only the DP and HDMI ports will be available, i.e. a maximum of 4 monitors

HARDWARE INSTALLATION (CONNECTING THE DOCKING STATION TO THE LAPTOP/TABLET)

1) Turn on the laptop/tablet and connect the power adapter to the docking station.
2) Plug the docking station power adapter into a 110V/230V AC power outlet and press the ON button.
3) Plug the USB-C cable into the USB-C port on the rear panel of the docking station
4) Plug the other end into an available USB-A, USB-C, USB4 or Thunderbolt™ 3 /4 port on your device.
5) This will then start the automatic installation of the ports on each system or you may need to install the Displaylink driver see below
6) After the installation is complete, we recommend restarting the guest device.

INSTALLING DRIVERS IN WINDOWS 10/11

WARNING! Do not connect the docking station to your laptop/tablet until you have installed the appropriate drivers. Drivers only need to be installed before first use. Make sure you have the latest drivers for your device and an updated BIOS installed on your system before installation.

For Windows, download the drivers from our website www.i-tec.cz/setup under the "Download" tab for this product. Start the installation from the downloaded file, select the installation language and follow the on-screen instructions.

On Windows 10/11, install the drivers as the "Administrator" user. The screen may flicker during driver installation, this is a standard process. We recommend restarting your laptop/tablet after the installation is complete.

In a multi-laptop environment equipped with Windows 10, 11, a one-time corporate installation by a system administrator is possible. For more information on how to install, read the instructions here: https://www.synaptics.com/products/displaylink-graphics/downloads/corporate

Most of the problems with the docking station and connected peripherals can be solved by using the On/Off switch or by disconnecting the USB cable of the docking station from the USB port of the laptop/tablet/Mac and reconnecting it after about 10s.

SAFETY INSTRUCTIONS FOR USING THE DOCKING STATION

- General safety instructions

1 Follow these safety guidelines to prevent possible damage to your computer and ensure your own safety. Unless otherwise noted, all procedures in this document assume that you have read the safety information that came with your computer. Place the device on a hard, level surface. Leave approximately 10 cm of clearance on all vented sides to allow air to flow for proper ventilation. Restricting airflow may damage the equipment or cause a fire.
2. Do not stack equipment on top of each other or place them so close together that they are exposed to recirculation or preheated air.
3. Make sure that nothing is resting on the equipment cables and that the cables are positioned so that they cannot be tripped over or stepped on.
4. Ensure that all cables are connected to the appropriate connectors. Some connectors look similar and can be easily confused (for example, do not plug the telephone cable into the power connector).
5 Do not place the device in an enclosed wall unit or on a soft fabric surface such as a bed, sofa, or carpet.
6. Keep the equipment away from heat sources.
7. Keep the equipment away from abnormally high or low temperatures so that it can operate within its operating range.
8. Do not insert objects into the vents or openings of the equipment. Failure to do so may result in fire or electric shock due to short circuit of internal components.
9. Do not use the unit in a humid environment, such as near a hot tub, near a sink, near a swimming pool, or in a damp basement.
10. Do not use mains-powered equipment during a storm. Battery-powered devices may be used if all cables are disconnected.
11 Avoid contact of liquids and food with the equipment.
12. Unplug the device from the electrical outlet before cleaning it. Clean the device with a soft cloth dampened with water. Do not use liquid or aerosol products that may contain flammable substances.
13. To avoid potential electrical shock hazards, do not connect or disconnect any cables or perform maintenance or reconfigure the equipment during a storm.
14. Before touching docking station components, ground yourself with a grounding bracelet or periodically touch an unpainted metal surface, such as the metal part on the back of the computer. While working, touch the unpainted metal surface regularly to remove any static electricity that could damage internal components.
15. When unplugging the cable, pull on the connector or grip, not the cable itself. Some cables have connectors with latches or screws that must be loosened before disconnecting the cable. When disconnecting cables, hold them straight to avoid bending the pins. When connecting cables, make sure that the ports and connectors are properly rotated and aligned.

GENERAL SAFETY INSTRUCTIONS REGARDING POWER SUPPLY

- Before connecting the equipment to an electrical outlet, check the rated voltage and make sure that the required voltage and frequency match the available power source.

- Make sure the computer, monitor, and connected devices have the proper rated electrical power to operate with the power adapter connected in your area.

- If the power cord is damaged, do not plug it into an electrical outlet.

- To avoid electric shock, plug the power cords of the equipment into properly grounded electrical outlets. If the equipment is equipped with a three-prong power cord, do not use adapter plugs that bypass the grounding function or remove the grounding element from the plug or adapter.

- If using an extension power cord, make sure that the total rated power of the products connected to it does not exceed the rated current of the extension cord.

- If you must use an extension cord or splitter, make sure that the extension cord or splitter is connected to a wall outlet and not to another extension cord or splitter. The extension cord or splitter must be designed for grounded plugs and plugged into a grounded outlet.

- If you are using a splitter with multiple outlets, be careful when plugging the power cord into the splitter. Some splitters may allow the plug to be connected incorrectly. Incorrect connection of the power plug can cause permanent damage to the equipment and may also cause a risk of electric shock or fire. Make sure that the grounding tip of the power plug is inserted into the grounding contact of the splitter.

- When unplugging the equipment from the power outlet, pull the plug, not the cord.

- Use only a power adapter supplied by i-tec technologies s.r.o. approved for use with this equipment. Use of any other power adapter may cause fire or explosion.

- If you use the power adapter to power a computer or charge a battery, place it in a ventilated area, such as on top of a desk or on the floor. Do not cover the power adapter with paper or other objects that may reduce cooling. Do not use the power adapter in its carrying case.

- The power adapter may become hot during normal operation of the docking station or computer.

- Use caution when handling the adapter during or immediately after operation.

- We recommend placing the adapter on the floor or table so that the indicator light is visible. This way you will know immediately when the adapter shuts down due to external influences. If for some reason the green light goes out, unplug the power cord from the outlet for 10 seconds and then plug it back in.

- Never use a power adapter that shows signs of damage or excessive wear

FREQUENTLY ASKED QUESTIONS

Available on our website www-i-tec.pro under "FAQ" for this product

GLOSSARY OF TERMS

Interface / port / connector / input / slot - the place where two devices are physically connected.

Controller - a semiconductor component (so-called chipset) in a notebook / tablet, ensuring the operation of one of the ports.

Thunderbolt™ - is a fast hardware interface that allows you to connect devices (peripherals) to your computer via an expansion bus. Thunderbolt combines PCI-Express and DisplayPort into a serial data interface. It allows for up to 6 additional Thunderbolt™ devices, and the transfer rate for Thunderbolt™ 3/4 is up to 40Gbit/s.

USB-C / USB Type-C / USB4 / Thunderbolt™ 3/4 - is a symmetrical connector Allows faster charging, power, dual-role (not only host but also guest), support for Alt Mode (DisplayPort, MHL, Thunderbolt 3, Power Delivery) and error notification via Billboard device.

USB-C Power Delivery (USB-C PD) - an optional feature of the USB-C connector. A connector with this support can both charge and be charged, and supports loads from 10W to 240W

USB 3.2 / 3.1 / 3.0 / 2.0 - standard for USB interface / port for connecting various USB devices. Various USB devices can be connected to the docking station or adapter using the USB Type-A interface. The USB type B port is used to connect the docking station or adapter to a laptop/tablet.

HDMI/Display Port - A standard for a digital graphics interface/port used to connect monitors and other graphic display devices.

LAN (Local Area Network) - local area network, now the most common is the so-called Ethernet, which reaches theoretical transfer speeds of up to 2.5 Gbit/s at the docking station.

Audio - a term for an audio input (microphone) or output device (headphones/speakers).

BESCHREIBUNG

Frontplatte

1. 3.5mm Combo Jack
2. 2x USB-A 3.2 Gen.2
3. 2x USB-C 3.2 Gen.2 with fast charging support (BC 1.2 5V 3A)
4. ON/OFF button + Led indication

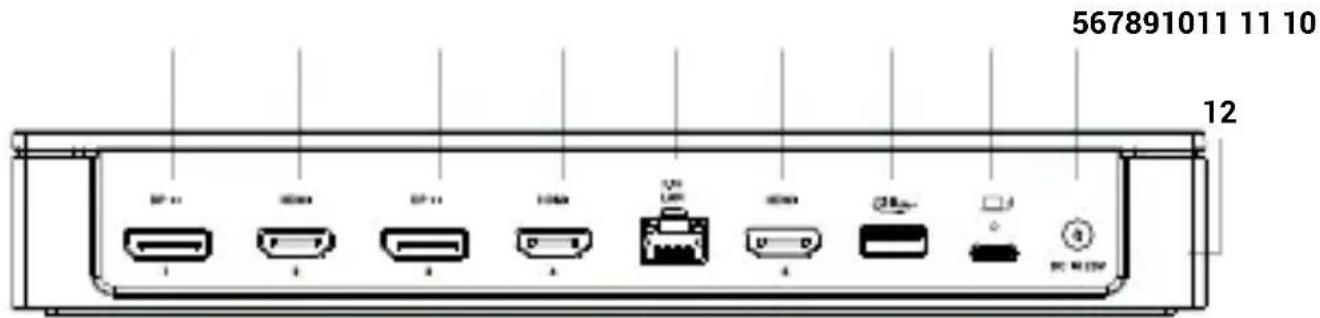

Back panel
