USER MANUAL 47BSYB60D4 Cleco

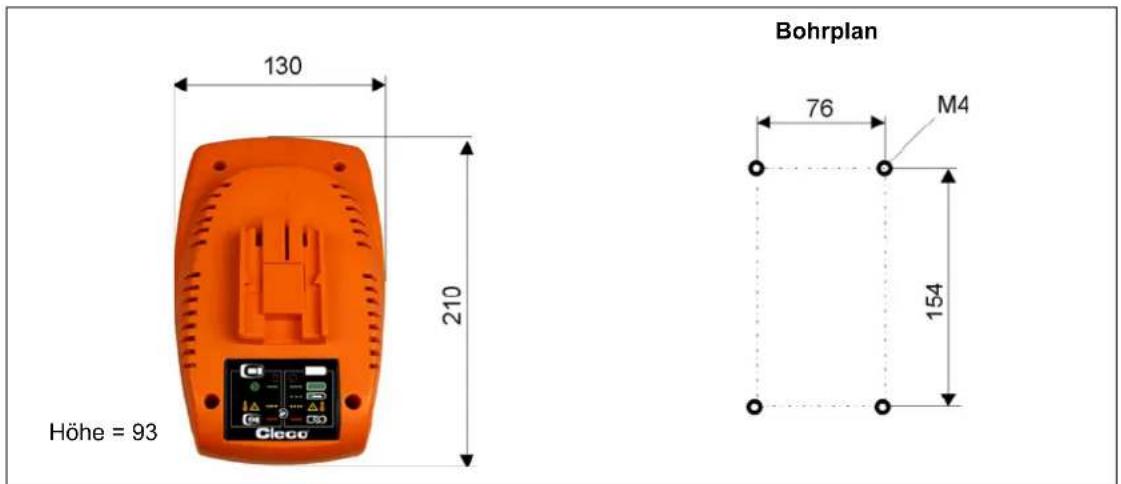

7.1 Abmessungen in mm

8 Entsorgung

VORSICHT!

Apex Tool Group reserves the right to modify, supplement or improve this document or the product without prior notice. This document may not be reproduced in whole or in part in any way, shape or form, or copied to another natural or machine-readable language or to a data carrier, whether electronic, mechanical, optical or otherwise, without the express permission of Apex Tool Group.

1 S a f e t y

WARNING!

Carefully read all safety information and instructions. Failure to comply with safety instructions and other instructions could result in electric shocks, burns and/or serious injuries.

1.1Warnings and information

Warning notes are identified by a signal word and a pictogram:

• The signal word describes the severity and the probability of the impending danger.
• The pictogram describes the type of danger.

WARNING!

CAUTION!

A symbol combined with the word WARNING warns of a potentially dangerous situation for the health of personnel. If this warning is not observed, death or serious injury may occur.

A symbol combined with the word CAUTION warns of a potentially harmful situation for the health of personnel or damage to property or the environment. If this warning is not observed, injuries, property or environmental damage may occur.

This symbol indicates a general instruction.

General instructions include application tips and special useful information, but no warnings against dangers.

1.2 Symbols on the product

Make sure you are familiar with the meanings before you start using the device.

Read the Instruction Manual before initial operation.

Always return used electrical equipment for recycling.

Slow-blow fuse Operation only indoors or in closed prem
ises

Protection rating II / Protection by double or reinforced insulation

Only for EU countries:
Do not dispose of electrical equipment with domestic waste!
Pursuant to EU Directive 2002/96/EC, used electrical equipment must be collected separately and returned for environmentally compatible recycling.

1.3 Basic requirements for safe working practices

CAUTION!

Electrical safety

Do not operate the charger if the housing, power cable or plug are damaged.
Do not use batteries which have been damaged or modified in any way. Batteries which have been damaged or modified may respond unpredictably, causing fire, explosion or injury.
Do not open the charger.
Do not modify the charger structurally.
Operate the charger in dry, enclosed rooms only.
Protect the charger from moisture and rain.
Never operate the charger under unsuitable ambient conditions (i.e. where combustible gases, solvents, dust, vapors or moisture is present).

Workstation

Ensure that there is enough space at the workstation.
Keep the work area clean and dry.

1.4 Designated use

The charger is intended exclusively for charging the following Apex Tool Group lithium ion batteries:

• Order no. 936400PT
• Order no. 935377

1.5 Items supplied

Check shipment for transit damage and ensure that all items have been supplied:

1 Battery charger 1 GB power cable
1 EU power cable 1 Instruction Manual
1 NA power cable

1.6 Transport

Transport and store the charger in the original packaging. The packing is recyclable.

2 Product description

2.1 General description

Automatic identification of connected battery.
Automatic identification of a charged battery guarantees optimum charging results.
Automatic identification of a defective battery.
- The recharging phase guarantees maximum run time of the battery.
- Charge status display
Overcharge protection
- Wide-range input make worldwide use possible.
- Voltage monitor prevents deep discharging and battery short-circuits.

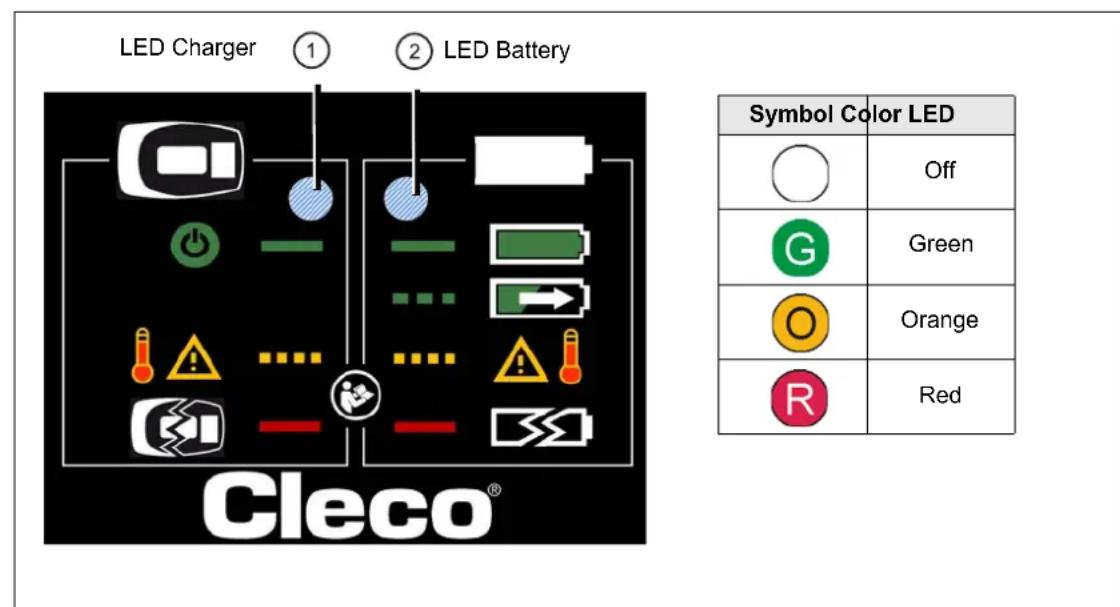

2.2 LED display

2.2.1 Operating status

① LED Charger	Graphic Status	② LED Battery	Graphic Status
		Off Off - No battery contact
Lights up G	Power supply	connected	Lights up Battery is charged
Flash 2 Hz	Error charger,	see 4 Troubleshooting	Flash 1 Hz Battery charging
Lights up R	See	see 4 Troubleshooting	Flash 2 Hz - Only 44 V -	Error battery, see 4 Troubleshooting
			Lights up Defrost battery	see 4 Troubleshooting

3 Initial operation

WARNING!

Risk of explosion if other batteries are used

Use only to charge CLECO lithium ion batteries, order no. 936400PT or order no. 935377.

Never use to charge other battery types.

Connecting the charger to the power network:

① LED lights up green and indicates that power is supplied.

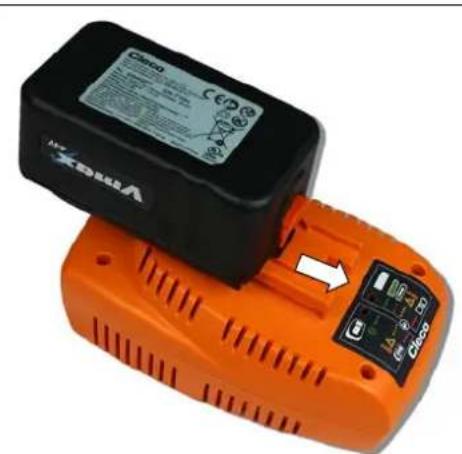

Plug the battery into the charger and make sure that it is securely connected.

LED ② is flashing green, indicating that charging is in progress.

LED ② should not be flashing red before it is plugged in. The battery could be damaged.
Disconnect the charger from the power supply, wait about 1 minute and then reconnect.

When charging is finished, the charger automatically shuts off the charging process. LED ② lights up permanently in green.

4 Troubleshooting

①LEDCharger	②LEDBattery	Error Measure
○	○	·No power supply voltage ·Power cable defective ·Charger defective	→Check and restore the power supply vol-tage. →Replace power cable →Send charger to Sales & Service Center.
R	○	·Charger defective	→Send charger to Sales & Service Center.
G	R	·Battery defective	→Send battery to Sales & Service Center.
G	○	·No battery contact ·Contacts are dirty ·Battery defective	→Insert battery again →Clean contacts of the charger and battery →Check battery and replace if necessary
R	R	·Charger + battery defec-tive	→Do not further operate the defective devices (charger + battery). →Replace charger + battery for new devices. →Send defective charger + battery to Sales & Service Center.
○	○	·Error charger: Temperature too high	→No action required Charging is automatically started / continued after cooling
G	○	-Only 44 V - ·Error battery: Temperature too high	→No action required Charging is automatically started / continued after cooling
○	○	-Only 44 V - ·Error communication	→Insert battery again →Clean contacts of the charger and battery

5 Servicing

CAUTION!

To clean the charger, make sure the power plug is disconnected and clean with a dry cloth.
Do not use easily inflammable substances for cleaning.
To ensure proper charger function, keep the contacts of the charger and batteries free of dirt.

6 Service

If repair is required, send the complete charger to Sales & Service Center. It may only be repaired by authorized technicians. Opening the charger will void the warranty.

7 Technical data

Features Data
Supply voltage 85 ... 270 VAC
Power supply frequency 47 ... 64 Hz
Efficiency factor 110 VAC	>90%
230 VAC	>93%
Max. supply voltage 110 VAC	1 A
230 VAC	0.5 A
Power loss in standby 110 VAC	5 W
230 VAC	4 W
Rated battery voltage	44/26 VDC
End-of-charge voltage	50.4/
Open circuit voltage, without battery Max. 1 VDC
Charging current	max. 2000 mA ±10%
Protection category	IP30
Weight without cable	0.82 kg
Operation temperature	+0 to +40 °C (+32 to +104 °F)
Operation, relative humidity	0...90%, non-condensing
Storage temperature	-20 to +60 °C (-4 to +140 °F)
Storage, relative humidity	0...80%, non-condensing
Storage duration	100,000 h
Life expectancy	60,000 h

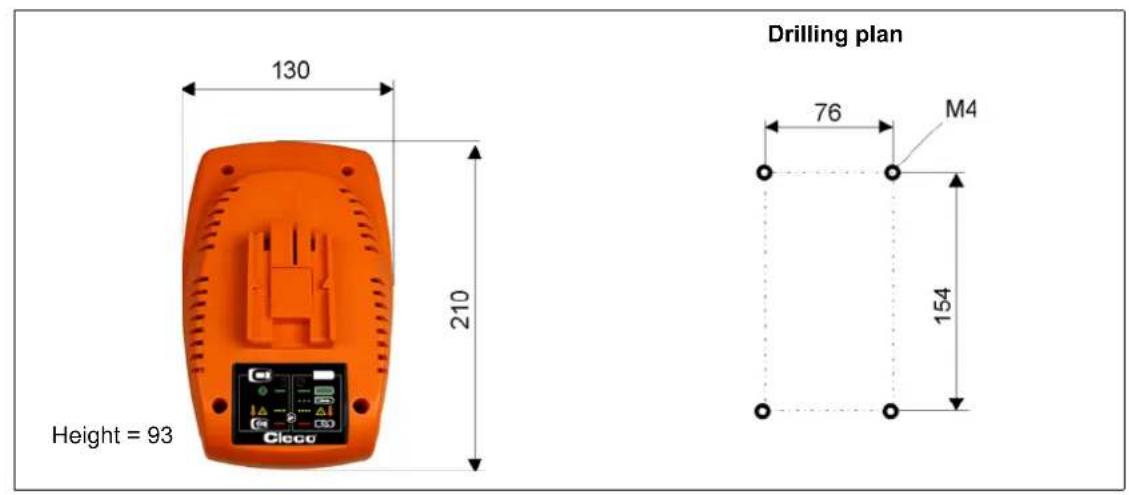

7.1 Dimensions in mm

8 D s p 0 s a I

CAUTION!

Injuries and environmental damage from improper disposal.

Components and auxiliary materials of the charger pose risks to the health and the environment.

Separate the components of the packing and segregate the different materials before disposing of them.
Follow the locally applicable regulations.

Return the charger and defective/used batteries to your company collection facility or to Sales & Service Center.
Do not throw the batteries in household refuse, fire or liquids.

• Ref. 936400PT
• Réf. 935377

1.5 Furniture

IHepeHnHbI npedoxpanTeB

3aunueHHbIX MeCTAX

Knacc 3auntbI / 3aunTa c NMOOsbIO DBOHOB HIN YCNJIeHHOH N3OJLIMN

ToIbKO dIra cTpaH EC: He Bbl6paCbIBaTB 3JIeKTpponpmbopk KaK 6blTOBOM Mycop! Cornacho DnpeKTHBe EC 2002/96/EG nCIOJIb3OBAHHbIe 3JIeKTpponpmbopk Heo6XODIMO CObIPaTB NOTdABaTB IIN NOBTOPHO INCIOJIb3OBAHnB B COOTBETCTBm C 3aKHOHaTeJIbCTBOM 6 OxpaHe OkpykaUo- Ue CpeDbI.

1.3 OchoBhIe npHcHbI pa6OtbI c co6JIoJeHneM npaBnJI TexHnKn 6e3OpacHOCTn

OCTOPOXHO!

3NeKtpuecka 6e3oNachoctb

→ 3Kcnnyataa 3apnHoro yctpoiCTBa npn nobpeXdeHnn Kopnyca, npoBoda nntAHH nnn cTeBORO uTEkepa 3anpeueHa.
He nCnoB3OBAbT noBpeJdeHHbIe IIN KOHCTpyKTHBHO n3MeHeHHbIe aKKMyJrTOpbI. NOBeJeHne nOBpeXJDeHHbIX IIN I3MeHeHHbIX aKKMyJrTOpOB HeNpeDcKa3yEMO, YTO MOKeT npNBecTn K NoXapam, B3pbi-BAM IIN TpaBMam.
→ 3anpeuaetcraOTKpbBaTb3apAHOe yCTpOncBO.
3anpeaetcBHOCTb KOHCTpyKTHBHbIe N3MeHeHnA.
→ 3KcnPnyaTnpyTe 3apraHnoe yCTpoiCtBO TOJIbKO B 3aunuEHHbIX, cyxNX NOMeueHnX.
→ 3aunuainTe OTdoKJn Hne donyckaTne npoHKnHOBeHn Bnarn.
→ Hn B KOem Cnyae He 3KcNpyaTnpyte 3apJHoe yCTpoiCTBO H he6NaorponprrTHbIX ycOBnx OkpykaIO- Ie Cpebl (Hanpimep, ropouhe ra3bl, pacTBOPNTen, nbjIb, nCnapeHna, cbipocTb).

Pa6oyee MeCTO

06ecneythe Heo6xOdImoe npoctpaHCTBO Ha pa6ooyem Mecte.
→Pa6ooye MeTo DoJIKHO 6bITb YIcTbIM cYxIM.

1.4 IcnoIb3OBaHne no Ha3HaueHIO

3apraHoe ycTpoNCTBO npedha3HaHeHO nckIIOHTeJIbHO dIg 3apraKn cIeMyOuXx Apex Tool Group IINTHIOHHbIX aKKyMnyTOpOB:

No nla 3aka3a 936400PT
No nla 3aka3a 935377.

1.5 KomnJIeKTI NOCTaBKn

PpOBepntb npEaMeT NOCTaBKn Ha OTCyTCTBnE NOBpeXeHn Pn TpaHCnOpTnpOBKe n COOTBeTCTBne HAKNaIHOH:

1 3apnHoe yctpoiCTBO

1 CeteBoi KaebIeBEnko6puTahnIa

1 CTeBoi Ka6eIb EC

1 RykoBIOCTBO NO 3Kcnpyaataun

1 CeTeBoi Ka6eJIb CeBepHaAmePika

1.6 TpaHcnpTnpoBka

TpaHcnpOpBky u xpaHeHne HndIeKNT npOn3BOundb B opnHaNbHO ynaKOBKe. YnaKOBka npiroDHa dIy BToPunH nepepa6oTKN.

2 OnscaHne npoDyKta

2.1 O6uee onncanhe

• ABTomatnueckoe pacno3HabAHne noKnHoueHHoro aKkyMnyTopa.
• ABTomatueckoe paCno3HabAHne 3apxkaemoro akKymyTopa rapaHTnpyET ONTMmaNbHbIe pe3yNtTaTbI 3aprKn.
• ABTomatnuyeckoe pacno3HaBaHne HeNCnpaBHOro AKKMyJrTopa.
• Φa3a noD3ap4n rapaHTnpyET MaKcMaJIbHoe BpEma 3KcIpyaTauin aKKMyJrTopa.
  Bn3yaJIbHbI INHdNkATOp 3apJdkn
• 3aunita ot neperpy3kn
• 5naroDapra shipokoDnana30HHomy BXOdy MOKet 6bTb NcNoJb30BaHO NOBCEMeCTHO.
• KoHTpOInb HAnpJxHnI npedOTBpaUaet rIy60kI pa3PraI nnI KopoTKe 3amblKaHne akkyMnylToPA.

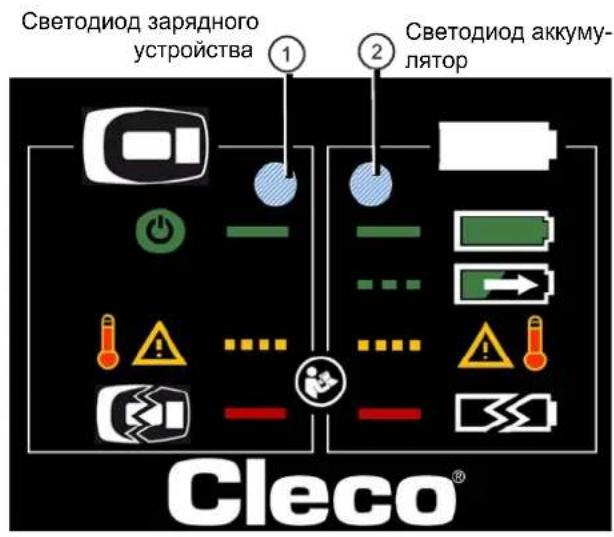

2.2 CBeToaHbI nHdNkaTOp

СИМВОЛ	ЦВЕТSBEVODЮДА
	Быкл.
G	Зелень
	Оразненьов
R	Красны

2.2.1 Coo6eHncaTatYca
