USER MANUAL CIE 4630 CANDY

Four circular diagrams arranged in a 2x2 grid, no text or symbols present

CIE4630B

Four circular burners placed on a white surface, no text or symbols present

CIE3637B

2 1 3 Crew

CIE3640B3

2 1 3 Cmver

CIE3640X

2 1 3 C###

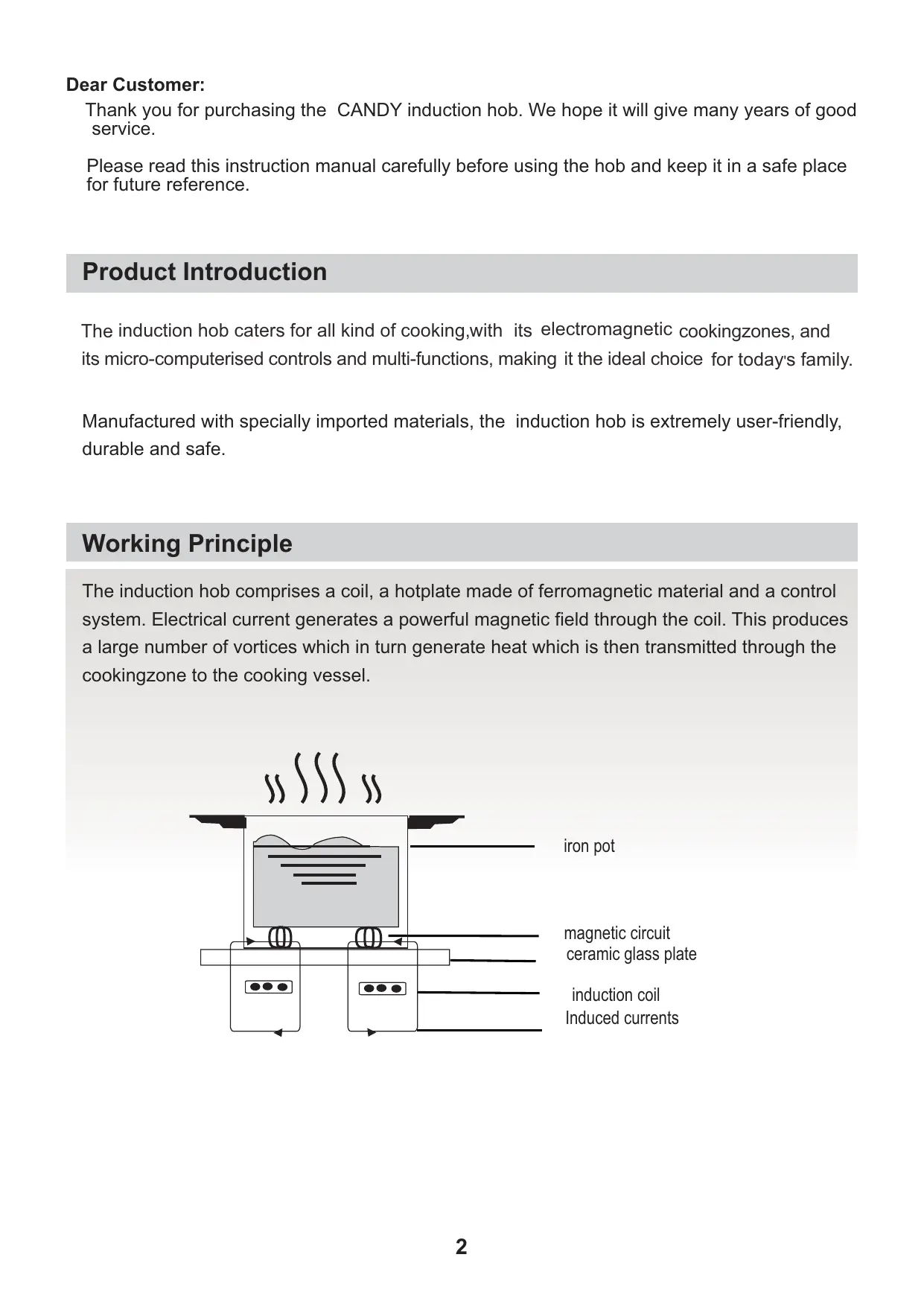

Dear Customer:

Thank you for purchasing the CANDY induction hob. We hope it will give many years of good service.

Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

Product Introduction

The induction hob caters for all kind of cooking, with its electromagnetic cooking zones, and its micro-computerised controls and multi-functions, making it the ideal choice for today's family.

Manufactured with specially imported materials, the induction hob is extremely user-friendly, durable and safe.

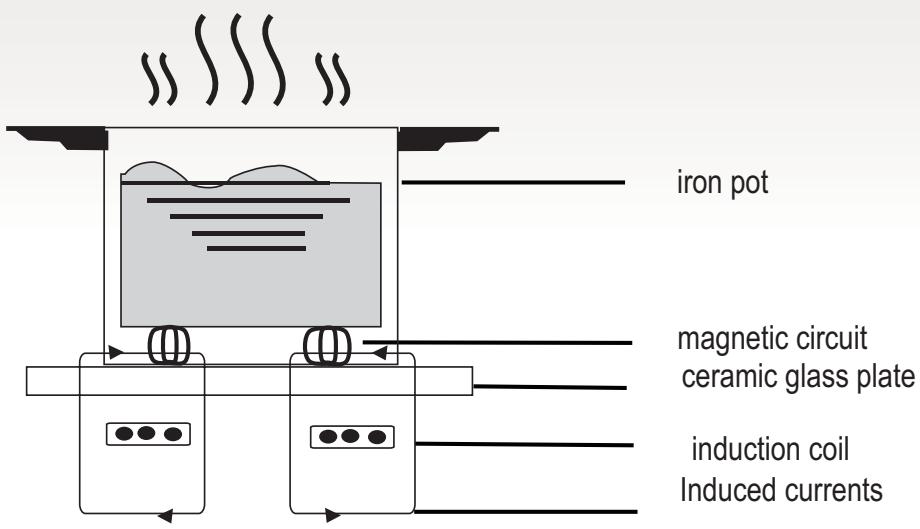

Working Principle

The induction hob comprises a coil, a hotplate made of ferromagnetic material and a control system. Electrical current generates a powerful magnetic field through the coil. This produces a large number of vortices which in turn generate heat which is then transmitted through the cookingzone to the cooking vessel.

iron pot magnetic circuit ceramic glass plate induction coil Induced currents

Safety

This hob was specially designed for domestic use.

In its constant search to improve its products, CANDY reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

● Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

- Detection of small or non-magnetic items

When a pan with a diameter of less than 80mm, or some other small item(e.g. knife, fork, key) or a non-magnetic pan( e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute, after which the hob goes automatically on to standby.

Residual heat warning

When the hob has been operating for some time, there will be some residual heat. The letter “H” appears to warn you to keep away from it.

Auto shutdown

Another safety feature of the induction hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	The heating zone shut down automatically after
1~3	8 hours
4~6	4 hours
7~9	2 hours

When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with a heart pacemaker should consult a doctor before using the induction hotplate.

Installation

1. Cut a hole in the worktop of the dimension shown in the diagram below. A minimum of 50 mm space should be left around the hole. The worktop should be at least 30 mm thick and made of heat-resistant material.

As shown in Figure (1)

56cm 49cm -5 cm min 5cm max 2cm max

Figure (1)

SEAL

1. It is essential that the induction hob is well ventilated and that the air intake and exit are not blocked.

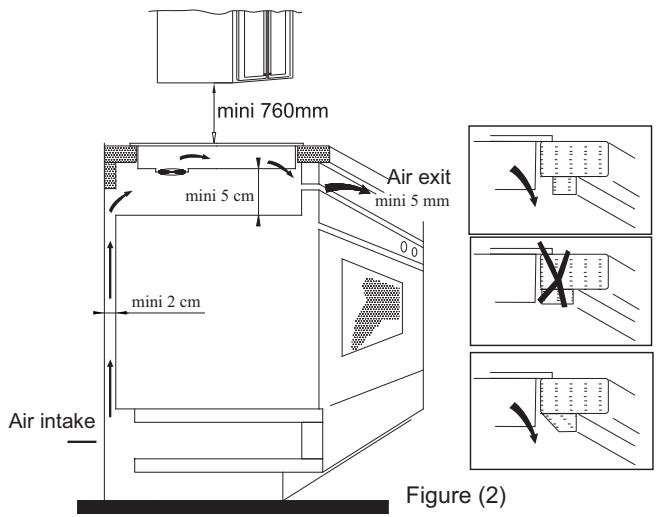

Make sure the hob is correctly installed as shown in Figure 2.

Figure (2)

NB: For safety, the gap between the hob and any cupboard above it should be at least 760 mm.

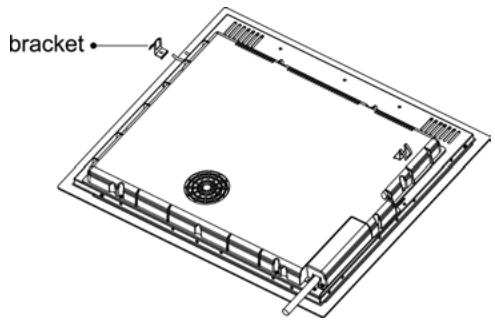

1. Fix the hob to the worktop using the four brackets on the base of the hob. The position of the brackets can be adjusted according to the thickness of the top.

bracket

Warnings:

(1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself.
(2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers.
(3) The induction hob should be installed so that optimum radiation of heat is possible.
(4) The wall and the area above the hob should be able to withstand heat.
(5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant.

4. Connection to power supply

The socket should be connected in compliance with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3.

Voltage&frequency	Wire connection
400V 2-N50\60HZ	1L1Brown	2L2Black	3NGray&Blue	4NYellow/Green
220-240V50\60HZ	1LBrown&Black		2LGray&Blue	3NYellow/Green

Figure (3)

If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

The cable must not be bent or compressed.

The cable must be checked regularly and only replaced by a properly qualified person.

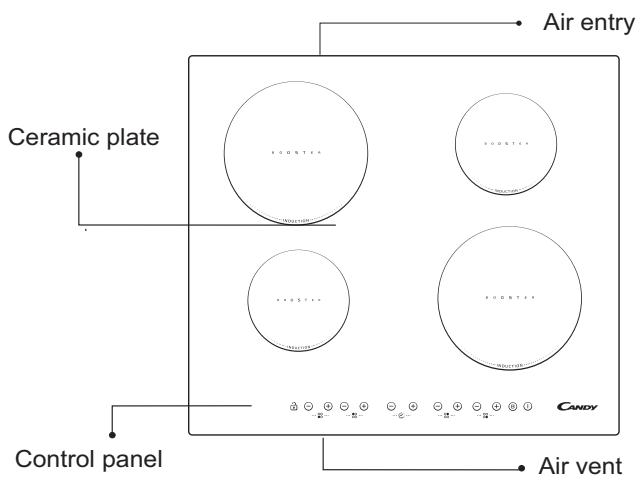

Diagram of induction hob:

Air entry Ceramic plate Air vent CANDY Control panel

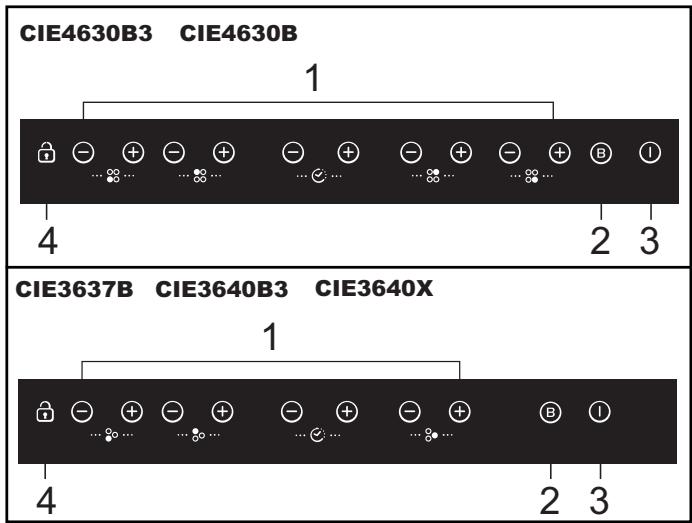

Schematic diagram of the control panel

CIE4630B3 CIE4630B 1 4 2 3 CIE3637B CIE3640B3 CIE3640X 1 4 2 3

1. Power/Timer regulating key

2. Boost

3.ON/OFF

1. Childproof lock key

Instructions for Use

Preparation before using:

When the power is switched on, the buzzer will sound once and all the indicators will come on for one second and then go out. The hob is now in standby mode.

Place the pan in the centre of the cooking zone.

Operating instructions

When the ON/OFF key is pressed, all the indicators show "-". Select the power level by pressing the "+" or "-" key for the relevant hotplate. To begin with the indicator shows "5". Adjust up or down by pressing the "+" or "-" key. If you press the "+" and "-" keys simultaneously, the power setting returns to "0", and the cooking zone switches off.

See the table on Page 6 for the power specific to each cooking zone.

NB: When the ON/OFF key is pressed, the induction hob returns to standby mode if no other operation is carried out within one minute.

- + ... ... ...

Boost mode

To heat up more quickly, press "BOOST" after selecting the cooking zone, with the power level indicator showing "P".

NB:

1. The boost function only operates for 5 minutes, after which the cooking zone returns to its orginal setting.

2. The boost function works on the all cooking zones.

3. As the boost function of 1st is activated, the 2nd cooking zone is limited under level 2 automatically. Vice versa.

Cancelling the "BOOST" mode

When in the "Boost" mode, Select the corresponding cooking zone and press the "Boost" key or the "-" to cancel the Boost mode, then the cooking zone will revert to its original setting.

Timing function

Press the "+" or "-" key of that zone, the corresponding indicator will be flashing. To activate timer function by press the "+" or "-" of timer key, the set time is between 1 and 99 minutes. Pressing the "+" of the timer key once the time will increase by one minute. Keeping on the "+" of timer key, the time will increase by 10 minutes, If the setting time exceeds 99 minutes, it will automatically return to "0" minutes. Same logic for "-".

- ... ⏱:... + ↑

Timing confirmation

1. Pressing the "+" or "-" of the timer key, the time can be set now.

2. When the timing indicator has been flashing for 5 seconds, the set time will be automatically confirmed.

Timer cancellation

If pressing the "-" and "+" keys simultaneously, the indicator will display "0".and the the timer will be cancel.

Safety mode

To ensure the safety of children, the induction hob is fitted with an interlock device.

To lock: hold down the "Interlock"; the hob then goes into "Interlock" mode, the timer shows "Lo" and the rest of the keys are disabled except the "ON/OFF" key.

Unlocking

Hold down the "Interlock" key for 3 seconds and the hob will return to normal working.

The maximum power of cooking zones is as follows:

Heating zone	CIE4630B3 CIE4630B		CIE3640B3 CIE3640X		CIE3637B
	Normal	Boost	Normal	Boost	Normal	Boost
1	1200	1500	1200	1500	1200	1500
2	2300	2600	2300	2600	2300	2600
3	1200	1500	3000	4000	3000	3700
4	2300	2600	----	----	----	----

The above may vary according to the size of the pan and the material it is made from

Selection of cooking vessels

Enamel stainless steel kettle

Enamel cooking utensil

You may have a number of different cooking vessels

1 This induction hob can identify a variety of cooking vessels, which you can test by one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone displays a power level, then the vessel is suitable. If "U" flashes, then the vessel is not suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is suitable for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of more than 14 cm.

3 Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob.

Safety Reminding and Maintenance:

Simple line drawing of a cabinet or filing cabinet inside a circular frame (no text or symbols)

A dedicated power protection air switch must be used.

Simple geometric diagram of a right-angled line within a circle (no text or symbols)

For indoor use only.

Symbolic illustration of a submerged object with a diagonal line crossing over waves, enclosed in a circle (no text or symbols)

Never wash the induction hob directly with water.

Symbol of a cooking pot with a crossed-out pan, commonly used to denote heating or cooking (no text present)

Never have the induction hotplate to work without food inside, otherwise its operational performance may be affected and danger may happen.

Prohibition symbol of a cylindrical object with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Always open sealed containers, such as cans, before heating them, otherwise they may explode.

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

When a cooking zone has been on for a long time the surface remains hot for some time afterwards - so do not touch the ceramic surface.

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

From time to time check that nothing (e.g. glass, paper, etc.) is obstructing the air intake beneath the induction hob.

Prohibition sign showing a fork and knife crossed over a table, enclosed in a circle (no text or symbols)

Do not leave metallic objects, such as knives, forks, spoons and lids on the hob as they may get hot.

Prohibition symbol of a flame inside a pan, crossed out by a diagonal line (no text or numbers present)

Never use the induction hob near another appliance which generates a high temperature, such as a gas cooker or a paraffin heater.

Prohibition sign showing a crossed-out fire next to a bench, enclosed in a circle (no text or symbols)

Do not store detergents or flammable materials beneath the hob.

Symbolic illustration of a hand holding a star over a document, enclosed in a circle with no text or symbols.

If the surface of the hob is cracked, switch off the appliance to avoid any possibility of electric shocks.

Prohibition sign of a cooking pot on a steamer, no text or symbols present

Do not place rough or uneven vessels on the hob, as they may damage the ceramic surface.

Simple line drawing of a hand pressing down on a surface within a circular frame (no text or symbols)

Clean the induction hob regularly to stop foreign objects from getting into the fan and preventing the appliance from working properly.

Illustration of a person giving a thumbs-up while standing at a desk (no text or symbols present)

Keep children or infirm persons away from the appliance. Never let them use it unsupervised.

Pure diagram of a coiled cable or wire with three terminals, enclosed in a circular border (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.

Symbol of a crossed-out trash bin with a horizontal bar below, enclosed in a circular border (no text or numbers present)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labelled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Cleanness and Maintenance

The surface of the induction hob may be easily cleaned in the following way:

Type of contamination	Method of cleaning	Cleaning materials
Light	Immerse in hot water and wipe dry	Cleaning sponge
Rings and lime scale	Apply white vinegar to the area, wipe with a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Sweetmeat, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product is best)	Special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode and display one of the following codes:

Fault	Possible cause	Solutions
F0/F1/F2	Fan failure	Contact the supplier
F3-F8	Temperature sensor failure	Contact the supplier
E1/E2	Abnormal voltage in power supply	Check if power supply is normal.Power on after power supply returns to normal.
E3/E4	Abnormal temperature	Check the pan
E5/E6	Poor heat radiation in cooking zone	Restart when cooking zone cools down

The above table shows how to assess and check common faults.
Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to dismantle it, and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions.

Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

Cher Client,

Diagram of a steam machine with cooling fans and heat dissipation (no text or symbols)

Protection anti-surchauffe

- + ... ⋯ ⋯ ⋯ ⋯

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

Simple geometric diagram of a right angle with a diagonal line inside a circle (no text or symbols)

Symbolic illustration of a broken object over waves, no text or symbols present

Symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object with a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign showing a fork pressing down on a table with a knife, crossed out by a diagonal line (no text or symbols)

Prohibition sign with circular fire icon and crossed-out circle, indicating no fire resistance or water release

Prohibition sign showing a firecracker with smoke, crossed out by a diagonal line (no text or symbols)

Symbol of a hand holding a book with a starburst graphic, crossed out by a diagonal line (no text or symbols present)

Symbol of a cooking pot on a tray with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular frame (no text or symbols)

Illustration of a person giving a thumbs-up while standing near a desk (no text or symbols)

Pure diagram of a coiled cable or wire with three wires, enclosed in a circular border (no text or symbols)

Symbol of a crossed-out trash bin with no text or numbers present

- + ... ○ ○ ...

Simple line drawing of a cabinet or rack inside a circular frame (no text or symbols)

Symbolic illustration of a vehicle approaching water with a diagonal line crossing (no text or numbers present)

Symbol of a cooking pot with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical can crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign with fork and knife crossed over a table, enclosed in a circle

Prohibition symbol of a circular object with flame-like patterns, crossed out by a diagonal line (no text or numbers present)

Prohibition sign showing a fire symbol crossed out by a diagonal line, no text present

Symbol of a hand holding a book with a starburst, crossed out by a diagonal line (no text or symbols present)

Prohibition symbol of a cooking pot on a tray, no text or numbers present

Illustration of a hand pressing down on a surface with a circular frame (no text or symbols)

Illustration of a person giving a thumbs-up gesture, enclosed in a circular frame (no text or symbols)

Pure diagram of a coiled cable or wire inside a circular frame (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste or discharge (no text or labels)

Diagram of a conveyor belt system with smoke and control panels (no text or symbols)

jerngryde

Line drawing of a cabinet or enclosure with a circular border (no text or symbols)

Simple black arrow symbol pointing right, enclosed in a gray circle (no text or labels)

Symbolic illustration of a submerged object with wavy lines, enclosed in a circle (no text or symbols)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular border (no text or symbols)

Prohibition symbol with three clover and checkmark inside a circle (no text)

Prohibition sign showing a fork and knife crossed on a plate, enclosed in a circle (no text or symbols)

Prohibition symbol of a flame inside a circular basin, no text or numbers present

Prohibition sign with crossed-out flames and a diagonal line, no text or symbols present

Symbol of a hand holding a book with a starburst graphic, crossed out by a diagonal line (no text or symbols present)

Prohibition symbol of a cooking pot with a diagonal line, no text or numbers present

Simple line drawing of a hand pressing down on a rectangular object (no text or symbols)

Illustration of a child wearing a headset pointing upward, standing in front of a desk with a laptop (no text or symbols present)

Pure diagram of a coiled cable or wire inside a circular frame (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, enclosed in a circular border (no text or numbers present)

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

Simple geometric diagram of a right-angled arrow inside a circle (no text or symbols)

Symbolic illustration of a submerged object with waves, no text or symbols present

Symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object with a diagonal line, commonly used to indicate no reduction or prohibition (no text present)

Simple line drawing of a hand pressing down on a square object, enclosed in a circular frame (no text or symbols)

Prohibition symbol with a crossed-out clover and leaf, enclosed in a circle (no text or numbers)

Prohibition sign of a fork and knife crossed over a plate, enclosed in a circle (no text or symbols)

Prohibition sign with flame symbol and crossed-out circle, indicating no fire or water hazard

Prohibition sign with crossed-out flame symbol and circular background

Prohibition symbol showing a hand holding a document with a starburst graphic, commonly used to indicate no violations or restrictions.

Prohibition sign of a cooking pot with a diagonal line crossing through it, no text or symbols present.

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a child wearing a headset, standing under a desk with a laptop (no text or symbols)

Pure diagram of a coiled cable with three wires, enclosed in a circular border (no text or symbols)

Symbol of a crossed-out electrical device inside a circle (no text or numbers present)

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

Simple geometric diagram of a right-angled arrow within a circle (no text or symbols)

Symbolic illustration of a submerged object with a diagonal line crossing over waves, enclosed in a circle (no text or symbols)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object with a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Prohibition symbol with three clover-like shapes inside a circle, crossed by a diagonal line (no text or numbers)

Prohibition sign showing a fork and knife crossed on a plate, no text or symbols present

Prohibition symbol of a flame inside a circular border, no text or numbers present

Prohibition sign showing a fire symbol crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Prohibition sign with crossed-out book and hand holding a star, symbolizing no text or document.

Prohibition symbol of a cooking pot on a steamer, no text present

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a person standing with raised hands, wearing a shirt and holding a tablet (no text or symbols present)

Pure diagram of a coiled cable or wire with three leads, enclosed in a circular border (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, enclosed in a circular border (no text or numbers present)

Simple line drawing of a cabinet or enclosure with a handle, enclosed in a circular frame (no text or symbols)

Simple geometric diagram of a right angle with a diagonal line, enclosed in a circle (no text or symbols)

Symbolic illustration of a submerged object with a diagonal line crossing over waves (no text or symbols)

Symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical can crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a rectangular object inside a circular frame (no text or symbols)

Prohibition symbol with three clover and diagonal line crossing (no text or numbers)

Prohibition sign with crossed-out knife and plate, indicating no use or absence of a manual keyboard tool

Prohibition symbol of a hot pot with steam rising, crossed out by a diagonal line (no text or numbers present)

Prohibition sign showing a fire extinguisher crossed out by a diagonal line, enclosed in a circle (no text or symbols)

Symbol of prohibition with a hand holding a book and a starburst, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cooking pot on a stove, no text or numbers present

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular frame (no text or symbols)

Illustration of a person giving a thumbs-up while standing near a desk (no text or symbols)

Pure diagram of a coiled cable or wire with three leads, enclosed in a circular border (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

- + ... ○ ○ ...

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

Symbol of a submerged object with a diagonal line crossing over waves, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers)

Prohibition symbol of a cylindrical object crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Symbol of a three-leaf clover with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Prohibition sign with crossed fork and knife on a plate, enclosed in a circle

Prohibition symbol of a hot pot with flame-like drops, no text or numbers present

Prohibition sign showing a fire symbol crossed out by a diagonal line, no text present

Symbol of a hand holding a book with a starburst graphic, crossed out by a diagonal line (no text or symbols present)

Prohibition symbol of a cooking pot on a steamer, no text present

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a person giving a thumbs-up while standing near a desk (no text or symbols)

Pure diagram of a coiled cable or wire with three terminal leads, enclosed in a circular border (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste or discharge (no text or numbers present)

Simple line drawing of a 3D printer or scanner device enclosed in a circular frame (no text or symbols)

Bruk en egnet sikkerhetsbryter.

Simple geometric diagram of a right-angled arrow within a circle (no text or symbols)

Symbolic illustration of a submerged object with a diagonal line crossing over waves (no text or symbols)

Prohibition symbol of a cooking pot with a diagonal line, no text or numbers present

Prohibition symbol of a cylindrical object crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object, enclosed in a circular border (no text or symbols)

Symbol of a three-leaf clover with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Prohibition sign showing a fork lifting a plate, no text or symbols present

Prohibition symbol of a flame inside a circular basin, no text or numbers present

Prohibition sign showing a crossed-out fire with smoke, enclosed in a circle (no text or symbols)

Symbol of a hand holding a document with a diagonal line crossing over it, enclosed in a circle (no text or symbols present)

Prohibition symbol of a cooking pot with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Illustration of a hand pressing down on a surface with a circular frame (no text or symbols)

Illustration of a child giving a thumbs-up gesture with outstretched hands, standing beside a desk (no text or symbols present)

Diagram of a coiled cable or wire with three connectors, enclosed in a circular border (no text or symbols)

Dersom ledningen er ødelagt må den straks skiftes ut av en teknisk kyndig person.

Symbol of a crossed-out trash bin inside a circle, with no text or numbers present.

Simple line drawing of a cabinet or enclosure with a handle and lid, enclosed in a circular frame (no text or symbols)

Symbolic illustration of a submerged object with a diagonal line crossing over waves (no text or symbols)

Symbol of a cooking pot with a diagonal line indicating prohibition (no text or numbers present)

Prohibition sign of a cylindrical object with a diagonal line crossing through it, enclosed in a circle (no text or symbols)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Symbol of a three-leaf clover with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Prohibition sign showing a fork lifting a knife on a table (no text or symbols)

Prohibition symbol of a fire hydrant with flame inside, no text present

Prohibition sign showing a fire symbol crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Symbol of a hand holding a book with a starburst graphic, crossed out by a diagonal line (no text or symbols present)

Prohibition symbol of a cooking pot on a steamer, no text present

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular frame (no text or symbols)

Illustration of a person giving a thumbs-up while standing at a desk (no text or symbols present)

Pure diagram of a coiled cable or wire with multiple wires, enclosed in a circular border (no text or symbols)

Symbol of a crossed-out electrical circuit with no text or labels

Simple line drawing of a cabinet or enclosure with a handle and lid, enclosed in a circular border (no text or symbols)

Symbol of a cooking pot with a crossed-out pan, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Symbol of a three-leaf clover with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Prohibition sign with fork and knife crossed over a plate, no text or symbols present

Prohibition symbol of a dish with flame-like patterns inside a circle (no text or numbers)

Symbol of prohibition of documents, no text present

Prohibition symbol of a cooking pot with a diagonal line, no text or numbers present

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular frame (no text or symbols)

- + ... ○ ○ ... + ←

BOOST-funktion (snabbtillagning)

Simple line drawing of a cabinet or rack unit enclosed in a circular border (no text or symbols)

Symbolic illustration of a submerged object with a diagonal line crossing over waves, enclosed in a circle (no text or symbols)

Prohibition symbol of a cooking pot with a diagonal line, no text or numbers present

Prohibition symbol of a cylindrical object crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object within a circular frame (no text or symbols)

Prohibition symbol of a clover with three blades, enclosed in a circle (no text or numbers)

Prohibition sign showing a fork and knife crossed on a table, enclosed in a circle (no text or symbols)

Prohibition symbol of a firecracker inside a circular pit, crossed out by a diagonal line (no text or numbers present)

Prohibition sign showing a firecracker inside a circle with no text or symbols

Symbol of a hand holding a document with a starburst, crossed out by a diagonal line (no text or symbols present)

Prohibition symbol of a cooking pot on a steamer, no text present

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a child giving a thumbs-up while standing near a desk (no text or symbols)

Pure diagram of a coiled cable or wire inside a circular frame (no text or symbols)

Symbol of a crossed-out electrical device with no text or labels

Simple line drawing of a refrigerator inside a circular frame (no text or symbols)

Symbolic illustration of a boat crossing over water, enclosed in a circle (no text or symbols)

Symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular border (no text or symbols)

Symbol of a three-petal vent with a diagonal line crossing through it, enclosed in a circle (no text or numbers present)

Prohibition sign showing a fork lifting a flat plate, no text or symbols present

Prohibition symbol of a fire pit with smoke plumes, no text or numbers present

Prohibition sign showing a firecracker inside a circle with no text or symbols

Symbolic illustration of a hand holding a book with a starburst graphic, crossed out by a diagonal line (no text or symbols present)

Prohibition symbol of a cooking pot crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Illustration of a person standing with arms raised, wearing a headset (no text or symbols)

Pure diagram of a coiled wire with three terminal leads, enclosed in a circular border (no text or symbols)

Safety warning symbol for a waste bin with crossed lines indicating no crossing and a rectangular block below

Premindo as teclas “+” e “-”

Line drawing of a 3D printer or box device enclosed in a circular frame (no text or symbols)

Simple geometric diagram of a right-angled arrow inside a circle (no text or symbols)

Symbolic illustration of a submerged object with a diagonal line crossing over waves, enclosed in a circle (no text or symbols)

Symbol of a cooking pot with a crossed-out triangle, commonly used to indicate prohibition or no use.

Prohibition symbol of a cylindrical object crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a rectangular object inside a circular frame (no text or symbols)

Symbol of a three-leaf clover inside a circle with a diagonal line crossing through it, representing no protection or prohibition (no text present)

Prohibition sign with crossed fork and plate, indicating no food allowed

Prohibition symbol of a fire pit with flame-like symbols, no text present

Prohibition sign with a crossed-out fire and smoke symbol (no text)

Symbol of a hand holding a star over a closed book, crossed out by a diagonal line (no text or symbols present)

Symbol of a cooking pot on a scale with no accompanying text or labels

Line drawing of a hand pressing down on a flat surface within a circular frame (no text or symbols)

Illustration of a child giving a thumbs-up in front of a train (no text or symbols)

Pure diagram of a coiled wire with terminal connectors, enclosed in a circular border (no text or symbols)

Se o cabo eléctrico estiver danificado, tem de ser substituído por pessoal técnico especializado.

Symbol of a trash bin crossing over a surface, enclosed in a circular border (no text or numbers present)

Line drawing of a 3D printer or scanner device with no text or symbols

Symbolic illustration of a submerged object with a diagonal line crossing over waves, enclosed in a circle (no text or symbols)

Symbol of a cooking pot with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Prohibition symbol of a cylindrical object with a diagonal line crossing it, enclosed in a circle (no text or numbers present)

Simple line drawing of a hand pressing down on a square object inside a circular frame (no text or symbols)

Prohibition symbol with three clover icons crossed out by a diagonal line (no text or numbers)

Prohibition sign showing a fork and knife crossed over a table, enclosed in a circle (no text or symbols)

Prohibition symbol of a firecracker inside a circular frame, no text present

Prohibition sign with crossed-out flames and a diagonal line, no text or symbols present

Symbol of prohibition of a document with a hand holding a star and arrow, enclosed in a circle (no text or symbols)

Prohibition symbol of a cooking pot on a steamer, no text present

Simple line drawing of a hand pressing down on a rectangular object, enclosed in a circular frame (no text or symbols)

Illustration of a child standing at a desk with a computer monitor (no text or symbols)

Illustration of a coiled cable or tube with three wires, enclosed in a circular frame (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, enclosed in a circle (no text or numbers present)
