USER MANUAL AirFry DuoChef CASO

CASO® DESIGN

Original-Bedienungsanleitung | Instruction Manual | Istruzione d'uso Gebruiksaanwijzing | Mode d'emploi | Instruções de funcionamento Bruksanvisning | Kullanım Kılavuzu |

Heißluftfritteuse AirFry DuoChef Air fryer AirFry DuoChef Friggitrice ad aria AirFry DuoChef Heteluchtfriteuse AirFry DuoChef Friteuse à air chaud AirFry DuoChef Fritadeira de ar quente AirFry DuoChef Varmluftsfritös AirFry DuoChef AirFry DuoChef Sıcak Hava Fritözü AirFry DuoChef

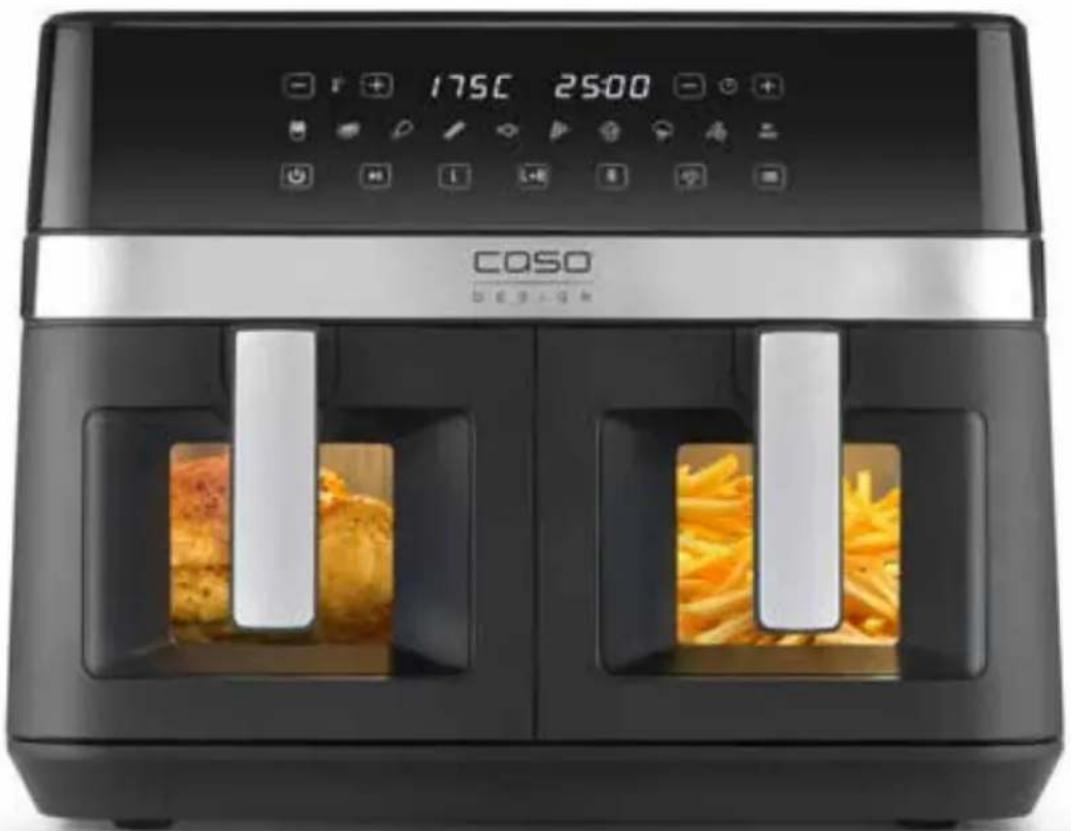

Exterior view of a CASO air fryer with two side dishes, digital display, and control buttons (no readable text or symbols)

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
IT	Ulteriori lingue di queste istruzioni per l’uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
FR	Vous trouverez ce mode d’emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
PT	Pode encontrar este manual de instruções noutras línguas em www.caso-design.de ou através da leitura do código QR.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
TR	Bu kılavuzun diğer dillere çevirileri için şu bağlantıya bakınız: www.caso-design.de. Bu amaçla, geçerli QR kodunu da tarayabilirsiniz.
HE	www.caso-design.de

Technische Daten / Technical Data / Dati tecnici / Technische gegevens / Caractéristiques techniques / Especificações técnicas / Tekniska data / Teknik bilgiler/

Gerät / Device / Apparecchio / Aparaat / Appareil /Aparelho / Apparat / Cihaz /הכלה	Heißluftfritteuse / Air fryer / Friggitrice ad aria /Heteluchtfriteuse / Friteuse à air chaud /Fritadeirade ar quente / Varmluftsfritös / Sicak Hava Fritözü /הכלה
Name / Name / Nome / Name / Nom / Nome /Benämning / Adı /הכלה	CASO AirFry DuoChef
Artikel-Nr. / Item No. / N. Articolo / Artikelnr. / N°.d’article / N.° de artigo Artikel-nr. / Ürün no. /הכלה	03186
Anschlussdaten / Mains data / Dati connessione /Aansluitgegevens / Données de raccordement /Dados de ligação / Anslutningsdata/ BağlantıBilgileri /הכלה	220 - 240 V; 50 - 60 Hz
Leistungsaufnahme / Power consumption /Potenza assorbita / Vermogens / Puissanceconsommée / Potência / Effektbehov / Nominalçıkışı /הכלה	2200 W
Außenabmessungen (B/H/T) / Externalmeasurements (W x H x D) / Misure esterne(L/H/P) / Afmetingen (BxHxD) / Dimensionsexternes (l/h/p) / Medidas (C x A x P) / Yttermått(B/H/D) / Dis Gövdenin Boyutu (Y/G/D) /הכלה/הכלה/הכלה/הכלה/הכלה/הכלה)	435 mm x 335 mm x 385 mm
Nettogewicht / Net weight / Peso netto / Nettogewicht / Poids net / Peso / Nettovikt / Net ağırlık /הכלה	9,3 kg

The following warning notices are used in the Operating Manual concerned here.

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

Intended use

This device is only intended for use in households in enclosed spaces for Heating, defrosting, keeping warm, fat-free frying, cooking, roasting, baking, grilling or drying of food.

This appliance is intended to be used in household and similar applications, such as:

• in kitchens, for employees in shops, offices and other commercial areas,
• in farms,
• by customers in hotels, motels and other similar residential environments,
• in bed and breakfast establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.

▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

General Safety information

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device:

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
This unit may be used by children as of 8 years old and anyone with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in connection with the safe use of the appliance and the dangers resulting from it.

PLEASE NOTE

▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.

The device and its connecting cable must be kept away from children who are less than 8 years old.
Do not make any modifications to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
Use the appliance only as described in the user's guide to avoid possible injury from misuse.

▶ Do not operate the appliance unattended.
▶ Do not use the appliance:

• if the appliance itself or parts are damaged,
• if the power cord or plug is damaged,
• if the appliance has been dropped.

▶ Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects.
▶ Pull the plug out of the socket:

• when you are not using the appliance,
  • after each use,
  • before cleaning the appliance or putting it away,
• if there is an obvious malfunction during operation,
  • during a thunderstorm.

▶ Do not operate the unit with an external timer or a separate remote-control system.
▶ Do not operate the oven if it is empty. This could damage the device.

▶ Only use the appliance with original accessories.

PLEASE NOTE

▶ Clean the appliance and remove food residues regularly. Poor cleanliness of the appliance can lead to destruction of the surface, which in turn affects the duration of use and possibly leads to hazardous situations.
▶ Turn or stir food so that it is heated evenly.

Sources of danger - Danger of burns

WARNING

When commissioning the unit, personal injury and damage to property may occur! Observe the following safety instructions to avoid the dangers:

▶ WARNING! The surfaces of the appliance may become hot during use. Make sure not to touch the ventilation slots, baking trays and insides of the frying baskets until they have cooled down completely.
▶ Do not move the appliance during operation or when it is still hot and contains hot food.
▶ Use cooking gloves or oven mitts when coming into contact with the hot parts of the appliance or food.
The air fryer emits hot steam during the frying process, particularly when the frying baskets are removed or the device door is opened. Do not lean over the appliance.
▶ Only cook items using the frying baskets and baking trays supplied with the device. Only use these frying baskets and baking trays in this air fryer. Never use the frying baskets and baking trays for any other purpose.
▶ Look for the hot steam rising from the air outlet. Do not cover the ventilation slots.
▶ Disconnect the device from mains power before assembling it; when changing over accessories and when disassembling it.

Sources of danger - Danger of Fire

WARNING

There is a danger of fire due to the ignition of the content in the event the device is not used properly. Adhere to the following safety instructions in order to avoid a risk of fire:

This device produces high temperatures, which can lead to burns.

WARNING

This device works on hot air. Do not fill it with oil or fat! Danger of burns!
▶ Make sure that no flammable objects are above or near the device.
Place all food items in the frying baskets or on the baking trays and avoid food items coming into direct contact with the heating elements.
▶ If the appliance catches fire, unplug it immediately and extinguish the fire.
▶ Never extinguish oil/grease fires with water. Immediately unplug the appliance and smother the fire with a blanket.

Sources of danger - Dangers due to electrical power

DANGER

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.

Transport inspection

WARNING

▶ Do not allow children to play with packaging materials due to risk of suffocation.

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
▶ Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the appliance on an easily accessible, level, dry, heat-resistant and sufficiently stable work surface to avoid spilling the hot liquid.
• Ensure that there is sufficient distance to strong heat sources such as hobs, heating pipes, etc.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• WARNING! Do not close the ventilation openings in the device housing.
• The device requires an adequate flow of air in order to operate correctly. Make sure that the back of the device is at least 10 cm away from the wall. Keep 10 cm free space at the other sides of the device.
• Ensure that the power cable does not hang down over a table or counter edge.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers,
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

IT Sicurezza

,הכלה.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Exploded view diagram of a microwave oven with numbered components and labeled parts

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawing of a two-part device with internal components and labeled parts (no text or symbols present)

Table of contents - Operation

1 General 65
1.1 Information on this manual....66
1.2 Limitation of liability....66
1.3 Copyright protection....66
1.4 Delivery scope 66
1.5 Unpacking 66
2 Design and Function....67
2.1 Overview....67
2.2 Control Panel 68
2.3 Automatic programs 68
2.4 Warning notices on device....69
2.5 Rating plate....69
3 Operation and Handling 69
3.1 Before first use 69
3.2 Safety switch....69
3.3 Overheating protection....70

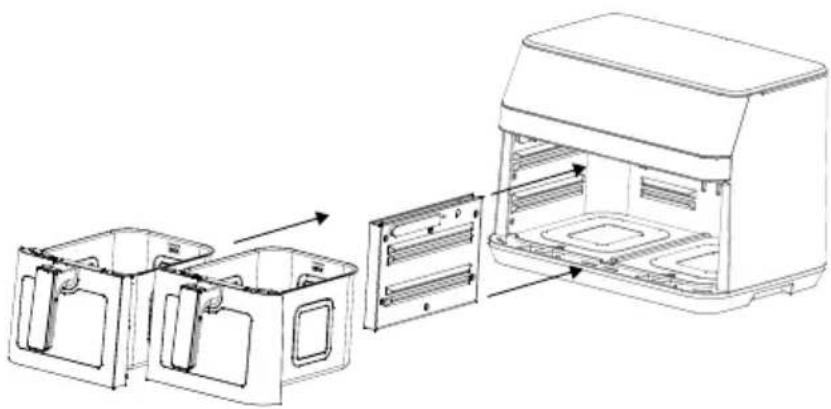

3.4 Assembly 70

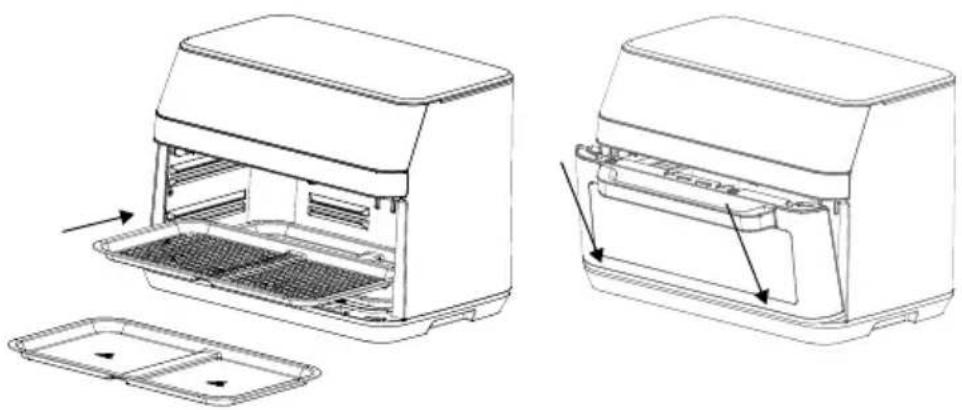

3.4.1 Use with the frying baskets 70

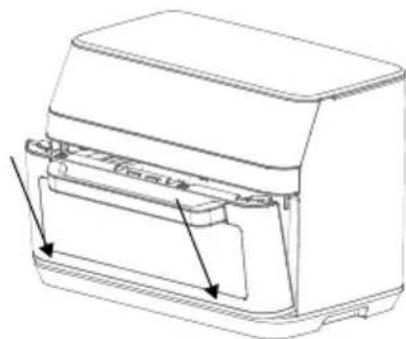

3.4.2 Use with the baking trays and device door 70
3.5 Operation....71
3.6 HOLD function....71
3.7 After the cooking process 72
3.8 Advices for frying....72
4 Cleaning and Maintenance 74
4.1 Safety information....74
4.2 Cleaning....74
5 Troubleshooting 74
5.1 Safety notices ....75
5.2 Troubleshooting table 75
6 Disposal of the Old Device 76
6.1 Disposal of the packaging....76
7 Guarantee....76

1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your microwave will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

1.1 Information on this manual

This user's guide is part of the hot air fryer AirFry DuoChef (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, - Operation,
• Troubleshooting and/or • Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.3 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

1.4 Delivery scope

The device includes the following components:

• AirFry DuoChef • 2 frying baskets with handles
- 2 inner baskets - Divider
- 1 baking tray - 1 perforated baking tray
- Device door - Operating manual

1.5 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

2 Design and Function

This chapter provides you with important information of the design and function of the device.

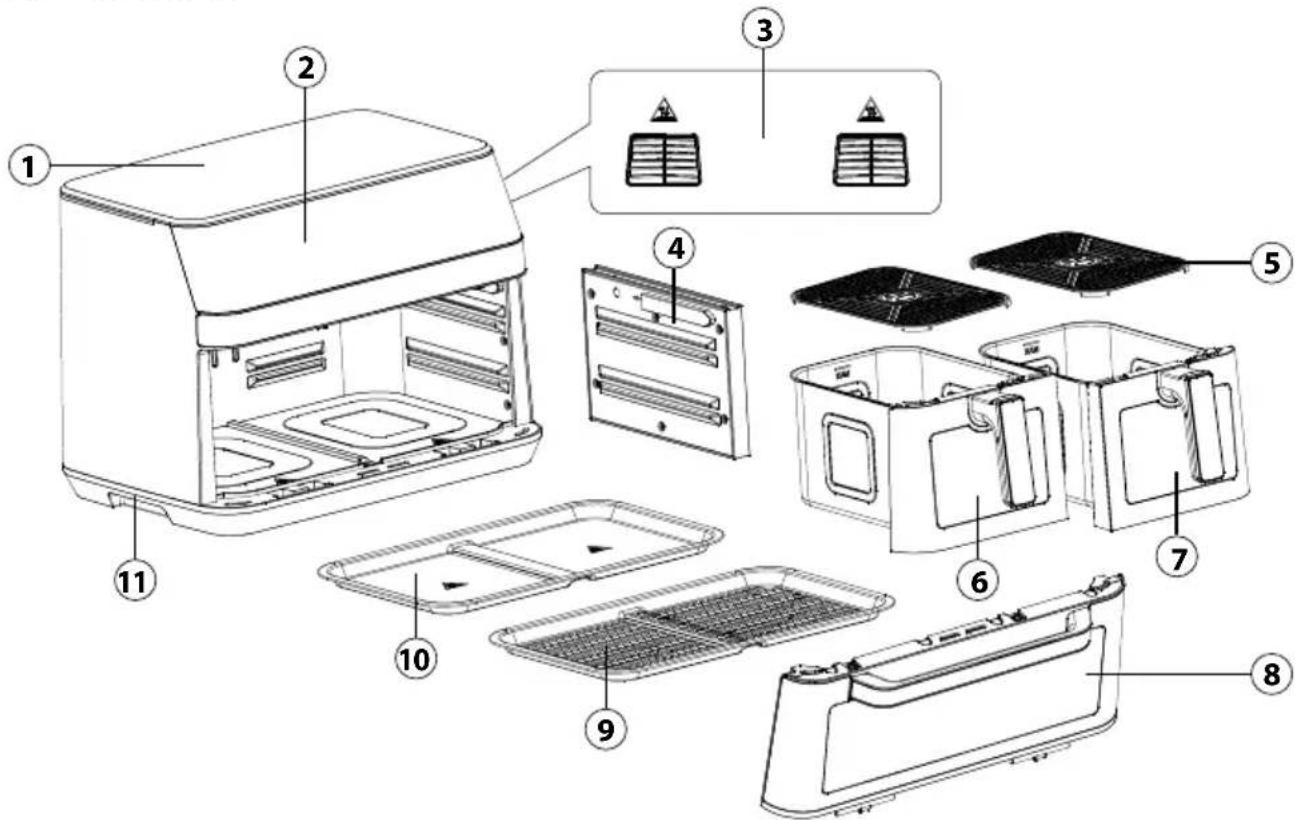

2.1 Overview

Exploded view diagram of a microwave oven with numbered parts for identification and assembly.

① Appliance base
② Control panel
③ Air outlet
④ Divider
⑤ Inner baskets
⑥ Left frying basket with handle

⑦ Right frying basket with handle
⑧ Device door
⑨ Perforated baking tray
⑩ Baking tray
⑪ Recessed handles

2.2 Control Panel

12 13 14 15 16 17 - + + 18 - + RE- 19 20 21 22 23 24 25 L L+R R = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = == 12 19 Decrease temperature 13 20 Increase temperature 14 21 Indication of temperature/time (left zone) 15 Indication of temperature/time (right zone) 16 Decrease time 17 Increase time 18 Automatic programs On/Off button Start/Stop button Select left zone Select both zones Select right zone Switching the interior lighting on and off Select automatic programmes

2.3 Automatic programs

*in 1 minute steps / *in 5 °C steps

	Program	Temp. in °C preset (range)*	Time in min. preset (range)*
	Fries	200(50-200)	25(1 - 60)
	Steak	200(50-200)	15(1 - 60)
	Chicken	180(50-200)	10(1 - 60)
	Bacon	160(50-200)	9(1 - 60)
	Fish	180(50-200)	15(1 - 60)
	Pizza & Co.	180(50-200)	10(1 - 60)
	Cakes	160(50-200)	20(1 - 60)
	Vegetables	170(50-200)	20(1 - 60)
	Root vegetables	200(50-200)	25(1 - 60)
REHEAT	Reheat	120(50-200)	6(1 - 60)

2.4 Warning notices on device

ATTENTION

Danger due to hot surface!

The surfaces of the device can become extremely hot.

▶ Do not touch the hot surfaces of the device. Danger of burns!
Do not set or lay any items on the device.

2.5 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

3 Operation and Handling

This chapter provides you with important information and notes on the operation and basic settings of the appliance.

3.1 Before first use

• Use warm soapy water to thoroughly clean the frying baskets, inner baskets and baking trays and dry them thoroughly. The frying baskets, inner baskets and baking trays can also be put in the dishwasher.
• Wipe the inside and outside of the appliance with a damp cloth.
• For more information on cleaning, see the chapter „Cleaning and care“.

3.2 Safety switch

This appliance is equipped with a safety mechanism. If you remove the frying baskets from the device during operation or open the device door, the device will stop the co-oking process (control panel shows "open") until the container(s) are re-inserted.

PLEASE NOTE

It's better to pull out the pot not longer than 30s, to make sure the stable temperature inside the pot to have better result.

3.3 Overheating protection

The device has an overheating protection. In case of too high temperature inside the device close to electronic components the device will switch off automatically. Pull the plug and let the device cool down at leat for half an hour.

3.4 Assembly

The device is supplied with the divider inserted as standard.

Technical line drawing of a microwave oven with internal compartments and housing, showing part assembly and mounting (no text or symbols)

3.4.1 Use with the frying baskets

1. Place the device on a stable surface.
2. Make sure that the divider is correctly inserted in the middle of the device. When doing so, use the arrow on the divider as a guide.
3. Place the inner baskets in the frying baskets.
4. Put your food items in the frying baskets and insert them into the device.

Technical line drawing of a two-part device with internal components and labeled parts (no text or symbols present)

3.4.2 Use with the baking trays and device door

1. Place the device on a stable surface.
2. Remove the frying baskets and divider from the device.
3. Insert the device door into the device's opening, starting from the top, until it clicks into place.
4. Place your food items on the desired baking tray and insert it into the device.
5. You can then close the device door.

3.5 Operation

1. Plug the power plug into the outlet.
2. A beep sounds and the control panel lights up briefly.
3. The appliance is in standby mode and the on/off-button continuous light.
4. Press the ⏻-button to switch on the appliance.
5. Use the time and temperature settings to select the desired zone. To do this, press the "L" button for the left zone; the "R" button for the right zone and the "L+R" button if you want to use identical settings for both zones. When using the baking trays, select the "L+R" button for both zones.
6. Select one of the 10 automatic programmes by tapping the button.
7. The programme symbol starts to flash and the preset temperature and time appear on the display.
8. You can adjust both the temperature and the time individually.
9. Use the “−” and “+” buttons located next to the “☐” symbol to set the temperature.
10. Use the “-” and “+” buttons located next to the “◀” symbol to set the time.
11. Press the ▶||-button to start the process.
12. To pause operation, press the ▶|| button again.
13. Halfway through the time, the appliance beeps 1 time so that you can turn your food over if necessary.
14. After the set time has elapsed, 3 beeps sound and „End“ is shown in the display. The fan continues to run for a short moment.
15. To cancel the process early and switch off the appliance, press and hold the button for approx. 3 seconds.

3.6 HOLD function

If you set different cooking times for each zone, then cooking will begin in the zone which requires the longer time first. The device's control panel will show "HOLD" for the other zone. As soon as the device reaches the cooking time set for the second zone, it will also begin cooking in this zone. This ensures that the differing contents of each frying basket are ready at the same time.

PLEASE NOTE

If you keep the + or the - button pressed, the value increases/decreases faster.
Do not fill the frying baskets above the "MAX" mark inside them. Food quantities should be based on the recommendations in the table below.
Once the programme has started, you can change the time and temperature at any time using the corresponding buttons.
▶ With the 🔒 -button, you can switch the interior lighting on or off at any time.

WARNING

▶ Only touch the frying basket handles or use oven gloves or pot holders to touch the baking trays as both become hot during use.

WARNUNG

Take care when removing the frying baskets or opening the device door, as hot steam may be emitted when doing so.
The frying baskets, baking trays and food items will be very hot when the cooking process ends!

3.7 After the cooking process

1. Use the frying basket handles to remove them from the device or, if you are using a baking tray, remove the tray and then place the baskets or tray on a heatproof surface.
2. Check that the food items are cooked. If not, you can reinsert the frying baskets or baking trays into the device and extend the cooking process for a few minutes.
3. Use a fork, cooking tongs or oven mitts to remove the food if necessary.

3.8 Advices for frying

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• Shaking the ingredients optimises the end result and can help prevent unevenly fried ingredients.
• To make fresh chips, use floury potatoes and cut them into 10 x 10 cm thick strips. Rinse them with water. Brush the potatoes with a little oil before frying to make them crispy.
• Adding a small amount of oil to your food will make it crispier. Do not use more than 30 ml of oil.
  • Assuming that the food items fit into the baskets or onto the baking trays, you can use this device to prepare any food items which can be cooked in an oven.

We recommend the following quantities and settings:

Food	Quantity	Progr.	Temp.(°C)	Time(min.)	Note	Recommended accessories
French fries (frozen)	500 g700 g1400 g		200	202525	When cooking a quantity of 700 g in one and 1400 g in both baskets, we recommend shaking the french fries every 10 minutes.	1 basket1 basketBoth baskets
Homemade potato wedges	500 g1000 g		200	3030	Cut the potatoes into wedges. Rinse with water, drain and brush with oil if necessary (shake every 10 mins).	1 basketBoth baskets
Stuffed courgettes	4 hal-ves		170-180	15-25	Cut the courgettes in half and hollow them out, fill with meat, couscous, cheese, etc. as desired.	Baking tray
Stuffed peppers	4-6 pcs 180				Cut off the top of the peppers and remove the seeds, fill with quinoa, meat, vegetables, etc. as desired.	Baking tray
Baked vegetables (sweet potato, courgette, beetroot, carrots)	500 g750 g		190 25		Chop and mix with oil and spices.	1 basketBoth baskets
Burger-Patty	6 pcs à approx.150 g		200 10-12			Baking tray
Chicken nuggets	500 g		180 15-20 1 basket
Grilled chicken 1	000 g		180 50			Baking tray
Lasagne 500 g			180 20-30		Place in a 20 x 8 x 15 cm oven-proof dish.	Baking tray
Pizza baguette 4	pcs		180 10			Baking tray
Homemade croutons	750 g		180 8		Dice the toast, mix with oil and spices.	1 basket
Buns 6-8 pcs			180 8-10			Baking tray
Bread	Dough for 1 loaf		180 30		In an ovenproof dish (max. 20 x 20 cm).	Baking tray
Muffins 12 pcs			180 15-20			Baking tray
Cake	Dough for 1 cake		180 45-50		Line the baking tray with baking paper and a cake ring (∅ approx. 20 cm).	Baking tray
Fish 300 g			180 15-20 1 basket
Prawns 250 g			180 15-20 1 basket
Chicken Wings 7	50 g		180 20		1 basket

PLEASE NOTE

▶ Check the degree of browning of the food in between and turn/shake if necessary.
▶ Please note that a different quantity can require an adjustment of time and temperature.
▶ Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

WARNING

▶ Only use heat-resistant accessories in the appliance. The accessories used may be very hot after cooking.
▶ Never place baking paper or parchment paper in the deep fryer without putting food on it. The air circulation may cause the paper to lift up and touch the heating coils.

4 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

4.1 Safety information

ATTENTION

Please observe the safety instructions, before cleaning your device

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
Clean the hob after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

4.2 Cleaning

WARNING

▶ Always remove grease residues in the device, as these residues can otherwise ignite.
- Use warm soapy water to thoroughly clean the frying baskets, inner baskets and baking trays and dry them thoroughly. The frying baskets, inner baskets and baking trays can also be put in the dishwasher.
- Wipe the inside and outside of the appliance with a damp cloth.

5 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

5.1 Safety notices

ATTENTION

▶ Repairs of electrical appliances must be carried out by qualified person who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

5.2 Troubleshooting table

The table below will help you to locate and solve small problems.

Error Possible cause Action
The appliance does not turn on.	Mains plug not plugged in. Plug	in the mains plug.
The process does not start when the Start/Stop button is pressed.	The frying basket is not fully inserted. Device door not completely shut.	Push the frying basket in firmly.Shut device door completely.
The food is not fully cooked or is cooked unevenly.	Frying baskets or baking trays are too full.	Put smaller quantities in the frying baskets or onto the baking trays.Shake or turn the food several times during the cooking time.
	Cooking temperature or cooking time set too low.	Increase the cooking temperature or the cooking time.
The food is not crispy after cooking.	Food may not be suitable for the appliance.	Spray or brush the food with a small amount of oil.
It is difficult to insert the frying baskets or baking trays into the device.	Frying baskets or baking trays are too full.	Remove some of the food items from the frying baskets or the baking trays.
White smoke comes out of the appliance.	You are preparing greasy food and oil or fat has splashed on the heating elements.	When you fry greasy food, oil drips into the frying basket. The oil produces the white smoke. This has no effect on the appliance or the final result.
	There are grease residues in the frying baskets or on the baking trays.	Clean the frying baskets or baking trays thoroughly after each use.
Dark smoke comes out of the appliance.	Food is burning or there is a problem with the circuit.	Immediately unplug the appliance from the mains. Wait a moment before you remove the frying baskets or baking trays. If the cause was not burnt food, contact customer service.
The appliance smells unpleasant.	The appliance has not been cleaned.	Clean the appliance after each use.
	Oil or grease is splashed on the heating elements.	The oil/grease produces white smoke and can smell unpleasant. This has no effect on the appliance or the final result.
The Inside light does not work..	The bulb is defective. Contact customer service.

PLEASE NOTE

If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge.

▶ Clean the device before you send it to customer service.

6 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

6.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no long red to "Green Dot" recycling collection points for disposal.

7 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects

which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

Exploded view diagram of a microwave oven with numbered components for identification

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawing of a two-part device with internal components and labeled parts (no text or symbols)

Exploded view diagram of a microwave oven with numbered components and labeled parts

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawing of a two-part appliance assembly showing internal components and a tray (no text or symbols)

Exploded view diagram of a microwave oven with numbered components and labeled parts

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawing of a two-part device with internal components and a tray (no text or symbols)

Exploded view diagram of a microwave oven with numbered parts for identification and assembly.

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawing of a two-part appliance assembly showing internal components and a tray (no text or symbols)

Exploded view diagram of a microwave oven with numbered parts for identification and assembly.

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawing of a two-part device with internal components and a tray (no text or symbols)

Exploded view diagram of a microwave oven with numbered parts for identification and assembly.

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

Technical line drawings of a two-part appliance with internal compartments and labeled parts (no text or symbols present)

Exploded view diagram of a microwave oven with numbered parts for identification

DE

EN

IT

NL

FR

PT

SV

TR

HE

תְקַרָה בְּבָם

תָּרִי בְּרִי

תְרָה בְּרָה

תְקָרִי אַלְבּ

בַלְרָה בְּרָה

Technical line drawing of a microwave oven with internal compartments and housing (no text or symbols)

3.4.1

Line drawing of a microwave oven with internal grating and cooling fins, plus a separate tray with arrows indicating flow (no text or symbols)

Technical diagram of a device casing with Chinese annotations indicating internal components and directional arrows.

3.4.2

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
IT	Ulteriori lingue di queste istruzioni per l’uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
FR	Vous trouverez ce mode d’emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
PT	Pode encontrar este manual de instruções noutras línguas em www.caso-design.de ou através da leitura do código QR.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
TR	Bu kılavuzun diğer dillere çevirileri için şu bağlantıya bakınız: www.caso-design.de. Bu amaçla, geçerli QR kodunu da tarayabilirsiniz.
HE	www.caso-design.de

CASO GmbH
