USER MANUAL AirFry 6.0 CASO

CASO® DESIGN

Original-Bedienungsanleitung | Instruction Manual | Istruzione d'uso Gebruiksaanwijzing | Bruksanvisning | Manual del usuario | Mode d'emploi Руководство по эксплуатации | Instruções de funcionamento | Instructiuni de utilizare titутה בְרָבִיּוֹתָהָהַן | تعليمات التشفيل

Heißluftfritteuse AirFry 6.0 Air fryer AirFry 6.0 Friggitrice ad aria AirFry 6.0 Heteluchtfriteuse AirFry 6.0 Varmluftsfritös AirFry 6.0 Freidora de aire caliente AirFry 6.0 Friteuse à air chaud AirFry 6.0 Аэрофритюрница AirFry 6.0 Forno AirFry AirFry 6.0 Friteuză cu aer cald AirFry 6.0 AirFry 6.0 (בְרָהַעֹרִי) מְרָהַעֹרִי (בְרָהַעֹרִי) (בְרָהַעֹרִי) (בְרָהַעֹרִי) (בְרָהַעֹרִי) (בְרָהַעֹרִי) (בְרָהַעֹרִי) (בְרָהֵלּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּוּו₂

Exterior view of a black COSO air fryer with digital display showing 200% weight gain and two pan-fried chicken wings (no text or symbols on main body)

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
IT	Ulteriori lingue di queste istruzioni per l’uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
FR	Vous trouverez ce mode d’emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
RU	Это руководство по эксплуатации на других языках вы найдете, перейдя по ссылке www.caso-design.de или отсканировав QR-код.
PT	Pode encontrar este manual de instruções noutras líinguas em www.caso-design.de ou através da leitura do código QR.
RO	Aceste instructiuni de utilizare sunt disponibile în alte limbi la adresa www.caso-design.de sau scanând codul QR.
HE
AR

Technische Daten / Technical Data / Dati tecnici / Technische gegevens / Tekniska data / Datos técnicos / Caractéristiques techniques / Технические характеристики / Especificações técnicas / Date tehnice / البيانات الفنية

Gerät / Device / Apparecchio Aparaat / Apparat /Aparato / Apparel / Прибор / Aparelho / Aparat /الجهاز/	Heißluftfritteuse / Air fryer / Friggitrice ad aria /Heteluchtfriteuse / Varmluftsfritös / Freidorade aire caliente / Friteuse à air chaud /Аэрофритюрница / Forno AirFry / Friteuză cu aercald/ المقالة العмиقة بالهواء الساخن
Name / Name / Nome Name / Benämning /Denominación / /Nom / Наименование / Nome /Nume/الاس/	CASO AirFry 6.0
Artikel-Nr. / Item No. / N. Articolo Artikelnr. / Artikel-nr. / N° de art / /N°. d’article / N° артикула / N.° deartigo / Cod articol/ رSize البند/	03185
Anschlussdaten / Mains data / Dati connessioneAansluitgegevens / Anslutningsdata / Cone-xión / Données de raccordement / Параметрыподключения / Dados de ligação / Date de conec-tare/	220 - 240 V; 50 - 60 Hz
Leistungsaufnahme / Power consumption /Potenza assorbita Vermogens / Effektbehov /Consumo de potencia / / Puissance consommée /Мощность / Potência / Putere consumată/ال underscoresالقوة	1700 W
Außenabmessungen (B/H/T) / Externalmeasurements (W x H x D) / Misure esterne (L/H/P)/ Afmetingen (BxHxD) /Yttermått (B/H/D) / Dimensiones exteriores(An/H/P) / Dimensionsexternes (l/h/p) / Габаритные размеры (Ш/В/Г) /Medidas (C x A x P) / Dimensiuni exterioare (lätime/înaltime/adâncime) /(###/###/###)(###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###/###	280 mm x 280 mm x 400 mm
Nettogewicht / Net weight / Peso netto / Nettogewicht / Nettovikt / Peso net / /Poids net / Bec / Peso/Greutate netă/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزن الصافي/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ###/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн #/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн ##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн#/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн##/الوزн## ###

The following warning notices are used in the Operating Manual concerned here.

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

Intended use

This device is only intended for use in households in enclosed spaces for Heating, defrosting, keeping warm, fat-free frying, cooking, roasting, baking, grilling or drying of food.

This appliance is intended to be used in household and similar applications, such as:

• in kitchens, for employees in shops, offices and other commercial areas,
• in farms,
• by customers in hotels, motels and other similar residential environments,
  • in bed and breakfast establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.

▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

General Safety information

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device:

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.

This unit may be used by children as of 8 years old and anyone with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in connection with the safe use of the appliance and the dangers resulting from it.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.

The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ Do not make any modifications to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
- Use the appliance only as described in the user's guide to avoid possible injury from misuse.

▶ Do not operate the appliance unattended.
▶ Do not use the appliance:

• if the appliance itself or parts are damaged,
• if the power cord or plug is damaged,
• if the appliance has been dropped.

▶ Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects.
▶ Pull the plug out of the socket:

• when you are not using the appliance,
• after each use,
• before cleaning the appliance or putting it away,
• if there is an obvious malfunction during operation,
  • during a thunderstorm.

PLEASE NOTE

▶ Do not operate the unit with an external timer or a separate remote-control system.
▶ Do not operate the oven if it is empty. This could damage the device.
▶ Only use the appliance with original accessories.
▶ Clean the appliance and remove food residues regularly. Poor cleanliness of the appliance can lead to destruction of the surface, which in turn affects the duration of use and possibly leads to hazardous situations.
▶ Turn or stir food so that it is heated evenly.

Sources of danger - Danger of burns

WARNING

When commissioning the unit, personal injury and damage to property may occur! Observe the following safety instructions to avoid the dangers:

▶ WARNING! The surfaces of the appliance may become hot during use. Take special care not to touch the ventilation slots and the inside of the frying basket until it has cooled down completely.
▶ Do not move the appliance during operation or when it is still hot and contains hot food.
▶ Use cooking gloves or oven mitts when coming into contact with the hot parts of the appliance or food.
Hot steam escapes during the frying process, especially when the frying basket is pulled out. Do not lean over the appliance.
▶ Fry only in the enclosed frying pot. Use this frying pot exclusively with this fryer. Use the frying pot never otherwise.
▶ Look for the hot steam rising from the air outlet. Do not cover the ventilation slots.

Sources of danger - Danger of Fire

WARNING

There is a danger of fire due to the ignition of the content in the event the device is not used properly. Adhere to the following safety instructions in order to avoid a risk of fire:

This device produces high temperatures, which can lead to burns.

WARNING

This device works on hot air. Do not fill it with oil or fat! Danger of burns!
▶ Make sure that no flammable objects are above or near the device.
Place the food into the frying basket and avoid that they touch the heating elements.
▶ If the appliance catches fire, unplug it immediately and extinguish the fire.
▶ Never extinguish oil/grease fires with water. Immediately unplug the appliance and smother the fire with a blanket.

Sources of danger - Dangers due to electrical power

DANGER

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.

Transport inspection

WARNING

Do not allow children to play with packaging materials due to risk of suffocation.

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
▶ Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the appliance on an easily accessible, level, dry, heat-resistant and sufficiently stable work surface to avoid spilling the hot liquid.
• Ensure that there is sufficient distance to strong heat sources such as hobs, heating pipes, etc.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.

- The device is not intended to be installed in a wall or a built-in cupboard.

- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

- WARNING! Do not close the ventilation openings in the device housing.

- The device requires an adequate flow of air in order to operate correctly. Make sure that the back of the device is at least 10 cm away from the wall. Keep 10 cm free space at the other sides of the device.

- Ensure that the power cable does not hang down over a table or counter edge.

- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers,
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

,הכלה.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of a cooking air fryer with labeled parts 4 and 5

Diagram of a portable air conditioner with labeled component 6 and cable connections

Table of contents - Operation

IT 1 General 80

1.1 Information on this manual....81
NL 1.2 Limitation of liability....81
SV 1.3 Copyright protection....81
1.4 Delivery scope 81
ES 1.5 Unpacking....81
2 Design and Function....82
FR 2.1 Overview....82
2.2 Control Panel 82
2.3 Automatic programs 83
PT 2.4 Warning notices on device....83
2.5 Rating plate....83
RO 3 Operation and Handling 83
3.1 Before first use 84
HE 3.2 Safety switch....84
3.3 Overheating protection....84
3.4 Operation 84
3.5 Quick Start....85
3.6 After the cooking process ....85
3.7 Advices for frying....85
4 Cleaning and Maintenance 87
4.1 Safety information....87
4.2 Cleaning....88
5 Troubleshooting 88
5.1 Safety notices 88
5.2 Troubleshooting table 88
6 Disposal of the Old Device 90
6.1 Disposal of the packaging....90
7 Guarantee....90

1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your microwave will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

1.1 Information on this manual

This user's guide is part of the hot air fryer AirFry 6.0 (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, - Operation,
• Troubleshooting and/or • Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.3 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

1.4 Delivery scope

The device includes the following components:

• AirFry 6.0 • Frying basket with handle
- Basket insert with silicone fixings • Operating manual

1.5 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

2 Design and Function

This chapter provides you with important information of the design and function of the device.

2.1 Overview

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of an air fryer with labeled parts 4 and 5

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

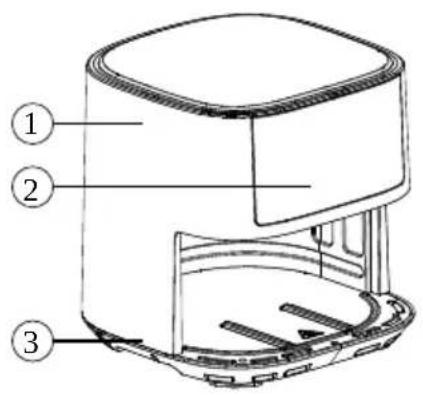

① Appliance base
② Control panel
③ Recessed handles

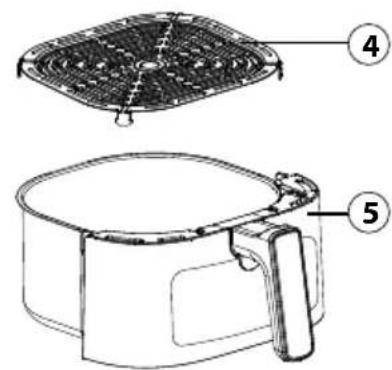

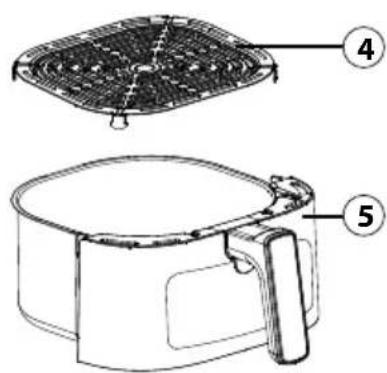

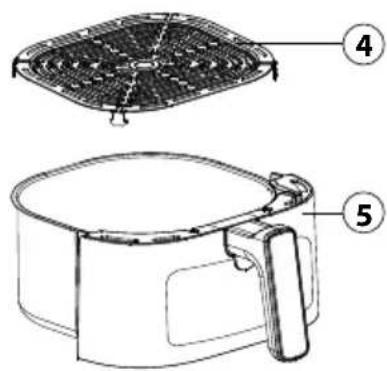

④ Basket insert with silicone fasteners
⑤ Frying basket with handle

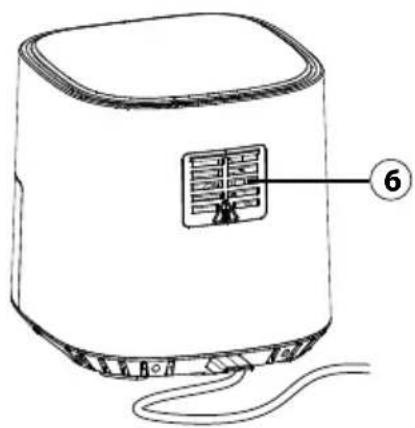

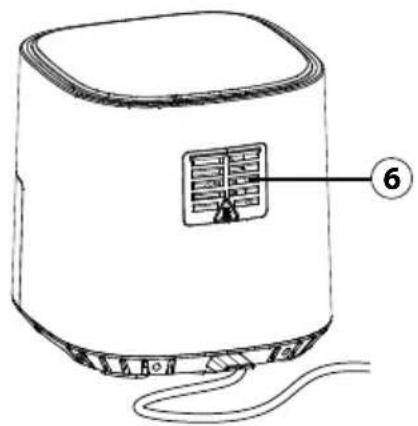

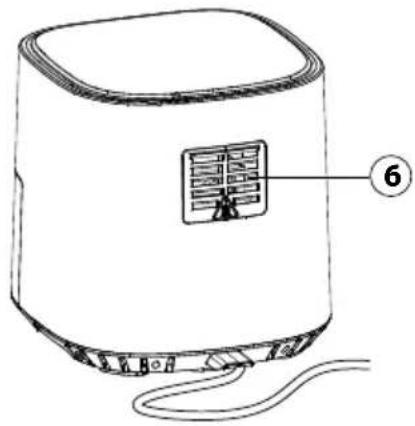

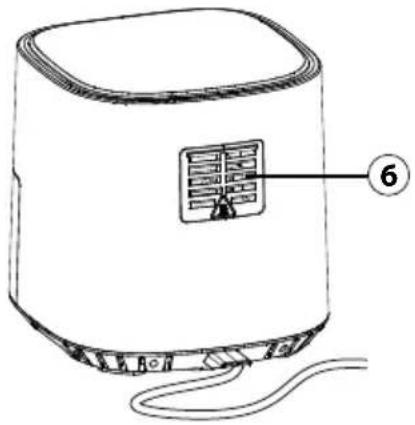

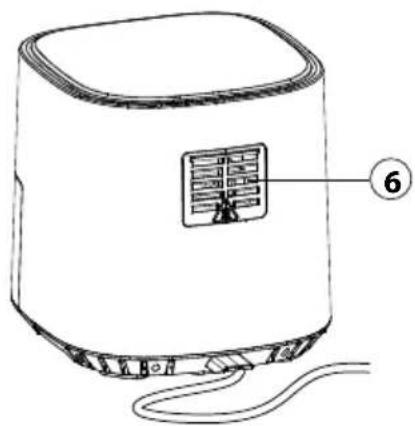

⑥ Air outlet

2.2 Control Panel

⑦ REHEAT ⑭—:≡ ⑬—TIME TEMP. ⑭1011 888 °C MIN + ⑧ ⑨

⑦ Automatic programs
⑧ Switching the interior lighting on and off
⑨ On/Off button + Start/Stop button
⑩ Increase time/temperature

⑪ Indication of temperature/time
⑫ Decrease time/temperature
⑬ Select time/temperature
⑭ Select automatic programmes

2.3 Automatic programs

	Program	Temp. in °C preset (range)*	Time in min. preset (range)*
	Fries	200(50-200)	30(1 - 60)
	Pizza & Co.	180(50-200)	10(1 - 60)
	Chicken	180(50-200)	10(1 - 60)
	Steak	200(50-200)	10(1 - 60)
	Cakes	160(50-200)	20(1 - 60)
	Vegetables	170(50-200)	20(1 - 60)
	Fish	180(50-200)	15(1 - 60)
REHEAT	Reheat	120(50-200)	6(1 - 60)

*in 1 minute steps / *in 5 °C steps

2.4 Warning notices on device

ATTENTION

Danger due to hot surface!

The surfaces of the device can become extremely hot.

▶ Do not touch the hot surfaces of the device. Danger of burns!

▶ Do not set or lay any items on the device.

2.5 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

3 Operation and Handling

This chapter provides you with important information and notes on the operation and basic settings of the appliance.

3.1 Before first use

• Clean the frying basket and the basket insert thoroughly in warm rinsing water and dry the parts thoroughly. You can also put the frying basket and basket insert in the dishwasher.
• Wipe the inside and outside of the appliance with a damp cloth.
• For more information on cleaning, see the chapter „Cleaning and care“.

3.2 Safety switch

This appliance is equipped with a safety mechanism. If you pull the frying basket out of the appliance during operation, the appliance stops (display shows 'out') heating and pauses operation until the container is pushed back in.

PLEASE NOTE

It's better to pull out the pot not longer than 30s, to make sure the stable temperature inside the pot to have better result.

3.3 Overheating protection

The device has an overheating protection. In case of too high temperature inside the device close to electronic components the device will switch off automatically (display shows 'E3'). Pull the plug and let the device cool down at leat for half an hour.

3.4 Operation

1. Plug the power plug into the outlet.
2. A beep sounds and the control panel lights up briefly.
3. The appliance is in standby mode and the on/off-button continuous light.
4. Place the basket insert in the frying basket.
5. Put your food into the frying basket and slide it into the appliance.
6. Press the ⚡️-button to switch on the appliance.
7. Select one of the 8 automatic programmes by tapping the button.
8. The programme symbol starts to flash and the preset temperature and time appear alternately on the display.
9. You can adjust both the temperature and the time individually.
10. Select the - button to then change the time using the - or + button.
11. Select the - button again to adjust the temperature using the - or + button.
12. Press the ⏻-button to start the process.
13. To pause operation, press the ⏻/ID button again.
14. Halfway through the time, the appliance beeps 1 time so that you can turn your food over if necessary.

15. After the set time has elapsed, 3 beeps sound and „End“ is shown in the display. The fan continues to run for a short moment.

16. To cancel the process early and switch off the appliance, press and hold the button for approx. 3 seconds.

PLEASE NOTE

If you keep the + or the - button pressed, the value increases/decreases faster.
▶ Never fill the basket exceed the MAX-amount indicated in the table, as this could affect the quality of the end result.
Once the programme has started, you can change the time and temperature at any time using the corresponding buttons.
▶ With the -button, you can switch the interior lighting on or off at any time.

WARNING

▶ Only hold the frying basket by the handle, as the appliance may become hot during cooking.
When removing the frying basket, watch out for the hot steam that may escape.
The frying basket and the food are very hot after cooking!

3.5 Quick Start

If you directly press the ⏻ button after point 6. without selecting a program, the device immediately starts frying in the Quick Sart mode (Temperature: 200°C, cooking time: 15 min.). While frying you can still adjust the time and temperature (see above).

3.6 After the cooking process

1. Pull the frying basket out of the appliance and place it on a heat-resistant surface.
2. Check that the food is cooked. If not, you can push the container back into the appliance and extend the cooking process by a few minutes.
3. Use a fork, cooking tongs or oven mitts to remove the food if necessary.

3.7 Advices for frying

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• Shaking the ingredients optimises the end result and can help prevent unevenly fried ingredients.
• To make fresh chips, use floury potatoes and cut them into 10 x 10 cm thick strips. Rinse them with water. Brush the potatoes with a little oil before frying to make them crispy.
• Adding a small amount of oil to your food will make it crispier. Do not use more than 30 ml of oil.
• Provided the food fits into the basket, all foods that can be prepared in the oven can also be prepared with this appliance.

We recommend the following quantities and settings:

Food	Quantity (max.)	Progr.	Temp. (°C)	Time (min.)	Note
French fries (frozen)	500 g1000 g1200 g		200	253035	For a quantity of 1200 g, it is recommended to shake the fries every 10 min.
Homemade potato wedges	500 g1000 g		200	3035	Cut the potatoes into wedges. Rinse with water, drain and brush with oil if necessary.
Stuffed courgettes	2 halves		160-170	15-20	Cut the courgettes in half and hollow them out, fill with meat, couscous, cheese, etc. as desired.
Stuffed peppers 4 pcs			170 15-20		Cut off the top of the peppers and remove the seeds, fill with quinoa, meat, vegetables, etc. as desired.
Baked vegetables (sweet potato, courgette, be-etroot, carrots)	750-1000g		200 25		Chop and mix with oil and spices.
Burger patty	4 pcs à approx. 150 g		200 10-12
Chicken nuggets 1000 g			180 10-12
Grilled chicken 1000 g			200 50
Lasagne 400-500 g			170 20-25		Place in a 20 x 8 x 15 cm oven-proof dish.
Pizza baguette 3 pcs			175 10
Homemade croutons	750 g		180 8		Dice the toast, mix with oil and spices.
Buns 4-6 pcs			190 8-10
Bread	Dough for 1 loaf		180 30		In an ovenproof dish (max. 20 x 20 cm).
Muffins	9 pcs 160	1
Cake	Dough for 1 cake		160 45-50		Line a frying basket with baking paper and a cake ring (∅ approx. 20 cm).
Fish	300 g		180	10
Prawns	250 g		180	10-15
Chicken Wings	750 g		180 20

PLEASE NOTE

▶ Check the degree of browning of the food in between and turn/shake if necessary.
▶ Please note that a different quantity can require an adjustment of time and temperature.
▶ Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

WARNING

▶ Only use heat-resistant accessories in the appliance. The accessories used may be very hot after cooking.
▶ Never place baking paper or parchment paper in the deep fryer without putting food on it. The air circulation may cause the paper to lift up and touch the heating coils.

4 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

4.1 Safety information

ATTENTION

Please observe the safety instructions, before cleaning your device

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down.
Clean the hob after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.

ATTENTION

Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.
Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

4.2 Cleaning

WARNING

▶ Always remove grease residues in the device, as these residues can otherwise ignite.

• Clean the frying basket and the basket insert thoroughly in warm rinsing water and dry the parts thoroughly. You can also put the frying basket and basket insert in the dishwasher.
• Wipe the inside and outside of the appliance with a damp cloth.

5 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

5.1 Safety notices

ATTENTION

▶ Repairs of electrical appliances must be carried out by qualified person who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

5.2 Troubleshooting table

The table below will help you to locate and solve small problems.

Error Possible cause Action
The appliance does not turn on.	Mains plug not plugged in. Plug in the mains plug.
The process does not start when the Start/Stop button is pressed.	The frying basket is not fully inserted.	Push the frying basket in firmly.
The food is not fully cooked or is cooked unevenly.	The frying basket is overfilled.	Put smaller quantities in the frying basket. Shake or turn the food several times during the cooking time.
	Cooking temperature or cooking time set too low.	Increase the cooking temperature or the cooking time.
The food is not crispy after cooking.	Food may not be suitable for the appliance.	Spray or brush the food with a small amount of oil.
The frying basket cannot be pushed into the appliance without problems	The frying basket is overfilled.	Remove food from the frying basket.
White smoke comes out of the appliance.	You are preparing greasy food and oil or fat has splashed on the heating elements.	When you fry greasy food, oil drips into the frying basket. The oil produces the white smoke. This has no effect on the appliance or the final result.
	There are still fat residues in the frying basket.	Clean the frying basket thoroughly after each use.
Dark smoke comes out of the appliance.	Food is burning or there is a problem with the circuit.	Immediately unplug the appliance from the mains. Wait a moment before removing the frying basket. If the cause was not burnt food, contact customer service.
The appliance smells unpleasant.	The appliance has not been cleaned.	Clean the appliance after each use.
	Oil or grease is splashed on the heating elements.	The oil/grease produces white smoke and can smell unpleasant. This has no effect on the appliance or the final result.
The Inside light does not work.	The bulb is defective. Contact customer service.
E1 is shown on the display.	The appliance is defect. Contact customer service.
E2 is shown on the display.	The appliance is defect. Contact customer service.
E3 is shown on the display.	Overheating protection has been triggered.	Disconnect the mains plug and allow the appliance to cool down for at least half an hour.

PLEASE NOTE

If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge.

Clean the device before you send it to customer service.

6 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

6.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

7 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

Technical diagram of a device with numbered components labeled 1, 2, and 3

Technical diagram of a cooking air fryer with labeled parts 4 and 5

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of a cooking fan with labeled parts 4 and 5, showing internal structure and component details.

Line drawing of a portable water heater with labeled component (no text or symbols beyond label)

① Basis
② Bedieningspaneel
③ Verzonken grepen

Technical diagram of a device with numbered components labeled 1, 2, and 3

Technical diagram of an air fryer with labeled parts 4 and 5, showing internal structure and component details.

Line drawing of a portable water heater with labeled component (no text or symbols beyond label)

① Enhetsbas
② Kontrollpanel
③ Infällda handtag

④ Korginsats med silikonfixeringar
⑤ Frityrkorg med handtag
⑥ Luftutlopp

2.2 Operativa element

7 REHEAT 14—≡ 13—TIME TEMP. 12 1011 888 °C MIN + ●/ID—⑨

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of an air fryer with labeled parts 4 and 5

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of a cooking air fryer with labeled parts 4 and 5

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

Exploded diagram of a cooking air fryer with labeled parts including air fryer, fan, and heater

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of an air fryer with labeled parts 4 and 5, showing internal structure and component details.

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

① Base do aparelho
② Painel de comando
③ Pegas encastradas

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of an air fryer with labeled parts 4 and 5

Diagram of a portable air conditioner unit with labeled panel and cable connection

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of an air fryer with labeled parts 4 and 5, showing internal structure and component details.

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

תְקּוֹרָה

1

תְבָרִי, בְּרַעֹה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָה, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם, אַלְאָם

4

תָרִי בְּבַע

2

בְרָה אַלְאָה

5

תְרָהוֹתִי הַלְאָה

3

תְרָה בְּרָה

6

2.2

REHEAT

888 MIN °C +

תְקּרָה בְּרָה

7

Technical diagram of a device with numbered parts labeled 1, 2, and 3

Technical diagram of a cooking air fryer with labeled parts 4 and 5

Line drawing of a portable air conditioner unit with labeled component (no text or symbols beyond label)

QR code image containing encoded data, no visible human-readable text

DE Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
IT Ulteriori lingue di queste istruzioni per l’uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
NL Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
SV Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
ES Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
FR Vous trouverez ce mode d’emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
RU Это руководство по эксплуатации на других языках вы найдете, перейдя по ссылке www.caso-design.de или отсканировав QR-код.
PT Pode encontrar este manual de instruções noutras líinguas em www.caso-design.de ou através da leitura do código QR.
RO Aceste instructiuni de utilizare sunt disponibile în alte limbi la adresa www.caso-design.de sau scanând codul QR.
HE www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.
AR	أو إذا يمكن العثور على المزيد من لغات هذا الدليل على الموقع الالعتروني بمسح رمز الاستجابة السريعة

CASO GmbH
