Product type	Universal vacuum cleaner for dry cleaning
Brand	Kärcher
Model	T 10/1 Bp Adv
Dimensions (L x W x H)	430 x 255 x 355 mm
Operating weight	6.8 kg
Power supply	Lithium-ion battery 36 V DC, protection class III
Nominal power	500 W
Tank capacity	10 L
Air flow (max.)	40 l/s
Vacuum (max.)	22.3 kPa (223 mbar)
Sound pressure level	57 dB(A)
Runtime (Battery Power 36/50)	19 min (full load) / 43 min (Eco mode)
Runtime (Battery Power+ 36/60)	22 min (full load) / 50 min (Eco mode)
Runtime (Battery Power+ 36/75)	31 min (full load) / 66 min (Eco mode)
Main functions	Eco mode, suction power adjustment, floor nozzle with hard floor/carpet switch
Maintenance and cleaning	Permanent filter basket cleaning (washable), filter bag replacement, exhaust air filter, HEPA filter (accessory), motor protection filter
Safety	Motor protection (thermoprotector), automatic shutdown in case of overheating
Spare parts and repairability	Replacement filter bags, batteries (Battery Power 36/50, Battery Power+ 36/60, Battery Power+ 36/75), chargers, HEPA filters, exhaust air filters, motor protection filters
General information	Professional use (hotels, schools, hospitals, etc.), indoor storage, ambient temperature 0 to +40°C

Frequently Asked Questions - T 10/1 Bp Adv Kärcher

How to install the battery pack on the vacuum cleaner?

Insert the battery pack into the battery holder on the device until it latches. To remove it, press the release button and pull.

What is the runtime of the vacuum cleaner?

The runtime depends on the battery used: with the Battery Power 36/50, about 19 min at full load and 43 min in Eco mode; with the Battery Power+ 36/60, 22 min / 50 min; with the Battery Power+ 36/75, 31 min / 66 min.

How to activate Eco mode?

Operate the Eco switch on the device. The blue light ring turns on to indicate that the energy-saving mode is activated, which reduces suction power and increases runtime.

How to clean the permanent filter basket?

Unlock and remove the suction head. Turn it 180°, unlock the basket and remove it. Wash it with running water, let it dry completely, then put it back and lock the suction head.

When should the filter bag be replaced?

Replace the felt filter bag when it is full or when suction power decreases. Open the suction head, remove the bag, close the tab, insert a new bag by pushing the opening onto the connection piece.

How to replace the exhaust air filter?

Unlock and remove the exhaust grille. Take out the filter frame, remove the old filter, insert the new one, put the frame back and lock the grille. Change it at least once a year.

What to do if the vacuum cleaner suddenly stops?

This may be due to motor overheating (thermoprotector). Check for blockages, replace the filter bag, the motor protection filter or the exhaust air filter, then restart the device.

Can I use the vacuum cleaner to vacuum hazardous dust?

No, the appliance is not designed for vacuuming hazardous dust. It is intended for dry cleaning of floors and wall surfaces in professional environments.

How to store the vacuum cleaner?

Store the device in a dry room indoors. Remove the battery pack to prevent discharge. Place it in a secure location to prevent unauthorized use.

Where to find spare parts?

Use only original Kärcher accessories and parts. Visit www.kaercher.com or contact after-sales service. Battery and charger references are listed in the manual.

USER MANUAL T 10/1 Bp Adv Kärcher

Polish 66

Hungarian 70

Czech 74

Slovak 78

Slovenian 82

Romanian 86

Croatian 90

Serbian 94

Greek 98

Russian 103

Ukrainian 108

Bulgarian 113

Kazakh 118

Chinese 123

Arabic 126

B

1

4

Contents

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

Environmental protection....9

Intended use....9

Description of the device 9

Preparation....9

Initial startup 9

Operation.... 10

Transport 10

Storage.... 10

Care and service 10

Troubleshooting guide.... 11

Warranty 11

Accessories and spare parts 11

Declaration of Conformity.... 12

Technical data 13

General notes

Read these original instructions and the enclosed safety instructions before using the device for the first time. Act in accordance with them.

Keep both books for future reference or for future owners.

Keep both books for future reference or for future owners.

- If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

- Notify the dealer immediately in the case of shipping damage.

- Check the package contents when unpacking for missing accessories or for damage.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

⚠ WARNING

Health risk

Inhalation of dusts that are harmful to health Do not use the device for vacuuming up dusts that are harmful to health.

ATTENTION

Damage to the device

Short-circuit due to high levels of humidity

Only use and store the device indoors.

• This universal vacuum cleaner for carpets is intended for dry cleaning floor and wall surfaces.
• This device is suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

Description of the device

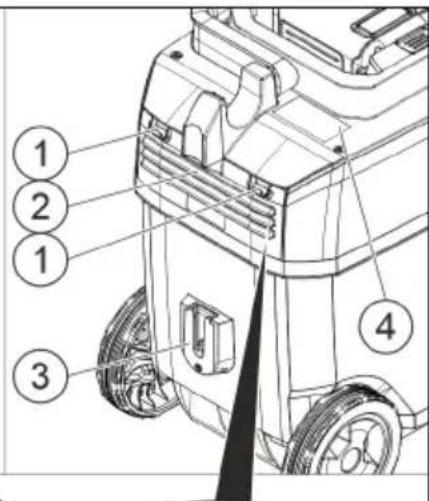

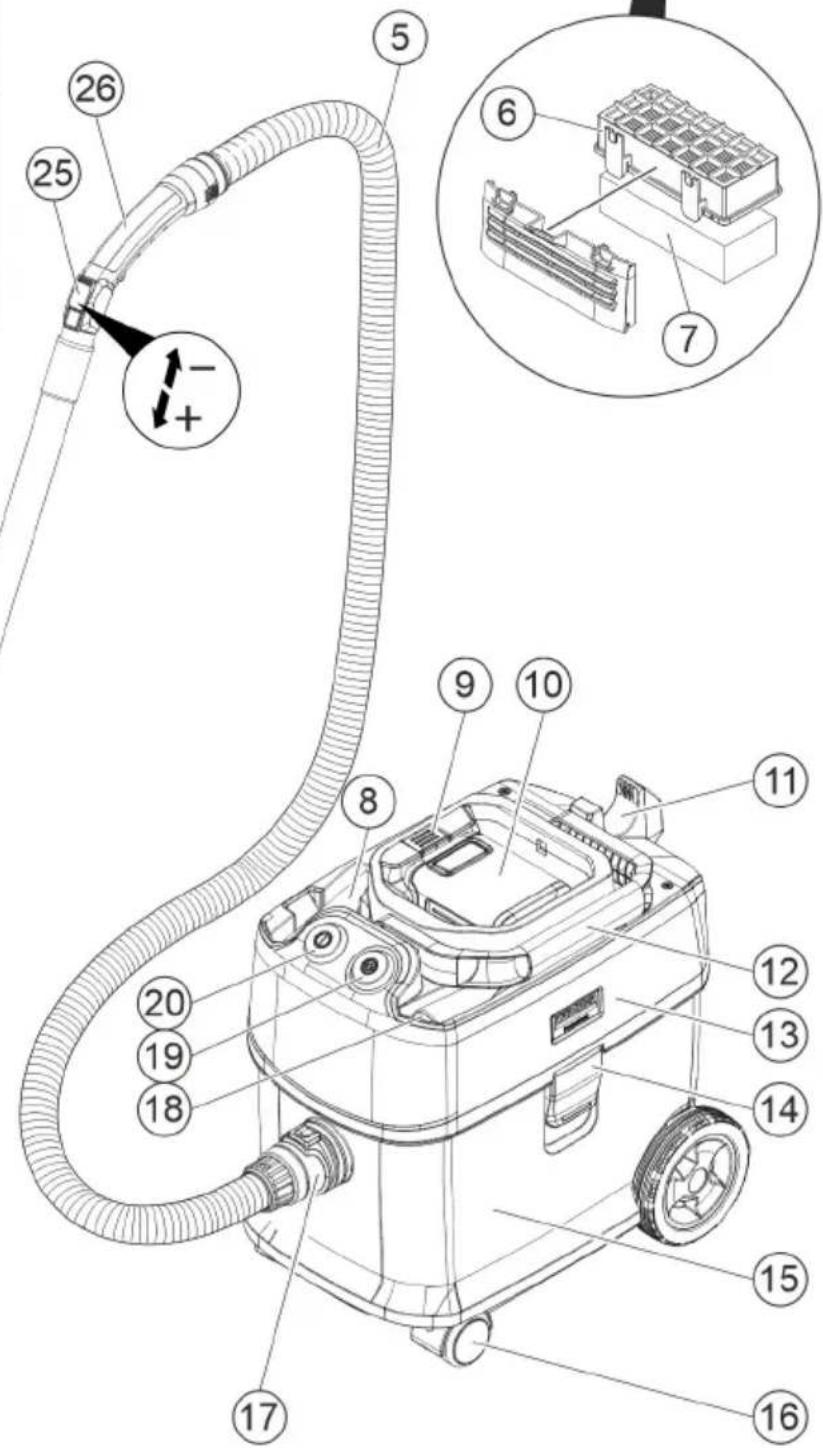

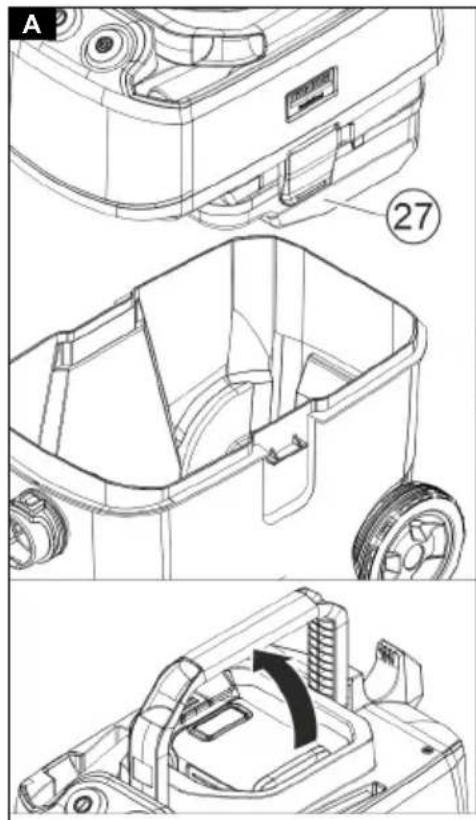

Illustration A

① Lock for exhaust grille ② Exhaust grille ③ Parking position for floor nozzle ④ Type plate ⑤ Suction hose ⑥ Exhaust gas filter casing ⑦ Exhaust filter ⑧ Upholstery nozzle ⑨ Unlocking button ⑩ Rechargeable battery pack ⑪ Hose switch ⑫ Carrying handle (foldable) ⑬ Suction head ⑭ Suction head lock ⑮ Dirt receptacle ⑯ Steering roller ⑰ Suction hose port ⑱ Crevice nozzle ⑲ Eco switch (energy-saving mode) ⑳ Main switch ㉑ Hard surface/carpet switch ㉒ Floor nozzle ㉓ Telescopic suction pipe adjustment ㉔ Telescopic suction pipe ㉕ Suction control ㉖ Angle piece ㉗ Permanent filter basket ㉘ Motor protection filter

Preparation

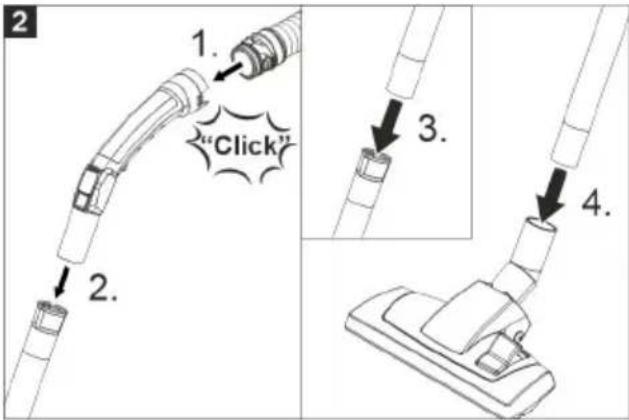

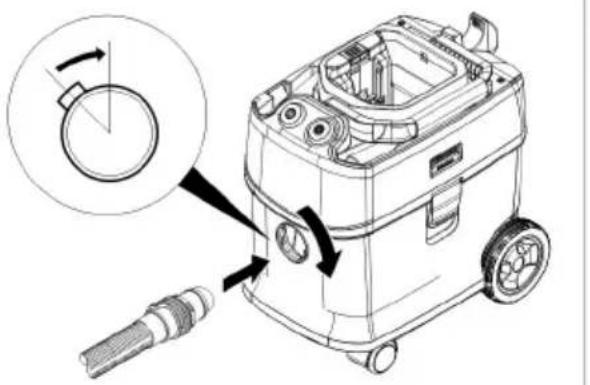

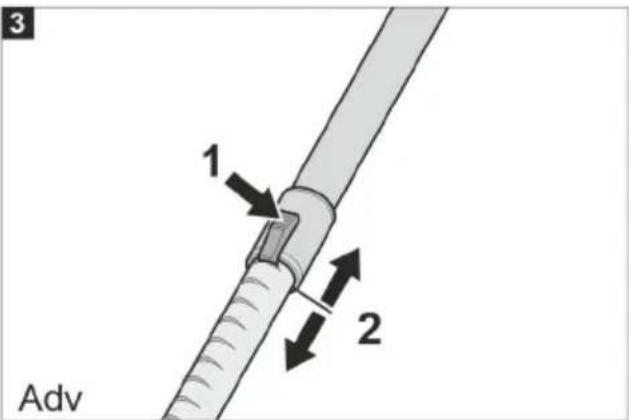

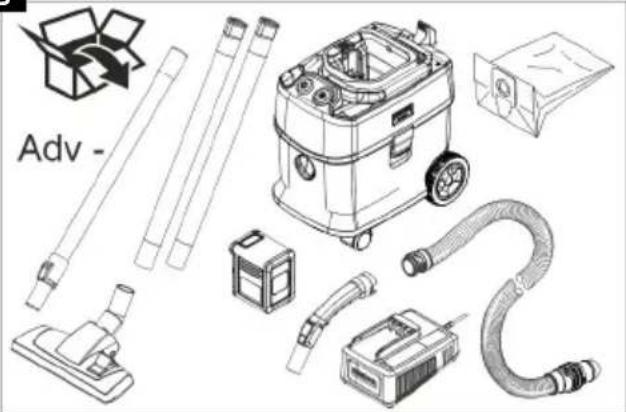

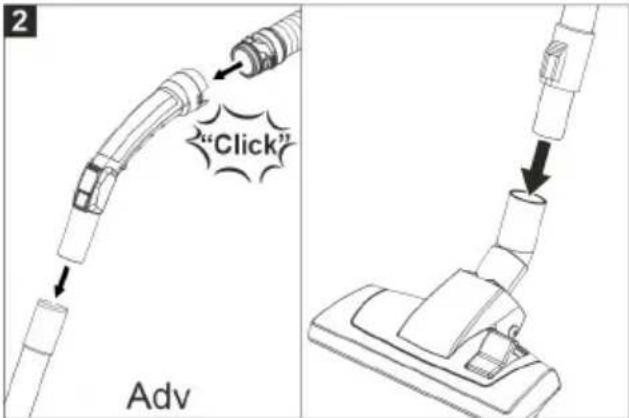

1. Unpack the device and install the accessories. Illustration B

Initial startup

1. Check whether the permanent filter basket is attached to the suction head.

Operating modes

1. Operation with the filter bag 2. Operation without the filter bag

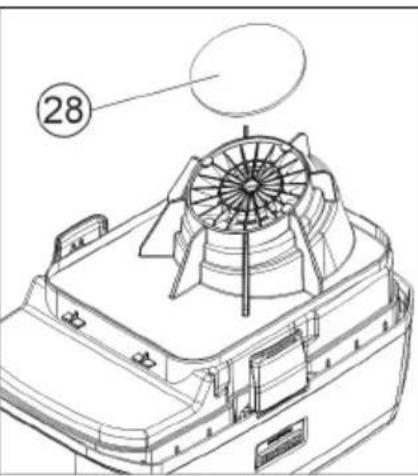

Installing HEPA filter (optional accessory)

1. Unlock and remove the exhaust grille.
2. Remove the exhaust gas filter casing.
3. Insert the HEPA filter (special accessory).
4. Attach and lock the exhaust grille.

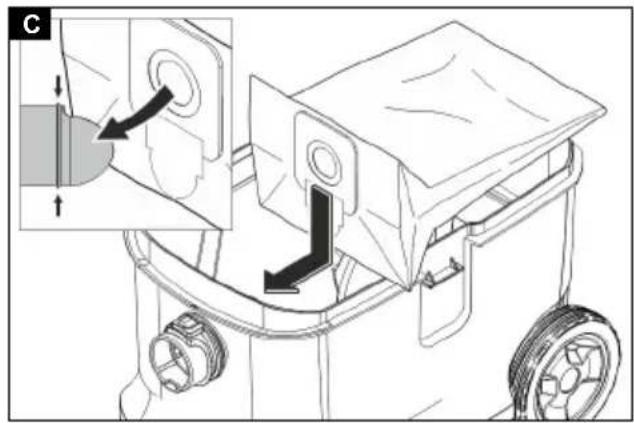

Installing the filter bag

1. Unlock and remove the suction head.
2. Fit the fleece filter bag. Pull the opening of the filter bag completely over the shoulder of the suction hose port.

Illustration C

1. Fit the suction head and lock.

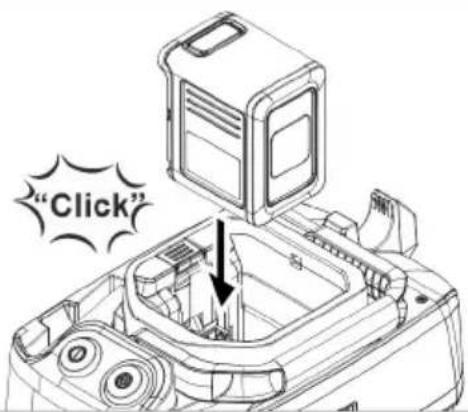

Inserting the battery pack

1. Slide the battery pack into the battery holder and lock it in place.

Charging the battery pack

Note

Read the operating instructions of the charger manufacturer and observe the safety instructions in particular!

Note

Please read the operating instructions of the battery pack manufacturer, especially the chapters on safety instructions!

Note

The battery pack is partially charged on delivery.

Charge before use and when necessary.

Note

The battery pack can only be charged when it is removed.

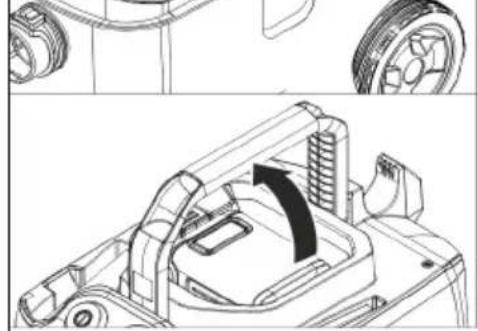

1. Press the unlocking button and remove the battery pack.
2. Charge the battery pack according to the operating instructions of the charger manufacturer and the battery pack manufacturer.

Operation

Switching the device on

1. Switch on the device at the main switch.

Eco mode

Eco button (energy-saving mode): The device works with reduced suction performance. The battery run time is extended.

1. To activate Eco-mode: Actuate the Eco switch. The illuminated ring of the Eco switch lights up blue.
2. To switch off Eco-mode: Actuate the Eco switch repeatedly. The blue illuminated ring goes out.

Adjusting the suction power

1. Regulate the suction power on the suction control.

Cleaning mode

Note

When cleaning textile floor coverings, the battery run time is shorter than when cleaning hard surfaces.

1. Set the floor nozzle switch to hard surface or carpet.
2. Perform cleaning.

Switching off the device

1. Switch off the device at the main switch.

After each operation

1. Empty the container.
2. Vacuum the inside and outside of the device and clean with a moist cloth.

Storing the device

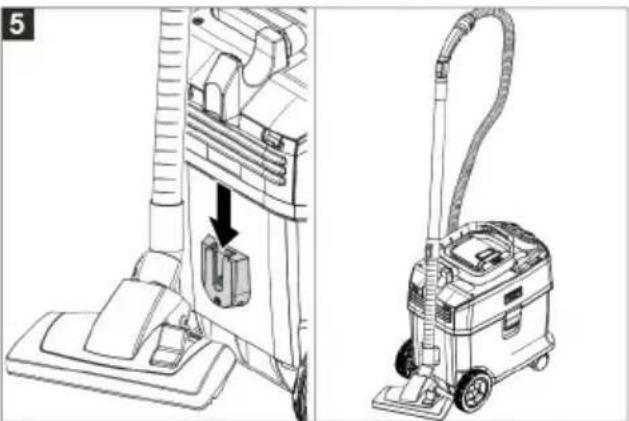

1. Store the device in a dry room and secure it against unauthorised use.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

1. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respectively applicable guidelines.

Storage

⚠CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

The device may only be stored indoors.

1. Press the unlocking button and remove the battery pack to prevent discharge.

Care and service

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the battery pack.

Cleaning the permanent filter basket

ATTENTION

Danger due to wet permanent filter basket

Risk of damage to the device

Never insert the permanent filter basket when wet.

1. Unlock and remove the suction head.
2. Turn the suction head by 180 degrees and set it down.
3. Unlock and remove the permanent filter basket.
4. If necessary, clean the permanent filter basket (washable) under running water and let it dry.
5. Fit the permanent filter basket and snap it into place.
6. Fit the suction head and lock.

Changing the filter bag

1. Unlock and remove the suction head.
2. Remove the fleece filter bag from the suction hose port.

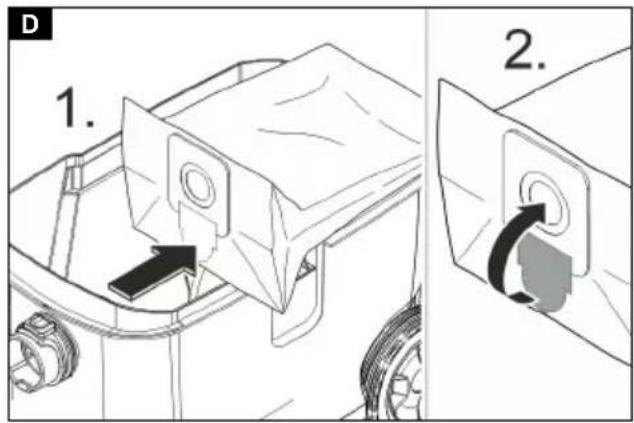

Illustration D

1. Fold in the lock latch and seal the fleece filter bag tight.
2. Fit a new fleece filter bag. Pull the opening of the filter bag completely over the shoulder of the suction hose port.
3. Fit the suction head and lock.

Replacing the exhaust filter

Exhaust filter: replace as required, but at least once a year

1. Unlock and remove the exhaust grille.
2. Remove the exhaust gas filter casing.
3. Remove the exhaust filter from the exhaust gas filter casing.
4. Insert a new exhaust filter in the exhaust filter casing.
5. Insert the exhaust gas filter casing.
6. Attach and lock the exhaust grille.

Replacing HEPA filter (optional accessory)

HEPA filter: replace as required, but at least once a year

1. Unlock and remove the exhaust grille.
2. Remove the HEPA filter (special accessories).
3. Insert a new HEPA filter (special accessory).
4. Attach and lock the exhaust grille.

Replacing the motor protection filter

1. Unlock and remove the suction head.
2. Turn the suction head by 180° and set it down.
3. Unlock and remove the permanent filter basket.
4. Remove the motor protection filter.
5. Fit a new motor protection filter.
6. Fit the permanent filter basket and snap it into place.
7. Fit the suction head and lock.

Troubleshooting guide

⚠️ DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the battery pack.

The device stops during operation

The motor thermo-protector has triggered.

1. Check all parts for clogging.
2. Change the fleece filter bag.
3. Replace the motor protection filter.
4. Replace the exhaust filter or the HEPA filter (optional accessory).
5. Switch the device on again.

Suction force decreases.

1. Remove all blockages from the suction nozzle, the suction pipe or the suction hose.
2. Change the fleece filter bag.
3. Clean the permanent filter basket under running water and allow to dry.
4. Position/lock the suction head correctly.
5. Replace a defective suction hose.
6. Replace the motor protection filter.

Escaping dust when vacuuming.

1. Check the fit of the fleece filter bag.
2. Change the fleece filter bag.
3. Position/lock the suction head correctly.
4. Clean the permanent filter basket under running water and allow to dry.
5. Insert a new permanent filter basket.
6. Correctly insert the motor protection filter or replace.

Suction turbine does not start up

1. Allow an overheated board to cool down.
2. Charge the battery pack.
3. Insert the battery pack.
4. Turn on the device again.

Customer Service department

If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Spare parts list

Only use KÄRCHER original battery packs, not non-rechargeable batteries.

Description Order num-	ber, spare part	Item No., unpacked
Battery pack Battery Power+ 36/75	2.445-043.0 6	.445-059.0
Battery pack Battery Power+ 36/60	2.042-022.0 6	.445-085.0
Battery pack Battery Power 36/50	2.445-031.0 6	.445-039.0
Quick charger Battery Power+ 36/60 (EU)	2.445-045.0 6	.445-063.0
Quick charger Battery Power+ 36/60 (GB)	2.445-047.0 6	.445-065.0
Quick charger Battery Power+ 36/60 (AU)	2.445-051.0 6	.445-069.0

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Dry vacuum cleaner

Type: 1.355-xxx

Type: 1.527-xxx

Currently applicable EU Directives

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonised standards used

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60312-1: 2017

EN 60335-1

EN 60335-2-69

EN 62233: 2008

National standards used

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Declaration of Conformity (UK)

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Dry vacuum cleaner

Type: 1.355-xxx

Type: 1.527-xxx

Currently applicable UK Regulations

S.I. 2008/1597 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2016/1091 (as amended)

Designated standards used

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60312-1: 2017

EN 60335-1

EN 60335-2-69

EN 62233: 2008

National standards used

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

		T 10/1 Bp(Adv/HEPA)	T 15/1 Bp(Adv/HEPA)
Electrical connection
Battery pack nominal voltage V 36 DC 36 DC
Protection class III III
Nominal power W 500 500
Maximum power W 500 500
Device performance data
Tank content I 10 15
Air quantity (max.) l/s	40 40
Vacuum (max.)	kPa (mbar)	22,3 (223) 22,3 (223)
Operating time at full battery charge - Battery Power 36/50 battery pack	Minutes	19/Eco: 43	19/Eco: 43
Operating time at full battery charge - Battery Power+36/60 battery pack	Minutes	22/Eco: 50	22/Eco: 50
Operating time at full battery charge - Battery Power+36/75 battery pack	Minutes	31/Eco: 66	31/Eco: 66
Dimensions and weights
Typical operating weight	kg	6,8	7,1
Length x width x height	mm	430 x 255 x 355	430 x 255 x 405
Diameter of the suction hose	mm	35 35
Length of the suction hose	m	2,0	2,0
Ambient conditions
Ambient temperature	°C	0/+40	0/+40
Determined values in acc. with EN 60335-2-69
Sound pressure level LpA	dB(A)	57 57
Uncertainty KpA	dB(A)	2	2
Hand-arm vibration value	m/s2	<2,5	<2,5
Uncertainty K	m/s2	0,2	0,2

Subject to technical modifications.

Contents

⑫Transport handle (foldable)

⑬Suction head

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Winnenden, 2022/10/01

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Phone: [phone]

Winnenden, 2022/10/01

Technical data

Dust emission during suction

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonised standards applied

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60312-1: 2017

EN 60335-1

EN 60335-2-69

EN 62233: 2008

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2022/10/01

Technical data

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

2006/42/WE (+2009/127/WE)

2011/65/UE

2014/30/UE

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/10/01

Technical data

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

Technical data

		T 10/1 Bp(Adv/HEPA)	T 15/1 Bp(Adv/HEPA)
Električni priključek
Nazivna napetost paketa akumulatorskih baterij V 36 DC 36 DC
Razred zaščite III III	III
Nazivna moč W 500 500
Največja moč W 500 500
Podatki o zmogljivosti naprave
Vsebina posode I 10 15
Količina zraka (maks.)	l/s	40	40
Podtlak (maks.)	kPa (mbar)	22,3 (223) 22,3 (223)
Čas delovanja pri polni bateriji – Paket akumulatorskih baterij Battery Power 36/50	minute	19/Eco: 43	19/Eco: 43
Čas delovanja pri polni bateriji – Paket akumulatorskih baterij Battery Power+ 36/60	minute	22/Eco: 50	22/Eco: 50
Čas delovanja pri polni bateriji – Paket akumulatorskih baterij Battery Power+ 36/75	minute	31/Eco: 66	31/Eco: 66
Mere in mase
Tipična delovna masa	kg	6,8	7,1
Dolžina x širina x višina	mm	430 x 255 x 355	430 x 255 x 405
Premer sesalne gibke cevi	mm	35 35
Dolžina sesalne gibke cevi	m	2,0	2,0
Okoljski pogoji
Okoljska temperatura	°C	0/+40	0/+40
Ugotovljene vrednosti v skladu s standardom EN 60335-2-69
Raven tlaka hrupa LpA	dB(A)	57 57
Negotovost KpA	dB(A)	2	2
Vrednost tresljajev za dlani/roke	m/s2	<2,5	<2,5
Negotovost K m/s	2	0,2	0,2

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonized standards applied

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60312-1: 2017

EN 60335-1

EN 60335-2-69

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

25 Suction power regulator

26 Elbow

27 Permanent filter basket

28 Motor protection filter

Preparation

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Applied harmonized standards

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60312-1: 2017

EN 60335-1

EN 60335-2-69

EN 62233: 2008

Applied national standards

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

Authorized representative for documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

		T 10/1 Bp(Adv/HEPA)	T 15/1 Bp(Adv/HEPA)
Električni priključak
Nazivni napon kompleta baterija V 36 DC 36 DC
Klasa zaštite III III	III
Nazivna snaga W 500 500
Maksimalna snaga W 500 500
Podaci o snazi uređaja
Zapremina spremnika I 10	15
Protok zraka (maks.)	l/s	40	40
Podtlak (maks.)	kPa (mbar)	22,3 (223) 22,3 (223)
Vrijeme rada s punim baterijama - komplet baterija Battery Power 36/50	minute	19/Eco: 43	19/Eco: 43
Vrijeme rada s punim baterijama - komplet baterija Battery Power+ 36/60	minute	22/Eco: 50	22/Eco: 50
Vrijeme rada s punim baterijama - komplet baterija Battery Power+ 36/75	minute	31/Eco: 66	31/Eco: 66
Dimenzije i težine
Tipična težina pri radu	kg	6,8	7,1
Duljina x širina x visina	mm	430 x 255 x 355	430 x 255 x 405
Promjer usisnog crijeva	mm	35	35
Duljina usisnog crijeva	m	2,0	2,0
Okolni uvjeti
Okolna temperatura	°C	0/+40	0/+40
Vrijednosti utvrđene prema EN 60335-2-69
Razina zvučnog tlaka LpA	dB(A)	57	57
Nesigurnost KpA	dB(A)	2	2
Vrijednost vibracije šaka-ruka	m/s2	<2,5	<2,5
Nesigurnost K	m/s2	0,2	0,2

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Applied harmonized standards

EN IEC 63000: 2018

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 60312-1: 2017

EN 60335-1

EN 60335-2-69

EN 62233: 2008

Applied national standards

The signatories act on behalf and with the authorization of the board of management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Person authorized to compile the technical file:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2022/10/01

Technical data

		T 10/1 Bp(Adv/HEPA)	T 15/1 Bp(Adv/HEPA)
Električni priključak
Nominalni napon akumulatorskog pakovanja V 36 DC 36 DC
Klasa zaštite III III	III
Nominalna snaga W 500 500
Maksimalna snaga W 500 500
Podaci o snazi uređaja
Zapremina posude I 10 15
Protok vazduha (maks.) I/s	40 40
Podpritisak (maks.)	kPa (mbar)	22,3 (223) 22,3 (223)
Vreme rada pri punom punjenju akumulatora -akumulatorsko pakovanje Battery Power 36/50	minuta	19/Eco: 43 19/Eco: 43
Vreme rada pri punom punjenju akumulatora -akumulatorsko pakovanje Battery Power+ 36/60	minuta	22/Eco: 50 22/Eco: 50
Vreme rada pri punom punjenju akumulatora -akumulatorsko pakovanje Battery Power+ 36/75	minuta	31/Eco: 66 31/Eco: 66
Dimenzije i težine
Tipična radna težina	kg	6,8	7,1
Dužina x širina x visina	mm	430 x 255 x 355	430 x 255 x 405
Prečnik usisnog creva	mm	35	35
Dužina usisnog creva	m	2,0	2,0
Uslovi okruženja
Temperatura okoline	°C	0/+40	0/+40
Utvrdene vrednosti prema EN 60335-2-69
Nivo zvučnog pritiska LpA	dB(A)	57 57
Nepouzdanost KpA	dB(A)	2	2
Vrednost vibracije na šaci i ruci	m/s2	<2,5	<2,5
Nepouzdanost K	m/s2	0,2	0,2

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

H. Jenner Chairman of the Board of Management

S. Reiser Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2022/10/01

Technical data

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2022/10/01

www.kaercher.com/REACH

Intended use

Warning

Health hazard

Inhalation of harmful dust

Do not use this device to vacuum harmful dust.

Caution

Device damage

High humidity can cause short circuits

Only use and store the device indoors.

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)
