USER MANUAL Navigator 23899 Revell

Battery Charger Battery

23899

Revell

Control

GPS- QUADROCOPTER

NAVIGATOR

Revell

www_REVell-control.de

© 2016 Revell GmbH,

Henschelstr. 20-30, D-32257

Bunde, A subsidiary of Hobbico.

Inc.RFVFLIS THE REGISTERFD

TRADEMARK OF REVELL GMBIL

GERMANY Made in China.

USER MANUAL

90104

Inhalt

Table of contents

Contenuo

Modell

Model

Modèle

Model

Model

Modello

Ersalzrolorset

Spare color set

Ensemble rotor de rechange

Reserverotorset

Charger, US3 cable, assembly aid

With a new assistant that ensures the quadrocopter automatically maintains its altitude

With integrated 1080p camera With GPS for Position Hold, Corning Home and Follow Me

Safety instructions:

Before commissioning for the first time, make sure that you have read and understood the entire manual.
This model is suitable for pilots who are at least 14 years of age. Adult supervision is required when flying it.
This model is suitable for use outdoors when there is no precipitation on or wind.
- Keep your hands, face and loose clothing away from the model during operation.
- Switch off the remote control and model when they are not in use.
- Remove the batteries from the remote control when it is not in use.
Always maintain visual contact with the model in order to avoid losing control of it. Inattentive and careless use can lead to considerable damage.
- Please keep this operating manual safe for later use.
The user should only operate this model in accordance with the instructions for use in this operating manual.
Do not use the model near people, animals, bodies of water or power lines.
This model is not suitable for people with physical or mental disabilities. We recommend that people who are unfamiliar with model helicopters operate the model under the guidance of an experienced user.
In general, it must be ensured that the model cannot injure anyone in consideration of potential malfunctions and defects.
A model should never be operated under the influence of drugs or alcohol.

• The product may only be repaired or modified with approved original parts. Otherwise, the model can be damaged or pose a danger.
  In order to prevent risks, always operate the model from a position which provides an easy line of retreat, if necessary.

Safety instructions for flying models:

You are operating your aircraft in the general air traffic. As the pilot, you are responsible for your model. You are liable for your model and any damage resulting from its operation.
- If you want to use your aircraft commercially, you need an ascent permit.
Before commissioning for the first time, familiarize yourself with the functions of the model.
- Check that the product is working correctly before every light.
- Observe the instructions of the manufacturer at all times.
- Always note the wind and weather conditions and any hindrances.
You must always swerve away from manneed aircraft immediately and land right away.
Do not fly over private property owned by other people, crowds of people, military objects, hospitals, power plants, correctional facilities and similar.
- Please respect the private spheres of others. Never him other persons without their consent.
- ignorance is no excuse - please remain up to date on the current rules for aviation in your home country. Bear in mind that different regulations may apply abroad.

• Do not fly close to airfields (<1.5 km).
• Never fly without direct visual contact with the model, it must be in the direct field of vision at all times.
• It is illegal to control a model using only a video image.
  Failure to observe these safety instructions may make you liable to prosecution!
  Information and additional help is available from the Association for Unmanned Air Vehicles under http://www.uaydach.org. Flying models outdoors has required mandatory liability insurance since 2005. Contact your private liability insurer and make sure that your new and earlier models are included in your insurance coverage. Request written confirmation and keep this in a safe place. Alternatively, the DMFv offers a trial membership free of charge online at www.dmfv.aero. This includes insurance.

Remote control safety instructions:

We recommend new alkali manganese batteries for the remote control Single-use batteries for this remote control and other electrical devices operated in the home can be replaced with environmentally friendly rechargeable batteries.
- As soon as the remote control no longer functions reliably, new batteries should be inserted and/or the batteries should be charged.

Safety instructions for batteries:

• Rechargeable batteries must be removed from the remote control prior to recharging.
• Non-rechargeable batteries may not be charged.
• Rechargeable batteries may only be charged under the supervision of an adult.
  The combination of different types of batteries as well as new and used batteries must be avoided.
• Only recommended batteries or those of an equivalent type may be used.
• Batteries must be inserted according to the correct polarity (+ and -).

• Depleted batteries must be removed from the remote control.

• The connection terminals may not be short-circuited.

• Remove the batteries from the remote control if they are not to be used for an extended period of time.

Charging unit safety instructions:

Non-rechargeable batteries may not be charged.
This charging unit is not suitable for people (including children) with physical or mental limitations, or those with insufficient knowledge and experience of charging units, unless under supervision or following proper directions from a parent or legal guardian.
Children must be supervised - the charging unit is not a toy!
Transformeis, mains adaptors or chargers that are used together with the model must be checked regularly for damage to cables, plugs, housings and other parts and any damages must be repaired before the devices may be used again.

The model is equipped with a rechargeable lithium polymer battery. Please observe the following safety instructions:

• Never throw LiPo batteries into a line or store them in a hot location.
  Only use the supplied charger to charge the battery. The use of a different charger may lead to the permanent damage of the battery and neighbouring parts, as well as physical injury!
• Never use a charger for NiCd/NiMH batteries!
  Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.
• Do not leave the battery unsupervised during the charging process.
• Never disassemble or alter the battery contacts. Do not damage or puncture the battery cells. There is a risk of explosion! - The LiPo battery must be kept out of
  The EPI bacteria most be kept out of reach of children.
• When disposing of batteries, they must be discharged or their capacity must be fully depleted. Cover exposed terminals with adhesive tape in order to prevent short-circuiting!

Maintenance and care:

Please only use a clean, damp cloth to wipe off the model.
- Protect the model and batteries from direct sunlight and/or direct heat.
- Never allow the remote control and charging unit to come into contact with water, because the electronics will be damaged as a result.

Technical changes and differences in color reserved!

Required batteries for the model:

Power supply:
Rated output
Rated output: 1xDC7.4V/20Wb
1XDC74V/
rechargeable
LiPo battery (included)
Cargacity: 3700 mAh

Battery requirement for the

remotecontrol:

Power supply: —

P000

UC6V

Batteries:

4x15V"AA"

(not included)

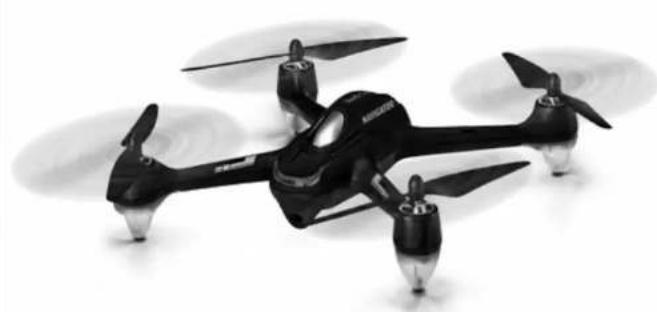

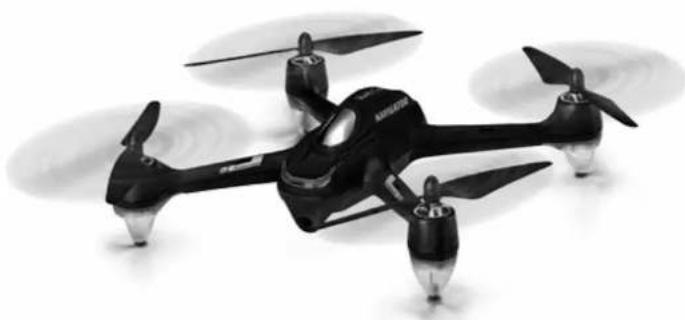

1 MODEL

14 Camera lens
18 Status LED
16 Rotors
10 Battery compartment cover
1E Battery compartment

1F USB connection
16 Battery connection
1H Micro SD card slot

2 REMOTE CONTROL

2A Control for thrust and rotation. Briefly press vertically: Headless Mode
28 Control for forward/backwards and banking. Briefly press vertically: Follow Me mode
2C Trim for rotation
2D Trim for forwards/backwards
2E Trim for sideways
2F ON/OFF switch

2G Button for photo
2H Display
21 Button for video
21 Switch for GPS Hold
2K Switch for Coming Home
21 Power LED
ZM USB connection, only for Revell Service.
2N Micro SD card slot
20 Battery compartment cover

3 INSERTING BATTERIES (REMOTE CONTROL)

3A Cover removal
38 Insert 4 × 1.5 ~V AA batteries and pay attention to the polarity, as shown in the battery compartment.
3C Close the battery compartment cover.

4 CHARGING THE MODEL

Attention: The battery and motor must cool down for 15 to 30 minutes before charging and alter every flight. Otherwise they can be damaged. The charging process must be constantly monitored. Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.

4A·Remove the battery from the model to charge it

• Insert the male bullet of the mains adapter in the balancer charger
• Insert the mains plug of the adapter into an outlet
  The Status LEDs on the upper side of the balancer charger illuminate green

48 Now insert the white balancer plug of the battery into the connection on the front of the balancer charger.

The Status LEDs illuminate red during the charging process.
- If the Status LEDs illuminate green again, the charging process is finished and the battery must be disconnected from the charger.

The model can fly for up to 20 minutes after a charge time of approx. 180 minutes.

Warning notice: The battery does not normally heat up while charging. If it should become warm or even hot and/or changes to the surface begin to appear, immediately discontinue the charging process!

5 START PREPARATION

Attention: In order to start the rotors, the following procedure must be followed step by step EACH TIME THE MODEL IS SWITCHED ON.

5A To start the model, first switch on the remote control, then insert the battery into the battery compartment of the model.
5B Then switch on the model by connecting the battery plug to the battery connection and closing battery compartment 1D.
5C The model reports "Check Gyro Sens" in the display of the remote control. The model must remain stationary on a level and solid surface until the message disappears and the message "Compass Calibration 1" appears.
5D Calibrate the compass. This must be repeated each time the model is switched on in order to adjust the model to the respective environment. Attention: Keep magnetic objects such as mobile phones or car keys away from the model Compass Calibration 1: Rotate the model in normal position ANTI-clockwise until the message Compass Calibration 2^ appears in the display of the remote control Compass Calibration 2: Now rotate the model ANTI-clockwise with the camera pointing upward until the message disappears.
5E The initial flights should only be flown with GPS support. For this purpose, move the switch for GPS Hold 2 upwards and wait about 30 seconds until at least six satellites have been found (see Fig. 6). If the switch for GPS Hold 2 is deactivated (switch position down), the rotors can also be started without a GPS signal. This option is only recommended for experienced pilots

Attention: The rotors only start if the switch for Coming Home 2K is deactivated (switch position down).

5F to start the rotors, move the control for thrust and rotation 2A to the bottom left and move the control for forward/backwards and banking 2B to the bottom right at the same time 5F. Attention: With both controllers in the bottom inside or outside position, the rotors switch off instantly, even while in the air. In order to switch off the rotors after landing, move the control for thrust and rotation 2A all the way down and hold. Then move the controls 2A and 2B downward, inward or outward in order to switch off the rotors. Attention! Never reach into the rotating rotor blades; increased risk of injury! 5G to shoot photos and videos, a micro SD card must be inserted in the micro SD card slot 1H. Please only use Class 10 HC memory cards. The memory card is not included.

Once you have finished flying, switch the model off first and then the remote control. Unplug the battery from the model and remove the battery from the model.

6 TRIM ADJUSTMENT OF THE CONTROL

The model must be switched on first in order to connect it to the remote control. Its adjustment is simple, but it requires some patience and a feel for it. Please observe the following instructions precisely: Carefully move the thrust control up and raise the helicopter approximately 0.5 to 1 metre in altitude.

6Alf the model automatically moves slowly or quickly to the left or right .. gradually press the trim for sideways flight 2E in the opposite direction.

68 If the model moves by itself slowly or quickly around its own axis ... press the trim adjustment for rotation 2C incrementally in the opposite direction.

6C If the model automatically moves slowly or quickly forwards or backwards ...

gradually press the forwards/backwards trim 2D in the opposite direction.

7 FLIGHT CONTROL

The model is equipped with an automatic altitude control assistant that makes it possible to learn how to control the model quickly and easily. The assistant is a sensor that can measure the air pressure to within 10 centimetres of the exact altitude and thereby automatically keep the quadrotocopter at the specified altitude. Therefore, beginners can concentrate on forward/backwards and banking.

Attention: Due to outside influences, the pressure inside the model may change, causing the model to automatically rise or lower. This is not a defect. Briefly actuating the control for thrust and rotation 2A is sufficient to counteract this.

Note: Only minimal corrections of the controls are necessary for a smooth flying behavior of the model. The direction indication applies when the model is viewed from behind. If the model is flying forwards towards the pilot, it must be moved in the opposite direction.

Switch on the model as shown in point 5 and start the rotators by moving the controls 2A and 2B to the bottom outside.

7A take off or increase altitude by carefully moving the control for thrust and rotation 2A forward.
7B Land or decrease altitude by moving the control for thrust and rotation 2A backward.
7C Fly forward by moving the controller for forward/backward and sideways flight 2B carefully forward.
7D Fly backward by moving the controller for forward/backward and sideways flight 2B carefully backward.
7E H to the left by moving the controller for forward/backward and sideways flight 2B carefully to the left.
7F Fly to the right by moving the controller for forward/backward and sideways flight 2B carefully to the right.
7G Turn the model around to the left by moving the control for thrust and rotation 2A to the left.
7H Turn model around to the right by moving the control for thrust and rotation 2A to the right.
71 The camera takes a photo when the button 2G is pressed. Ensure beforehand that there is a micro SD card in the micro SD card slot 1H.
7] The camera begins recording a video when the button 21 is pressed. Pressing it again stops the recording. The remaining recording time for the memory card is shown in the top centre of the display. It is also recognisable from the timer counting down for the recording.
7K Briefly pressing vertically (about 0.3 seconds) on control 2A activates headless mode. Headless mode supports beginners in the initial stages. Regardless of where the quadrotor turns, the direction of flight always corresponds exactly to the direction specified with the control for forwards/backwards and sideways movement 2B. An example: if the model were to be turned 180^ and flown towards the operator, the operator would have to "convert" the forwards/backwards and sideways movement accordingly. This is no longer necessary if headless mode is activated, as the internal processor always converts the control directions automatically. Pressing the 2A button again deactivates the mode.

Attention: The model, notes" the forwards direction during each switch-on. This means that the operator must not turn when controlling the model, as this would change the concept of "forwards" and "right/left" in relation to the model. If the operator changes position and wants to use headless mode - or if the control direction is no longer correct due to a collision, the model must be restarted.

7L Switch for GPS Hold 2): The GPS flight support can be activated and deactivated with the switch for GPS Hold. GPS is activated when the switch is moved upward. GPS Hold ensures that the model is only moved when it is controlled. External influences such as wind are compensated for. Flying without GPS Hold is only recommended for experienced pilots.

7MSwitch for Coming Home 2K. With activation of the switch for Coming Home (switch in upward position), the model automatically returns to the starting point (or the position at which six satellites were first found) and lands. The model climbs or drops to a height of approximately 20 metres and returns to the starting point. In the process, look out for any obstacles in the flight path and intervene as necessary with controls 2A and 2B. After the automatic landing, the rotors continue to turn slowly. Switch them off as described in section 5.

7N Follow Me: Vertically pressing control 2B activates Follow Me mode (message in the display). This means that the model maintains the same distance and elevation in relation to the remote control and follows its movements. Never lose eye contact with the model and do not use the display to fly. Any movement with the controls switches back to normal mode (brief message in the display).

BATTERY STATUS:

The battery is empty if the model begins to lose thrust. Land in order to avoid crashing. The charge status of the model battery is shown at the top left of the display on the remote control.

8 MOUNTING THE ROTORS

8A An assembly aid is included with the model for mounting and replacement of the rotors.
8B It is attached to the top of the motor so that it does not turn when screwing on the rotor.

Attention:

The rotors are fitted with a right-handed or left-handed thread in the hub. A-rotors can only be screwed on anticlockwise and B-rotors can only be screwed on clockwise. Only tighten the rotors slightly in order to be able to loosen them again and to avoid dama ging the motors.

INSTRUCTIONS FOR SAFE FLYING

GENERAL FLYING TIPS:

Always place the model on a level surface. An inclined surface can, under certain circumstances, have a negative impact on the starting behavior of the model.
Always operate the controls slowly and with a gentle touch.
Always maintain visual contact with the model and do not look at the remote control!
- Move the thrust control down again somewhat as soon as the model lifts off from the ground. Maintain flying altitude by adjusting the thrust controller.
If the model lowers, move the thrust control slightly upward again.
- If the model climbs, move the thrust control down slightly.
To fly along a curve, tapping the directional controller very slightly in the respective direction often suffices. There is a general tendency during preliminary attempts at flight to operate the model's controls too aggressively Always operate the controls slowly and carefully Never fast and fitfully.
- Beginners should first master trimming before attempting to master the thrust controller. The model does not necessarily have to fly straight at the beginning - initially, it is more important to maintain a constant height of approximately one meter above the ground by repeatedly tapping the thrust control. Only then should the pilot practice steering the model left and right.

9 DISPLAY AND STATUS LEDs

There is a series of information on the display of the remote control:

9A Number of satellites received by the model
98 Number of satellites received by the remote control
9C Current status
9D GPS coordinates
9E Discharge status of the model battery
9F Remaining video recording time

9G discharge status of the batteries in the remote control
9H Current flight speed of the model in m/s
91 Current altitude of the model
9] Horizontal distance of the model to the remote control in metres over ground

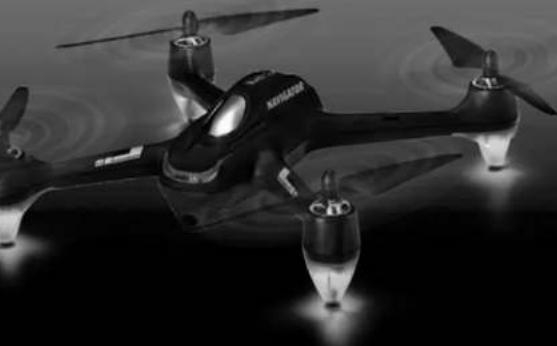

The following statuses of the model can be determined based on the colour of the Status LEDs 1B:

Switched on: All four LEDs under the motor console simultaneously blink white Compass calibration: The LEDs blink yellow

Flight: All four FDs blink simultaneously. The front blink white, the rear two FD indicate the following flight status:

Normal: blinking yellow
GPS OK: blinking green
-Coming Home: blinking blue
Model battery depleted: blinking red

10 ADVANCED SETTINGS

Switching between Flight mode 1 and 2

The term flight mode refers to the assignment of the controls.

Mode 1

Mode 2

Control 2A:Forward/backwards and rotation Control 2A:Thrust and rotation Control 2B:Thrust and banking Control 2B:Forwards/backwards and banking

10A Switching to Mode 1:

• Hold control 2A to the top left and control 2B to the top right
• Simultaneously switch the ON/OFF switch 2F to ON (the model remains off) To calibrate the controls estate 2A and 2B correlator at port twice
  To calibrate the controls rotate 2A and 2B completely at least twice. Then press and hold a trim button for at least two seconds.

10B Switching to Mode 2:

• Hold control 2A and 2B to the top left
  Simultaneously switch the ON/OFF switch 2F to ON (the model remains off)
• to calibrate the controls rotate 2A and 2B completely at least twice. There are more and hold a lever in line for at least two seconds.

10CExpertmenu

Different settings can be made in the expert menu such as
Control direction reversal (Sel Reverse)
Control sensitivity (Set Sensitivity)
Video channel selection (5.8G frequency) Set manual (free living mode).
se manuol (the living model)
- Show version (display of the software version). Normally it is not necessary to make changes. The following are components of this paper:
make changes here . Therefore , we recommend revising this menuexclusively for Revell Customer Service and to retain it in making a
Menu navigation takes place with control 28 for up/down and left/right.
: Hold the control for thrust 2A all the way down
- Simultaneously press the control for forward/backwards 2B down vertically for at least one second.
he display shows SE. Now the control directions of the axes are reversed with the trim buttons.
to save the settings and exit the menu, press the control for forward/backwards. 2B down vertically for at least 2 seconds

TROUBLESHOOTING

Problem: The propellers do not move.

Cause: 1. No connection has been established.

1. The battery is too weak or depleted.

Remedy: 1. Switch everything off and switch on again in the correct sequence.

1. Charge the battery

Problem: The model stops and descends during flight for no apparent reason.

Cause: The battery is too weak.

Remedy: Charge the battery.

Problem: The model cannot be controlled with the remote control.

Cause: 1. The ON/OFF switch is in the "OFF" position.

1. The batteries were not inserted correctly.

2. The batteries do not have enough power.

Remedy: 1. Set the ON/OFF switch to the "ON" position.

1. Check whether the batteries are inserted correctly.

Insert new batteries

Problem: The model only turns on its vertical axis or rolls over when started.

Cause: Incorrect arrangement of the propellers.

Remedy: Install the propellers and arms as outlined in the manual.

Problem: The model will no longer fly loops.

Cause: Battery too weak

Remedy: - Charge the battery.

Additional tips and tricks can be found online at www_REVell-control.de.

SERVICE NOTES

Go to www_REVell-control.de for ordering information

and tips on replacing spare parts, plus other useful information on all Revell Control models.

www.revell-control.de

23899

Reve

Control

CHARACTERISTIQUES PRINCIPALES

Quadricoptère GPS

INDICATIONS DE SERVICE

Compass Calibration: I LED lampeggiano, luce gialla.

Electrical and electronic waste ordinance: After the end of use,

remove all batteries and separately dispose of all electrically operated devices at the communal collection centres for electrical and electronic waste. Disposc of the remaining parts with household waste. Thank you for your cooperation!

Attention: Risk from heat development and rotating parts during operation Adult supervision is required!

Revell GmbH hereby declares that this product conforms with the basic requirements and the additional applicable provisions of Directive 1999/5/EC. The Declaration of Conformity can be found at www_REVell-control.de.
