USER MANUAL Quad Copter Quad 23962 Revell

Electrical and electronic waste ordinance. After the end of use, remove all batteries and separately dispose of all electrically operated devices at the communal collection centres for electrical and electronic waste. Dispose of the remaining parts with household waste. Thank you for your cooperation!

Never touch the running rotor! Do not fly near people, animals, bodies of water or power lines - adult supervision is required.

Revell GmbH hereby declares that this product conforms with the basic requirements and the additional applicable provisions of Directive 1999/5/EC. The Declaration of Conformity can be found at www.revell-control.de.

Charging unit and battery

USB cable and screw driver

Top-down diagram of a four-bladed drone with labeled parts (1A, 1B), no text or symbols present.

1C 1D 1E 1F 1I 1H 1G 1G

3

2

2C 2B 2D 2A 2E 2H 2G 2F

3A

21 2j

3B

3C
4

Close-up of a mechanical component with a metallic bracket and cable, no visible text or symbols

4A4B4C

8

Close-up of a black electronic device with two ports and a central switch, showing no visible text or symbols.

8A8B

Close-up of a mechanical device with visible components and a directional arrow (no text or symbols)

9

9A

9B9C

Top-down view of a four-bladed drone with four propellers and two wings (no text or symbols)

90
5

23962

.Revell

Control

CAMERA QUADROCOPTER

QUADCAM

WICHTIGE MERKMALE

Quadrocopter:

Black-and-white photo of a quad cam helicopter flying over clouds, no visible text or symbols on the aircraft body

• 4 propellers on 4 motors for smooth flight and complex manoeuvres

- Looping function (for experienced pilots only!)

Safety instructions:

• Attention! This Multicopter is not a toy. It is a complex aircraft that can cause personal injury and property damage when handled improperly. It is solely the pilot's responsibility to ensure its safe operation!
  • Due to its design, this multicopter achieves extremely high flying speeds and needs time to slow down again! Plan your flight accordingly!
• This manual must be read and understood in its entirety prior to operating the helicopter!
• This multicopter is suitable for use indoors and as well as outdoors when there is no wind. Flying in wind is only recommended for experienced pilots!
  • This multicopter is suitable for pilots who are at least 14 years of age. Adult supervision is required when living it.
• Keep your hands, face, hair and loose clothing away from the rotors.
• Switch off the remote control and multicopter when they are not in use.
• Remove the batteries from the remote control when it is not in use.
  • Always maintain visual contact with the multicopter in order to avoid losing control of it.
• We recommend new alkali manganese batteries for the remote control. Single use batteries for this remote control can be replaced with environmentally-friendly rechargeable batteries.
• As soon as the remote control no longer functions reliably, new batteries should be inserted.

• Rechargeable lithium battery
• For indoors and outdoors
- With video camera

• Please keep this operating manual safe for later use.
• The user should only operate this multicopter in accordance with the instructions for use in this operating manual.
• Do not fly the multicopter near people, animals, bodies of water or power lines.
  • The charger for the LiPo battery is specially designed for the charging of the multicopter battery. The charger may only be used to charge the multicopter battery, not other batteries.
• Never allow the multicopter to come into contact with water, because the electronics can be damaged as a result.
  • Always watch the aircraft to ensure it does not fly into and injure the pilot, other people or animals.
  • In general, it must be ensured that the model cannot injure anyone in consideration of potential malfunctions and defects.
• This multicopter is not suitable for people with physical or mental limitations. We recommend that persons who are unfamiliar with model multicopters commission the vehicle under the instruction of an experienced pilot.
  • The multicopter range is about 50 metres. Therefore, the aircraft may never be more than 50 metres away from the pilot.

Maintenance and care:

• Please only use a clean, damp cloth to wipe off the multicopter.
• Protect the multicopter and batteries from direct sunlight and/or direct heat.

Remote control battery safety

instructions:

• Non-rechargeable batteries may not be charged.

• Rechargeable batteries must be removed from the remote control prior to recharging.
• Rechargeable batteries may only be charged under the supervision of an adult.
• The combination of different types of batteries as well as new and used batteries must be avoided.
• Only recommended batteries or those of an equivalent type may be used.
• Batteries must be inserted according to the correct polarity (+ and -).
• Depleted batteries must be removed from the remote control.
• The connection terminals may not be short-circuited. Please remove the batteries from the remote control if it is not to be used for an extended period of time.

The multicopter is equipped

with a rechargeable lithium polymer battery. Please observe

polymer battery. Please observe the following safety instructions:

• Never throw LiPo batteries into a fire or store them in a hot location.
• Only use the supplied charging unit to charge the battery. The use of a different charger may lead to the permanent damage of the battery and neighbouring parts, as well as physical injury!
• Never use a charger for NiCd/NiMH batteries!
  • Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.

• Do not leave the battery unsupervised during the charging and discharging process.

• Never disassemble or alter the battery contacts. Do not damage or puncture the battery cells. There is a risk of explosion!
  • The LiPo battery must be kept out of reach of children.

- When disposing of batteries, they must be discharged or their capacity must be fully depleted. Cover exposed terminals with adhesive tape in order to prevent short-circuiting!

Safety instructions:

• The product may never be structurally modified. This may lead to it becoming damaged or posing a danger.
- Avoid the risk of danger by never operating the aircraft while sitting on the ground or in a chair. Operate the aircraft from a position that allows easy evasion if needed.
• Always switch off the aircraft and the remote control after use. Otherwise, it is possible for the model to be unintentionally started.

Required batteries for the

multicopter:

Power supply: =

Rated output: DC 3.7 V / 2.22 Wh

Batteries: 1 x 3.7 V rechargeable

LiPo battery (interchangeable)

Capacity: 600 mAh

Battery requirement for the

remote control:

Power supply:

DC 4.5 V

Batteries: 3 x 1.5 V "AAA" (not included)

USB charger:

Input: DC 5 V

Output: DC 4.2 V, up to 500 mAh, depending on USB slot

1 MULTICOPTER

1A Rotors
1B Cap
1C Gears and outdrives

1D Landing skid
1E Battery plug
1F Lens

1G micro-SD card slot
1H Battery compartment
11 USB socket

2 REMOTE CONTROL

2A Control for thrust and rotation around the vertical axis
2B Power LED
2C ON/OFF switch
2D Switch for video and photo

2E Control for forward, back and sideways flight. Pressing the control triggers a looping function
2F Turbo button

2G Trim control for sideways flight
2H Trim control for forwards and backwards flight

3 INSERTING BATTERIES (REMOTE CONTROL)

3A To open the battery compartment, loosen the locking screw counter-clockwise and remove the cover.

3B Insert 3 x 1,5 V AAA batteries and pay attention to the polarity, as shown in the battery compartment.

3C Replace the cover and screw in the locking screw clockwise.

4 CHARGING THE MULTICOPTER

Attention: The battery and motor must cool down for 10 to 15 minutes before charging and after every flight. Otherwise they can be damaged. The charging process must be constantly monitored. Always ensure that the charging process takes place on a fireproof surface in a fire-resistant environment.

• Unplug the multicopter from the battery, switch off the remote control and plug the charger into an outlet. The control LED on the charger illuminates green (4A).
• Remove the battery from the battery compartment (do not hold by the cable!) (4B).
• Now plug the battery into the charger. Pay attention to the polarity. Please do not use force. The red LED on the USB charger goes out when the charging process starts.
• The charging process lasts approx. 90 minutes and must be continuously monitored. The red LED on the charger lights up as soon as the charging process is finished (4C).
• Disconnect the battery from the charger and disconnect the charger from the mains after the charging is completed.

After a charge time of approx. 90 minutes the multicopter can fly for approx. 7 minutes.

Warning notice: The battery does not normally heat up while charging. If it should become warm or even hot and/or changes to the surface begin to appear, immediately discontinue the charging process!

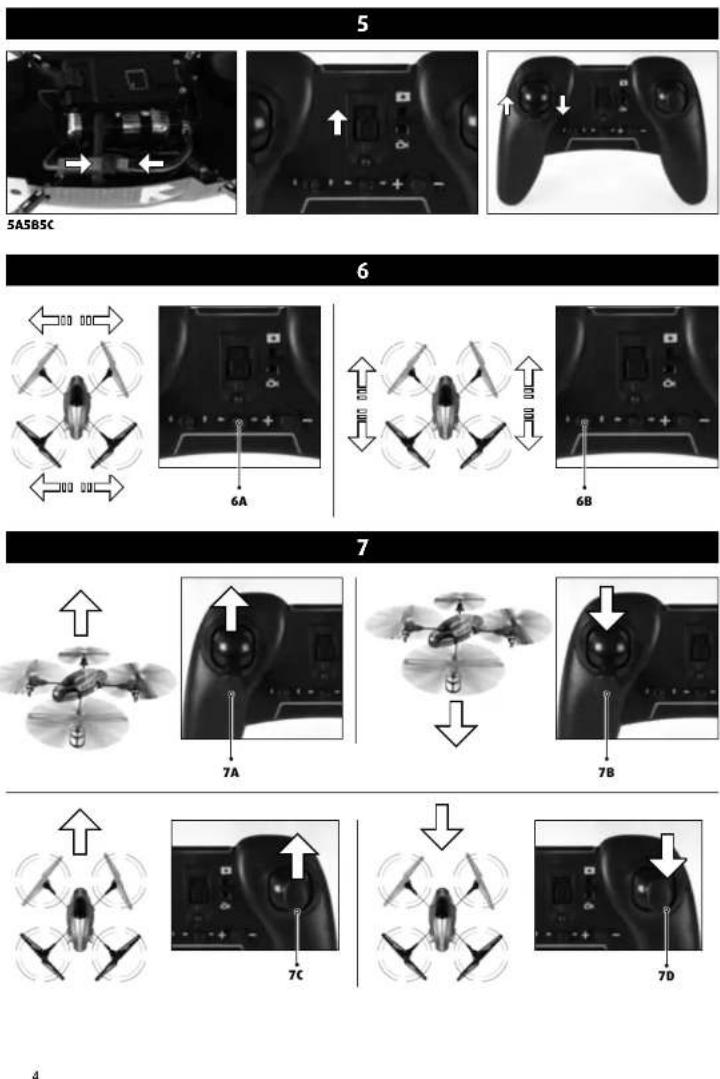

5 START PREPARATION

The thrust controller (left controller on the remote control) must point down before switching on (5A). Then set the ON/OFF switch (5B) on the remote control to the "ON" position and the Power LED begins to blink (5C). Connect the battery cable with the connecting cable (5D). Now the FEDs on the multicopter begin to blink. Place the multicopter on the ground so that the tail faces you and both propellers are towards the front. For the initialisation, the controller for thrust must be briefly moved all the way up and then back down again. The Power LED on the remote control now illuminates continuously.

Attention! Make sure that you place your multicopter on a level surface – the control electronics align their neutral position to the ground!

6 TRIM ADJUSTMENT OF THE CONTROL

The correct trim is a basic requirement for fault-free flying behaviour of the multicopter. Its adjustment is simple, but it requires some patience and a feel for it. Please observe the following instructions precisely: Carefully move the thrust control up and raise the multicopter approximately 0.5 to 1 metre in altitude.

6A If the multicopter automatically moves slowly or quickly to the left or right ... gradually turn the trim for sideways flight in the opposite direction.

6B If the multicopter automatically moves slowly or quickly forwards or backwards ...

gradually turn the trim for forwards and backwards flight in the opposite direction.

7 FLIGHT CONTROL

Note: Only minimal corrections of the controls are necessary for a smooth flying behaviour of the multicopter! The direction information applies if the multicopter is viewed from behind. If the multicopter is flying towards the pilot, it must be moved in the opposite direction.

7A Take off or increase altitude by carefully moving the control for thrust and rotation forward.
7B Move the thrust/rotation control back for landing or to fly lower.
7C Fly forward by moving the controller for forward/backward flight and banking carefully forward.
7D Fly backward by moving the controller for forward/backward flight as well as banking carefully backward.

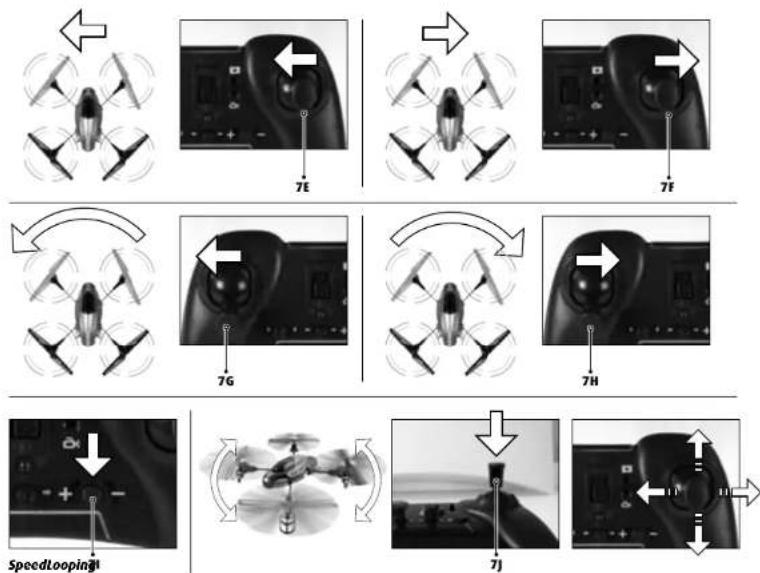

7E Fly to the left by moving the controller for forward/backward flight and banking carefully to the left.
7F Fly to the right by moving the controller for forward/backward flight and banking carefully to the right.
7G Turn helicopter around to the left by moving the controller for thrust and rotation to the left.
7H Turn helicopter around to the right by moving the controller for thrust and rotation to the right.

Higher flight speed

Briefly press the button at the bottom right for greater flight speed (71). The remote control will beep twice in quick succession. Now the multicopter has a greater tilt, which enables higher flight speed. Please do not use this function until you have gained sufficient experience in the standard setting, because the multicopter is very sensitive, which makes a fine touch necessary when controlling it. Pressing it again re-activates slow speed

Fly loops - advanced users only! When you have sufficiently mastered your multicobter, you can try your hand at the stunt flying function. To do so, briefly press vertically on the right joystick on the remote control (7). Now the next control input forwards/backwards or sideways will turn into a loop. Make sure that you have sufficient room in each direction (at least 10 metres). Also observe the safety height fly at a height of at least 5m, as your multicobter loses height when rolling over and has to be caught and corrected afterwards!

Note: Looping is more successful when the battery capacity is near full.

Now climb to safety height. Press the control for forward and backwards flight and banking all the way forward and all the way back very quickly. The multicopter performs a forward looping manoeuvre - looping in other directions are performed corresponding to the movement of the controller. Be prepared to catch the multicopter, as the flying height, direction and speed after rolling over depend heavily on the wind and preceding flight movements.

8 CAMERA FUNCTION

A camera is attached under the copter. This is factory-fitted with a micro-SD memory card on which the videos and photos are stored.

8A The camera takes a photo if you quickly move the switch for the video/image function up and back to the centre position. If you push the switch down, the camera records a video until the switch returns to the centre position. The copter's flight speed is halved during video recording.
8B Use the enclosed USB cable to easily download the images to any PC. Connect the camera to a PC. After plugging in, the software installs itself automatically and after around 1-2 minutes the "AutoPlay" window usually opens. Click here on "Open folder to view files". Alternatively, you can also remove the micro-SD card and read directly in a card reader.

INSTRUCTIONS FOR SAFE FLYING

GENERAL FLYING TIPS:

• Always place the multicopter on a level surface. An inclined surface can, under certain circumstances, have a negative impact on the starting behaviour of the multicopter.

• Always operate the controls slowly and with a gentle touch.
• Always maintain visual contact with the multicopter and do not look at the remote control!
- Move the thrust control down again somewhat as soon as the multicopter lifts off from the ground. Maintain flying altitude by adjusting the thrust controller
- If the multicopter lowers, move the thrust control slightly upward again.
- If the multicopter climbs, move the thrust controller down slightly.

• To fly along a curve, tapping the directional controller very slightly in the respective direction often suffices. There is a general tendency during preliminary attempts at flight to operate the multicopter's controls too aggressively. Always operate the controls slowly and carefully. Never fast and fitfully.
- Beginners should first master trimming before attempting to master the thrust controller. The multicopter does not necessarily have to fly straight at the beginning - initially, it is more important to maintain a constant height of approximately one metre above the ground by repeatedly tapping the thrust control. Only then should the pilot practice steering the multicopter left and right.

BATTERY STATUS:

- If the multicopter begins to lose thrust or the LED on the underside begins to blink, the battery is depleted. Land in order to avoid crashing.

ATTENTION!

Flying model aircraft and helicopters outdoors has required mandatory liability insurance since 2005. Contact your private liability insurer and make sure that your new and earlier models are included in your insurance coverage. Request written confirmation and keep this in a safe place. Alternatively, the DMF offers a trial membership free of charge online at www.dmv.aero, which includes insurance.

9 CHANGING THE PROPELLERS

If the rotor blades of the multicopter are damaged, they must be replaced. Proceed as follows:

9A Prior to installation, make sure that you do not mix up the propellers. The multicopter has 4 different propellers, which differ in colour and direction of rotation. If the propellers are mixed up, the multicopter will not fly. The two orange propellers are at the front.
9B Screw the locking screw of the propeller counter-clockwise from the propeller and carefully pull the defective propeller from the shaft.
9C Carefully fit the new propeller on the shaft and carefully screw the securing screw on again in a clockwise motion.
9D Figure 9D shows a top view of the multicopter. The propellers are marked with a small 1 or 2 on the underside in the centre. Please assemble as follows:

front left orange 2

front right orange 1

rear left black 1

rear right black 2

Flight direction

The front side of the multicopter is the side where the battery cable is soldered to the PCB.

TROUBLESHOOTING

Problem: The propellers do not move.

Cause: · The ON/OFF switch is in the "OFF" position. · The battery is too weak or depleted.

Remedy: · Set the ON/OFF switch to the "ON" position. · Charge the battery.

Problem: The multicopter stops and descends during flight for no apparent reason..

Cause: · The battery is too weak.

Remedy: · Charge the battery.

Problem: It isn't possible to control the multicopter using the remote control.

Cause: • The ON/OFF switch is in the "OH" position. • The batteries were not inserted correctly. • The batteries do not have enough power.

Remedy: • Set the ON/OFF switch to the "ON" position. • Check whether the batteries are inserted correctly. • Insert new batteries.

Problem: The multicopter only turns on its vertical axis or rolls over when started.

Cause: · Incorrect arrangement of the propellers.

Remedy: · Install the propellers as outlined in the manual

Problem: The multicopter won't fly a looping manoeuvre.

Cause: · Battery too weak.

Remedy: · Charge the battery.

Black-and-white photo of a quad cam helicopter flying over a cloudy sky, no visible text or symbols on the aircraft body.

Additional tips and tricks can be found online at www.revell-control.de.

SERVICE NOTES

Go to www.revell-control.de for ordering information and tips on replacing spare parts, plus other useful information on all Revell Control models.
