USER MANUAL MS 8330 GRUNDIG

Simple line drawing of a human head with wavy hair and a dashed outline (no text or symbols)

MS 8330

DE - EN - PL - FR - NO - SV - HR - SR - RO - SQ - SL - MK - BS - BG

CONTENTS

DEUTSCH	07-26
ENGLISH 27-41
POLSKI	42-56
FRANÇAIS	57-73
NORSK	74-88
SVENSKA	89-101
HRVATSKI 102-116
CPПСКИ 117-129
ROMÂNĂ	130-148
SHQIPTARE 149-163
SLOVENŠČINA 164-177
MAKEДОНСКИ 178-195
BOSANSKI 196-210
БЪЛГАРСКИ 211-232

1 2 3 4 5 6 7 8 9 Turbo

10

Diagram of a device with a battery, plug, and cable (no text or symbols)

1

2 1 2

3 60 minutes

4 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 30 10 20 30 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 100 200 300 1

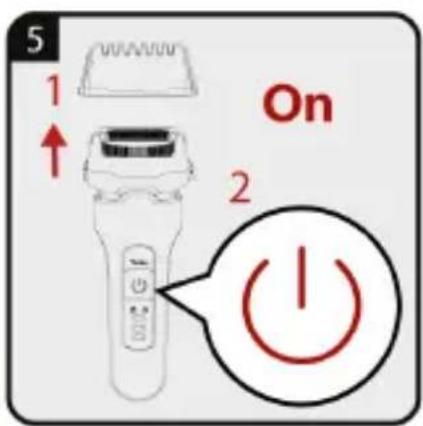

5 1 On 2

Illustration of a person applying a hair product to their face (no text or symbols)

7 Turbo Turbo

Illustration of a person applying a facial massage device to their neck area, with red arrows indicating motion direction (no text or symbols)

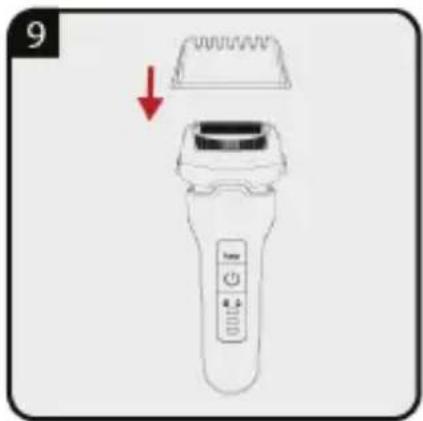

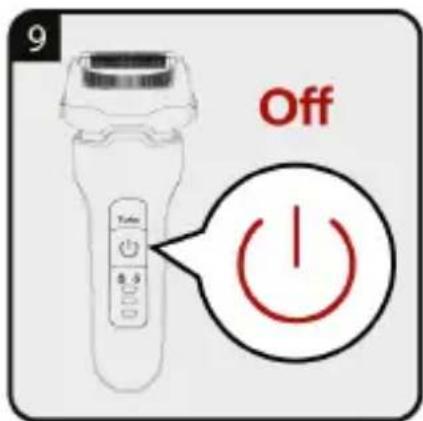

9 Off Tuner 8.5

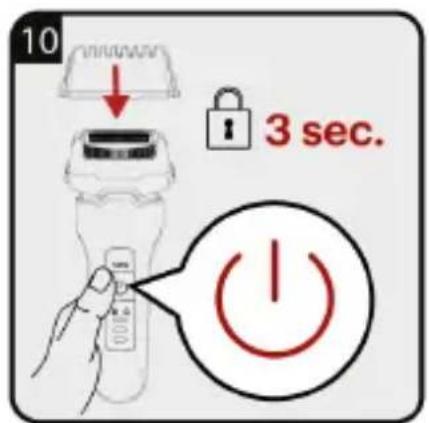

10 3 sec.

11

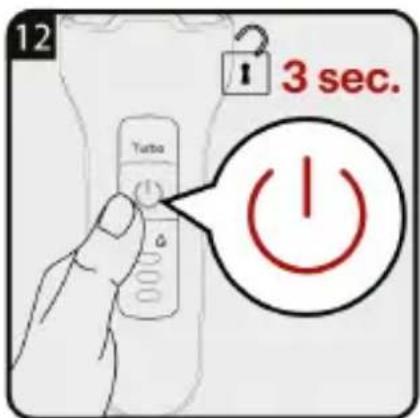

12 3 sec. Turbo

1 2 1 Power

2 Tens ↓ -6 -10

Illustration of a hand using a tool to apply material or powder (no text or symbols visible)

4

Illustration of a faucet spraying water onto a mechanical component (no text or symbols)

Line drawing of a hand using a tool to cut or apply material, no text or symbols present

7

Illustration of a hand cleaning a small electric toothbrush (no text or symbols)

9

DE BETrieb REINIGUNG UND PFLEGE
EN OPERATION CLEANING AND CARE
PL OBSŁUGA CZYSZCZENIE I KONSERWACJA
FR FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
NO DRIFT RENGJ∅RING OG VEDLIKEHOLD
SV ANVÄNDNING RENGÖRING OCH SKÖTSEL
HR RAD ČIŠĆENJE I ODRŽAVANJE
SR RAD ČIŠĆENJE I ODRŽAVANJE
RO FUNCTIONAREA CURĂTAREA ŞI ÎNTRETINEREA
SQ PËRDORIMI PASTRIMI DHE KUJDESI
SL UPORABA ČIŠĆENJE IN VZDRŽEVANJE
MK УПОТРЕБА ЧИСТЕЊЕ И ОДРЖУВАЊЕ
BS RAD		ČIŠĆENJE I ODRŽAVANJE
BG ИЗПОЛЗВАНЕ		ПОЧИСТВАНЕ И ПОДДРЪЖКА

Prohibition sign showing a showerhead spraying water, no text present

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Manufactory CO., LTD

Modellidentifikator:

ZD006M050100EU

Eingangsspannung:

$$ 1 0 0 \mathrm{-} 2 4 0 \mathrm{V} \sim $$

Two mechanical components with directional arrows indicating motion, no text or symbols present

Diagram showing three mechanical components with an upward arrow, no text or symbols present

Diagram of a mechanical device with a downward arrow indicating motion or change (no text or symbols present)

Technical line drawing of a mechanical component with a red arrow indicating a feature (no text or symbols present)

Two technical illustrations of electronic components with a red arrow indicating a downward motion (no text or symbols present)

Line drawing of a handheld device with a black top and beige body (no text or symbols)

4 Anwendung

Please read this manual first!

Dear Customer,

Thank you for purchasing a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

1 Important safety and environmental instructions

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

Failure to follow these instructions voids any granted warranty.

1.1 Safety warnings

- The appliance is designed for domestic use only.

- The device is intended for cutting human facial hair only. Any other usage is explicitly prohibited.

Suitable for cleaning under an open water tap.

- WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

Prohibition sign showing a showerhead spraying water, indicating no pollution or leakage

- Never use the device if the shaving heads or the main adapter display signs of damage. In such a case, please contact the competent customer service.

• Only use the appliance with the parts and power adapter supplied.
• Attention! Keep the device and the main adapter always dry.

- When the appliance is being charged, on no account should it come into contact with water or any other liquid.

- After charging, always unplug the cable from the socket and disconnect the power adapter from the wall socket.

- Do not drop the appliance.

1 Important safety and environmental instructions

• Charging adaptor and power cable cannot be repaired once damaged. Please make sure that you dispose the charging adaptor in accordance with environmental directions. You can get your new charger from the manufacturer or authorised service provider.
• Never place the appliance, accessories or power adapter on or near hot surfaces.

• Check that the mains voltage on the rating label corresponds to your local mains supply.

• Keep the appliance out of the reach of children.

• Before cleaning or user maintenance operation first plug out.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not open the appliance under any circumstances.

No warranty claims are accepted for damage caused by improper handling.

• This appliance contains batteries that are only replaceable by skilled persons.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• WARNING: Detach the hand-held part from the supply cord before cleaning it in water.

- WARNING: Adaptor cannot fall in water.

1 Important safety and environmental instructions

• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot sur faces and open flames.
• If you keep the packaging materials, keep them out of the reach of children.
• This appliance is designed solely for shaving human beard. Any other use is expressly prohibited.
• Before removing the battery, the product should be disconnected from the electricity supply. Observe the local legislation and regulations when disposing of the battery.
• After the first uses you may notice temporary reddening or irritation of the skin, as the skin first needs to become used to shaving. This is normal and generally lasts between 2 and 4 weeks.
• To ensure shearing performance, it is not recommended to use the device for more than 10 minutes in one time.
• If you have severe nickel allergy, please ask your doctor before using this product.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Simple line drawing of a trash bin with crossed lines and a black rectangular base (no text or symbols)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1 Important safety and environmental instructions

1.5 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

20verview

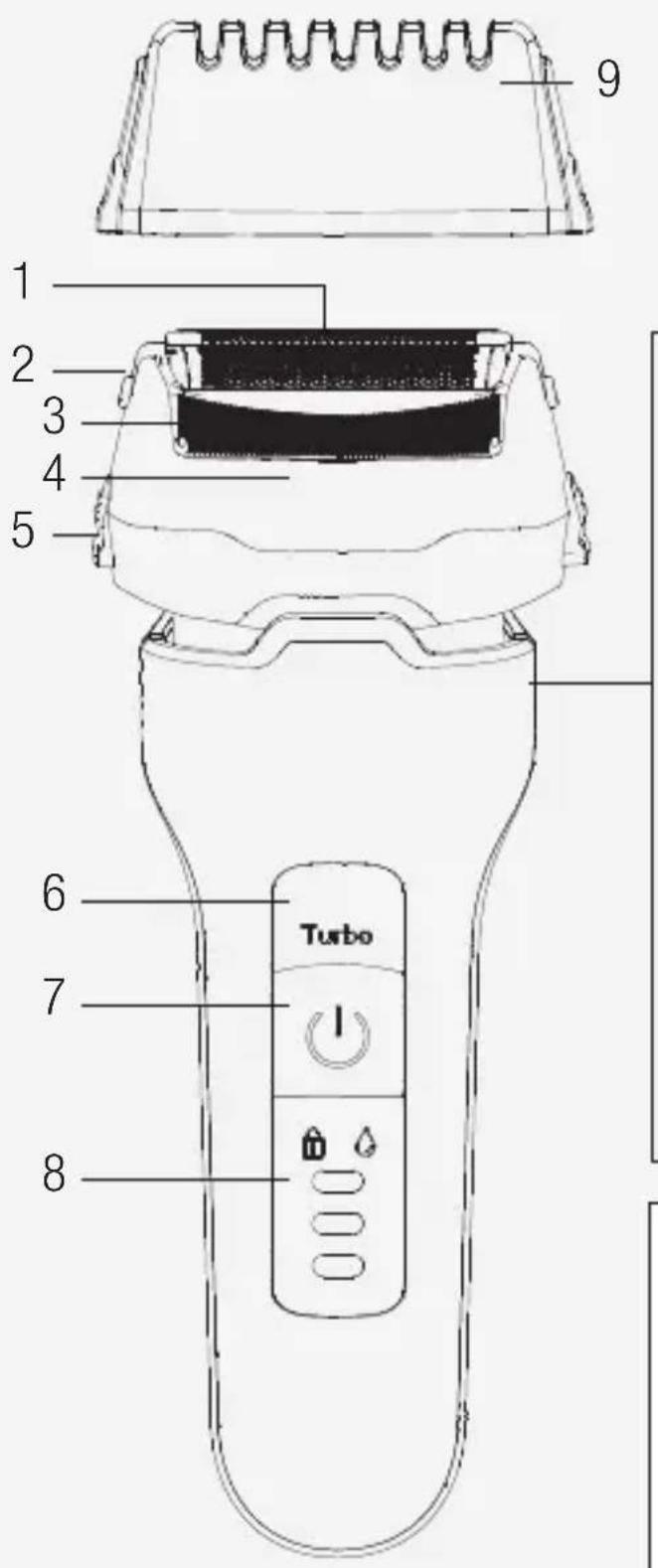

2.1 Controls and parts

See the illustrations on page 3.

1. Shaving foil
2. Release buttons for shaving foil frame (on both sides)
3. Shaving foil frame
4. Shaving head
5. Release buttons for shaving head (on both sides)
6. High speed setting button (Turbo)
7. On/Off button
8. LED-Display
9. Guard

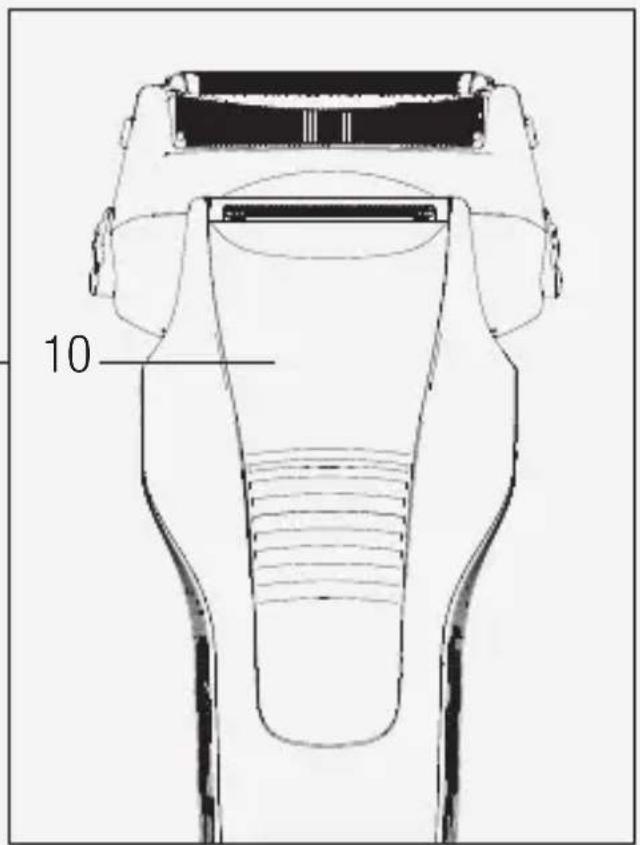

10. Hair clippers

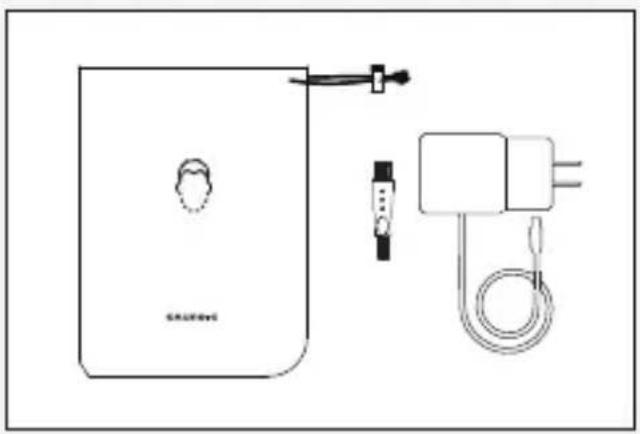

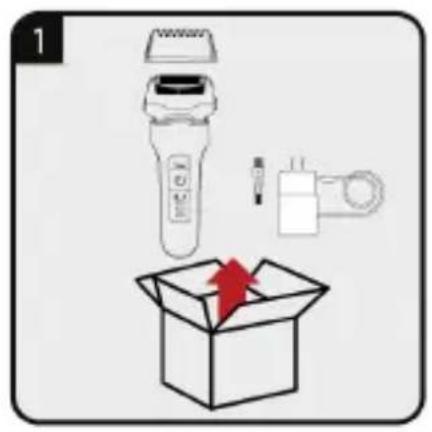

Other Accessories

Power adapter

Charging plug

Cleaning brush

Soft pouch

2.2 Technical data

Operating temperature:

$$ + 5 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Storage temperature:

$$ 0 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Parameter of External Power Supply

Manufacturer: E-TEK Electronics

Manufactory CO., LTD

Model Identifier:

ZD006M050100EU

Input Voltage: 100-240V\~

Input Frequency: 50/60Hz

Input Current: 0.3A

Output Voltage: 5.0V DC

Output Current: 1.0A

Output Power: 5.0W

Average active efficiency:

77.74%

Efficiency at low load(10%):

73.15%

20verview

No-load power consumption:

0.042W

Protection class:

Foil shaver IPX6

Adaptor IPX4

Batteries: Li-ion (Lithium-ion

rechargeable battery)

Electrical insulation class: ||

Design and specifications subject to change without notice.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Power supply

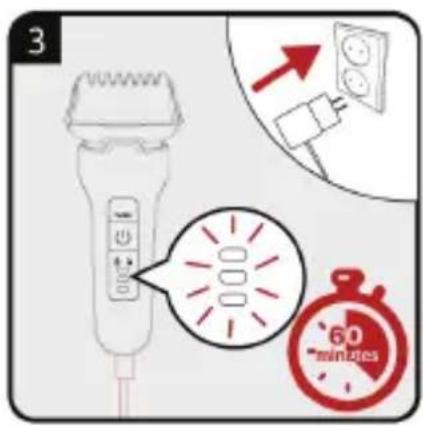

3.1 Operating with the power adapter

Check that the voltage indicated on the rating plate of the power adapter corresponds to your local power supply.

The only way to disconnect the appliance from the power supply is to unplug the power adapter.

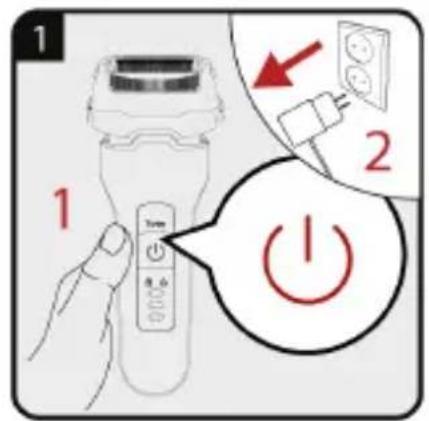

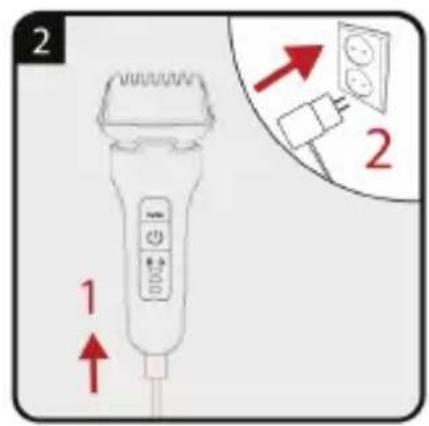

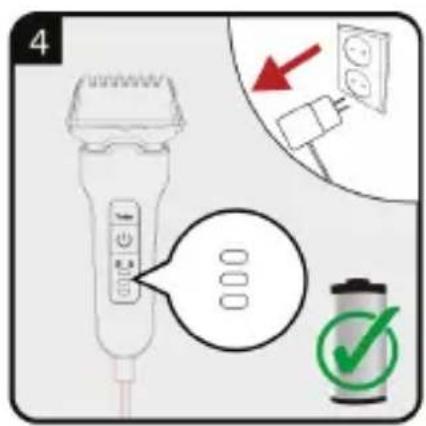

1. Plug the charging plug into the appliance socket and the power adapter into the wall socket.

CAUTION! The groove on the charging plug must match the notch in the appliance socket.

- LED lights will lit up one after another until it's fully charged. After full charge, lights will go out completely.

Charging time: 1.5 hours when the battery is fully charged

1. LED lights will start flashing when the unit reaches low battery capacity during operation.

- When the batteries are discharged: LED lights will not display.

Discharge the appliance through normal use. Then recharge to full capacity. Maximum battery capacity will only be reached after several charging/discharging cycles.

The adapter and unit may become warm while charging; this is normal operation.

3 Power supply

When the appliance is fully charged, it has a cordless operating time of up to 70 minutes.

Unplug the adapter from the wall when not in use.

CAUTION! When in the bathroom or beside a water connection, only use the appliance in battery mode; never run it from the mains.

The appliance does not run from the mains when the battery is empty. Make sure the appliance is switched off during charging.

3.2 Optimising the lifetime of the rechargeable battery

CAUTION! Do not leave the switch adapter plugged into the wall socket for more than 24 hours.

CAUTION! Discharge the battery completely twice a year by letting the motor run until it stops. Then fully recharge the battery.

CAUTION! Please do not operate for long time, or it may burn the adapter.

40operation

Before Using, remove the plug of adapter from the mains power socket and remove the connect wire from body.

We recommend to shave a small area first to familiarize yourself with the shaver head.

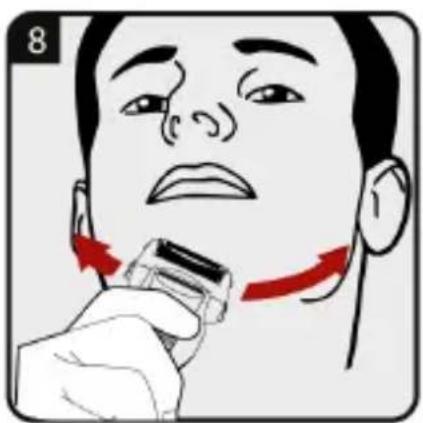

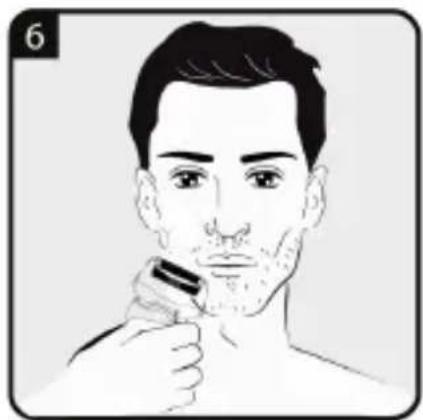

4.1 Beard shaving

1. Apply light pressure only when shaving. Cut against the beard growth direction. Smooth the skin by stretching, when shaving challenging areas (e.g. beneath the chin).

2. Always shave against the natural growth direction of facial hair. In case of abundant or full beard growth, which cannot be removed with one single shave, shave once fast and superficial and the repeat the procedure in a thorough manner for a second time.

3. You get best results when using the device on dry skin.

4. It may take about 2 weeks for your skin to adapt to dry shaving.

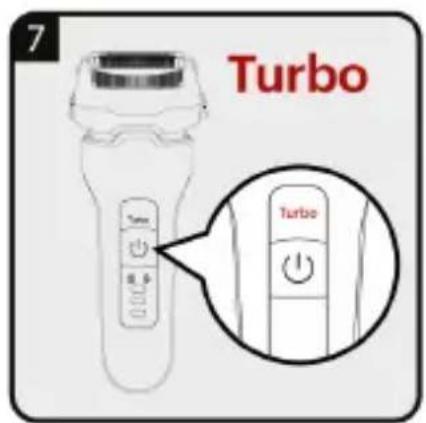

4.2 High speed setting button (Turbo)

Device performance can be maximized by pushing the turbo button.

4.3 The usage of the BeardCare sensor

The BeardCare sensor detects in real time the density of the beard hair and adjusts the power of the motor accordingly. At Turbo Mode, the BeardCare sensor will be inactive.

4.4 Cutting longer hair

1. Use the hair clippers on the product to cut longer beard hair and side burns.
2. Remove the guard and slide the hair clippers upwards.
3. Press the ON / OFF button.
4. Position the hair clipper on the skin as shown in figure and shave.
5. Switch off the product after use by pressing the ON/OFF button.

40operation

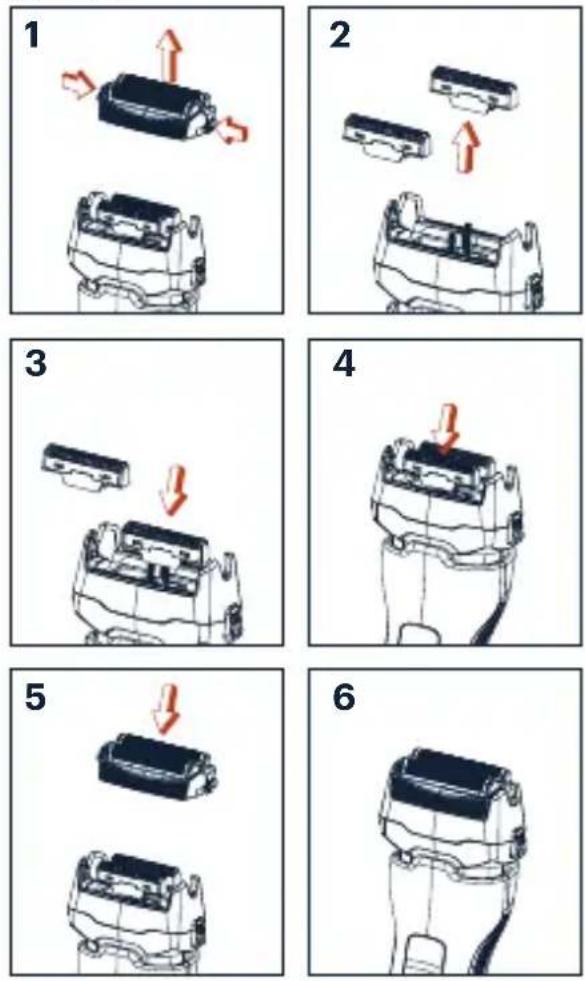

4.5 Replacing the foil frame and blade blocks

You can replace the foil frame and blade blocks. The appropriate replacement shaving system (containing two blade blocks and one foil frame) is article number MSR 93. Ask your specialist dealer about it.

40operation

4.6 Replacing the foil frame

1. Remove the foil frame. To do so, push the side lock buttons.
2. Fix the new foil frame in the housing.

CAUTION! Ensure that the foil frame is firmly in position and cannot move within the housing.

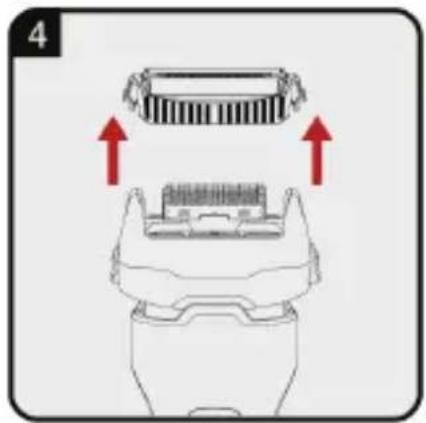

4.7 Replacing the blade blocks

1. Remove the blade blocks by pulling them upwards off the oscillator.

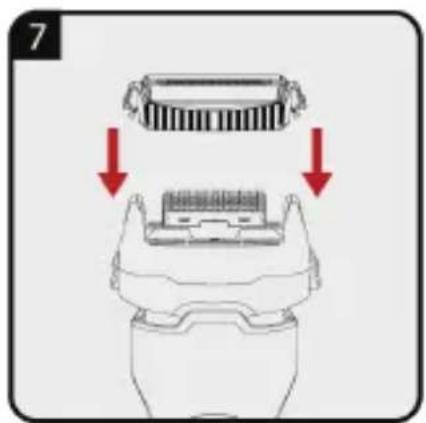

2. Place the new blade blocks on the oscillator.

CAUTION! Please do not operate for long time, or it may burn the adapter.

For an optimum shaving experience, always replace foil frame and blade blocks at the same time.

5Information

The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results.

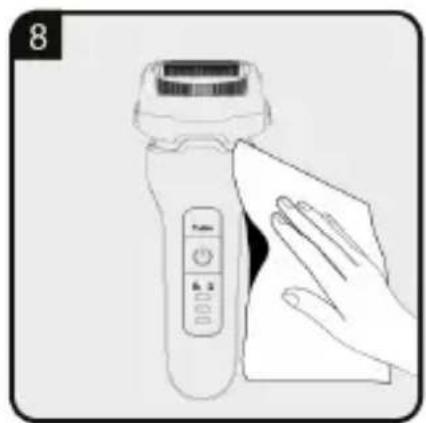

5.1 Cleaning and care

Before cleaning, remove the plug of adapter from the mains power socket and remove the connect wire from body.

Never used liquids to clean the appliance. Use the cleaning brush provided and water only.

Remove any clippings after each use.

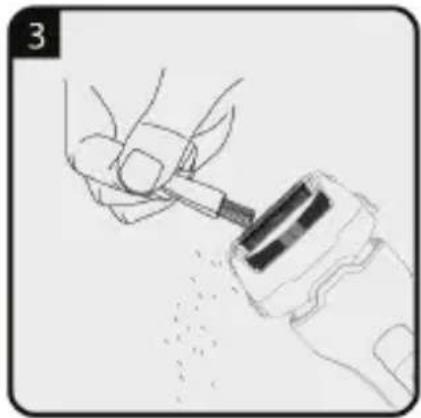

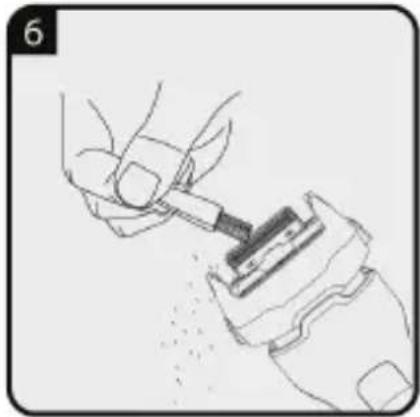

Remove the hairs from the shaving head only by using the cleaning brush. The shaving head can be cleaned with water or other appropriate fluids.

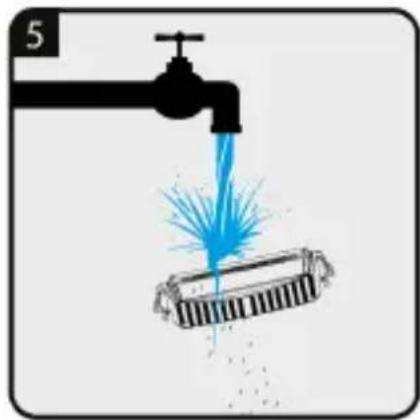

When the water icon lights up on the LED screen, clean the shaving head under running water.

5.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that it is unplugged and is completely dry.
• Store the appliance in a cool, dry place.
• Make sure that the appliance is kept out of the reach of children.

6 Troubleshooting

Fault Possible causes Action
No function. The battery may not be charged.	Recharge the product.
Cutting performance is deteriorating.	Hair may be stuck inside the cutter block or hair clipper.	Clean the product as described in the corresponding chapter.
Battery cannot be charged or the battery performance is very low.	The battery have reached the end of its service life.	The product must be disposed properly as described in the corresponding chapter.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.

Prohibition sign showing a showerhead falling from a surface, indicating no pollution or water release.

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Producent: E-TEK Electronics

Manufactory CO., LTD

Two views of a battery pack with arrows indicating direction (no text or symbols)

Diagram showing three electronic component blocks with an arrow indicating direction (no text or symbols)

Diagram of a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Mechanical component diagram showing a clamped assembly with a red tip (no text or symbols)

Two views of a mechanical component with a red arrow indicating downward motion (no text or symbols)

Line drawing of a handheld device with a black top and beige base (no text or symbols)

4 Obsługa

Prohibition sign showing a prohibition symbol with water and a bucket, indicating no pollution or leakage.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Fabricant : E-TEK Electronics Manufactory CO., LTD

Piles: Li-ion (pile Lithium-ion rechargeable)

Two views of a battery pack with arrows indicating direction (no text or symbols)

Diagram showing three electronic component blocks with an arrow indicating direction, no text or symbols present

Diagram showing a device with a red downward arrow indicating a process or operation (no text or symbols present)

Diagram of a mechanical component with a red arrow indicating a specific feature (no text or symbols present)

Three views of a mechanical component with a red arrow indicating motion (no text or symbols)

Line drawing of a handheld device with a black top and cable (no text or symbols)

Prohibition sign showing a shower stroke over water with no text or symbols

Simple line drawing of a trash bin with crossed lines and a blank base (no text or symbols)

Manufactory CO., LTD

Modellidentifikator:

ZD006M050100EU

Inngangsspenning: 100-240V\~

Two mechanical components with arrows indicating motion, no visible text or symbols

Diagram showing three electronic components with an arrow indicating direction, no text or symbols present

Diagram of a mechanical device with a red arrow indicating a downward motion (no text or symbols present)

Close-up of a mechanical component with a red arrow indicating a specific feature (no text or symbols visible)

Three technical illustrations of electronic components with a red downward arrow indicating a drop or transformation (no text or symbols present)

Line drawing of a handheld device with a black top and cable (no text or symbols)

4Betjening

Prohibition sign showing a showerhead falling from water, indicating no pollution or leakage

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Prohibition sign showing a showerhead falling from a water body, crossed out by a diagonal line

- Nikada nemojte koristiti uređaj ako glava brijača ili glavni adapter pokazuju znakove oštećenja. U tom slučaju, kontaktirajte nadležni kori-snički servis.

- Koristite uređaj samo s dostavljenim dijelovima i strujnim adapterom.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Ovaj simbol označava da se ovaj proizvod ne smije odlagati zajedno s ostalim kućanskim otpadom na kraju njegovog radnog vijeka. Rabljeni uređaj mora se vratiti na službeno sabirno mjesto za recikliranje električnih i elektroničkih uređaja. Da biste pronašli te sustave za prikupljanje, obratite se lokalnim vlastima ili prodavaču gdje je proizvod kupljen. Svako kućanstvo igra važnu ulogu u uporabi i recikliranju starih uređaja. Odgovarajuće odlaganje iskorištenog aparata pomaže u sprečavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje.

1.3 Usklađenost s Direktivom o zabrani uporabe određenih opasnih tvari u električnoj i elektroničkoj opremi (RoHS):

Manufactory CO., LTD

Identifikator modela:

ZD006M050100EU

Ulazni napon: 100-240V\~

Two technical diagrams showing a device with arrows indicating motion or movement, no text or symbols present.

Diagram showing three electronic component blocks with an arrow indicating direction (no text or symbols)

Diagram showing a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Close-up of a mechanical component with a red arrow indicating a feature, no visible text or symbols

Two views of a mechanical component with a red arrow indicating downward motion (no text or symbols)

Line drawing of a handheld device with a black top and cable (no text or symbols)

4 Rad

4.6 Zamjena okvira mrežice

1. Skinite okvir mrežice. Da biste to učinili pritisnite bočne tipke za zaključavanje.
2. Pričvrstite novi okvir mrežice u kućištu.

OPREZ ! Provjerite sjedi li okvir mrežice čvrsto na mjestu i je li fiksiran tako da se ne može pomicati u kućištu.

4.7 Zamjena blokova oštrice

1. Skinite blokove oštrice na način da ih povučete prema gore i skinete s oscillatora.
2. Stavite nove blokove oštrice u oscillator.

Prohibition sign showing a prohibition symbol with a showerhead above water and a diagonal line

- Nikada nemojte koristiti uređaj ako na jedinici za šišanje ili punjaču ima znakova oštećenja. U tom slučaju obratite se nadležnoj korisničkoj službi.

• Uređaj koristite samo sa priloženim delovima i punjačem.
• Pažnja! Držite uređaj i glavni punjač uvek suvim.

- Kada se uređaj puni, ni u kom slučaju ne sme doći u kontakt sa vodom ili nekom drugom tečnošću.

- Nakon punjenja, uvek isključite kabl iz utičnice i izvucite priključak punjača iz zidne utičnice.

Simple line drawing of a trash bin with crossed x's and no text or symbols

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja.

Manufactory CO., LTD

Identifikator modela:

ZD006M050100EU

Ulazni napon: 100-240V\~

Two views of a battery pack with arrows indicating direction (no text or symbols)

Diagram showing three electronic component blocks with an arrow indicating direction (no text or symbols)

Diagram of a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Mechanical component diagram showing a clamped assembly with a red tip (no text or symbols)

Two views of a mechanical component with a red arrow indicating downward motion (no text or symbols)

Line drawing of a handheld device with a black top and cable (no text or symbols)

4Rad

4.6 Zamena okvira mrežice

1. Skinite okvir mrežice. Da biste to učinili pritisnite bočne dugmiće za zaključavanje.
2. Pričvrstite novi okvir mrežice u kućištu.

Prohibition sign showing a showerhead falling from water, indicating no pollution or leakage

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Manufactory CO., LTD

1. LED lights will start flashing when the unit reaches low battery capacity during operation.

- - When the batteries are discharged: LED lights will not display.

Two technical diagrams showing a device with arrows indicating motion or rotation, no text or symbols present.

Diagram showing three electronic component blocks with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a component being lowered with a red arrow (no text or symbols)

Technical line drawing of a mechanical component with a red arrow indicating a specific part (no text or symbols present)

Diagram showing two views of a device with a downward arrow, no text or symbols present

Line drawing of a handheld device with a black top and gray handle (no text or symbols)

4 Functionare

Prohibition sign with prohibition symbol and water droplet icon

Simple line drawing of a trash bin with crossed lines and a blank base (no text or symbols)

Manufactory CO., LTD

Identifikuesi i modelit:

ZD006M050100EU

Two technical diagrams showing a device with arrows indicating motion or rotation, no text or symbols present.

Diagram showing three electronic component blocks with an upward arrow indicating motion (no text or symbols)

Diagram of a printer with a red arrow indicating compression or disassembly (no text or symbols present)

Mechanical component diagram showing a red arrow pointing to a section (no text or symbols present)

Diagram showing two views of a device with a downward arrow indicating motion (no text or symbols)

Line drawing of a handheld device with black top and gray handle (no text or symbols)

Prohibition sign showing a showerhead spraying water, enclosed in a circle with no text

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Manufactory CO., LTD

Identifikacijska oznaka modela:

ZD006M050100EU

Vhodna napetost: 100-240V\~

Vhodna frekvenca: 50/60 Hz

Vhodni tok: 0,3A

Izhodna napetost: 5.0V DC

Izhodni tok: 1,0A

Izhodna moč: 5,0 W

Prohibition sign with prohibition symbol and water droplet graphic

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

Two mechanical components with arrows indicating motion, no visible text or symbols

Diagram showing three mechanical components with an arrow indicating direction, no text or symbols present

Diagram of a mechanical device with a red arrow indicating a downward motion (no text or symbols present)

Diagram of a mechanical component with a red arrow indicating a specific feature (no text or symbols present)

Two views of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

Line drawing of a handheld device with a black top and gray handle (no text or symbols)

Prohibition sign showing a shower stroke over water with no text or symbols

- Nikada nemojte koristiti uređaj ako glave za brijanje ili glavni adapter pokazuju znakove oštećenja. U tom slučaju obratite se nadležnoj službi za korisnike.

Simple line drawing of a trash bin with crossed lines and a blank base (no text or symbols)

Ovaj simbol označava da ovaj proizvod ne treba odlagati sa ostalim otpadom iz domaćinstva na kraju vijeka upotrebe. Korišteni aparat mora se vratiti u službeno zbirno mjesto za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za prikupljanje, obratite se lokalnim nadležnim organima ili prodavaču kod kojeg je proizvod kupljen. Svako domaćinstvo igra važnu ulogu u obnavljanju i recikliranju starog aparata. Odgovarajuće odlaganje korišćenog aparata pomaže u sprječavanju potencijalnih negativnih posljedica po životnu sredinu i zdravlje ljudi.

1.3 Usklađenost sa RoHS direktivom

Manufactory CO., LTD

Identifikator modela:

ZD006M050100EU

Ulazni napon: 100-240V\~

Prohibition sign showing a showerhead falling from a pool, crossed out by a diagonal line

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Electronics Manufactory CO., LTD

Two mechanical components with arrows indicating motion, no visible text or symbols

Diagram showing three electronic components with an arrow indicating direction, no text or symbols present

Diagram of a mechanical device with a red downward arrow indicating a process or transformation (no text or symbols present)

Diagram of a mechanical component with a red arrow indicating a force or direction (no text or symbols present)

Three mechanical components with a downward arrow indicating a process (no text or symbols present)

Technical line drawing of a handheld device with a black top and gray handle (no text or symbols)
