USER MANUAL MS 8640 GRUNDIG

Rotation Men's Shaver User Manual

Simple black-and-white line drawing of a bearded man's face (no text or symbols)

MS 7640

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a person applying oral pressure to their neck, showing airflow direction (no text or symbols)

9 Off

Line drawing of a mechanical device with two circular components and a red upward arrow indicating motion (no text or symbols)

Simple line drawing of a garment with a red downward arrow indicating a process or direction (no text or symbols)

Illustration of a person applying a product to their face, no text or symbols present

Illustration of a person wearing a hooded garment with a bottle and patterned garment nearby (no text or symbols)

Illustration of a person's ear with a birdcage and eye mask, no text or symbols present

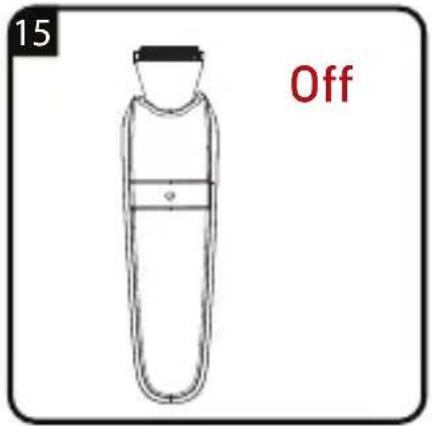

15 Off

16

17 4 sec.4 sec.

1 2 1

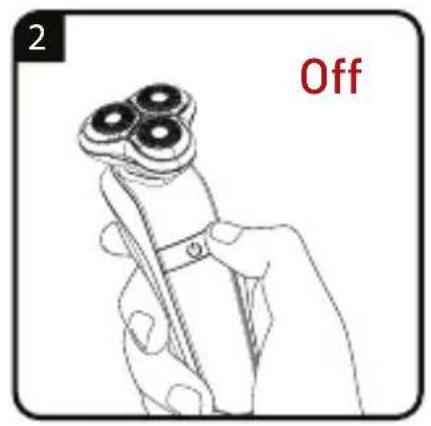

2 Off

3

Diagram showing a three-pin hairbrush with an arrow indicating the process (no text or symbols present)

Diagram showing a device with two circular components above a bowl, with a red arrow indicating upward motion (no text or symbols)

Two abstract symmetrical diagrams with circular patterns, no text or symbols present

Mechanical assembly diagram showing gear and rotor components (no text or labels)

Illustration of a hand holding a tool next to a three-hole electrical socket (no text or symbols)

9

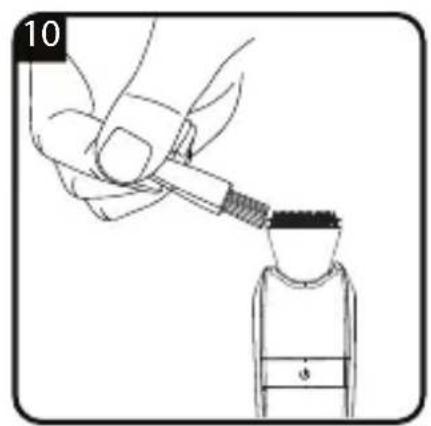

10 d

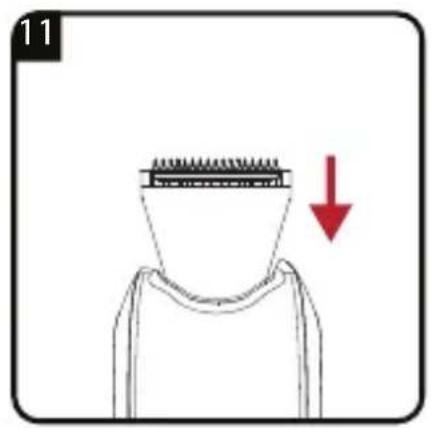

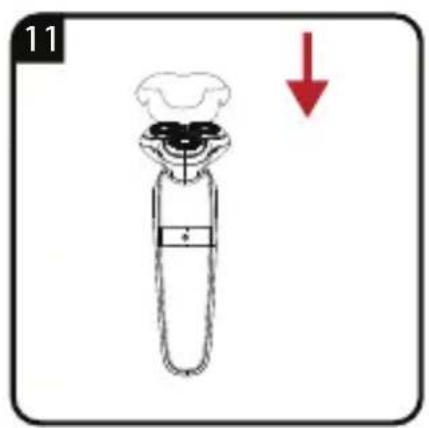

11

12

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA

Prohibition sign showing a shower stroke over water with no text or symbols

Prohibition sign with crossed-out machine and battery symbol, indicating no prohibition or disapproval

Hersteller: E-TEK Electronics Manufactory Co., LTD

Modellidentifikator: ZDJ050100EU

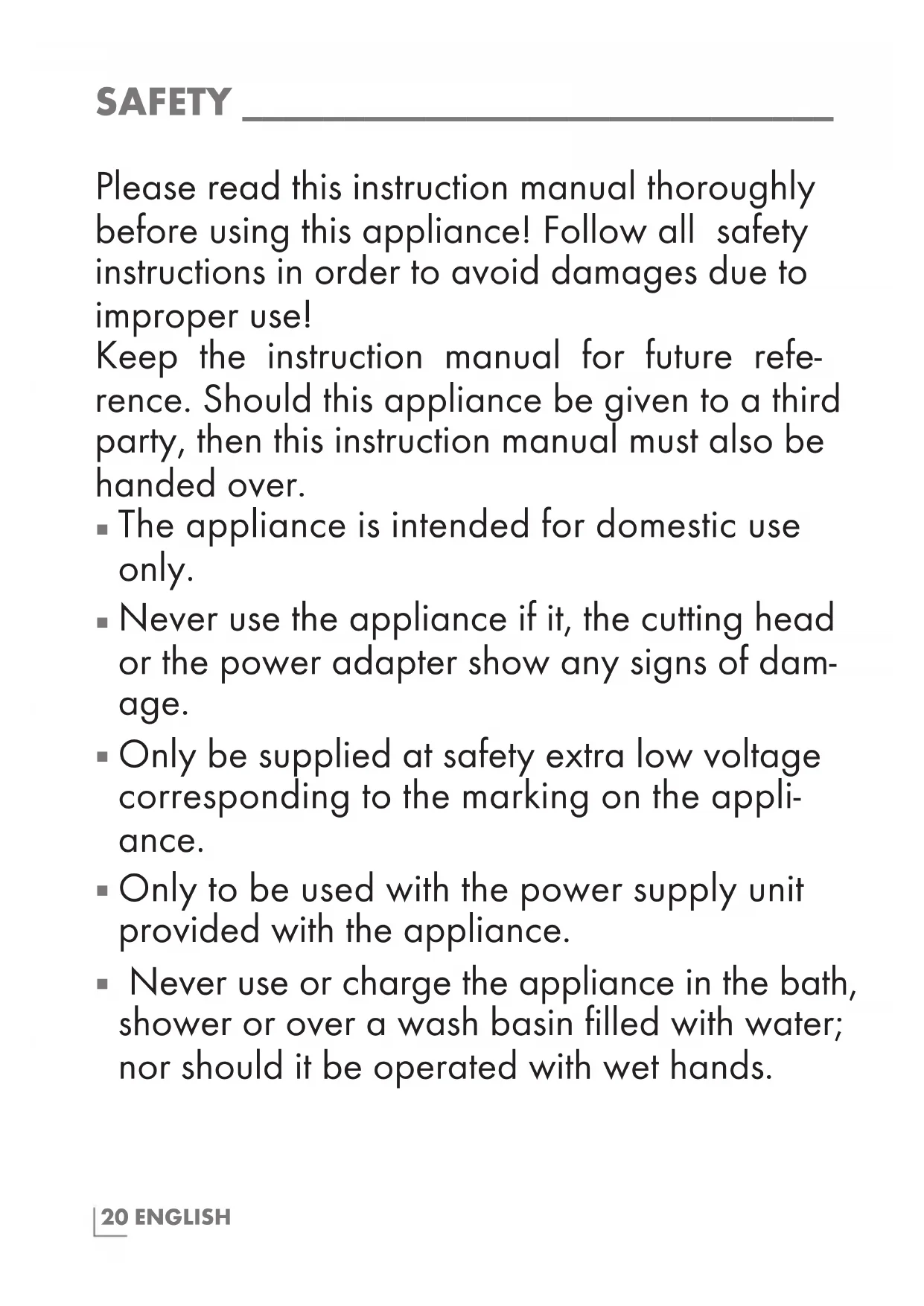

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ The appliance is intended for domestic use only.
■ Never use the appliance if it, the cutting head or the power adapter show any signs of damage.
- Only be supplied at safety extra low voltage corresponding to the marking on the appliance.
■ Only to be used with the power supply unit provided with the appliance.
■ Never use or charge the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

Prohibition sign showing a shower stroke over water with no text or symbols

■ After charging, pull out the power adapter.
- Caution! Always keep the power adapter dry.
- When the appliance is being charged, on no account should it come into contact with water or any other liquid.
■ Never use the appliance if it, the cutting foils or the blade blocks are visibly damaged.
■ Do not completely immerse the appliance in water.
■ After charging always disconnect the power adapter from the wall socket.
■ Do not drop the appliance.
■ To avoid damaging the power cord, prevent it from being squashed, bent or from rubbing on sharp edges. Keep the power cord away from hot surfaces and open flames.

■ Never place the appliance, accessories or power adapter on or near hot surfaces.
- Check that the mains voltage on the rating label corresponds to your local mains supply.
■ Always keep the appliance out of the reach of children.
- Our GRUNDIG Household Ap pliances meet applicable safety standards, thus if the appliance is damaged, it must be repaired or placed by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
• Charging adaptor and power cable cannot be repaired once damaged. Please make sure that you dispose the charging adaptor in accordance with environmental directions. You can get your new charger from the manufacturer or authorised service provider.

- Warning: Detach the hand-held part from the supply cord before cleaning it under water.

■ The battery must be removed from the appliance before it is scrapped.

■ The appliance must be disconnected from the supply mains when removing the battery.

■ The battery is to be disposed of safety.

■ This appliance contains batteries that are non-replaceable.

- Warning: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

Dear Customer,

Congratulations on the purchase of your MS 7640 Rotation men's shaver.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:

Warnings against dangerous situations concerning the securi- ty of life and property.

Electrical insulation class.

Suitable for cleaning under an open water tap.

Controls and parts

See the figure on page 3.

A Protection cap

B Shaver head

C On/Off switch button

D symbol (lock)

E LCD battery using time

F Cleaning brush

G Adaptor

H Beard trimmer

Detail trimmer

This product has been produced in environmentally-friendly state-of-the-art facilities.

Notes

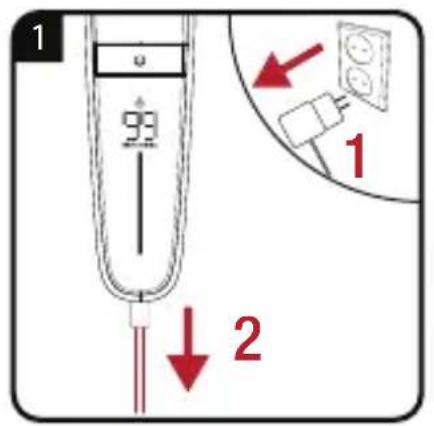

■ The battery should be charged for at least 90 minutes before first use.
■ Ensure that the appliance is switched off before charging the battery.
- Ensure the +/- terminals are correctly aligned: the guide rod in the charge inlet must be in the guide groove on the charge connector. Otherwise the connector can not be plugged in.
■ The battery charge level is shown in percent (%) on the display LCD. The strip light will play from dark to light. (1, 3)
As soon as the battery is fully charged, the strip lights will stop looping, and show white light abidingly.
■ When fully charged, approx. 50 minutes operation time.

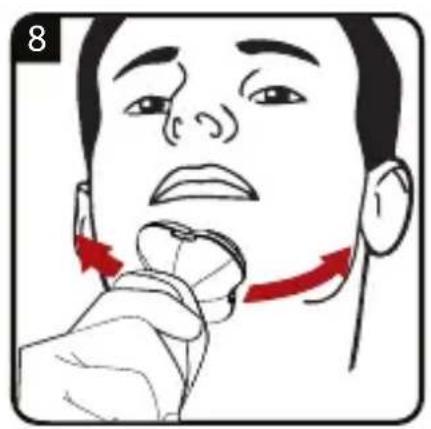

■ Only apply a slight amount of pressure when shaving. Gentle movements against the direction of beard growth. (, 8-9)

■ Always pull the skin taut when shaving difficult areas such as your lower jaw. Always cut against the natural direction of beard growth. In the case of thick or copious beard growth which cannot be removed by just one shave, do one quick shave and then a more thorough second one.
■ The best results are achieved if used on dry skin.
It can take around 2 weeks until the skin is accustomed to the dry shaving system.

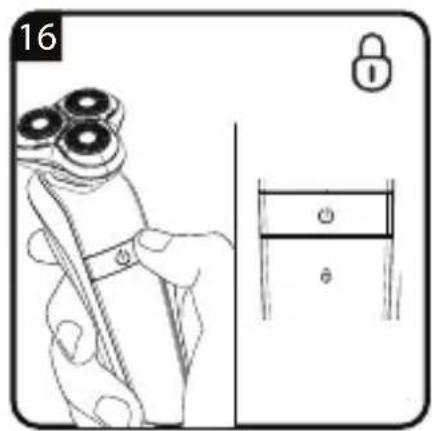

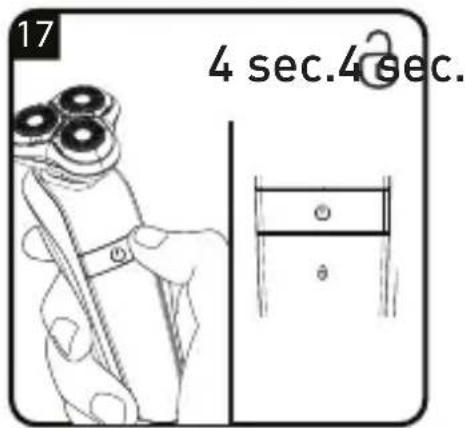

Travel lock (16-17)

To ensure that the shaver cannot switch on accidentally, you can lock the On/Off switch button.

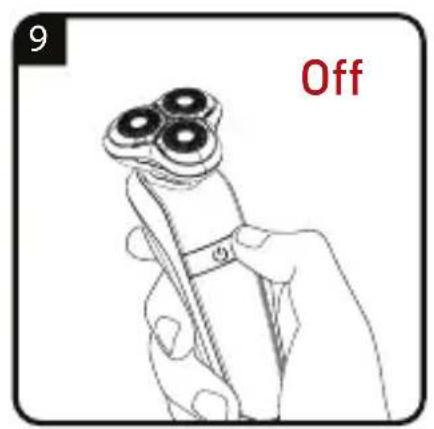

The appliance starts to operate after the keypad is unlocked. You can turn off the appliance by pressing On/Off button.

General information

The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results.

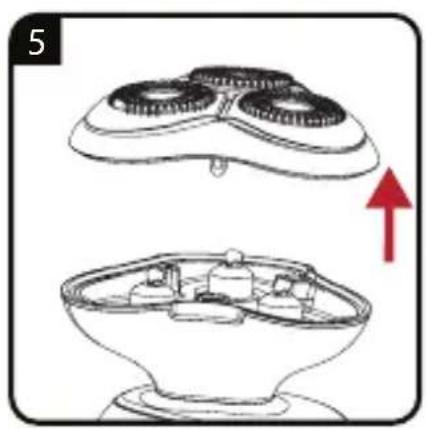

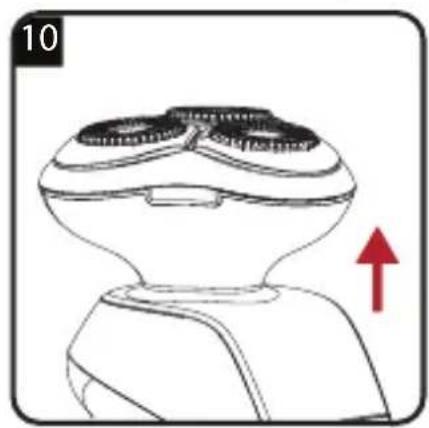

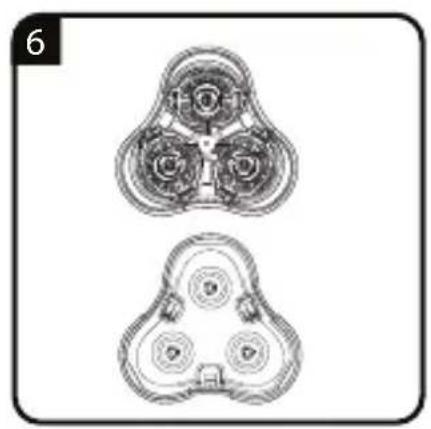

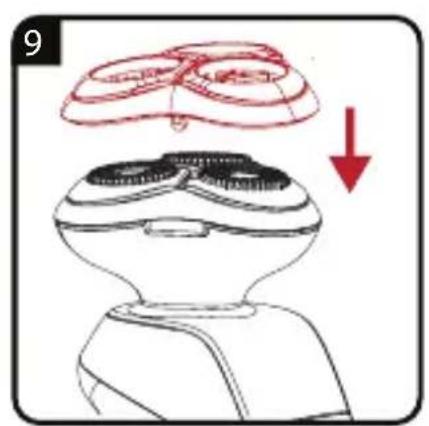

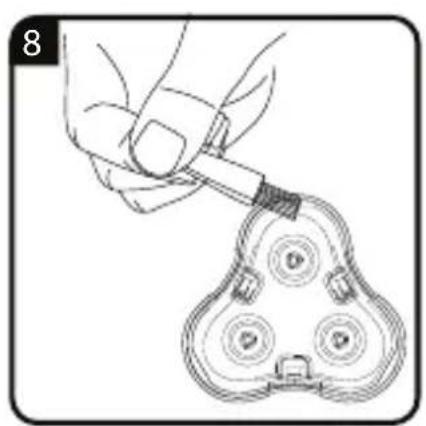

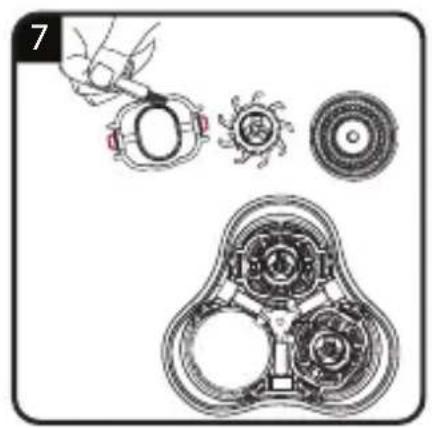

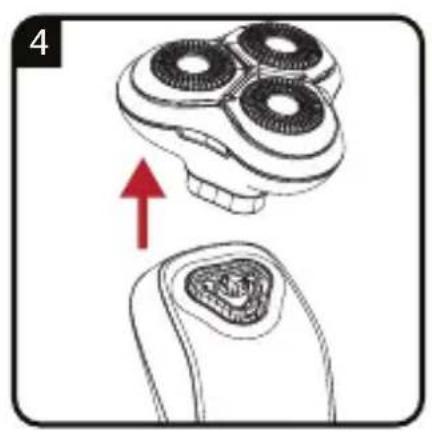

Cleaning and care

Caution

• Do not remove the shaving heads while the shaver is switched on. You should therefore always switch the shaver off before cleaning.
  ■ Never press on the cutting blades and guards and do not touch them with hard objects, as this can cause irreparable damage to the shaver or parts.

Warning

■ Always switch the shaver off and disconnect it from the mains before cleaning and always unplug the charger from the electrical socket!
■ Ensure that no water gets into the inside of the shaver or the charger, to avoid the risk of an electric shock when it is back in operation.
■ Be careful when dealing with the blades as they are very sharp.

Caution

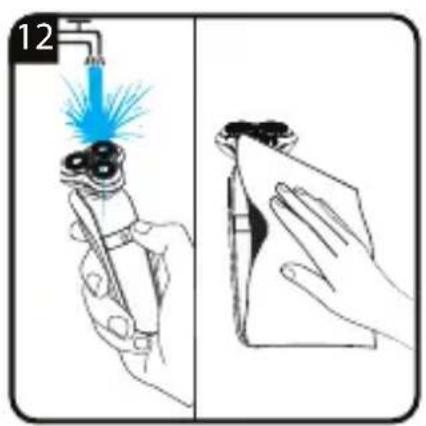

■ Ensure that only the triple shaving heads unit is under the stream of water! The shaver handset is only protected against water splashes and can be irreparably damaged if it is held under running water.

Note

- Allow the triple shaving heads unit to dry before you use the shaver again.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that it is unplugged and is completely dry.
■ Store the appliance in a cool, dry place.
■ Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Prohibition sign with crossed-out electrical circuit diagram and a black rectangle below

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.

Used device must be returned to offi- cal collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was pu- chased. Each household performs important role in recovering and re- cycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative conse- quences for the environment and hu- man health.

Information on Waste Batteries

Li-ion

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular household waste.

Always dispose of used rechargeable batteries/batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Mains supply voltage:

100-240 V\~, 50/60 Hz

Output rating: 5V_1A

Power supply:

5V (Li-Ion rechargeable battery)

Charging time:

approx. 90 minutes

Operating time with fully

charged battery: approx. 50

minutes

Batteries: Li-ion

Suitable for cleaning under an open water tap (IPX5).

Parameter of External Power Supply

Manufacturer: E-TEK Electronics

Manufactory Co., LTD

Model Identifier: ZDJ050100EU

Input Voltage: 100-240V\~

Input Frequency: 50/60Hz

Input Current: 0.2A

Output Voltage: 5.0V

Output Current: 1.0A

Output Power: 5.0W

Average active efficiency:

76.21%

Efficiency at low load(10%):

68.89%

No-load power consumption:

0.05W

Electrical insulation class: II

Technical and design modifications reserved.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.
