MS 9130 - Shaver GRUNDIG - Free user manual and instructions

Product Type	Rotating razor for men
Brand	Grundig
Model	MS 9130
Waterproofing	IPX7 (portable part), adapter IPX4
Power supply	External mains adapter 5V 1A (model ZD006M050100EU)
Battery life	Up to 120 minutes cordless
Charging time	About 1h30
Charge indicator	LCD display with battery icon
Main functions	Close shave, removable trimmer for long hairs, Turbo mode, BeardCare sensor
BeardCare sensor	Automatically adjusts power according to hair density
Turbo mode	High speed adjustment button
Included accessories	Charging station, removable trimmer, cleaning brush, soft pouch, mains adapter
Cleaning	Washable under running water, cleaning brush included
Use	On dry skin only, cordless in the bathroom
Replaceable parts	Shaver head, blade, trimmer
Electrical insulation class	II

Frequently Asked Questions - MS 9130 GRUNDIG

How do I charge the Grundig MS 9130 shaver?

Plug the charging plug into the device then the adapter into a wall outlet. The battery icon flashes during charging and stays on continuously when full. Charging takes about 1h30. Do not use while plugged in.

What is the battery life?

Once fully charged, the battery provides up to 120 minutes of cordless shaving. To optimize its lifespan, fully discharge it twice a year then recharge.

How do I clean the shaver?

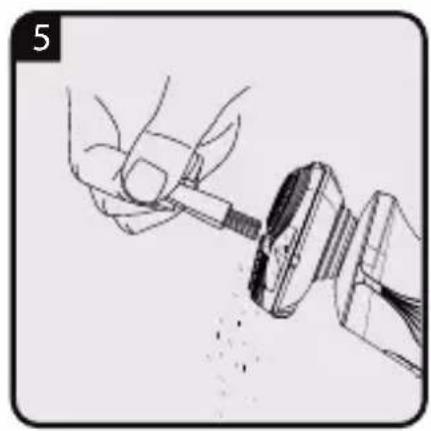

Unplug the device. Use the cleaning brush to remove hairs. You can also rinse the shaver head under running water. The water icon on the LCD screen flashes when cleaning is recommended.

Is the shaver waterproof?

Yes, the portable part is rated IPX7, it can be used in the shower or bath. The adapter is not waterproof (IPX4). Never plug the device when wet.

How do I use Turbo mode?

Press the high speed adjustment button (Turbo) to increase power. In Turbo mode, the BeardCare sensor is deactivated.

What is the BeardCare sensor?

The BeardCare sensor detects hair density in real time and automatically adjusts motor power for optimal shaving. It is inactive in Turbo mode.

Can the blades be replaced?

Yes, the blades are replaceable. To change them, align the blade notches with the tabs in the housing. Contact an authorized service center for replacement parts.

How do I use the removable trimmer?

Attach the removable trimmer to trim sideburns or neck hairs. Use it as indicated in the manual pages 4-8. Clean it after each use.

Can I use the shaver while plugged into the mains?

No, the device operates only on battery. Do not attempt to use it while charging. Unplug it before use.

What to do if the shaver does not turn on?

Check that the battery is charged. If the battery icon does not appear, recharge it. If the problem persists, contact an authorized service center.

USER MANUAL MS 9130 GRUNDIG

Rotation Men's Shaver

User Manual

Simple line drawing of a human head with a dashed outline (no text or symbols)

MS 9130

DE - EN - PL - FR - NO - SV - HR - SR - RO

CONTENTS

DEUTSCH	07-28
ENGLISH	29-40
POLSKI	41-53
FRANÇAIS	54-68
NORSK	69-80
SVENSKA	81-92
HRVATSKI 93-105
СРПСКИ 106-117
ROMÂNĂ	118-134

1 GRUNDIG 2 Turbo 3 4 5 wet & dry 6 7 GRUNDIG

Illustration of various household appliances including a brush, washing machine, and open box with red arrow (no text or symbols)

2 1 or 2

3 100% %

4

Illustration of a digital hairbrush with a speaker and antenna, showing internal components and a red upward arrow (no text or symbols)

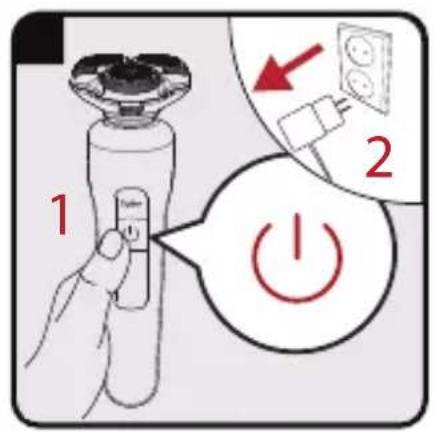

6 1 On 2

Illustration of a person applying a hair to their lower face, no text or symbols present

8 Turbo Turbo

Illustration of a person applying facial massage to the ear with red arrows indicating direction (no text or symbols)

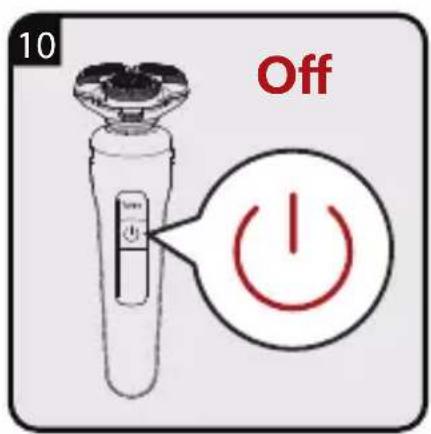

10 Off

11 1 2

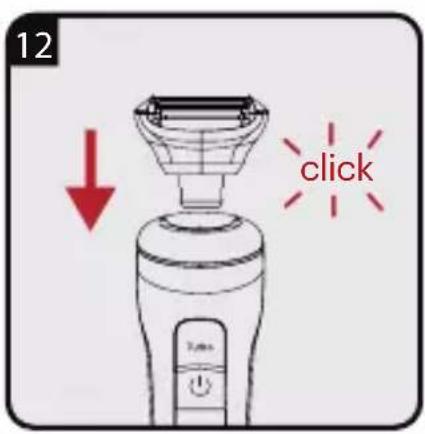

12 click

13/4 On

Illustration of a person applying a hairbrush to their face (no text or symbols present)

15 Turbo Turbo

Illustration of a person applying a toothbrush to their face (no text or symbols)

17 Off

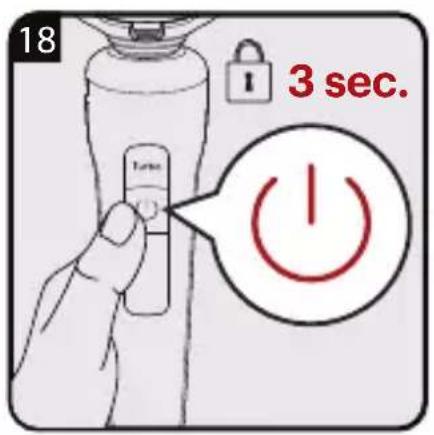

18 3 sec.

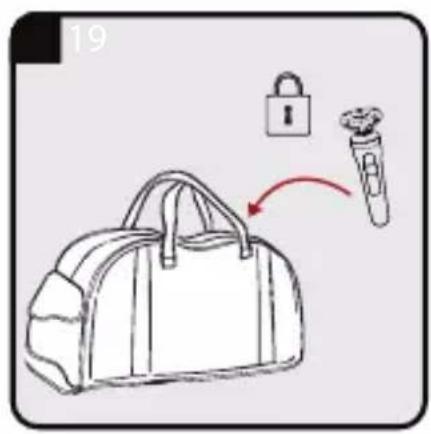

19

20 Tubb 3 sec.

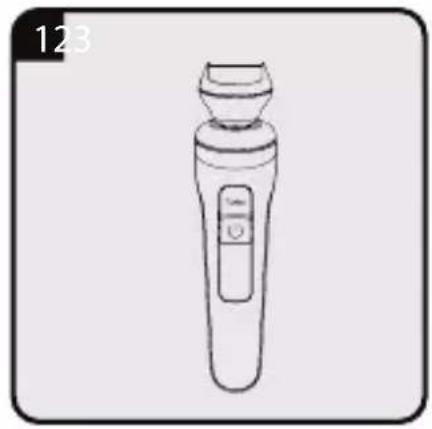

Line drawing of a handheld electric shaver with a circular head and control panel (no text or symbols)

1 2

or

4 ↓ ↑

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

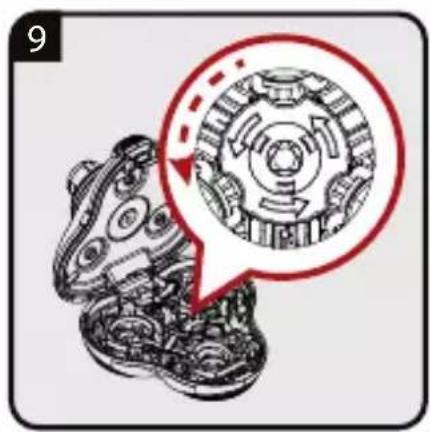

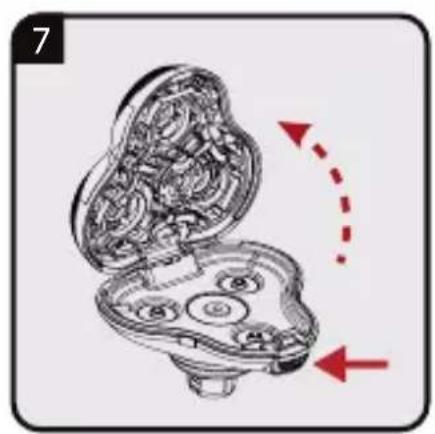

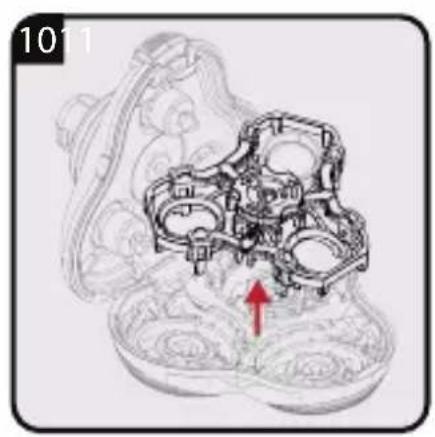

Diagram of a three-bladed electric shaver with a red arrow indicating the blade's direction (no text or symbols present)

Cross-sectional diagram of a mechanical device with internal gears and housing, showing internal components and rotation arrows (no text or symbols)

Illustration of hands using a tool to cut a mechanical component into a circular housing (no text or symbols)

Illustration of a mechanical gear assembly with a speech bubble highlighting a specific gear component (no text or symbols present)

Technical line drawing of a mechanical assembly with internal components and a red arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical component with open lid and internal gears, showing assembly and disassembly (no text or symbols)

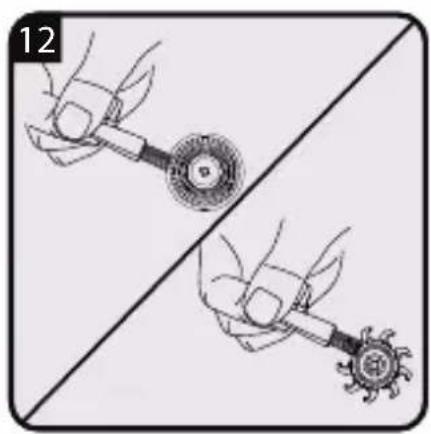

Two hand tools in a diagonal division, one using a power tool and the other a mechanical tool (no text or symbols visible)

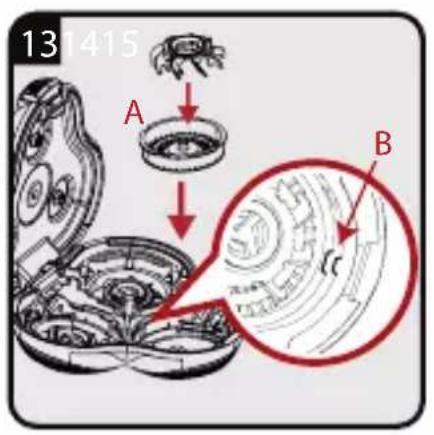

13/415 A B

Technical line drawing of a mechanical assembly with internal components and a red arrow indicating a specific part (no text or symbols present)

Technical illustration of a mechanical gear assembly with a magnified inset showing internal components (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a red dashed arrow indicating rotation (no text or symbols)

Diagram showing a three-dot brush head with a red arrow pointing to a circular component, no text or symbols present.

Diagram showing a hairbrush with a water droplet symbol, indicating water droplets or oil drop.

Illustration of a water spray being poured into a pipe, with no text or symbols present.

Line drawing of a hand cleaning a hairbrush with a cloth (no text or symbols)

Line drawing of a handheld electric brush (no text or symbols)

1 2

or

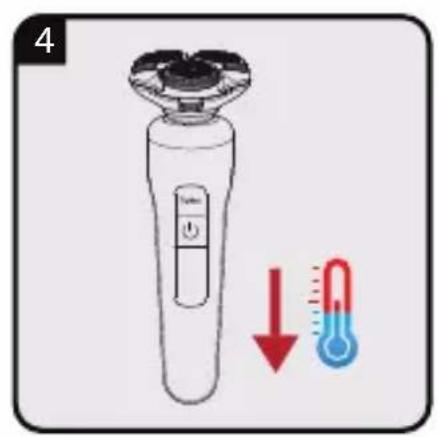

4 Temperature ↓ -100000

Illustration of a hand holding a tool with a small object inserted, showing motion or force (no text or symbols)

Illustration of a hairbrush with a red upward arrow indicating motion (no text or symbols)

Illustration of hands using a tool to apply material or equipment to a curved pipe (no text or symbols visible)

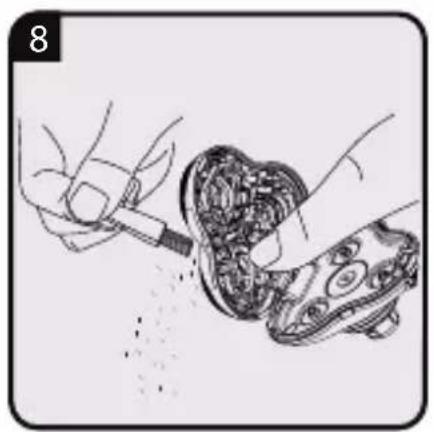

8

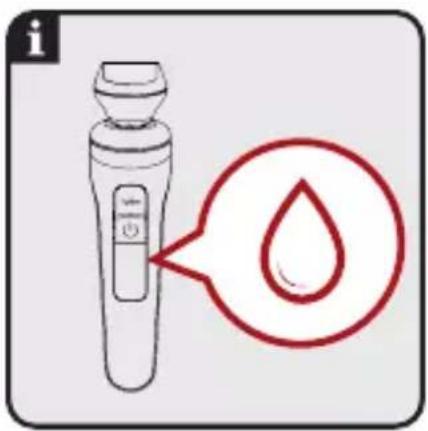

i

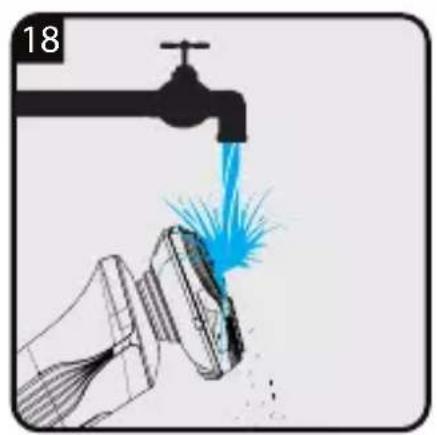

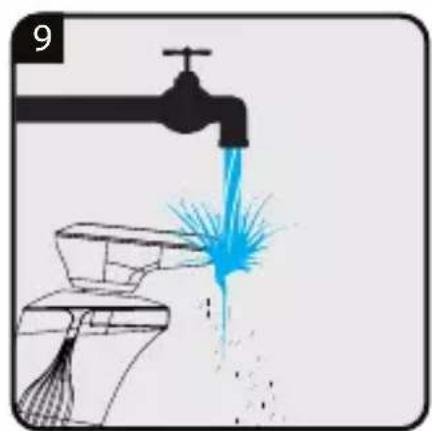

Illustration of a faucet spraying water with a blue spray, next to a cleaning machine (no text or symbols)

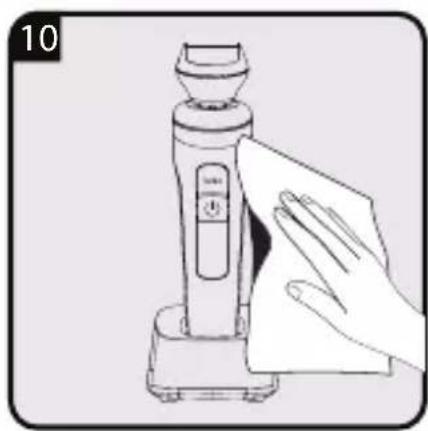

Illustration of a hand cleaning a digital brush (no text or symbols)

DE BETrieb REINIGUNG UND PFLEGE
EN OPERATION CLEANING AND CARE
PL OBSŁUGA CZYSZCZENIE I KONSERWACJA
FR FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
NO DRIFT RENGJ∅RING OG VEDLIKEHOLD
SV ANVÄNDNING RENGÖRING OCH SKÖTSEL
HR RAD ČIŠĆENJE I ODRŽAVANJE
SR RAD ČIŠĆENJE I ODRŽAVANJE
RO FUNCTIONAREA CURĂTAREA ŞI ÎNTRETINEREA

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Manufactory CO., LTD

Modellidentifikator:

ZD006M050100EU

Eingangsspannung:

100-240V\~

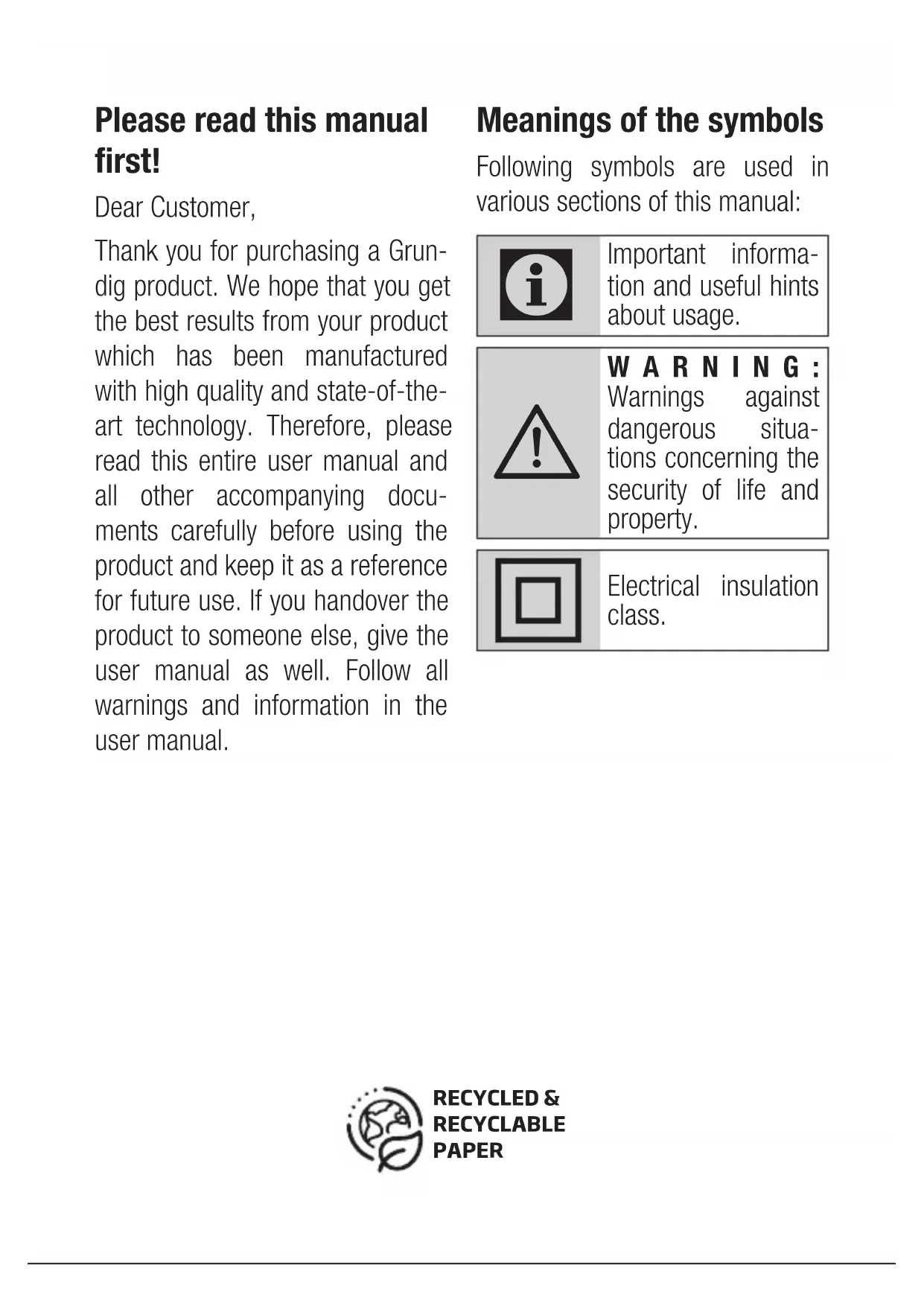

Please read this manual first!

Dear Customer,

Thank you for purchasing a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electrical insulation class.

1 Important safety and environmental instructions

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

Failure to follow these instructions voids any granted warranty.

1.1 General safety

• The appliance is designed for domestic use only.
• This appliance is designed solely for trimming and shaving human beard. Any other use is expressly prohibited.

itable for use in a bath or shower.

Suitable for cleaning under an open water

- Never use the appliance if it, the trimming head, shaver head or the power adapter show any signs of damage. Contact authorized service.

1 Important safety and environmental instructions

• Only use the appliance with the parts and power adapter supplied.
• Caution! Always keep the power adaptor dry.
• When the appliance is being charged, on no account should it come into contact with water or any other liquid.
• After charging, always unplug the cable from the socket and disconnect the power adapter from the wall socket.
• Do not drop the appliance.
• Charging adaptor and power cable cannot be repaired once damaged. Please make sure that you dispose the charging adaptor in accordance with environmental directions. You can get your new charger from the manufacturer or authorised service provider.
• Never place the appliance, accessories or power adapter on or near hot surfaces.

1 Important safety and environmental instructions

• Check that the mains voltage on the rating label corresponds to your local mains supply.
• Keep the appliance out of the reach of children.
• Before cleaning or user maintenance operation first plug out.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not open the appliance under any circumstances. - No warranty claims are accepted for damage caused by improper handling.

1 Important safety and environmental instructions

• This appliance contains batteries that are only replaceable by skilled persons.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
• WARNING: Detach the hand-held part from the supply cord before cleaning it in water.
• WARNING: Adaptor and charging base cannot fall in water.
• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot sur faces and open flames.
• If you keep the packaging materials, keep them out of the reach of children.
• Before removing the battery, the product should be disconnected from the electricity supply. Observe the local legislation and regulations when disposing of the battery.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Warning symbol for a trash bin with crossed lines indicating no waste, and a solid black rectangle below.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1 Important safety and environmental instructions

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

20overview

2.1 Controls and parts

See the illustrations on page 3.

1. Shaver head
2. On/Off switch
3. LCD Display
4. Body

5. Charging dock

6. High speed setting button (Turbo)

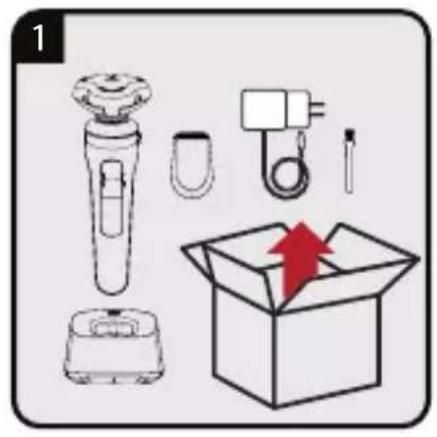

Accessories

1. Trimmer head

Other Accessories

Power adapter

Charging plug

Cleaning brush

Soft pouch

2.2 Technical data

Operating temperature:

$$ + 5 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Storage temperature:

$$ 0 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Parameter of External Power Supply

Manufacturer: E-TEK Electronics

Manufactory CO., LTD

Model Identifier:

ZD006M050100EU

Input Voltage: 100-240V\~

Input Frequency: 50/60Hz

Input Current: 0.3A

Output Voltage: 5.0V DC

Output Current: 1.0A

Output Power: 5.0W

Average active efficiency: 77.74%

Efficiency at low load(10%): 73.15%

No-load power consumption: 0.042W

Protection class:

Rotation Men's Shaver IPX7

Adaptor IPX4

Batteries: Li-ion (Lithium-ion rechargeable battery)

Electrical insulation class: ||

Design and specifications subject to change without notice.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Power supply

3.1 Operating with the power adapter

Check that the voltage indicated on the rating plate of the power adapter corresponds to your local power supply.

The only way to disconnect the appliance from the power supply is to unplug the power adapter.

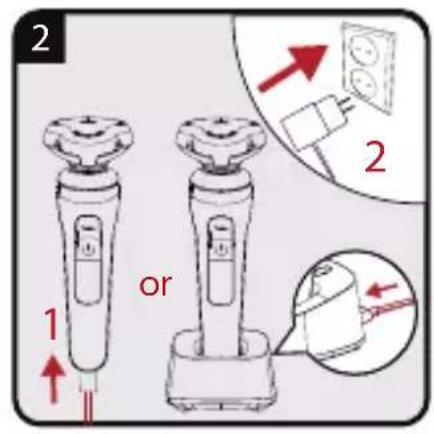

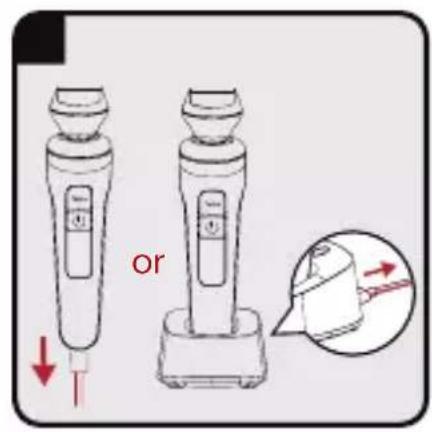

1. Plug the charging plug into the appliance socket and the power adapter into the wall socket.

CAUTION! The groove on the charging plug must match the notch in the appliance socket.

– LCD battery symbol will start flashing, when the batteries are charged. Once the clipper is completely charged, LCD battery symbol will illuminate continually.

Charging time:1.5 hours when the battery is fully charged

1. LCD battery symbol will start flashing when the unit reaches low battery capacity during operation.

- When the batteries are discharged: LCD battery symbol will not display.

Discharge the appliance through normal use. Then recharge to full capacity. Maximum battery capacity will only be reached after several charging/discharging cycles.

The adapter and unit may become warm while charging; this is normal operation.

When the appliance is fully charged, it has a cordless operating time of up to 120 minutes.

3 Power supply

CAUTION!

Appliance will not work while it is plugged. Please do not try to operate the trimmer while it is plugged.

Unplug the adapter from the wall when not in use.

CAUTION! When in the bathroom or beside a water connection, only use the appliance in battery mode; never run it from the mains.

The appliance does not run from the mains when the battery is empty. Make sure the appliance is switched off during charging.

3.2 Optimising the lifetime of the rechargeable battery

CAUTION! Do not leave the switch adapter plugged into the wall socket for more than 24 hours.

CAUTION! Discharge the bat- tery completely twice a year by let- ting the motor run until it stops. Then fully recharge the battery.

CAUTION! Please do not operate for long time, or it may burn the adapter.

40operation

Before Using, remove the plug of adapter from the mains power socket and remove the connect wire from body.

We recommend cutting first a small area, in order to become familiar with the device and its usage.

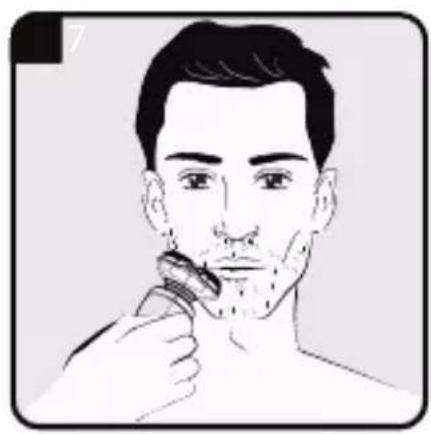

4.1 Shaving the beard

1. Apply light pressure only when shaving. Cut against the beard growth direction. Smooth the skin by stretching, when shaving challenging areas (e.g. beneath the chin).

2. Always shave against the natural growth direction of facial hair. In case of abundant or full beard growth, which cannot be removed with one single shave, shave once fast and superficial and the repeat the procedure in a thorough manner for a second time.

3. You get best results when using the device on dry skin.

4. It may take about 2 weeks for your skin to adapt to dry shaving.

4.2 High speed setting button (2) (Turbo)

Device performance can be maximized by pushing the turbo button (2).

4.3 The usage of the BeardCare sensor

The BeardCare sensor detects in real time the density of the beard hair and adjusts the power of the motor accordingly. At Turbo Mode, the BeardCare sensor will be inactive.

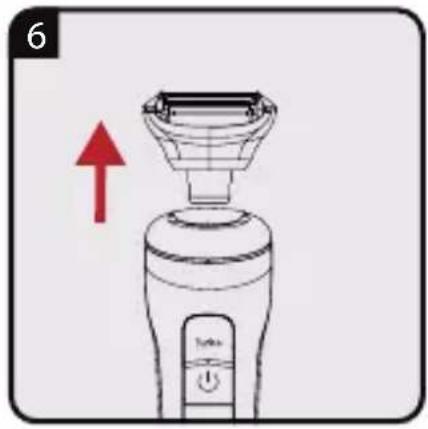

4.4 Hair trimmer attachment

Attacheable Long Hair Trimmer (7) for sideburns and neck hair.

5Information

The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results.

5.1 Cleaning and care

Before cleaning, remove the plug of adapter from the mains power socket and remove the connect wire from body.

Never used liquids to clean the appliance. Use the cleaning brush provided and water only.

Remove any clippings after each use.

Remove the hairs from the shaving head only by using the cleaning brush. The shaving head can be cleaned with water or other appropriate fluids.

When the water icon lights up on the LCD screen, clean the shaving head under running water.

When replacing the blades (page 7, picture 13), align the gap in the blade (A) with the tab in the slot (B).

5.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that it is unplugged and is completely dry.
• Store the appliance in a cool, dry place.
• Make sure that the appliance is kept out of the reach of children.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6-7-8 of this operating manual.

Simple line drawing of a trash bin with crossed lines and a horizontal bar below (no text or symbols)

Producent: E-TEK Electronics

Manufactory CO., LTD

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Manufactory CO., LTD

Piles : Li-ion (pile Lithium-ion rechargeable)

Device performance can be maximized by pushing the turbo button (2).

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Manufactory CO., LTD

Modellidentifikator:

ZD006M050100EU

Inngangsspenning: 100-240V\~

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Ovaj simbol označava da se ovaj proizvod ne smije odlagati zajedno s ostalim kućanskim otpadom na kraju njegovog radnog vijeka. Rabljeni uređaj mora se vratiti na službeno sabirno mjesto za recikliranje električnih i elektroničkih uređaja. Da biste pronašli te sustave za prikupljanje, obratite se lokalnim vlastima ili prodavaču gdje je proizvod kupljen. Svako kućanstvo igra važnu ulogu u uporabi i recikliranju starih uređaja. Odgovarajuće odlaganje iskorištenog aparata pomaže u sprečavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje.

1.3 Usklađenost s Direktivom o zabrani uporabe određenih opasnih tvari u električnoj i elektroničkoj opremi (RoHS):

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja.

Manufactory CO., LTD

Identifikator modela:

ZD006M050100EU

Ulazni napon: 100-240V\~

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Producător: E-TEK Electronics Manufactory CO., LTD

1. LED lights will start flashing when the unit reaches low battery capacity during operation.

-- When the batteries are discharged: LED lights will not display.
