USER MANUAL BC 7052 SEVERIN

Illustration of a black vacuum cleaner with control buttons and ventilation slots (no text or symbols on the device itself)

GB Bagged vacuum cleaner • Instruction manual ..... 14

Diagram of a curved mechanical device with a pull rod and threaded end, showing an upward arrow (no text or symbols)

Top-down view of a car dashboard with red control buttons and a circular dial (no text or symbols)

Illustration of a vacuum cleaner with a circular button labeled 'i' pointing to the handle (no text or symbols on the device itself)

Diagram of a multi-layered electronic component with a labeled section (SB7218), no readable text or symbols present.

Close-up of a hand inserting a component into a car's engine compartment, showing no text or symbols.

Hand placing a red plastic tray into a car compartment (no text or symbols visible)

We hope you will enjoy your high-quality SEVERIN product and thank you for placing your trust in us.

Get to know the wide range of SEVERIN products; visit us at

www.severin.com.

Management and employees

About this instruction manual

This instruction manual includes important tips for your safety and the use of the device. Failure to observe the instruction manual can result in personal injuries or damage to the device. Keep the instruction manual in a safe place. When passing the device on to a third party, also include the instruction manual. Read the instruction manual completely before initial use of the device.

Illustrated Quick Start Guide included

This instruction manual comes with an Quick Start Guide that provides you with additional tips for the use and care of the device.

If needed, this instruction manual and the Quick Start Guide can be downloaded online free of charge at www.severin.com.

Contents

1 Technical data....16
2 Safety instructions....17
3 Vacuum cleaning....20
4 Cleaning and maintaining the device....22
5 Spare parts/accessories....23
6 Troubleshooting by yourself....24
7 Disposal 25

1 Technical data

Item number: BC 7052

Sound power level: 74 dB(A)

Power input: 850 W

Voltage/Frequency: 220 – 240 V\~; 50-60 Hz

Protection class: II

Length of connection cable: approx. 6 m

Weight: approx. 4.8 kg

Dust bag volume approx. 4 L

Marking on the device:

The device conforms with all EU directives that are binding for CE certification.

The device must be disposed of separately from household waste at a proper disposal site.

Scope of delivery

Vacuum cleaner
■ Handle with suction hose
Telescopic tube
■ 1 dust bag in the device, 1 dust bag in the box

■ Switchable floor nozzle
■ Parquet nozzle with detachable upholstery nozzle
■ Crevice tool, long flexible crevice tool, XXL upholstery nozzle, furniture brush
■ Accessory bracket

2 Safety instructions

Certain groups of persons

This device may only be operated by children over the age of 8 and by persons with reduced physical, sensory or mental capacities or a lack of experience and/or knowledge if they are supervised or have been instructed about the safe use of the device and are aware of the dangers associated with its use.
Children are not allowed to play with the device or stand or sit on it. Cleaning and user maintenance may not be performed by children without supervision.
- Keep children under the age of 8 away from the device and the connection cable.
The packaging material must not be used for play. There is a risk of suffocation.

Power supply

Since the device is operated with electrical current, there is a danger of electric shock.

Therefore:

• Connect and start up vacuum cleaner only in accordance with the information on the type plate (underside of the device).
  ☐ Check the device and connection cable for possible damage before use. Never operate a defective device or a device with a defective connection cable.

SAFETY INSTRUCTIONS

Never try to repair the device or its connection cable yourself. To prevent hazards, repairs to the device and the connection cable may only be performed by our customer service. Arrange repair of a defective device with a specialist dealer or contact SEVERIN customer service (see contact information in appendix to this instruction manual or at www.severin.de).

Do not immerse the device in water or other liquids or treat it with liquids. Do not operate the device outdoors or in rooms with high humidity. Do not handle the power plug with wet hands.

Make sure that the connection cable is not kinked, pinched or run over and that it does not come in contact with sources of heat, humidity and sharp edges. Make sure that the connection cable does not become a trip hazard.

Do not pull or transport the device using the connection cable. When disconnecting the power plug from the socket, always pull directly on the power plug.

Do not use extension cables. If this is unavoidable, use only GS-tested, simple extension cables (no multiple sockets) designed for the device's power consumption.

Before cleaning or maintaining the device, as well as before changing accessories, switch off the device and disconnect the power plug from the socket.

Intended use

The device must only be used domestically. In this regard, use it only to vacuum dry, normally soiled floors or, depending on the accessories, furniture and upholstery. Any other use is deemed improper and is forbidden.

In order to prevent injuries, fires and damage, the device must not be used to vacuum:

People, animals and plants. Always keep nozzles and suction openings away from all body parts, hair and clothing. Do not vacuum near the head.
☐ Glowing, burning or smouldering particles (such as ash, coal, charcoal, cigarettes, matches).

■ Explosive or highly flammable substances or toners.
Water and other liquids, e.g. wet carpet cleaning agents.

- Sharp objects, such as glass splinters, nails or construction waste.

If the device is defective

- Have a defective device repaired by a specialist dealer or customer service (see contact information in appendix to this instruction manual or at www.severin.de).

3 Vacuum cleaning

Installation or replacement of accessories

Only install device parts when the power plug has been disconnected from the socket.

Only use undamaged nozzles. Damaged nozzles can scratch surfaces.

For additional installation tips, see ▷ Quick Start Guide ▷ Installation.

When vacuuming

Make sure that you are always over the device, especially when vacuuming stairs. Otherwise the device may fall down and cause injuries.

Only use the device with a dust bag and the filters.

Follow the cleaning and maintenance instructions of the floor covering, carpet or furniture manufacturer!

Never pull out the connection cable beyond yellow marking. If the blue marking is visible, press the cable rewind button to retract the connection cable to the yellow marking. Otherwise, the connection cable may be overstrained and damaged.

Light on the power regulator lights up green: The device is switched on and the filters are clean.

Illustration of a curved mechanical component with a directional arrow indicating motion (no text or symbols)

When retracting the connection cable, hold the power plug in your hand and guide it in the winding direction. Otherwise the connection cable may lurch, injure persons nearby, become a trip hazard or pull over objects.

Always ensure that the nozzle suitable for the surface is in place and the correct suction power is set.

If an object has accidentally been suctioned up, quickly actuate the bypass vent on the handle (Fig. 1) to reduce the suction power.

For additional tips on operation, see ▷ Quick Start Guide ▷ Operation.

Setting the suction power

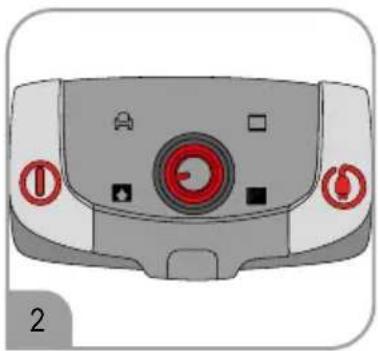

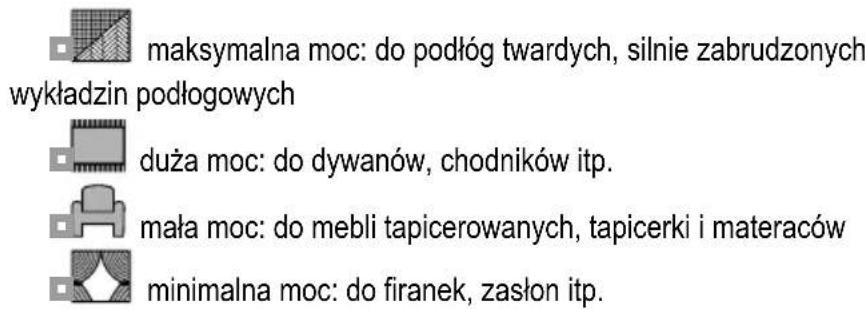

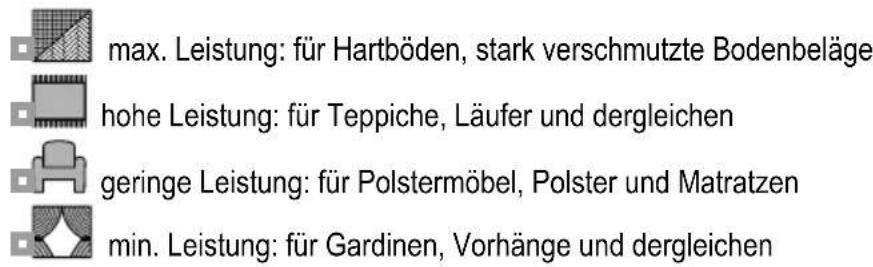

The power controller can be set steplessly. The power regulator position should be adjusted according to the floor to be cleaned:

Top-down view of a car dashboard with red control buttons and a circular dial (no text or symbols)

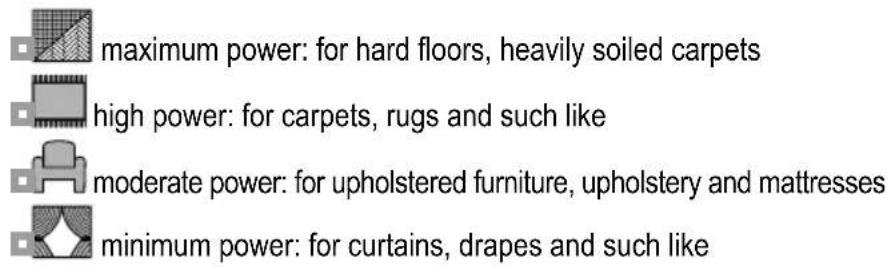

maximum power: for hard floors, heavily soiled carpets high power: for carpets, rugs and such like moderate power: for upholstered furniture, upholstery and mattresses minimum power: for curtains, drapes and such like

Changing the dust bag

Before changing the dust bag, switch off the device and disconnect the power plug from the socket.

Illustration of a vacuum cleaner with a red circular button and label '3' (no text or symbols on the device itself)

Latest point at which to change the dust bag:

■ as soon as the suction power noticeably decreases

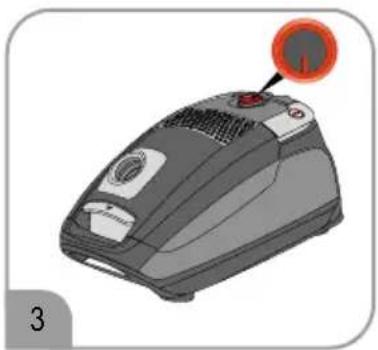

■ as soon as the light on the power regulator lights up red (Fig. 3),
■ before prolonged storage or
before shipment.

The dust bag and its contents can be disposed of in normal household waste unless it contains dirt that is forbidden in household waste.

■ Only use dust bags of the same type:

Either from the Severin range of spare parts:

Severin dust bag set (4 dust bags + 1 motor filter)

Art. No.: SB7218

Diagram of layered electronic components with no visible text or symbols

Or from the Swirl range of accessories: Swirl® Y101® MicroPor® Plus

Swirl®, Y 101® and MicroPor® are registered trademarks of a company of the Melitta® Group and are not connected to SEVERIN in any way.

Swirl® Y101°

It is recommended that the filters be cleaned as well at this time ("4 Cleaning and maintaining the device" on page 22).

With regard to changing the dust bag, see also ▷ Quick Start Guide ▷ Cleaning and maintenance.

CLEANING AND MAINTAINING THE DEVICE

4 Cleaning and maintaining the device

Before changing or cleaning the filters, switch the device off and disconnect the power plug from the socket.
- Clean the filters no later than when the light on the power regulator lights up red (Fig. 3).

Cleaning the motor filter

The motor filter is comprised of a washable fleece. However, it cannot be washed in the dishwasher or washing machine.

Close-up of a hand inserting a grid into a car's engine compartment (no text or symbols visible)

1. Open the cover of the device and remove the dust bag ("Changing the dust bag" on page 21).

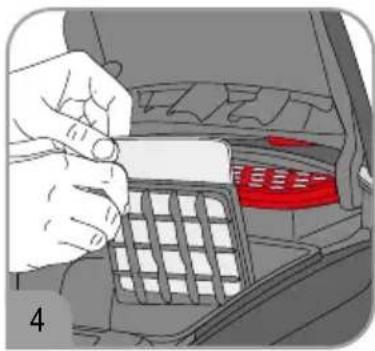

2. Push up the filter holder and remove the motor filter (Fig. 4).
3. Rinse the motor filter out thoroughly under running water (max. 40 °C) (▷ Quick Start Guide, ▷ Cleaning and maintenance).

4. Let the motor filter dry for approx. 24 hours at room temperature after cleaning. Wait until the motor filter is completely dry before reinserting it. Otherwise germs and mould may form.

5. Reinsert the motor filter in the filter holder and insert the holder into the housing in the direction of the arrow.

If the filter is damaged or deformed, replace the filter with a new one ("5 Spare parts/accessories" on page 23).

With regard to cleaning the motor filter, see also ▷ Quick Start Guide ▷ Cleaning and maintenance.

Cleaning the exhaust filter

The exhaust filter cannot be washed! The exhaust filter must only be cleaned dry by tapping it out and carefully brushing it out.

Close-up of a hand pressing a red plastic component into a mechanical device (no text or symbols visible)

1. Unlock the exhaust filter (Filter. 5) and remove it.
2. First knock out the exhaust filter and then brush it carefully with a soft brush (e.g. with the furniture brush provided) (▷ Quick Start Guide, ▷ Cleaning and maintenance).
3. Reinsert the exhaust filter in the device and press on it until it audibly locks in place.
   If the filter is damaged or deformed, replace the filter with a new one ("5 Spare parts/accessories" on page 23).

With regard to cleaning the exhaust filter, see also ▷ Quick Start Guide ▷ Cleaning and maintenance.

Cleaning the device

Before cleaning, switch off the device and disconnect the power plug from the socket.
The housing and connection cable must not be handled with liquids or immersed in liquids for reasons of electrical safety. Wipe the housing with a slightly damp cloth and then rub it dry.
Do not use any sharp, abrasive cleaning agents or hard brushes for cleaning.

Storing the device

Store the device and accessories in a cool, dry place out of the reach of children.
The additional nozzles can be stored in the storage bag.

For additional tips on storage, see ▷ Quick Start Guide ▷ Operation.

5 Spare parts/accessories

For spare parts and accessories, please contact our customer service department. Contact details can be found in the appendix to this instruction manual and on our homepage.

Order number Accessories/spare part
SB7218	Dust bag set(4 dust bags + 1 motor filter)
ZB7223	Filter set(1 motor filter + 1 exhaust filter)
TB7215 Mini turbo brush with rotating bristles

6 Troubleshooting by yourself

It is important to change the dust bag in good time and use this opportunity to check the filters, cleaning them in the process if they are soiled, so that no problems arise. However, if you encounter problems with the device, use the following table to determine whether you can solve the problem yourself.

Before troubleshooting, switch off the device and disconnect the power plug from the socket.

Problem Cause/Solution
Light on the power regulator lights up red	The dust bag needs to be replaced or the filters are soiled (“Changing the dust bag” on page 21, “Cleaning the motor filter” on page 22, “Cleaning the exhaust filter” on page 22).
An odour develops or dust escapes from the device during vacuuming	It is likely that the dust bag or parts of the accessories were not correctly installed or closed after cleaning or replacement.Check all parts for correct seating.
The device suddenly stops vacuuming	The integrated overheating protection has tripped (possibly due to an overfilled dust bag or soiled filter).In this case, proceed as follows:1. Switch off the device.2. Disconnect the power plug from the socket.3. Eliminate the cause of the overheating (either replace the dust bag (“Changing the dust bag” on page 21) or clean the filter (“Cleaning the motor filter” on page 22, “Cleaning the exhaust filter” on page 22); it is also possible that there is clogging that needs to be rectified).4. Be sure to include the suction hose, nozzle and telescopic tube when searching for the cause of the overheating.5. Close the device again and reattach all accessories.6. Wait about 45 minutes.After the device has cooled down, it can be switched on again.
The device hardly picks up any dirt and/or the suction power noticeably decreases	The dust bag needs to be replaced (“Changing the dust bag” on page 21).It is recommended that the filters be cleaned as well at this time (“Cleaning the motor filter” on page 22, “Cleaning the exhaust filter” on page 22).
	The set suction power may not be appropriate for the type of floor. Set the correct suction power (“Setting the suction power” on page 21).

Problem Cause/Solution

The device hardly picks up any dirt and/or the suction power noticeably decreases	The attached nozzle may not be suitable for the floor to be cleaned. Select and attach the correct nozzle.
	When the floor nozzle is attached, the “carpet/hard floor” selector is in the wrong position for the particular type of floor. Select the correct switch position.
The cover of the device cannot be closed	The dust bag is protruding and preventing the cover from being closed completely. Be sure to have fully inserted the dust bag in the device.

If this table does not help, please contact our customer service. The contact information can be found in the appendix to this instruction manual or at www.severin.de.

7 Disposal

Devices marked with this symbol must be disposed of separately from household waste.

These devices contain valuable raw materials that can be recycled. Proper disposal protects the environment and the health of your fellow men. Your local authorities or dealer can provide information about proper disposal.

Remerciements

Chère cliente, cher client,

Diagram of a flexible hose assembly with a black arrow indicating direction (no text or symbols)

Top-down view of a car dashboard with red control buttons and a circular dial (no text or symbols)

Illustration of a vacuum cleaner with a red circular button and label '3' (no text or symbols on the device itself)

Diagram of a multi-layered device with a central circular component, labeled SB7218 (no text or symbols on the diagram itself)

Close-up of a hand inserting a grid into a car's air vent (no text or symbols visible)

Close-up of a hand inserting a red plastic component into a device (no text or symbols visible)

Illustration of a curved mechanical device with a pull rod and threaded end (no text or symbols)

Top-down view of a car dashboard with red buttons and control buttons (no text or symbols)

Illustration of a vacuum cleaner with a red circular button labeled 'I' pointing to the top-left corner (no text or symbols on the device itself)

Diagram of a device stack with labeled component 'SB7218' (no other text or symbols)

Close-up of a white square object with a central hole and surrounding markings, labeled 'Swirl° Y101°' (no other text or symbols visible)

Close-up of a hand inserting a grid into a car's air vent, showing the battery and red buttons (no text or symbols visible)

Hand placing a red keyboard into a computer keyboard (no text or symbols visible)

Diagram of a flexible hose with a curved tube and a vertical rod, showing an upward arrow (no text or symbols)

Top-down view of a device's head panel with buttons and indicators (no readable text or symbols)

Illustration of a vacuum cleaner with a red circular button and a small orange icon, shown without any text or symbols.

Diagram of a device casing with labeled part SB7218, showing layered components without any text or symbols beyond the label.

Illustration of a hand inserting a component into a vehicle's internal panel (no text or symbols visible)

Close-up of a hand inserting a red plastic component into a car compartment (no text or symbols visible)

Illustration of a curved mechanical device with a pull arrow and labeled part '1' (no text or symbols on the device itself)

Top-down view of a car dashboard with red circular buttons and control buttons (no text or symbols)

Illustration of a vacuum cleaner with a red circular button labeled '1' pointing to the handle (no text or symbols on the device itself)

Diagram of layered electronic components with no visible text or symbols

Illustration of a hand inserting a grid into a car's air vent (no text or symbols visible)

Close-up of a hand using a red handheld device to open a car compartment (no text or symbols visible)

www.severin-floorcare.com.

Innehåll

Diagram of a mechanical device with a curved pipe and threaded end, showing a directional arrow (no text or symbols)

Illustration of a hand inserting a component into a car's engine compartment (no text or symbols visible)

Illustration of a hand inserting a red plastic component into a device (no text or symbols visible)

Diagram of a mechanical device with a curved pipe and threaded end, showing an upward arrow (no text or symbols)

Top-down view of a car dashboard with red buttons and control buttons (no text or symbols)

Illustration of a vacuum cleaner with a circular button and indicator light (no text or symbols)

Diagram of a device casing with labeled part SB7218, showing layered components without any text or symbols beyond the label.

Close-up of a spiral-shaped object with a central hole and surrounding markings, labeled 'Swirl® Y101°' (no other text or symbols visible)

Close-up of a hand inserting a grid into a car's air vent (no text or symbols visible)

Close-up of a hand placing a red calculator into a car compartment (no text or symbols visible)

Diagram of a curved mechanical device with a pull rod and arrow indicating direction (no text or symbols)

Top-down view of a car dashboard with red circular buttons and control buttons (no text or symbols)

Illustration of a vacuum cleaner with a red circular button and label '3' (no text or symbols on the device itself)

Diagram of a multi-layer electronic component with a central hole and labeled SB7218 (no text or symbols on the components themselves)

Close-up of a hand inserting a grid into a car's air vent (no text or symbols visible)

Close-up of a hand inserting a red plastic component into a car compartment (no text or symbols visible)

Diagram of a curved mechanical device with a pull rod and arrow indicating direction (no text or symbols)

Top-down view of a gray electronic device with red buttons and a circular dial (no text or symbols visible)

Illustration of a vacuum cleaner with a red circular button and label '1' (no text or symbols on the device itself)

Diagram of stacked electronic components with no visible text or symbols

Hand inserting a component into a vehicle's engine compartment, showing internal grid and red LED (no text or symbols)

Hand placing a red plastic component into a mechanical device (no text or symbols visible)

Diagram of a flexible hose assembly with a curved tube and directional arrow (no text or symbols)

Top-down view of a car dashboard with red circular buttons and indicator lights (no text or symbols)

Illustration of a vacuum cleaner with a red circular button labeled 'i' pointing to the top-left knob (no text or symbols on the device itself)

Diagram of a device casing with multiple compartments and a labeled section (SB7218), no readable text or symbols present.

Ou da gama de acessórios Swirl: Swirl® Y101® MicroPor® Plus

Close-up of a hand inserting a component into a car's engine compartment, showing no text or symbols.

Close-up of a hand placing a red plastic component into a car compartment (no text or symbols visible)

Diagram of a mechanical device with a curved pipe and threaded end, showing an upward arrow (no text or symbols)

Top-down view of a gray electronic device with red buttons and a circular dial (no text or symbols visible)

Illustration of a vacuum cleaner with a red circular button labeled '1' pointing to the top-left button (no text or symbols on the device itself)

Exploded view diagram of a device with layered components and a labeled section (SB7218), no readable text or symbols beyond the label.

Close-up of a hand inserting a grid into a car's air vent (no text or symbols visible)

Close-up of a hand placing a red plastic component into a car compartment (no text or symbols visible)

QR code image containing encoded data, no visible human-readable text

SEVERIN global

Deutschland

SEVERIN Service

Röhre 27

59846 Sundern

Telefon [phone]

Telefax [phone]

E-Mail: [e-mail]

Austria

AVEDA Lifestyle EOOD

ul. Angel Kanchev 1, et. 5

BG 1124

Sofia

Croatia

Koracell d.o.o.

Donje Svetice 40

26 Oaktree Business Park

Trim Co., Meath

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

ASSISTENZA POST-VENDITA

NUMERO VERDE 800224155

E-Mail: [e-mail]

Garante:

Dr.Waleed Maraqa commercial center, Level 1

Khalda, Amman Zip code: 11953

Tel.: [phone]

Fax: [phone]

Mob Jordan : [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel.: [phone]

Latvia

SIA GTCL BALTIC

Piedrujas iela 7

LV - Riga 1073

Tel.: [phone]

Fax: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Internet: www.khouryhome.com

Lithuania

UAB Topo Grupe

Savanoriu PR. 206A,

50193 Kaunas, Lithuania

Tel.: [phone]

Web: www.severinshop.hu

Malta

Crosscraft Co Ltd

119 Valletta Road

Paola. PLA1511

Malta

Tel:[phone]

[phone]

E-Mail: [e-mail]

Maroc

BS Cast

19, Allee des Villas Ain Sebaa

20250 Casablanca

TEL Port: [phone]

Fax: [phone]

Nederland

A.A.K & Partners L.L.C.

P.O Box:-1650, Muttrah

Postal Code - 114

Sultanate of Oman

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Peru

SEVERIN PERU / Comercial Rebeca S.R.L 208 Circunvalación del Golf Avenue Office 301-A Los Inkas Prime Tower II Santiago de Surco, Lima - Peru Tel.: [phone] E-mail: [e-mail]

Philippines

COLOMBO MERCHANT PHILIPPINES, INC.

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

E-Mail: severinconsumercare@colombo-

phils.com.ph

Polska

Severin Polska Sp.z o.o.

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.beste.com.sg

Slovenia

Ježek servis in trgovina d.o.o.

Cesta 24 junija 2

3rd Floor, Grove Exchange

Grove Avenue

Claremont

South Africa

7708

Tel: [phone]

Fax: [phone]

Web: http://www.alcdashley.co.za

Mail: [e-mail]

Svenska

EI & Digital Service AB

Folkungagatan 144

11630 Stockholm

Tel.: [phone]

E-Mail: [e-mail]

www.eldigital.se

Borgensman:

Severin Svenska AB

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

E-Mail: [e-mail]

Tunisie

GEI

54, rue du Mercure

Zone Industrielle 2013-BEN AROUS

TUNISIE

Ukrayina

Service for Modern Electronics LLC

Sim'i Khokhlovykh Str.8

4119 Kiev

Tel.: + 38 044 247 67 34

E-Mail: [e-mail]

United Kingdom

Homespares Centres Limited

Peel House

2 Chorley Old Road

BL1 3AA

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.homespares.co.uk

Vietnam

CTY TNHH DOI TAC NHAN HIEU

FLOOR 11, KHANH NGUYEN BUILDING,

87A HAM NGHI

NGUYEN THAI BINH WARD, DISTRICT 1

HO CHI MINH CITY, VIETNAM

Tel.: [phone]

E-Mail: [e-mail]

[e-mail]

FR NOTICE BAC DE TRI

Two black-and-white icons: a recycling symbol and a person sorting a bin (no text or symbols)
