USER MANUAL MH61900 NAC

Black-and-white photo of a person operating a snowman in a field, with bare trees and a large pile of grain in the background (no visible text or symbols)

Part No.: 1752188

Revision: A

1 A C B

Technical line drawing of a snowman drive system with labeled components (no text or symbols beyond labels)

9 B C A C B

2 A B C D E F G

6 A

Technical line drawing of a snowplow tractor with visible blades and wheels (no text or symbols)

3 A

7 B A

11 D C E F B A 1/32" (0,8mm)

4 A

Technical line drawing of a snowman drive with visible gears and wheels (no text or symbols)

12 A B C

Products Covered by This Manufactage Snowthrower Hazard Symbols

The following products are covered by this manual: 1695993, 1696008, 1696060, 1696052, 1696064, 1696057

Manual Contents:

Operator Safety......

Safety System Tests....

Features and Controls......

Operation.... 6

Maintenance.... 8

Troubleshooting.... 9

© 2011 Briggs & Stratton Corporation, Milwaukee, WI, USA. All rights reserved.

The images in this document are representative, and are meant to compli instructional copy they accompany. Your unit may vary from the images d and RIGHT are as seen from the operator's position.

Operator Safety

Discharge Chute Warning

DANGER

Amputation hazard

The discharge chute contains a rotating impeller to throw snow. I quickly become caught in the impeller. Never clear or unclog the with your hands. Always use a clean-out tool.

Failure to observe these safety instructions will result in traumatic or severe laceration.

Hand contact with the rotating impeller inside the discharge chute is the cause of injury associated with snowthrowers. Never use your hands to discharge chute.

To safely clear a clogged discharge chute, follow these instructions:

1. Shut OFF the engine.
2. Wait 10 seconds to be sure the impeller blades have stopped rotating
3. Always use a clean-out tool, not your hands.

Symbol	Meaning	Symbol	Meaning
	Safety information about hazards that can result in personal injury.		Read and understand the operator's manual before operating or servicing the
	Amputation hazard - rotating impeller.		Read the operator's manual before performing service.
	Amputation hazard - rotating impeller.		Amputation hazard - rotating auger
	Amputation hazard - touch moving parts.	do not	Thrown objects hazard.
served.	Fire hazard.		Explosion hazard.
EFT	Shock hazard.		Toxic fume hazard.
	Hot surface hazard.		Ear protection recommended for extended use.
	Keep a safe distance.		Remove the key before performing service.
	Keep children away.		Kickback hazard.

jers can

General Safety Warnings

Read the Manual mputation

DANGER

This snowthrower is capable of amputating hands and feet and throwing Read and observe all the safety instructions in this manual. Failure to result in death or serious injury.

WARNING

Read the operator's manuals before operating the machine. This machine dangerous if used carelessly.

Safety Alert Symbol and Signal

The safety alert symbol indicates a potential personal injury hazard. A (DANGER, WARNING, or CAUTION) is used with the alert symbol to or level of hazard seriousness. A safety symbol may be used to represent the type of hazard

The signal word NOTICE is used to address practices not related to personal

DANGER indicates a hazard which, if not avoided, will result in death or serious

WARNING indicates a hazard which, if not avoided, could result in death or serious

CAUTION indicates a hazard which, if not avoided, could result in minor or moderate

NOTICE addresses practices not related to personal injury.

rds save these original instructions for future reference.

• Never operate the snowthrower without all guards, covers, shields, and other protection devices in place and working.
  ate a degree Stop the engine whenever leaving the operating position.

Stop the engine and remove the key before unclogging the impeller housi discharge chute, and before making repairs or adjustments.

• When leaving the machine, remove the key.
• To reduce the risk of fire, keep the machine clean and free from spilled debris.

WARNING

Read, understand, and follow all the instructions on the snowthrower and operator's manual before operating this unit. Failure to observe the safety instructions in this manual could result in death or serious injury.

• Be thoroughly familiar with the controls and the proper use of the snowtl
• Make sure you are properly trained before operating the snowthrower.
• Know how to stop the unit and disengage the controls quickly.

• Never allow anyone to operate the snowthrower without proper instruction.

• Always follow the instructions in the operator's manual, if the snowthrower keepbethe nozzle in contact with the rim of the fuel tank or container stored for an extended period. Maintain or replace safety and instruction labels, asuntil refueling is complete. Do not use a nozzle lock-open device necessary.

• Never attempt to make major repairs on the snowthrower unless you have enterprise. properly trained. Improper servicing of the snowthrower can result in hazardous operation, equipment damage, and voiding of the product warranty. • Do not overfill the fuel tank. To allow for the expansion of gasoline, do the bottom of the fuel tank neck

Operation and Equipment Safety

WARNING

This snowthrower is only as safe as the operator. If it is misused, maintained, it can be dangerous. Remember: you are responsible for and that of those around you.

• Keepfuel away from sparks, open flames, pilot lights, heat, and other igni
• Check fuel lines, cap, and fittings frequently for cracks or leaks. Replace
• Use an approved fuel container.
• If fuel spills, wait until it evaporates before starting engine.
  or not properly our safety If fuel is spilled on clothing, change clothing immediately.

When starting the engine:

• Keep the area of operation clear of all persons, particularly small children. Ensure that spark plug, muffler, fuel cap, and air cleaner (if equipped) a

- Thoroughly inspect the area where the snowthrower will be used and remove all doormats, sleds, boards, wires, and other foreign objects. - Do not crank the engine with the spark plug removed.

- Do not operate the snowthrower without wearing adequate winter clothing. If fuel is spilled, do not attempt to start the engine, but move the snow

- Wear footwear that will improve footing on slippery surfaces. Use caution to avoid slipping or falling especially when operating the snowthrower in reverse. from the area of the spill, and avoid creating any source of ignition, un have dissipated.

- Never operate the snowthrower without good visibility or light. - Do not over-prime the engine. Follow the engine starting instructions in th

• Disengage the auger while transporting.
• If the engine floods, set choke (if equipped) to OPEN/ equipped) to FAST position and crank until engine start
  • Always be sure of your footing, and keep a firm hold on the handles. Walk, never run.

- Do not clear snow across the face of slopes. Use extreme caution when changing direction on slopes. Do not attempt to clear steep slopes. - Do not tip the snowthrower at an angle which causes the fuel to spill.

- Do not overload the machine capacity by attempting to clear snow too quickly. Not choke the carburetor to stop the engine.

- Never operate the snowthrower at high transport speeds on slippery surface. Never look run the engine with the air cleaner assembly (if equipped) or the behind the snowthrower and use care when operating in reverse. Equipped) removed.

- Do not use the snowthrower on surfaces above ground level such as roofs you drain the oil from the top oil fill tube, the fuel tank must be e residences, garages, porches, or other such structures or buildings. out and result in a fire or explosion.

- Operators should evaluate their ability to operate the snowthrower safely enough to protect themselves and others from injury. When transporting equipment:

• The snowthrower is intended to remove snow only. Do not use the snowthrower for transport with fuel tank EMPIY, or with fuel shut-off valve OFF.

any other purpose. When storing gasoline or equipment with fuel in the tank:

- Do not carry passengers. - After striking a foreign object, shut OFF the engine, disconnect the cord of tranfection source and an explosion and/or fire may result.

motors, thoroughly inspect the snowthrower for any damage, and repair the damage before restarting and operating the snowthrower. • Handle gasoline carefully. Never store a unit, with fuel in the tank, indoc ventilated enclosure where fuel fumes could reach an open flame, spark, • If the snowthrower vibrates abnormally, shut OFF the engine. Vibration is groundalls as furnace, water heater, or clothes dryer.

- For models equipped with electric starting motors, disconnect the power coriighafter other ignition source because they can ignite fuel vapors.

the engine starts.

- Exercise extreme caution when operating on or crossing gravel drives, Move or Pads Stay alert for hidden hazards or traffic.

- Run the machine a few minutes after throwing snow to prevent freeze-up of the collector/impeller.

Fuel Handling

WARNING

Fuel and its vapors are extremely flammable and explosive. Always with extreme care.

Failure to observe these safety instructions can cause a fire or could result in severe burns or death.

the DA

Keep hands, feet, and clothing away from rotating parts. Rotating parts can or entangle hands, feet, hair, clothing, or accessories.

Failure to observe these safety instructions will result in traumatic amput or severe laceration.

handle Whoever cleaning, repairing, or inspecting the snowthrower, make sure the is OFF, the engine key is removed, and all moving parts have stopped.

explosion which do not put hands or feet near or under rotating parts. Keep clear of t opening at all times.

When adding fuel:

• Never add fuel to a running engine or to a hot engine.
• Turn off engine and let cool at least 2 minutes before removing the fuel.
• Fill fuel tank outdoors or in a well ventilated area.
• Never fill containers inside a vehicle or on a truck or trailer bed with Always place containers on the ground, away from your vehicle, before
• When practical, remove gas-powered equipment from the truck or trailer on the ground. If this is not possible, then refuel such equipment on portable container, rather than from a gasoline dispenser nozzle.

- Never operate the snowthrower without proper guards, and other safety de place and working.

- Never leave the snowthrower unattended while engine is running. Always do the auger and traction controls, stop engine, and remove keys.

- Keep all loose clothing away from the front of the snowthrower and aug mittens, dangling drawstrings, loose clothes, and pants can quickly become in the rotating device and amputation will occur. Tie up long hair and n

- a plastic liner filling the machine a few minutes after discharging snow to prevent freeze- collector/impeller.

and disengage it power to the collector/impeller when snowthrower is transported a trailer with a use.

Thrown Objects

- Do not run the engine in an enclosed area, even if doors and windows

Ignition Source

WARNING

Objects can be picked up by the auger and thrown from the chute. Never discharge snow toward bystanders or allow anyone in front of the snowthrower. Failure WARNING observe these safety instructions could result in death or serious injury starting the eng

- Always wear safety glasses or eye shields during operation, and while adjustment or repair to protect eyes from foreign objects that may be machine.

Speaking can ignite nearby flammable gasses. thrown from the

Explosion and fire could result.

- Always be aware of the direction the snow is being thrown. Nearby or property may be harmed by objects being thrown.

pedestrians pets. If there is natural gas or LP gas leakage in the area, do not start the

- Be aware of your environment while operating the snowthrower. Runnin such as, gravel, doormats, newspapers, toys, and rocks hidden under be thrown from the chute or jam in the auger.

- Do not use pressurize starting fluids because their vapors are flammable.
ing over items
snow, can all

Hot Surfaces

- Use extreme caution when operating on or crossing gravel drives, walks, or roads.

- Adjust the collector housing height to clear gravel or crushed rock surface.

WARNING

- Never operate the snowthrower near glass enclosures, automobiles, win drop-offs, and the like without proper adjustment of the discharge chu

do Running, the engine produces heat. Engine parts, especially the muffler, be extremely hot.

- Familiarize yourself with the area in which you plan to operate the off boundaries of walkways and driveways.

snewthrower. Mark Failure to observe these safety instructions could result in severe therma on contact.

Children

WARNING

Tragic accidents can occur if the operator is not alert to the presence. Children are often attracted to the unit and the operating activity. Never that children will remain where you last saw them.

• Never touch a hot engine or muffler. Allow muffler, engine cylinder, and before touching.

• Remove debris from muffler area and cylinder area.
  • Install and maintain in working order a spark arrester before using equipment of children, grass-covered, or brush-covered unimproved land.
  U.S.A. Models: It is a violation of California Public Resource Code Section 4442 to use or operate the engine on or near any forest-covered, brush-covered, grass-covered land unless the exhaust system is equipped with a spark a meeting any applicable local or state laws. Other states or federal areas similar laws.

• Keep children out of the area during operation. Children are often equipment. Be mindful of all persons present.

• Be alert and turn the unit off if children enter the area.
• Never allow children to operate the unit.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision. Children may be present.

Maintenance and Storage

Engine Safety

WARNING

Safe operation of the snowthrower requires the proper care and ma the engine. Failure to observe the safety instructions in this manual in death or serious injury.

WARNING

This snowthrower must be properly maintained to ensure safe operation performance. Failure to observe the safety instructions in this manual cou in death or serious injury.

• Disengage all clutches and shift into neutral before starting the engine.
• Let the engine adjust to outdoor temperature before starting to clear
• Use extension cords and receptacles as specified by the manufacturer with electric drive motors or electric starting motors.
• Use a grounded three-wire plug-in for all snowthrowers equipped with motors or electric starting motors.

- When performing any maintenance or repairs on the snowthrower, shut OF enance of engine, wait for all moving parts to stop, and remove the engine key to could result someone from accidentally starting the engine.

- Check shear bolts and other hardware at frequent intervals for proper tigr sure the snowthrower is in safe working condition.

• Keep nuts and bolts tight and keep snowthrower in good condition.

For Never tamper with safety devices. Check their proper operation regularly a necessary repairs if they are not functioning properly.

• Components are subject to wear, damage, and deterioration. Frequently che components and replace with recommended parts, when necessary.

• Check control operation frequently. Adjust and service as required.
• Use only factory authorized replacement parts, or equivalent, when making
  • Always comply with factory specifications on all settings and adjustments.
  • Only authorized service locations should be utilized for major service and arm toward requirements.
• Use only attachments and accessories approved by the factory, or equivalent as wheel weights, counterweights, or cabs).
• Never attempt to make any adjustments while the engine is running (except specifically recommended by the factory).
• Always refer to the operator's manual for important details if the snowthro stored for an extended period of time.

WARNING

Kickback hazard

Rapid retraction of the starter cord (kickback) will pull your hand and the engine faster than you can let go. Broken bones, fractures, bruises, could result.

When starting engine, pull the starter cord slowly until resistance is pull rapidly to avoid kickback.

Carbon Monoxide

WARNING

Engines give off carbon monoxide, an odorless, colorless, poison

Breathing carbon monoxide can cause nausea, fainting, or death.

Safety Decals

gas. Before operating your unit, read the safety decals. The cautions and warnings safety. To avoid a personal injury or damage to the unit, understand and foll decals.

- Start and run the engine outdoors.

WARNING

If any safety decals become worn or damaged, and cannot be read, decals from your local dealer.

	Chute Danger DecalA
	Auger Danger DecalB
	Engine Warning DecalC

Safety System Tests

Safety System Test (units without Hand control)

WARNING

Amputation hazard

This snowthrower is equipped with several mechanical safety systems the operator safe while using the unit. Check the operation of these using the safety system tests listed. If the unit fails to operate as operate it. See your authorized dealer for service immediately.

Test 1 - Auger/Impeller Control

With the engine running:

• Press down on the auger control lever. (The auger/impeller should
• Release the auger control lever. (The auger/impeller should stop within

Test 2 - Traction Drive Control

With the engine running and speed control in 1st gear:

• Press down on the traction control lever. (The unit should move
• Release the traction control lever. (The unit should stop)

Features and Controls

Engine Features and Controls

For engine features and controls, please refer to the engine operator's mar

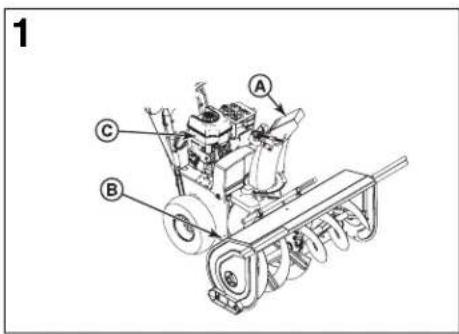

Snowthrower Features and Controls

		DescriptionIconLocation

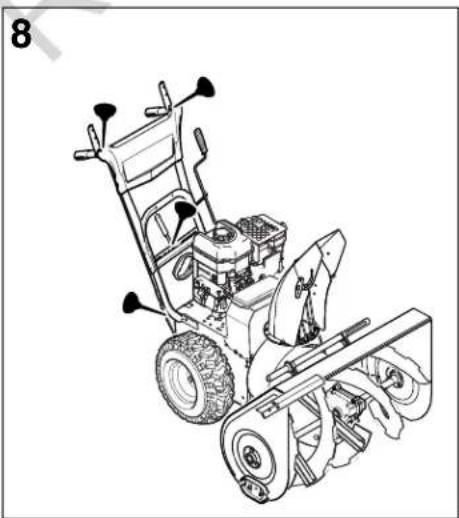

A		Speed Select Lever - Allows the operator to use one of six forward and two reverse speeds. To shift, move speed select lever to desired position.NOTE: Do not move speed select lever while Traction Control is engaged. This may result in severe damage to the drive system.

		DescriptionIconLocation
Ber replacement		Auger Control Lever - Used to engage and disengage the auger and impeller. To engage, push down. To disengage, release.
C		Traction Control Lever - Used to propel snowthrower forward or reverse. Push down to engage, release to disengage.
D		Chute Rotation Crank - Used to rotate the discharge chute to the left or right.
E		Chute Deflector - Used to control the snow discharge (up or down).
F	-	Clean-Out Tool - Used to remove snow and debris from the discharge chute and the auger housing
G	-	Skid Shoes - Used to adjust the ground clea of the auger housing.

Operation

Before Operating the Snowthrower

WARNING

Read the operator's manual before operating the machine. This machine dangerous if used carelessly.

Free

• Stop the engine whenever leaving the operating position.
• Remove the key before unclogging the impeller housing or discharge chu before making repairs or adjustments.
• When leaving the machine, remove the key.
  • To reduce the risk of fire, keep the machine clean and free from spill to debris.

systems regularly

described. On electric start models, disconnect the extension cord before operating.

- Be sure to check the engine oil level before starting the engine. See the operator's manual for oil recommendations.

Operating the Snowthrower

onds)

DANGER

Amputation hazard

The discharge chute contains a rotating impeller to throw snow. Fingers forward quickly become caught in the impeller. Never clear or unclog the discharge chute with your hands. Always use a clean-out tool.

Failure to observe these safety instructions will result in traumatic amput or severe laceration.

Hand contact with the rotating impeller inside the discharge chute is the most cause of injury associated with snowthrowers. Never use your hands to clean discharge chute.

To safely clear a clogged discharge chute, follow these instructions: Shut OFF the engine.

1. Wait 10 seconds to be sure the impeller blades have stopped rotating.
2. Always use a clean-out tool, not your hands.

DANGER

Toxic fume hazard

Engines give off carbon monoxide, an odorless, colorless, poison

Breathing carbon monoxide can cause nausea, fainting, or death.

- Start and run the engine outdoors.

- Do not start or run the engine in an enclosed area, even if doors open.

WARNING

Thrown objects hazard

This machine is capable of throwing objects that could injure bystanders, or to buildings.

Be sure the operating area is clear of bystanders. Never direct the anyone, or toward buildings or cars.

Clearing a Clogged Discharge Chute

DANGER

Amputation hazard

The discharge chute contains a rotating impeller to throw snow. Fingers quickly become caught in the impeller. Never clear or unclog the discha with your hands. Always use a clean-out tool.

Failure to observe these safety instructions will result in traumatic amput or severe laceration.

Hand contact with the rotating impeller inside the discharge chute is the most cause of injury associated with snowthrowers. Never use your hands to clean discharge chute.

To safely clear a clogged discharge chute, follow these instructions: 1. Shut OFF the engine.

cause damage seconds to be sure the impeller blades have stopped rotating.

1. Always use a clean-out tool, not your hands.

discharge toward

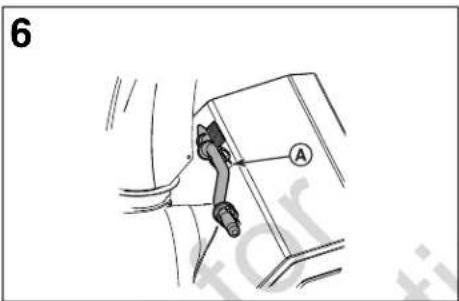

A clean-out tool (A, Figure 6) is provided with the unit.

1. Start the engine. Please refer to the engine operator's manual for engine information.
2. Rotate the chute rotation crank (D, Figure 2) to set the direction of t
3. Loosen the wingnut securing the chute deflector (E). Raise the deflector further. Set the defector to the desired position and tighten the wing
4. Use the speed select lever (A) to select the forward or reverse drive speeds when clearing wet, heavy snow. Use higher speeds for light transporting.
   to throw snow

NOTE: Always set engine speed to FAST (full throttle).
5. Fully press the auger control lever (B) to engage the auger. Release the auger.
6. Fully press and hold the traction control lever (C) to engage the tract begin moving the snowthrower. To stop, release the lever.

NOTE: Always release the traction control lever before changing speeds.

it. DANGER Speed Use Power

Amputation hazard

The discharge chute contains a rotating impeller to throw snow. Fingers can become caught and traumatic amputation or severe laceration will result. Hand with the rotating impeller inside the discharge chute is the most common cause associated to stop snowthrowers.
Turn the engine OFF, wait for all moving parts to stop, and remove the er operating and any maintenance or repairs.

WARNING

Thrown objects hazard

Objects such as gravel, rocks, or other debris, if struck by the impeller, may with sufficient force to cause personal injury, property damage, or damage to snowthrower.

Beinstuitions. set the skid shoes at the proper height to maintain ground clea type of surface being cleared.

Stopping the Snowthrower

1. Release the auger control lever (B, Figure 2).
2. Release the traction control lever (C).
3. Stop the engine. Please refer to the engine operator's manual for engi

Wheel Release - Lock Pins (if equipped)

Wheels equipped with a traction lock pin (A, Figure 3) can be completely auger housing

removing the pin and installing it in the outer axle hole. Reverse this pro drive wheel.

pped)
The snowthrower is equipped with two height adjust skids, secured to the out larger housing. These elevate the front of the snowthrower.

ness to engage the When removing snow from a hard surface area such as a paved driveway o the skids up to bring the front of the snowthrower down.

Deflector Adjustment - Manual Control

Loosen the deflector knob (A, Figure 4), adjust the deflector to the desired then tighten the knob to secure. Raise the deflector to throw snow further.

When removing snow from rock or uneven construction, raise the front of the by moving the skids down. This will help to prevent rocks and other debris up and thrown by the augers.

d. pettomine and how much clearance you want between the scraper bar at the r. the auger housing and the ground. If clearing a gravel surface, enough (clearance is needed to prevent the unit from picking up rocks.

1. Place a block equal to the desired ground clearance under the scraper ba

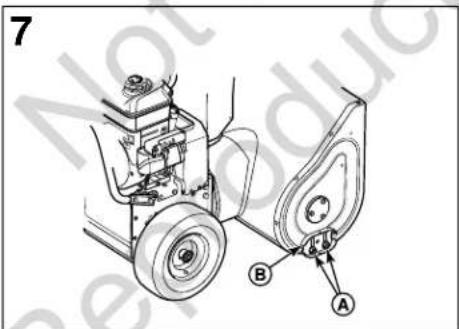

2. Loosen the skid shoe mounting nuts (A, Figure 7) and push the skid shoe handleill barstoupes the ground. Re-tighten mounting nuts.
3. Set the skid shoe on the other side at the same height.

Chute Rotation Adjustment

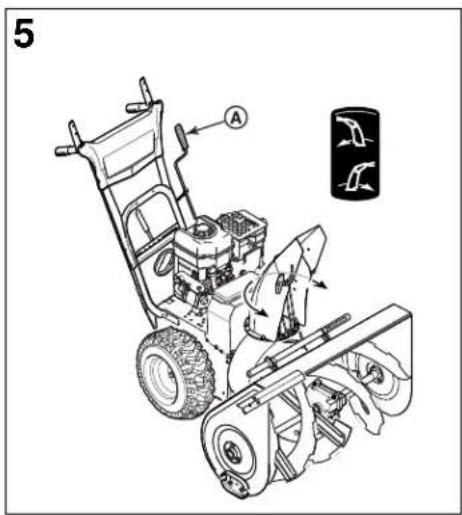

The chute rotation crank (A, Figure 5) is located on the left side of

below the control panel. Rotate the crank to rotate the chute.

Off-Season Storage

If the unit will be stored for 30 days or more at the end of the season, e fuel tank, and are recommended to prepare it for storage. Always refer to the operator's mar important details if the unit is to be stored for an extended period.

Please refer to the engine operator's manual for engine storage information.

NOTE: Fuel must be removed or treated to prevent gum deposits from forming filter, hose, and carburetor during storage.

Filling the Fuel Tank

Please refer to the engine operator's manual for information about filling for fuel recommendations.

WARNING

Fire and explosion hazard

Gasoline is highly flammable and its vapors are explosive. Fumes may travel to a distant ignition source and an explosion and/or fire may result.

Handle gasoline carefully. Never store the unit, with fuel in the tank, indoors or in a poorly ventilated enclosure where fuel fumes could reach an open flame, spark, pilot light, such as a furnace, water heater, or clothes dryer.

• Thoroughly clean the unit.
- Lubricate all lubrication points (see Maintenance section).
- Make sure all nuts, bolts, and screws are securely fastened. Inspect all visible moving parts for damage, breakage, and wear. Replace if necessary.
- Touch up all rusted or chipped paint surfaces; sand lightly before painting.
- Cover the bare metal parts of the snowthrower housing auger, and the impeller with rust preventative.
- If possible, store your unit indoors and cover it to give protection from dust and dirt.
- If the machine must be stored outdoors, cover with a heavy tarpaulin.

To Return to Service:

• Fill the fuel tank with a fresh fuel.
  • Make sure all fasteners are tight.
• Make sure all guards, shields, and covers are in place.

Maintenance

Maintenance Schedule

Before Each Use

• Check engine oil level• Perform Safety System Test

Every 8 Hours or Daily

• Check engine oil level

Every 25 Hours or Annually

• Lubricate control lever linkage• Lubricate the auger assembly• Lubricate the discharge chute rotation gear and deflector• Lubricate the drive system hex shaft with 5w-30 synthetic motor oil, and chains with grease

Every 50 Hours or Annually

• Check muffler and spark arrester (if equipped)• Check tire pressure

Engine Maintenance

For engine maintenance schedules and procedures, please refer to the engine operator's manual.

Control Lever Linkage Lubrication

WARNING

Amputation hazard

It is critical for safe operation of the unit that the controls disengage when released. Under no circumstances should the unit be used if the controls do not function properly. See Safety Systems Tests to confirm correct operation.

Lubricate the unit at the locations show in Figure 8. Where an oil can is pictured, lubricate with engine oil. Where a grease gun is pictured, lubricate with lithium grease.

Auger Assembly Lubrication

Lubricate Auger Gear Box

The auger gear box is lubricated at the factory and should not require additional lubrication. If for some reason the lubricant should leak out, or if the auger gear box has been serviced, add Lubriplate GR132 Grease or equivalent. Maximum 3-1/4 ounces, (92 grams) should be used.

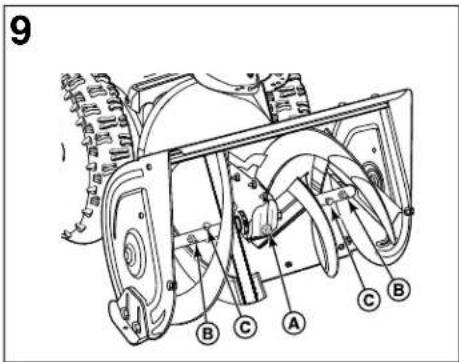

Remove filler plug (A, Figure 9), once a year to check grease level. If grease is visible, do not add. If grease is not visible, use a piece of fine wire, like a dipstick to check if there is grease in the gear box.

Lubricate Auger Shaft Fittings

Using a grease gun, lubricate the auger shaft fittings (B, Figure 9) every 25 operating hours, or once per season. Each time a shear bolt or pin (C) is replaced, the auger shaft MUST be greased.

For storage or when replacing shear bolts or pins, remove the shear bolts or pins (C), lubricate the shaft fittings (B), and rotate the augers several times to distribute the grease. Reinstall the shear bolts or pins when complete.

Discharge Chute and Deflector Lubricati

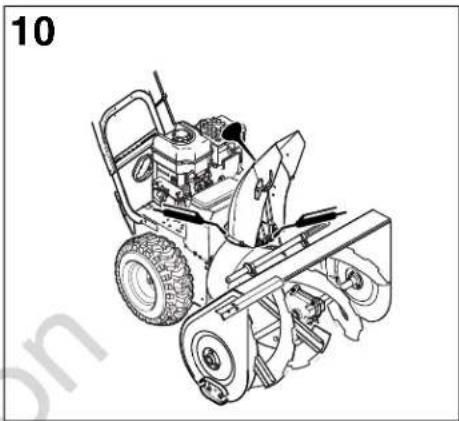

Lubricate the chute rotation gear (Figure 10) with grease, and the deflector mechanism with automotive type oil every twenty five operating hours.

Where an oil can is pictured, lubricate with engine oil. Where a grease gun is pictured, lubricate with lithium grease.

Hex Shaft and Chain Lubrication

The hex shaft and drive chains must be lubricated at the interval specified in the Maintenance Chart. Please have your authorized dealer perform this maintenance.

Traction Cable Inspection

The cables are adjusted at the factory and no adjustment should be necessary. However, if the cables have become stretched or are sagging, adjustment will be necessary. Please see your dealer for this adjustment.

Traction Drive Belt Adjustment

The traction drive belt is under constant spring tension and does not require any adjustment. If the traction drive belt is slipping, see your authorized dealer.

Speed Control Rod Adjustment

If the speed control rod requires adjustment, see an authorized dealer.

Auger Cable Adjustment

WARNING

Amputation hazard

Over-tighten the auger cable may cause the auger drive to engage without depressing the auger drive control.

Follow the adjustment procedure to ensure the cable is not over-tightened.

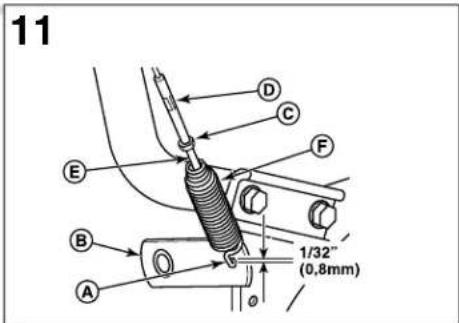

1. With the auger control lever released, the hook (A, Figure 11) should barely touch the lever (B) without raising it. There can be a maximum of 1/32'' (0.8 mm) clearance.
2. To adjust, loosen the nut (C) by holding the adjusting flats (D) and turning the nut. Then, turn the adjusting flats and hold the adjustment screw (E). The adjustment screw is a Phillips screw and the head can be held or turned by inserting a screwdriver through the spring (F).
3. Hold the adjusting flats and tighten the nut.
4. To ensure that the auger does not engage unless the control is fully depressed, please perform the Safety System Tests. The auger must stop within 5 seconds of the control being released.

Shear Pin Replacement

Augers are secured to the auger shaft with special pins that are designed to break if an object becomes lodged in the auger housing. Use only factory spec, or equivalent, shear pins.

1. Turn off the engine and wait for all moving parts to stop.

2. Remove the existing shear pin.

3. Lubricate the auger grease fittings and rotate the auger to lubricate

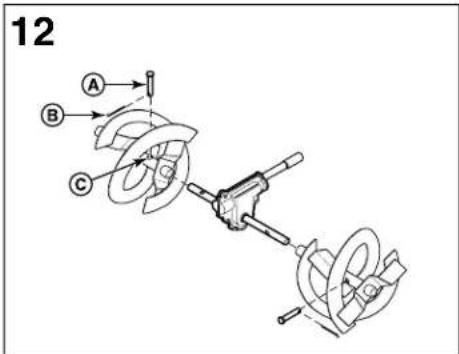

4. Align the shear pin holes. Install the new shear pin (A, Figure 12) shaft (C). Secure with a cotter pin (B).

Checking Tire Pressure

Tire pressure should be checked periodically. Recommended tire pressure varies through a proper good rule of thumb is to inflate the tire up to, but not exc Inflation" stamped on the side-wall of the tire.

Troubleshooting

Troubleshooting Chart

Perform the inspection or repair as indicated in the Troubleshooting Chart.

		RemedyLook forProblem
is released.	Free Hand control (if equipped) is ACTIVE.Auger	Releas no both topauge with control seconds Faster Height control (level equipped) to stop auger.
		See authorized dealer.Auger drive belt out of adjustment
		See authorized dealer.Auger belt guide out of adjustment
	Auger control cable not adjusted correctly.	Adjust auger control cable. Refer to Maintenance this manual.
		See authorized dealer.Electrical failure.Discharge chute or lubrication.
Discharge chute or deflector does not work (remote-manual).		Adjust and/or lubricate control linkage.Discharge chute or lubrication.
		See authorized dealer.Traction control out of adjustment.
Engine fails to start.	Key is in OFF position.	Set key to ON position.
	Failure to prime a cold engine.	Press primer button twice and restart.
	Fuel shut-off valve, if equipped, is in CLOSED position to OPEN position.
	Out of fuel.	Fill fuel tank.
	Choke OFF - cold engine.	Turn choke ON, set throttle to FAST.
	Engine flooded.	Move the choke to OPEN/RUN position, move throttle to FAST position, and crank until the engine starts.
		See authorized dealer.No spark.
Engine starts hard or runs poorly.	Water in fuel, or old fuel.	Drain tank. (Dispose of fuel at an authorized hazardous facility.) Fill with fresh fuel.
		See authorized dealer.Spark plug faulty, fouled, or gappa
	Fuel cap vent is blocked.	Clear vent.
Excessive vibration.	Loose parts or damaged impeller.	Stop engine immediately. Tighten all hardware. If continues, have the unit serviced by an authorized dealer.
Snowthrower does not stop when traction control lever is released.	Traction control out of adjustment.	See authorized dealer.
Scraper bar does not clean hard surface.	Skid shoes and scraper bar improperly adjusted.	Raise or lower skid shoes and scraper bar.
Unit fails to propel itself.	Drive belt loose or damaged.	Replace drive belt. See authorized dealer.
		See authorized dealer.Incorrect adjustment of traction driver.
	Worn or damaged friction disc.	Replace friction disc. See authorized dealer.
	Unit fails to discharge	See authorized dealer.Auger drive belt loose or damaged.
	Auger control cable not adjusted correctly.	Adjust auger control cable. Refer to Maintenance this manual.
	Broken shear pin or shear bolt.	Replace shear pin or bolt. Refer to Maintenance this manual, or see an authorized dealer.
	Discharge chute clogged.	Stop engine immediately. Always use the clean-out tool clear a clogged discharge chute, not your hands. Clear discharge chute and inside of auger housing. Refer to Discharge Chute Warning in the Operator Safety section.
	Foreign object lodged in auger.	Stop engine immediately. Always use the clean-out tool clear a clogged chute, not your hands. Remove object auger. Refer to WARNINGS in the Operator Safety sec.

© 2011 Briggs & Stratton Corporation, Milwaukee, WI, USA. Minden jog

- Obe, as a 31st century, a 61st century, 20th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century, 19th century,

Stopping the Snowthrower

1. Release the auger control lever (B, Figure 2).
2. Release the traction control lever (C).
3. Stop the engine. Please refer to the engine operator's manual for eng

Deflector Adjustment - Manual Control

Loosen the deflector knob (A, Figure 4), adjust the deflector to the desired p then tighten the knob to secure. Raise the deflector to throw snow further.

Chute Rotation Adjustment

Those chute rotation crank (A, Figure 5) is located on the left side of the ha below the control panel. Rotate the crank to rotate the chute.

súlyos

When is before, the safe operation of the unit that the controls disengage when the circumstances should the unit be used if the controls do not function product safety Systems Tests to confirm correct operation.

Lubricate the unit at the locations show in Figure 8. Where an oil can is p with engine oil. Where a grease gun is pictured, lubricate with lithium grease.

ogy megelőzze

orban a tárolás

© 2011 Briggs & Stratton Corporation, Milwaukee, WI, USA. Tutti i diritti

The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.

© 2011 Briggs & Stratton Corporation, Milwaukee, WI, USA (JAV). Visos

© 2011 Briggs & Stratton Corporation, Milwaukee, WI, USA. Alle rettigheter

ADVARSEL

Fare for amputering

Six safety warning symbols with Chinese labels: explosion, broken, left-hand rule, open book, and switch.

Not for Reproduction

Not for Reproduction
