USER MANUAL IPD-2000-2H MSW

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mobile crane with labeled dimensions: 30-60 cm and directional arrows

Simple diagram with a rectangular box containing four vertical lines and three horizontal lines, enclosed in a larger square frame (no text or symbols)

ON OFF

Circular diagram with concentric rings and labeled points, no readable text or symbols

Simple line drawing of an open electrical outlet with a terminal connector (no text or symbols)

CAUTION! This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical Data

Description of the Parameter	Value of the Parameter
Product name	INFRARED PAINT DRYER
Model	MSW-IPD-2000-2W	MSW-IPD-2000-2H
Supply voltage [V~] / Frequency [Hz]	230/50
Electricity	1-phase
Rated power [W].	2 x 1000
Safety class	I
IP code	IP32
Dimensions [Width x Depth x Height; mm]	800 x 1010 x 2490 500 x 580 x 1600
Weight [kg]	41.4	21
Time range [min]	0-60
Temperature range[°C]	0-100
	* The temperature depends on the setting and distance of the radiator from the surface to be treated.
Maximum curing area [mm]	800 x 1000	1200 x 1000
Application conditions	Ambient temp. 5~+40 °CHumidity 20~95%

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Please read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMINDER! describing a situation.(general warning sign).
	CAUTION! Warning of electric shock!
	CAUTION! Danger of crushing your hand!!
	Caution! Hot surface can cause burns!
	For indoor use only.
	CAUTION! Do not use this unit near bathtubs, showers, sinks and other vessels containing water.
	During operation, the unit generates an electromagnetic field around it, which may cause medical implants, i.e. pacemakers, etc., to malfunction.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or severe personal injury or death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the INFRARED PAINT DRYER

1.1. Electrical safety

a) The plug of this unit must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.

b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the unit exposed to direct rain, wet pavement, and operation in a humid environment. If water enters the unit, there is an increased risk of damage to the unit and electric shock.

c) Do not touch the unit with wet or damp hands.

d) Do not use the cord in an unintended manner. Never use it to carry the unit or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.

e) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
f) To avoid electric shock, do not immerse the cable, plug, or unit itself in water or other liquid. Do not use the unit on wet surfaces.
g) CAUTION - THREAT TO LIFE! When cleaning or using the unit, never immerse it in water or other liquids.
h) Do not use the unit in rooms with very high humidity / in the immediate vicinity of water tanks!
i) Do not allow the machine to get wet. Risk of electric shock!

1.2. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust. The unit produces sparks that can ignite dust or fumes.
c) If you find any damage or irregularities in the operation of the unit, immediately turn it off and report it to an authorized person.
d) Only the manufacturer's service department may repair the unit. Do not carry out repairs yourself!
e) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.
f) Only the manufacturer's service department can repair the unit. Do not carry out repairs yourself!
g) In case of open flames or fire, use only dry powder or snow (CO2) fire extinguishers to extinguish the live equipment.
h) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
i) Use the unit in a well-ventilated area.
j) Check the condition of the safety stickers regularly. Replace them if they are illegible.
k) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
I) Keep the packaging and small assembly parts out of the reach of children.
m) Keep the unit away from children and animals.
n) When using this unit together with other units, also follow the other instructions for use.
o) Make sure that the unit is placed on a flat and stable surface.

⚠️Please note! Keep children and other bystanders safe while operating the unit.

1.3. Personal safety

a) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.
b) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
c) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
e) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
f) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
g) The unit is not a toy. Children should be watched to ensure that they do not play with the unit.
h) Risk of burns - during operation some parts of the unit get hot and even after switching off they remain hot for some time.

1.4. Safe use of the unit

a) Do not use the unit if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.
c) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
d) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.

e) Keep the unit out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
h) Do not leave the unit switched on unattended.
i) Clean the unit regularly to prevent permanent dirt build-up.
j) Do not tamper with the unit to alter its performance or design.
k) Keep the unit away from sources of fire and heat.
I) Do not overload the unit.
m) Do not block the ventilation openings of the unit!

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is designed for drying surfaces in paint repairs (putties, primers and topcoats) thanks to short waves of infrared radiation. The use of a unit operating on this principle reduces time and costs in sheet metal and paint repairs, especially local ones.

The user is responsible for any damage resulting from misuse.

3.1. Description of the unit

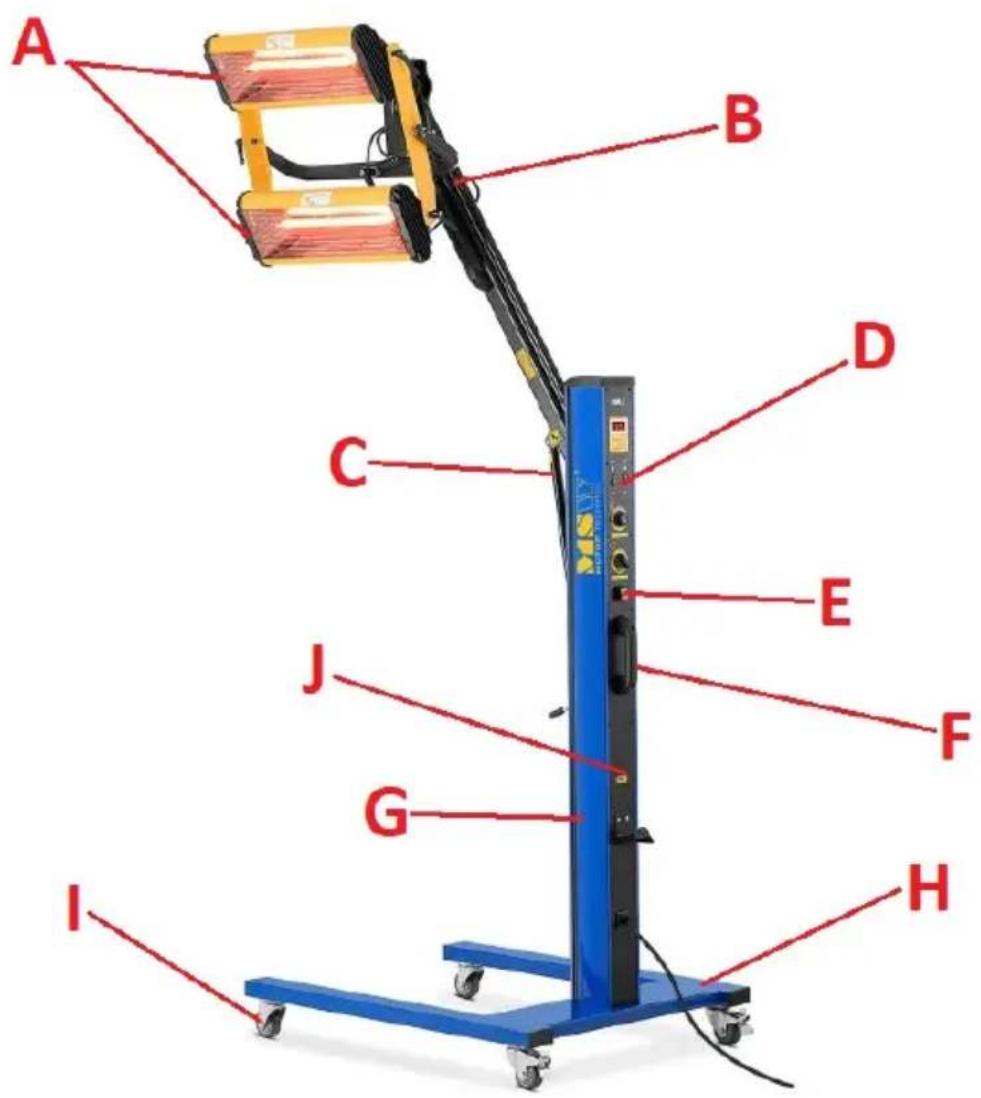

MSW-IPD-2000-2W

A B C D E F G H I

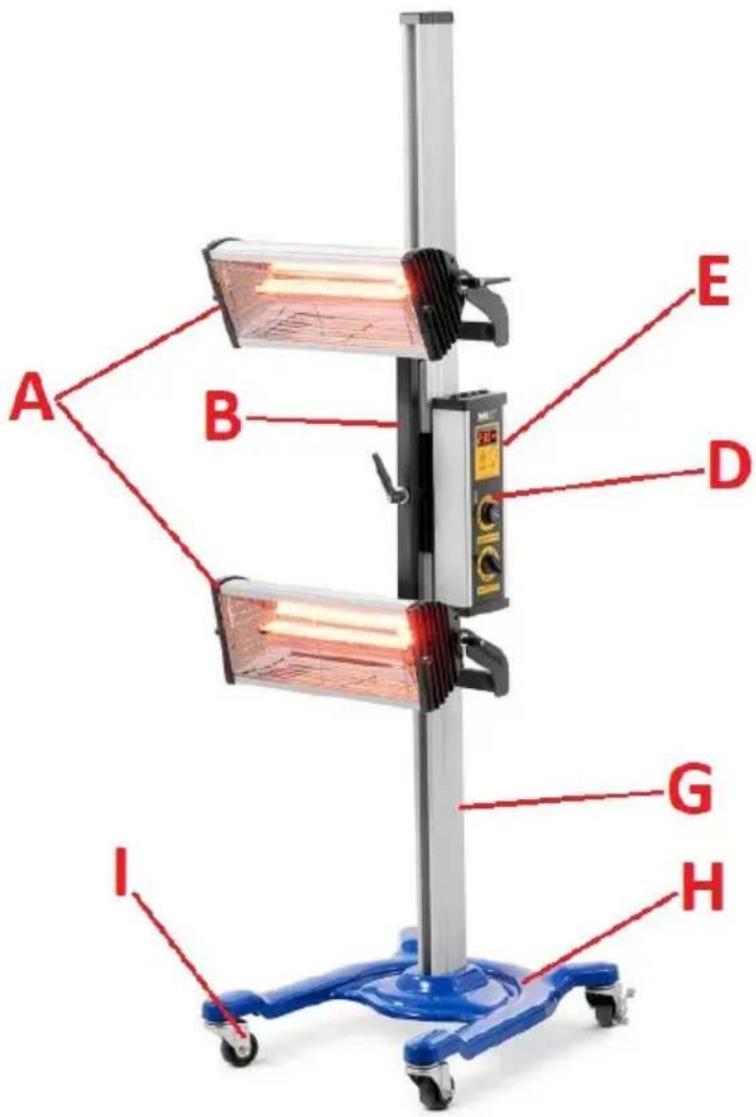

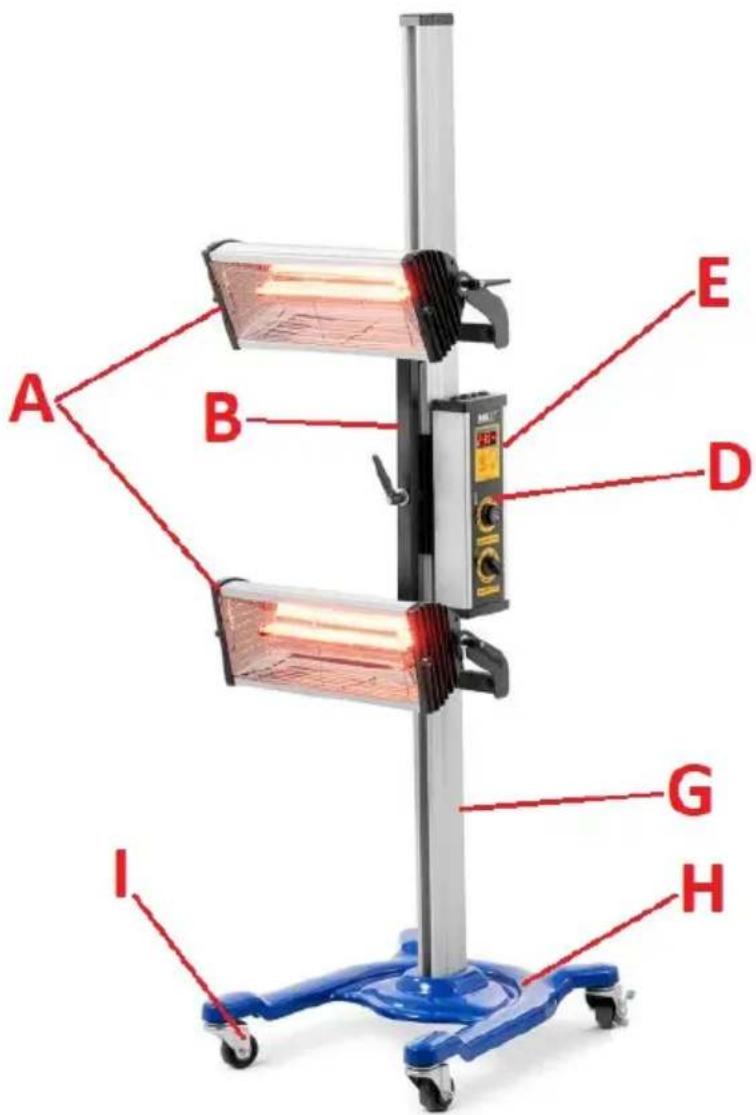

MSW-IPD-2000-2H

A B E D G H I

A. Cassette
B. Cassette bracket
C. Bracket actuator
D. Control panel
E. ON/OFF switch
F. Handle for moving
G. Column
H. Base
I. Swivel wheel (x4)

J. Residual current circuit breaker

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ and ambient humidity should not exceed 95% . Place the unit in a way that ensures good air circulation, on a dry, stable surface, in an upright position so that it does not move by itself during operation.

Maintain a minimum clearance of 10 cm from any wall of the unit. Always keep the unit out of reach of children and persons with reduced mental, sensory or intellectual functions. Place the unit in such a way that the mains plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

ASSEMBLY OF THE UNIT

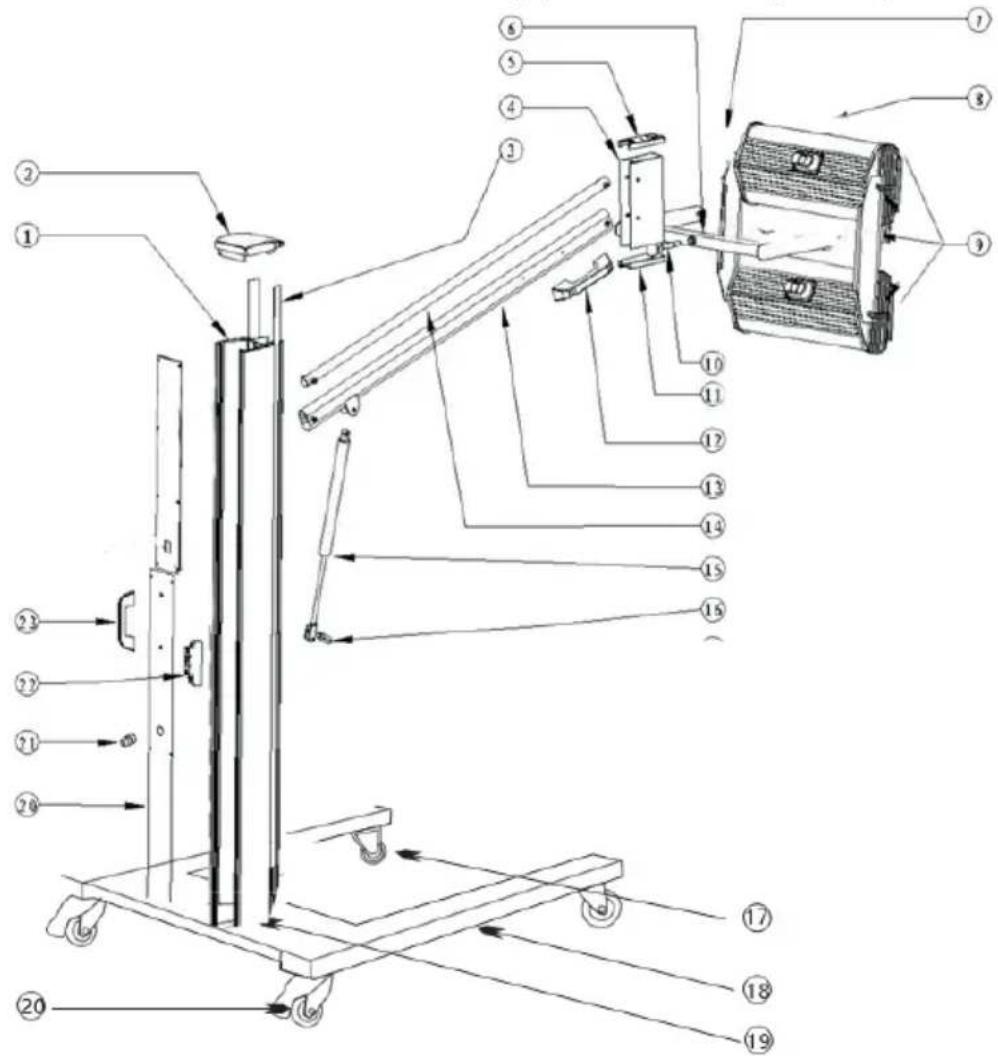

MSW-IPD-2000-2W (see the assembly drawing below)

The supplied unit is divided into 3 segments that need to be assembled together - the base, the column and the cassette.

First, assemble the 4 wheels to the base, where the wheels with a brake should be at the rear (closer to the column) of the unit.

Then mount the column to the base by placing it on the base and screwing them together with screws. On the column, mount the cassette support arm, and then the actuator that supports the operation of the cassette arm. In the end, on the bracket mount the cassette by tightening it with screws.

Finally, connect the power cable of the cassette with the column - the socket is located on the back of the cassette housing (see the above picture).

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Number	Name
1	Column
2	Top cover
3	Plastic tape
4	Link
5	Top cover of the connector
6	Bracket
7	Holding handle
8	Cassette
9	Plastic caps
10	Connecting axle
11	Bottom cover of the connector
12	Handle
13	Lower connecting rod
14	Upper connecting rod
15	Actuator
16	Bracket holder
17	Front wheel
18	Leg
19	Base
20	Back wheel
21	Residual current circuit breaker
22	Thyristor module
23	Handle

MSW-IPD-2000-2H

The supplied unit is divided into 3 segments that need to be assembled together - the base, the column and the cassette.

First, assemble the 4 wheels to the base, where the wheels with a brake should be at the rear (closer to the column) of the unit.

Then mount the column to the base by placing it on the base and screwing them together with screws.

Connect the cassettes to the bracket and screw them together. Then connect the power supply to the cassettes.

3.3. Working with the unit

IMPORTANT: before the first use, remove the covers from the lamps (for transportation)!

3.3.1 Control panel

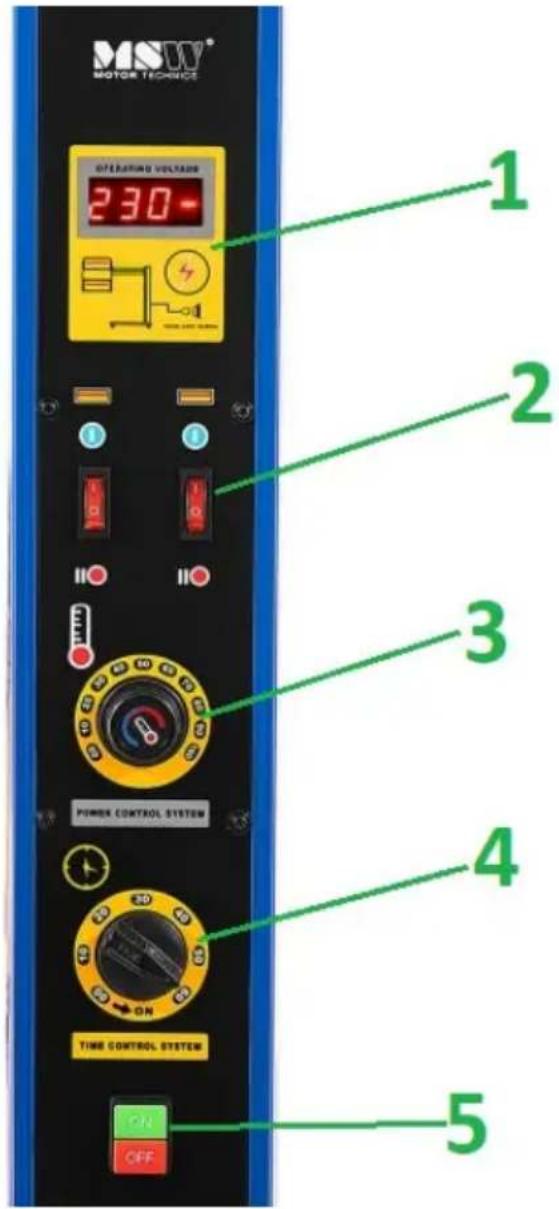

MSW-IPD-2000-2W

MSW MOTOR TECHNICE OFF BURNING VOLTAGE 230 POWER CONTROL SYSTEM ON OFF 1 2 3 4 5

1. Voltage display
2. Individual cassette switches
3. Temperature setting knob
4. Time setting knob (timer)
5. Power switch (ON/OFF)

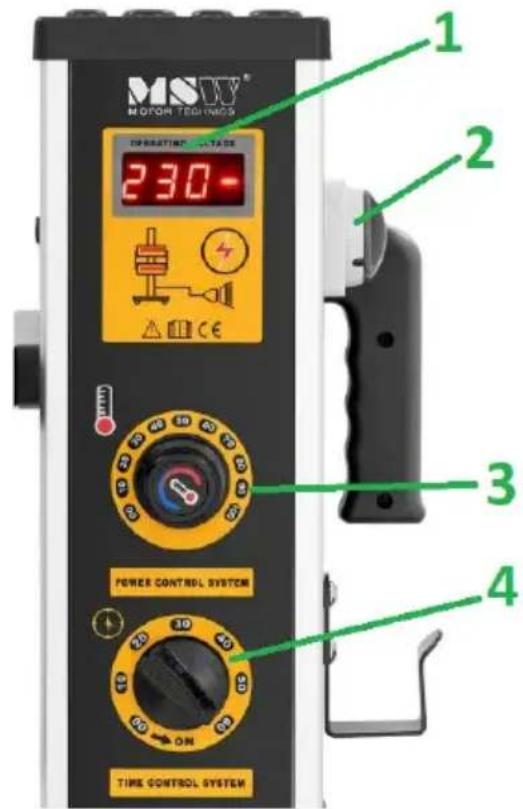

MSW-IPD-2000-2H

MSUY® MOTOR TECHNOLOGY OPERATING VOLTAGE 230 POWER CONTROL SYSTEM TIME CONTROL SYSTEM

1. Voltage display
2. Power switch (ON/OFF)
3. Temperature setting knob
4. Time setting knob (timer)

3.3.2 Setup and use

IMPORTANT: the surface to be heated should be clean and dry.

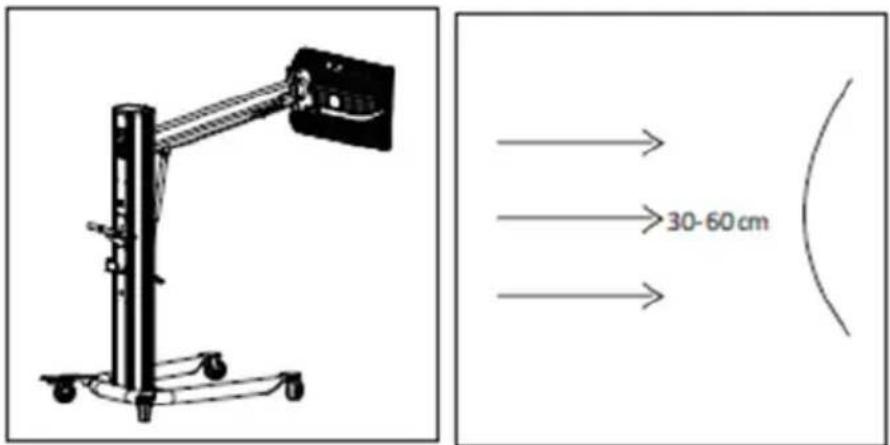

a) Set the radiant heater in the given place, lock the brakes in the wheels and adjust the position of the cassette parallel to the surface to be heated, so that the distance of the lamps from the surface is within 30-60 cm.

Technical diagram of a mobile crane with labeled dimensions: 30-60 cm and directional arrows

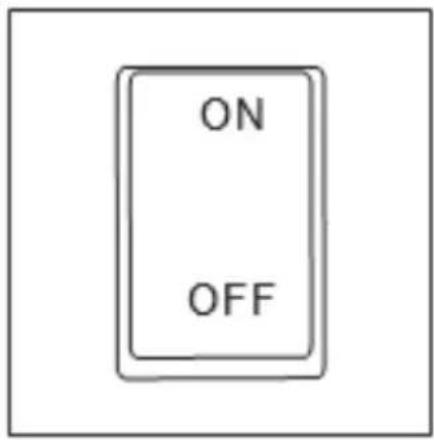

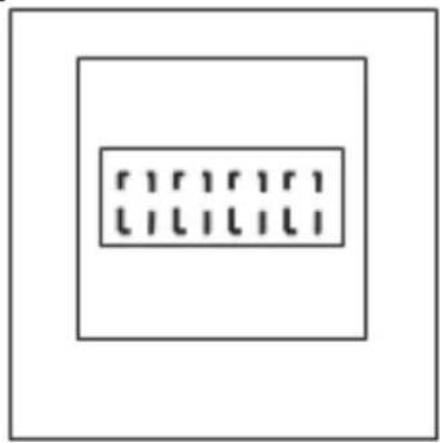

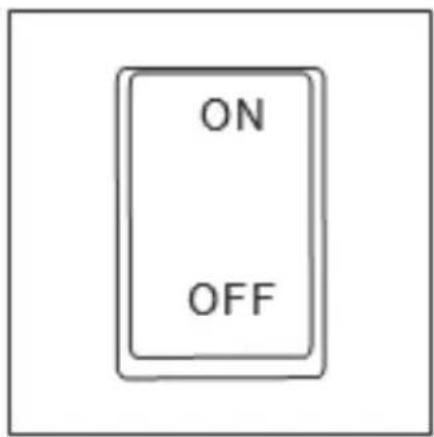

b) Connect the unit to a power outlet and press the power button "ON", and the display on the control panel will show the current voltage value.

Simple diagram with a rectangular box containing four vertical lines and three horizontal lines, enclosed in a larger square frame (no text or symbols)

ON OFF

c) Use the knobs to set the temperature and warming time according to the surface.

30 40 50 60 70 80 90 100 110 120 130

Circular diagram with concentric rings and labeled points, no readable text or symbols

d) Only for MSW-IPD-2000-2H: use the buttons on the control panel to turn on the corresponding cassette to be used.

ON OFF ON OFF

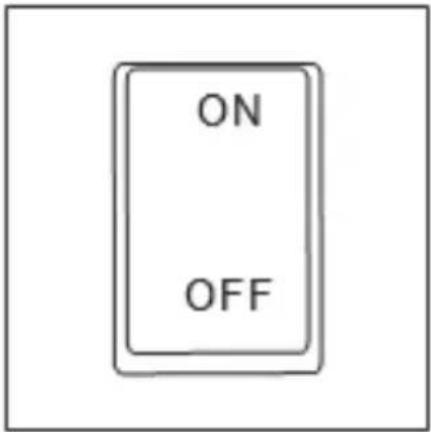

e) After the completion of warming and if the unit is not used any more, turn off the power supply by pressing the "OFF" button and, if necessary, pull the plug from the power socket.

ON OFF

Simple line drawing of an open electrical plug with a terminal outlet (no text or symbols)

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.

b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) Store the unit in a dry and cool place protected from moisture and direct sunlight. For extra protection, you can cover the unit, but only when completely cooled!

d) Do not spray the unit with a stream of water or immerse it in water.

e) Make sure that no water enters through the ventilation openings in the casing.

f) Clean the ventilation openings with a brush and compressed air.

g) Use a soft cloth for cleaning.

h) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.

i) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.

3.4.1 Replacing lamps in the cassette

(1)

(2)

(3)

(4)

(5)

(6)

CAUTION: try not to touch the lamp with bare hands - however, in case contact occurs, the lamp should be wiped with a soft cloth soaked in alcohol or white spirit.

1. Prepare the cassette for lamp replacement - it should be disconnected from the power supply (unplugged from the socket) and completely cooled down.

2. Remove the protective grille of the lamps in the cassette.

3. Remove the side panels on both sides of the cassette housing.

4. Loosen the screws holding the lamp, unfasten its connections and pull out the lamp.
5. Install the new lamp in the cassette in the reverse order of removal.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions or packaging. The materials used in this unit are recyclable according to their marking. You will be making an important contribution to protecting our environment by reusing, recycling or otherwise disposing of used units.

Your local administration will provide you with information about the appropriate disposal point for used units.

TROUBLESHOOTING

Problem	Possible cause	Action
Cassette/Lamp does not work	a) Damagedb) Not connectedc) Defective thyristor module	a) Check lampb) Check cassette/lamp connectionc) Check thyristor module
Radiator (cassette) does not switch off	a) Defective thyristor module	a) Check thyristor module
Display shows nothing or displays incomplete information	a) Disconnected flat wire on control boardb) Defective display	a) Check flat cable connectionb) Check the display
Time and temperature cannot be set	a) Defective potentiometersb) Defective timer	a) Check the operation of the potentiometersb) Check the timer

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing a mobile crane with labeled dimensions: 30-60 cm and directional arrows

Simple line drawing of an open electrical plug with a terminal outlet (no text or symbols)

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a vertical mechanical lift or support structure with wheels and a mounted component (no text or symbols)

30-60cm

Simple diagram with a rectangular box containing three rows of vertical lines, enclosed in a larger square frame (no text or symbols)

ON OFF

Circular diagram with six labeled components and an arrow pointing to the center (no text or symbols)

Simple line drawing of an open electrical plug with a terminal outlet (no text or symbols)

3.4. ČISTĚNÍ A ÚDRŽBA

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing a mobile crane with labeled dimensions: 30-60 cm and directional arrows

Diagram showing two circular components with numbered labels and directional arrows, likely representing a device or control panel.

Simple line drawing of an open electrical plug with a terminal outlet (no text or symbols)

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Mechanical device with articulated arm and wheels (no visible text or symbols)

30-60 cm

Simple geometric diagram with nested rectangles and a central grid of four vertical lines (no text or symbols)

ON OFF

Circular diagram with six labeled components and an arrow pointing to the center (no text or symbols)

Simple line drawing of an open electrical plug with two terminals (no text or symbols)

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Simple line drawing of an open electrical plug with two terminals (no text or symbols)

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing a mobile crane with labeled dimensions: 30-60cm and directional arrows

Simple line drawing of an open electrical outlet with a terminal connector (no text or symbols)

A B C D E F G H I

MSW-IPD-2000-2H

A B E D G H I

APPARATETS PLACERING

Technical diagram of a mechanical lifting device with numbered components and directional arrows indicating motion or assembly.

Mechanical device with articulated arm and wheels (no visible text or symbols)

30-60cm

Simple line drawing of an open electrical outlet with a terminal connector (no text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
