USER MANUAL KBL 10521 M Koenic

Exterior view of a modern kitchen blender with clear glass and control buttons (no visible text or symbols)

Figure 1-8

z(6) 5.48

Fernofeld 17, 22

(1)

1. 2016年4月-5月

C4=0.7 15

“四五”46

5.12 37:40

(1)

2014年7月9日

5.6478

R_1 = 40.95 - 1.2^2

(1) 12 为 a1 + a2 = 1

Savita

ab _ 2 and be

M 061901 FUS TO #E 13200* 1.675

[Unreadable]

Sor ostru 160047

6.01.2

(1)

www.csc108.com

1025年7月26日

CE

Labeled diagram of a blender with numbered parts for identification

Step-by-step cooking instruction for a blender, showing step from pressing into cleaning with red arrows and a timer.

Sicherheitshinweise

• This product shall not be used by children. Keep the product and its cord out of reach of children.
• This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The product is not suitable for continuous operation. Do not operate the product longer than 3 minutes. Let the product cool down before next use.
• Always disconnect the product from the power supply if it is left unattended and before assembling, disassembling or cleaning.
• Switch off the product and disconnect from power supply before changing accessories or approaching parts that move in use.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

Safety Instructions

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
- Clean the product and all other accessories after each use.
- Follow the instructions in the chapter Cleaning and care.
- Never pour boiling liquids or very hot food products into the blender!
- Caution! Ensure that the product is switched off before removing it from the stand.
- Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

English

Safety Instructions

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Never leave the product unsupervised while it is switched on.
3. Do not place any objects on top of the product.
4. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
5. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
6. The mains voltage must match the information on the rating label of the product.
7. Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
8. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
9. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
10. Only unplug from the power socket by the plug itself. Do not pull on the cord.
11. Unplug the product ...
12. when the product is not being used,
13. in case of malfunctions,
14. before attaching / detaching accessories and
15. before cleaning the product.
16. Use this product in dry indoor areas only and never outdoors.
17. Place the product on a flat, sturdy and slip-resistant surface.

12

1. Never use, expose or put the product near to:
2. direct sunlight and dust;
3. fire (fireplace, grill, candles),
4. water or heavy moisture.
5. This product is not intended for commercial use. It is designed for household use only.
6. Never operate the product when it is empty.
7. Make sure that the motor unit and supply cord do not become wet.
8. Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or it's suspected to be defect.

Congratulations!

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended Use

This product is intended for preparing fruit and vegetable juices (smoothies) by chopping fruits or vegetables in private household only. Any other use may result in damage to product or injuries. To avoid dangerous situations, do not use this device for any purpose other than those described in the instructions. Improper use is dangerous and voids the warranty. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before First Time Use

Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and Care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Mixing cups
1 x Caps with outlet
1 x Motor unit
1 x User manual
1 x Warranty card

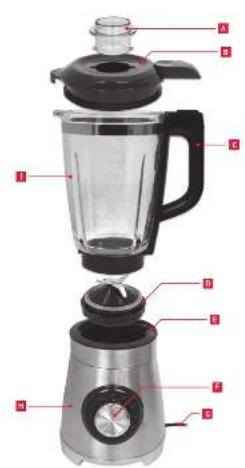

Controls and components

A Measuring and closing cap
B Lid with feed opening
C Handle with release button for the lid
D Blade insert
Safety lock - Motor unit
F Control knob with speed and pulse setting
G Power cord with plug
H Motor unit
Blender jar with scale (1.75 litre)

Technical Data

Rated voltage : 220 - 240 V\~, 50-60 Hz

Rated power input: 1000 W

Protection class : II

English

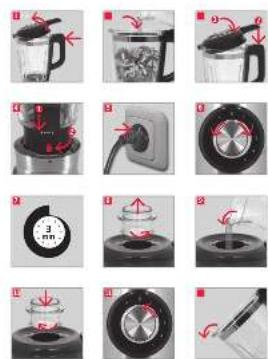

Mixing food

Fig. 1 Push the release button and remove the lid.

Fig. 2 Fill the blender jar. Make sure to add a sufficient amount of liquids.

Caution

Never use this product to mix with hot oil, fat or other hot food stuffs.

Fig. 3 Place the lid on the jar and press it down until it locks into position.
Fig. 4 Place the ready filled and locked blender jar onto the motor unit. Turn the blender jar to position ⚙ until it is latched onto the motor unit.

Safety switch

This feature ensures that you can only switch on the product if you have correctly assembled the blender on the motor unit. If the blender is assembled correctly, the built-in safety switch is closed.

Fig. 5 Connect the power plug to a suitable power outlet.
Fig. 6 Choose your speed setting from 1 to 5 or P (intermittent).

Recommended recipes

Food	Maximum quantity	Setting	Time
Fluids 1750 ml	1-3 60s
Yogurt mixture	1300 ml 2-5 90s
Milkshake/ Smoothies	1300 ml 2-5		60-90s
Baby Porridge	700 ml 5 3 min
Mayonnaise	2 eggs / 250 ml oil	3-5 2 min
Carrot, Apple, Pear etc	700 g (add 1050 g liquids)	45P	60s
Ice cube	10 pcs. (15 x 15 x 15 mm)	P 30s

Warning

Do not continuously use the product. If the recommended time exceeds 60s, let it cool down sufficiently before using it again. Are all ingredients blended as desired release the power button to turn off the product. Unplug the product.

Fig. 7 Do not operate the product continuously longer than 3 minutes. Let the product cool down before next use.

Fill in during use

Fig. 8 Turn the filling cap anti-clockwise and remove it.
Fig. 9 Fill with ingredients.
Fig. 10 Re-insert the filling cap into the lid opening section and turn it clockwise.
Fig. 11 Turn the control knob to 0, turn the blender jar counterclockwise to position and remove it from the motor unit.
Fig. 12 Push the release button and open the lid and pour out the content.

Tips for use:

• Ensure, that enough fluids have been added to the food stuffs. Proper blending is not possible without a sufficient amount of liquid.
  • Do not process to big amounts at once.
• Remove skin, stems and stones before processing the food.
• Cut the ingredients into suitable pieces of approx. 15 x 15 mm.
• When processing foods of different consistencies, at first fill the mixing cup with fruits with hard consistency and at last with soft and fruity consistency and liquid.
• In case pieces of food are fixed or jamming inside the mixing cup remove the jar and shake it until those pieces are released. Attach the mixing cup and continue processing.

Warning! Do not shake the complete appliance with mixing cup assembled but always remove the mixing cup for doing so.

- Never process hard ingredients like nuts or big grain.

- Crush ice before processing. Do not use the product for crushing ice.

• Always add liquids when processing fruits, vegetables and crushed ice.

• You can stabilise the mixer correctly if you place your hand on top of the closed blender jar.
• It may be useful to use the pulse mode when blending any solid or very thick food products, as this will prevent the cutting blade from becoming clogged.

Cleaning and Care

Warning

When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Fig. 13 Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.

Note: We recommend to clean the product directly after every usage as residues from food can be removed more easily.

Fig. 14 Turn the emptied blender jar upside down and remove the base with the blade by turning it clockwise. Clean the blade and base under running water and with a brush. Be careful when cleaning the knife to avoid injury.

Warning

The cutting blade is very sharp.

English

Fig. 15 Clean the lid and blender jar under hot running water with a damp sponge and mild dish-washing detergent. Dry all of the pieces completely before using again.

Note: Detachable parts are dishwasher safe (A, B, I, D). Assembling is done in reverse order.

Fig. 16 Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the product interior (for example, through the switch). Keep the product in a dry, cool location which is protected against moisture and direct sunlight. Keep this product out of the reach of children.

Warning

Do not touch the cutting blades. The blades are extremely sharp.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your dealer.

Problem Possible Causes Solution
Product does not work	Interrupted power supplyMixing cup not correctly attached or locked	Check the power supplyAttach mixing cup correctly and make sure it is properly locked
Blade does not turn or with difficulty	Blockage due to too large or too hard ingredients	Unplug the product and remove the blockage or cut the food into smaller parts
Product feels warm/hot during operation	Blockage due to too large or too hard ingredients"Continuously operation	Unplug the product and remove the blockage or cut the food into smaller partsUnplug and let the product cool down in order to avoid overheating
