USER MANUAL KDD 121 E NF Koenic

Incrite Cbrp1 C_2 - C_3 C_4 - C_5 C_6 - C_7 C_8 - C_9 C_10 - C_11 C_12 - C_13

P.C0121.PF2012.V97

C

KOENIC

Side by Side

KDD121ENF

1

C

图1

Hedden

C00:sp0

国

□

原式 = 5x + 1

国

10

Date 01-19
Epic 8-77
Epic201-40
Epic201-53
Epic201-62
Epic201-63
Epic201-69
Epic201-70
Epic201-71
Epic201-72
Epic201-73
Epic201-74

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Children must not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning: Keep ventilation openings in the appliance enclosure clear of obstruction.

Safety Instructions

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The lamp can only be replaced by a service technician.
• Follow the instructions in the chapter Cleaning and care.
• Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.

• To avoid contamination of food, please observe the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean surfaces, that can come in contact with food and accessible drainage systems, on a regular basis.

Safety Instructions

• Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Do not place any objects on top of the product.
3. Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
4. Do not, under any circumstances, attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Only unplugging from the power socket can separate the product completely from the mains.
7. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
8. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
9. Only unplug from the power socket by the plug itself. Do not pull on the cord.
10. Unplug the product .. - when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.
11. Use this product in dry indoor areas only and never outdoors.
12. This product is not intended for commercial use. It is designed for household use only.

13. Make sure that electrical components, live parts and the power cord do not become wet.

14. Use accessories supplied with the device or recommended by the manufacturer only!

15. Do not cover the product while in use. Fire hazard!
16. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
17. WARNING! Do not locate portable socket-outlets at the rear of the appliance to avoid the possibility of electrical shocks due to water leakage.

Caution: Risk of fire!

Flammable materials.

WARNING! During use, service and

disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor).

It is the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Please keep clear from it during using, service and disposal.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries.

• This product is not intended to be used as a built-in appliance.
• This refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 43^

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the ing of WEEE. By doing so, you will help to serve resources and protect the environment. Contact your retailer or local authorities for more information.

Refrigerants must be evacuated and disposed of by a qualified specialist in accordance with federal and local regulations before the appliance is scraped.

Delivery contents

1 x Fridge and freezer combination
1 x Egg holder for 6 eggs
1 x Box for ice cube maker and cold water
1 x User manual

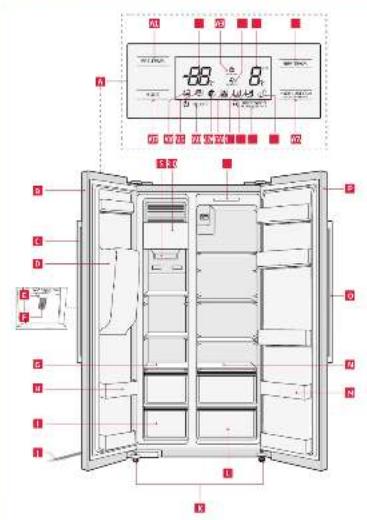

Controls and components

A Control panel with display
A1 Button FRZ.TEMP.
A2 Temperature display, freezer
A3 QUICK FRZ. indicator
A4 QUICK REF. indicator
A5 Temperature display, refrigerator
A6 Button REF.EMP.
A7 LOCK/UNLOCK button
A8 Key lock/unlock indicator
Dispensing button Dispenser
A10 Water function indicator
A11 Ice (shredded) function indicator
A12 Ice cube function indicator
AB Ice and cold water function off indicator
A14 Ice and cold water function on/off button ICE OFF
AT Filter indicator
A16 Holiday mode indicator
MODE button
B Freezer door
Freezer door handle
D Discharge opening with cover and seal
Dispenser opening
F Dispenser stop
Freezer glass shelf (3x)
Freezer door tray (3x)
1 Freezer compartment (2x)
Power cord with plug (not shown)
K Adjustable feet, front
Vegetable compartment (fresh food compartment, 2x)
M Refrigerator door tray (5x)
N Refrigerator glass shelf (4x)
0 Refrigerator door handle
Refrigerator door
Refrigerator interior lighting
R Ice cube maker with ice box
Freezer interior lighting

Accessories

1 x Egg holder for 6 eggs (not shown)
1 x Integrated ice cube maker and water chiller
1 x Wrench
1 x Filter incl. installation kit
2 x Hoses incl. installation kit

Installation

Fig.1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.

Fig.2Unevenness can be compensated with the adjustable front feet. Usa a spirit level for correct positioning.

Fig. 3 Familiarize yourself with the connection of the water pipes and possible connectors in the proximity of the device.

Make sure that the water connection is within the accessible range.

Screw the supplied adapter to the water connection (1 / 2^ ) , but do not open the tap, yet. Make sure the adaptor is properly connected and sealed.

Remove the red protective cap from the hose at the back of the refrigerator.

Fig. 4 Attach the water filter to a wall at the desired location.

To do this, install the two retaining clips at the correct distance (approx.

15cm) and at the desired location using the screws and expansion anchors provided. The filter can be placed in a horizontal, vertical as well as tilted position. The direction of the water flow can be either way, but in any case, observe the given water pressure.

Plug one end of the blue hose into the previously installed adapter on the water connection.

Remove both rubber plugs from the water filter.

Then push the hose connector, that's attached to the other side of the blue hose, as far as possible into the inlet of the water filter.

Insert the two supplied angled hose connectors onto both ends of the white hose. Connect one of them to the filter outlet and the other one to the hose on the back of the refrigerator.

Now attach the securing clips to all hose connectors.

Fig. 5 Make sure that all installations and connections have been carried out correctly and that all are properly sealed. Make sure that the hoses are not and cannot be bend. Turn on the water at the water connection. Once again check all connections for possible leakages and make sure they are properly sealed. Check all connections for proper sealing in periodic intervals, to avoid possible leakages.
Fig. 6 The refrigerator and freezer compartments are equipped with glass shelves and drawers, which, if desired, can be removed by pulling them forward, but it is recommended to use all supplied shelves and drawers in order to effectively use the energy consumed by the appliance. Some of the shelves can be inserted at different heights.

Warning

If the refrigerator has been stored or tipped sideways during transport or installation, it must stand upright for 2 hours before being connected to the mains.

Operation

Fig.7 Plug the power plug into an appropriate mains socket outlet.

Note:

Allow the product to precool for about 2-3 hours before storing food in it.

Settings

Fig. 8 The control panel is locked in normal operation. Before adjusting the settings described below, press the lock/unlock key LOCK/UNLOCK for at least 3 seconds, to unlock the display. The symbol LOCK changes to and all keys are unlocked. All settings made are only activated after the automatic locking. After 30 seconds, the display is automatically locked.

Freezer temperature setting

Fig. 9 Press the FRZ.temp. button to set the freezer temperature from -16 to -24^ in 1^ temperature steps. Note, that the energy consumption will increase, the lower the set temperature is. After adjusting the setting the display flashes for another 5 seconds, before the setting is automatically saved.

Refrigerator temperature setting

Fig.10 Press the REF.TEMP. button to set the temperature of the refrigerator from 2 to 8^ in 1^ steps.Note, that the energy consumption will increase, the lower the set temperature is. After adjusting the setting the display flashes for another 5 seconds, before the setting is automatically saved.

Vacation, QUICK FRZ. (quick freeze) and QUICK REF. (quick cooling) functions

Fig. 11 By pressing the MODE button, you can select three different functions as indicated by the respective symbol.

• Vacation mode In this mode, the refrigerator is switched off and the freezer is set to -18^ . Make sure, that all foods are removed from the refrigerator before activating this setting. The mode stays active, until it is manually turned off.
• Freeze mode 3QUICK FRZ.: In this mode, the temperature of the freezer, is switched to -24^ for 26 hours. The energy consumption of the product is increased, while the mode is activated. Thereafter, the freezer operates at the preset temperature. The settings of the refrigerator are not affected by this.
• Quick cooling mode QUICK REF.: In this mode, the temperature of the refrigerator, is switched to 2^ for 2.5 hours. The energy consumption of the product is increased, while the mode is activated. Thereafter, the refrigerator operates at the preset temperature. The settings of the freezer are not affected by this.

To turn off the auxiliary functions, unlock the control panel again as described in the Settings section and press the MODE button repeatedly until none of the additional function icons lights up. As a result, any additional functions are deactivated and the device operates at the preset temperatures.

Cold water and ice cube maker

Warning! Before drawing water and ice for the first time, remove the cover with gasket from the discharge opening on the inside of the freezer door. If the cover is not removed, ice and water will be ejected into the freezer. If necessary, unlock the control panel and press the button ICE OFF to switch the ice and cold water function on or off.

Fig. 12 Press the Dispenser button until the corresponding symbol indicates the desired function: Ice cube extraction indicator entire ice cubes are dispensed; Ice picking (shredded) indicator crushed ice is being dispensed; Water indicator cold water is dispensed.

Fig. 13 Now press the drinking cup against the dispenser stop to start the dispensing. Remove the cup to stop dispensing.

Warning! Never reach into the dispenser opening of the freezer door!

Note:

• During the ice cube or shredded ice dispensing, different mechanical sounds will be audible. This is normal and no reason for complaint.
• The water and ice dispensing only works when the freezer door is closed.
  If you have not taken cold water for several days, pour the first few cups of water away to avoid bacterial infections.

Door height adjustment

If the doors do not close properly or are not aligned, the height can be adjusted.
Use the wrench provided (b) to loosen the counter nut (c) and then adjust the height of each door by turning the adjusting nut (a) with the wrench (b). If the height is correct and both doors are aligned, tighten the counter nut (c) again.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If an ice layer has built, defrost the unit. A thick ice layer affects the transmission of the cold, thus the energy consumption will be increased.
• When taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
• Select the temperature regulator setting according to the filling amount of the product.
• Use drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the energy consumption can be minimized.
• It's advised not to remove the provided accessories, such as drawers, shelves, balconies, as this might increase the energy consumption, due to inefficient storage of food.

Cleaning and care

Warning

• Unplug the product before cleaning.
• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).
• Wipe the door seal with clean water only, and dry it thoroughly afterwards.
• Removable parts e.g. glass shelves, can be taken out for cleaning.
• Pull out the ice cube maker 2 times a year and rinse the box inside with detergent and warm water. Install the ice cube maker box when it is dry.

Decommissioning

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
• Unplug the product.
• Clean the interior of both compartments and let them dry.
• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)
• Let the doors open to avoid the formation of unpleasant odors and mold.
• Close the water supply.

Technical data

Rated current : 2.5 A

Energy Consumption

kWh/24h : 0.809 kWh

kWh/year : 317 kWh

Net capacity of refrigerator : 334 L

Net capacity of freezer : 182 L

Freezing capacity : 14kg/24h

Ambient temperature : 16°C - 43°C

Measurement (HxWxD):

1788 x 895 x 745 mm

Depth with door open : 1139 mm

Four-star compartment

Storage Volume : 138 L

Two-star compartment

Storage Volume : 18 L

based on EN 62552: 2020

This product is intended to be used in climate classes from N to T.

Climate class	Ambient temperature
N +16 to	+32 °C
ST +16 to	+38 °C
T	+16 to +43 °C

Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifier, which can be found on the panel of the device as well as on the energy label or simply scan the QR-code on the energy label to access the model information.

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as avoidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes	Solution
Product does not work • Intertrupted power supply • Check the power supply
Temperature in the compartments is not low enough.	• The door is not closed firmly or it is opened to often.	• Rearrange the food so that the door can be closed firmly.
	• The ambient temperature is lower than 10°C or higher than 43°C	• The product is intended to be operated in an ambient temperature of 10°C to 43°C
Water gathers in the lower part of the compartment	• The food comes in contact with the rear wall of the compartment	• Move away the food or containers from the rear wall
The interior lamp doesn’t shine	• Lamp is defect • Contact service center

Error codes

Error Code	Fault Description
E0 Mechanical fault of ice maker
E1 Circuit fault of refrigerating temperature sensor
E2 Circuit fault of Freezing temperature sensor
E5 Circuit fault of evaporator heater sensor
E6 Communication fault
E7 Circuit fault of ambient temperature sensor
EE Circuit fault of ice maker sensor
EH Circuit fault of ambient humidity sensor

Alarm function

This product is equipped with an alarm.

An alarm will sound, when an opened door isn't closed within 120s after opening it. To turn off the alarm, close the respective door or push any button on the control panel.

An alarm will also sound, if the temprature of the freezer compartment rises above -8^ . In addition the error code E2 will be displayed.

Storage of food and beverages

Area Recommended food and temperature setting
A	Fridge compartment (4℃) - Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts - Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers
B Door shelf (4℃) Storage of drinks, milk, yogurt, eggs and butter.
C Fruit and vegetable compartment (4℃)
D Freezer (-18℃) Foods for long-term storage - Top drawer and door shelf: Storage of frozen food and ice cream. - Middle drawers: storage for raw meat, poultry, fish - Bottom drawers: storage for frozen vegetables, chips

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge compartment

• Use containers made from recycled plastic, metal, aluminum and glass as well as plastic wrap to pack food.
• Liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.
• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.
• Foods that give o a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten

the storage time; For example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.
• Do not store food too close to one another to allow su cient air circulation.
• The recommended temperature setting for the fridge compartment is 4^ . If set, foodstuffs can be usually stored for a few days.

Recommendations when refrigerating food

• Store fresh and undamaged food. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.
• Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The recommended temperature for the freezer compartment is -18^ .
• Storage time of frozen food: not longer than 1-3 month.
• The storage period specified on the packaging is decisive for commercially available frozen products.

Recommendations when freezing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.
• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.

Note: Storage of foods at the wrong temperature may lead to an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperature may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18^ or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.
• Fish, shrimp, lamb, meat: 4-8 months.
  Vegetables, fruits, poultry, beef: 6-12 months.

Compartment 4 étoiles

Compartment 2 étoiles

Sigmaeic yia Tnv uEtn Twv TpoipuW

Nominate stroom : 2.5 A

Energieverbruik

kWh/24u : 0,809 kWh

kwh/jaar : 317 kWh

Storage of food and beverages

Refrigerator temperature setting

Freezer temperature setting

Sek. Dondurucu sicutigini-16 ile-24°C araliginda 1°C adimlarla ayarlamak icin FRZ.TEMP.dugmesine basin. Ayarlama sonrasinda ayar otomatik kaydedilmeden once ekran 5 saniye yanip söner.

Sogutucusicaklikayari

Sek.10 Sogutucu sicutigi 2 ile 8^ araliginda 1°C adimlarla ayarlamak icin REF. TEM. dugmesine basin. Ayar yapildiktan sonra ekran 5 saniye sureyle yanip söner.
