Product Type	Crane outrigger pad (set of 4)
Model	MSW-CP-500-18
Dimensions (L x W x H)	500 x 500 x 50 mm
Total weight (set of 4)	48.22 kg
Maximum load capacity per pad	18 tons
Primary material	High-density polyethylene (HDPE) or resistant composite material
Product color	Multicolor (usually black with green handle)
Handle color	Green
Intended use	Stabilizing and leveling cranes, excavators, trucks and other machinery on soft or uneven ground
Maintenance and cleaning	Clean with a soft cloth and soapy water; avoid harsh chemicals; store in a dry place away from sunlight
Safety of use	Read complete instructions before use; do not exceed maximum load; use on stable, level ground; inspect before each use
Spare parts and repairability	Contact MSW after-sales service for any spare parts; no user-serviceable parts
Warranty	Refer to the instructions for warranty conditions
Safety standards	Manufactured in accordance with current CE standards
Included accessories	4 outrigger pads with handles

Frequently Asked Questions - CP-500-18 MSW

How to correctly use MSW-CP-500-18 outrigger pads?

Place the pad on a flat, stable surface, then position the machine's stabilizer at the center of the pad. Ensure that the contact surface between the stabilizer foot and the pad covers at least 1/3 of the pad surface. Never exceed the maximum load capacity of 18 tons per pad.

What is the maximum load capacity of the pad?

The maximum load capacity is 18 tons per pad for the MSW-CP-500-18 model. It is imperative not to exceed this limit to avoid any risk of failure.

Can I use these pads on sloped or uneven ground?

No, the pads should only be used on a flat and stable surface. Use on sloped or uneven ground may reduce stabilization effectiveness and increase accident risk.

How to maintain the outrigger pads?

Clean them regularly with a soft cloth and soapy water. Avoid solvents, acidic products, or metal tools. Store them in a dry, cool place away from sunlight to extend their lifespan.

Are these pads compatible with all types of cranes?

The pads are suitable for most cranes, excavators, and trucks equipped with stabilizers. Check that the stabilizer foot surface does not exceed 1/3 of the pad surface (approx. 166x166 mm) to ensure proper load distribution.

What should I do if a pad is damaged?

Stop using it immediately and contact MSW after-sales service. Do not attempt to repair the pad yourself; any modification may compromise its strength and safety.

Are the pads delivered with a user manual?

Yes, a user manual is included in the package. It contains safety instructions, technical specifications, and essential usage instructions.

Can I use the pads in rain or on wet ground?

Yes, but inspect the ground carefully before placement. Waterlogged ground may settle or deform under load, reducing stability. Ensure the pad rests uniformly on its entire surface.

What is the weight of a single pad?

The total weight of the set of 4 pads is 48.22 kg, giving approximately 12.055 kg per pad. Handles make transport easier.

Are the pads resistant to UV and weather?

Yes, they are designed to withstand outdoor conditions. However, prolonged exposure to direct sunlight may alter color and accelerate aging. It is recommended to store them in a sheltered place after use.

USER MANUAL CP-500-18 MSW

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality.

Explanation of symbols

Please read the instructions before use.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "appliance" or "product" in the warnings and in the description of the instructions refers to the CRANE PADS - 4PCS.

2.1. Safety

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.

b) If damage is found, contact the manufacturer's service department.

c) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)

d) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.

e) Do not operate this unit if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the unit.

f) The product may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.

g) The product is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.

h) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
i) Use caution and common sense when operating this appliance. A moment's inattention during operation may result in serious personal injury.
j) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
k) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. These units is dangerous in the hands of inexperienced users.
I) Keep the unit in good working condition. Inspect before each operation for damage (cracks or any other condition that may affect the safe operation of the unit).
m) Clean the unit regularly to prevent permanent dirt build-up.
n) Keep the unit away from sources of fire and heat.
o) Do not overload the unit.
p) Exceeding the maximum allowable user weight may result in product damage.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

The product is used to immobilize, secure, stabilize machinery on a demanding surface.

It is designed for stabilizer feet of cranes, excavators, trucks, etc.

The user is responsible for any damage resulting from misuse.

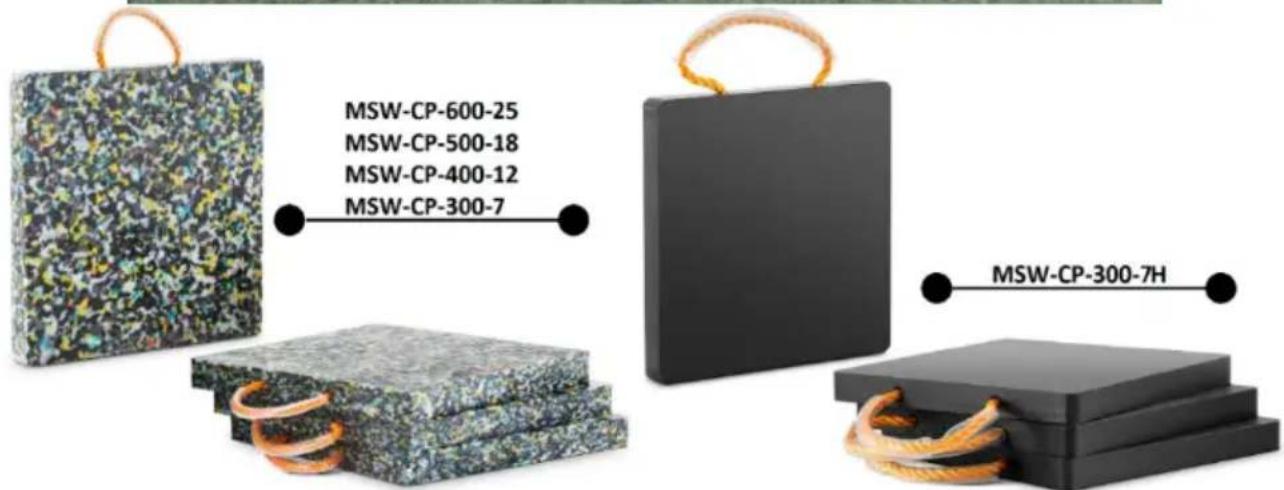

3.1. Description

3.2. Preparation for operation

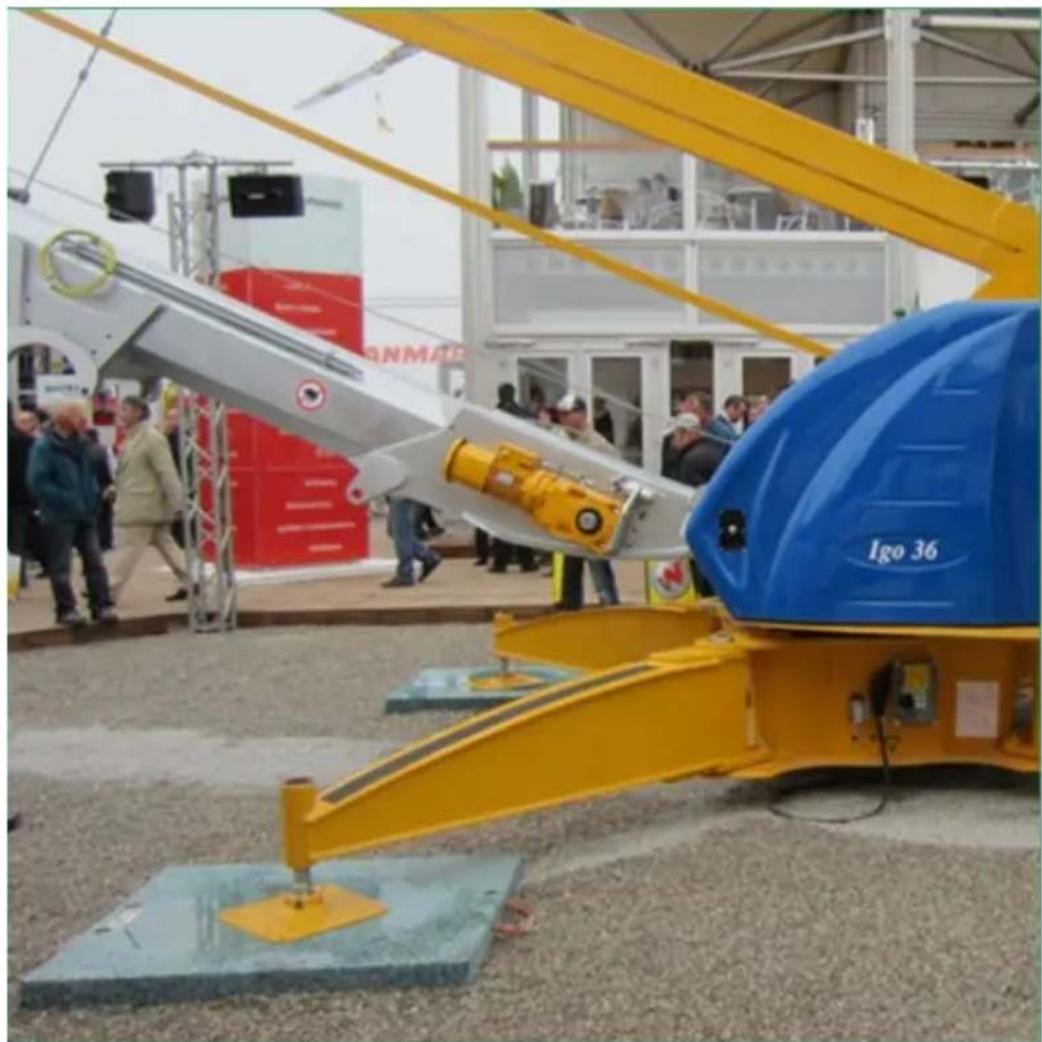

POSITIONING OF THE UNIT

The device should always be used on a level, stable surface, ensuring that the underlay adheres to the substrate with its entire surface.

The load-bearing capacity of the pads is guaranteed by maintaining the design proportions. The contact area between the stabilizer foot (2) and the pad (1) must not be less than 1/3 of the pad area.

The pad underneath the stabilizer legs must be centered.

CAUTION! Always select the base plate according to the load capacity of the unit!

The sub-floor under the base plate must be checked especially during heavy rainfall.

3.3. Cleaning and maintenance

a) After each cleaning, all the parts should be dried well before the unit is used again.

b) Store the unit in a dry and cool place protected from moisture and direct sunlight.

c) Perform regular inspections of the unit checking technical fitness and any damages.
d) Use a soft cloth for cleaning.
e) Do not use sharp and/or metal objects (e.g. a wire brush or metal spatula) for cleaning, as these may damage the surface of the material from which the unit is made.
f) Do not clean the unit with acidic substances, medical products, diluent, fuel, oil or other chemicals as this may cause damage to the unit.
