USER MANUAL S-LS-10 Stamos

TECHNISCHES DATENBLATT

General safety information for the use of electrical devices:

To avoid injury from fire or electric shock, please ensure compliance with safety instructions when using this device. Please read the instruction carefully and make sure that you have understood it well. Keep the manual near the equipment to be able to read it at any time. Always use current sources connected to the ground and providing the necessary voltage (indicated on the label on the device). If you have any doubt, let an electrician check that your outlet is properly grounded. Never use a damaged power cable. Do not open the unit in damp or wet environment, or if you are wet yourself. Protect the unit of solar radiation. Use the device in a protected location to avoid damaging the equipment or endangering others. Make sure the device is able to cool and avoid placing it too close to other devices that produce heat. Before cleaning, disconnect it. Use a soft damp cloth for cleaning. Avoid using detergent and make sure that no liquid enters the unit. No internal element of this device needs to be maintained by the user. An opening of the device without our approval leads to a loss of warranty.

General safety information for the use of the device:

• The user manual should be kept close to the device and should always be accessible for the users. Instruct your employees how to use the device properly.
• Make sure the hot air can circulate well and place the device more than 10cm away from walls and other electrical devices. Aerate well the working area.
• Do not place the device close to combustible materials.
  It may happen that by first use, the heating element produces a light smoke. This is absolutely normal. Simply check that the smoke can evaporate and that a good aeration is provided.
• Clean the device regularly to avoid a durable encrustation of dirt.

TECHNICAL DETAILS

Model 6109 S-LS-10
Voltage (V) 230 ~ 50Hz
Rated current (A) 15
Power (W) 1270
Work temperature (°C)	0 / +40
Storage temperature (°C)	-20 / +80
Storage humidity 35% / 45%
SOLDERING IRON
Temperature range (°C)	200-480
Output power (W) 75
Temperature stability	±1 °C
Tip ground resistance < 2ohm
Tip ground voltage < 2mV

SMD REWORK
Temperature range (0°C)	100 - 480
Output power (W) 650
Temperature stability	± 10C
Airflow (L/min) 130
PREHEATER
Temperature range (0°C)	50 - 400
Temperature stability	± 20C
Plate dimensions (mm) 120 x 120

USAGE PURPOSE

The device is designed for:

I. Different kind of soldering, de-soldering of the electronic components such as: SOIC, CHIP, QFP, PLCC, SMD, etc. especially for BGA modules, motherboards in electronic devices.
2. Shrinking, paint drying, adhesive removal, thawing, warming, plastic welding.

Any damage resulting from a non-conform use of the device is payable by the user!

I. SMD rework gun cable
2. SMD rework gun switch on/off
3. preheater switch on / off
4. soldering iron switch on / off
5. soldering iron connection socket
6. soldering iron temperature decreasing button
7. soldering iron temperature increasing button
8. preheater temperature decreasing button
9. preheater temperature increasing button
10. SMD rework gun temperature decreasing button
11. SMD rework gun temperature increasing button
12. soldering iron heating indicator
13. preheater heating indicator
14. SMD rework gun heating indicator
15. soldering iron temperature display
16. preheater temperature display
17. SMD rework temperature display
18. airflow volume indicator
19. airflow volume adjustment knob

BEFORE FIRST USE

Upon receipt of the goods, check the packaging for integrity and open it. If the packaging is damaged, please contact your transport company and distributor within 3 days, and document the damages as detailed as possible. Do not turn the package upside down! When transporting the package, please ensure that it is kept horizontal and stable. Please keep all packaging materials (cardboard, plastic tapes and styrofoam), so that in case of a problem, the device can be sent back to the service centre in accurate condition.

Disposing of packaging

The various items used for packaging (cardboard, plastic straps, polyurethane foam) should be conserved, so that the device can be sent back to the service center in best conditions in case of problem!

INSTALLING THE APPLIANCE

Appliance location

The work surface where the device will be located must be suitable for the size of the appliance, please refer to the measurements.

The work surface must be levelled, dry, heat-resistant and at a fitting height from the ground to enable a proper use of the device.

The power cord connected to the appliance must be properly grounded and correspond to the technical details.

SMD REWORK STATION

I. Device must be placed on stable work table, SMD rework gun must be placed into the holder.
2. Fix the appropriate nozzle and connect the device to the power source.
3. Turn on the device with the main switch placed at the back of the device, turn on the SMD rework gun with switch (2), gun will start to heat.
4. Temperature setting: using buttons (10) and (11) set the desired temperature. Heating indicator (14) will be flashing regularly when the gun reaches desired temperature.
5. Airflow volume adjustment: set the desired airflow volume using knob (19). Airflow volume will be shown on the indicator (18).
6. After work, the SMD rework gun should be placed into the holder. Turn off the SMD rework by switch (2).
7. If the device is not using for a long time, it should be completely disconnected from the power source.
8. NOTE: It is forbidden to cover the air intake holes on the handle of a SMD rework gun during work. This may cause serious damages of the fan and the heater!

SOLDERING IRON OPERATION

I. Device must be placed on stable work table, soldering iron must be placed into the holder.
2. Fix the appropriate soldering tip and connect the device to the power source.
3. Turn on the device with the main switch placed at the back of the device, turn on the soldering iron with switch (4), it will start to heat.
4. Temperature setting: using buttons (6) and (7) set the desired temperature. Heating indicator (12) will be flashing regularly when the soldering iron reaches desired temperature.
5. After work, the soldering iron should be placed into the holder. Turn off the soldering station by switch (4).
6. If the device is not used for a long time, it should be completely disconnected from the power source.

PREHEATER OPERATION

I. Device must be placed on stable work table.
2 Connect the device to the power source.
3. Turn on the device with the main switch placed at the back of the device, turn on the preheater plate with switch (3), it will start to heat.
4. Temperature setting: using buttons (8) and (9) set the desired temperature. Heating indicator (13) will be flashing regularly when the soldering iron reaches desired temperature.
5. After work, turn off the preheating plate by switch (3).
6. If the device is not used for a long time, it should be completely disconnected from the power source.

GENERAL REMARKS

If the display is showing the , it means that the output temperature is lower than 100^ , SMD rework station is in stand by mode, SMD rework gun is placed in the holder.
2. If the display is showing "S-E" it means that soldering iron is disconnected, and HOT AIR gun is having problem with the heat sensor.
3. When the device is being turned on, both soldering iron and HOT AIR gun should be placed in their holders.
4. The outlet of the SMD rework gun should be clean and free from any obstacles.
5. When using small nozzles, it should be remembered that the air flow should be suitable to the diameter of the fixed nozzle. In order to avoid any SMD rework gun damages, too high air flow along with the high temperature mustn't be used for a long period of time.
6. Depending on user's needs, different air flow settings may cause slight variations in temperatures value. The minimum distance between the outlet of the HOT AIR gun and the subject is 2mm .
7. Good ventilation of the room in which the appliance is used must be provided. In addition, the device should be placed in a location with good air circulation to dissipate heat.

SAFETY ISSUES REMARKS

1. Nozzles should be installed without the use of excessive force, also do not use the pliers or tweezers. Do not over tighten the mounting screws of the nozzle.
2. Tips and nozzles can be changed when the SMD rework gun and the soldering iron are completely cold.
3. It is forbidden to use the device near the flammable or combustible elements and objects or at similar places. Tips and nozzles as well as the air coming out of the HOT AIR gun have very high temperature, it is forbidden to touch these elements as well as it is forbidden to put the hot air directly to face or body. This can cause serious burns.
4. After long time of use, the outlet of SMD rework gun may be covered with some dust. The outlet should be cleaned on a regular basis in order to ensure undisturbed air flow.
5. Too high temperature of the soldering iron may be the cause of reduction of the functionality of the soldering tips.
6. Soldering iron tip must be cleaned regularly using sponge and plate on a layer of tin to prevent tips oxidation.

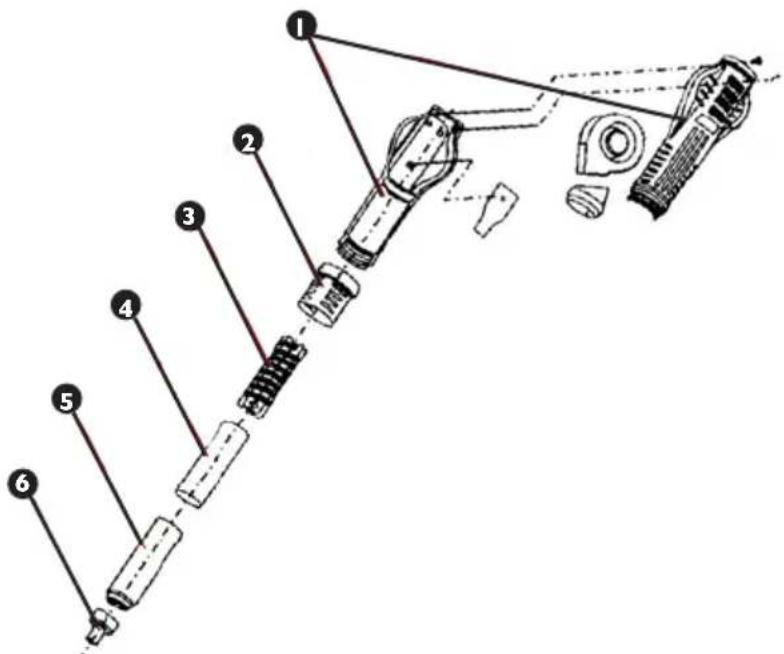

REplacement of HOT AIR REWORK HEATING ELEMENT

I. HOT AIR gun covers
2 element of the handle
3. heater
4. heater cover
5. outlet pipe
6. nozzle

1. Before heater replacement make sure that the SMD rework gun is completely cold.
   2 Remove the screws in the gun covers.
2. Unscrew the element of the handle (2) and take off the gun covers.
3. Gently remove the fan and remove the wire board screws.
4. Disconnect the heater from the wire board (pay attention to the wires connection order).
5. Remove the heater from the housing, pay attention to the steel grounding wire.
6. New heater should be wrapped with new mica paper and then it should be placed inside the housing.
7. Connect the wires to the board in accordance with their original connection method.
8. Fix the gun in reverse order.

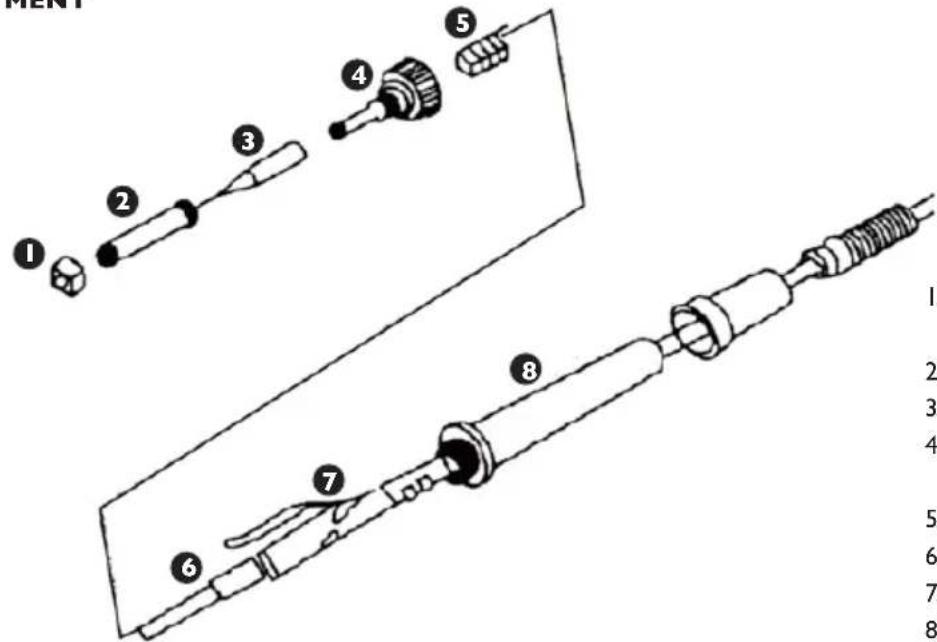

REPLACEMENT OF THE SOLDERING IRON TIP AND SOLDERING IRON HEATING CORE ELEMENT

I. nut for mounting the soldering iron tip housing
2. soldering iron tip housing
3. soldering iron tip
4. plastic nut for mounting the heater and the board wires
5. spring
6. heater
7. wires board
8. handle

Before heater replacement make sure that the soldering iron is completely cold.

I. SOLDERING IRON TIP REPLACEMENT: remove the nut for mounting the soldering iron tip housing and take off the housing. Replace the tip with the new one, place the housing and fix all with the plastic nut.
2. HEATER REPLACEMENT: remove the nut for mounting the soldering iron tip housing and take off the housing along with the tip. Remove the nut for fixing the heater (4) and gently remove the heater (6) along with the board with wires (7). Replace the whole remembering the wires connection order.

REGULAR CLEANING

Generalities

• Never clean the device with a pressurized water-jet, industrial cleaners, and brushes or any other type of cleaning utensil that could damage the surface of the appliance.
• Before cleaning you must remove the electricity supply plug isolating the appliance from the main power circuit.

REGULAR CONTROL OF THE DEVICE

Control regularly that the device doesn't present any damage. If it should be the case, please contact your customer service to solve the problem.

What to do in case of problem?

Please contact your customer service and prepare following information:

• Invoice number and serial number (the latest is to be found on the technical plate on the device).
• If relevant, a picture of the damaged, broken or defective part.
• It will be easier for your customer service clerk to determinate the source of the problem if you make a detailed and precise description of the matter. Avoid formulations like "the device doesn't heat", which may mean that it doesn't heat enough or even not at all. Though, those two possibilities have a different causation!

The more detailed your information, the quicker the customer service will be able to answer your problem rapidly and efficiently!

CAUTION: Never open the device without the authorization of your customer service. This can lead to a loss of warranty!

IPL

ZALECENIA ODNOŚNIE BEZPIECZENSTWA

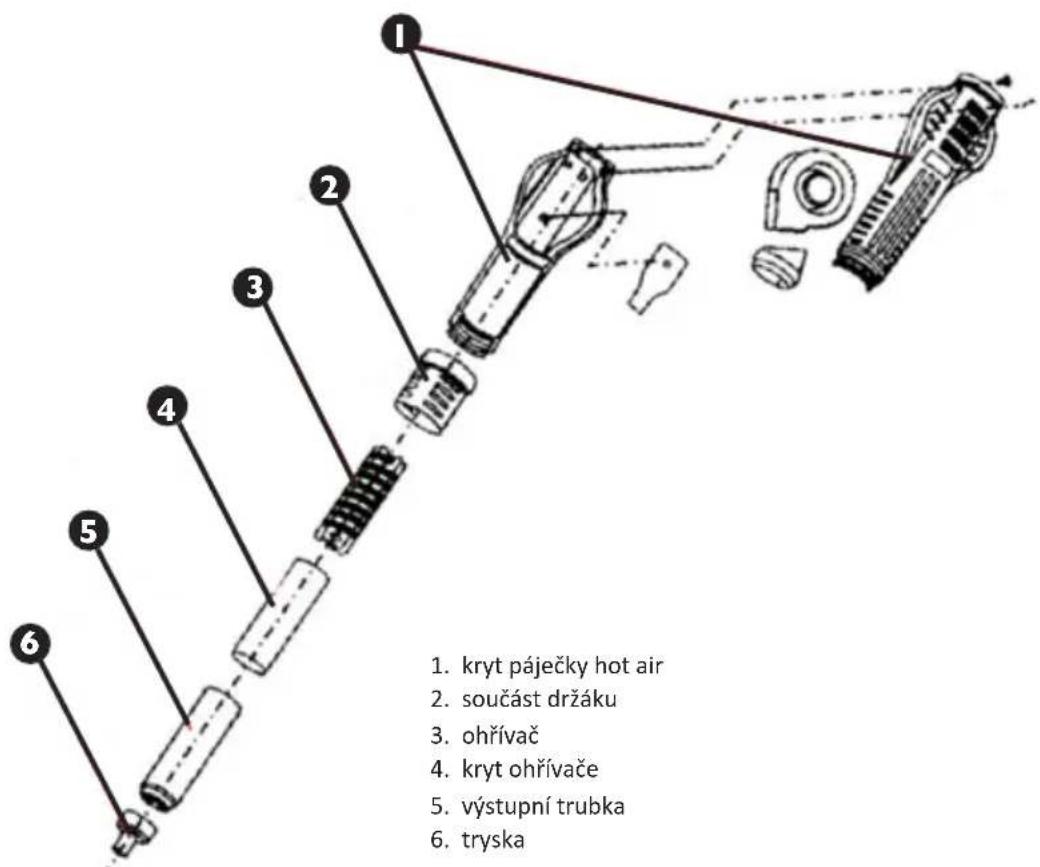

VYMENA OHRIVACE PAJECKY HOT AIR

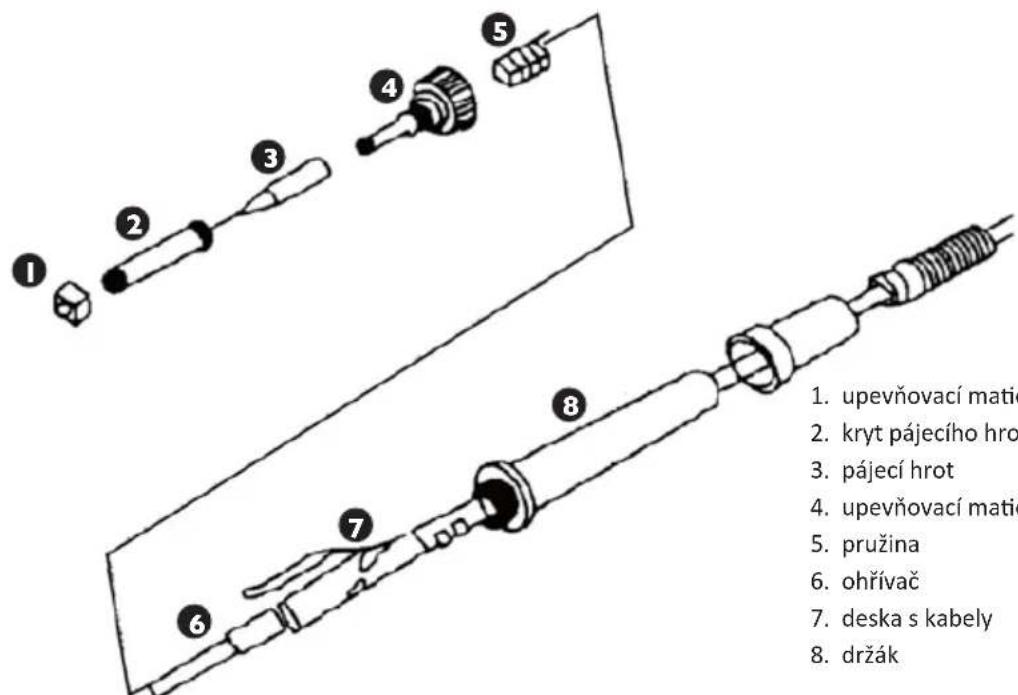

VYMENA OHRIVACE A HROTU PAJECKY

We hereby certify that the appliances listed in this manual are CE compliant.

FR

For the disposal of the device please consider and act according to the national and local rules and regulations.
