Product type	20 L Meat Mixer
Brand	Royal Catering
Model	RCFW-20-PRO
Power supply voltage	230 V ~ 50 Hz
Rated power	550 W
Tank capacity	20 L
Rotation speed	20 rpm
Dimensions (L × W × H)	520 × 320 × 580 mm
Net weight	40 kg
Main material	Stainless steel
Direction of rotation	Clockwise and counterclockwise
Functions	Mixing, marinating
Recommended use	Meats and fish
Control panel	ON/OFF buttons and direction selector
Locking system	Inlet and outlet protection with locking mechanism
Cleaning	Disconnect, clean with a soft cloth, do not immerse
Maintenance	Inspect regularly, avoid abrasive products
Electrical safety	Compatible plug, use an RCD in humid environment
Mechanical safety	Automatic stop in case of overload, do not insert hands
Repairability	Spare parts available via manufacturer's after-sales service
Compliance	CE
Warranty	2 years
Package contents	Appliance, user manual

Frequently Asked Questions - RCFW-20-PRO Royal Catering

How to start the appliance?

Make sure the inlet and outlet protection is closed and locked, then plug in the appliance. Press the ON button corresponding to the desired direction of rotation (clockwise or counterclockwise).

What to do if the agitator is blocked?

Do not disassemble the appliance. Change the direction of rotation by pressing the other ON button to release the stuck product. If the problem persists, unplug and manually remove the obstacle.

What is the maximum capacity of the tank?

The maximum capacity is 20 litres. Do not exceed this limit to avoid overload and motor overheating.

How to clean the appliance?

Unplug the appliance and let it cool down. Use a soft cloth with a mild cleaning product for food surfaces. Never immerse the appliance in water and do not rinse it with a jet.

Can the appliance be used for foods other than meat?

Yes, it is also suitable for fish and other food products requiring mixing or marinating. Do not use it for non-food materials.

What electrical risks should be avoided?

Do not use the appliance with wet hands, do not pull on the cable, and do not use the appliance if the cable is damaged. In a humid environment, use a residual current device (RCD).

What to do if the appliance overheats?

Check that the supply voltage is correct and that the tank is not overloaded. Reduce the load and let it cool down before restarting. If the problem persists, contact after-sales service.

Is the appliance under warranty?

Yes, this appliance comes with a 2-year warranty against manufacturing defects. Keep the purchase invoice and manual for any claims.

How to disassemble the agitator after use?

Unplug the appliance and wait for all moving parts to stop completely. Open the chamber protections, then remove the agitator shaft by pulling it gently. Clean and dry before storing.

Can I use non-original spare parts?

It is highly recommended to use only original parts supplied by the manufacturer or its after-sales service to ensure the safety and reliability of the appliance.

USER MANUAL RCFW-20-PRO Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

DE	Produktname:	FLEISCHMISCHER 20L
EN	Product name:	MEAT MIXER 20L
PL	Nazwa produktu:	MIESZALNIK 20L
CZ	Název výrobku	MÍCHAČKA MASA 20 L
FR	Nom du produit:	MÉLANGEUR À VIANDE 20 L
IT	Nome del prodotto:	IMPASTATRICE PER CARNE 20 L
ES	Nombre del producto:	MEZCLADORA DE CARNE 20 L
HU	Termék neve	20 literes KEVERŐ
DA	Produktnavn	BLENDER 20L
DE	Modell:	RCFW-20-PRO
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technische Daten

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and shafts (no text or symbols beyond labels)

Parameter description	Parameter value
Name of the product	MEAT MIXER 20L
Model	RCFW-20-PRO
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	550
Dimensions (Width / Depth / Height) [mm]	520x320x580
Weight [kg]	40
Volume [L]	20
Operational speed [rpm]	20
Vessel dimensions [mm]	280x320

1. General description

These instructions are intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

READ THE INSTRUCTIONS CAREFULLY AND UNDERSTAND THEM BEFORE USE.

To ensure long and reliable operation of the device, care should be taken to operate and maintain the device correctly in accordance with the instructions. The technical data and specifications contained in these instructions are up-to-date. The manufacturer reserves the right to make changes for the purpose of quality improvement. Taking technological progress and the possibility to reduce noise into account, the device is designed and built so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE

The product meets the requirements of relevant safety standards.

	Read the instructions before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
	Use shield.
	CAUTION! Risk of electric shock!
	CAUTION! Risk of crushing hands!
	For indoor use only.

The original version of the instructions is the German version. Other language versions are translations from German.

2. Safe use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and instructions refers to the MEAT MIXER 20L.

2.1. Electrical safety

a) The device plug must fit into the socket. Do not modify the plug in any way. Original plugs and matching sockets reduce the risk of electric shock.

b) Do not touch the device with wet or damp hands.

c) Do not use the cable in a wrong way. Never use it to carry the device or to pull the plug out of the socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

d) If you cannot avoid using the device in a wet environment, use a residual current device (RCD). Using an RCD reduces the risk of electric shock.

e) Do not use the device if the power cable is damaged or shows clear signs of wear. A damaged power cable should be replaced by a qualified electrician or the manufacturer's service.

f) To avoid electric shock, do not immerse the cable, plug or device itself in water or other liquid. Do not use the device on wet surfaces.

g) Do not use the device in high humidity rooms or in a direct vicinity to a water tanks!

h) The device must not get wet. Risk of electric shock!

2.2. Safety in the work area

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the device.

b) Do not use the device in an area with a risk of explosion, for example in the presence of flammable liquids, gases or dust. The device produces sparks which can ignite dust or vapours.

c) In the event of damage or malfunction of the device, it must be switched off immediately and the incident must be reported to an authorised person.

d) If in doubt as to whether the product is working properly or if you detect damage, contact the manufacturer's service.

e) Repairs of the product may only be carried out by the manufacturer's service. Do not carry out repairs yourself!

f) If in doubt as to whether the device is working properly, contact the manufacturer's service.

g) Repairs to the device may only be carried out by the manufacturer's service. Do not carry out repairs yourself!

h) In the event of fire or fire, use only powder or snow (CO2) extinguishers to extinguish fire in the device where there is voltage.

i) No children or unauthorised persons are allowed in the work area. (Lack of attention may result in loss of control over the device).

j) Use the device in a well-ventilated room.

k) Keep these instructions for future reference. If the device is to be passed on to third parties, the instructions for use must be handed over together with the device.

I) Keep the device away from children and animals

Remember! Keep children and other bystanders safe while operating the device.

2.3. Personal safety

a) Do not operate the device if you are tired, ill or under the influence of alcohol, drugs or medication which might impair your ability to operate the device.

b) The device may only be operated by persons who are physically fit, capable of handling the device and who have been adequately trained, who have read these instructions and have received training in health and safety.

c) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have been given instructions by them on how to operate the device.

d) Be careful and use common sense when operating the device. A short moment of distraction during operation may lead to serious personal injury.

e) To prevent accidental start-up, make sure the switch is in the OFF position before connecting the device to the power source.

f) Do not overestimate your capabilities. Maintain body balance at all times during operation. This allows for better control of the device in unexpected situations.

g) Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothing, jewellery or long hair can be caught by moving parts.

h) The device is not a toy. Children should be supervised to ensure that they do not play with the device.

i) Do not put your hands or objects inside the working device!

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the given application. A correctly selected device ensures better and safer performance of work.

b) Do not use the device if the ON/OFF switch does not function properly (does not switch on and off). Devices that cannot be controlled by the switch are dangerous, must not be operated and must be repaired.

c) Pull the plug out of the socket before making adjustments, changing accessories or storing the device. This preventive measure reduces the risk of accidental activation.

d) The device must be disconnected from the power supply before adjustment, cleaning and maintenance. This preventive measure reduces the risk of accidental activation.
e) Keep unused devices out of the reach of children and anyone not familiar with the device or these instructions. Devices are dangerous in the hands of inexperienced users.
f) Keep the device in good working order. Before each use, check for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use.
g) Keep the device out of the reach of children.
h) Repair and maintenance of the device should be carried out by qualified persons using only original spare parts. This will ensure a safe use of the device.
i) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen any screws.
j) When transporting and moving the device from the place of storage to the place of use, follow the health and safety regulations for manual transport that apply in the country in which the device is used.
k) Avoid situations where the device stops under heavy load during operation. This can cause overheating of the drive elements and subsequent damage to the device.
I) Do not touch moving parts or accessories unless the device has been disconnected from the power supply.
m) Do not move, shift or rotate the device during operation.
n) Do not leave the switched on device unattended.
o) Clean the device regularly to prevent the permanent accumulation of dirt.
p) The device is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
q) It is forbidden to tamper with the device in order to change its parameters or construction.
r) Keep the device away from sources of fire and heat.
s) Do not cover the vents of the device!

CAUTION! Although the device has been designed to be safe and has been equipped with adequate safeguards, and despite the use of additional safety measures, there is still a small risk of accident or injury when operating the device. Caution and common sense are advised when using the device.

3. Rules of use

The device is intended for pickling and mixing meat and fish products.

The user is responsible for any damage caused by improper use.

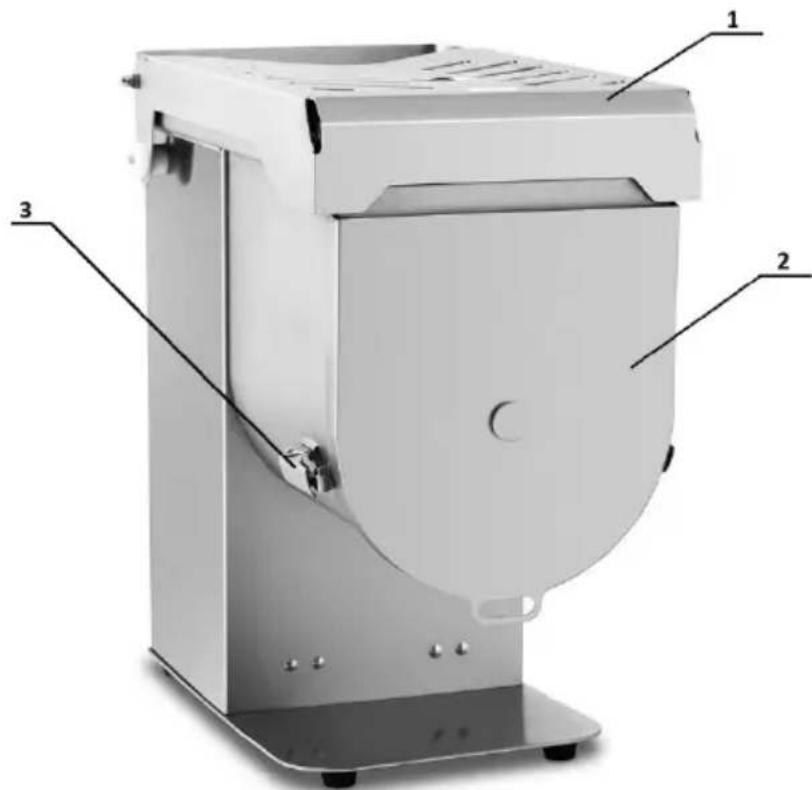

3.1. Description of the device

1 – Shield of the mixer chamber inlet
2 – Shield of the mixer chamber outlet
3 – Chamber locking mechanism

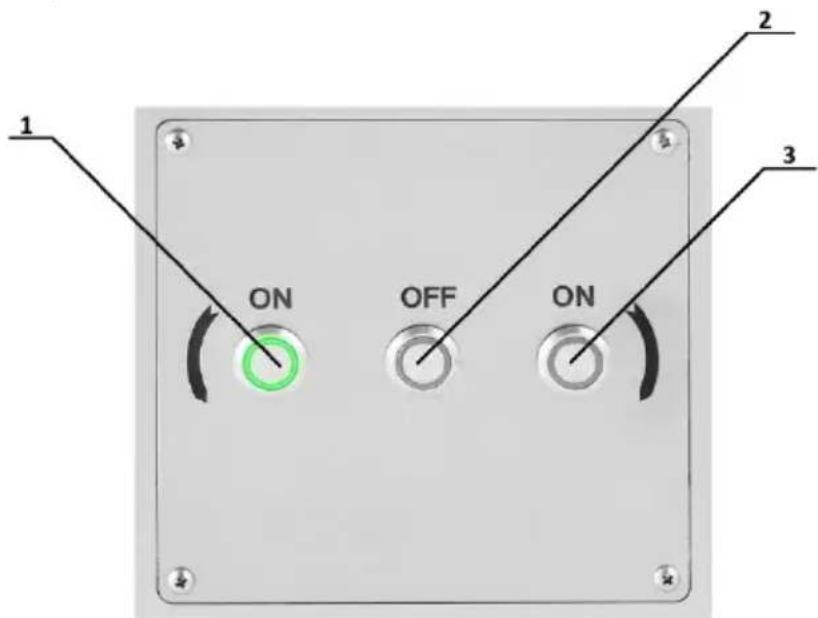

Machine control panel

1 - Device start button. The agitator rotates anti-clockwise
2 - Device switch off button
3 - Device start button. The agitator rotates clockwise

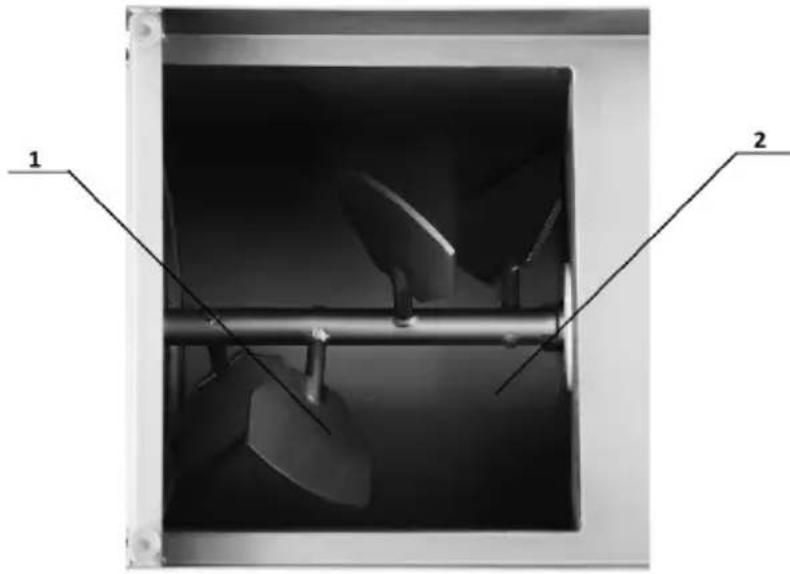

Device chamber

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and shafts (no text or symbols beyond labels)

1 - Agitator
2 - Device chamber

3.2. Preparation for work

LOCATION OF THE DEVICE

The ambient temperature should not exceed 40^ C and the relative humidity should not exceed 85%. Position the device in a way that allows for good air circulation. Maintain a minimum distance of 10 cm from any wall. Keep the device away from any hot surfaces. Always operate the device on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons with reduced mental, sensory and intellectual abilities. Position the device in such a way that the power supply plug can be reached at any time. Make sure that the device's power supply corresponds to the data on the rating plate!

Prior to first use disassemble all elements and wash them.

ASSEMBLY OF THE DEVICE

3.3. Working with the device

a) Open the cover of the inlet and outlet of the mixing chamber of the machine.
b) Insert the agitator arbor into the hole inside the chamber, press down.
c) Lower the chamber outlet cover and lock it with the locking mechanism.
d) Connect the power supply cable to the power socket.
e) Switch the device on with the "ON" button. The switch indicator light will turn on. Independently of the button selection the device will start.
f) The food products are fed to the agitator through the chamber inlet.

g) After completing operation of the device, switch it off with the "OFF" button. The indicator light will turn on.

h) Unlock the chamber outlet cover and remove the processed food products.

i) Disconnect the power supply cable.

j) The mixing mechanism disassembly is done in reverse order to its assembly.

k) Clean the machine.

NOTE! The agitator features two operation modes. Rotation clockwise and anti-clockwise. By selecting the proper "ON" button located on the control panel, the user determines the direction of agitator rotation.

NOTE! In the event the processed food products become locked inside the chamber it is not necessary to disassemble the device. In order to loosen the jammed product, switch the direction of rotation to opposite of the currently used.

3.4. Cleaning and maintenance

a) Before cleaning, adjustment or replacement of accessories, and when the device is not in use, pull the power supply plug and let the device cool down completely.

- Wait until the spinning elements stop.

b) Before cleaning and when the device is not in use, pull the power supply plug.

c) Use only non-corrosive agents for cleaning the surface.

d) Only mild cleaning agents designed for cleaning surfaces which come into contact with food may be used to clean the device.

e) After each cleaning, all components should be well dried before the device is used again.

f) Store the device in a dry and cool place protected from moisture and direct sunlight.

g) Do not spray the device with a stream of water and do not immerse it in water.

h) Ensure that no water enters through the ventilation openings in the housing.

i) Clean the ventilation openings with a brush and compressed air.

j) Regularly inspect the device for technical failure and damage.

k) Use a soft cloth for cleaning.

I) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or metal scraper) as these may damage the surface of the device.

m) Do not clean the unit with acidic substances, medical products, thinners, fuel, oil or other chemicals as they may damage it.

DISPOSAL OF USED DEVICES

At the end of its service life, this product must not be disposed of with normal household waste, but should be taken to a collection point for the recycling of

electrical and electronic devices. This is shown by the symbol placed on the product, operating manual or the packaging. The materials used in the device can be reused according to their intended use. By reusing materials or conducting other forms of using used devices, you make a significant contribution to the protection of our environment.

Local administration will provide you with information about the appropriate point for disposal of used devices.

TROUBLESHOOTING

Problem	Possible cause	Action
The device does not turn on after the “ON” button is pressed.	1. Check the connection of the power supply cable to the socket2. Power outage3. Presence of foreign material in the grinding mechanism	1. Connect the power supply cable to the power socket2. Check fuses3. Remove the foreign material
Device is working improperly or it is overheating	1. Voltage in the power supply socket too low2. Machine is overloaded	1. Check the level of voltage in the power supply sockets2. Clean the products of tendons, cartilage and cut large product pieces into smaller portions

Dane techniczne

Interior view of a mechanical device with labeled parts (1 and 2), showing internal components without any text or symbols.

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and shafts (no text or symbols beyond labels)

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and shafts (no text or symbols beyond labels)

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and a central shaft (no text or symbols beyond labels)

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and shafts (no text or symbols beyond labels)

Interior view of a mechanical device with two labeled components (1 and 2), showing internal blades and shafts (no text or symbols beyond labels)

Interior view of a mechanical fan or impeller assembly with labeled parts (1 and 2), no visible text or symbols beyond labels.

1 – Blandevinge
2 - Kammer

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
