USER MANUAL Pro V9 Yaber

Line drawing of a Yaber portable electronic device with circular ports and base (no text or symbols on body)

Pro V9 PROJECTOR

LANGUAGE

English 02-23

Deutsch 28-51

Français 54-77

Italiano 80-103

Español 106-129

Japan 132-157

CONTENS

YABER Lifetime Professional Support 2

Tips 2

Package List 3

Projector Specifications 4

Projector Overview 4

Remote Control 7

Installation 8

1. Installation Method 8
2. Install on the Ceiling 9

Starting Projector 10

Image Adjustment 10

1. Focus Adjustment 10
2. Keystone Correction 11

Setting Up The Projector 11

1. Select The Insert Signal Source 12
2. USB Disk Input Mode 12

2.1 Play Video/Music/Photo/Office Suite in the USB Disk Insert Mode 12
2.2 Play Interface 12
2.3 Music Play Interface 14
2.4 Picture Play Interface 15

3. WiFi Setting 15

3.1 iOS Cast (for iOS Devices) 16
3.2 Miracast (for Android Devices) 16

4. Bluetooth Setting 17

5. Projector Image Setting 18

5.1 Projection Mode 18

5.2 Automatic Keystone & 4-Point Keystone 19

5.2.1 Automatic Keystone Correction2.3 Music Play Interface 19

5.2.2 Horizontal & Vertical Keystone Correction 19

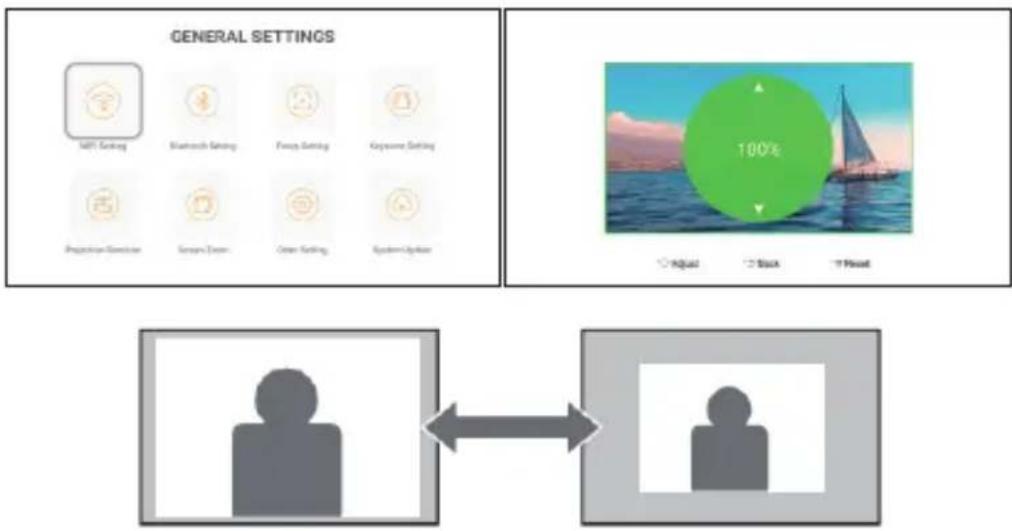

5.3 Digital Zoom 19

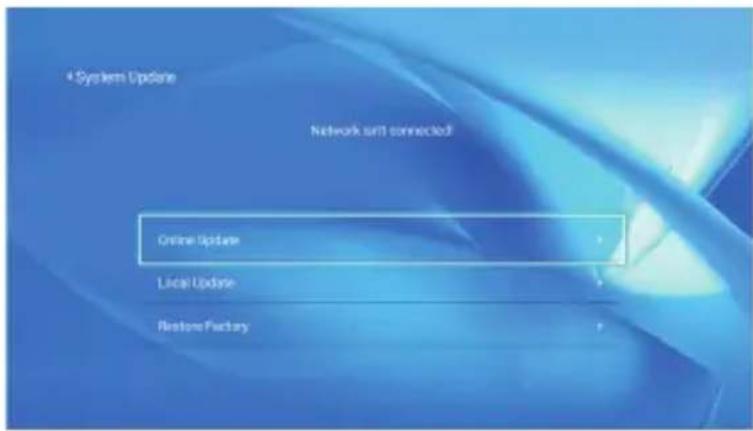

1. System Update 20

2. Advanced Settings 21

3. About 21

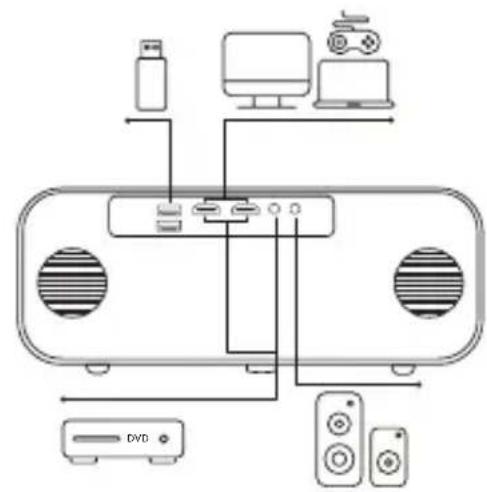

Signal Lines Connection 22

1. Connect USB Disk 22

2. Connect the Devices via the HDMI ports 22

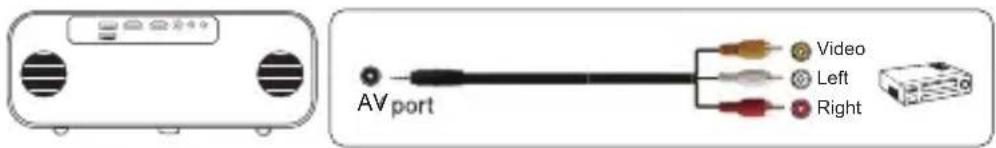

3. Connect to the DVD Player 22

4. Connect to the Sound bar/Speaker 23

Safe Shutdown 23

Warranty 23

YABER Lifetime Professional Support

Dear customer,

Thank you very much for supporting YABER!

Please read this manual thoroughly before using the projector. If you have any issues, email your order number and the problem to [e-mail] We will provide a fast solution in 24 hours.

Actually, many problems can be easily solved by setting, such as no signal, no sound, bluetooth connection failed, WiFi connection failed, dark spots, choppy animation etc. We promise all the projectors have been 100% carefully checked and packaged before shipping.

If you have any questions, could you please contact us so that the problem can be solved. And give us an opportunity to improve. We guarantee we will provide you a satisfactory solution.

Thanks for your understanding!

YABER Service Team

Tips

1. Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 5^ 35^ better.
2. If there are black spots on the projection screen, please don't worry, please contact [e-mail] via email, we can send you a video about how to remove the dust.
3. The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults.
4. Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used.

Package List

Pro V9 Projector HDMI Cable 3-in-1 AV Cable

Line drawing of a remote control with no text or symbols

Simple line drawing of a U-shaped electrical plug with two terminal connectors (no text or symbols)

Simple decorative border with scalloped edges (no text or symbols)

Remote Control Power Cord Cleaning Cloth

Simple black circle outline on white background (no text or symbols)

Valben

Lens Cover Carry Bag User Manual

Projector Specifications

Model No. Pro V9
Native Resolution 19	920*1080P	Keystone Correction	Auto/Manual Vertical& Horizontal
Display Technology	LCD Light Source	LED
Color Game 16.8M	Full Color Aspect	Ratio 4:3/16:9
Recommended Projection Distance	4.9 - 22.9 ft	Minimum Projection Distance	4.9ft
Power Voltage	AC100-240V	Projector Weight	3.96lbs
Picture File	JPG/JPEG/BMP/PNG	Interfaces	HDMI*2/USB*2/3.5mm Headphone jack/AV
Projection Method	Front/Rear on Desk, Front/ Rear on Ceiling
Video File MP4/MK	V/WMV/3GP/MPG/VOB/TP/TS/DAT/MOV/FLV
Audio File MP3/WA	V/WMA/M4A/AAC/OGG/FLAC

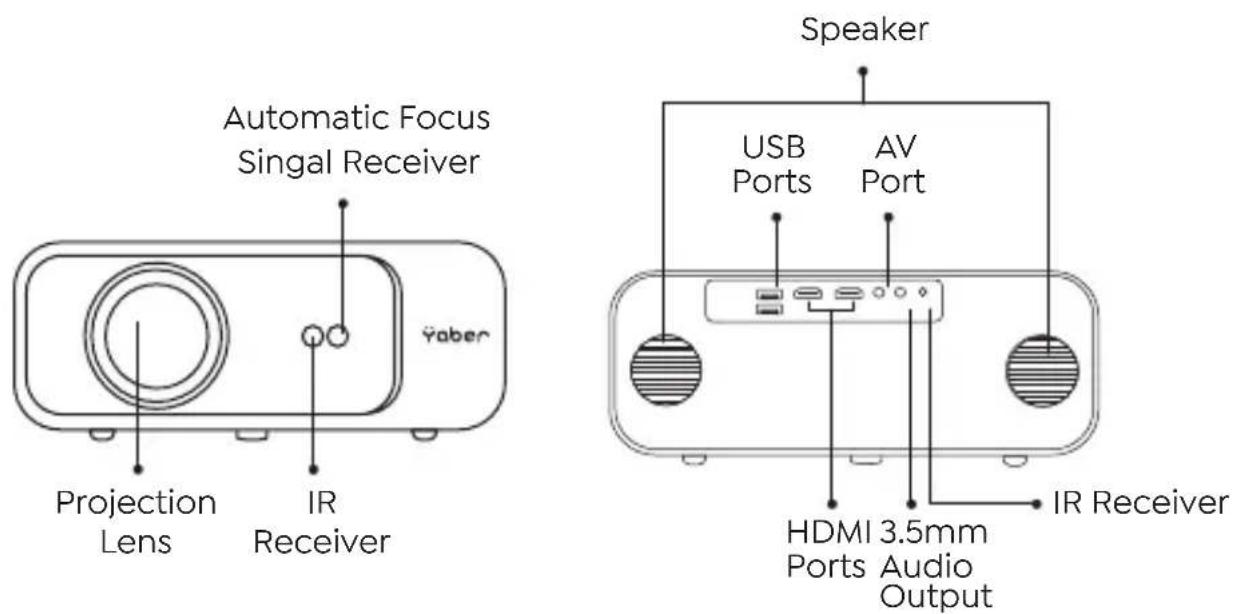

Projector Overview

Automatic Focus Singal Receiver Yaber Projection Lens IR Receiver Speaker USB Ports AV Port HDMI 3.5mm Ports Audio Output IR Receiver

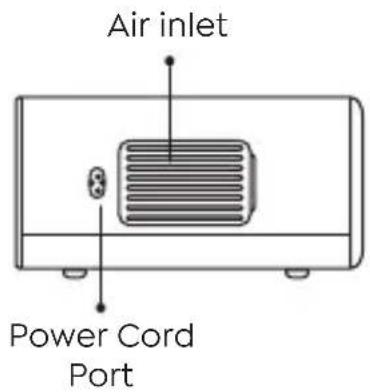

Air inlet Power Cord Port

Air Inlet

Automatic FocusSignal Receiver For Automatic Focus
IR Window Infrared signal receiver
Projector Lens Optical coated glass lens
AV Port Audio input
Headphone Jack 3.5mm Headphone Output
Air Inlet	Prevent the projector from overheating
Air Outlet	Preventing the projector from overheating
USB Ports USB 1 port / USB 2 port
HDMI Ports HDMI 1 input / HDMI 2 input
Speakers Stereo 5W*2
Power Cord Port Power Cord Port

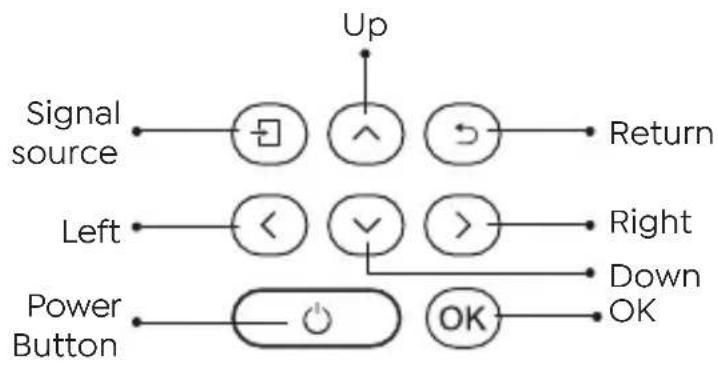


Power Turn on/off the power
Source	Enter the signal source selection interface
Back Return to the previous menu
Ok Confirm the option
Up Key	Used to adjust the parameter of the projector in the menu mode
Down Key
Left Key
Right Key

Remote Control

Power Source Arrow keys OK Homepape Confirmation key Source Auto focus/keystone Volume + Volume - Mute Back Focus + Focus -

Power Turn on/off the power
Source Select the input signal source
Arrow keys	Used to adjust the parameter of the projector in the menu mode
Source	Press once: Operate picture and sound settings in AV or HDMI Mode Press twice in succession: select 16:9/4:3 projection
Auto focus/keystone Adjust focus and keystone
Volume + Volume up
Volume - Volume down
Mute Close the sound
Homepape Enter the home page
Confirmation key Confirm the option/Play or pause the video
Back Enter the home page
F+ Focus +
F - Focus -

Note:

1. Install 2 pieces of AAA batteries into the remote controller before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.

2. When using the remote controller, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the projector.

3. If you are not using the remote controller for an extended period, please take out batteries to prevent batteries leakage.

Installation

1. Installation Method

The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods:

Keep the projector at a height where its lens is axial symmetry to the screen. If this is not possible, use the keystone correction function to adjust the projection image.If you want to get a free projection screen,please contact us via [e-mail].

Aspect Ratio: 16:9
Distance (ft.) Screen Size
3.8 35"
5.5 50"
7.6 70"
10.9 100"
13.1 120"
16.4 150"
21.9 200"

The recommended projection distance is about 10.9ft, the shortest projection distance is 3.8ft. The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data. Different settings cause various distances.

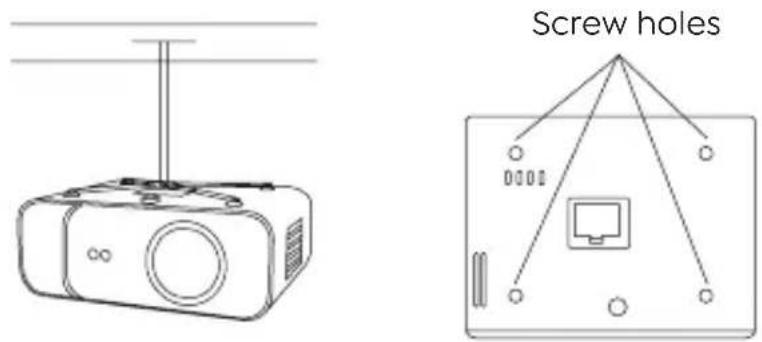

2. Install on the Ceiling

The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods:

Screw holes

1. Please purchase an universal projector ceiling mount.
2. Remove the four rubber pads on the bottom of the projector, you will see the screw holes and use the M5*11mm screws for installing the ceiling, and then install it.

Starting Projector

1. Press the power key on the remote controller or projector, the indicator light will turn blue.

2. Use the focus function of the projector to get the best image performance.(If it is still blurry, please try to adjust the projection distance.)

3. Use the keystone function of the projector to get a rectangle projection screen.

4. Connect the external device (Smart phone, iPad, Fire TV, TV box, DVD player, Computer, etc.) in the corresponding interfaces of the projector, please be sure to select the corresponding source. If you do not select the correct source, the projector will not be able to detect the signal.

5. Select the "💡" menu, enter the [ Other Setting], then you can select the option [ Language Setting ] to set your preferred language.

Image Adjustment

When using the projector for the first time, it normally displays an unclear image. This is due to the lens being out of focus or the incorrect trapezoid setting.

Please follow the below steps to correct:

1. Focus Adjustment

When you start the projector,please wait patiently for 2-3 seconds the projector will adjust focus automatically.if the image is not clear,you can press the focus buttons "F+" , "F-" or auto focus&keystone key on

the remote controller to adjust the focus of the lens, tap or long press the focus button until the image is clear.

Note: If it is still blurry, please try to adjust the projection distance.

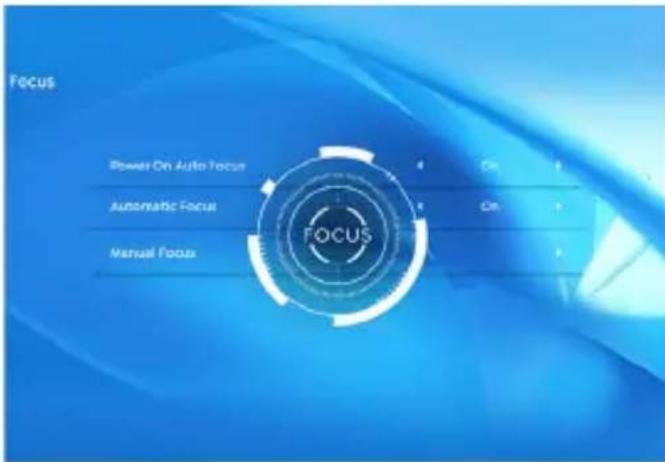

Focus Power On Auto Focus Automatic Focus Manual Focus

2. Keystone Correction

You can use the automatic keystone correction or digital 4D keystone correction of the projector to change the image to be rectangle(vertical and horizontal). Detail please refer the page 17 of this manual.

Setting Up The Projector

The projector's home page is as follow.

Yaben MF & Auto Keystone HODE 1 HODE 2 iOS Cast Mineset Video Music Photo Office Suite

1. Select The Insert Signal Source

Select the desired insert signal source (HDMI1/HDMI2/AV) on the home-page.

2. USB Disk Input Mode

2.1 Play Video/Music/Photo/Office Suite in the USB Disk Insert Mode

1. Insert the USB Disk, the [USB] icon of the homepage will turn white.
2. Select the option [Video/Music/Photo/Office Suite].
3. Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it.

External Device

PS:

1. The Pro V9 upgraded projector supports U disk to directly play PPT, Word, Excel files.
2. If you enter from the [Video] menu, you can only play the video, The same as other 3 options.

2.2 Play Interface

Playing settings Video subscale Breakpoint play substance Lighting muscle picture effects sound settings Picture PICKLE MOUNT Color Brightness 30 Dimine 30 Saturation 40 Darkness 12 COLOR TEMPERATURE Reactive Default 01:28 2/2 10:00 03:45

Menu Function
	Select play mode (directory play/single cycle/directory loop)
	Switch to the previous video
	Fast Backward,rewinds the video back quickly while playing it. The rewinding speed ranges from 2X to 32X
	Play or pause the current video
	Fast Forward, pushes the video to move forward quickly while playing it. The forward speed ranges from 2X to 32X
	Switch to the next video
	Select all playlists in the current folder
	Playing settings

Playing settings Include Function
Video subtitle close,inner,external		Set multiple modes of video subtitles
Breakpoint play close,open		You can set the video continue to play from the point where it was stopped
Audio track Audio track		You can see the audio information
Display mode 16:9,full,over,auto,4:3		You can set the video aspect ratio
Picture settings		Picture Mode, Color Temperature, Reset to Default	You can set the picture information
Sound settings		Sound Style, Equalizer Detail, Reset to Default	You can set the sound information
Menu Content Mode Function
Picture Mode	User/Standard/Vivid/ Sport/Movie/Game	Brightness	Modify the picture parameters in the range 0-100
		Energy Saving
		Saturation
		Sharpness
Sound Style	User/Standard/Vivid/ Sports/Movie/Music/News	Balance	Modify the sound parameters in the range 0-100
		Bass
		Treble

2.3 Music Play Interface

playing:1 Smarthomelab.mky 00:15 1/1 *1 times 04:28

Menu Function
	Select play mode (directory play/single cycle/directory loop)
	Switch to the previous video
	Fast Backward,rewinds the video back quickly while playing it. The rewinding speed ranges from 2X to 32X
	Play or pause the current video
	Fast Forward, pushes the video to move forward quickly while playing it. The forward speed ranges from 2X to 32X
	Switch to the next video
	Select all playlists in the current folder
	Playing settings

2.4 Picture Play Interface

Landscape photo of a green tree on a grassy hill under a blue sky with scattered clouds (no text or symbols visible)

Menu Function
	Switch to the previous picture
	Play or pause the current picture
	Switch to the next picture
	Zoom in image
	Zoom out image
	Flip picture 90°to the left
	Flip picture 90°to the right
	Set the picture information

3. WiFi Setting

Wireless Connection

Warming Tips:

1. The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
2. Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.

3. Some mobile devices may not support screen mirroring due to the compati- bility.

4. Any questions, please feel free to email YABER via [e-mail].

3.1 iOS Cast (for iOS Devices)

1. Go to home page -- Select the [💡] menu -- Select the [ WiFi ] menu-- Open the WiFi function -- Select your home WiFi from the list--Connect the Pro V9 projector to your home WiFi.

iOS cast

Settings

Add List Add List: 100%

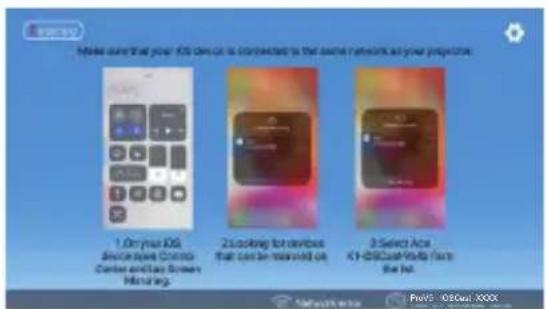

1. Back to home page -- Select [ iOS Cast ] menu -- Press the OK button to enter the [ iOS Cast ] menu.

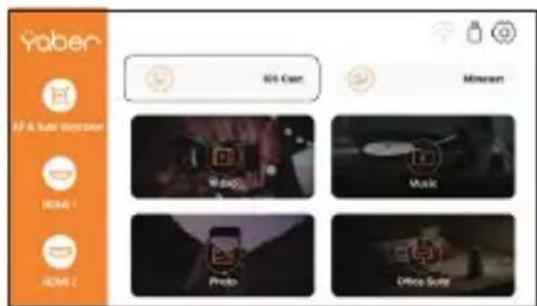

Yaber IIS Cash Mineral IIS Cash Music Proto Office Suite

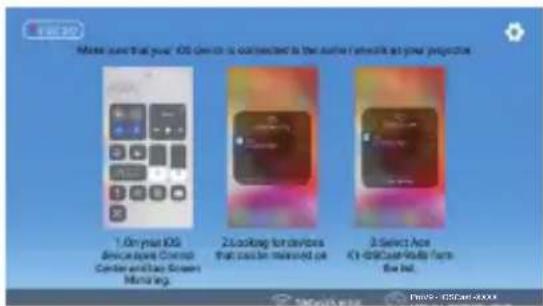

Make sure that your iOS Gen is connected to the further website as your perspective 1. On your iOS Device acquired Control Center and has Screen Monitoring. 2. Looking for keyframes that can be released on. 3. Select one K-MS/CSK-Watts from the list.

1. Select the [ Settings ] menu on your iOS device -- Turn on the [ Wi-Fi ] function -- Connect your iOS device to the same home network as the projector.

2. Open the [ Control Center ] on your iOS device -- Select the [ Screen Mirroring ] function -- Select and connect the iOS Cast receiver named [Pro V9-xxxx ] -- your iOS device screen will be displayed on the projection screen after 3 seconds.

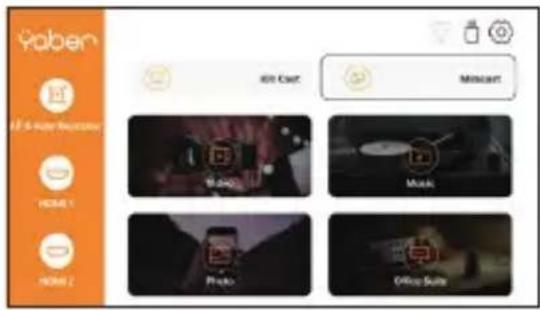

3.2 Miracast (for Android Devices)

1. Go to home page -- Select the [ Miracast ] menu -- Press the OK button to enter the [ Miracast ] interface.

Yaben File Cart Mincart Movie 1 Movie 2 Photo Music Office Suite

Android Screen To connect Android Mobile/Pad with Projector Based on Wi-Fi Display Technology 1. On each Android device, turn on WLAN clock backplay to collect for day. With you! 2. I switch the Main driver/ Wireless Display / Screen Monitoring / Smartphone Interface 3. Select Web 47 installed (448) from the quickening world.

1. Select the [ Settings ] menu on your Android device -- Select the [ Screen mirroring ] function -- Select your Miracast receiver named [ Pro V9-AnCast-XXXX ]-- your Android device screen will be displayed on the projection screen after 3 seconds.

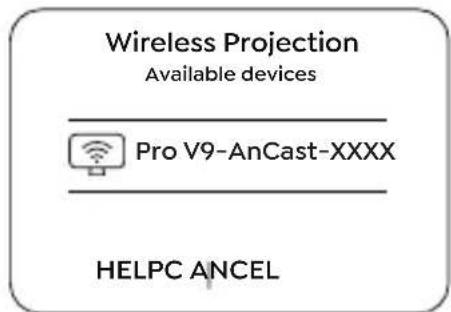

Wireless Projection Available devices Pro V9-AnCast-XXXX HELPC ANCEL

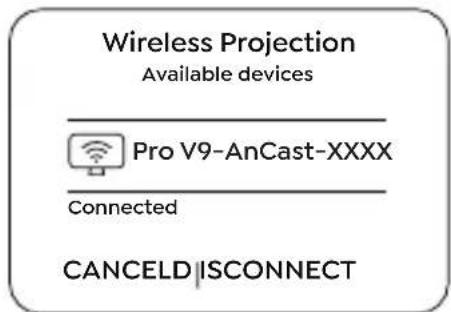

Wireless Projection Available devices Pro V9-AnCast-XXXX Connected CANCEL/ISCONNECT

1. On your Android device, tap [ Settings ] -[ WLAN Display ] -Turn [ Wi-Fi ] ON, Connect your home WiFi.

Note:

1. Different brands of Android phones have different operations for select Screen Mirroring Display, please refer to your phone's manual. [ Multiscreen/Wireless display/WLAN display/Screen mirroring/Wireless projection/Smart view etc. ]

2. Not all Android phones support this function. Please make sure it is supported before use.

4. Bluetooth Setting

Go to home page -- Select the [ ] menu -- Select the [ Bluetooth ] Option -- Open the Bluetooth function and your Bluetooth device -- Scan the Bluetooth devices nearby automatically -- Choose the Bluetooth device desired -- it will be paired and connected automatically.

iOS cast

Settings

User OK

•Blackout settings Eclipse SOS: 10.000000 Power Options Default configuration

Note:

1. The Pro V9 projector is compatible with the Bluetooth headsets, Bluetooth speakers and Airpods, but not the Bluetooth keyboards or Bluetooth phones.

2. If you have any question, please feel free to email YABER via: [e-mail].

5. Projector Image Setting

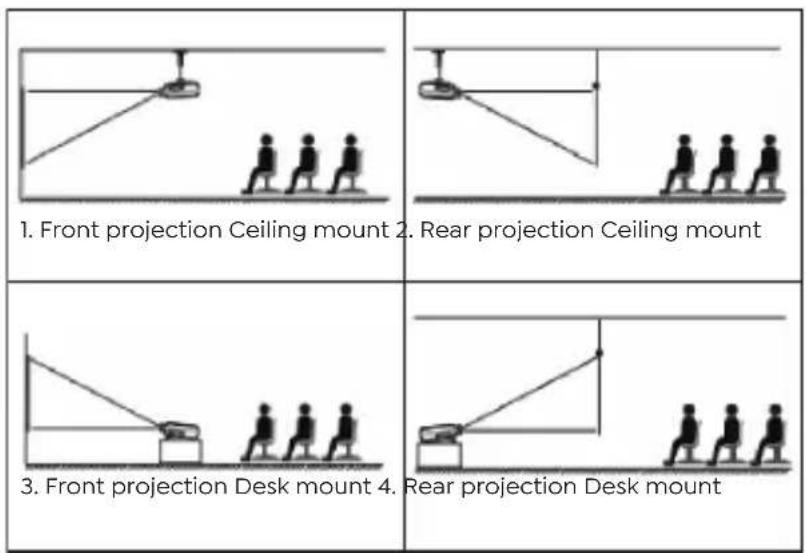

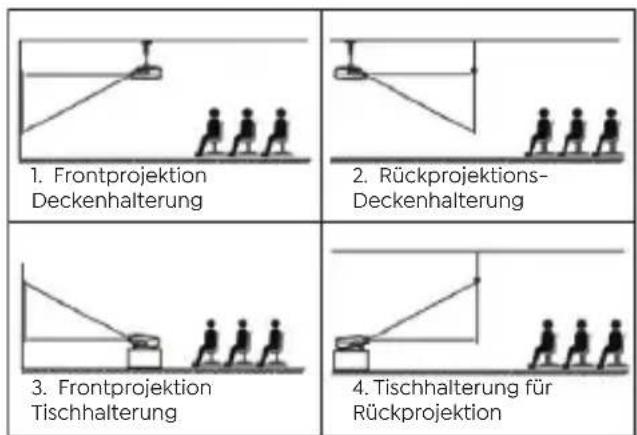

5.1 Projection Mode

+ Projection Direction Projector Mode 1 Response to 2

1. Front projection Ceiling mount

2. Rear projection Ceiling mount

3. Front projection Desk mount

4. Rear projection Desk mount

5.2 Automatic Keystone & 4-Point Keystone

5.2.1 Automatic Keystone Correction

When you start the projector, please wait patiently for 2-3 seconds the projector will adjust keystone automatically. If the image is not rectangle, you can Use the digital 4D keystone correction to change the image to be rectangle.

5.2.2 Horizontal & Vertical Keystone Correction

When the projection screen is not rectangular, it can be adjusted by 4-point keystone correction.

Step 1: Select the [ Settings ] menu-select [ Keystone ] menu- press [ Manual Keystone ].

Step 2: Press the arrow keys on the remote controller or projector to adjust the horizontal or vertical parameters, until the projection screen becomes the desired rectangle.

Keyboard Settings Automated Response Manual Response Autoencoder Detection Functional Connection When me center circle for soundness image best proportion. vs Brind Adjart Back Front

OK Pick Point : Press the OK button on the remote controller or projector to enter the adjustment interface.

Adjustment : Press the arrow keys on the remote controller or projector to adjust the horizontal or vertical parameters.

- Back : Press the key on the remote controller to back to previous page.

Reset : Press the key on the remote controller to restore the original parameters.

5.3 Digital Zoom

Step 1: Select the [ Screen Zoom ] option and press the OK button on the remote controller or projector to enter the submenu.

Step 2: By pressing the button on the remote controller or projector, you can reduce the height and width of projection size up to 50%.

6. System Update

• System Update Network unit connected! Online Update Local Update Restore Factory

Menu Function
Online Update Online update
Local Update Local update
Restore Factory	Restore user operation application configuration and system setting

7. Other Setting

• Other Setting Boot Source Option Power On-Option Language Setting Scheduled Shutdown Keypad tone HOMIT Direct Off On

Menu Function
Boot Source Option Off/HDMI1/HDMI2/AV
Power On Option Direct/Standby
Language Setting Set up the language
Scheduled Shutdown	Off/10min/20min/30min/60min/120 min

About the Direct/Standby Power On Option

Direct Mode: When the projector is powered on, the projector will be automatically turned on.

Standby Mode: When the projector is powered on, you need to press the ⏻ button on the remote controller or projector to turn on the projector.

8. About

Menu Content
System Version V1.0.0.4:2022-XX-XX
MAC Address e0:27:6c:46:b3:51

Signal Lines Connection

YABER Pro V9 projector has 6 interfaces, HDMI ports*2/USB ports*2/3.5mm headphone output/ AV in. Please select the correct connecti-ng port to connect your device (PC, Phone, DVD Player, Sound bar, USB, PS4 etc.)

Diagram showing connections between a device with labeled components including DVD, monitors, and devices like a game controller.

1. Connect USB Disk

1. Insert the U disk into either of the two usb input ports.
2. You can directly enter the start-up screen on the home page, select the option [ Video/Music/Photo/Office Suite].
3. Select the desired file (or enter the subfolder) in the USB disk, then press the [OK] button to play it.

2. Connect the Devices via the HDMI ports

1. Connect your TV stick or laptop to any HDMI port of the projector.
2. Enter the home page to select the corresponding HDMI1 or HDMI2 as the signal source.

3. Connect to the DVD Player

Use the 3-in -1 AV cable in the package

1. Connect your TV stick or laptop to any HDMI port of the projector.

2. Connect the colorful female connectors to your DVD player's RCA cable with the 3-in-1 AV cable in the package.

3. Connect the black connector to the AV port of the projector, enter the home page to select [AV] as the signal source.

AV port Video Left Right

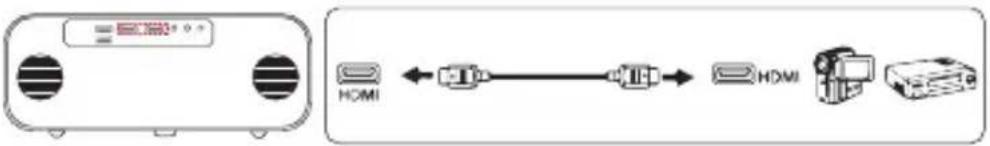

Or connect to the DVD Player with the HDMI cable in the package.

4. Connect to the Sound bar/Speaker

If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and your speaker as the picture shows, enter the home page to select [AV] as the signal source.

Safe Shutdown

1. Press the ⏻ button on the projector or remote controller, then press OK key to power off the projector.
2. Unplug the power cord of the projector.
3. Cover the lens and store the projector in a cool and dry place.

Warranty

Thank you so much for your purchase and support! We provide 3-year warranty for Pro V9 projector. If you have any questions, please feel free to contact us via:

purchased from: [e-mail]

purchased from others: [e-mail]

INHALT

YABER Lebenslanger professioneller Support 26

Tipps 26

Paket Liste 27

Line drawing of a remote control with no text or symbols

Simple line drawing of a U-shaped electrical plug with two terminal connectors (no text or symbols)

Simple decorative border with wavy lines forming a square (no text or symbols)

Playing settings Screen suitable Breakdown play sound track display mode picture settings sound settings Picture Mode Color Temperature Reset to Default 01:28 03:45 Picture

playing:1-Smarthornelab.mkv 00:15 1/1 *1 times 04:28

Landscape photo of a green tree on a grassy hill under a blue sky with scattered clouds (no text or symbols visible)

USB Connection USB Connection USB Connection

Yaben iPad is your favorite iPod 1 iPod Cart Mineral Music Photo Others Suite

Make sure that your iOS devices is connected to the same network at your perspective. 1. On your iOS Deviceware Control Center and/or Screen Mprinting. 2. Looking for devices that can be installed on. 3. Select Ace K1-CD/Cash/Video Face the No.

Android Screen To contact Android MobilePad with Projector Based on WiFi Display Technology On your Android device, turn on 76.5M (not necessary to connect to any Wi-Fi server) Launch the Multi screen/ Graphics Display / Screens Microbing / Smart Make Function Switch: No technical file to the security request.

Wireless Projection Available devices Pro V9-AnCast-XXXX Connected CANCEL ID ISCONNECT

Bluetooth Settings Bluetooth Turn for Buy on Power Border Payable custom

Notic:

+ Projection Direction Physical Motion + Real Motion

Keywords Clearing Automotive Keypoint Automotive Keypoint Automotive Keypoint by Director Top-Contrast-Head

Scenic sunset view of a sailboat on water with hills in the background (no text or symbols)


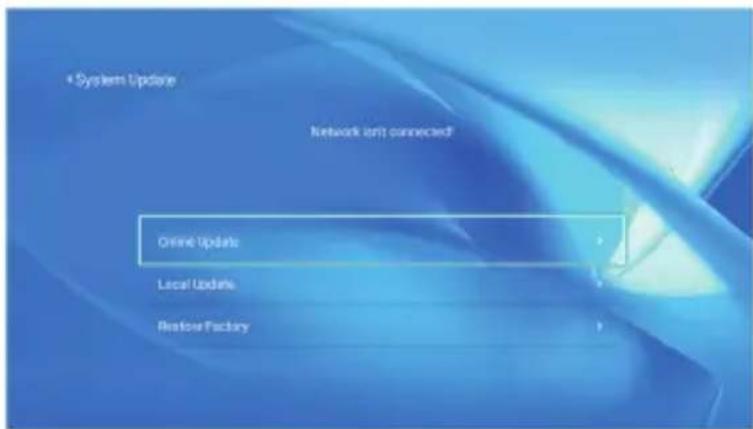

6. Systemupdate

• System Update Network unit connected? Online Update Local Update Restore Factory

Diagram showing connections between a device with labeled components including monitor, laptop, DVD, and remote devices.

Line drawing of a remote control with buttons and a central rotary knob (no text or symbols)

Télécommand

Simple line drawing of a U-shaped electrical plug with two terminal blocks (no text or symbols)

Simple decorative border with wavy lines and no text or symbols

Playing settings Screen suitable Breakdown play sound track display mode picture settings sound settings Picture Mode Color Temperature Reset to Default 01:28 03:45 Picture

playing:1-Smarthornelab.mkv 00:15 1/1 *1 times 04:28

Landscape photo of a green tree on a grassy hill under a blue sky with scattered clouds (no text or symbols visible)

[e-mail].

Make sure that your iOS device is accomplished to the same network as your projector 1. On your iOS devices (cupged Control Center and/or Screen Monitoring) 2. Locking for access that can be removed on. 3. Select Ace X1-016-Cash-RoHS Farm the list

Scenic coastal view of a sailboat on water with sunset sky, no visible text or symbols

+System Update Network unit connected? Online update Local update Restore gearbox

Diagram showing connections between a device with labeled components including monitor, laptop, DVD, and remote devices.

Line drawing of a remote control with buttons and dials (no text or symbols)

Simple line drawing of a U-shaped electrical plug with two terminal blocks (no text or symbols)

Simple decorative border with wavy lines forming a square (no text or symbols)

Playing settings Screen suitable Breakdown play sound track display mode picture settings sound settings Picture Mode Color Temperature Reset to Default 01:28 03:45 Picture

playing:1-Smarthornelab.mkv 00:15 1/1 *1 times 04:28

Landscape photo of a green tree on a grassy hill under a blue sky with scattered clouds (no text or symbols visible)

Yaber 45% Care Minera AF & basic e-sports MOSO 1 MOSO 2 Wang Music Palo Office Sure

Make sure that your iOS device is connected to the same network as your projector. 1. On your iOS Device Surge Control Center and Top Screen Monitoring. 2. Cooking for devices that can be released on 3. Select Ace CK-05Cast/Watts Farm File.

Android Screen To contact Android MobilePad with Projector Based on WiFi Display Technology On your Android device, turn on 76.5M (not necessary to connect to any Wi-Fi server) Launch the Multi screen/ Graphics Display / Screens Microbing / Smart Make Function Switch: No technical file to the security request.

Wireless Projection Available devices Pro V9-AnCast-XXXX Connected CANCEL ID ISCONNECT

Bluetooth Settings Bluetooth Scan to have an Power Status Bluetooth's voice on

Nota:

Sailboat on water during sunset with sky and pink sky (no text or symbols)

+ System Update Network isn't connected? Online Update Local Update Restore Factory

Diagram showing connections between devices including a monitor, computer, DVD, and remote control unit

Line drawing of a remote control with no text or symbols

Simple line drawing of a U-shaped electrical plug with two terminal connectors (no text or symbols)

Simple decorative border with wavy lines forming a square (no text or symbols)

Line drawing of a projector with a circular lens and vertical support structure (no text or symbols)

Simple line diagram of a device with a central monitor and four connection points (no text or symbols)

Playing settings Screen suitable Breakdown play sound track display mode picture settings sound settings Picture Mode Color Temperature Reset to Default 01:28 03:45 Picture

playing:1-Smarthornelab.mkv 00:15 1/1 *1 times 04:28

Landscape photo of a green tree on a grassy hill under a blue sky with scattered clouds (no text or symbols visible)

退出登录 退出密码 退出成功

Make sure that your iOS device is connected to the same network as your projector 1. On your iOS DeviceCare Control Center and User Screen MiniRing. 2. Cooking for devices that can be removed on 3. Select Ace IC-DSCash-Robb from the list.

Android Screen To connect Android MobilePad with Projector Based on WiFi Display Technology * On your Android device, last on Wi-Fi (not necessary to connect to any WiFi server) 2 Launch the Multi-screen Wireless Display / Screen Monitoring / Smart Media Function 3 Second, Next-Next Start from the following project: Yes

1. Front projection Ceiling mount 2. Rear projection Ceiling mount 3. Front projection Desk mount 4. Rear projection Desk mount

Scenic sunset view of a sailboat on water with sky and pink sky (no text or symbols)

System Update Network unit connected? Online Update Local Update Restore Factory

Diagram showing connections between a device with labeled components including DVD, monitors, and devices like a game controller.

1. Conectar Disco USB

Line drawing of a remote control with no text or symbols

Simple line drawing of a U-shaped electrical plug with two terminal blocks (no text or symbols)

Simple decorative border with scalloped edges and no text or symbols

リモコン 電源コード 清掃クロース

Simple black circle outline on white background (no text or symbols)

Valer

レンズカバー 取扱説明書 保証書

仕様書

Simple line drawing of a rectangular device with a vertical spring and base, no text or symbols present.

空気吹き出し口

Line drawing of a projector with a vertical support structure (no text or symbols)

ネジ穴

Playing settings Action: sound/ride Breakdown: play Audio track Display mode picture settings Sound settings Picture Picture Mode Color Temperature Reset to Default

playing:1-Smarthornelab.mkv 00:15 1/1 *1 times 04:26

Landscape photo of a green tree on a grassy hill under a blue sky with scattered clouds (no text or symbols visible)

Settings →

mml bina 100.000 100.000 250.000 250.000

Make an optimal your iOS device is connected to the same network as your projector. 1. On your iOS device (give Control) Center and Top Screen Marketing. 2. Pick for devices that can be installed on 3. Select Ace CY-05Cash-Watts from the list.

Android Screen To connect Android MobilePad with Projector Based on WiFi Display Technology * On your Android device, last on Wi-Fi (not necessary to connect to any WiFi server) 2 Launch the Multi-screen Wireless Display / Screen Monitoring / Smart Media Function 3 Second, Next-Start 40% from the following request: Yes

Wireless Projection Available devices Pro V9-AnCast-XXXX Connected CANCEL/ISCONNECT

Bluetooth settings Bluetooth Scan to remote Reset Status Bluetooth's remote

ご注意：

Sailboat on water with sunset sky background, no visible text or symbols

• System Update Network unit connected? Online Update Local Update Restore Packlay

Diagram showing connections between a device with labeled components including DVD, remote devices, and connected devices via ports and cables.

1. USB 入力端子でデバイスに接続

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

To maintain compliance with RSS-102 RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.

-French:

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Declaration of Conformity

We (EU based importer is responsible for this declaration)

Prolinx GmbH (Company name)

Brehmstr.56, 40239 Duesseldorf, Germany (Company address)

declare under our sole responsibility that the product Trade name: Yaber Equipment: Entertainment Projector Model No.: Pro V9

to which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to RED Directive(2014/53/EU) & RoHS(2011/65/EU) product is responsible to affix CE marking, the following standards were applied:

EN 62368-1:2014+A11:2017 EN IEC 62311:2020 ETSI EN 301 489-1 V2.2.3(2019-11) ETSI EN 301 489-17 V3.2.4(2020-0) ETSI EN 301 489-3 V2.1.1(2019-03) EN 55032:2015+A11:2020 EN 55035:2017 +A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 ETSI EN 300 328 V2.2.2(2019-07) ETSI EN 301 893 V2.1.1(2017-05) ETSI EN 300 440 V2.2.1(2018-07) IEC62321-3-1:2013 IEC62321-4:2013 IEC62321-5:2013 IEC62321-6:2015 IEC62321-7-1:2015 IEC62321-7-2:2017 IEC62321-8:2017

Full Name: George.wang Position: Approbation Manager

Signature: Georgewang Place/Date: Shenzhen, China/Jan.04-2023

QR code image containing encoded data, no visible human-readable text

Scan and download the PDF user manual

Where to Get More Help

[e-mail]@yaber.com www.yaberglobal.com

@Yaber Entertainment Projector@Yaber Entertainment Project
