USER MANUAL Sam little Stadler Form

Operating instructions

Gebrauchsanweisung

Mode d'emploi

Two modern white and black rectangular speakers with textured back cover, no visible text or symbols

Sam

am WiFi 23 Air Max 13 8 14 5 6 Sterizer 4007 3 1

12 11 10 9 7 POWER LEVEL TEMPERATURE

Diagram showing airflow or ventilation process of a 4-pin heater with numbered components and directional arrows indicating flow direction.

8 6

Sam little

109 3 - TEMPERATURE + 2 1 3 5 4 1

2 YEAR'S WARRANTY • 2 ANNEES DE GABRANTIE • 2 JAHRE GARANTIE

ADAPTIVE HEAT™ • ADAPTIVE & CONTINUOUS HEATING

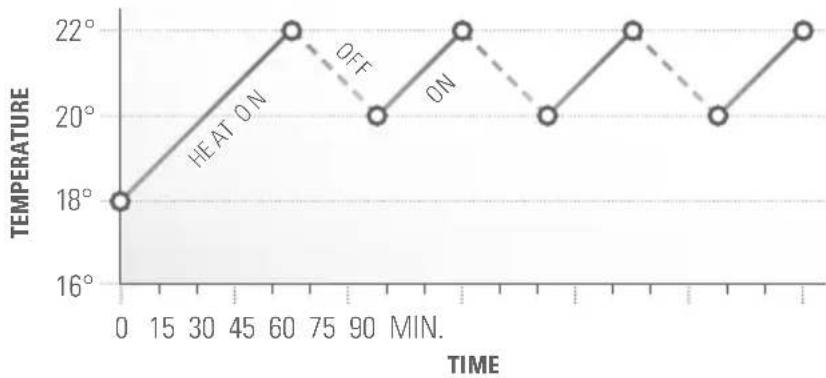

TRADITIONAL FAN HEATERS: TYPICAL «COLD /WARM /COLD» EFFECT (QUIET /LOUD /QUIET)

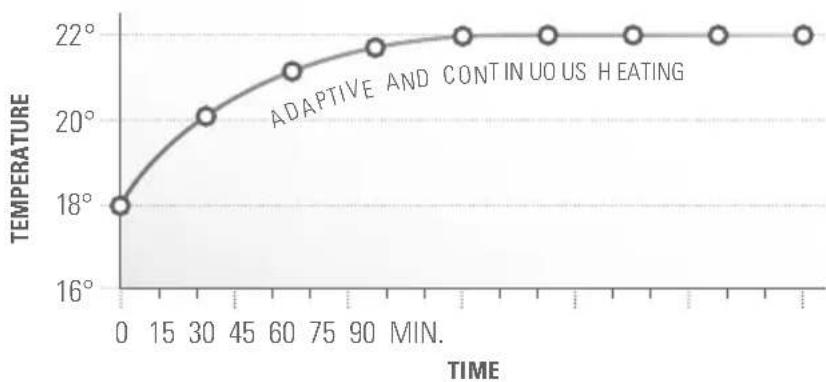

WITH ADAPTIVE HEAT™ (VERY QUIET)

Auto Mode

E ADAPTIVE HEAT™ technology automatically adapts heat output in auto mode to reach and keep the desired temperature in an efficient way

Congratulations! You have just purchased the exceptional SAM / SAM LITTLE fan heater. He will bring you great pleasure and improve the ambient air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

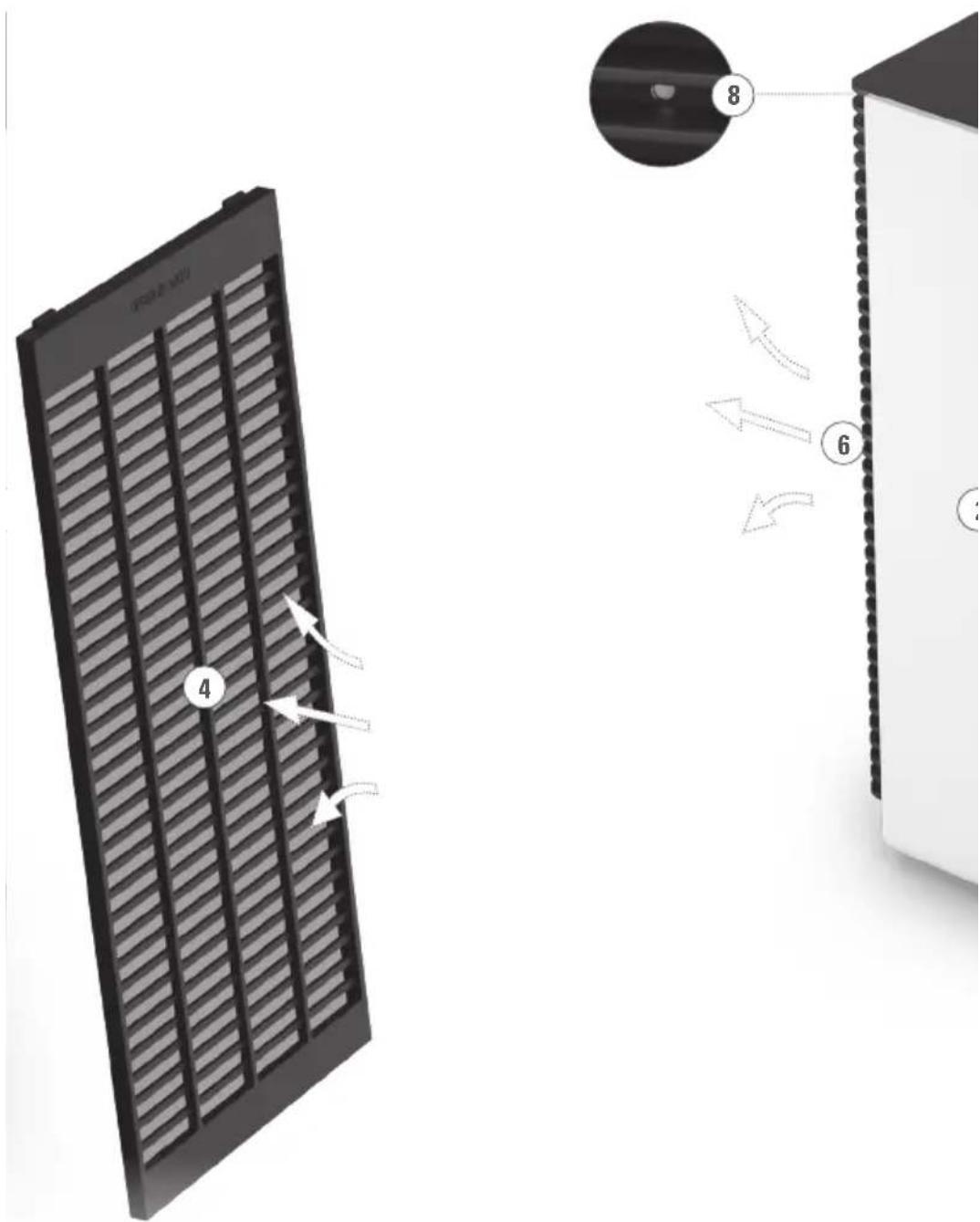

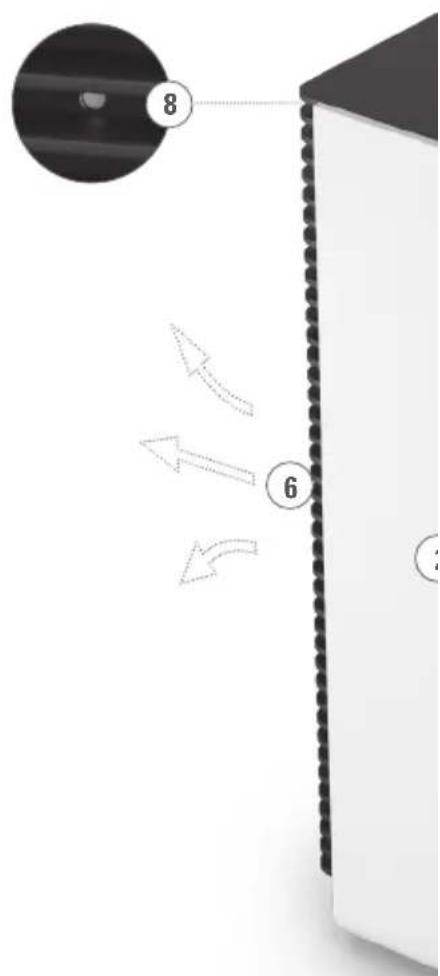

Description of the appliance SAM & SAM LITTLE

The appliance consists of the following main components:

1. Mains cable for power supply
2. Housing
3. Main switch for power supply
4. Flap with washable air filter
5. Air inlet
6. Air outlet

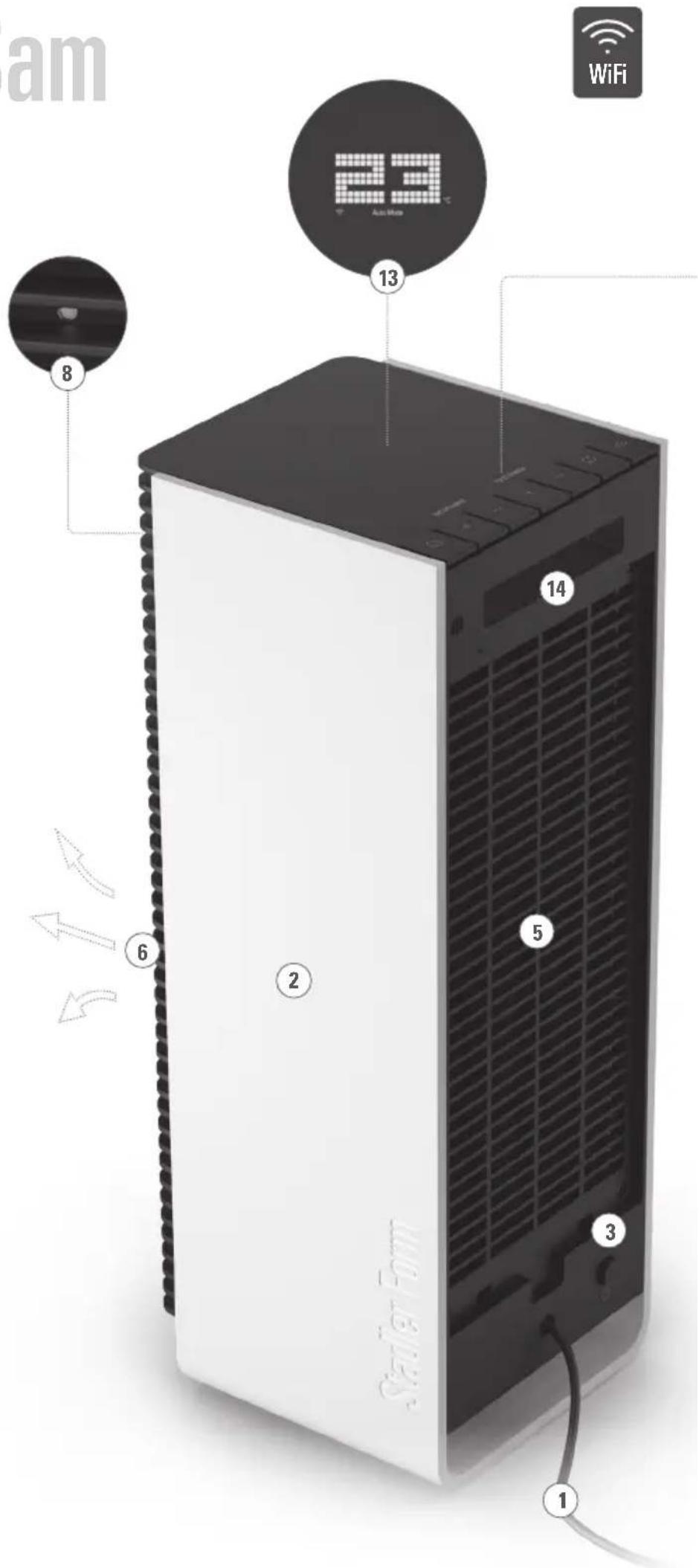

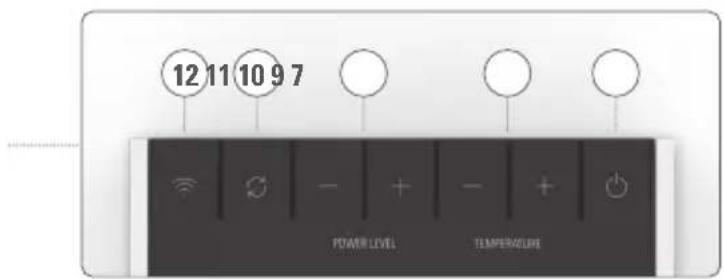

Description of the appliance SAM

1. On/Off button
2. LED light (red=heating, blue=cooling)
3. Buttons for selection of temperature: 0^ - 35^ or maximum «Hi»
4. Buttons for selection of heat output level: low to high (4 levels)
5. Button for Auto Mode, symbol «Auto Mode»
6. Button for Wi-Fi
   13.Display
   14.Carryinghandle

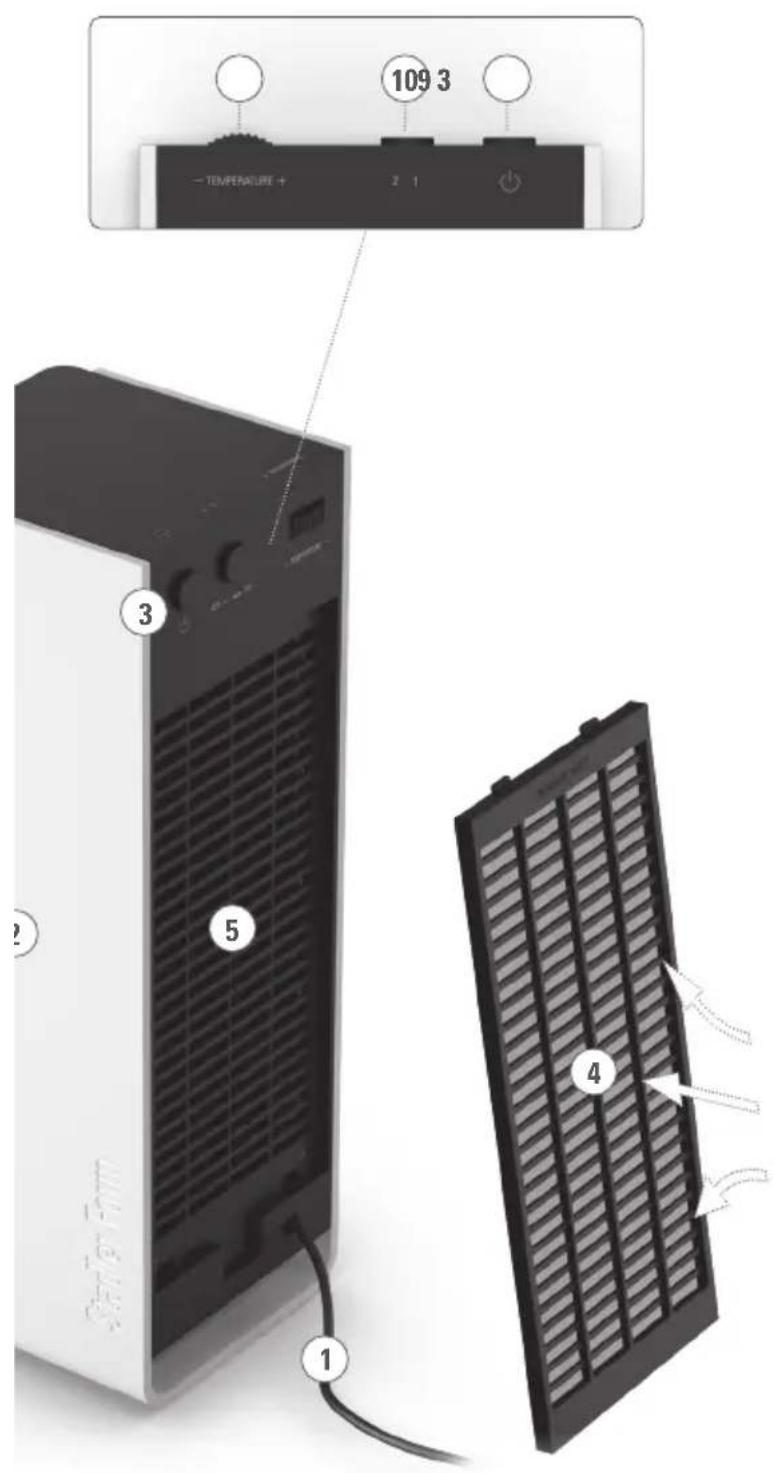

Description of the appliance SAM LITTLE

1. LED light
2. Rotary control for thermostat
3. Switch for heat output level (1+2)

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• This product is only suitable for well insulated spaces or occasional use.
• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given super-vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.

• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• Never submerge the unit in water (danger of short circuiting).
• Never run a defective unit (e.g. supply cord).
• Never touch energized parts.

- Only connect the cable to alternating current. Observe the voltage information given on the appliance. Do not use extension cords.

• The heater must not be located directly below a socket-outlet.
• Do not open the appliance (repairs only by service agents).
• Do not run the power cord over sharp edges and make sure that it does not get trapped. Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.

- Please make sure that the used socket remains accessible.

- Do not run the heater on an uneven or soft surface.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer.

- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

- WARNING: In order to avoid overheating, do not cover the air inlet or air outlet – fire hazard!

- Do not use the heater in small rooms (below 4 min size), in explosive environment, or for drying laundry.

- Do not touch the front part of the appliance, it might reach hot temperature.

- Use the heater only under supervision.

- Do not insert any object and/or finger into the openings of the heater.

- To extinguish burning appliances only use fire blankets.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool (the appliance is not splash-proof).
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.
• Repairs to electrical appliances must only be carried out by a qualified electrical technician.

Setting up / operation

Note: the operation of Sam and Sam little differs. Pay attention to the product description at the beginning of each subsequent point. If no product is mentioned, the operation applies to both devices.

Note: Make sure that there is always sufficient space between the appliance and the wall or other large objects (> 50 cm). The air flow must not be blocked by objects of any kind.

1. Having set up Sam / Sam little in the desired position connect the cable (1) to the household supply socket.
2. First, push the main switch for power supply (3) on the back of the appliance (on Sam little this switch is also the On/Off button).
3. Sam: Switch on the appliance by pressing the On/Off button (7). The target temperature appears on the display.
4. Sam: The target temperature can be changed from 0 °C (cooling mode) to 35 °C or maximum «Hi» over the buttons (9) «Temperature». The heating mode is active from 1 ° – 35 °C & «Hi». The digit flashes in configuration mode. Pushing the «+» button increases the target temperature. Pushing the «-» button reduces the target temperature. The setting is saved if no change occurs on the control panel for selection of temperature for three seconds. The current room temperature is subsequently shown on the display.

Info: The appliance switches off the heating element when the target temperature is reached and the temperature indicator flashes on the display. The ventilator remains switched on for 15 seconds at the lowest level to cool down the heating element. The current temperature is then measured approx. every 15 minutes (the fan runs for 1 minute at the lowest level). The appliance switches on again if the room temperature recorded drops below the set target temperature.

1. Sam little Thermostat (9): The thermostat allows you a variable temperature adjustment. Setting: for maximum temperature turn to the left («+» symbol), for minimum temperature, turn the control to the right («-» symbol).

Recommendation: Turn the thermostat control to the left to the maximum. If the desired room temperature has been reached, turn the thermostat control to the right until the appliance switches off. If the room temperature drops, then Sam little switches on again automatically with a slight delay.

1. Sam: Cooling mode: the heating element switches off if the temperature is set to 0 °C and the ventilator blows cool air out of the appliance. The LED light (8) changes from red to blue. There is no temperature shown on the display in cooling mode.

2. Sam: The heat output level can be changed over the buttons (10) «Power Level». Typing «+» increases the output level. Typing «-» reduces the output level.

Output level 1 =700 W

Output level 2=1'000 W

Output level 3=1'500 W

Output level 4 =2'000 W

The setting is saved if no change occurs on the control panel for selection of heat output level for three seconds. The current room temperature is subsequently shown on the display.

1. Sam little: Using the output button (10), you can control the heating output of Sam little:

a. Button in = 1'500 W

b. Button out = 800 W

1. Sam: Auto mode is activated (deactivated) by pressing the «Auto Mode» button (11). «Auto Mode» is shown in the display. The preset target temperature of 22 °C can be changed using the buttons for selection of temperature (9). The heat output level is selected automatically in auto mode - depending on the room temperature. The smaller the difference between the room temperature and the target temperature, the smaller the heat output level selected. We refer to this as «Adaptive Heat™» technology. This allows Sam to make sure that the target temperature is reached, quickly and efficiently, and maintained. Sam thus prevents a sharp temperature drop and prevents the appliance from being constantly switched on and off. Auto mode is deactivated if the heat output level is changed manually (10).

Info: The appliance switches off the heating element when the target temperature is reached and the temperature indicator flashes on the display.

1. Turn off the device by pressing the On/Off button (7) on Sam and the main switch (3) on Sam little. The ventilator remains switched on for 15 seconds at the lowest level to cool down the heating element. The appliance saves the temperature input and the heat output level even if the appliance is switched off.

2. Protection against overheating: the appliance is equipped with overheating protection which switches off the appliance in the event of a technical fault or improper use (the ventilator continues to run for some time at the lowest level to cool down the appliance). Should this occur, rectify the fault or cease the improper use (e.g. 50 cm space around the appliance, do not cover the appliance, set the appliance up in an upright position). Once the appliance has cooled down it can be put back into service.

3. Sam: The temperature indicator can be changed from Celsius to Fahrenheit and vice versa by pressing the «Auto Mode» button (11) for five seconds.

4. Sam: You can connect Sam to the "Stadler Form" or the "Smart Life – Smart Living" app from Tuya Inc. (available in the App Store and via Google Play) on your smartphone by pressing the Wi-Fi button (12) for 3 seconds. If the device is in pairing mode, the Wi-Fi symbol on the display (13) flashes. The Wi-Fi symbol shown on the display (13) indicates an active connection between the device and your smartphone. All the device's functions can be controlled from anywhere and the room

temperature can be monitored in real time via an app. More detailed information on connecting the device to your smartphone can be found in the enclosed "Wi-Fi – Quick Setup Guide" or on our website: www.stadlerform.com/connect.

1. If you are not going to be using the device on a daily basis, switch it off using the main switch (3) on the back of the housing.

Cleaning

Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable (1) from the socket.

Attention: Never immerse the device in water (danger of short circuit).

• For external cleaning, rub with a damp cloth and then dry thoroughly.
• Make sure that the air inlet (5) and air outlet (6) are cleaned regularly to prevent the build-up of dust. Use a dry paintbrush or the soft brush attachment for your vacuum cleaner to do this.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications Sam

Rated voltage 220 - 240 V / 50 Hz

Temperature range 0^-35^/>35^=Hi

Power consumption 700 W (min.)

Rated power 2'000 W (max.)

Dimensions 149 x 422 x 156 mm

(width x height x depth)

Weight 3.5 kg

Sound level 30–52 dB(A)

Complies with EU

Regulations CE / WEEE / RoHS / EAC / UKCA

Specifications Sam little

Rated voltage 220 - 240 V / 50 Hz

Power consumption 800 W (min.)

Rated power 1'500 W (max.)

Dimensions 127 x 365 x 132 mm

(width x height x depth)

Weight 2.6 kg

Sound level 30–50 dB(A)

Complies with EU

Regulations CE / WEEE / RoHS / EAC / UKCA

All rights for any technical modifications are reserved

Name	Manufacturer / Trade Mark	Type / Model	Technical Data
heater for Sam	Dongguan Longji Electronics Co., Ltd	RFB1031C2/ 2000/ 240X66X15	230V, 2000W
heater for Sam little	Dongguan Longji Electronics Co., Ltd	RFB1021C2A/ 1500/ 240X44X15	230V, 1500W
fan motor for Sam	Ningbo Jiayu Electromechanical Co., Ltd	YJ61-15	220-240V, 50 Hz, 41 W, Class E
fan motor for Sam little	Ningbo Lihui Electric Appliance Co., Ltd	YTF48-15	220-240V, 50 Hz, 16 W, Class E

Item Symbol Value Unit
Heat output (Sam / Sam little)
Nominal heat output	P_nom	2.0 / 1.5 kW
Minimum heat output (indicative)	P_min	1.5 / 0.6 kW
Maximum continuous heat output	P_max,c	2.0 / 1.5 kW
Auxiliary electricity consumption
at nominal heat output	el_max	0.000 / 0.000	kW
at minimum heat output	el_min	0.000 / 0.000	kW
in standby mode	el_SB	0.001 / 0.000	kW

Item Unit
Type of heat input
manual heat charge control,with integrated thermostat [no]
manual heat charge control with room and / or outdoor temperature feedback		[no]
electronics heat charge control with room and / or outdoor temperature feedback		[no]
fan assisted heat output [no]
Type of heat output / room temperature control (Sam / Sam little)
single stage heat output and no room temperature control [no]
Two or more manual stages, no room temperature control [no]
with mechanic thermostat room temperature control [no] / [yes]
with electronic room temperature control [yes] / [no]
electronic room temperature control plus day timer [no]
electronic room temperature control plus week timer [no]
Other control options (Sam / Sam little)
room temperature control, with presence detection [no]
room temperature control, with open window detection [no]
with distance control option [yes] / [no]
with adaptive start control [no]
with working time limitation [yes] / [no]
with black bulb sensor		[no]
Contact details	Stadler Form AktiengesellschaftChamerstrasse 174, 6300 Zug, Switzerland
