Bamba PrecisionCare Samurai - Lawn mower CECOTEC - Free user manual and instructions

USER MANUAL Bamba PrecisionCare Samurai CECOTEC

Illustration of a hairbrush with digital display and decorative patterns (no text or symbols)

BAMBA

Safety instructions 11

1. Parts and components 72

2. Before use 73

3. Operation 74

4. Cleaning and maintenance 77

5. Specifications 79

6. Disposal of old electrical and electronic appliances 80

7. Technical support and warranty 80

8. Copyright 81

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users. The appliance can be used by children from 3 years old under supervision. The appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- The appliance must be powered at a low safety voltage as stated on the product marking.

• Check the power cord regularly for visible damage. If the power cord is damaged, it must be replaced with a special cord or set to be supplied by the official Cecotec Technical Support Service or the corresponding after-sales service to avoid any danger.
• WARNING: keep the appliance dry.
• This appliance is designed for domestic use only and is not intended for bars,

restaurants, farmhouses, hotels, motels, and offices.

• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are dry before handling

the plug or switching on the appliance.

- Keep all packaging materials away from children. Risk of suffocation.

- This appliance must be checked frequently for signs of wear or damage. If such signs are present, or if the appliance has been used improperly, contact the official Cecotec Technical Support Service. Do not try to repair the appliance by yourself.

- Switch off the appliance immediately in

the event of defects or malfunctions. Pull from the plug, not the cord, to disconnect it from the outlet.

- Do not use accessories or parts that have not been provided by Cecotec

- Never leave the appliance unattended while in use.

- Keep the appliance away from heat sources.

- Do not use an extension cord with this appliance.

• Do not use outdoors or operate it near flammable substances such as sprays.
• Do not try to open, disassemble, or repair the product by yourself. There are no serviceable parts inside the appliance.
• The appliance is exclusively designed for trimming natural hair. Do not use it with artificial or animal hair.

• Cecotec accepts no liability for damage caused by improper or incorrect use.

• Do not operate the appliance near water, or in places where it could get wet.

• Do not use the appliance if your skin or head skin is injured or suffers from any type of illness.
• Turn off and unplug the appliance from the power supply before assembling or disassembling attachments.

Battery instructions

• This appliance contains an irreplaceable battery.
• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• WARNING: to recharge the battery, use only the power cord supplied with the appliance.
• Leaks from the battery or battery cells

can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

- Keep batteries out of the reach of children when there is a risk of ingestion.

- Battery ingestion can cause burns, soft tissue perforation, and death. It can cause severe burns within two hours of the ingestion.

- In case of battery ingestion, please seek medical help immediately.

INSTRUCTIONS DE SÉCURITÉ

1. Blade
2. Protective cover
3. Charging cord inlet
4. Power button
5. 4 guide combs a.1mm b.2mm c.3mm d.4mm
6. USB charging cord (Type C)
7. Oil
8. Cleaning brush

Display (Fig.2)

1. Charge percentage indicator
2. Charge indicator
3. Blade oiling indicator

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box contents

• Hair and beard trimmer Bamba PrecisionCare Samurai
• 4 guide combs (1, 2, 3 y 4 mm)
• Lubricating oil for the blade
• USB cord
• Cleaning brush
• Blade protection
• Instruction manual

ENGLISH

3. OPERATION

Charging

• Make sure the appliance is switched off.
• Connect the charging cord to the product and then to a compatible power adapter.
• Charge the appliance to full power before using the appliance for the first time or after a long period of inactivity.
• The battery takes approximately 3 hours to charge to 100% and can last up to approximately 120 minutes*.
  *Battery life may be reduced depending on usage and the type of hair being cut.
• The charge indicator will flash red indicating that the appliance

is charging, once fully charged, the indicator will glow steady red and the display will show the number 100.

WARNING:

Charging or using the appliance at temperatures below 5 °C or above 35 °C adversely affects the life of the battery.

- When the appliance is fully charged, unplug it from the mains socket.

ENGLISH

Optimising battery life

• After charging the appliance for the first time, do not recharge between sessions. Continue to use it until the battery is completely empty. Continuous recharging of the appliance will reduce the life of the battery.
• Do not charge the appliance for more than 3 hours.
• Do not keep the cord plugged in permanently.
• Fully discharge/flush the battery twice a year by letting the engine run until it stops.
• If the appliance has not been used for a long time, it must be fully recharged.
• If the appliance is subjected to a major change in temperature, pressure or humidity, allow the appliance to acclimatise for 30 minutes before use.

Guide comb trimming (1 mm, 2 mm, 3 mm, 4 mm)

• The appliance can be used to trim sideburns, neck, beard and hairlines.
• Make sure that the appliance is switched off.

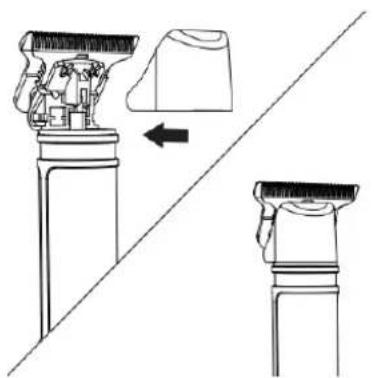

• Place the guide comb over the blade and press it into the appliance. Fig. 3
• When using the appliance, you can insert the protective cap, which prevents long hair from tangling. Fig. 4
• If you are trimming for the first time, start by using the guide

ENGLISH

comb with the maximum trimming length setting (4 mm) to avoid accidentally trimming hairs that are too short. As you become familiar with the guide combs, change them by 3 mm, 2 mm and 1 mm until you reach the desired cutting length.

1. Switch on the appliance.
2. For the most effective trimming, move the appliance against the direction of hair growth. Make sure that the surface of the guide comb always remains in contact with the skin.

WARNING: as not all hairs grow in the same direction, you may need to use different trimming positions (upwards, downwards or crosswise).

1. If cut hairs have accumulated on the guide comb, switch off the appliance, remove the guide comb and clean the hair from the comb. Once clean, put the guide comb back on and continue cutting.

Trimming the beard

1. Make sure the guide comb is put back into the appliance and use the 1mm or 2mm setting for a "stubble" look.
2. When you have finished using the appliance, switch it off by pressing the on/off button. Then remove the guide comb (Fig. 5) and clean the hairs accumulated in the appliance with the help of the cleaning brush.

ENGLISH

Profiling

For close trimming of hair or beard, use the appliance without a guide comb.

Remove the guide comb for:

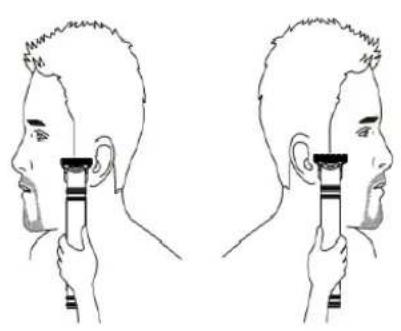

• Sideburns trimming (Fig. 6).
• Neck trimming (Fig. 7).

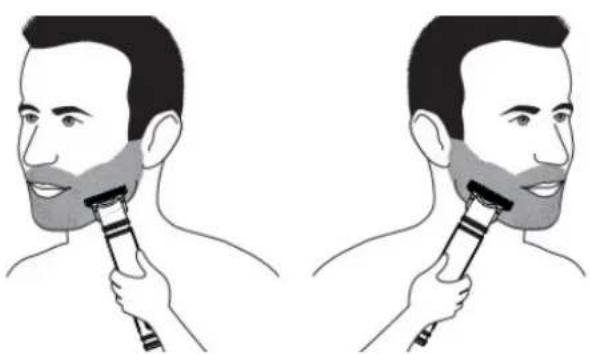

• Beard trimming (Fig. 8).

• Marking the hairlines (Fig. 9).

• Comb the hair with a fine-tooth comb before shaping.

• Switch on the appliance by pressing the on/off button.
• Pass the appliance over the area to be contoured. Do not move the appliance too fast. Make smooth and gentle movements.

Do not press the blade excessively against the skin as this may cause injury.

1. When you have finished, switch off the appliance by pressing the on/off button again and clean it.

4. CLEANING AND MAINTENANCE

After each use

• Turn off the appliance.
• Remove the guide comb from the blade and clean the hairs (Fig. 10). To do this, shake out the guide comb or use the

ENGLISH

cleaning brush. You can also clean the guide combs under running water.

• Clean the blade with the brush to remove any hair (Fig. 11). It is recommended to clean the blade thoroughly every 6 months.
• Lubricate the blade periodically and whenever the lubrication indicator appears on the display.

Cleaning precautions

• Only the guide comb and protective cover can be removed from the product for cleaning.
• Cleaning should only be carried out with a soft brush, such as the one supplied with the product.

• Use only the supplied light oil or sewing machine oil on the blade.

• Do not use abrasive cleaning agents, scouring pads or aggressive liquids such as alcohol, petrol or acetone to clean the trimmer and accessories.

• Do not immerse the blade or any other part of the appliance in water.
• Use a soft, dry cloth to clean the housing of the appliance.

Storage

• Make sure that the appliance is switched off. Remove the power cord from the outlet and the appliance before storing it in a safe, dry place where it cannot be crushed, knocked or damaged.
• Do not wrap the cord around the appliance when storing it.

ENGLISH

• Store the cord in a safe place where it cannot be cut or damaged.
• Do not place or store the appliance where it can fall or be pulled into a bathtub or sink, water or other liquid.
• Always store the appliance and the cord in an area free of moisture. Do not store at temperatures above 60°.

Trimmer: Input: 5 V = 1 A
Battery (not replaceable): 3.7 V, 1500 mAh, 5.55 Wh, Lithium-Ion Charging with USB Type-C cord
Technical specifications may change without prior notice to improve product quality.
Made in China | Designed in Spain

5. SPECIFICATIONS

Product reference: 03380

Product: Bamba PrecisionCare Samurai

ENGLISH

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations,

or batteries must be disposed of separately from . When this product reaches the end of its shelf dispose of the batteries/accumulators and take tion point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

ENGLISH

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

BAMBA PRECISIONCARE SAMURAI

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Diagram showing a hairbrush and nail polish on a rail, with a downward arrow indicating a process (no text or symbols present)

Fig./Img./Abb./Afb./Rys./Obr. 2 Fig./Img./Abb./Afb./Rys./Obr. 3

Diagram showing a hairpin on a pedestal with a close-up of its head and blade, no text or symbols present.

Diagram showing a hand operating a spray gun on a stand next to a close-up of the lever handle (no text or symbols present)

Fig./Img./Abb./Afb./Rys./Obr. 4 Fig./Img./Abb./Afb./Rys./Obr. 5

BAMBA PRECISIONCARE SAMURAI

Side-by-side line drawings of a person applying a facial cream tube to their ear (no text or symbols)

Line drawing of two hands holding a tool, viewed from the side (no text or symbols)

Fig./Img./Abb./Afb./Rys./Obr. 6 Fig./Img./Abb./Afb./Rys./Obr. 7

Illustration of a man applying a makeup brush to another person's face (no text or symbols present)

Line drawing of a person using a handheld device to apply facial examination (no text or symbols present)

Fig./Img./Abb./Afb./Rys./Obr. 8 Fig./Img./Abb./Afb./Rys./Obr. 9

BAMBA PRECISIONCARE SAMURAI

Diagram of a mechanical spring or chain with directional arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig./Img./Abb./Afb./Rys./Obr. 10 Fig./Img./Abb./Afb./Rys./Obr. 11

www.cecotec.es
