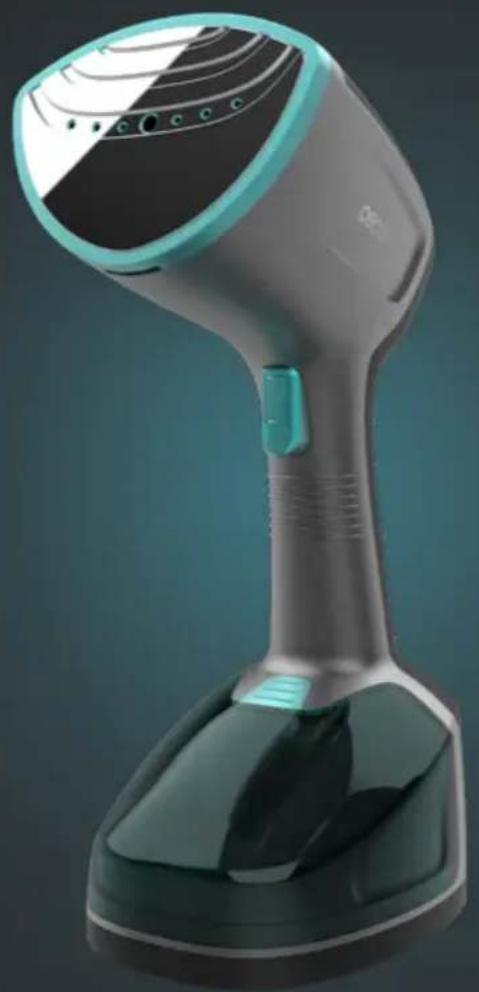

USER MANUAL IronHero 1500 Vital CECOTEC

Plancha vertical/ Garment steamer

Modern hair dryer device with black body and teal handle, no visible text or symbols

1. Parts and components 35
2. Before use 35
3. Operation 35
4. Cleaning and maintenance 36
5. Troubleshooting 37
6. Technical specifications 37
7. Disposal of old electrical and electronic appliances 38
8. Technical support and warranty 38
9. Copyright 38

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Care should be taken when using the appliance due to the emission of steam. Unplug the device during filling and cleaning.
• The appliance should not be left unattended while plugged to a power supply.
• The appliance should not be used if it has fallen, shows any visible sign of damage, or if it leaks.
• Keep this appliance and its power cord out of reach of children under the age of 8 when it is on or cooling down.

- This symbol means “caution, hot surface”. The accessible surfaces of the appliance may reach high temperatures during operation. Be careful not to burn yourself. Do not touch hot surfaces during operation or immediately after.

- Do not leave the iron unattended while connected to the power supply.

- Filling openings that are under pressure must not be opened during use.

- Check the power cable regularly for visible damage. If the power cable is damaged, it must be replaced by the Technical Support Service of Cecotec or similar qualified personnel to avoid risks.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices. Do not use the appliance for industrial or commercial purposes.

• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Do not use the device with perfume, vinegar, or other liquids. It is designed to operate only with water.
• Avoid contact with the steam generated by the iron. Care should be taken when using the appliance due to the emission of steam. Steam temperature is very high and can cause burns and other damage.
• Do not exceed the MAX mark on the water tank when filling the appliance with water.
• Do not use outdoors, close to baths, showers, swimming pools or in bathrooms.
• The appliance should not be left unattended while plugged to a power supply, in operation or hot.
• Never operate the appliance while clothes are on the body or direct steam towards people.
• Unplug the appliance before attaching any of its accessories, filling water, cleaning, or descaling.
• Place the appliance on a flat, stable surface. Keep it away from wet surfaces.
• Make sure the product is properly assembled before use and use only attachments or accessories provided by Cecotec.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

INSTRUCTIONS DE SÉCURITÉ

1. Power indicator
2. Steam outlet
3. Steam push button
4. Water tank release push button
5. Water tank
6. Power cable
7. Base
8. Handle
9. Brush head

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Garment steamer for clothes
• Brush head
• Instruction manual

3. OPERATION

Filling up the water tank.

• Make sure that the appliance is switched off and disconnected from the mains.
• Press the water tank release push button, remove the tank, open the rubber plug, and fill the tank to its maximum capacity (Fig. 2).

ENGLISH

WARNING:

Make sure the iron is switched off and unplugged before filling up the water tank.

Accessories assembly

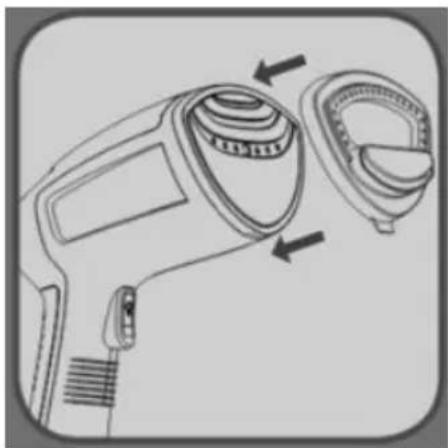

Hold the device and attach the brush head correctly to the steam outlet (Fig. 3).

WARNING:

You must ensure that the iron is disconnected from the mains before installing the head brush.

Using the appliance

• Fill the water tank as described in the section "Filling the water tank."
• Connect the iron to the mains.
• After approximately 30 seconds, the indicator light will go out, indicating that the iron has reached the temperature.
• Press the steam push button.

NOTES:

If you want to steam continuously, hold down the steam trigger, or lock it in its fixed position.

After use

When you finish ironing, unplug the appliance, allow it to cool down and store it in a dry place out of the reach of children.

4. CLEANING AND MAINTENANCE

• Make sure the iron is unplugged from the mains before cleaning.
• Disconnect the appliance from the power supply and allow it to cool down completely before handling it.
• Remove the brush head and clean the steam outlet with a damp cloth.
• Do not use harsh or abrasive cleaning agents or solvents.
• Do not put the garment steamer in water or any other liquid.
• Always empty the water tank after each use and rinse with clean water.
• Clean the housing with a damp cloth.
• Always ensure the steam outlet hole is clean, free from limescale and not blocked.
• Once the garment steamer is disconnected from the power outlet, cooled down, water is emptied and the device is clean, it is recommended to wrap the cord safely around the steamer to store in an upright position.

Cleaning water mineral deposits

To prevent minerals from building up or reduce them, follow the below recommendations: If you do not use water with low dry residue, it is advisable to carry out this procedure once a month.

1. Make sure the appliance is unplugged and cooled down.
2. Mix 50% of descaling product and 50% low-mineral water.
3. Remove the water tank as indicated before, open the rubber plug, and carefully pour the solution into the tank. Put the plug back.
4. Allow it to take effect for 40 minutes and then empty the tank.
5. Fill the tank with clean water, rinse, and empty it. Repeat this step until any odour disappears.
   This process only cleans the water tank.
   Do not plug the device during this process.

5. TROUBLESHOOTING

The iron does not produce steam	Make sure there is enough water in the tank.Check whether the corresponding indicator light is illuminated green.Hold the appliance vertically during use.
The tank leaks water	Make sure you have not exceeded the maximum tank capacity.Make sure the water tank and plug are correctly assembled.Keep the appliance vertically according to these instructions.
The iron produces a loud buzzing or pumping sound	Check the water level: if the tank is about to be emptied or is empty, fill it.If the tank is empty and the water pump has absorbed air, you need to fill the tank and press the steam button for a while until the air inside the pump is removed and starts to absorb water, at which point the sound will disappear and steam will start to come out.
The iron keeps producing steam	The steam trigger is in the locked position. Unlock the steam push button.

6. TECHNICAL SPECIFICATIONS

Product reference: 08506

Product: IronHero 1500 Vital

220-240 V\~, 50-60 Hz, 1500 W

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

5. PROBLEEMOPLOSSING

Illustration of a hand pressing a button on a device, with a magnified inset showing a crossed-out symbol (no text or labels)

Diagram of a car interior showing hand positioning and directional arrow (no text or symbols)

Illustration of a car seatbelt with an arrow indicating clockwise motion (no text or symbols)

MAX 300 ml

Illustration of a car being pulled down with an arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a hand pressing a button, showing no text or symbols.

Fig./Img./Abb./Rys./Obr. 2

Line drawing of a handheld device with two circular components and directional arrows indicating motion (no text or symbols)

Fig./Img./Abb./Rys./Obr. 3
