USER MANUAL Port i-Size COSATTO

clever stuff for happy babies

the ABCs R129/0 40 - 87c ≤13kg

Port i-Size

Car Seat

(EN) Instruction 1 - 54

(FR) Instruction, (DE) Gebrauchsanleitung, (IT) Istruzioni, (PT) Instrução, (RU) Инструкция, (ZH) 说明, (ES) Instrucciones

(EN) Part list diagram 55

(FR) Schéma de nomenclature, (DE) Teilelisteabbildung, (IT) Diagramma della lista delle parti, (PT) Diagrama de lista de peças, (RU) Схема к спецификации деталей, (ZH) 零件清单图, (ES) Diagrama de lista de piezas

(EN) Spare part list diagram 56

(FR) Schéma de pièces détachées, (DE) Ersatzteillisteabbildung, (IT) Diagramma della lista delle parti di ricambio, (PT) Diagrama de lista de peças sobresselentes, (RU) Схема к спецификации запчастей, (ZH) 备件清单图, (ES) Diagrama de lista de piezas de repuesto

(EN) Instruction diagram 57 - 66

(FR) Schéma d'instructions, (DE) Anleitungsdiagramm, (IT) Diagramma di istruzioni, (PT) Diagrama de instruções, (RU) Схема к инструкции, (ZH) 说明图, (ES) Diagrama de instrucciones

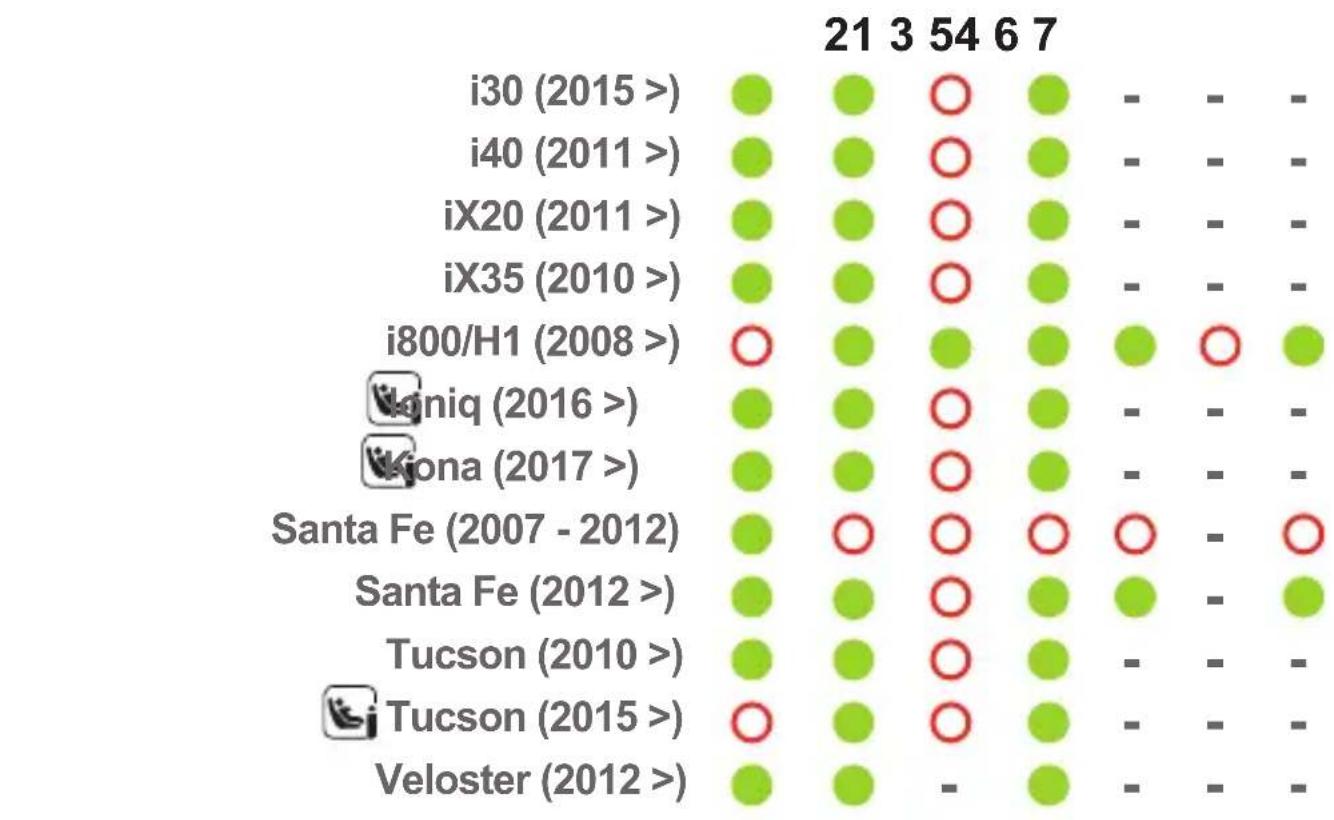

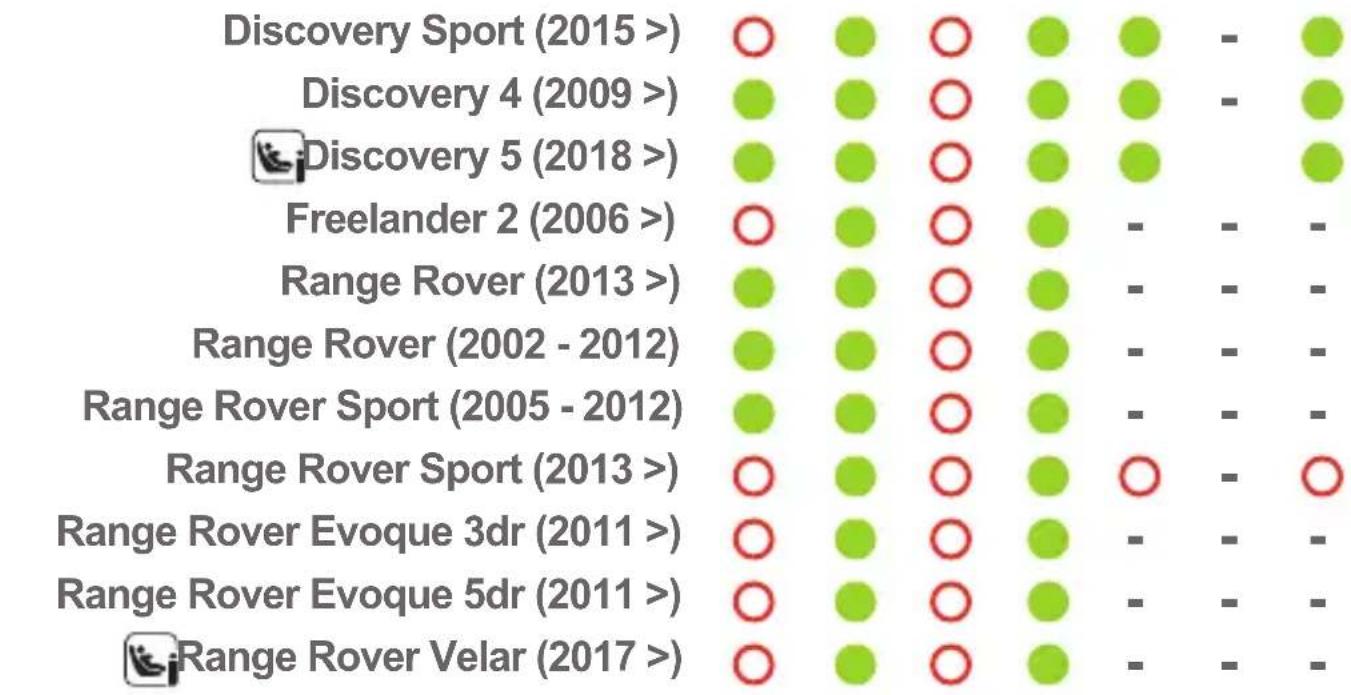

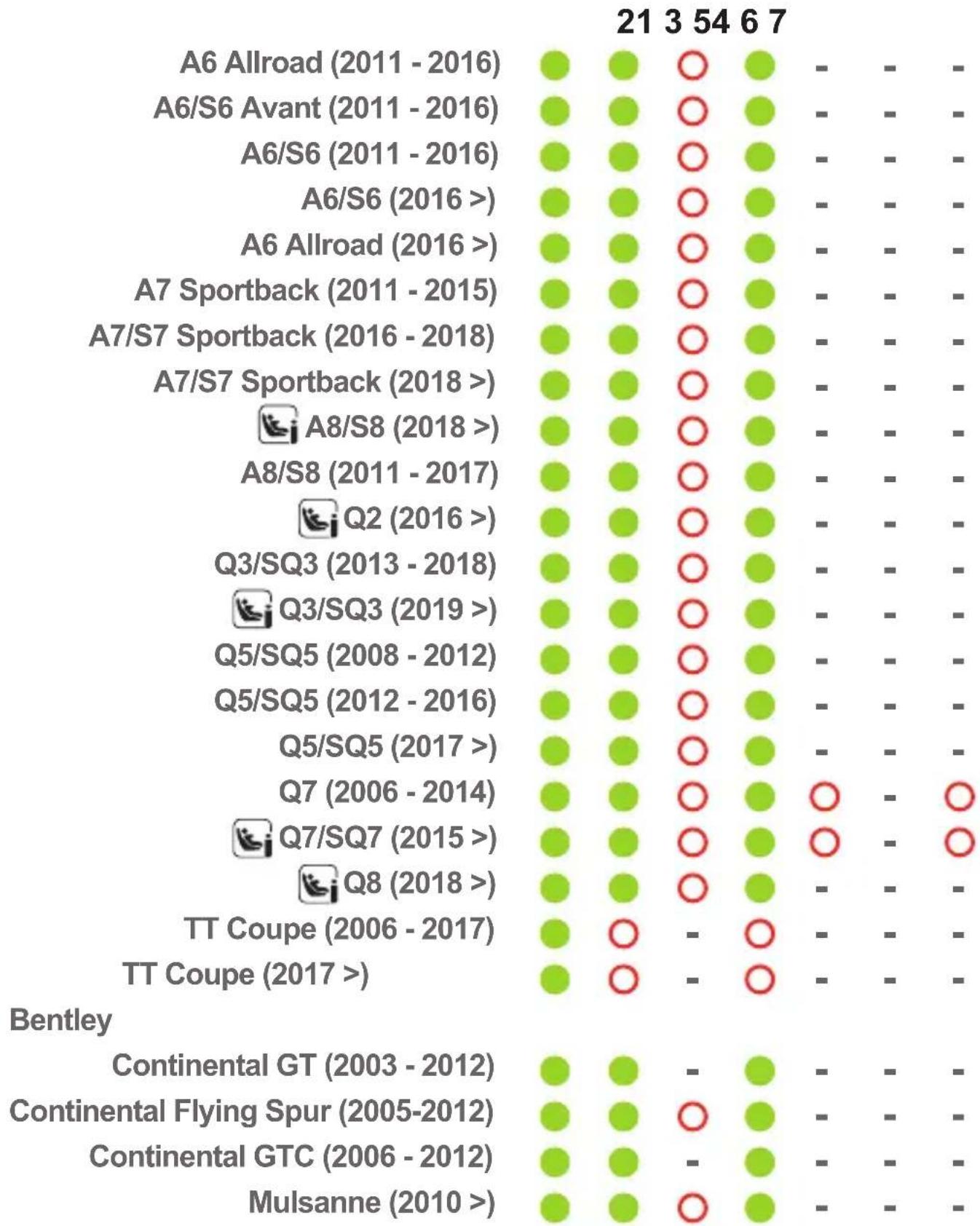

(EN) Vehicle fitting list 67 - 100

(FR) Liste des attaches véhicules, (DE) Fahrzeugmontageliste, (IT) Lista dei veicoli compatibili, (PT) Lista de instalação de veículos, (RU) Список совместимых автомобилей, (ZH) 车辆配件清单, (EL) Lista de accesorios de vehículos

IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE

Important safety Information

The instruction manual should be kept safely with child car seat for its life period: There is a pocket at the back of the headrest for storage of the instruction manual. Cosatto wants you to be happy with the fitting & security of your child car seat. If you have any questions, please contact our customer service team on our by phone [phone]) or by email ([e-mail]).

Child height and weight:

- This child car seat has been approved for transportation in cars of children from birth, height between 40 and 87cm , up to maximum weight of 13kg .

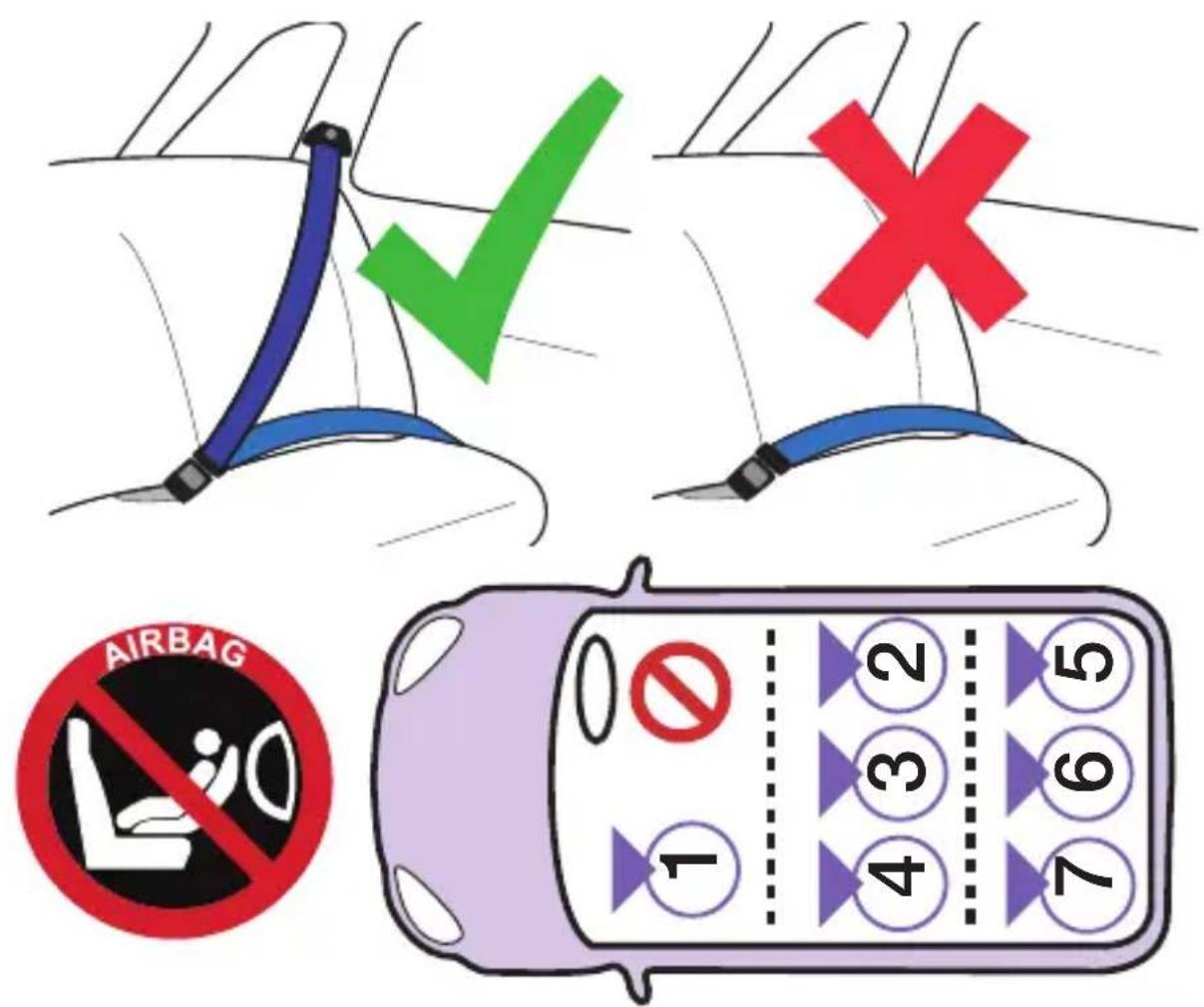

Location:

- IMPORTANT: Your child car seat can only be installed rearward facing using a three point lap and diagonal vehicle belt in the front or rear passenger seats of the car. - Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

AIRBAG LDO

Safety - Please read carefully:

- NEVER use this child car seat with its side facing the vehicle seat.

- Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.

- If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.

- ALWAYS secure your child with the safety harness when using this child car seat.

- Never leave your child unattended.

- Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.

- After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.

- Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.

- Always make sure that the child car seat harness are correctly tensioned to ensure maximum protection for your child.

- Prevent harness from getting trapped between car doors or rubbing against sharp parts of the seat or body.

- If the harness/vehicle belts becomes cut or frayed, replace it before travelling.

- Never use replacement parts other than those approved by Cosatto.

- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.

- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.

- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.

- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.

- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

- When used in combination with "Port i-Size" base, this is an "i-Size" Child Restraint System. It is approved to Regulation No. 129, for use in, "i-Size compatible" vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual. For compatibility of non i-Size vehicle, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the compatibility list on the website (http://cosat.to/portisizebasevl).

• For seating positions for other fitting options, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/portisizevl).
• Never use this Child Restraint System in seating positions where an active frontal airbag is installed.
• If in doubt, consult either the Child Restraint System manufacturer or retailer.

Reclined Cradle Mode:

• WARNING: Never leave the child unattended.
• WARNING: Do not use the reclined cradle once your child can sit unaided.
• WARNING: This reclined cradle is not intended for prolonged periods of sleeping.
• WARNING: It is dangerous to use this reclined cradle on an elevated surface, e.g. a table.
• WARNING: Always use the restraint system.
• This reclined cradle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Do not use the recline cradle if any components are broken or missing.
• Do not use accessories or replacement parts other than those approved by Cosatto.

Part List:

Please refer to diagrams:

P1: Seat liner (full) P7: Adjustor strap
P2: Headrest P8: Handle adjustment button
P3: Hood P9: Side vehicle belt guide
P4: Chest pads (pair) P10: Rear vehicle belt guide
P5: Harness P11: Adjustor strap release button
P6: Crotch pad

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Hood fabric S5: Seat liner
S2: Hood fabric insert S6: Crotch pad
S3: Chest pads (pair) S7: Wedge
S4: Headrest
S8: Adjustor strap pad

Visual language Key:

XX	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Fitting & Operation Information:

Please refer to the following diagrams:

Preparation:

1: Fit the hood to the seat unit.
Harness:
2: Loosening:
NOTE: Pull only the harness straps.

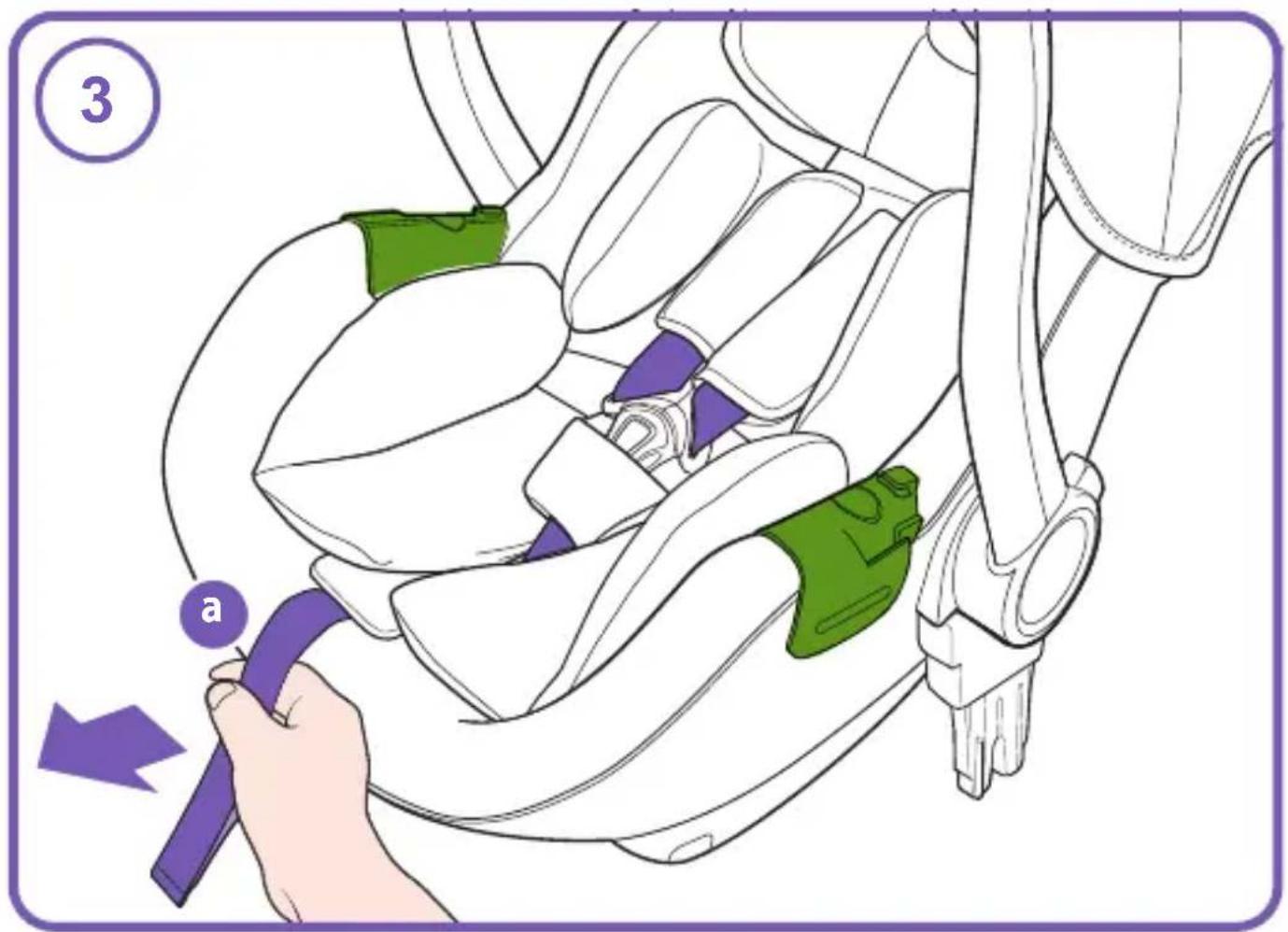

3: Tightening:

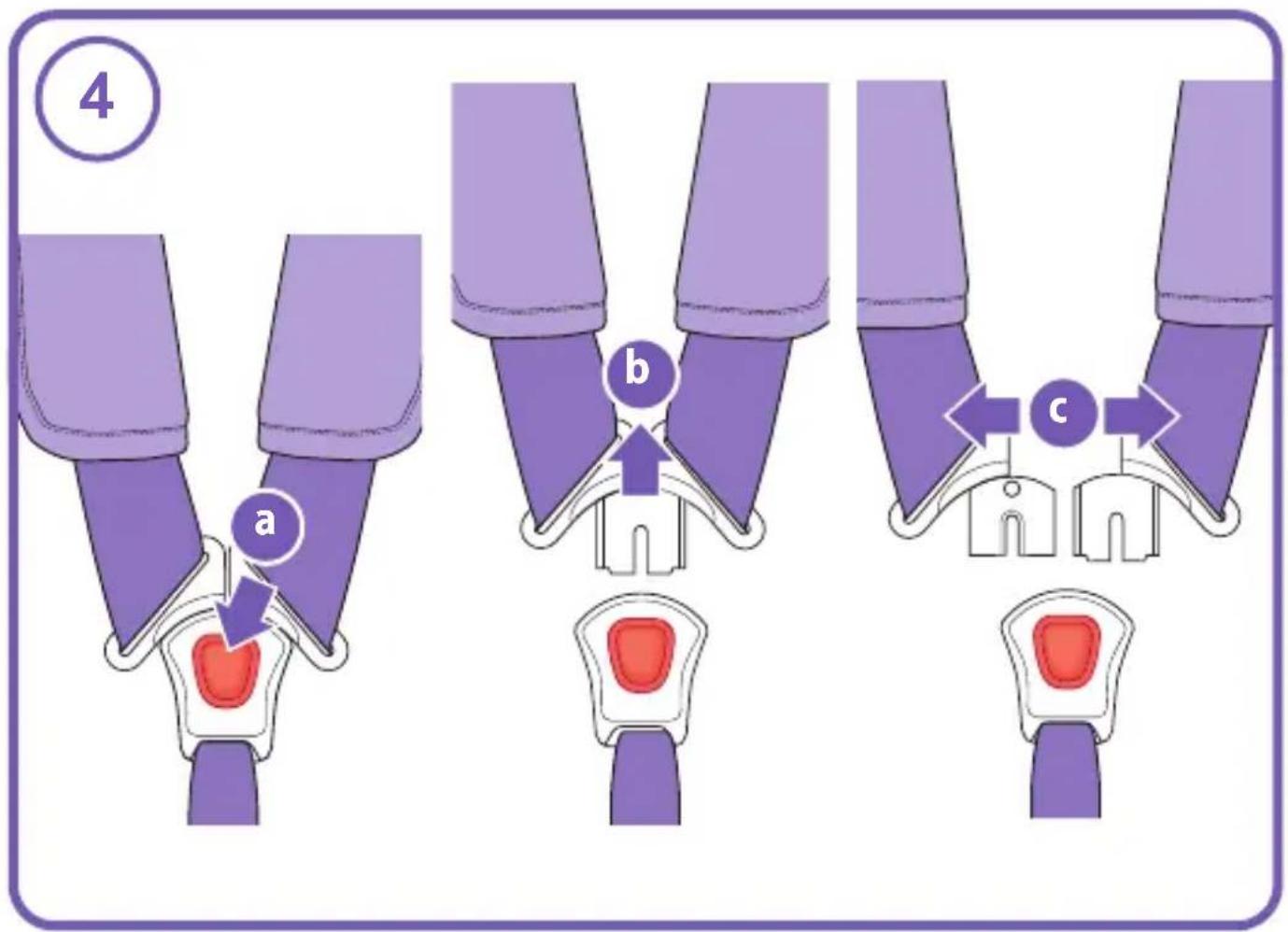

4: Opening:

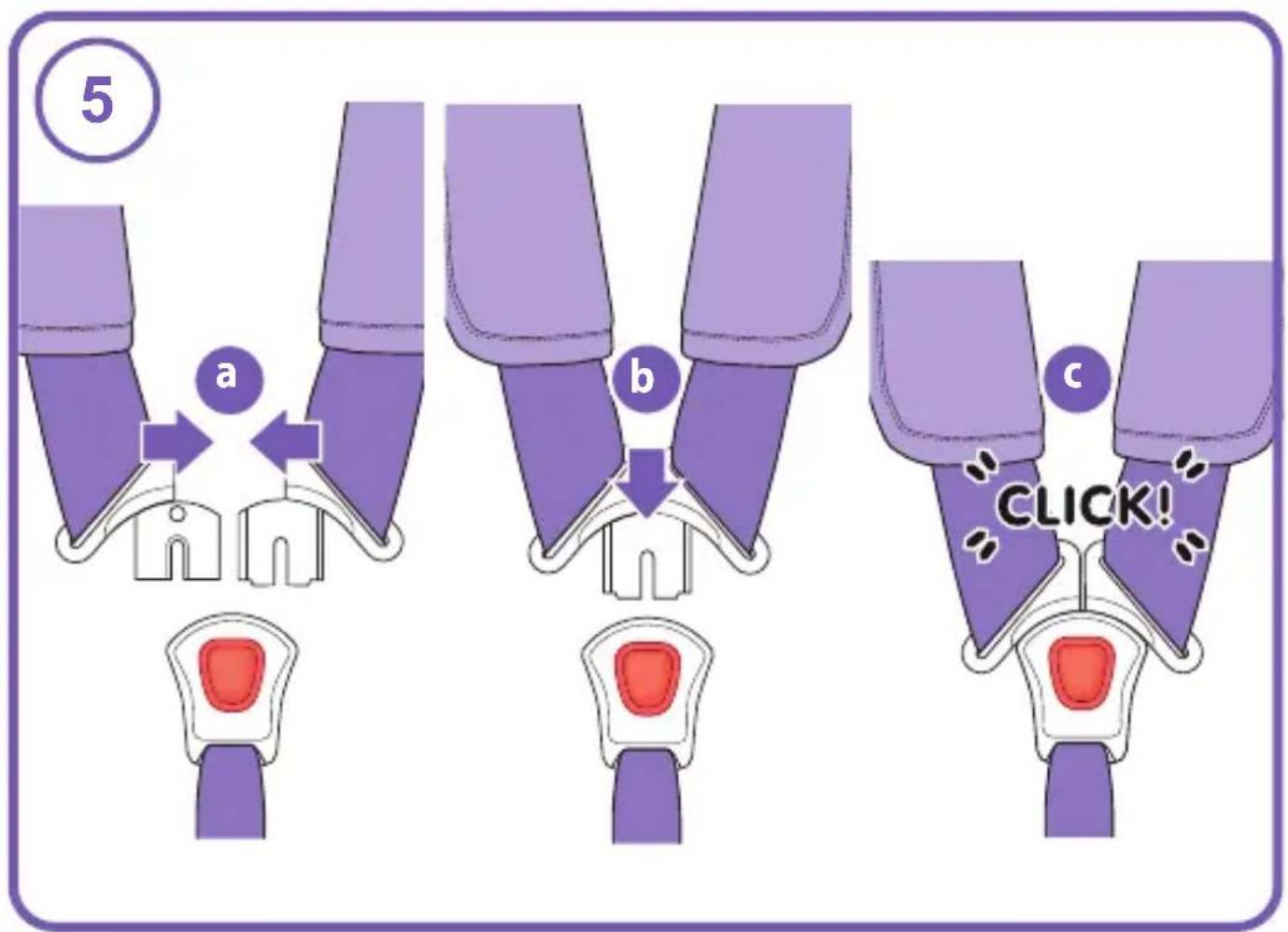

5: Closing:
Headrest:

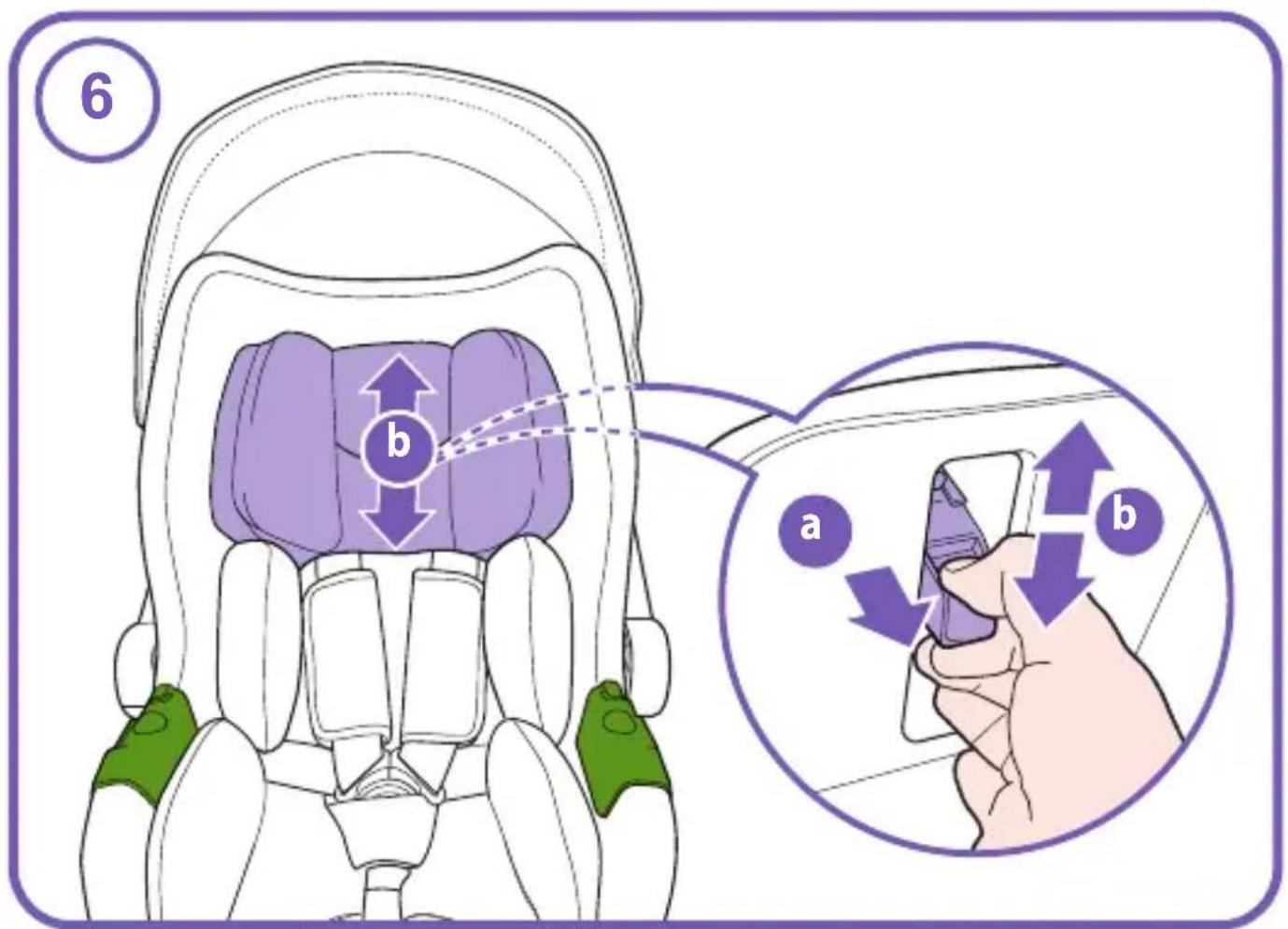

6: Adjusting:

Loosen the harness (refer to step 2).

Pull back the adjustor (a) and adjust the headrest position (b).

Seat Liner:

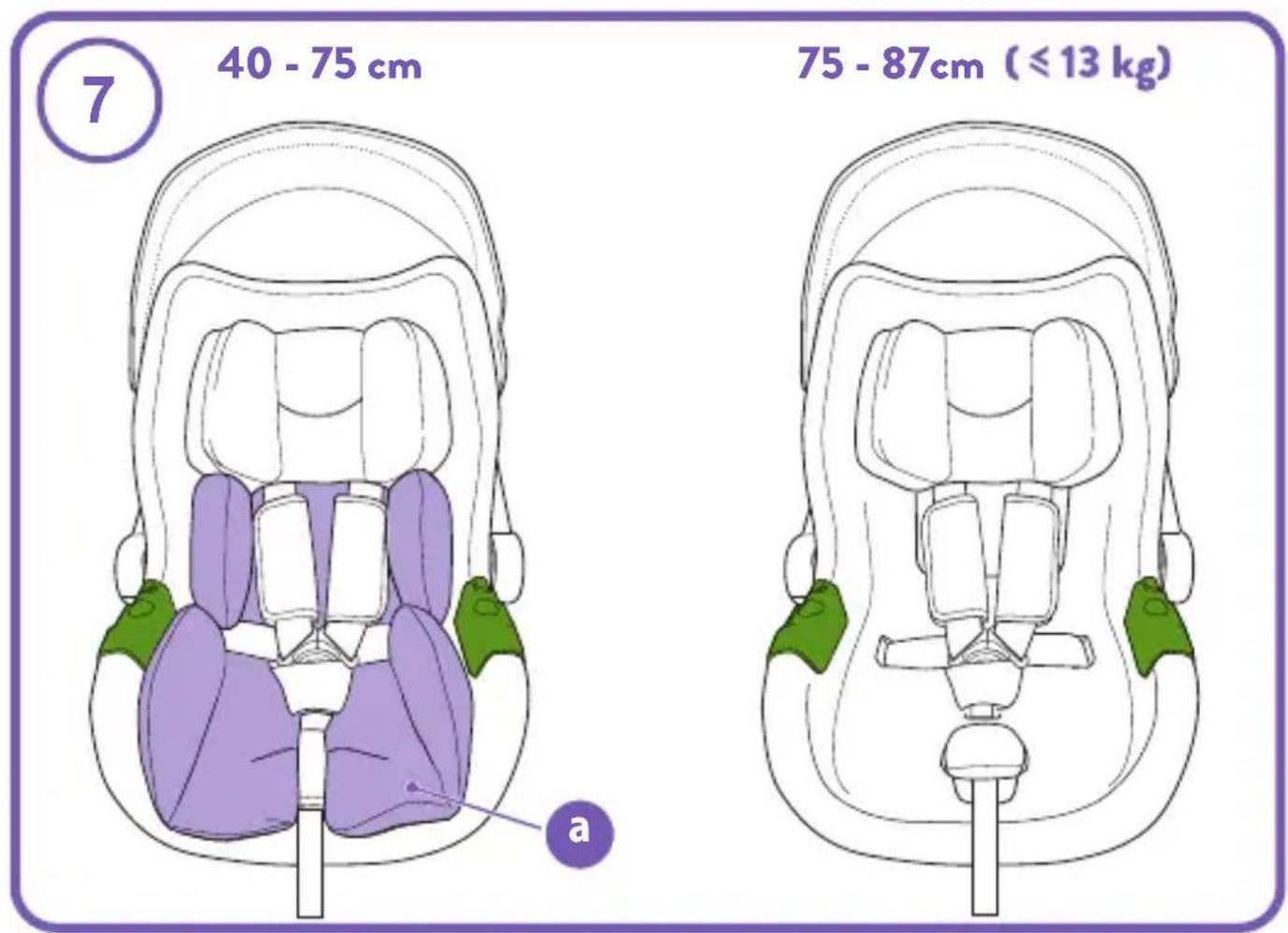

7: When your child's height is between 40 and 75 ~cm , the child car seat must be used WITH the seat liner (a).

After your child's height excess 75cm, the child car seat can be used WITHOUT the seat liner.

Handle:

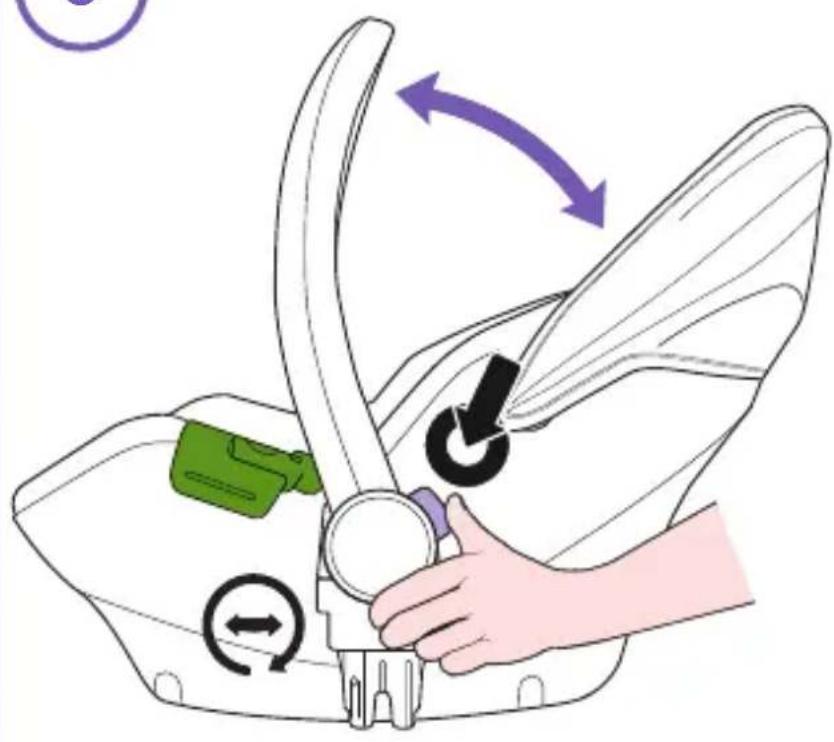

8: Adjusting:

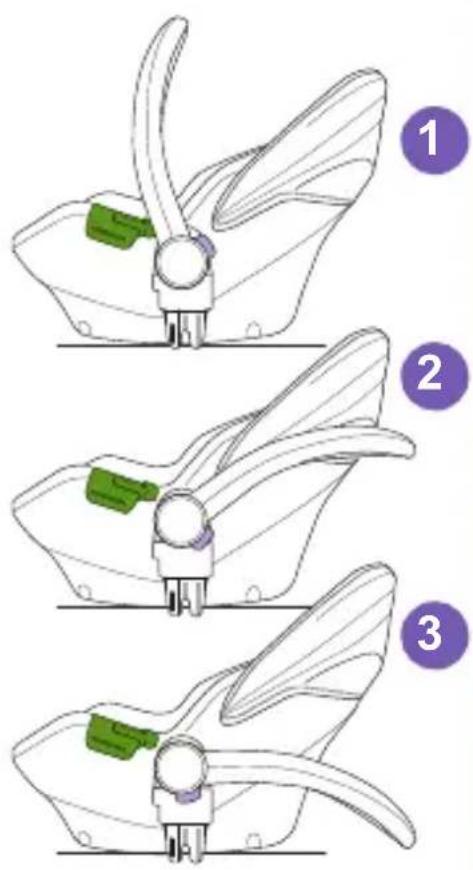

Handle positions:

1: In vehicle/Carry position,

2: Stow/Reclined Cradle position,

3: Steady position.

Hood:

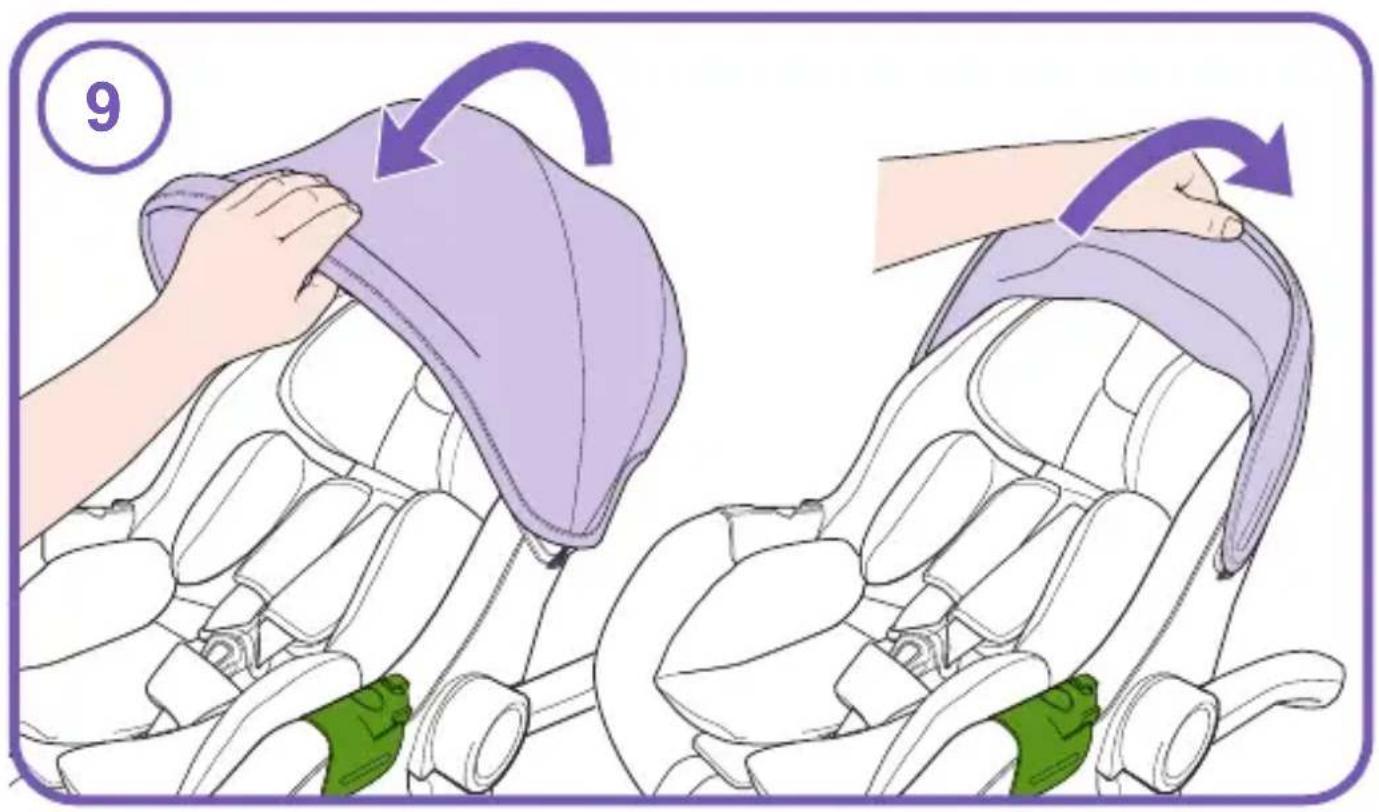

9: Using the hood:

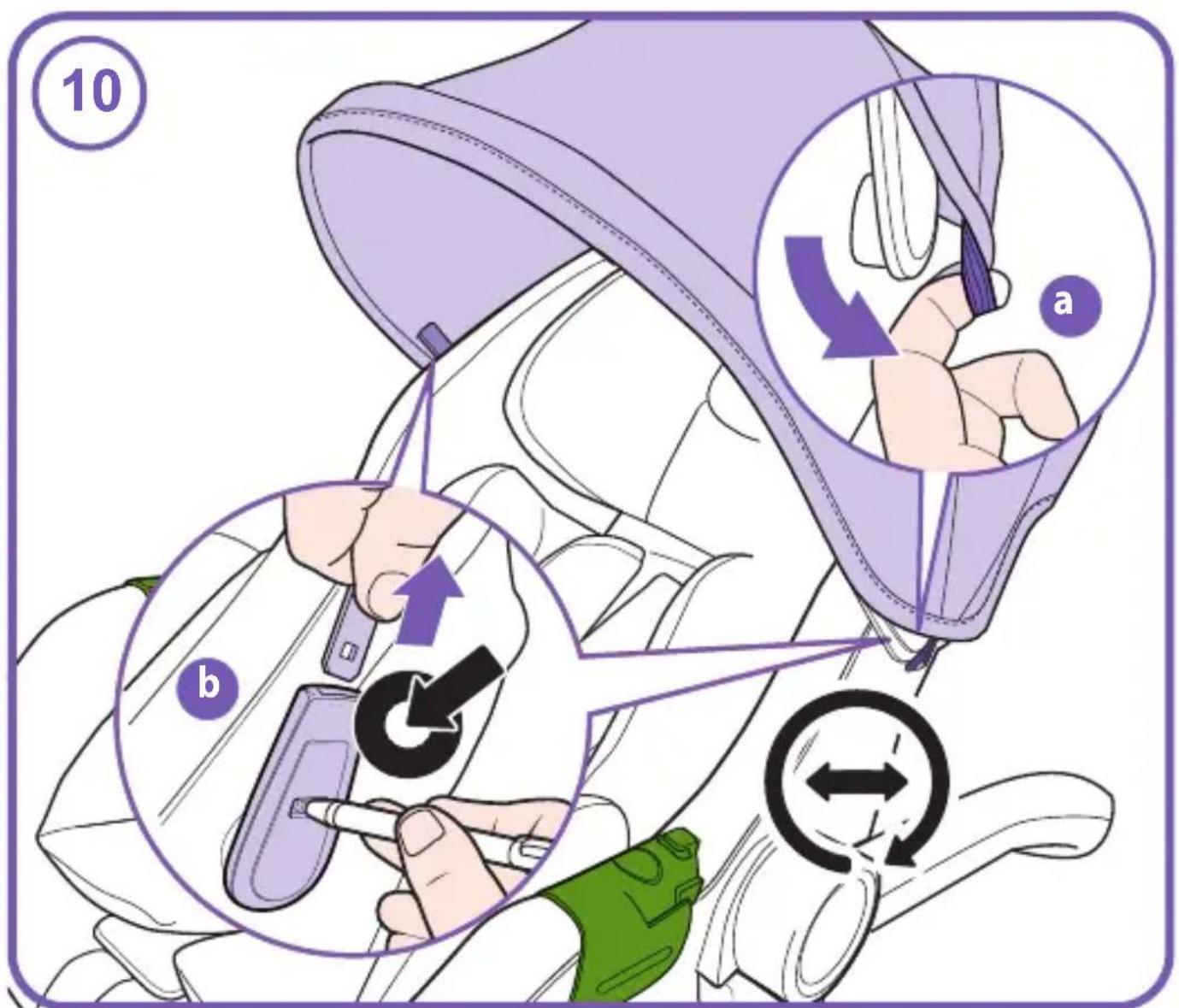

10: Adjusting:

Refitting is a reversal of this procedure.

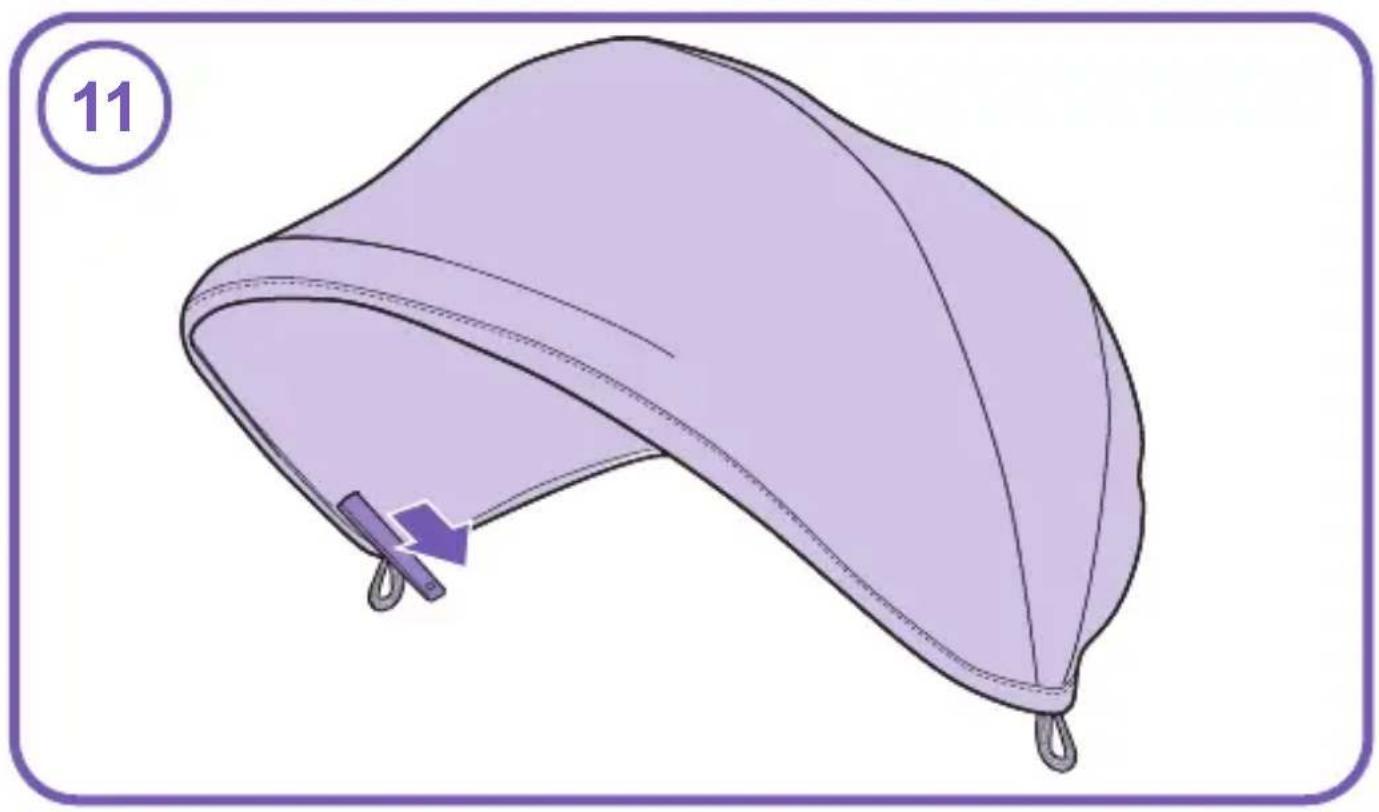

11: Removing hood fabric insert:

Refitting is a reversal of this procedure.

Securing your child in the child car seat:

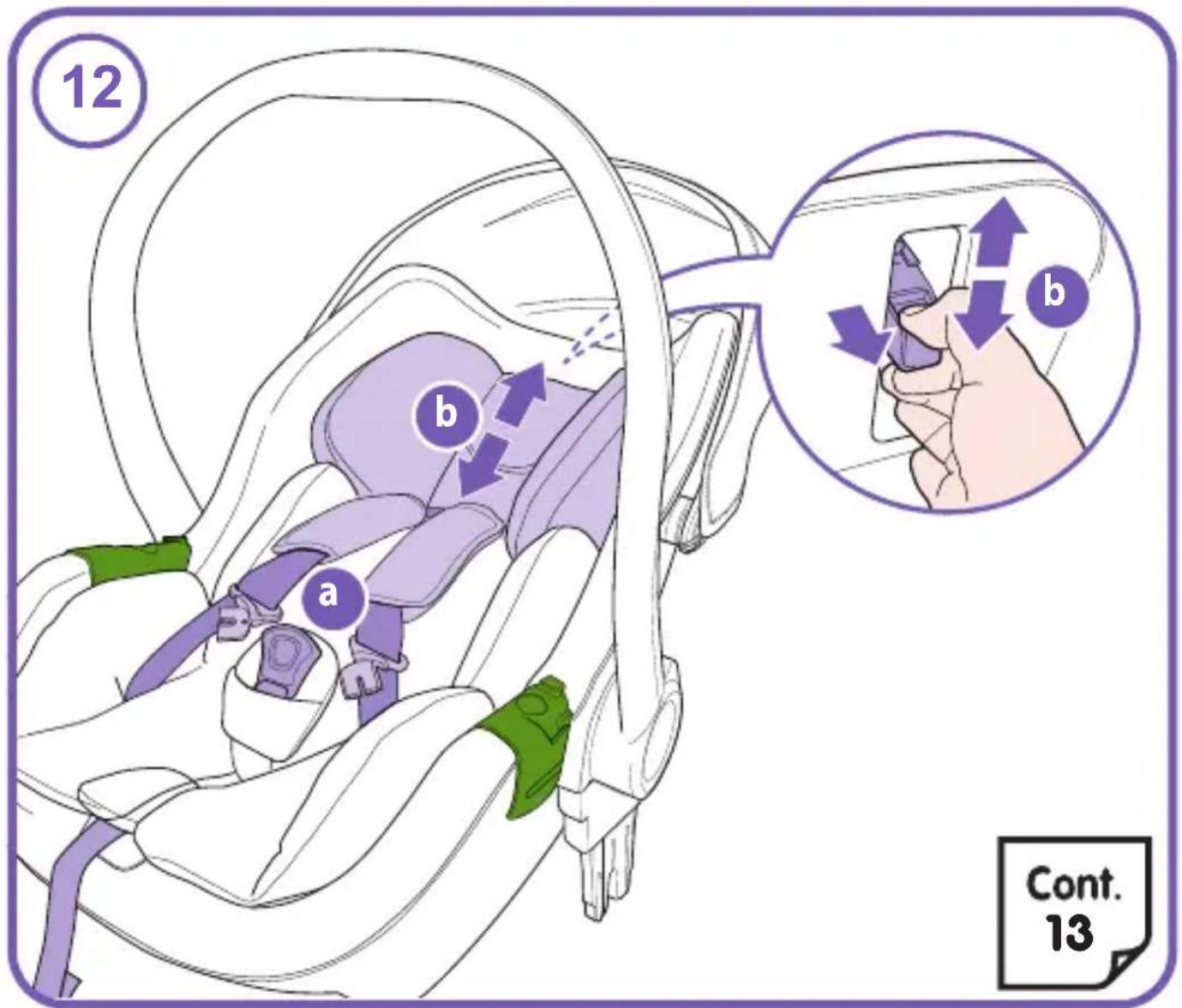

12: Open the harness (a), (refer to step 4). Raise the headrest (b), (refer to step 6).

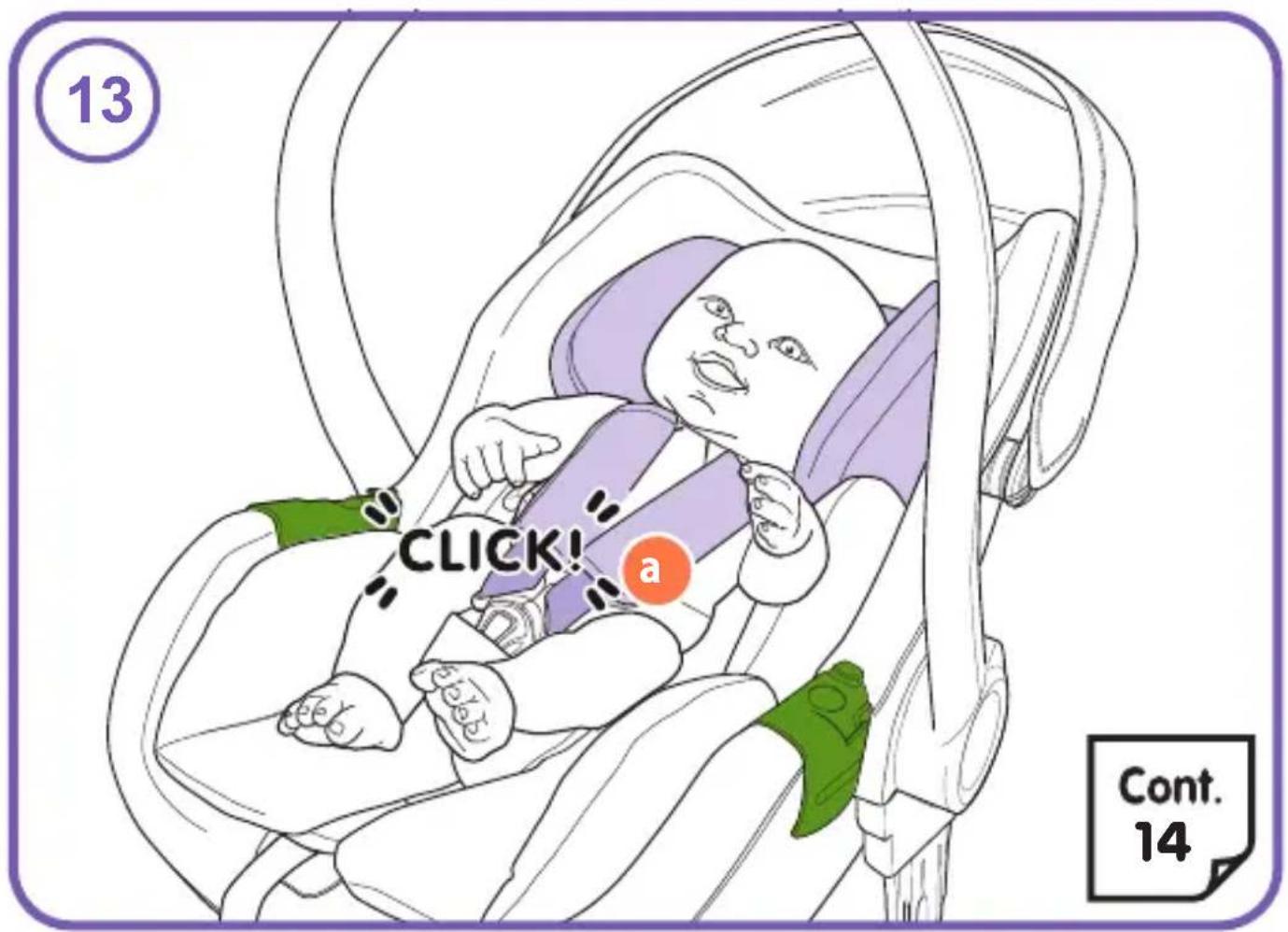

13: Place your child in the child car seat. Close the harness (a), (refer to step 5). Adjust the headrest (b), (refer to step 6). Tighten the harness (c), (refer to step 3).

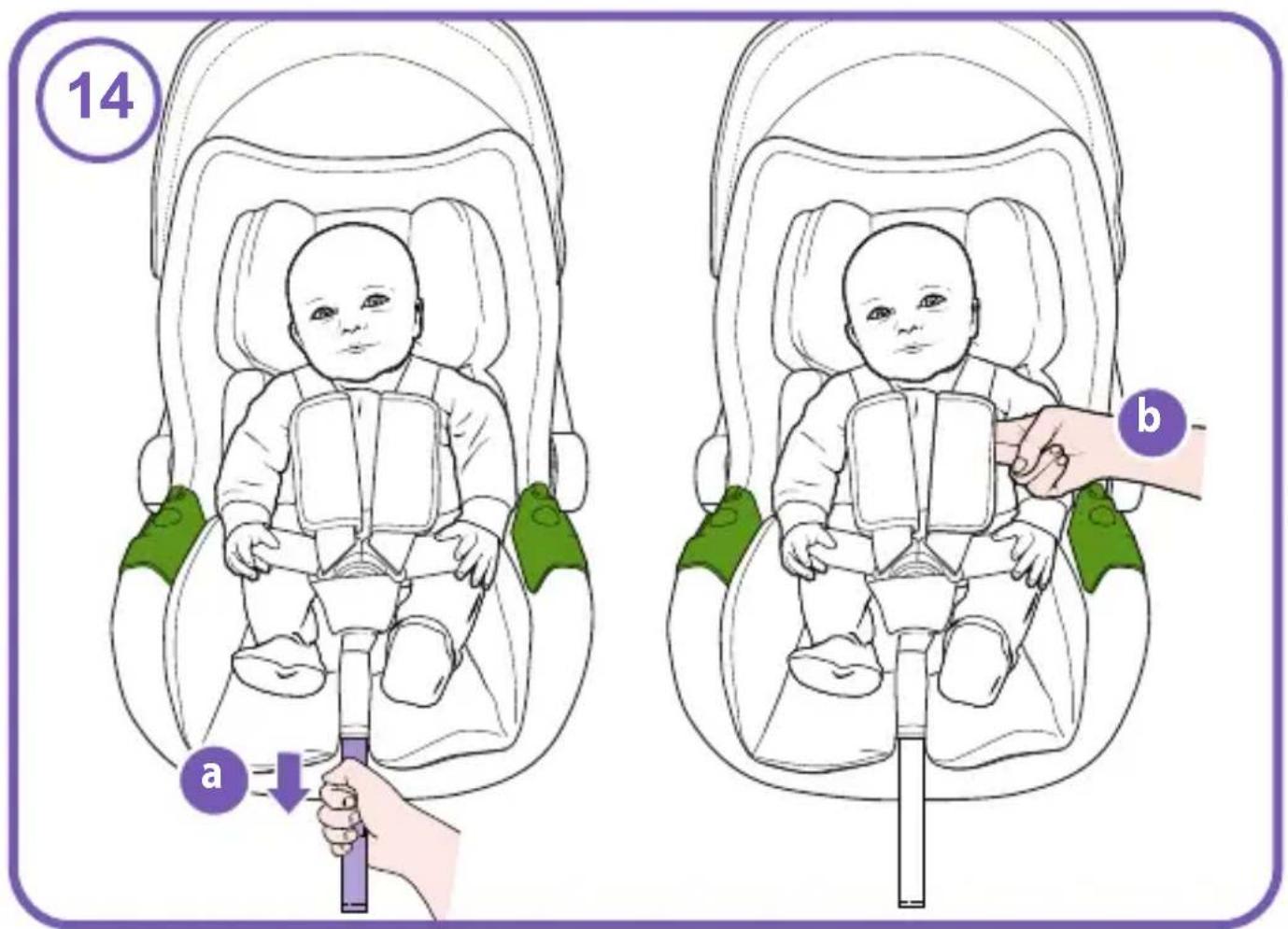

14: NOTE: The harness must be reasonably tight. It should restrain but not make the child uncomfortable. Check that the straps are not twisted while the child is seated.

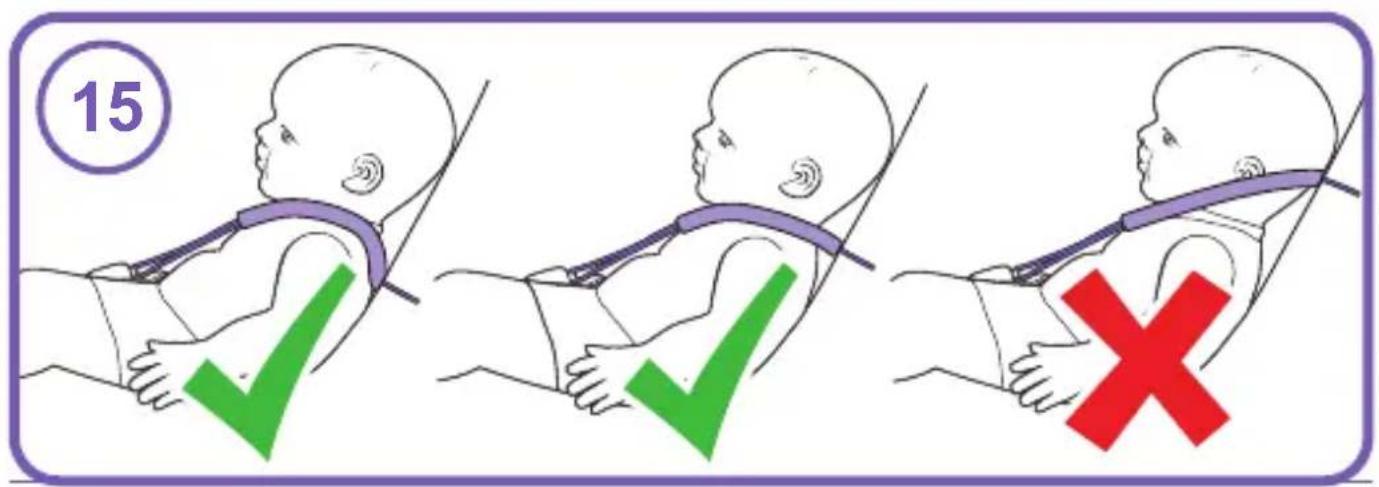

15: Satisfactory shoulder strap position:

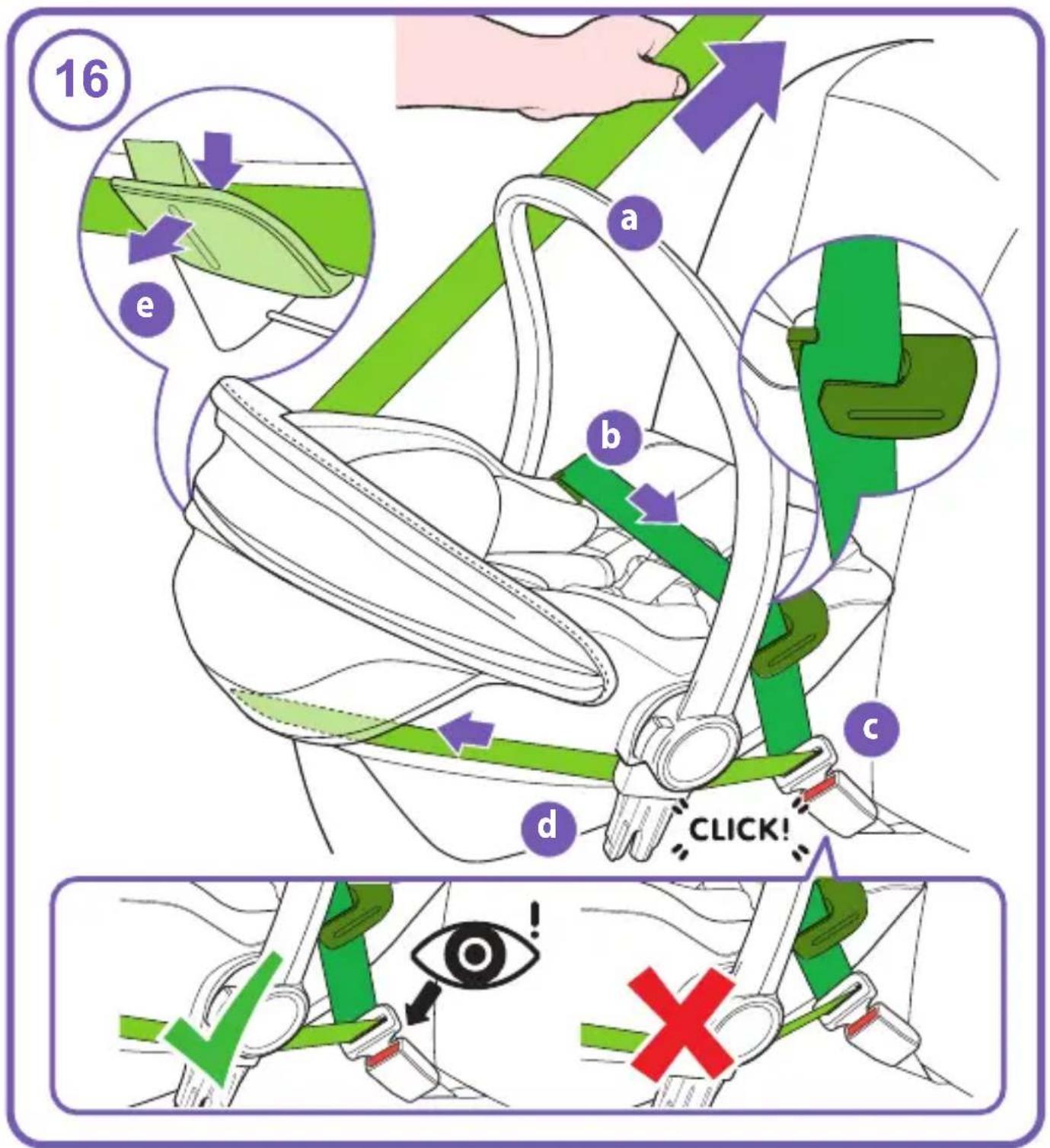

Fitting the child car seat to your vehicle:

16: Adjust the handle to vehicle/Carry position (a) (refer to steps 8).
Position the child car seat on the vehicle seat, pass the vehicle waist belt through the side vehicle belt guides (b) and fasten the vehicle belt buckle (c).
Route the diagonal belt under handle hinge (d) then through rear vehicle seat belt guide (e).
Tension the vehicle diagonal belt (f).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child car seat. In an accident this could stop the child car seat from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked ✗ then try fitting the child car seat in another seating position in your vehicle. If in doubt consult either the child car seat manufacturer or retailer.

Removing softgoods:

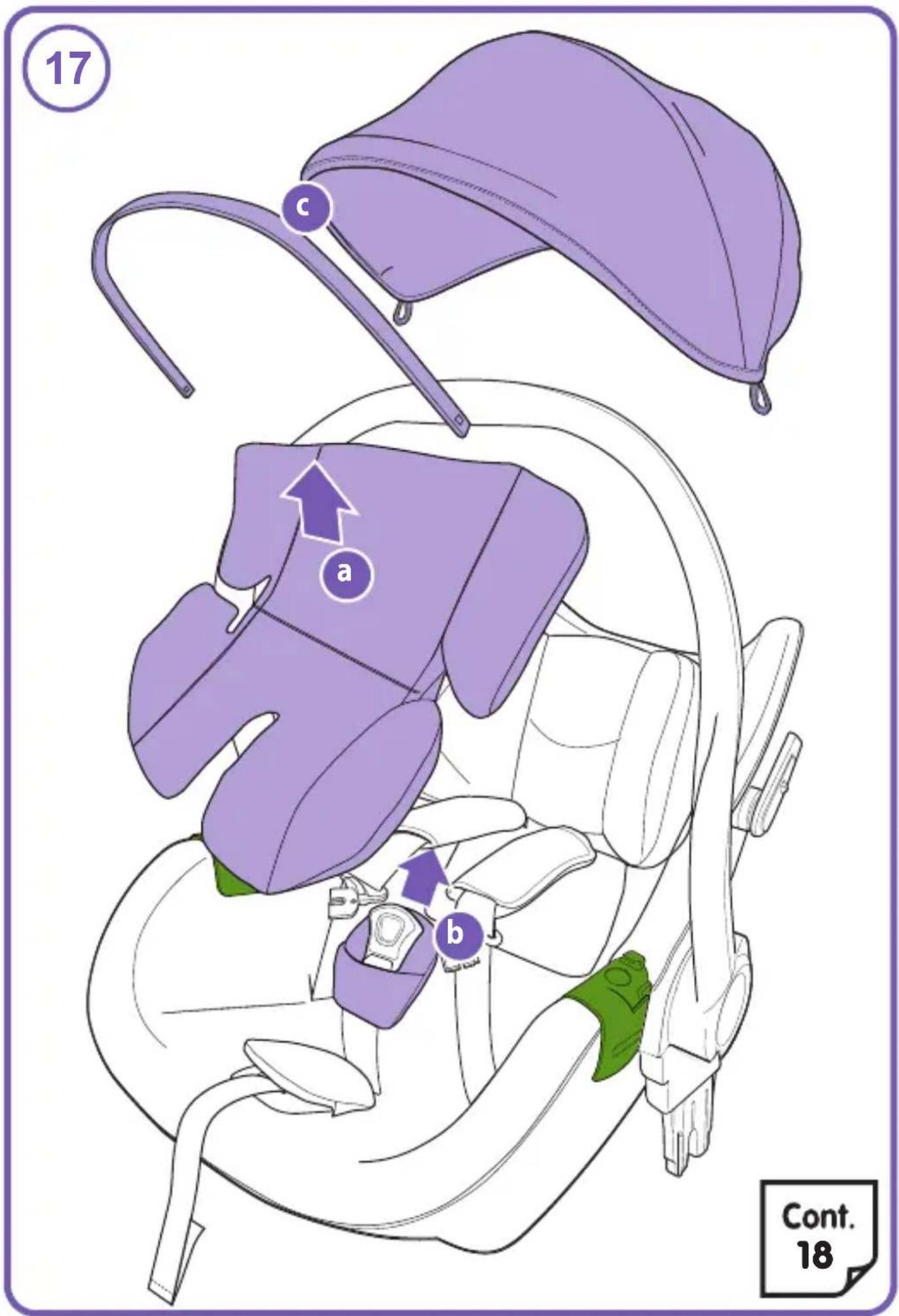

17: Open the harness, (refer to step 4).
Remove the seat liner (a) (if applicable) & crotch pad (b).
Remove the hood (c) (refer to step 10).

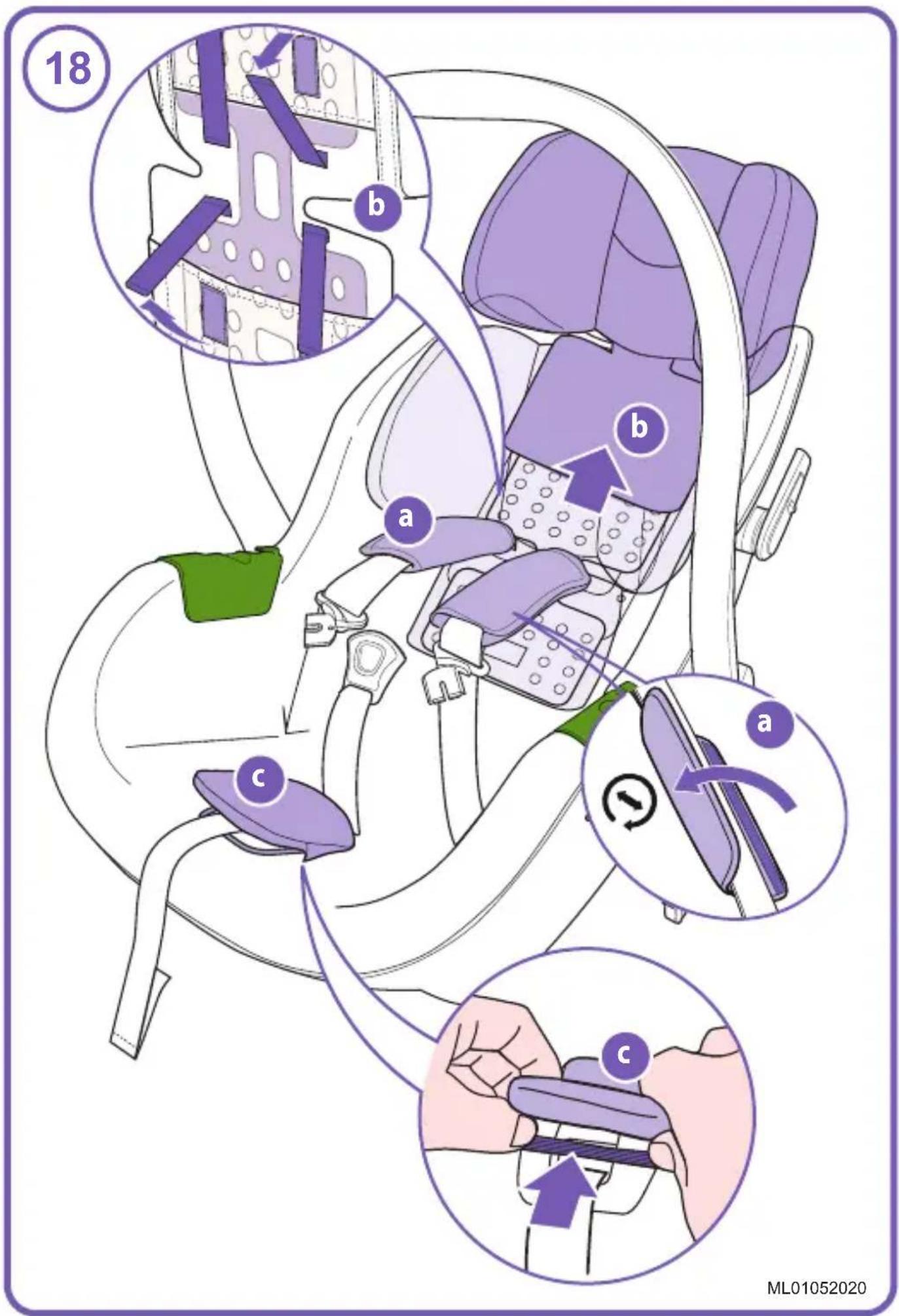

18: Remove the chest pads (a) and headrest (b).

Remove the adjustor strap pad (c).

Refitting is a reversal of this procedure.

Note: Never remove the backing foam from the child car seat.

Checklist:

• Have you check the compatibility of the child car seat with the intended vehicle?
• If applicable, is the air-bag de-activated?
• Is your child car seat correctly fitted to the vehicle seat?
• Have you check the position of the vehicle belt buckle?
• Is your child correctly secure in the child car seat?
• Are the vehicle belt and harness adequately tensioned and not twisted?

Z

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
• Refer to the wash care label on soft goods for cleaning instruction.
• Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

IMPORTANT! LIRE ATTENTIVEMENT AVANT UTILISATION ET CONSERVER POUR CONSULTATION ULTÉRIEURE

Diagram showing two labeled parts with checkmarks and crosses, one blue with a green checkmark and the other red cross.

AIRBAG No 1 2 3 4 5 6 7

http://www.cosatto.com/service-centre/spares

Wiege in Rücklehnposition:

http://www.cosatto.com/service-centre/spares

Schultergurt spannen (f).

http://www.cosatto.com/service-centre/spares

Diagram showing two labeled parts with checkmarks and crosses, likely illustrating a verification or approval process.

AIRBAG 0 1 2 3 4 5 6 7

安全 - 请仔细阅读:

货：http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists

2 b a a a

3 a

4 a b c

5 a b c CLICK!

6 b a b

8

Diagram illustrating hand positioning of a car seatbelt with directional arrows and labeled parts

Diagram showing three-step assembly steps of a mechanical component with green tags, labeled 1, 2, and 3.

Illustration of a person adjusting a purple cap on a car seat, showing two steps with arrows indicating motion (no text or symbols)

10 a b

Illustration of a purple fabric hat with a loop, showing a small object inserted into the base (no text or symbols)

12 a b b Cont. 13

13 CLICK! a Cont. 14

14 a ↓ b

15

16 a b c d CLICK!

17 c a b Cont. 18

18 b a c a ML01052020

• For seating positions for other fitting options, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/portisizevl).

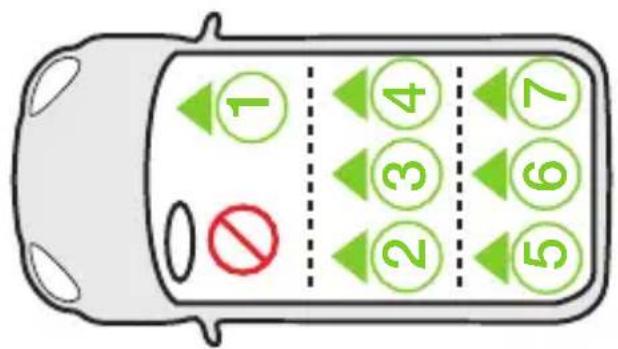

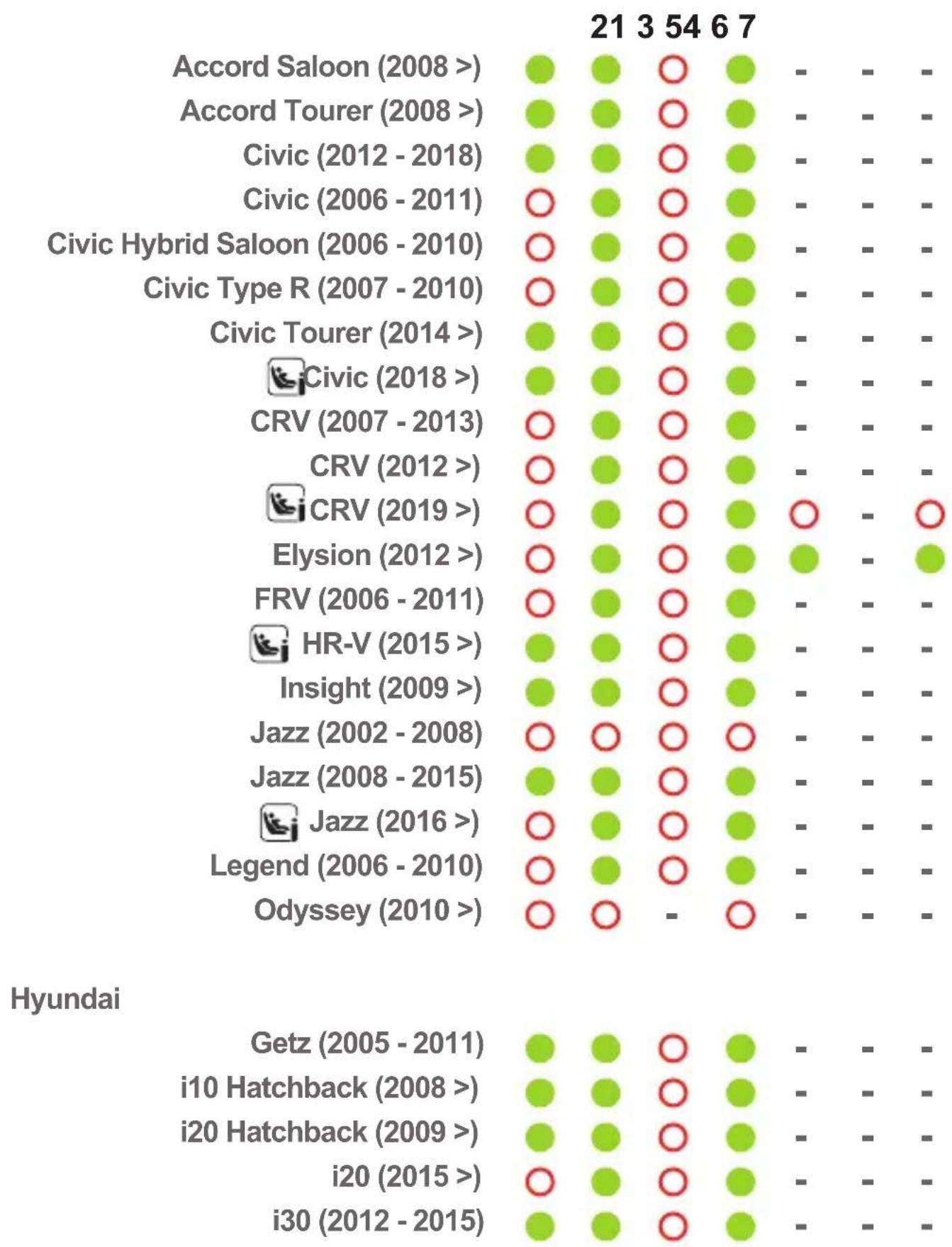

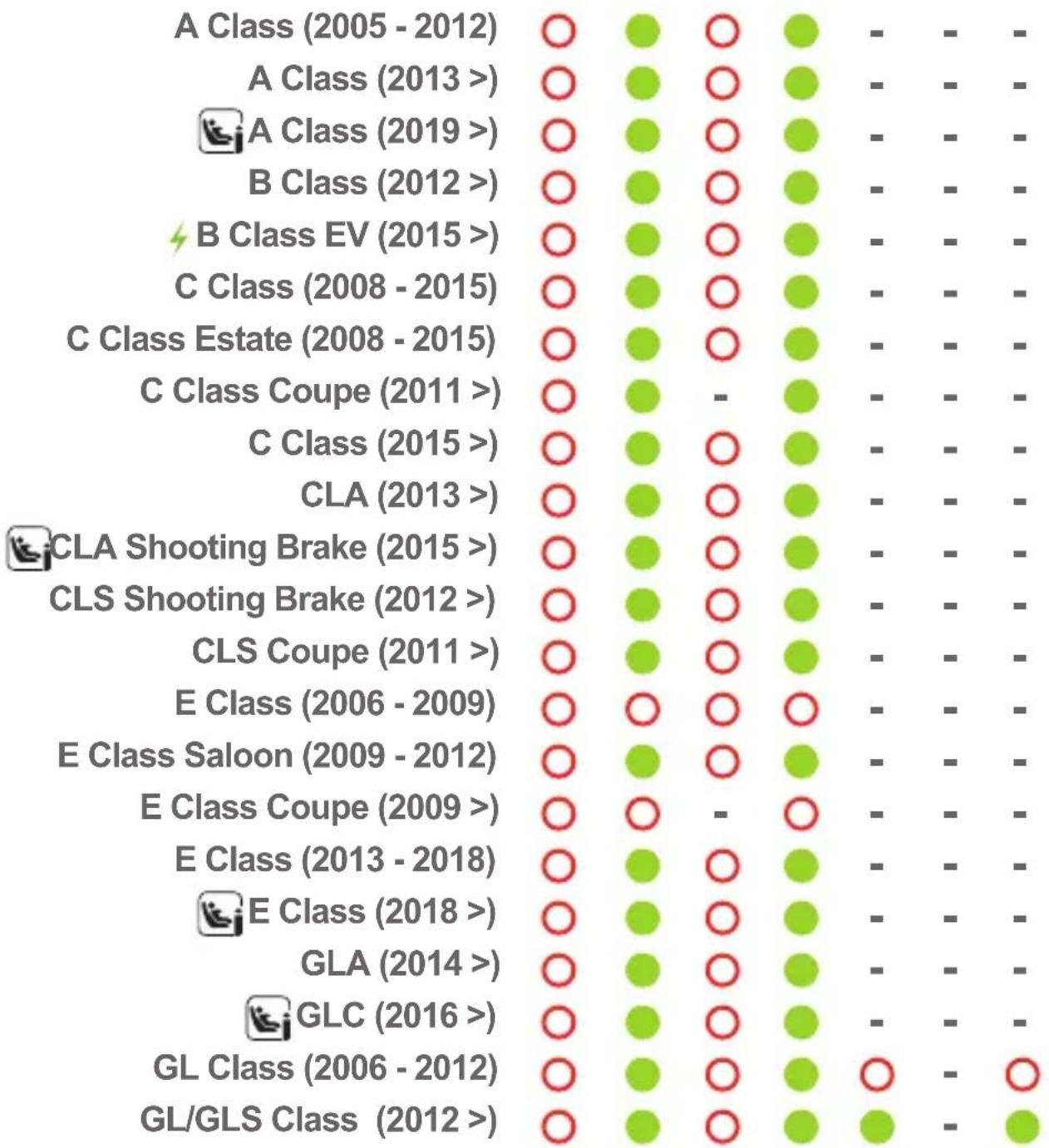

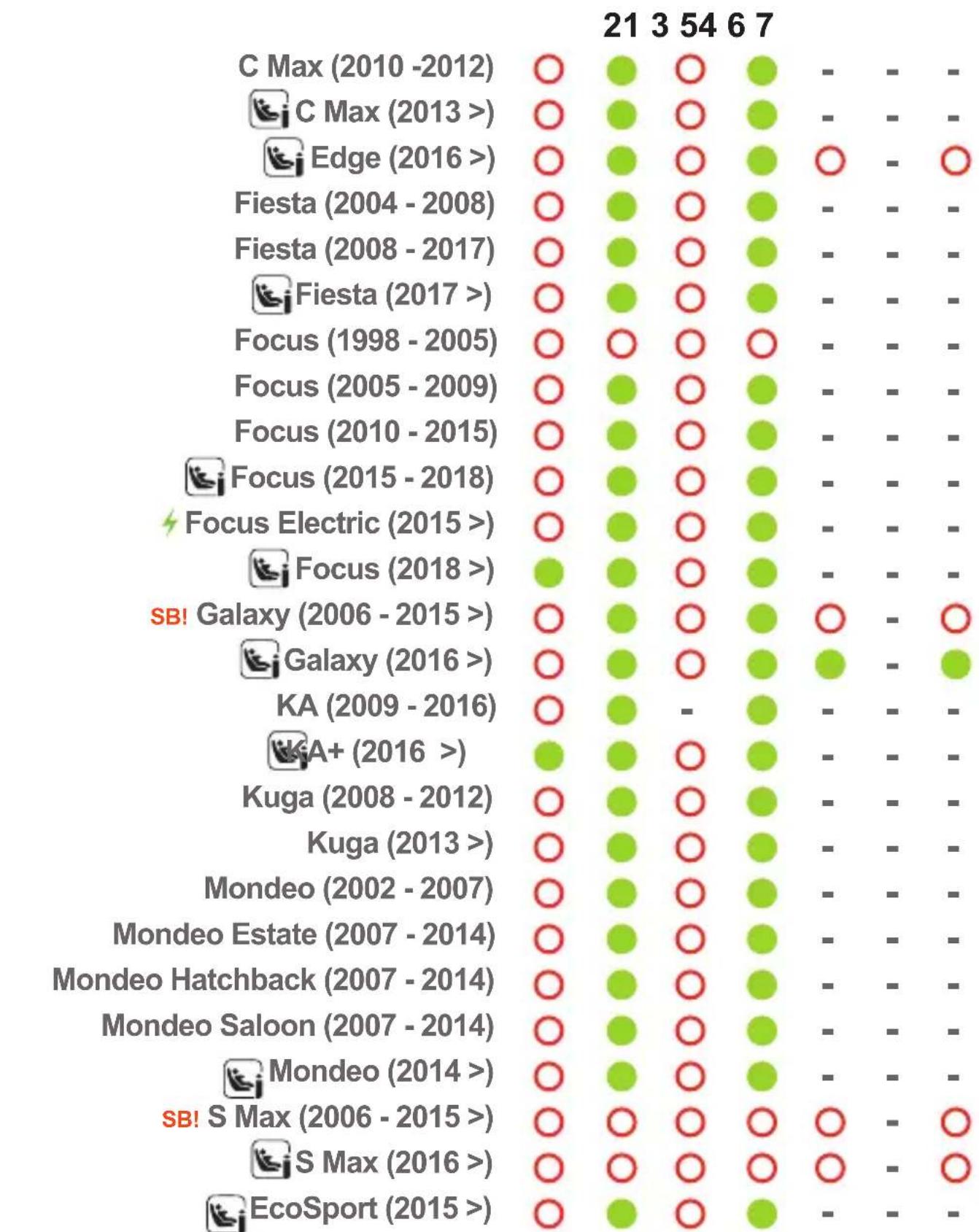

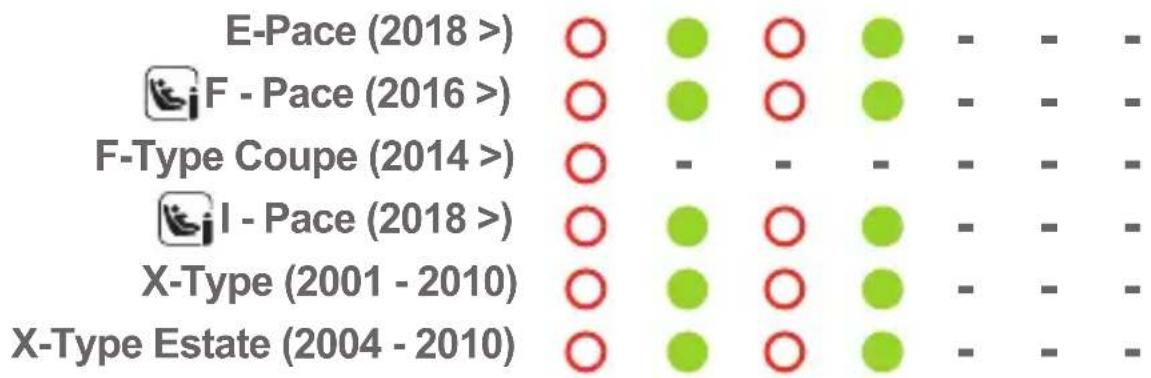

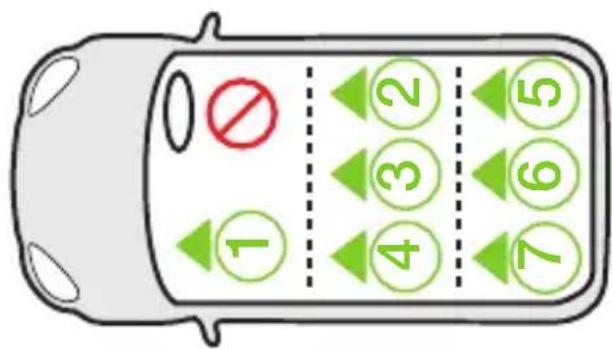

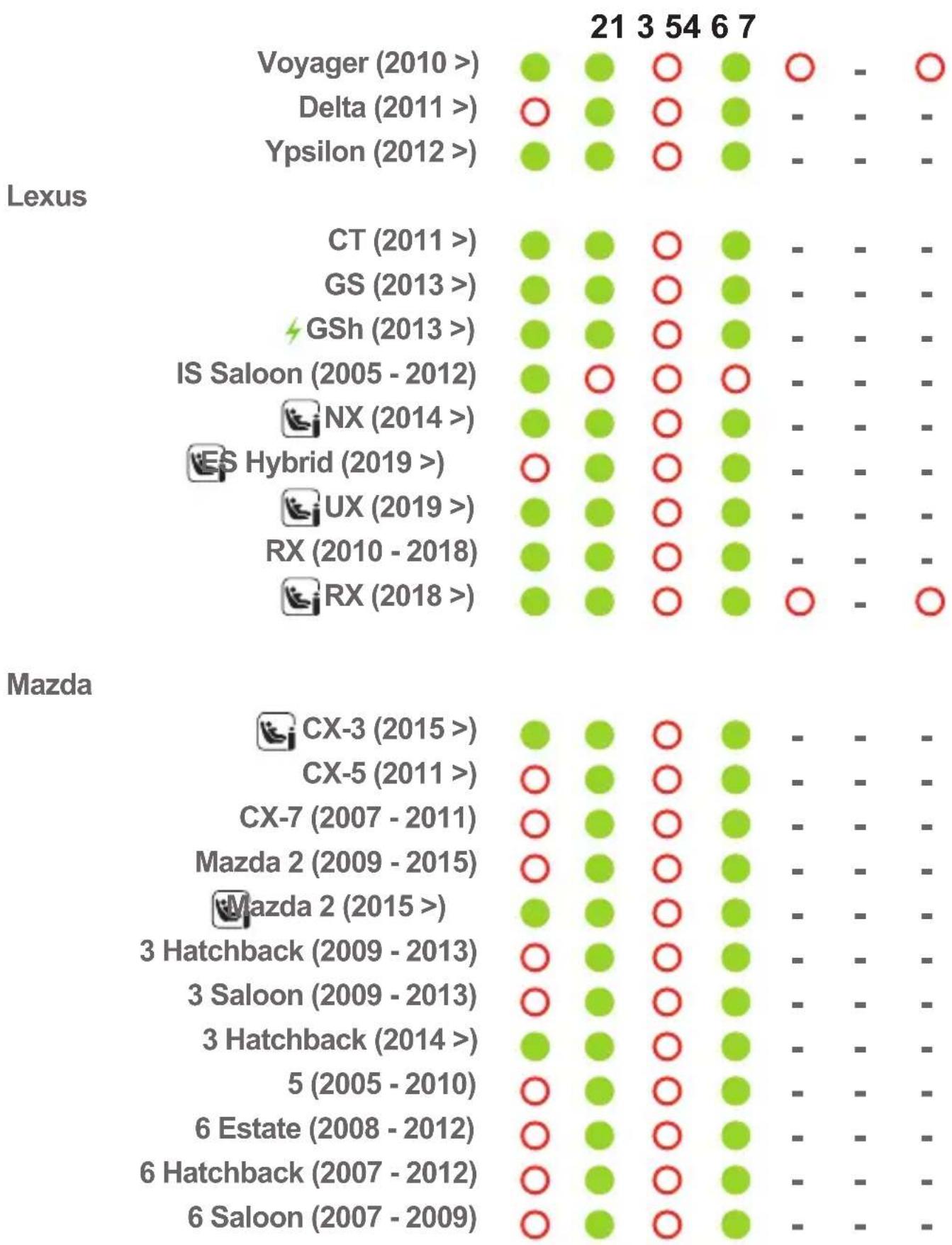

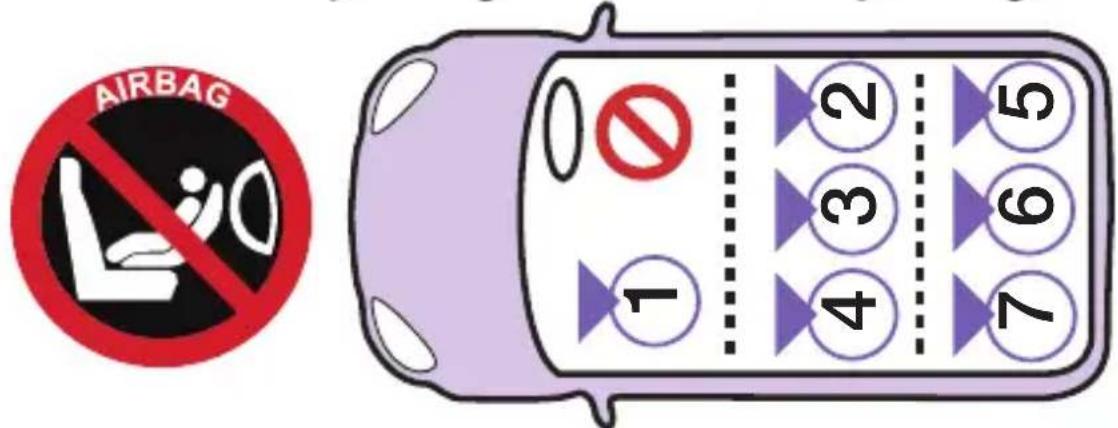

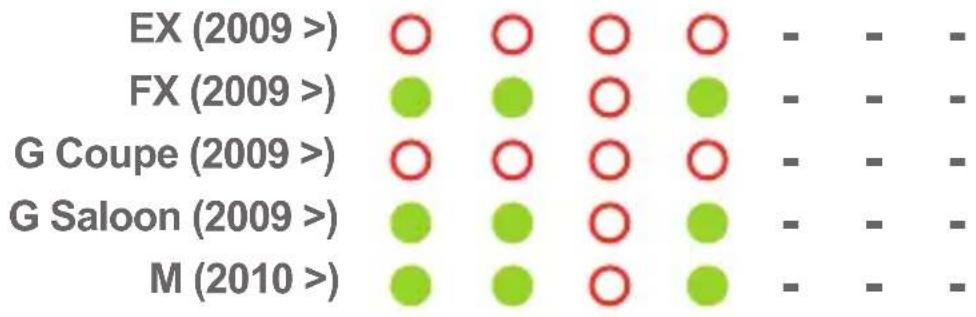

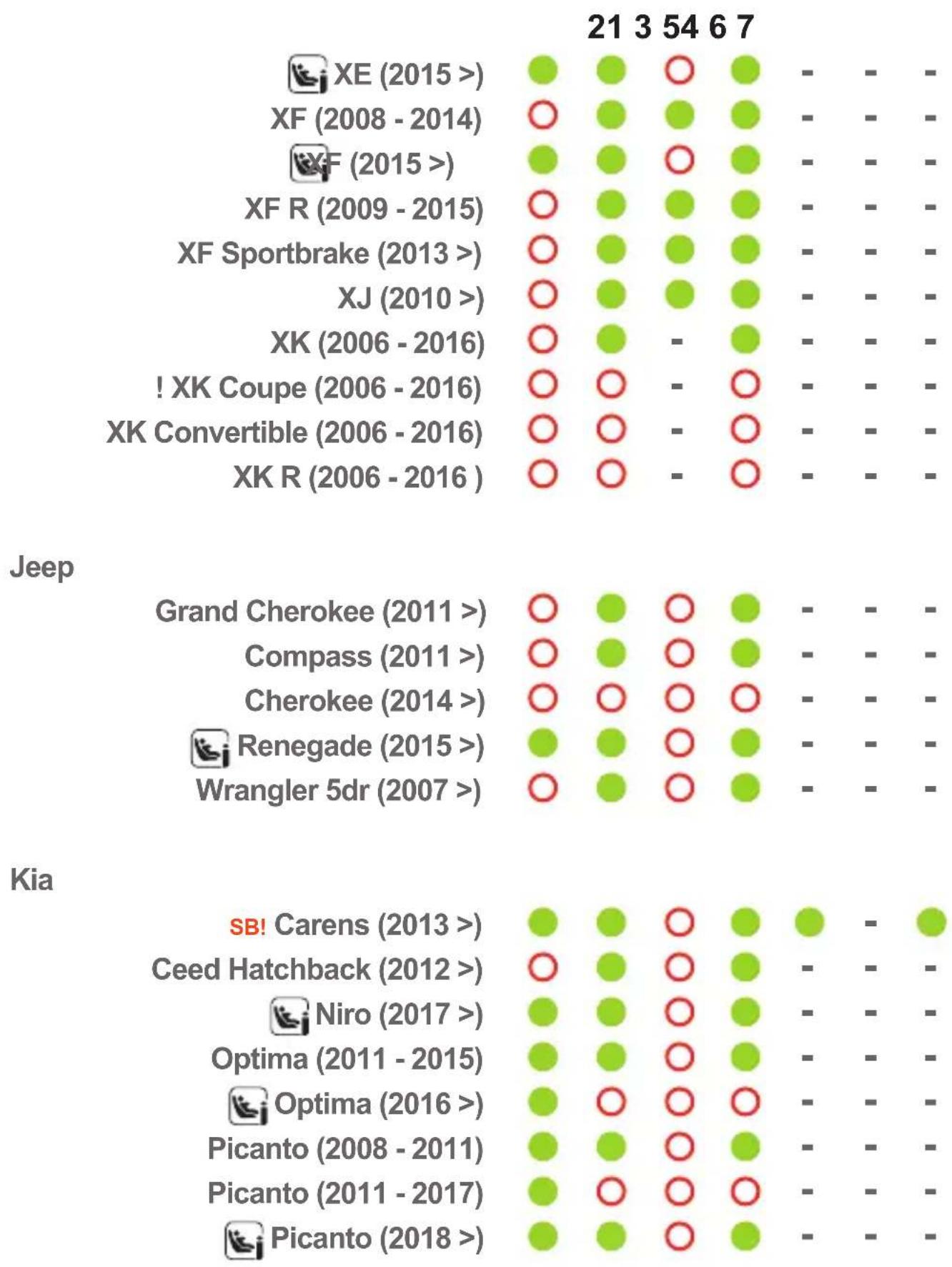

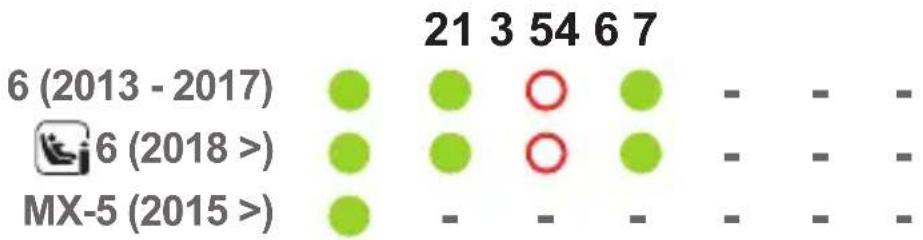

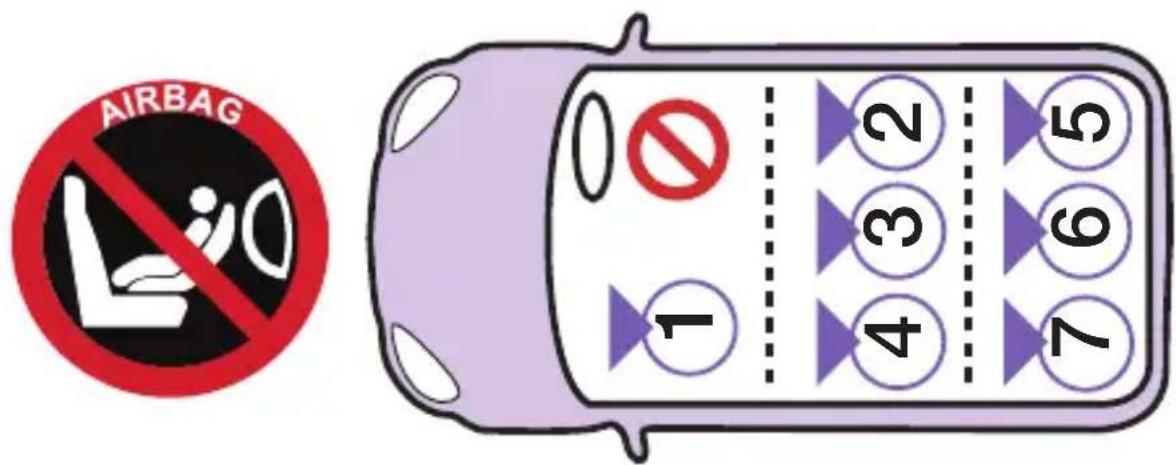

• The numbers in the vehicle diagram below correspond with the seat positions listed in the vehicle fitting list.

① ④ ⑦ ③ ⑥ ② ⑤ 0 #

Diagram of a car with numbered circular buttons and a red prohibition symbol, likely indicating status or function.

• If the child restraint can be fitted, the suitable seat position(s) is marked with
• If the child restraint cannot be fitted, the suitable seat position(s) is marked with
  • Electric or hybrid vehicles are marked with
  • i-Size vehicles are marked with
• Vehicles with under-floor storage compartment(s) is marked with SB! - Please consult the vehicle's handbook prior to fitting this child restraint in these vehicles.
  • Vehicles with a cabin roof height which could restrict the child restraint from being installed forward facing are marked with!

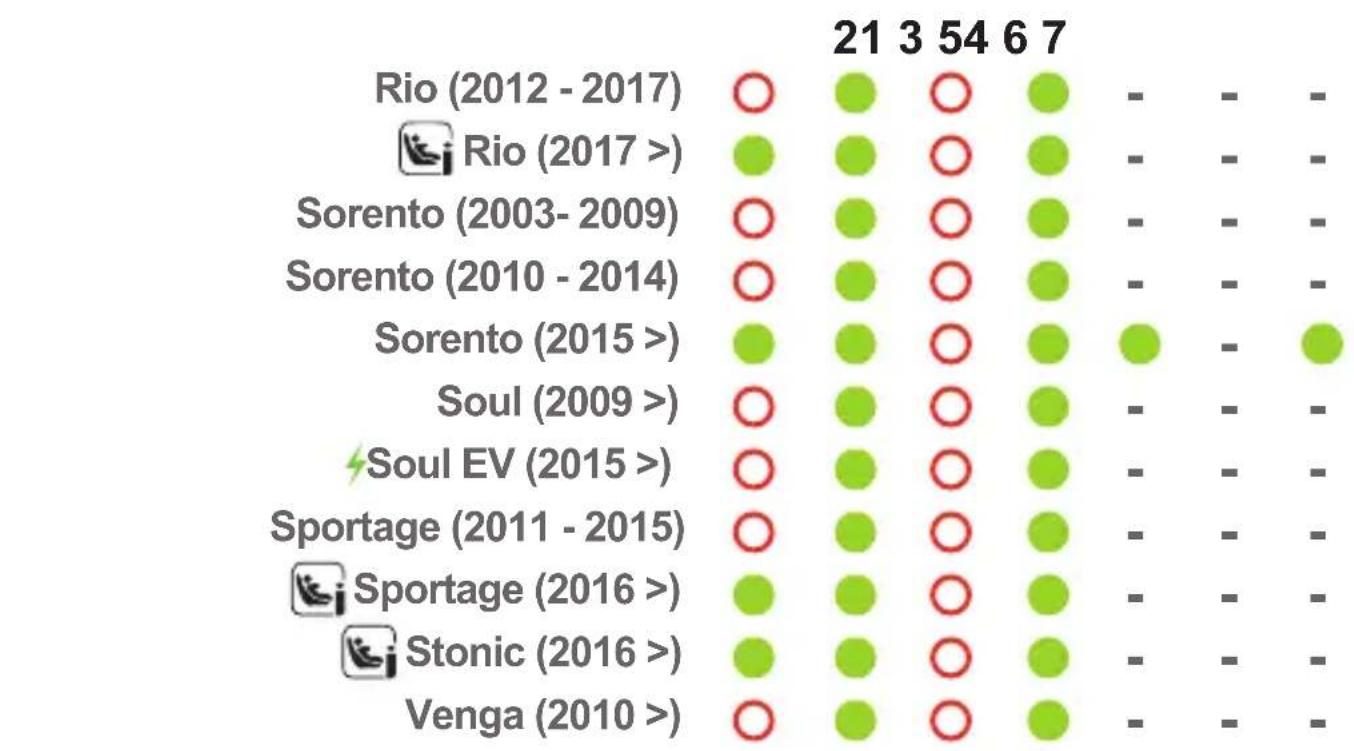

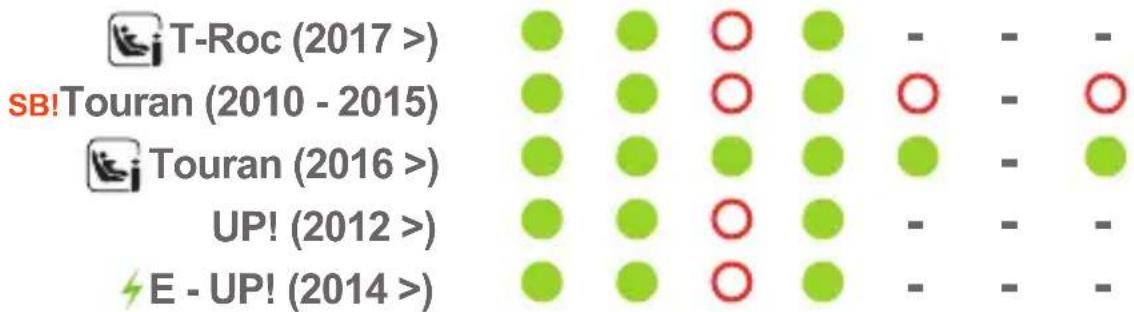

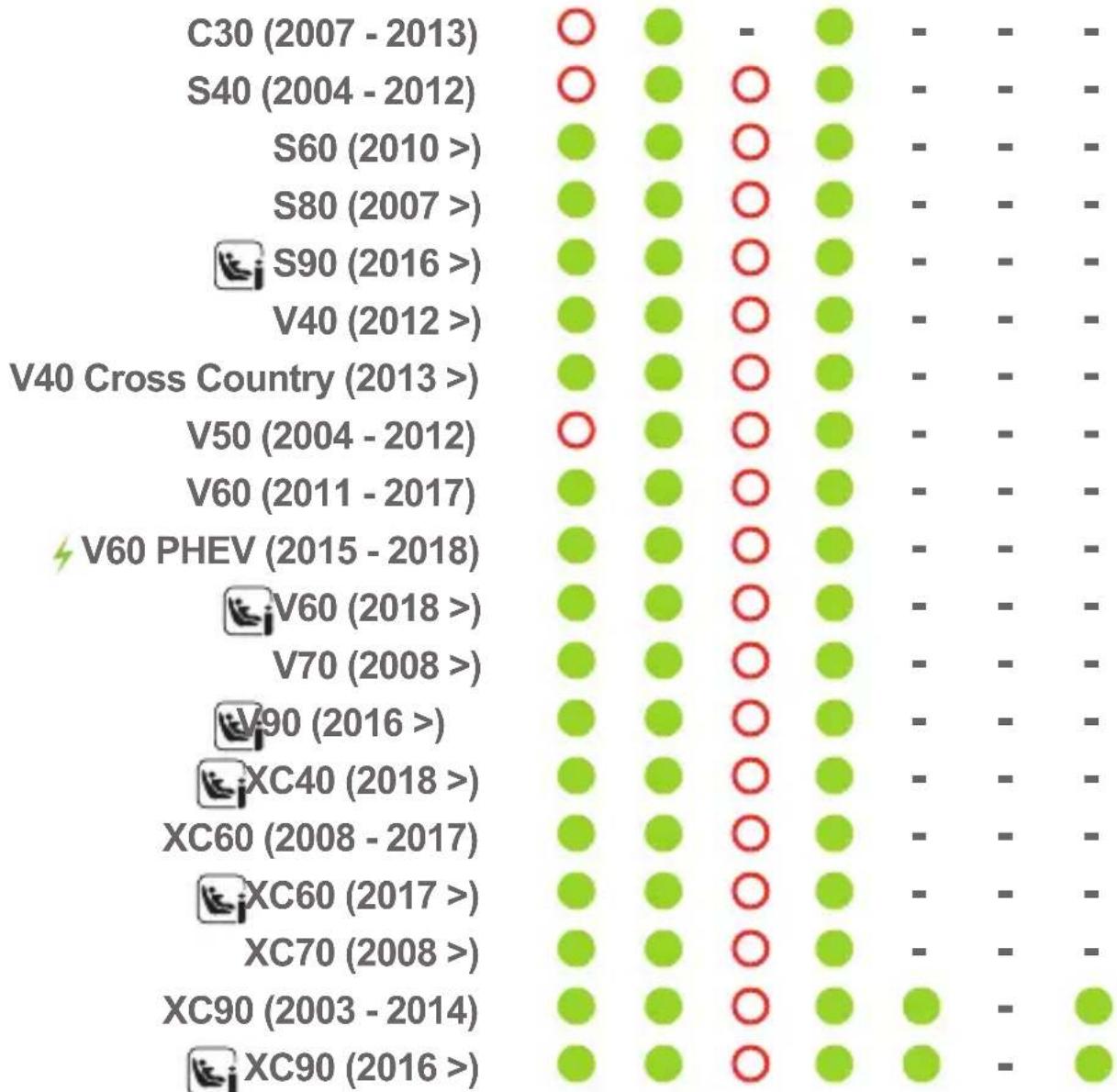

• If your vehicle is not listed in this list or it is not marked with either a ● or ○ then please refer to the vehicle's handbook or contact Cosatto or retailer for further information.
• Seat positions in other vehicles may also be suitable to accept the child restraint. If in doubt, consult either Cosatto or the retailer.

Prior to purchase the vehicle, check that it is equipped with the appropriate anchorages.

ALWAYS give priority to the rear vehicle seats.

DO NOT fit the child restraint onto a vehicle seat fitted with an airbag, unless it can be, and is deactivated. Death or serious injuries can be caused by an activated AIRBAG system.

Diagram of a car with numbered circular buttons and a red prohibition symbol, likely indicating a parking or emergency control.

Diagram of a car with numbered circular indicators and a red prohibition symbol, likely indicating status or function.

Diagram of a car with numbered circular indicators and a red prohibition symbol, likely indicating status or function.

Diagram of a car with numbered circular indicators and a prohibition symbol, likely indicating status or function.

Diagram of a car with numbered circular indicators and a red prohibition symbol, likely indicating status or function.

Guilietta (2010 >)	○	●	○	●	-	-	-
Giulia (2017 >)	●	●	○	●	-	-	-
Mito (2009 >)	○	●	-	●	-	-	-
Stelvio (2017 >)	○	●	○	●	-	-	-

Audi

A1 (2011 - 2019)	●	●	○	●	-	-	-
A1 Sportback (2012 - 2019)	●	●	○	●	-	-	-
A1 (2019 >)	○	●	○	●	-	-	-
A3 Hatchback (2012 >)	●	●	○	●	-	-	-
A3 (1996 - 2003)	○	●	○	●	-	-	-
A3 (2004 - 2011)	●	●	○	●	-	-	-
A3/S3 (2012 >)	●	●	○	●	-	-	-
A3 e-Tron Sportback (2015 >)	●	●	○	●	-	-	-
A3 Saloon (2014 >)	●	●	○	●	-	-	-
A4 (2005 - 2008)	●	●	○	●	-	-	-
A4 (2016 >)	●	●	○	●	-	-	-
A4 Avant (2016 >)	●	●	○	●	-	-	-
A4 Allroad (2008 - 2016)	●	●	○	●	-	-	-
A4/S4 Avant (2008 - 2016)	●	●	○	●	-	-	-
A4/S4 Saloon (2008 - 2016)	●	●	○	●	-	-	-
A5/S5 Coupe (2016 >)	●	●	-	●	-	-	-
A5/S5 Coupe (2006 - 2016)	●	●	-	●	-	-	-
A5/S5 Sportback (2009 - 2016)	●	●	○	●	-	-	-
A5/S5 Sportback (2017 >)	●	●	○	●	-	-	-
Audi A5/S5 Cabriolet (2017 >)	●	●	-	●	-	-	-

21 3 54 6 7

BMW

1-Series (2004 - 2011)

1 Series Convertible (2008 - 2015)

1 Series Coupe (2008 - 2015)

1 Series F20 (2011>)

2 Series Active Tourer (2015 >)

2 Series Coupe (2014>)

3 Series (2002 - 2005)

3 Series (2005 - 2011)

3 Series Coupe (2007 - 2014)

3 Series F30 (2012 >)

4 Series GC (2014>)

5 Series Saloon (2003 - 2008)

5 Series Touring (2003 - 2008)

5 Series (2008 - 2010)

5 Series Touring (2011 -2018)

5 Series Saloon (2011 - 2018)

5 Series (2011 - 2018)

5 Series (2018 >)

6 Series Coupe (2011>)

6 Series Convertible (2011 >)

6 Series Gran Coupe (2011>)

7 Series (2010 - 2016)

7 Series (2016>)

i3 (2014>)

i8 (2014>)

X1 (2010 - 2015)

Ypsilon (2011 >) 21 3 54 6 7

Citroen

SB! Citroen Berlingo II (2008 >)	●	●	○	●	-	-	-
SB! Berlingo Multispace (2007 >)	●	●	○	●	○	-	○
C1 (2006 - 2015)	●	●	-	●	-	-	-
C1 (2015 >)	●	●	-	●	-	-	-
C3 (2005 - 2009)	●	●	○	●	-	-	-
C3 5 Door (2009 >)	●	●	○	●	-	-	-
SB! C3 Picasso (2009 >)	●	●	○	●	-	-	-
C3 (2017 >)	●	●	○	●	-	-	-
C3 Aircross (2017 >)	●	●	○	●	-	-	-
C4 (2010 >)	●	●	○	●	-	-	-
SB! C4 Picasso (2007 - 2014)	●	●	○	●	○	-	○
SB! C4 Picasso (2014 >)	●	●	●	●	●	-	●
SB! C4 G-Picasso (2007 - 2013)	●	●	○	●	●	-	●
C5 (2006 - 2008)	●	○	○	○	-	-	-
C5 Saloon (2008 >)	●	●	●	●	-	-	-
C5 Tourer (2008 >)	●	●	●	●	-	-	-
C4-Cactus (2015 >)	●	●	○	●	-	-	-
C-Crosser (2007 - 2012)	○	●	○	●	-	-	-
C5 Aircross (2019 >)	●	●	●	●	-	-	-
DS3 (2011 >)	●	●	○	●	-	-	-
DS3 Crossback (2019 >)	●	●	○	●	-	-	-
DS4 (2011 >)	●	●	○	●	-	-	-
DS5 (2013 >)	●	●	●	●	-	-	-
DS7 (2018 >)	●	●	●	●	-	-	-

	21	3	54	6	7
Jumpy (2007 - 2012)	○	●	○	●	●	○
Nemo (2008 >)	○	●	○	●	-	-
Xsara (2000 - 2006)	●	●	○	●	-	-
Dacia
Duster (2012 >)	●	●	○	●	-	-
Logan MCV (2013 >)	●	●	○	●	-	-
Sandero (2013 >)	○	●	○	●	-	-
Fiat
124 Spider (2016 >)	●	-	-	-	-	-
500 (2008 >)	○	●	-	●	-	-
500 C (2009 >)	○	●	-	●	-	-
Abarth 500 (2009 >)	○	●	-	●	-	-
Bravo (2007 >)	○	●	○	●	-	-
500L (2013 >)	●	●	○	●	-	-
500X (2015 >)	●	●	○	●	-	-
Doblo (2010 >)	●	●	○	●	-	-
Panda (2012 >)	○	●	○	●	-	-
Grande Punto (2006 >)	○	●	○	●	-	-
Abarth Grande Punto (2008 - 2011)	○	●	○	●	-	-
Qubo (2008 >)	○	●	○	●	-	-
Tipo (2016 >)	●	●	○	●	-	-
Ford
B Max (2012 >)	○	●	○	●	-	-
SB! Focus C Max (2003 - 2010)	○	●	○	●	-	-

Honda

Infiniti

Jaguar

Land Rover

Lancia

Thema (2012 >)

○ ● ○

● ■ ■

Mercedes-Benz

	21	3	54	6	7
GLE (2015 >)	○	●	○	●	-
M/ML Class (2005 - 2012)	○	●	○	●	-
M/ML Class (2012 >)	○	●	○	●	-
R Class (2006 - 2012)	○	●	○	●	●
S Class (2006 - 2013)	○	●	○	●	-
S Class (2015 >)	○	●	○	●	-
SL Class (2012 >)	○	-	-	-	-
SLK (2011 >)	○	-	-	-	-
V Class (2015 >)	○	●	●	●	●

MG Rover

25 / Streetwise (1999 - 2005)	○	○	-	○	-	-	-
GS (2016 >)	○	●	○	●	-	-	-
MG3 (2013 - 2015)	○	●	○	●	-	-	-
MG3 (2016 >)	○	●	○	●	-	-	-
MG6 (2011 - 2016)	○	○	○	○	-	-	-
ZR (2001 - 2005)	○	○	○	○	-	-	-
ZT (2003 - 2006)	○	●	○	●	-	-	-

Mini

Mini 3dr (1999 - 2006)	○	○	○	○	-	-	-
Mini (Cooper) Hatchback (2006-2014)	●	○	-	○	-	-	-
Mini (Cooper) Hatchback (2014 >)	●	●	-	●	-	-	-
Mini Coupe (2009 >)	●	-	-	-	-	-	-
Mini Countryman (2010 - 2017)	○	●	○	●	-	-	-
Mini Countryman (2017 >)	●	●	○	●	-	-	-
Mini Paceman (2013 >)	●	●	-	●	-	-	-
Mini 5dr (2015 >)	●	●	○	●	-	-	-

21 3 54 6 7

Mitsubishi

ASX (2010 >)	○	●	○	●	-	-	-
Colt (2007 - 2013)	○	●	○	●	-	-	-
Lancer (2008 - 2011)	○	●	○	●	-	-	-
Lancer Sportback (2008 - 2011)	○	●	○	●	-	-	-
Lancer Ralliart (2009 - 2011)	○	●	○	●	-	-	-
Mirage (2014 >)	●	●	○	●	-	-	-
Outlander (2007 - 2013)	○	●	●	●	-	-	-
Outlander (2013 >)	○	●	●	●	-	-	-
Outlander PHEV (2015 >)	○	●	●	●	-	-	-
Shogun (2007 >)	●	●	●	●	-	-	-

Nissan

Juke (2010 >)	●	●	○	●	-	-	-
Leaf (2011 >)	○	○	○	○	-	-	-
Micra (2011 >)	●	●	○	●	-	-	-
Murano (2016 >)	●	●	○	●	-	-	-
Note (2006 - 2013)	●	●	○	●	-	-	-
Note (2014 >)	●	●	○	●	-	-	-
Qashqai+2 (2008 - 2015)	○	●	○	●	○	-	○
Qashqai (2007 - 2013)	○	●	○	●	-	-	-
Qashqai (2014 >)	●	●	○	●	-	-	-
Quest MPV (2012 >)	○	●	-	●	●	-	●
Pulsar (2015 >)	●	●	○	●	-	-	-
X-Trail (2007 - 2015)	○	●	○	●	-	-	-
X-Trail (2015 >)	●	●	○	●	○	-	○

21 3 54 6 7

Opel

Adam (2013 >)	●	●	-	●	-	-	-
Agila (2008 >)	●	●	○	●	-	-	-
Ampera (2011 >)	●	●	-	●	-	-	-
Antara (2007 - 2015)	●	●	○	●	-	-	-
Astra (1998 - 2003)	○	●	○	●	-	-	-
Astra (2004 - 2010)	●	○	○	○	-	-	-
Astra 5dr (2010 >)	●	●	○	●	-	-	-
Astra Estate (2010 >)	●	●	○	●	-	-	-
Astra GTC (2011 >)	●	●	○	●	-	-	-
Astra (2015 >)	●	●	○	●	-	-	-
Corsa D (2007 >)	○	●	○	●	-	-	-
Corsa 3dr Hatchback (2006 - 2015)	○	●	○	●	-	-	-
Corsa 5dr Hatchback (2006 - 2015)	○	●	○	●	-	-	-
Corsa 5dr(2015 >)	●	●	○	●	-	-	-
Corsa VXR (2007 >)	○	●	○	●	-	-	-
Insignia Hatchback (2009 >)	○	●	○	●	-	-	-
Insignia Saloon (2009 >)	○	●	○	●	-	-	-
Insignia Sports Tourer (2009 >)	○	●	○	●	-	-	-
Insignia (2018 >)	○	●	○	●	-	-	-
Karl (2015 >)	○	●	○	●	-	-	-
Meriva (2010 >)	●	●	○	●	-	-	-
Mokka (2013 >)	●	●	○	●	-	-	-
Vectra (2005 - 2008)	○	●	○	●	-	-	-
Zafira (2005 - 2014)	○	●	○	●	○	-	○
Zafira Tourer (2014 >)	●	●	○	●	●	-	●

21 3 54 6 7

Peugeot

107 (2005 - 2014)	●	●	-	●	-	-	-
108 (2015 >)	●	●	-	●	-	-	-
206 3dr (2004 - 2009)	○	○	○	○	-	-	-
207 3dr (2006 - 2012)	○	●	○	●	-	-	-
207 5dr (2006 - 2012)	○	●	○	●	-	-	-
207 SW (2007 - 2012)	○	●	○	●	-	-	-
2008 (2013 >)	●	●	○	●	-	-	-
208 3dr (2013 >)	●	●	○	●	-	-	-
208 5dr (2013 >)	●	●	○	●	-	-	-
307 (2001 - 2007)	○	●	○	●	-	-	-
307 Estate (2002 - 2007)	○	●	○	●	-	-	-
308 Hatchback (2007 - 2014)	○	●	○	●	-	-	-
308 SW (2008 - 2015)	○	●	○	●	-	-	-
308 SW (2015 >)	●	●	○	●	-	-	-
308 (2014 >)	●	●	○	●	-	-	-
SB! 3008 (2009 - 2016)	●	●	●	●	-	-	-
3008 (2017 >)	●	●	○	●	-	-	-
407 (2004 - 2011)	●	●	○	●	-	-	-
407 SW (2004 - 2011)	●	●	○	●	-	-	-
4007 (2007 - 2012)	○	●	○	●	-	-	-
508 (2011 >)	●	●	●	●	-	-	-
508 SW/RXH (2011 >)	●	●	●	●	-	-	-
508 (2019 >)	●	●	●	●	-	-	-
SB! 5008 (2011 - 2018)	●	●	○	●	●	-	●
SB! 5008 (2018 >)	●	●	○	●	●	-	●

21 3 54 6 7

Bipper (2008 >)	○	●	○	●	-	-	-
Expert Teepee (2007 - 2016)	○	●	○	●	●	○	●
Partner Combi (2004 - 2010)	●	●	○	●	-	-	-
Partner Teepee (2008 >)	●	●	○	●	-	-	-
RCZ (2011 >)	●	○	-	○	-	-	-
Traveller (2016 >)	●	●	○	●	●	●	●

Porsche

Cayenne (2011 - 2017)	●	●	○	●	-	-	-
Cayenne E-Hybrid (2015 >)	●	●	○	●	-	-	-
Cayenne (2017>)	●	●	○	●	-	-	-
Panamera (2011 >)	●	●	-	●	-	-	-
Panamera E-Hybrid (2015 >)	●	●	-	●	-	-	-

Renault

Captur (2015 >)	●	●	○	●	-	-	-
Clio (2005 - 2012)	●	●	○	●	-	-	-
Clio Renault Sport (2006 - 2012)	●	●	○	●	-	-	-
Clio Sport Tourer (2007 - 2012)	●	●	○	●	-	-	-
Clio (2013 >)	●	●	○	●	-	-	-
Espace (2003 - 2012)	●	●	●	●	○	-	○
Grand Espace (2003 - 2012)	●	●	●	●	○	-	○
Kadjar (2015 >)	●	●	○	●	-	-	-
Laguna (2008 - 2012)	●	●	○	●	-	-	-
Laguna Sport Tourer (2008 - 2012)	●	●	○	●	-	-	-

21 3 54 6 7

Megane (2007)	●	●	○	●	-	-	-
Megane Hatchback (2002 - 2009)	●	●	○	●	-	-	-
SB! Megane Hatchback (2008-16)	●	●	○	●	-	-	-
Megane Sport Tourer (2009 - 2016)	●	●	○	●	-	-	-
Megane (2016 >)	●	●	○	●	-	-	-
Modus (2004 - 2012)	●	●	○	●	-	-	-
Grand Modus (2008 - 2012)	●	●	○	●	-	-	-
SB! Scenic (2003 - 2009)	●	●	○	●	-	-	-
SB! Scenic (2009 - 2016)	●	●	○	●	●	-	●
Scenic (2017 >)	●	●	○	●	-	-	-
Twingo (2007 - 2014)	●	●	-	●	-	-	-
Twingo (2015 >)	●	●	-	●	-	-	-

Saab

9-3 (2002 - 2012)	●	●	○	●	-	-	-
9-3 Sport Wagon (2005 - 2012)	●	●	○	●	-	-	-
9-3 X (2009 - 2012)	●	●	○	●	-	-	-
9-5 Estate (2005 - 2010)	●	●	○	●	-	-	-
9-5 (2011-2012)	●	●	○	●	-	-	-

Seat

SB! Alhambra (2010 >)	●	●	○	●	○	-	○
Altea (2004 - 2011)	●	●	○	●	-	-	-
Altea XL (2007 - 2011)	●	●	○	●	-	-	-
Altea Freetrack4 (2007 - 2009)	●	●	○	●	-	-	-
Arosa (1997 - 2004)	○	●	-	●	-	-	-

21 3 54 6 7

Ateca (2018 >)	●	●	○	●	-	-	-
Exeo (2008 - 2014)	●	●	○	●	-	-	-
Exeo ST Estate (2008 - 2014)	●	●	○	●	-	-	-
Ibiza Cupra (2009 >)	●	●	○	●	-	-	-
Ibiza (2009 - 2017)	●	●	○	●	-	-	-
Ibiza (2018 >)	○	●	○	●	-	-	-
Leon Cupra (2007 - 2011)	●	●	○	●	-	-	-
Leon (1998 - 2004)	○	○	○	○	-	-	-
Leon (2005 - 2012)	●	●	○	●	-	-	-
Leon (2013 >)	●	●	○	●	-	-	-
Mii (2011 >)	●	●	○	●	-	-	-
Toledo (2013 >)	●	●	○	●	-	-	-

Skoda

Citigo (2012 >)	●	●	○	●	-	-	-
Fabia (2007 - 2014)	●	●	○	●	-	-	-
Fabia Combi (2008 - 2014)	●	●	○	●	-	-	-
Fabia (2015 >)	●	●	○	●	-	-	-
Karoq (2018 >)	○	●	○	●	-	-	-
Kodiaq (2017 >)	○	●	○	●	●	-	●
Octavia (2004 - 2013)	●	●	○	●	-	-	-
Octavia (2013 >)	●	●	○	●	-	-	-
Rapid (2013 >)	●	●	○	●	-	-	-
Roomster (2006 >)	○	●	○	●	-	-	-
Superb Combi Estate (2008 >)	●	●	○	●	-	-	-
Superb (2008 - 2014 >)	●	●	○	●	-	-	-

21 3 54 6 7

Superb (2015 >)	●	●	○	●	-	-	-
Yeti (2009 - 2017)	●	●	○	●	-	-	-

Smart

For Two Coupe (2007 >)	○	-	-	-	-	-	-
FourFour (2015 >)	●	●	-	●	-	-	-

Ssangyong

Actyon (2006 - 2011)	○	○	○	○	-	-	-
Korando (2011 >)	○	●	○	●	-	-	-
Musso Pickup (2016 >)	○	○	○	○	-	-	-
Rexton (2014 >)	○	●	○	●	-	-	-
Tivoli (2016 >)	○	●	○	●	-	-	-
Turismo (2014 >)	○	●	○	●	○	○	○

Suzuki

Alto (2009 >)	○	●	-	●	-	-	-
Baleno (2016 >)	●	○	○	○	-	-	-
Grand Vitara (2006 >)	○	●	○	●	-	-	-
Vitara (2015 >)	○	○	○	○	-	-	-
Splash (2008 >)	●	●	○	●	-	-	-
Swift Sport (2011 - 2017)	●	●	○	●	-	-	-
SX - 4 (2006 >)	○	●	○	●	-	-	-
SX - 4 Saloon (2009 >)	○	●	○	●	-	-	-
Swift (2017 >)	○	●	○	●	-	-	-

21 3 54 6 7

Subaru

BRZ (2012 >)	●	○	-	○	-	-	-
Forester (2013 >)	○	●	○	●	-	-	-
Impreza 5dr (2007 - 2012)	○	●	○	●	-	-	-
Impreza 5 Door (2013 >)	○	●	○	●	-	-	-
Legacy (2012 >)	○	●	○	●	-	-	-
Outback (2012 >)	○	●	○	●	-	-	-
XV Hatchback (2011 >)	○	●	○	●	-	-	-

Tesla

Model S (2014 >)	○	●	○	●	-	-	-
Model X (2016 >)	●	●	○	●	●	-	●

Toyota

Auris (2007 - 2012)	○	●	○	●	-	-	-
Auris (2013 >)	●	●	○	●	-	-	-
Avensis Hatchback (2003 - 2011)	●	○	○	○	-	-	-
Avensis Tourer (2009 >)	○	●	○	●	-	-	-
Aygo (2005 - 2014)	●	●	-	●	-	-	-
Aygo (2014 - 2019)	●	●	-	●	-	-	-
Aygo (2019 >)	●	●	-	●	-	-	-
Corolla (2019 >)	●	●	○	●	-	-	-
C-HR (2017 >)	●	●	○	●	-	-	-
EZ MPV (2013 >)	○	○	○	○	-	-	-
GT86 (2012 >)	●	○	-	○	-	-	-
Highlander (2013 >)	○	●	○	●	-	-	-

21 3 54 6 7

Land Cruiser (2003 - 2009)	○	●	○	●	-	-	-
Land Cruiser (2009 >)	●	●	○	●	-	-	-
Prius (2004 - 2010)	○	●	○	●	-	-	-
Prius (2010 >)	●	●	○	●	-	-	-
Prius PHEV (2015 >)	●	●	○	●	-	-	-
Prius Plus + (2012 >)	●	●	○	●	-	-	-
Prius 4 (2016 >)	●	●	○	●	-	-	-
Rav 4 MK3 (2006 - 2011)	●	●	○	●	-	-	-
RAV4 (2013 - 2019)	●	●	○	●	-	-	-
RAV4 Hybrid (2014 - 2019)	●	●	○	●	-	-	-
RAV4 (2019 >)	●	●	○	●	-	-	-
SB! Verso (2009 - 2012)	●	●	○	●	-	-	-
SB! Verso (2013 >)	●	●	○	●	-	-	-
Yaris (2008 - 2011)	●	●	○	●	-	-	-
Yaris (2011 - 2017)	●	●	○	●	-	-	-
Yaris (2019 >)	●	●	○	●	-	-	-

Vauxhall

Adam (2013 >)	●	●	-	●	-	-	-
Agila (2008 >)	●	●	○	●	-	-	-
Ampera (2011)	●	●	-	●	-	-	-
Antara (2007 - 2015)	●	●	○	●	-	-	-
Astra (1998 - 2003)	○	●	○	●	-	-	-
Astra (2004 - 2010)	●	○	○	○	-	-	-
Astra 5dr (2010 >)	●	●	○	●	-	-	-
Astra Estate (2010 >)	●	●	○	●	-	-	-

21 3 54 6 7

Astra GTC (2011 >)	●	●	○	●	-	-	-
Astra (2015 >)	●	●	○	●	-	-	-
Corsa D (2007 >)	○	●	○	●	-	-	-
Corsa 3dr Hatchback (2006 - 2015)	○	●	○	●	-	-	-
Corsa 5dr Hatchback (2006 - 2015)	○	●	○	●	-	-	-
Corsa 5dr (2015 >)	●	●	○	●	-	-	-
Corsa VXR (2007 >)	○	●	○	●	-	-	-
Crossland X (2018 >)	●	●	○	●	-	-	-
Grandland X (2018 >)	●	●	○	●	-	-	-
Insignia Hatchback (2009 >)	○	●	○	●	-	-	-
Insignia Saloon (2009 >)	○	●	○	●	-	-	-
Insignia Sports Tourer (2009 >)	○	●	○	●	-	-	-
Insignia (2018 >)	○	●	○	●	-	-	-
Meriva (2010 >)	●	●	○	●	-	-	-
Mokka (2013 >)	●	●	○	●	-	-	-
Vectra (2005 - 2008)	○	●	○	●	-	-	-
Viva (2015 >)	●	●	○	●	-	-	-
Zafira (2005 - 2014)	○	●	○	●	○	-	○
Zafira Tourer (2012 >)	●	●	○	●	●	-	●

Volkswagen

Arteon (2017 >)	●	●	○	●	-	-	-
Beetle (2012 >)	●	●	-	●	-	-	-
Caddy (2010 >)	●	●	○	●	○	○	○
Caddy Maxilife (2010 - 2015)	●	●	○	●	○	○	○
Multivan Caravelle (2008 >)	●	●	-	●	●	○	●

21 3 54 6 7

Golf Mk5 (2004 - 2009)	●	●	○	●	-	-	-
Golf Cabriolet (2009 - 2014)	●	●	○	●	-	-	-
Golf Plus (2009 - 2012)	●	●	○	●	-	-	-
Golf Mk6 (2008 - 2012)	●	●	○	●	-	-	-
Golf Mk7 (2012 >)	●	●	○	●	-	-	-
Jetta (2011 >)	●	○	○	○	-	-	-
Lupo (1999 - 2005)	○	●	-	●	-	-	-
Passat (2005 - 2010)	●	●	○	●	-	-	-
Passat (2010 - 2015)	●	●	○	●	-	-	-
Passat Saloon (2015 >)	●	●	○	●	-	-	-
Passat Alltrack (2012 >)	●	●	○	●	-	-	-
Passat CC (2008 >)	●	●	○	●	-	-	-
Passat Estate (2005 -2011)	●	●	○	●	-	-	-
Passat Estate (2011 - 2015)	●	●	○	●	-	-	-
Passat Estate (2015 >)	●	●	○	●	-	-	-
Polo (2009 - 2017)	○	●	○	●	-	-	-
Polo (2017 >)	○	●	○	●	-	-	-
Scirocco (2011)	●	●	-	●	-	-	-
SB! Sharan (2010 >)	●	●	○	●	○	-	○
Tiguan (2008 - 2016)	●	●	○	●	-	-	-
Tiguan (2016 >)	●	●	●	●	-	-	-
Tiguan Allspace (2017 >)	○	●	○	●	○	-	○
Touareg (2003 - 2009)	●	●	○	●	-	-	-
Touareg (2010 - 2018)	●	●	○	●	-	-	-
Touareg (2018 >)	●	●	○	●	-	-	-
T-Cross (2019 >)	●	●	○	●	-	-	-

21 3 54 6 7

Volvo

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*

Mobile: Ring 0333 323 1729 International: [phone]

* calls from BT landlines are free but calls from mobiles and other networks may vary.

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) NOTICE:

WHEN USED IN COMBINATION WITH "PORT I-SIZE" BASE, THIS IS AN "I-SIZE" CHILD RESTRAINT SYSTEM.

IT IS APPROVED TO REGULATION NO. 129, FOR USE IN, “I-SIZE COMPATIBLE” VEHICLE SEATING POSITIONS AS INDICATED BY VEHICLE MANUFACTURERS IN THE VEHICLE USERS’ MANUAL. FOR COMPATIBILITY OF NON I-SIZE VEHICLE, PLEASE REFER TO THE COSATTO FIT CHECKER APP (HTTP://COSAT.TO/FITCHECKER) OR THE COMPATIBILITY LIST ON THE WEBSITE (HTTP://COSAT.TO/PORTISIZEBASEVL).

FOR SEATING POSITIONS FOR OTHER FITTING OPTIONS, PLEASE REFER TO THE COSATTO FIT CHECKER APP (HTTP://COSAT.TO/FITCHECKER) OR THE VEHICLE FITTING LIST SECTION ON THE WEBSITE (HTTP://COSAT.TO/PORTISIZEVL).

NEVER USE THIS CHILD RESTRAINT SYSTEM IN SEATING POSITIONS WHERE AN ACTIVE FRONTAL AIRBAG IS INSTALLED. IF IN DOUBT, CONSULT EITHER THE CHILD RESTRAINT SYSTEM MANUFACTURER OR RETAILER.
