USER MANUAL Rhapsody61M MAX

Congratulations to the purchase of this Max Music product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room

temperature before you switch it on. Never use the product in humid rooms or outdoors.

• During operation, the housing may become hot.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the product with clean hands.
• Do not force the controls.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROLS KEYBOARD

1. SPEAKERS

Loudspeakers to reproduce the sound of the music played. sound level is determined on the basis of the volume setting.

2. POWER

Press to turn power on/off.

3. MASTER VOLUME

Press the [Master Vol +] or [Master Vol -] button to raise or lower the master volume. The keyboard had 9 levels of volume from 00-08. Press both simultaneously to reset to default value.

4. RYTHME VOLUME

Press the [Rythme Vol +] or [Rythme Vol -] button to raise or lower the accompt volume. There are 9 levels of volume. The default volume is 06. Press both simultaneously to reset to default value.

5. CHORD VOLUME

Press the [Chord Vol +] or [Chord Vol -] button to raise or lower the accompt volume. There are 9 levels of volume. The default volume is 07. Press both simultaneously to reset to default value

6. TEMPO

Press the [Tempo +] or [Tempo -] button to raise or lower the tempo of Rhythm, Beat or Demo. The default value of tempo is 120. The adjustment area is 30-240. Press both simultaneously to reset to default value

7. PLAY

Press the [Play] button to playback recorded notes or Rhythms.

8. RECORD

Press [REC] to enable the recording function, "rEC" will show on the display.

9.PROGRAM

Press [Program] to enable the Rhythm programming function.

10. BEAT

There are 4 kinds of beat voice stored on the keyboard: 1/4 beat, 2/4 beat, 3/4 beat and 4/4 beat. Press the [Beat] button for the different beats.

11. START/STOP

Press the [Start/Stop] button to play the Rhythm, press the [Play/Stop] button again to exit this function.

12.SYNC

Press the [Sync] button to enter the Sync function before the Rhythm was played. Press any key of 19 keys in left hand to start Rhythm playback. The Beat point shines on the LCD. The display shows the current tone or Rhythm's. If the chord function has started, press the corresponding key in 19 keys chord area, the auto chord starts. Press the [Sync] button again to exit this function.

13. FILL IN

Press the [FILL-IN] button to add an interlude to the Rhythm. The fill played is determined by accompaniment rhythm selected. After the fill, the selected accompaniment Rhythm will continue playing.

14. INTRO/ENDING

Press the [Intro/Ending] button to start play the prelude, then turn to regular Rhythm to continue. During the play of the Rhythm, press the [Intro/Ending] button to start playing a code for ending.

15. TEACHING

Press the [Teaching] button to enter the teaching function. Press the number keys [1-9] or [+/-] button to select the song to be learned. Teaching function aims at duration learning, and there is no requirement on pitch or creativeness. This mode allows for mistakes when playing the keys, but the keyboard still plays correct notes. Press the [Teaching] button again to exit this function.

16. SINGLE CHORD

Press the [Rhythm] button then press the [Single chord] button to start single finger accompaniment. Press any key of the left 19 keys to begin Rhythm. Press different key on left keyboard to select different chord. One key you press will always determine the root of the chord you played. Press the [Start/Stop] button to end this function.

17. FINGER CHORD

Press the [Rhythm] button then press the [Finger chord] button to start fingered accompaniment. Press any key of the left 19 keys to begin Rhythm. Press a different key on left keyboard to select different chord. Press the [Start/Stop] button to end the effect.

18. CHORD CLEAR

Press the [Chord clear] button to end the accompaniment under chord status, the Rhythm will be continued to play.

19. TRANSPOSE

Press the [Transpose +] or [Transpose -] button to increase or decrease the transpose value up and down +/- 6 levels and shift the pitch of entire keyboard up and down in semitone intervals. Press both simultaneously to reset to default value.

20. VOLUME -/+ (MP3)

Press to increase/decrease volume (MP3).

21. NEXT (MP3)

Press for next track in MP3.

22. PREVIOUS (MP3)

Press for previous track in MP3.

23. PLAY/STOP (MP3)

Press to play or stop the MP3.

24. SOUND EFFECT (MP3)

Press this button to adjust the volume of the mp3 songs and tones.

25. DEMO

Press [DEMO], it will play songs in continuous playback mode and starts from song number "00" to "39" or pressing the button [+] or [-] to choose the right numbers of the songs you need. If you want to stop, press the button [DEMO] again or just press the [Start/Stop] button.

26. RHYTHM

There're totally 300 Rhythms. Press the [Rhythm] button to start the Rhythm you need. Rhythm starts from "000" to "299". You can press the [0-9] number or [+] or [-] buttons. If the input is out of this range, it will be ineffective.

27. TONE

There're totally 300 Tones. Press the [Tone] button to start the tone you need. Tones starts from "000" to "299". You can press the [0-9] number or [+] or [-] buttons. If the input is out of this range, it will be ineffective.

28. SUSTAIN

Press the [Sustain] button to extend the sound of the key. Press the [Sustain] button again to exit this function.

29. VIBRATO

Press the [Vibrato] button and the vibrato effect will be activated. Press the [Vibrato] button again and the effect will be deactivated.

30. DOUBLE VOICE

Press the [Double Voice] button to start double voice function. The performed tone is the tone that composed of two kinds of tone. Now the displaying tone name is the latter tone. The previous tone is the tone before you press Double Voice. Press the [Double Voice] button again to exit this function.

31. KEYBOARD SPLIT

Press the [Keyboard Split] button to divide keyboard into left hand keyboard and right hand keyboard. The left 24 keys will be left-hand keyboard and the rest part of keys will be divided as right-hand keyboard. The voice on right-hand keyboard can be selected by pressing the number on numeric group buttons. The voice on left-hand keyboard is initially set by producer. Press the button once again to turn split effect off.

32. TOUCH

The keyboard has touch function automatically at the startup. You can play with the intensity of different keys will be issued to the different volume. Press the [Touch] button to exit this function.

33. NUM PAD +/-

Press [+/-] or "000" to "299" in numeric group buttons to select accompaniment.

34. LCD DISPLAY

Displays current mode, notes to play, rhythm, tempo, etc.

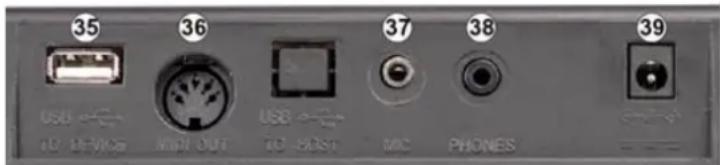

CONNECTIONS

35. USB slot

Socket for plugging in the supplied micro USB power cable.

MP3 Function:

The keyboard support USB play. You can use the USB jack to play MP3 songs. The buttons on the keyboard adjust the MP3 function.

36. MIDI OUT

Connect the keyboard to another MIDI compatible device. Transfer information with computer in both direction such as you can store the music that you played on his keyboard to the computer.

37. MICROPHONE INPUT

Connect a microphone to the MIC port to sing while playing the keyboard.

38. HEADPHONES/OUTPUT

When connecting headphones to the PHONES/OUTPUT port, the loudspeaker will be disenabled automatically. You can perform without disturbing others and other disturbing you

39.DC 9V INPUT

Socket for plugging in the supplied 9V adapter.

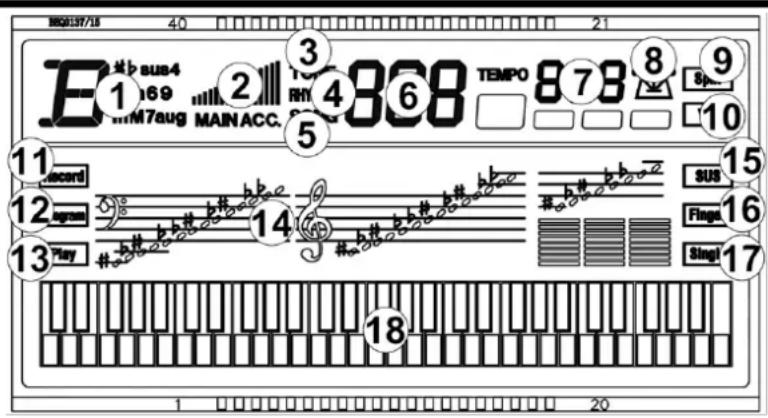

DISPLAY

1. Chord display Area
2. Volume
3. Tone
4. Rhythm
5. Demo
6. Number display
7. Tempo
8. Beat (metronome shows the current beat)
9. Split
10. Vibrato
11. Record
12. Program
13. Play
14. Staff notation
15. Sustain
16. Finger chord
17. Single chord
18. Black/white key display

BEFORE YOU START

POWERSUPPLY:

• Using AC-DC adapter:
  Use the special power adapter that is equipped with this electronic keyboard or a power adaptor with DC 9V out voltage 500m A. Insert the DC plug or power adaptor into the DC 9V power jack in the rear panel of the electronic keyboard, insert the other end into Main socket, turn on power switch and start performance.
• Using batteries: (not included):

Open the battery compartment cover located on the bottom panel of the Electronic keyboard. Insert 6 pcs AA batteries, being carefully to follow the polarity marking on the cabinet. Replace the compartment cover, making sure that it locks firmly in place.

• Place the music stand in the keyboard slot.
  This keyboard will go in sleep mode when the keys are not pressed more than 5 minutes. Press any key to wake up the keyboard.

RECORDING

Press the [Rec] button to enable the recording function, "rEC" will show on the display. In this mode all played notes will be recorded. The maximum record quantity is 210 notes. When storage is full, "Ful" will flash on the display and recording will stop automatically. Press the [Play] button to playback the recorded notes, "Ply" will show on the screen. On completion of playback, "rEC" will show on the display. You can record a new Rhythm, or you can press the [Play] button to playback the recorded Rhythm.

Press the [Program] button to enter into Rhythm programming mode. Press the keyboard to program a paragraph of Rhythm. The edited Rhythm can record 32 drum points at maximum. Press the [Play] button to play the edited drum sound in sequence, forming a kind of self-made Rhythms after programming was finished. The best Rhythm play effect can be get by adjusting [Temp +/-] buttons. Every time you press the [Program] button it will clear last memory and enter into programming mode again.

TEACHING FUNCTION

Teaching:

To choose the song you need to learn by the number buttons [0-9] or [+/-] buttons after the [Teaching] button was pressed down. The LCD display screen displays the present song number. One key teaching function is special for the learning of songs. It will remind the note that should be played at the present. It doesn't have requirement about the pitch and correctness of the notes.. One song was learned over, it will repeatedly learn present song or next song automatically. Press the [Start/Stop] button or press the [Teaching] button again to exit the teaching function.

Note: The correct played keynotes can be play, there is no response to the wrong played keys in the following teaching function mode. It will repeatedly learn present song or next song automatically.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UITPAKKEN

0 Acoustic Grand Piano	75 Pan Flute	150 Magic Electronic	225 Baritone Sax ensemble
1 Bright Acoustic Piano	76 Bottle Blow	151 Bright violin	226 Crystal Sax
2 Electric Grand Piano	77 Shakuhachi	152 Atonic Violin	227 Soft Baritone Sax
3 Honky-tonk Piano	78 Whistle	153 Heavy 151 Bright Violin	228 Synth Baritone Sax
4 Rhodes Piano	79 Ocarina	154 Synth Clarinet	229 Heavy metal Sax
5 Chorusd Piano	80 Lead 1 (square)	155 Interactive Lead	230 Church Oboe
6 Harpsichord	81 Lead 2 (sawtooth)	156 For the keyboard	231 Oboe ensemble
7 Clavichord	82 Lead 3 (caliope lead)	157 Bagpipes	232 Bass Oboe
8 Celesta	83 Lead 4 (chiff lead)	158 Suona	233 Bright Oboe
9 Glockenspiel	84 Lead 5 (charang)	159 Pipa	234 distortio oboe
10 Music man	85 Lead 6 (voice)	160 Church Piano	235 English Horn ensemble
11 Vibraphone	86 Lead 7 (fiftths)	161 Church electric Piano	236 Pizzicato English Horn
12 Marimba	87 Lead 8 (bass+lead)	162 Synth Piano	237 Diplophonia English Horn
13 Xylophone	88 Pad 1 (new age)	163 Baritone Piano	238 Bright English Horn
14 Tubular Bells	89 Pad 2 (warm)	164 Piano PAD	239 Synth English Horn
15 Dulcimer	90 Pad 3 (polysynth)	165 String Piano	240 Psychedelic Synth Lead
16 Hammond Organ	91 Pad 4 (choir)	166 Metal Piano	241 Vibraphone Synth Lead
17 Percussive Organ	92 Pad 5 (bowed)	167 Light rhythm Piano	242 Marimba Synth Lead
18 Rock Organ	93 Pad 6 (metallic)	168 electric Piano Pad	243 Metal FX
19 Church Organ	94 Pad 7 (halo)	169 Classical piano	244 Electronic FX
20 Reed Organ	95 Pad 8 (sweep)	170 Guitar organ	245 Electronic String Ensemble
21 Accordian	96 FX 1 (rain)	171 An electric guitar	246 Wind FX
22 Harmonica	97 FX 2 (soundtrack)	172 synthesis Nylon Guitar	247 Clarinet FX
23 Tango Accordian	98 FX 3 (crystal)	173 Synthetic electronic guitar	248 Organ FX
24 Acoustic Guitar (nylon)	99 FX 4 (atmosphere)	174 Bright clean Guitar	249 Crystal FX
25 Acoustic Guitar (steel)	100 FX 5 (brightness)	175 Orchestra Guitar	250 Synth Shamisen
26 Electric Guitar (jazz)	101 FX 6 (goblins)	176 Psychedelic Guitar	251 Electronic Shamisen
27 Electric Guitar (clean)	102 FX 7 (echoes)	177 Bright Organ	252 Bright Sitar
28 Electric Guitar (muted)	103 FX 8 (sci-fi)	178 Pick Organ	253 Whistle Accord
29 Overdriven Guitar	104 Sitar	179 Synth Accordion	254 rhythm Nation
30 Distortion Guitar	105 Banjo	180 Bright Violin	255 Bright Koto
31 Guitar Harmonics	106 Shamisen	181 Stringed Violin	256 Koto Lead
32 Acoustic Bass	107 Koto	182 Trill Violin	257 Diplophonia Koto
33 Electric Bass(finger)	108 Kalimba	183 Electronic Violin	258 Baritone Koto
34 Electric Bass (pick)	109 Bagpipe	184 Large Violin	259 Synth Koto
35 Fretless Bass	110 Fiddle	185 rhythm Orchestra	260 Environmental Lead
36 Slap Bass 1	111 Shanai	186 Pizzicato Violin	261 Metal Lead
37 Slap Bass 2	112 Tinkle Bell	187 Pizzicato Ensemble 1	262 Orchestra Lead
38 Synth Bass 1	113 Agogo	188 Pizzicato Ensemble 2	263 Glockenspiel Lead
39 Synth Bass 2	114 Steel Drums	189 Percussion Band	264 Bass Lead
40 Violin	115 Woodblock	190 Baritone Synth Contrabass	265 Fifths Lead
41 Viola	116 Taiko Drum	191 Bass Flute	266 Wind Lead
42 Cello	117 Melodic Tom	192 Distortion Contrabass	267 Atmosphere Lead
43 Contra Bass	118 Synth Drum	193 Contrabass Lead	268 Sharp Lead
44 Tremolo Strings	119 Reverse Cymbal	194 Violin Lead	269 Bright Lead
45 Pizzicato Strings	120 Guitar Fret Noise	195 Cello Lead	270 East Nation Pad
46 Orchestral Harp	121 Breath Noise	196 Pizzicato Rhythm	271 Atmosphere Pad
47 Timpani	122 Seashore	197 High Harp	272 Electric bass Pad
48 String Ensemble 1	123 Bird Tweet	198 Harp ensemble	273 electric Piano Pad
49 String Ensemble 2	124 Telephone Ring	199 Synth Harp	274 Clean Guitar Pad
50 Synth Strings 1	125 Helicopter	200 Baritone Trumpet	275 Western Pad
51 Synth Strings 2	126 Applause	201 Trumpet ensemble	276 Sci-fi Pad
52 Choi Aahs	127 Gunshot	202 Rhythm Trumpet	277 Metal Sci-fi Pad
53 Voice Oohs	128 Percussion	203 High Trumpet	278 Clarinet Pad
54 Synth Voice	129 Rhythm electric Piano	204 Synth Trumpet	279 Electronic dance Pad
55 Orchestra Hit	130 Baritone Xylophone	205 Baritone Trombone	280 Double Kalimba
56 Trumpet	131 Clean Piano	206 Trombone ensemble	281 Bright Kalimba
57 Trombone	132 Bright Dulcimer	207 Rhythm Trombone	282 Crystal Kalimba
58 Tuba	133 Rhythm Grand Piano	208 High Trombone	283 Synth Kalimba
59 Muted Trumpet	134 Traditional Piano	209 Baritone Trombone	284 Electronic Bagpipe
60 French Horn	135 Aluminium Jean	210 Synth Trombone	285 Wind Bagpipe
61 Brass Section	136 Rock Grand Piano	211 Violin French Horn	286 High Bagpipe
62 Synth Brass 1	137 Electronic organ	212 French Horn ensemble	287 Bright Bagpipe
63 Synth Brass 2	138 Psychedelic electronic	213 Electronic French Horn	288 Orchestra Bagpipe
64 Soprano Sax	139 Water jean	214 Synth French Horn	289 Baritone Bagpipe
65 Alto Sax	140 Bright Guitar	215 Psychedelic Synth Brass	290 Environmental Shanai
66 Tenor Sax	141 Orchestra piccolo	216 Distortion Synth Brass	291 Baritone Shanai
67 Baritone Sax	142 Heavy metal guitar	217 Vibraphone Synth Brass	292 Tenor Shanai
68 Oboe	143 Crystal guitar	218 Rock Synth Brass	293 high Shanai
69 English Horn	144 Queer electric Piano	219 Synth Muted Trumpet	294 Synth Shanai
70 Bassoon	145 Bright bass	220 Soprano Sax ensemble	295 Bright Steel Drums
71 Clarinet	146 Rock Electric Bass	221 rhythm Soprano Sax	296 Steel Drums Lead
72 Piccolo	147 Rhythm Electric Bass	222 Synth Soprano Sax	297 Lyric Steel Drums
73 Flute	148 Psychedelic Bass	223 National Sax	298 Orchestra Steel Drums
74 Recorder	149 Heavy Metal Bass	224 Metal Sax	299 Synth Steel Drums

APPENDIX II (RHYTHM)

000 Soul 1	075 Tango1	150 Psychedelic Swing	225 Jump Samba 1
001 Soul 2	076 Tango2	151 Folk Rock 1	226 Jump Samba 2
002 Soul 3	077 Tango3	152 Folk Rock 2	227 Jump Samba 3
003 Soul 4	078 Mambo 1	153 New century 1	228 Afro Samba
004 Soul 5	079 Mambo 2	154 New century 2	229 Rock March 1
005 Soul 6	080 Rhumba 1	155 New century 3	230 Rock March 2
006 Soul 7	081 Rhumba 2	156 16 Pop 1	231 Rock March 3
007 Soul 8	082 Rhumba 3	157 16 Pop 2	232 Rock March 4
008 Slow Soul 1	083 Rhumba 4	158 Modern dance 1	233 Polka Blues 1
009 Slow Soul 2	084 Rhumba 5	159 Modern dance 2	234 Polka Blues 2
010 Slow Soul 3	085 Bequeine	160 Modern dance 3	235 Polka Blues 3
011 Slow Soul 4	086 Salsa	161 Modern dance 4	236 Country Rock 1
012 Slow Soul 5	087 Merengue 1	162 Modern dance 5	237 Country Rock 2
013 Funky Soul 1	088 Merengue 2	163 8 Post Rock	238 Jazz Blues
014 Funky Soul 2	089 Vallenato	164 Classic Rock	239 Country Dance 1
015 Funky soul 3	090 Plena	165 Jazz Rock 1	240 Country Dance 2
016 Funky soul 4	091 Lambada	166 Jazz Rock 2	241 Country Dance 3
017 Funky soul 5	092 Bachata 1	167 Traditional Pop	242 World Fusion
018 Funky soul 6	093 Bachata 2	168 Country Blues	243 Chinese Traditional 1
019 Funky soul 7	094 Bachata 3	169 Indian Pop	244 Chinese Traditional 2
020 Funky soul 8	095 Samba 1	170 Hard 3 Rock	245 Chinese Traditional 3
021 West Coast	096 Samba 2	171 Classical Ballad 1	246 Thailand Rhythm
022 Euro Soul	097 Pop Samba 1	172 Classical B allad 2	247 Modern Waltz 1
023 16 AOR 1	098 Pop Samba 2	173 Classical ballad 3	248 Modern Waltz 2
024 16 AOR 2	099 Pop Samba 3	174 Classical ballad 4	249 Modern Waltz 3
025 16 Beat 1	100 Jazz Samba	175 Light Ballad	250 Modern Waltz 4
026 16 Beat 2	101 March 1	176 Deep House	251 Brit Pop Waltz 1
027 16 Beat 3	102 March 2	177 Hard House	252 Brit Pop Waltz 2
028 16 Ballad 1	103 March 3	178 House dance	253 Brit Pop Waltz 3
029 16 Ballad 2	104 March 4	179 8 Pop	254 Contemporary Waltz 1
030 Pop Dance 1	105 Polka 1	180 Japanese Folk Music	255 Contemporary Waltz 2
031 Pop Dance 2	106 Polka 2	181 Trip Hop 1	256 Modern Soul
032 Pop Dance 3	107 Polka 3	182 Trip Hop 2	257 Modern Soul 2
033 Shuffle 1	108 C & W 1	183 Chamber Pop 1	258 Modern Soul 3
034 Shuffle 2	109 C & W 2	184 Chamber Pop 2	259 Modern Soul 4
035 Shuffle 8	110 Bluegrass	185 Pop Swing 1	260 Modern Soul 5
036 Hard Rock	111 Country 1	186 Pop Swing 2	261 Modern Soul 6
037 Slow Rock 1	112 Country2	187 Pop Swing 3	262 Modern Soul 7
038 Slow Rock 2	113 Country 3	188 Pop Swing 4	263 Modern Soul 8
039 Pop Classic	114 Middle East	189 Pop Swing 5	264 Classical Soul 1
040 Blues	115 China 1	190 Pop Swing 6	265 Classical Soul 2
041 Twist	116 China 2	191 Celtic Pop	266 Classical Soul 3
042 Hard 3 Beat	117 China 3	192 Hawaiian Pop	267 Classical Soul 4
043 Love Ballad 1	118 Thailand	193 Soft Bossanova 1	268 Classical Soul 5
044 Love Ballad 2	119 Waltz 1	194 Soft Bossanova 2	269 Contemporary R&B1
045 Love Ballad 3	120 Waltz 2	185 Soft Bossanova 3	270 Contemporary R&B2
046 Love Ballad 4	121 Waltz 3	196 Soft Bossanova 4	271 Contemporary R&B3
047 Euro Beat	122 Waltz 4	197 Soft Bossanova 5	272 Contemporary R&B4
048 House 1	123 Jazz Waltz 1	198 Mento	273 Contemporary R&B5
049 House 2	124 Jazz Waltz 2	199 Shima Uta	274 Contemporary R&B6
050 Swing Beat	125 Jazz Waltz 3	200 Reggae Pop 1	275 Contemporary R&B7
051 8 Ballad	126 Country Waltz 1	201 Reggae-Pop 2	276 Contemporary R&B8
052 Step	127 Country Waltz 2	202 European Traditions	277 Deep Funk
053 Big Band 1	128 Jazz Soul 1	203 Tango Pop 1	278 European Jazz
054 Big Band 2	129 Jazz Soul 2	204 Tango Pop 2	279 70' Rock
055 Cobmo 1	130 Jazz Soul 3	205 Tango Pop 3	280 80' Rock
056 Cobmo 2	131 Jazz Soul 4	206 Rhythm Mambo 1	281 16 Soft Rock 1
057 Swing 1	132 Jazz Soul 5	207 Rhythm Mambo 2	282 16 Soft Rock 2
058 Swing 2	133 Jazz Soul 6	208 Brit Rhumba 1	283 16 Soft Rock 3
059 Swing 3	134 Jazz Soul 7	209 Brit Rhumba 2	284 16 Ballad Rock 1
060 Swing 4	135 Jazz Soul 8	210 Brit Rhumba 3	285 16 Ballad Rock 2
061 Swing 5	136 Light Beat 1	211 Brit Rhumba 4	286 Afro Dance 1
062 Swing 6	137 Light Beat 2	212 Brit Rhumba 5	287 Afro Dance 2
063 Baiao	138 Light Beat 3	213 Soul Bequine	288 Afro Dance 3
064 Bolero	139 Light Beat 4	214 Chamber pop	289 Jazz Shuffle 1
065 Bossanova 1	140 Light Beat 5	215 Neo-Merengue 1	290 Jazz Shuffle 2
066 Bossanova 2	141 Soul Psychedelic 1	216 Neo-Merengue 2	291 8 Jazz Shuffle
067 Bossanova 3	142 Soul Psychedelic 2	217 Big Beat	292 Heavy Metal Rock
068 Bossanova 4	143Soul Psychedelic 3	218 Plena Beat	293 Rock Dance 1
069 Bossanova 5	144 Soul Psychedelic 4	219 Down Tempo	294 Rock Dance 2
070 Calypso	145 Soul Psychedelic 5	220 Electric Bachata 1	295 Middle East Pop
071 Habanera	146 Soul Psychedelic 6	221 Electric Bachata 2	296 Soul Blues
072 Reggae 1	147 Soul Psychedelic 7	222 Electric Bachata 3	297 Glam Rock
073 Reggae 2	148 Soul Psychedelic 8	223 Folk Samba 1	298 Hard House
074 Jorpo	149 Goth Psychedelic	224 Folk Samba 2 2	299 Light Ballad

APPENDIX III DEMO SONGS

No.	Song name	No.	Song name	No.	Song name
00	Turkey March	14	Chong Erfei	28	In rain
01	Red River Valley	15	Minuet in G major	29	Long time ago
02	American Patrol	16	Spanish Matador	30	Magic Flute Overture
03	Susanna	17	Serenade-Haydn	31	Silent Night
04	Mozart Piano Sonata	18	Yankee Doodle	32	Hungary Dane
05	Mariage d'amour	19	Waltz	33	Western is gone
06	Waterside Adi Lina	20	Minuet	34	Fountain
07	Smile Polka	21	Rain Melody	35	Mary had a little lamb
08	Jingle Beus	22	Frosty	36	Music box dance
09	Lardesik March	23	Old French	37	Four seasons
10	Mozart No.40	24	Blue Danube	38	Concerto of love
11	Clapping song	25	A small brown bottle	39	Destiny
12	Fur Elise	26	Hawthorn
13	Katyusha	27	River Of Babylon

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATION / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Number of keys : 61

Display : LCD

Power Supply : 100-240VAC 50/60Hz (9V Adapter)

Weight : 3,50 kg

Dimensions : 945 x 315 x 105mm

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

United Kingdom

Trionios B.V.,

7602KR Almelo, The Netherlands

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

2014/35/EU

2014/30/EU

2011/65/EC

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
