USER MANUAL RhapsodyDP61 MAX

Black piano keyboard with black keys and control panel, no visible text or symbols

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D”INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

Congratulations to the purchase of this Max Music product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room

temperature before you switch it on. Never use the product in humid rooms or outdoors.

• During operation, the housing may become hot.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the product with clean hands.
• Do not force the controls.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

chord clos

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

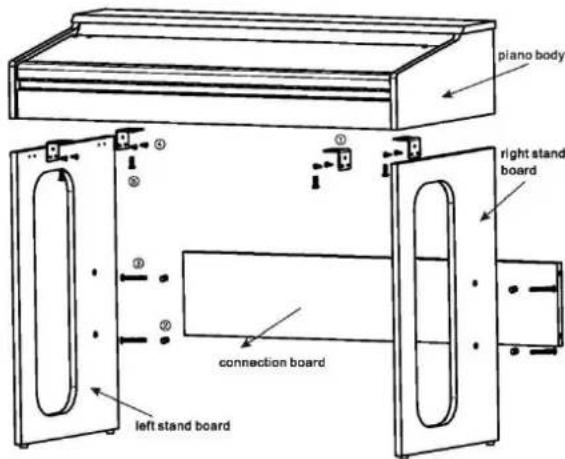

ASSEMBLY PIANO FURNITURE STAND

1. Use screws (TA4*50) to fix the angle iron on the left and right stand board separately.
2. Fix the nut screws into the four holes of connection board.
3. Use the screws (TM6*50) to fix the connection board with the left and right stand board, then the stand is assembled ready.
4. Put the piano body on the wooden stand and use the screws (TM6*20) to fix it.

piano body right stand board connection board left stand board

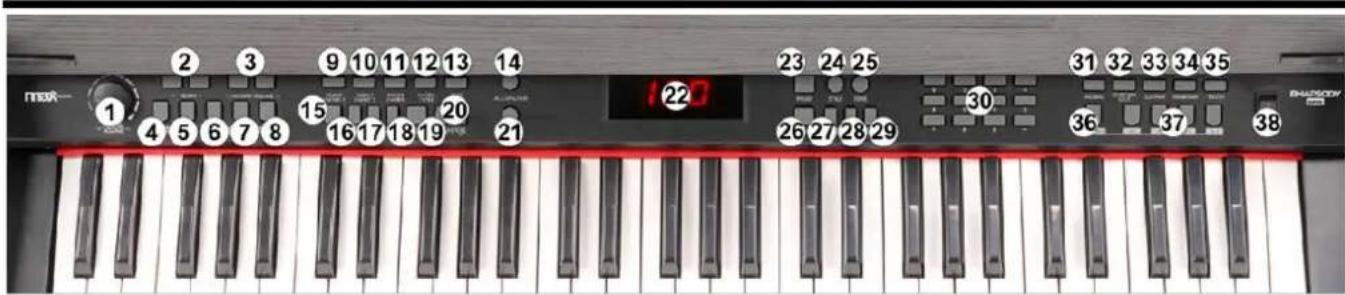

CONTROLS KEYBOARD

mbox 1 2 3 9 10 11 12 13 14 4 5 6 7 8 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

1. MASTER VOLUME

Rotate the [Master Vol button to raise or lower the master volume.

2. TEMPO

Press the [Tempo v] or [Tempo ∧] button to raise or lower the tempo of Style, Beat or Demo. The default value of tempo is 120. Press both simultaneously to reset to default value.

3. ACCOMP VOLUME

There are 9 levels style accompaniment volume, the system default is 07, by pressing [v/ʌ] key accompaniment volume can be adjusted. Press both simultaneously to reset to default value.

4. INTRO/ENDING

Press the [Intro/Ending] button to start play the prelude, then turn to regular Style to continue. During the play of the Style, press the [Intro/Ending] button to start playing a code for ending.

5. SYNC

Press the [Sync] button to enter the Sync function before the Style was played. Press any key of 19 keys in left hand tot start Style playback. The Beat point shines on the LCD. The display shows the current tone or Style's. If the chord function has started, press the corresponding key in 19 keys chord area, the auto chord starts. Press the [Sync] button again to exit this function.

6. FILL IN

Press the [FILL-IN] button to add an interlude to the Style. The fill played is determined by accompaniment style selected. After the fill, the selected accompaniment Style will continue playing.

7. VARIATION

At the mode of style, press [Variation] button, the piano will play the style with an style of variation. Press [Variation] button to exit this function.

8. START/STOP

Press the [Start/Stop] button to play the Style, press the [Play/Stop] button again to exit this function.

9. SINGLE CHORD 1

Press the [Style] button then press the [Single chord 1] button to start single finger accompaniment. Press any key of the left 19 keys to begin Style. Press different key on left keyboard to select different chord. One key you press will always determine the root of the chord you played. Press the [Start/Stop] button to end this function.

10. SINGLE CHORD 2

Press the [Style] button then press the [Single chord 2] button to start single finger accompaniment. Press any key of the left 19 keys to begin Style. Press different key on left keyboard to select different chord. One key you press will always determine the root of the chord you played. Press the [Start/Stop] button to end this function.

11. FINGER CHORD

Press the [Style] button then press the [Finger chord] button to start fingered accompaniment. Press any key of the left 19 keys to begin Style. Press a different key on left keyboard to select different chord. Press the [Start/Stop] button to end the effect.

12. CHORD CLOSE

Press [Chord close] to stop chord accompaniment while style continues to play.

13. BASS CHORD

Press the [Bass Chord] button to create an effective of heavy bass, press the [Bass Chord] button again to exit the function.

14. ACCORDION

The digital piano designed this function specially. It can let you choose the accordion mode quickly when at other status. Press the [Accordion] button, it can enter or exit the accordion performance directly

15. REC

Press the [Rec] button and you can record the music you play.

16. PLAY

Press the [Play] button to playback recorded notes or styles.

17. PROG

Press the [Program] button to enter the Style programming mode.

18. PRC

Press the [PRC] button. The Beat voice be produced. Then each key correspond to each percussion. There are total 61 kinds of percussion. Press [PRC] button again, to exit the beat function

19. METRONOME

There are 4 kinds of metronomes stored on the keyboard: 1/4 beat, 2/4 beat, 3/4 beat and 4/4 beat. Press the [Metronome] button once to set the rhythm at 1/4 beat, twice for 2/4 beat, etc. press for fifth time to cancel function.

20. TRANSPOSE

Press the [Transpose v/A] button to transpose the tone of the notes. The transpose may be adjusted from “-6” to “+6”. Pressing the two buttons simultaneously resets transpose to the default value.

21. GUITAR

The digital piano designed this function specially. It can let you choose the guitar mode quickly when at other status. Press the [Guitar] button, it can enter or exit the guitar performance directly.

22. LCD DISPLAY

Displays current mode, notes to play, style, tempo, etc.

23. PIANO

The digital piano designed this function specially. It can let you choose the piano mode quickly when at other status. Press the [Piano] button, it can enter or exit the piano performance directly.

24. STYLE

This piano has 300 kinds of style for your choice. For style table, please refer to the Appendix II. Press the [Style] button. The default style is "000". You can select the style by pressing the number [0-9] buttons directly or press [+/-].

25. TONE

This piano has 300 kinds of tones for your choice. For style table, please refer to the Appendix I Press the [Tone] button and you can select tone by pressing the number [0-9] number or [+/-] button.

26. DEMO

This keyboard has 80 stored demo songs [000 to 079) for your selection (Appendix III). Press [Demo] and the default demo song will start to play. During playing process, press [Demo] to play the next demonstration song. Press [Start/Stop] to stop playing. During the playing process, you can also press the [0-9] number or [+ / -] to select other demonstration songs. The selected demonstration song will then play repeatedly.

27. ONE KEY

Press to enter the one key teaching function.

28. FOLLOW

Press to enter the following teaching function.

29. ENSEMBLE

Press to enter the ensemble teaching function.

30. NUM-PAD

Press [+/-] or [0 -9] in numeric group buttons to select accompaniment.

31. DOUBLE

Press the [Double] button, the digital piano enters the mode of dual voice. Namely each note is composed of two voices. The first voice is the voice before you pressed [Double] button, and the second voice is the selected voice after pressed [Double] button.

32. SPLIT

Press the [Split] button, from the left 24th button, the keyboard forms left and right two tone keyboards. In 'tone' mode, press number or [+/-] button to adjust voice for right zone keyboards. Press the [Split] button again to exit this function. The keyboard resume to the voice of low key area.

33. SUSTAIN

Press [Sustain] and the notes played on the keyboard will be decayed gradually after lifting your finger from the keyboard. Press this button again and the sustain effect will be disenabled.

34. VIBRATION

Press the [Vibrato] and the vibrato effect will be activated. Press this button again and the vibrato effect will be disenabled.

35. TOUCH

This piano is touch keyboard. When the piano is open, touch function starts automatically. When you play keyboard with different force, the piano will play different size volume. Press the [TOUCH] button, to disable the touch function. Press [TOUCH] button once again to restart touch function.

36. MEMORY

This piano has panel registration memory function, it can be used for saving your most favourite setting as to the setting can be tuned out easily and promptly when you need it. After you have adjusted the tone, style and tempo, press the [Memory] button, and press any of the [M1-M4] button, then the current tone, style and tempo will be recorded. Press any of the [M1-M4] button that had been recorded in previous to delete.

37. M1-M2-M3-M4

38.

Switch to set power on/off.

CONNECTIONS

39. DC-9V

Socket for plugging in the supplied 9V adapter.

40. HEADPHONE JACK

When connecting headphones to the PHONES/OUTPUT port, the loudspeaker will be disenabled automatically. You can perform without disturbing others.

39 40 41 42 43

41. LINE OUT

This piano has built-in speaker system. It can be connected with other external amplifier or speaker system. First turn off the power of piano and the external equipment, then insert one end of stereo audio cable into LINE IN or AUX IN jack of other hi-fi equipment and insert the other end into LINE OUT jack in the rear panel of the piano.

42. SUSTAIN PEDAL JACK

The function of sustain can produce natural sustain by stepping upon sustain pedal when you perform. Please insert the plug of sustain pedal into SUS PEDAL jack. You can open/close the sustain function through the sustain pedal plug.

43. USB PORT

Connect the keyboard to another MIDI compatible device. Transfer information with computer in both direction such as you can store the music that you played on his keyboard to the computer.

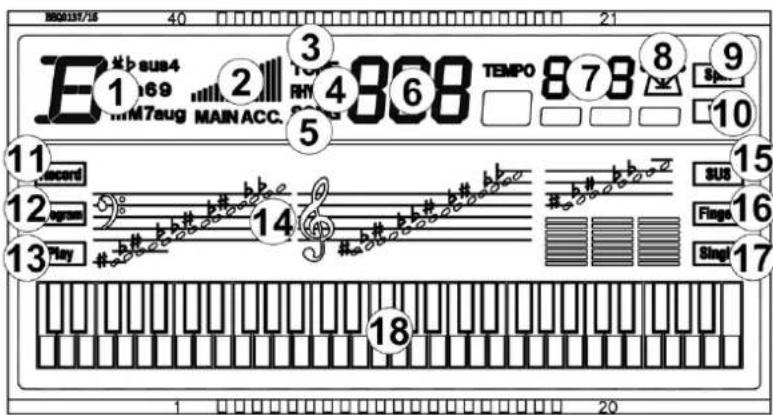

DISPLAY

1. Chord display Area

2. Volume

3. Tone

4. Rhythm

5. Demo

6. Number display

7. Tempo

8. Beat (metronome shows the current beat)

9. Split

10. Vibrato

11. Record

12. Program

13. Play

14. Staff notation

15. Sustain

16. Finger chord

17. Single chord

18. Black/white key display

E1 69 M7aug MAIN ACC. 3 4 868 TEMPO 878 8 Sp 5 9 10 11 record 12 Agrum 13 Play 14

b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b # b @

SUB Fings Singi 18 1 20

BEFORE YOU START

Use the special power adapter that is equipped with this electronic keyboard or a power adaptor with DC 9V out voltage 500m A. Insert the DC plug or power adaptor into the DC 9V power jack in the rear panel of the electronic keyboard, insert the other end into Main socket, turn on power switch and start performance.

RECORDING

1. Press [REC] button to enter recording model. You can hear metronome sounds and the default tempo is 120. Now press any button or drum key to start recording. The maximum recording quantity is 180. When the maximum quantity is full, metronome sound will stop and recording cannot be continued. Every time you press this button, the memory in previous recorded will be cleared and the piano will enter into the recording model again.
2. Press [PLAY] button to play the recorded notes.
3. Press [PROG] button to enter into style programming mode, press keyboard to program a paragraph of style. This edited style can record 32pcs drum points at the most. Press [PLAY] button to play the edited drum sound in sequence, forming a kind of self-made style after programming is finished. The best style play effect can be got by adjusting [TEMPO /v] buttons. Every time, you press [PROG] button, it will clear last memory and enter into programming mode again.

TEACHING FUNCTION

Intelligent Teaching: Press the [One Key], [Follow] or [Ensemble] button to enter the teaching function then press the number keys or the [ʌ/v] button to select different teaching Songs. Press the [One key] button once again to exit this function.

• One key teaching : Only there is key pressed, then the demo will be continued. Otherwise, the demo will be stopped. No matter you play correctly or not, the song will be automatically played continuously.
• Following teaching: The main part of demo will be recovered. Follow the display to play the note correctly, then play the next note which is shown automatically on display.
• Ensemble teaching: The main part of demo will be recovered, similar as Karaoke, the demo song will not be stopped, if there is no any pressing on the keyboard within 5 seconds, the main part of demo will resume to play. After learning one song, you will repeat to learn the current song. You also can choose your favourite song to learn.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UITPAKKEN

piano body right stand board connection board left stand board

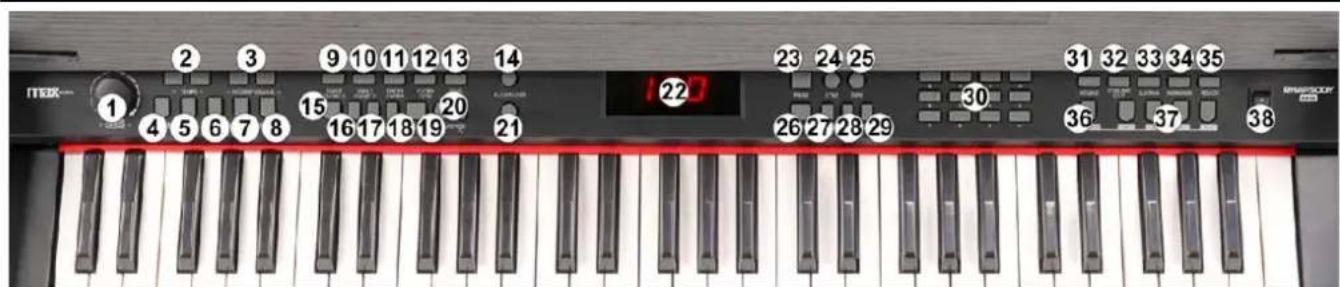

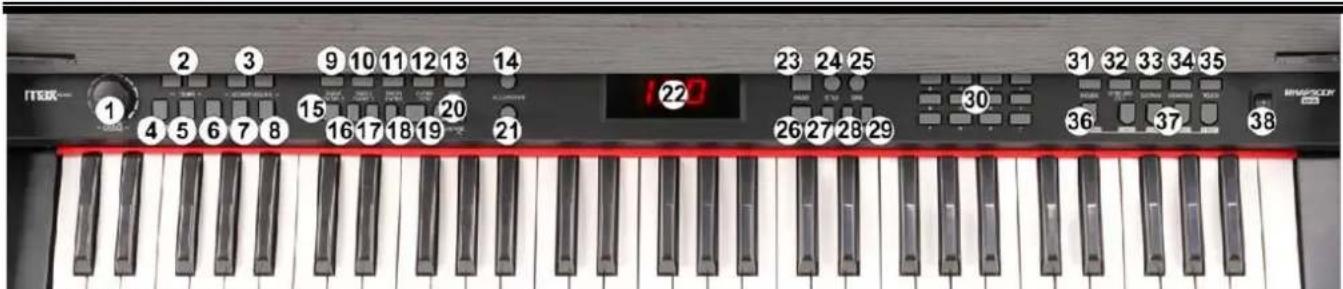

BEDIENING

1 2 3 9 10 11 12 13 14 22 23 24 25 31 32 33 34 35 36 37 38

plano body right stand board connection board left stand board

BEDIENUNG

1 2 3 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 30 31 32 33 34 35 26 27 28 29 36 37 38

42. SUSTAIN PEDAL BUCHSE

plano body right stand board connection board left stand board

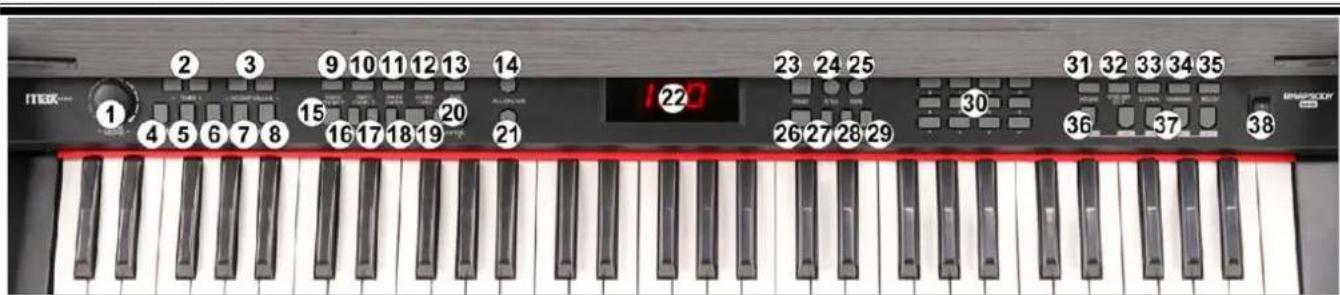

CONTROLES

1 2 3 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 30 31 32 33 34 35 26 27 28 29 36 37 38

1. MASTER VOLUME

piano body right stand board connection board left stand board

CONTRÔLES

max 1 2 3 9 10 11 12 13 14 4 5 6 7 8 15 16 17 18 19 20 21 22 23 24 25 30 31 32 33 34 35 26 27 28 29 36 37 38

1. MASTER VOLUME

plano body right stand board connection board left stand board

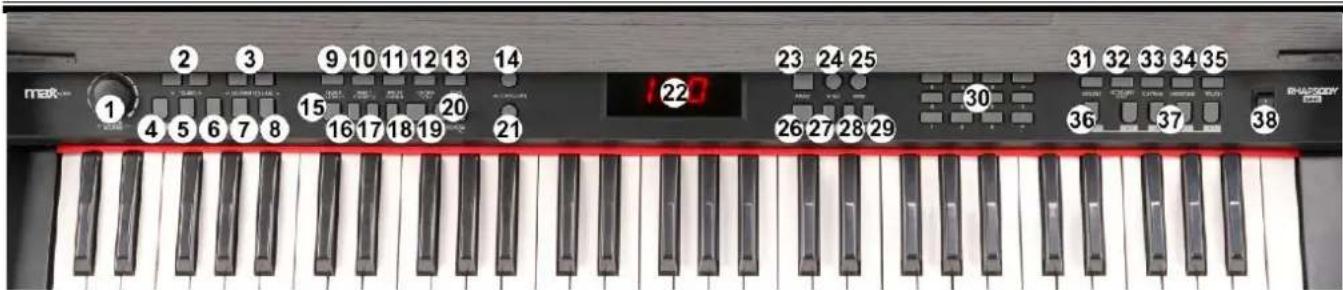

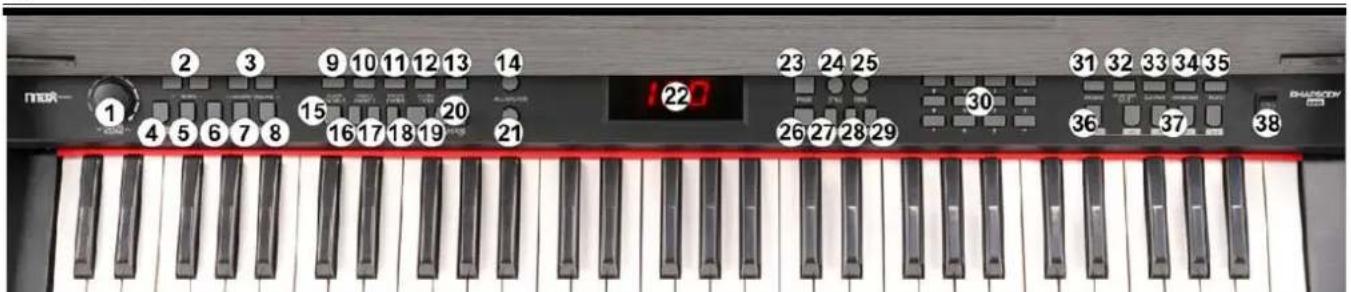

OPERACJA

1 2 3 9 10 11 12 13 14 20 21 22 23 24 25 30 31 32 33 34 35 36 37 38

plano body right stand board connection board left stand board

OPERACE

1 2 3 9 10 11 12 13 14 15 16 17 18 19 20 21 120 23 24 25 30 31 32 33 34 35 26 27 28 29 36 37 38

1. MASTER VOLUME

0 Acoustic Grand Piano	75 Pan Flute	150 Magic Electronic	225 Baritone Sax ensemble
1 Bright Acoustic Piano	76 Bottle Blow	151 Bright violin	226 Crystal Sax
2 Electric Grand Piano	77 Shakuhachi	152 Atonic Violin	227 Soft Baritone Sax
3 Honky-tonk Piano	78 Whistle	153 Heavy 151 Bright Violin	228 Synth Baritone Sax
4 Rhodes Piano	79 Ocarina	154 Synth Clarinet	229 Heavy metal Sax
5 Chorused Piano	80 Lead 1 (square)	155 Interactive Lead	230 Church Oboe
6 Harpsichord	81 Lead 2 (sawtooth)	156 For the keyboard	231 Oboe ensemble
7 Clavichord	82 Lead 3 (caliope lead)	157 Bagpipes	232 Bass Oboe
8 Celesta	83 Lead 4 (chiff lead)	158 Suona	233 Bright Oboe
9 Glockenspiel	84 Lead 5 (charang)	159 Pipa	234 distortio oboe
10 Music man	85 Lead 6 (voice)	160 Church Piano	235 English Horn ensemble
11 Vibraphone	86 Lead 7 (fifths)	161 Church electric Piano	236 Pizzicato English Horn
12 Marimba	87 Lead 8 (bass+lead)	162 Synth Piano	237 Diplophonia English Horn
13 Xylophone	88 Pad 1 (new age)	163 Baritone Piano	238 Bright English Horn
14 Tubular Bells	89 Pad 2 (warm)	164 Piano PAD	239 Synth English Horn
15 Dulcimer	90 Pad 3 (polysynth)	165 String Piano	240 Psychedelic Synth Lead
16 Hammond Organ	91 Pad 4 (choir)	166 Metal Piano	241 Vibraphone Synth Lead
17 Percussive Organ	92 Pad 5 (bowed)	167 Light rhythm Piano	242 Marimba Synth Lead
18 Rock Organ	93 Pad 6 (metallic)	168 electric Piano Pad	243 Metal FX
19 Church Organ	94 Pad 7 (halo)	169 Classical piano	244 Electronic FX
20 Reed Organ	95 Pad 8 (sweep)	170 Guitar organ	245 Electronic String Ensemble
21 Accordian	96 FX 1 (rain)	171 An electric guitar	246 Wind FX
22 Harmonica	97 FX 2 (soundtrack)	172 synthesis Nylon Guitar	247 Clarinet FX
23 Tango Accordian	98 FX 3 (crystal)	173 Synthetic electronic guitar	248 Organ FX
24 Acoustic Guitar (nylon)	99 FX 4 (atmosphere)	174 Bright clean Guitar	249 Crystal FX
25 Acoustic Guitar (steel)	100 FX 5 (brightness)	175 Orchestra Guitar	250 Synth Shamisen
26 Electric Guitar (jazz)	101 FX 6 (goblins)	176 Psychedelic Guitar	251 Electronic Shamisen
27 Electric Guitar (clean)	102 FX 7 (echoes)	177 Bright Organ	252 Bright Sitar
28 Electric Guitar (muted)	103 FX 8 (sci-fi)	178 Pick Organ	253 Whistle Accord
29 Overdriven Guitar	104 Sitar	179 Synth Accordion	254 rhythm Nation
30 Distortion Guitar	105 Banjo	180 Bright Violin	255 Bright Koto
31 Guitar Harmonics	106 Shamisen	181 Stringed Violin	256 Koto Lead
32 Acoustic Bass	107 Koto	182 Trill Violin	257 Diplophonia Koto
33 Electric Bass(finger)	108 Kalimba	183 Electronic Violin	258 Baritone Koto
34 Electric Bass (pick)	109 Bagpipe	184 Large Violin	259 Synth Koto
35 Fretless Bass	110 Fiddle	185 rhythm Orchestra	260 Environmental Lead
36 Slap Bass 1	111 Shanai	186 Pizzicato Violin	261 Metal Lead
37 Slap Bass 2	112 Tinkle Bell	187 Pizzicato Ensemble 1	262 Orchestra Lead
38 Synth Bass 1	113 Agogo	188 Pizzicato Ensemble 2	263 Glockenspiel Lead
39 Synth Bass 2	114 Steel Drums	189 Percussion Band	264 Bass Lead
40 Violin	115 Woodblock	190 Baritone Synth Contrabass	265 Fifths Lead
41 Viola	116 Taiko Drum	191 Bass Flute	266 Wind Lead
42 Cello	117 Melodic Tom	192 Distortion Contrabass	267 Atmosphere Lead
43 Contra Bass	118 Synth Drum	193 Contrabass Lead	268 Sharp Lead
44 Tremolo Strings	119 Reverse Cymbal	194 Violin Lead	269 Bright Lead
45 Pizzicato Strings	120 Guitar Fret Noise	195 Cello Lead	270 East Nation Pad
46 Orchestral Harp	121 Breath Noise	196 Pizzicato Rhythm	271 Atmosphere Pad
47 Timpani	122 Seashore	197 High Harp	272 Electric bass Pad
48 String Ensemble 1	123 Bird Tweet	198 Harp ensemble	273 electric Piano Pad
49 String Ensemble 2	124 Telephone Ring	199 Synth Harp	274 Clean Guitar Pad
50 Synth Strings 1	125 Helicopter	200 Baritone Trumpet	275 Western Pad
51 Synth Strings 2	126 Applause	201 Trumpet ensemble	276 Sci-fi Pad
52 Choir Aahs	127 Gunshot	202 Rhythm Trumpet	277 Metal Sci-fi Pad
53 Voice Oohs	128 Percussion	203 High Trumpet	278 Clarinet Pad
54 Synth Voice	129 Rhythm electric Piano	204 Synth Trumpet	279 Electronic dance Pad
55 Orchestra Hit	130 Baritone Xylophone	205 Baritone Trombone	280 Double Kalimba
56 Trumpet	131 Clean Piano	206 Trombone ensemble	281 Bright Kalimba
57 Trombone	132 Bright Dulcimer	207 Rhythm Trombone	282 Crystal Kalimba
58 Tuba	133 Rhythm Grand Piano	208 High Trombone	283 Synth Kalimba
59 Muted Trumpet	134 Traditional Piano	209 Baritone Trombone	284 Electronic Bagpipe
60 French Horn	135 Aluminium jean	210 Synth Trombone	285 Wind Bagpipe
61 Brass Section	136 Rock Grand Piano	211 Violin French Horn	286 High Bagpipe
62 Synth Brass 1	137 Electronic organ	212 French Horn ensemble	287 Bright Bagpipe
63 Synth Brass 2	138 Psychedelic electronic	213 Electronic French Horn	288 Orchestra Bagpipe
64 Soprano Sax	139 Water jean	214 Synth French Horn	289 Baritone Bagpipe
65 Alto Sax	140 Bright Guitar	215 Psychedelic Synth Brass	290 Environmental Shanai
66 Tenor Sax	141 Orchestra piccolo	216 Distortion Synth Brass	291 Baritone Shanai
67 Baritone Sax	142 Heavy metal guitar	217 Vibraphone Synth Brass	292 Tenor Shanai
68 Oboe	143 Crystal guitar	218 Rock Synth Brass	293 high Shanai
69 English Horn	144 Queer electric Piano	219 Synth Muted Trumpet	294 Synth Shanai
70 Bassoon	145 Bright bass	220 Soprano Sax ensemble	295 Bright Steel Drums
71 Clarinet	146 Rock Electric Bass	221 Hit Soprano Sax	296 Steel Drums Lead
72 Piccolo	147 Rhythm Electric Bass	222 Synth Soprano Sax	297 Lyric Steel Drums
73 Flute	148 Psychedelic Bass	223 National Sax	298 Orchestra Steel Drums
74 Recorder	149 Heavy Metal Bass	224 Metal Sax	299 Synth Steel Drums

APPENDIX II (STYLE)

0	Beat1	75	jazz_waltz1	150	Samba1	225	New York Blues
1	Beat2	76	Merengue1	151	Samba2	226	Piano Blues
2	Beat3	77	Merengue2	152	Cobmo	227	Soul-Blues
3	Beat4	78	Country1	153	Jorpo	228	Urban Blues
4	Beat5	79	Country2	154	OrientalBeat1	229	Blues waltz1
5	Beat6	80	Country3	155	OrientalBeat2	230	Blues merengue1
6	Beat7	81	Country4	156	OrientalBeat3	231	Blues merengue2
7	Beat8	82	Country5	157	OrientalBeat4	232	Contemporary R&B1
8	Beat9	83	Country6	158	OrientalBeat5	233	Contemporary R&B2
9	Beat10	84	Country7	159	OrientalBeat6	234	Contemporary R&B3
10	Beat11	85	Country_waltz1	160	OrientalBeat7	235	Contemporary R&B4
11	Beat12	86	Country_waltz2	161	OrientalBeat8	236	Contemporary R&B5
12	Beat13	87	Slow_Country1	162	OrientalBeat9	237	Deep Funk
13	Beat14	88	Slow_Country2	163	OrientalBeat10	238	Doo Wop
14	16beat1	89	Soul_Country	164	OrientalBeat11	239	Left-Field Hip-Hop
15	16beat2	90	Mambo1	165	OrientalBeat12	240	Motown
16	16beat3	91	Habanera	166	OrientalBeat13	241	Slow R&b1
17	Rock1	92	Vallenato	167	OrientalBeat14	242	Slow R&b2
18	Rock2	93	Baiao	168	Classical beat1	243	Slow R&b3
19	SlowRock	94	Bequine	169	Classical beat2	244	Lyric R&b
20	CountryRock	95	Bolero	170	Classical beat3	245	R&B march1
21	DanceRock	96	Bossanoval1	171	JazzRock1	246	R&B march2
22	EasyRock	97	Lambada	172	JazzRock2	247	Afro-Beat
23	GlamRock	98	Mambo	173	Soft Rock	248	Afro-Pop
24	HardRock1	99	Samba	174	Classic Rock	249	Celtic Pop
25	HardRock2	100	Reggae	175	Folk rock1	250	Hawaiian Pop
26	Pop_Rock	101	Rhumba	176	Folk rock2	251	Indian Pop
27	Rock+Roll	102	Tango1	177	waltzRock	252	European Traditions
28	RockBeat	103	Bossanoval2	178	Heavy metal rock1	253	World Fusion
29	RockFolk	104	Bossanoval3	179	Heavy metal rock2	254	Asia samba
30	RockPop	105	Bossanoval4	180	70'Rock	255	Traditional Reggae
31	HardRock	106	Bossanoval5	181	80'Rock	256	Middle East tango1
32	Hard_3beat	107	Calypso	182	Middle Eastern rock	257	Reggae-Pop
33	Plena	108	Tango2	183	Traditional rock	258	Roots Reggae
34	Dance1	109	Tango3	184	Rock disco	259	ReggaeBeat1
35	Dance2	110	March1	185	Britpop1	260	ReggaeBeat2
36	Dance3	111	March2	186	Britpop2	261	Dancehall
37	Dance4	112	March3	187	NewRock	262	Middle East tango2
38	Dance5	113	March4	188	Modern dance1	263	Middle East tango3
39	Dance6	114	polka1	189	Modern dance2	264	Middle East tango4
40	Dance7	115	Polka2	190	Modern dance3	265	Reggae March1
41	Dance8	116	Polka3	191	Modern dance4	266	Reggae March2
42	Dance9	117	Waltz1	192	Modern dance5	267	Reggae March3
43	Dance10	118	Waltz2	193	New century1	268	Reggae March4
44	Bachata1	119	Waltz3	194	New century2	269	Classical polka
45	Bachata2	120	China1	195	New century3	270	Mento
46	Soul_funk	121	China2	196	Rock Dance1	271	Classical Waltz1
47	Euro_soul	122	China3	197	Rock Dance2	272	Classical Waltz2
48	Funky_soul1	123	Thailand	198	Jazz bachata1	273	Classical Waltz3
49	Funky_soul2	124	Mideast	199	Jazz bachata1	274	Chinese Classical1
50	Funky_soul3	125	pop	200	Psychedelic 1	275	Chinese Classical2
51	Funky_soul4	126	love_ballad	201	Psychedelic 2	276	Chinese Classical3
52	Funky_soul5	127	EasyBeat	202	Post Rock	277	Chamber pop
53	Slow_soul1	128	SoftBeat	203	Soft Rock	278	Techno-Tribal
54	Slow_soul2	129	pop_samba1	204	Goth Psychedelic	279	Classical ballad1
55	Slow_soul3	130	pop_samba2	205	SoulPsychedelic 1	280	Classical ballad2
56	Funky_soul6	131	Shuffle	206	SoulPsychedelic 2	281	Light ballad
57	Funky_soul7	132	Jazz Band	207	SoulPsychedelic 3	282	pop_classic
58	Funky_soul8	133	Shuffle1	208	SoulPsychedelic 4	283	Britpo samba1
59	Soul1	134	Shuffle2	209	Psychedelic swing	284	Britpo samba2
60	Soul2	135	Slow_folk	210	funky_soul1	285	Downtempo
61	Soul3	136	Step	211	Reggae soul1	286	Big Beat
62	Soul4	137	16ballad1	212	Reggae soul2	287	Trip-Hop1
63	Soul5	138	16ballad2	213	Space	288	Trip-Hop2
64	Newsoul	139	love_ballad1	214	Free Psychedelic 1	289	Rhythm ballad
65	Big_band1	140	love_ballad2	215	Free Psychedelic 2	290	Lyric step
66	Big_band2	141	Swing1	216	Free Psychedelic 3	291	Lyric rhythm1
67	Blue_grass	142	Swing2	217	Free Psychedelic 4	292	Lyric rhythm2
68	Jazz_samba	143	Swing3	218	Free jazz	293	Slow ballad1
69	Jazz_waltz1	144	Reggae	219	Country Blues	294	Slow ballad2
70	Jazz1	145	Rhumba1	220	Electric Blues	295	Xinjiang 1
71	Jazz2	146	Rhumba2	221	Folk-Blues	296	Xinjiang 2
72	Swing1	147	Rhumba3	222	Jazz Blues	297	Henan
73	Swing2	148	Rhumba4	223	Jump Blues	298	Dongbei
74	Swing3	149	Salsa	224	New Orleans Blues	299	Shanbei

APPENDIX III DEMO SONGS

0	Heipanpo	40	Isola di Capri
1	Nocturne	41	Carmen
2	In_rain	42	Carmen aragon
3	Mirliton	43	Carman Overture
4	Airg-string	44	Itsy Bitsy Spider
5	canon	45	Clementine sonata
6	First Noel	46	Croatian Rhapsody
7	Frosty	47	Radetzky March
8	Minuet in G major	48	Blue Danube
9	Enter	49	dream wedding
10	Bach's Minute	50	The Magic Flute-overture
11	American Patrol	51	Mozart
12	o christmas tree	52	Santa Claus Is Coming To Town
13	Oh My Darling Clementine	53	Christmas Eve
14	rudolph the red nose reindeer	54	Mozart no. 40
15	Silver	55	Susanna
16	Beethoven sonata	56	The fountain
17	O Sole Mio	57	A Maiden's Prayer
18	Piano concerto	58	The four seasons, spring
19	Winter	59	swan lake
20	long time ago	60	For Alice
21	Romance De Amor	61	William Tell Overture
22	A concerto to love	62	Smile polka
23	Music Box Dancer	63	SPANISH GYPSY DANCE
24	annipolka	64	Turkish March
25	The river of Babylon	65	Four little swan
26	White Christmas	66	Abide With Me
27	polonaise	67	The song of the spring
28	Katyusha	68	Minute Waltz
29	Red River Valley	69	Gavotte
30	Brandenburg concertos	70	Schubert serenade
31	Russian dance	71	Serenade - Haydn
32	the lovely bug fly	72	Moments Musicaux
33	The matador song	73	Hungarian Dances
34	cuckoo waltz	74	Yankee doodle
35	Old France	75	waltz
36	habanera	76	Pathetique iii
37	Waltz of the Flowers	77	Italy polka
38	Fantasia off the cuff	78	minuet
39	Waltz in G flat major	79	Melody in the rain

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Product colour : Black

Number of keys : 61

Display : LCD

Power Supply : 100-240VAC 50/60Hz (9V Adapter)

Weight : 13,35 kg

Dimensions : 960 x 363 x 195mm (with stand 795mm height)

Included accessories : Stand, Power adapter

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
