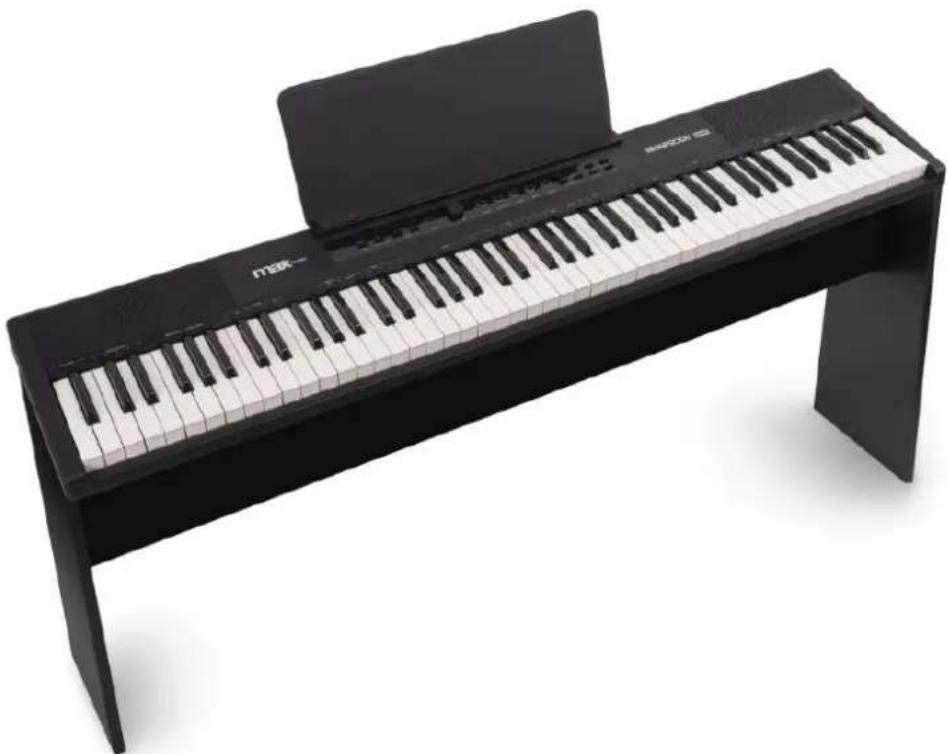

RhapsodyDP88P Digital Piano 88-keys

Ref. nr.: 130.066

Black electronic piano with black keys and a stand, no visible text or symbols on the instrument body

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D”INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

V1.0

Congratulations to the purchase of this Max Music product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room

temperature before you switch it on. Never use the product in humid rooms or outdoors.

• During operation, the housing may become hot.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the product on and off. This shortens the life time.
• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Only operate the product with clean hands.
• Do not force the controls.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROLS

max 2 3 4 8 9 10 11 12 13 14 15 16 5 6 7 20 21 22 23 24 25 26 27 28 29 30 31 32 33 RhapsODY (2008) 1

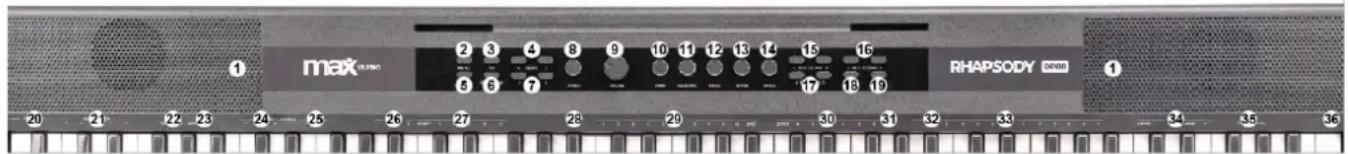

1. Speakers

Loudspeakers to reproduce the sound of the music played

CONTROL KEYS

2. Metro

Press to turn metronome on/off

3. Tap

Press twice at an even speed to set the tempo

4. Tempo

Press to increase or decrease the tempo value by one. Press and hold to change the tempo quickly

5. Demo

Press to start playing the demo song

6. Start/stop

Press to start/stop playing the demo song

7. Song

Press to select previous or next song

8. Power

Press to turn power on/off

9. Volume

Rotate to increase or decrease the volume

10. Piano

Press to select sound of piano

11. Keyboard

Press to select sound of keyboard

12. Organ

Press to select sound of organ

13. Synth

Press to select sound of synthesizer

14. Other

Press to select sound of other choice

15. R2/L octave

Press to increase or decrease the pitch of Sound 2 by one octave

16. R2/L volume

Press to increase or decrease the volume of sound 2 by one step. Press and hold to change the volume quickly

17. Transpose

Press to increase or decrease the pitch of the entire keyboard in semitone steps

18. Reverb

Press to set reverb on/off

19. Twinova

Press to turn the Twinova function on/off

FUNCTION KEYS

20. Function acces

Press and hold the three keys together to access the key functions. (A0, Bb0 and B0)

21. Sound select

Press and holt one of the main sound buttons to select a specific sound of the group

22. Demo song

Press to start/stop playing the demo song

23. Sound demo

Start/stop playing the sound demo of the current R1 sound

24. Sound 2 volume -/+

Adjust the volume level of sound 2 (R2/layer or L/Split)

25. Sound 2 octave -/+

Adjust the octave of Sound 2 (R2/layer or L/Split)

In function, press E2 and F2 at the same time to reset to the default octave setting

26. Twinova -/+

Turn the twinova on/off. Press to adjust the octave of both the left and right sections. In the twinova mode simultaneously press A2 and B2 to reset to the default octave setting

27. Touch

Press to set touch on/off. The default state is on

• 1: Soft 1
• 2: Soft 2
• 3: Medium
• 4: Hard 1
• 5: Hard 2

28. Transpose

Press to shift the pitch of the entire keyboard up or down by a maximum of one octave in semitone steps. Press A3 and B3 simultaneously to reset to the default transpose setting

29. Song

Press to start playing song nr 1-10

30. Metro

Turn the Metronome on/off. Press C#5 – F#5 to select the metronome beat. For example, when selecting 0, no accent will play. When selecting 2, you will get an accent of 2 beats

31. Tap

Press this key at an even speed to set the tempo

32. Tempo Value

If you wish to input a value under 100, please press 0 first ant the a 2-digit number. When entering a number lower than 5 or above 320, the piano will set the tempo to 5 or 320

33. Tempo 0-9

Press to increase or decrease the tempo value by the step of 1

In tempo function, press A5 and B5 at the simultaneously to reset to default tempo

34. Reverb -/+

Turn the reverb on/off. Press to adjust reverb level up or down. When in reverb function, press D7 and E7 simultaneously to reset to the default reverb setting

35. Local control

Press to set local control function on or off.

On: this instrument will work alone as a master keyboard

Off: this instrument will be controlled by connected device. It will not produce sound when you play, but will output MIDI

message

Note: Local control function by default is on

36. Guide

Press to turn the guide on/off that produces a beep sound when Function commands are used

37. Headphone jack

When connecting headphones to the PHONES/OUTPUT port, the loudspeaker will be disenabled automatically. You can perform without disturbing others.

CONNECTIONS

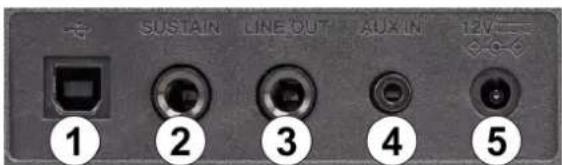

1. USB PORT

Connect the keyboard to another MIDI compatible device. Transfer information with computer in both direction such as you can store the music that you played on his keyboard to the computer.

2. SUSTAIN PEDAL JACK

The function of sustain can produce natural sustain by stepping upon sustain pedal when you perform. Please insert the plug of

sustain pedal into SUS PEDAL jack. You can open/close the sustain function through the sustain pedal plug.

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

3. LINE OUT

This piano has built-in speaker system. It can be connected with other external amplifier or speaker system. First turn off the power of piano and the external equipment, then insert one end of stereo audio cable into LINE IN or AUX IN jack of other hi-fi equipment and insert the other end into LINE OUT jack in the rear panel of the piano.

4. AUX IN

Connect an external audio source such as an MP3 player.

5. DC INPUT

Socket for plugging in the supplied 12V adapter.

BEFORE YOU START

POWERSUPPLY:

• Using AC-DC adapter:

Use the special power adapter that is equipped with this electronic keyboard. Insert the DC 12V plug or power adaptor into the DC 12V power jack in the rear panel of the electronic keyboard, insert the other end into Main socket, turn on power switch and start performance.

• Using batteries: (not included):

Open the battery compartment cover located on the bottom panel of the Electronic keyboard. Insert 6 pcs AA batteries, being carefully to follow the polarity marking on the cabinet. Replace the compartment cover, making sure that it locks firmly in place.

- Place the music stand in the keyboard slot.

PLAYING SOUNDS

• Press and hold one of the sound buttons. The corresponding sound LED lights up. Press the same sound button repeatedly to circulate through the selected group and select a sound (refer to the list for different sounds).
• Press and hold a sound button, the corresponding led lights up. Then press C1-E1 to select a specific sound from the group

PIANO KEYBOARD ORGAN SYNTH OTHER

Sound 1 Sound 2 Sound 3 Sound 4 Sound 5 C1 D1 E1 SOUND SELECT

Using Layer:

Press and hold a sound button and press another to turn on the layer function. The corresponding sound LED's light up. The first sound you press will be set as the upper sound (R1), and the second sound you press will be set as the layer sound (R2).

Using Split:

Press and hold two sound buttons respectively, then press a key on the keyboard to assign as the split point. The corresponding sound LED's light up after releasing the buttons

Turn off layer/split:

Press a sound button other than the currently active ones. The layer/split function will be turned off. The newly pressed sound will be selected and the corresponding LED lights up.

Notes:

1. If you press few keys when assigning the split point, it will set the last key you press as the split point.
2. The layer and the split functions cannot be used at the same time

TWINOVA

Twinova function splits the keyboard into two areas with the same sound and octave range, for the convenience of playing together with a friend or an instructor.

Turning Twinova on/off:

When in Twinova function press the key (Bb2) to turn Twinova on or off. The split point is E4/F4.

Selecting a Sound for Twinova:

The upper sound selected before entering Twinova will become the default sound for both areas. You can still use the sound buttons to select a desired sound in Twinova mode.

Note:

The Twinova mode and layer/split functions cannot be used at the same time. During song playback, Twinova Is not selectable

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

3. LINE OUT

Close-up of a piano keyboard with two keys and a label showing number 37 (no text or symbols on keys)

VERBINDUNGEN

1. USB ANSCHLUSS

2. SUSTAIN-PEDAL-BUCHSE

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

4. AUX IN

Close-up of a piano keyboard with two keys and a finger, labeled with number 37 (no text or symbols on keys)

CONNEXIONS

1. PUERTO USB

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

1. SALIDA DE LÍNEA

Close-up of a piano keyboard with two keys and a label showing number 37 (no text or symbols on the keys)

CONNEXIONS

1. PORT USB

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

4. ENTRÉE AUXILIAIRE (AUX IN)

Désactiver la couche/le partage:

Close-up of a piano keyboard with keys and a numbered label (37) on the left, no visible text or symbols on the keys or background.

POŁĄCZENIA

1. PORT USB

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

ZASILANIE:

SUSTAIN LINE OUT AUX IN 12V ① ② ③ ④ ⑤

Sound List
Piano
1	German Grand Piano
2	Bright German Grand Piano
3	Electric Piano
4	Electric Piano 2
5	Electric Grand Piano
Keyboard
6	Harpsichord
7	Clavinet
8	Accordian
9	Vibraphone
10	Marimba
Organ
11	Drawbar Organ
12	Percussion Organ
13	Church Organ
14	Reed Organ
15	Rock Organ
Synth
16	String Ensembles
17	Synth Strings
18	Square Lead
19	Saw Lead
20	Choir
Other
21	Nylon Acoustic Guitar
22	Steel Acoustic Guitar
23	Electric Bass
24	Acoustic Bass
25	Synth Bass

Song List
1	Prelude and Fugue No.1 in C Major
2	Minuet in G Major(BWV Anh.114)
3	Fur Elise
4	Piano Sonate No.15 K.545 1 ^st mov.
5	Gavotte
6	Minute Waltz, Op.64 No.1
7	Polonaise No.6 in A Flat Major, Op.53
8	Etude No.13 in A Flat Major, Op.25 No.1
9	Salut d'Amour
10	Maple Leaf Rag

Demo Song
1	Fantaisie-Impromptu

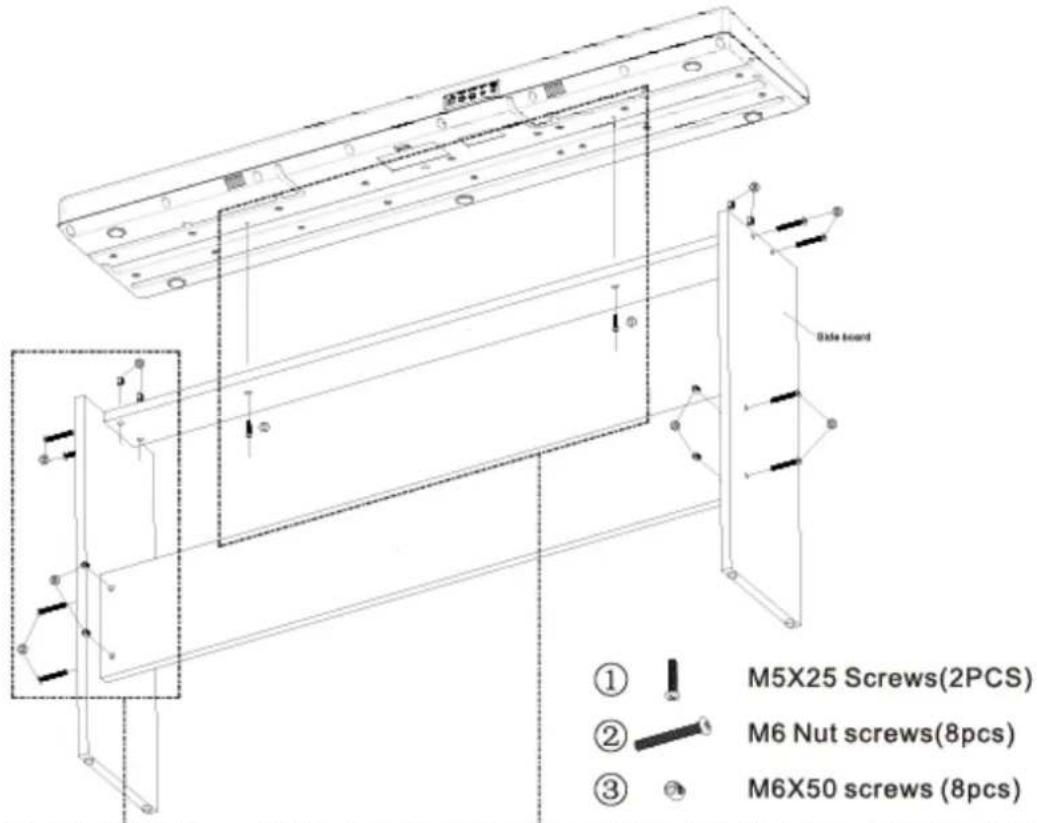

ASSEMBLING KEYBOARD FURNITURE / MONTAGE KEYBOARDMEUBEL / MONTAGE DER TASTATURMÖBEL / MONTAJE DE LOS MUEBLES TECLADO / ASSEMBLAGE DES MEUBLES À CLAVIER / MONTAŽ MEBLI KLAWIATUROWYCH / MONTÁŽ KLÁVESNICOVÉHO NÁBYTKU

M5X25 Screws(2PCS) M6 Nut screws(8pcs) M6X50 screws (8pcs)

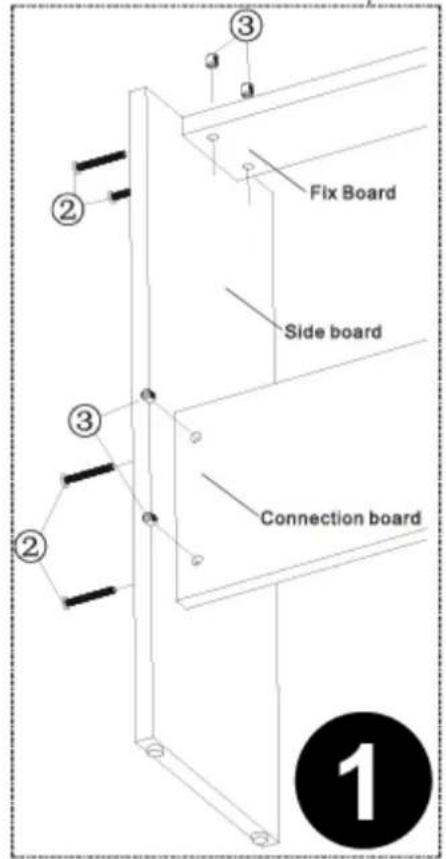

Fix Board Side board Connection board ①

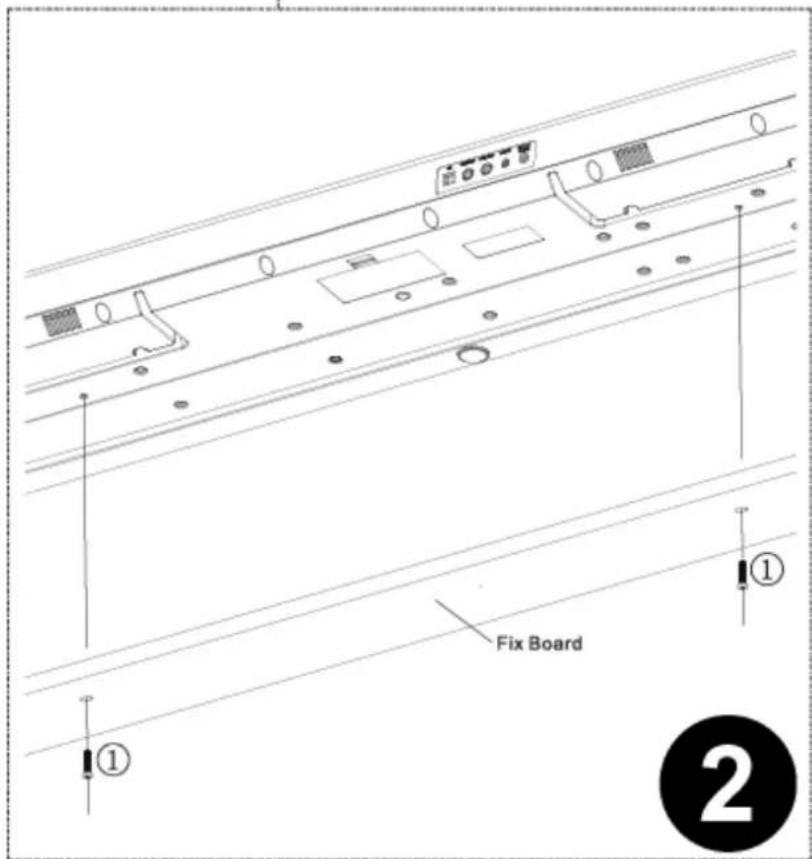

Fix Board ① ②

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Number of keys : 88

Power Supply : 100-240VAC 50/60Hz (12V Adapter)

Weight : 15,50 kg

Dimensions : 1280 x 275 x 78mm (with stand 795 height)

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United

Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
