XD3 RGB

Pump/Reservoir Combo

HYDRO>〈SERIES

CORSAIR

ENGLISH....1

FRANÇAIS....11

DEUTSCH 21

ITALIANO....31

ESPAÑOL....41

РУССКИЙ 51

IMPORTANT NOTICE

Quick Start Guide is a general installation guide and does not cover the specifics of individual case or radiator mounting.

CORSAIR recommends you thoroughly leak-test your custom cooling system for at least 24 hours to ensure that the system is securely sealed and operating reliably. CORSAIR warranty does not cover any hardware damage resulting from poorly executed, improper and otherwise hasty assembly of your custom water-cooling system.

Disassembly of CORSAIR HYDRO X products is highly discouraged due to complex design of components. Such action may result in irreparable mechanical, electrical or chemical damage that may void the warranty. For an exact and up-to-date product compatibility list, please refer to CORSAIR website.

PACKAGE CONTENTS

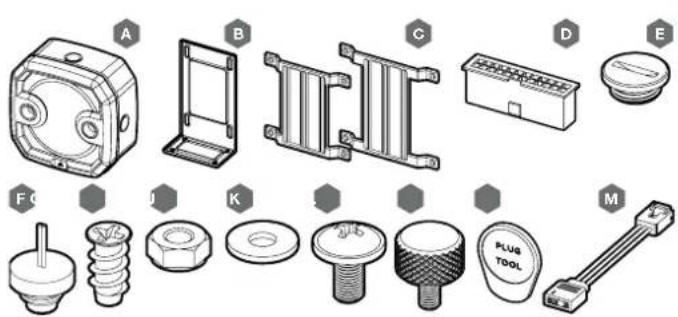

A B C D E F G H I J K M PLUS TOOL

A—x1 XD3 RGB PUMP/RESERVOIR

B - x1 PERPENDICULAR MOUNTING BRACKET

C — x1 120mm & 140mm FAN MOUNTING ADAPTER PLATE

D — x1 ATX 24 - PIN PSU JUMPER BRIDGE

E — x3 CORSAIR G1/4" PLUGS

F - x1 CORSAIR G1/4" TEMPERATURE SENSOR PLUG

G — x4 FAN SELF-TAPPING SCREW

H - x4 M4 HEX NUT

I - x4 M4 WASHER

J - x4 M4x8mm SCREW

K - x8 M3 THUMB SCREW

L - x1 PLUG TOOL

M - x1 RGB ADAPTER CABLE

PREREQUISITES (NOT INCLUDED)

Technical diagram showing a device with a grid, screwdriver, and a gas washing bottle labeled N and P.

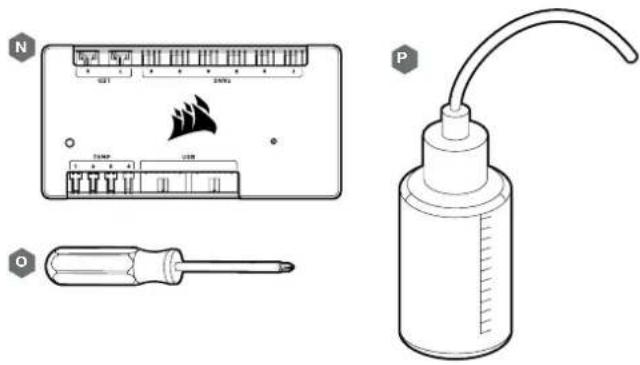

N — CORSAIR ICUE COMMANDER PRO SMART RGB LIGHTING AND FAN SPEED CONTROLLER
O — PHILLIPS-HEAD SCREWDRIVER
P — FILLING FLASK & CORSAIR XL5 COOLANT

Note: CORSAIR iCUE Commander PRO or CORSAIR Lighting Node PRO are required for driving and controlling the RGB LED illumination. CORSAIR iCUE Commander PRO is required for automatic control of the pump and for monitoring the liquid temperature using iCUE software suite.

ENGLISH

MOUNTING THE XD3 RGB TO PERPENDICULAR MOUNTING BRACKET

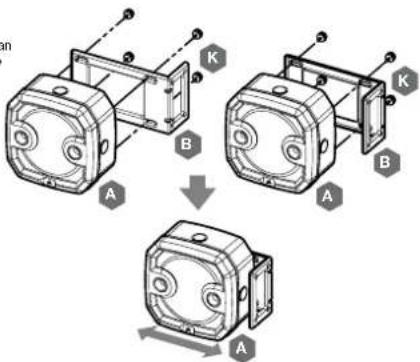

1. Secure the Perpendicular mounting bracket (B) to the XD3 RGB (A) using four (4) M3 thumb screws (K).
2. The Perpendicular mounting bracket can be oriented in two ways and allows free movement along the horizontal axis.

A B K A B K

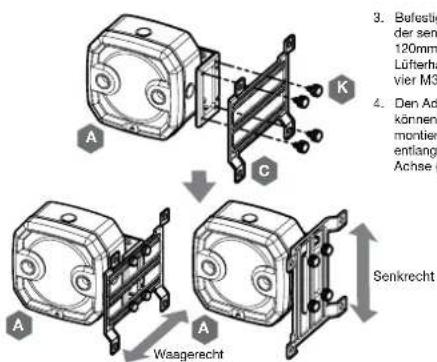

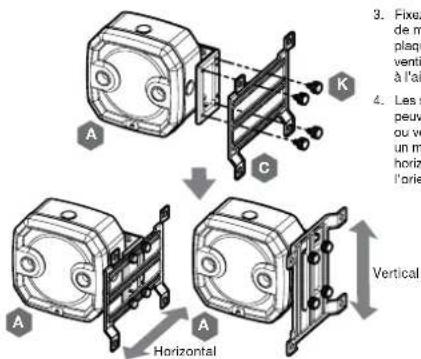

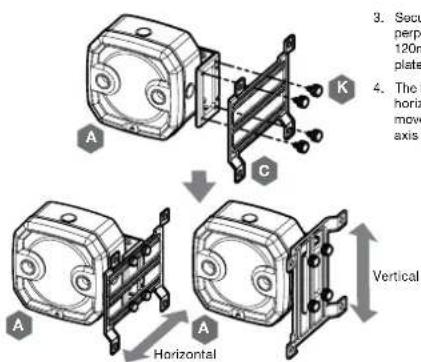

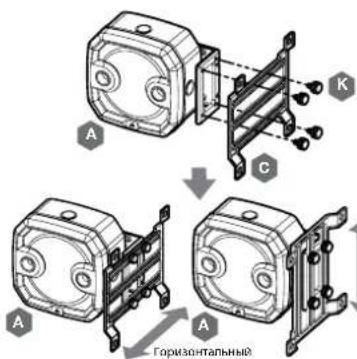

3. Secure perp 120m plate 4. The horiz move axis A C K Vertical A Horizontal

1. Secure the XD3 RGB (A) with the perpendicular mounting bracket onto a 120mm or 140mm fan mounting adapter plate (C) using four M3 thumb screws (K)
2. The fan adapter brackets can be mounted horizontally or vertically thus allowing free movement along the horizontal or vertical axis (depending on orientation).

MOUNTING THE XD3 RGB TO A FAN MOUNTING ADAPTER PLATE

1. Place the XD3 RGB (A) on the 120mm or 140mm fan mounting adapter plate (C). Secure the XD3 RGB to the mounting adapter plate using four M3 thumb screws (K).
2. The fan adapter brackets can be mounted horizontally thus allowing free movement along the horizontal axis.

Technical diagram showing two electronic component assemblies labeled A and K, with arrows indicating assembly or transformation.

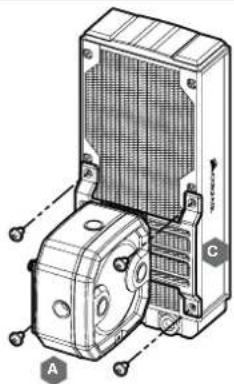

MOUNTING THE XD3 RGB TO A CORSAIR XR RADIATOR

Secure the XD3 RGB (A) with the preinstalled 120mm or 140mm fan mounting adapter plate (C) to the CORSAIR XR radiator with the short 6mm (0.25") M4XP0.7 screws supplied with the CORSAIR XR radiator itself.

Technical line drawing of a mechanical device with labeled components A and C (no text or symbols beyond labels)

ENGLISH

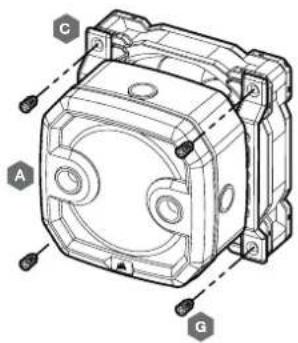

MOUNTING THE XD3 RGB TO A CASE FAN

Secure the XD3 RGB (A) with the preinstalled 120mm or 140mm fan mounting adapter plate (C) to a fan using four enclosed self-tapping fan screws (G).

Technical diagram of a mechanical housing or enclosure with labeled components A, B, C, and G

MOUNTING THE XD3 RGB DIRECTLY TO A CASE FAN SLOT

Secure the XD3 RGB (A) with the preinstalled 120mm or 140mm fan mounting adapter plate (C) onto a case fan opening. Use the enclosed M4x8mm screws (J) along with washers (I) and M4 hex nuts (H).

Technical diagram of a wall-mounted electrical socket with labeled components A through H

5

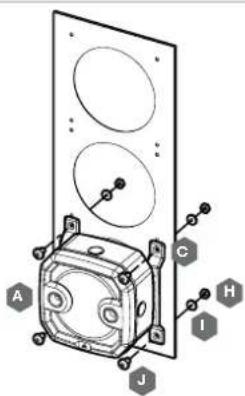

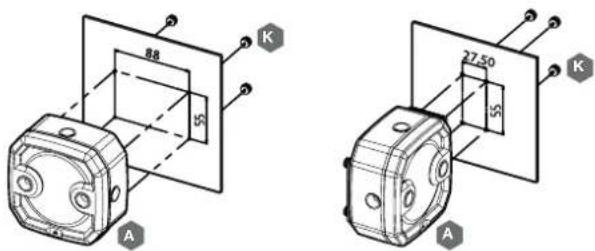

MOUNTING THE XD3 RGB DIRECTLY TO A CASE FAN SLOT

Locate the suitable cut-out hole pattern in the chassis that would fit 88mm x 65mm hole pattern (if mounting the XD3 RGB directly) or 27.5mm x 55mm if using the perpendicular mounting bracket. If there are no hole patterns available, there is an option to drill the holes using a ∅3,4mm - ∅4mm drill bit. Secure the unit by screwing four M3 thumb screws (K).

88 50 A 27.50 50 K K A

XD3 RGB MOUNTING ORIENTATION

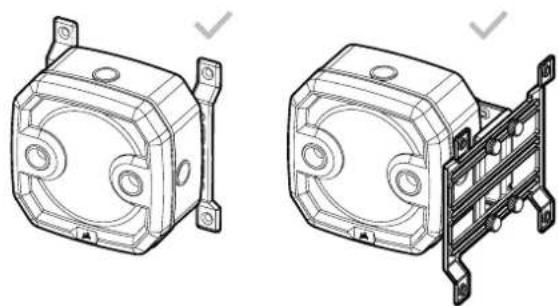

The XD3 RGB must be installed vertically (see picture below).

Technical line drawings of two mechanical components: a front view and a side-view assembly (no text or symbols)

6

ENGLISH

FINALIZING THE SETUP

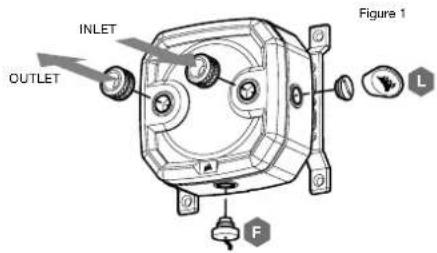

1. Install the two (2) appropriate CORSAIR XF G1/4 BSPP threaded-type fittings (not included) into the reservoir ports and tighten them by hand. Do not use any tools (i.e. pliers) (Figure 1).

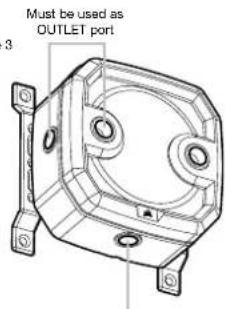

2. It is mandatory to use the front-left port as the OUTLET. The recommended INLET (return) port is marked on the image below. Optionally, you can use the top G1/4 port as an INLET (return) line as well (Figure 2 and 3).
3. Install the CORSAIR G1/4 Temperature Sensor Plug (F) into the G1/4 port located on the base of the unit. Do not install the temperature sensor on any of the top ports.
4. Close the remaining three (3) open (unused) ports with the included CORSAIR G1/4 plugs and tighten them using a plug tool (L). Refrain from using a screwdriver as it may result in damage to the surface of the plugs.

INLET OUTLET Figure 1 L F

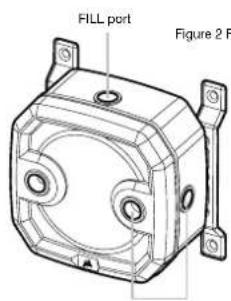

FILL port Figure 2 F

Can be used as INLET port

Must be used as OUTLET port.

Temperature sensor

7

CONNECTING THE PUMP AND USING THE INTEGRATED DIGITAL RGB ILLUMINATION

A CORSAIR iCUE Commander PRO or Lighting Node PRO (either) is required in order to use the integrated RGB illumination on the XD3 RGB. CORSAIR iCUE software is used to program the visual effects. CORSAIR iCUE Commander PRO is required for automatic control of the pump and for monitoring the liquid temperature using iCUE software suite.

The XD3 RGB Pump/Reservoir can be connected to the appropriate CORSAIR controller either directly or "daisy"-chained with other CORSAIR addressable RGB component(s).

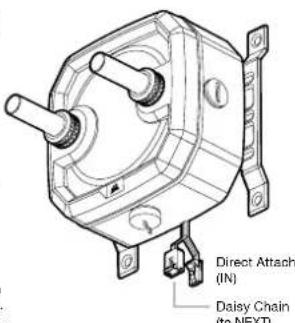

1. Identify the correct RGB connector on the reservoir-pump unit (Figure 1).

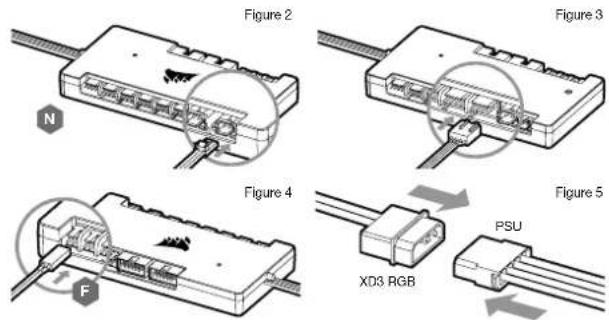

2. Insert the RGB connector in a CORSAIR iCUE Commander PRO port or Lighting Node PRO port (Figure 2).
3. Download and install CORSAIR iCUE software suite from the following website: https://www.corsair.com/icue. Configure visual and lighting effects by following the manual for iCUE software.
4. Connect the XD3 RGB's pump 4-pin fan connector into Fan Port #6 on your CORSAIR ICUE Commander PRO (Figure 3).
5. Connect the XD3 RGB's temperature sensor into temperature Port #1 on your CORSAIR iCUE Commander PRO (Figure 4).
6. Connect the XD3 RGB's main power cable by plugging in a 4-pin Molex connector from your power supply (Figure 5).

Figure 1

Direct Attach (IN) Daisy Chain (to NEXT)

Figure 2 Figure 3 Figure 4 Figure 5 F XD3 RGB PSU

8

ENGLISH

CONNECTING THE XD3 RGB LIGHTING TO THE MOTHERBOARD

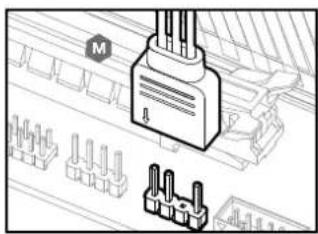

1. Connect the XD3 RGB male connector into the RGB ADAPTER CABLE (M) female connector (Figure 1).
2. Connect the RGB ADAPTER CABLE female connector into the Digital RGB header on the motherboard. Make sure the arrow on the RGB ADAPTER CABLE is plugged into +5V on the motherboard (Figure 2).
   By using the motherboard adapter it is not possible to control the RGB illumination with iCUE software.

Diagram of a connector with pins and a labeled component (no readable text or symbols)

FILLING AND PRIMING THE XD3 RGB

1. Disconnect PSU power cables from all computer components except the XD3 RGB 4-pin Malex power connector. Make sure the PSU is turned OFF, either at the plug socket, or via the toggle switch on the rear of the PSU. Connect the enclosed ATX 24-pin PSU Jumper Bridge starter to your PSU 24-pin ATX cable. This will allow you to power on your XD3 RGB without powering on the PC (Figure 1).
2. Disconnect the XD3 RGB's pump 4-pin fan connector. This will allow the pump to run at full power, allowing for easier priming and bleeding of air.
3. Fill the reservoir through the top G1/4 opening with CORSAIR XL5 coolant using a filling flask to about 0.5cm (1/5) below the top (Figure 2).

Diagram of a connector assembly showing two connected components with no visible text or symbols

Technical line drawing of a mechanical device with a bottle and connecting rod (no text or symbols)

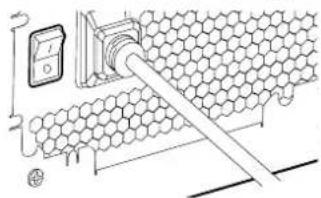

1. Turn on the power by flipping the ON switch on the PSU. The pump motor will be primed with coolant from the reservoir and will start flowing through the system. Turn the power OFF before the reservoir is emptied. Do not let the pump run dry or without coolant in the reservoir as this will damage the pump (Figure 3)!
2. Repeat steps 2 and 3 until your custom cooling system is full. CORSAIR recommends not to fill the reservoir more than about 0.5cm (1/5) from the top.
3. Once the system is filled with coolant, CORSAIR recommends running it for 24 hours to remove any air trapped in the components and to make sure there are no leaks in the system. Once you have thoroughly leak-tested the system, turn OFF the PSU and disconnect ATX 24-pin PSU Jumper Bridge. Reconnect the power to other computer peripherals and start the computer.

FAQ

1. Can I use the XD3 RGB as a standalone part?
   No, this is a water-cooling pump with integrated reservoir which requires a complete custom water-cooling system, including cold plates (water blocks) and radiator. For more information, please visit corsair.com.
2. Can I use the XD3 RGB with aluminium water-cooling equipment?
   No, you cannot. Certain parts are made from copper and brass and should not be mixed with aluminium.
3. Can I connect the RGB header directly to my motherboard?
   Yes you can - using the included RGB ADAPTER CABLE (M). See page 9 - CONNECTING THE XD3 RGB LIGHTING TO THE MOTHERBOARD
4. Can the XD3 RGB pump be controlled without the use of CORSAIR iCUE Commander PRO?
   While it is possible to use XD3 RGB without a CORSAIR iCUE Commander PRO, doing so will remove the automated pump speed control in CORSAIR iCUE software. The pump speed may be manually controlled by motherboard UEFI when XD3 RGB's 4-pin fan PWM connector is connected.
5. How many RGB devices can I daisy-chain to a single channel on a CORSAIR controller? CORSAIR recommends you connect no more than three (3) Hydro X Series RGB devices of any type connected in a series on a single channel. However, you can connect one (1) XC7/XC9 water block, two (2) XC7 RGB water blocks and one (1) XD3 RGB pump unit for a total of four (4) devices. Do not mix CORSAIR fans or RGB LED strips and CORSAIR HYDRO X products on the same channel on the controller. Use a dedicated channel for other components.

ENGLISH

Technical diagram showing a hexagonal grid structure with a power meter and connected rod, likely illustrating a measurement or installation procedure.

Figure 3

AVIS IMPORTANT

E - PRISES CORSAIR G1/4" x3

F — PRISE DU CAPTEUR DE TEMPÉRATURE CORSAIR G1/4" x1

G — VIS AUTOTARAUDEUSE POUR LE VENTILATEUR x4

H - ÉCROU HEXAGONAL M4 x4

1 - RONDELLE M4 x4

J - VIS M4x8mm x4

K - VIS PAPILLON M3 x8

L — OUTIL POUR PRISES x1

M — CÂBLE D'ADAPTATEUR RGB x1

MATÉRIEL NÉCESSAIRE (NON INCLUS)

Technical diagram showing a device with a grid, screwdriver, and a gas washing bottle labeled N and P.

N — CONTRÔLEUR DE VITESSE DU VENTILATEUR ET DE LA LAMPE INTELLIGENTE RGB CORSAIR ICUE COMMANDER PRO

0 - TOURNEVIS CRUCIFORME PHILLIPS

P — BALLON DE REMPLISSAGE ET LIQUIDE DE REFROIDISSEMENT CORSAIR XL5

Technical diagram showing three views of a mechanical component with labeled parts A and B, and an arrow indicating transformation or assembly.

Technical diagram showing two electronic component assemblies labeled A and K, with arrows indicating assembly or transformation.

MONTAGE DU XD3 RGB SUR UN CORSAIR RADIATEUR

Technical line drawing of a mechanical assembly with labeled components A, B, and C (no text or symbols beyond labels)

FRANÇAIS

MONTAGE DU XD3 RGB SUR UN CORSAIR VENTILATEUR BOÎTIER

Technical diagram of an electrical outlet with labeled components A through J

15 16

MONTAGE DU XD3 RGB DIRECTEMENT SUR LA TÔLE DU BOÎTIER

Technical line drawings of two mechanical components with mounting brackets (no text or symbols)

FRANÇAIS

FINALISATION DE L'INSTALLATION

Technical line drawing of a mechanical housing component (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Diagram of an electronic device with labeled ports and a magnified inset showing internal components (no text or symbols present)

Diagram of an electronic device with ports and wiring, no visible text or symbols

Figure 4

Diagram of a mechanical device with labeled force F and Figure 4 (no readable text or symbols)

XD3 RGB

Figure 1

Conneuxio directe (DANS)

M R Figure 2

REMLISSAGEET AMORÇAGE DU XD3 RGB

Diagram of a connector assembly showing internal structure and pin layout (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a motor housing (no text or symbols)

1920

Technical diagram showing a hexagonal grid structure connected to a power meter and a cable, with measurement indicators.

FAQ

A B C D E F J K M PLUS TOOL

A—x1 PUMPE/RESERVOIR XD3 RGB

E - x3 STECKER CORSAIR G1/4"

F - x1 TEMPERATURSENSOR-STECKER CORSAIR G1/4" L-x1STECKERWERKZEUG

J - x4 SCHRAUBE M4x8mm

K — x8 FINGERSCHRAUBE M3

M - x1 RGBADAPTERKABEL

Line drawing of a laboratory gas collection bottle with a curved tube and scale markings (no text or symbols)

Technical diagram showing three views of a mechanical component with labeled parts A and B, and an arrow indicating transformation or assembly.

Technical diagram showing two electronic component assemblies labeled A and K, with arrows indicating assembly or transformation.

MONTAGE DES XD3 RGB AN EINEN CORSAIR KÜHLER

Technical line drawing of a mechanical assembly with labeled components A and C (no text or symbols beyond labels)

DEUTSCH

MONTAGE DES XD3 RGB AN EINEN GEHÄUSELÜFTER

Technical diagram of a mechanical component with labeled parts A, G, and C

Technical diagram of a wall-mounted electrical socket with labeled components A through J

25 26

MONTAGE DES XD3 RGB DIREKT AN DAS GEHÄUSEBLECH

Technical line drawings of two mechanical components with mounting brackets (no text or symbols)

DEUTSCH

FINALISIERUNG DES SETUPS

Technical line drawing of a mechanical housing component (no text or symbols)

Diagram of a connector with pins and a labeled terminal (M), no readable text or symbols present.

Diagram of a mechanical device with a bottle and motor, no visible text or symbols

Diagram of a hexagonal grid structure with a pipe and a digital display unit (no text or symbols)

Abbildung 3

AVVISO IMPORTANTE

E - x3 TAPPI CORSAIR G1/4"

F - x1 TAPPO SENSORE TEMPERATURA CORSAIR G1/4"

G - x4 VITE AUTOFILETTANTI PER LA VENTOLA

H - x4 DADO ESAGONALE M4

I - x4 RONDELLA M4

J - x4 VITE M4x8mm

K - x8 VITE ZIGRINATA M3

L - x1 ATTREZZO PER I TAPPI

M - x1 CAVO ADATTATORE RGB

Technical diagram showing a device with a dial indicator, a screwdriver, and a gas washing bottle labeled N and P.

N — CORSAIR ICUE COMMANDER PRO CONTROLLER ILLUMINAZIONE RGB E VELOCITÀ DELLA VENTOLA

O - CACCIAVITE PHILLIPS

P — FLACONCINO E LIQUIDO DI RAFFREDDAMENTO CORSAIR XL5

Technical diagram showing two electronic component assemblies labeled A and K, with arrows indicating assembly or transformation.

MONTAGGIO DELL'XD3 RGB SU UN RADIATORE

Technical line drawing of a mechanical device with labeled components A and C (no text or symbols beyond labels)

ITALIANO

MONTAGGIO DELL'XD3 RGB SU UNA VENTOLA DEL CASE

Technical diagram of a mechanical component with labeled parts A, B, C, and G

MONTAGGIO DELL'XD3 RGB DIRETTAMENTE SU UNO SLOT DELLA VENTOLA DEL CASE

Technical diagram of an electrical outlet with labeled components A through J

35 36

MONTAGGIO DELL'XD3 RGB DIRETTAMENTE SULLA LAMIERA DEL CASE

Technical line drawings of two mechanical housing components with mounting brackets (no text or symbols)

ITALIANO

Technical diagram showing a connector with pins and a separate terminal block (no text or symbols)

Figura 1 Figura 2

RIEMPIMENTO E INNESCO DELL'XD3 RGB

Diagram of a hexagonal grid structure with a pipe inserted, no text or symbols present

ITALIANO

AVISO IMPORTANTE

Technical diagram showing a device with a grid, screwdriver, and a gas washing bottle labeled N and P.

Technical diagram showing three views of a mechanical component with labeled parts A and B, and an arrow indicating transformation or assembly.

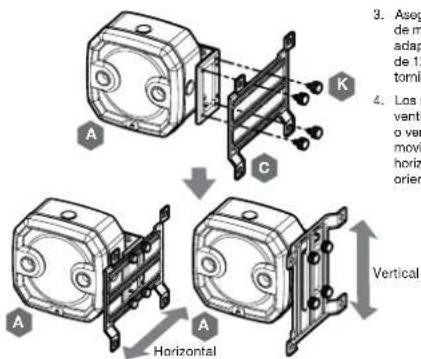

A K 3. Aseg de m adap de 12 tornil 4. Los s vento o ver movi horiz orient Vertical Horizontal A A

Technical diagram showing two electronic component assemblies labeled A and K, with arrows indicating assembly or transformation.

MONTAJE DE XD3 RGB A UN RADIADOR

Technical line drawing of a mechanical device with labeled components A and C (no text or symbols beyond labels)

ESPAÑOL

MONTAJE DE XD3 RGB A UN VENTILADOR DE CAJA

Technical diagram of a mechanical housing or enclosure with labeled components A, B, C, and G

MONTAJE DEL XD3 RGB DIRECTAMENTE EN LA RANURA DEL VENTILADOR DE CAJA

Technical diagram of an electrical outlet with labeled components A through J

45 46

MONTAJE DEL XD3 RGB DIRECTAMENTE EN LA CAJA DE CHAPA

Technical line drawings of two mechanical components with mounting brackets (no text or symbols)

ESPAÑOL

Technical diagram showing a connector with pins and a separate terminal block (no text or symbols)

Figura 1 Figura 2

Diagram of a connector with labeled pins and an arrow indicating direction (no text or symbols beyond labels)

Technical illustration of a mechanical device with a cylindrical component and a motor housing (no text or symbols)

4950

Diagram of a honeycomb structure with a digital meter connected to a pipe (no text or symbols)

Figura 3

ВАЖНАЯ ИНФОРМАЦИЯ

A B C D E F K L N S M PLUS TOOL

A - x1 HACOC/PE3EPBAYP XD3 RGB

В—х1ПЕРПЕНДИКУЛЯРНЫЙ МОНТАЖНЫЙ КРОНШТЕЙН

Technical diagram showing a device with a temperature gauge, screwdriver, and a gas washing bottle labeled N and P.

Technical diagram showing three views of a mechanical component with labeled parts A and B, and an arrow indicating transformation or assembly.

Technical diagram showing two electronic component assemblies labeled A and K, with arrows indicating assembly or transformation.

Technical line drawing of a mechanical device with labeled components A and C (no text or symbols beyond labels)

РУССКИЙ

Technical diagram of a mechanical housing or enclosure with labeled components A, B, C, and G

Technical diagram of an electrical outlet with labeled components A through J

55 56

Technical line drawings of two mechanical components with mounting brackets (no text or symbols)

РУССКИЙ

ЗАВЕРШЕНИЕ НАСТРОЙКИ

Pvc. 2 Pvc. 3 N Pvc. 4 Pvc. 5 F XD3 RGB PSU

РУССКИЙ

Technical diagram showing a connector with pins and a labeled M (no text or symbols beyond basic labels)

Рис. 1 Рис. 2

Diagram of a connector with multiple ports and an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and a motor housing (no text or symbols)

59 60

Рис.3

Diagram of a hexagonal grid structure with a pipe inserted, no text or symbols present

After the implementation of the European Directive 2012/19/CU in the national legal system, the following applies:

- Electrica and electronic devices may not be disposed of with domestic waste. - Consumers are obligated by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose of print or sale. Details to this are defined by the national law of the respective country. The symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing and devices, you are making an important contribution to protecting our environment.

FR REMARQUE CONCERNANT LA PROTECTION DE L'ENVIRONNEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 16 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Recent or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

FOC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

EN This Class B digital acogalus meets all requirements of the Canadian interference-Causing Equipment Regulations. CAN ICES-3(BV/NMR-3(E))

EN CORSAIN MEMORY, Inc. declares that this equipment is in compliance with Directive 2014/30/EU and Directive 2011/85/EU. A copy of the original declaration of conformity can be obtained at "corsain.com/documentation". Operating Temperature: 0°C - +40°C
