BrandHaier
ModelXI 6B0M4PDB
Product TypeBuilt-in Dishwasher
Dimensions (W × H × D)598 × 818-898 × 555 mm
Niche Height820-900 mm
Niche Width600 mm
Niche Depth555 mm (min.)
Kitchen Panel DimensionsWidth: 595-596 mm, Height: 675-810 mm, Thickness: 16-22 mm
Maximum Panel Weight9 kg
Power Supply230 V / 50 Hz, cable ~1350 mm
Water InletHose ~1500 mm, pressure 0.08-1 MPa
Water OutletHose ~1700 mm
Installation TypeBuilt-in under worktop or in column
Height AdjustmentAdjustable front and rear feet, total height 818-898 mm
SafetyAutomatic anti-overflow device, steam protection
Main FunctionsInstallation with customizable panel, anti-steam strip, integrated condenser
Supplied ToolsScrews, drilling template, anti-steam strip, condenser (I), fixing brackets
Manual585 pages, multilingual (FR, EN, DE, ES, IT, etc.)
WarrantyNot covered for installation defects (see manual)

Frequently Asked Questions - XI 6B0M4PDB HAIER

How to install the Haier XI 6B0M4PDB dishwasher?
Installation must be carried out by a qualified technician. Follow the steps in the manual: assembly of the condenser, placement of the anti-steam strip, adjustment of the foot height, leveling, insertion into the compartment, fixing of the kitchen panel, then connection to water and electricity.
What are the minimum niche dimensions?
The niche must be at least 600 mm wide, 820 mm high, and 555 mm deep. The maximum height is 900 mm.
How to adjust the foot height?
For the rear foot, use the wheel accessible from the front (turn UP/DOWN). The front feet are adjusted directly by turning the foot. Check the level with a spirit level.
What type of kitchen panel can I install?
The panel must measure 595-596 mm wide, 675-810 mm high, and 16-22 mm thick. Its weight must not exceed 9 kg.
How to connect the water inlet?
Connect the water inlet hose (supplied, length ~1500 mm) to a cold water supply with a pressure between 0.08 and 1 MPa. Use the supplied fittings. Caution: do not connect to hot water.
How to install the condenser?
Adjust the size of the condenser (part I) to the height of the kitchen door (680-730 mm). Insert it into the space provided on top of the dishwasher and secure it with the supplied screws.
Where to apply the anti-steam strip?
Stick the anti-steam strip (supplied) under the worktop and on the sides of adjacent cabinets to protect against moisture.
What to do if the door does not close properly?
Check that the appliance is level. Incorrect foot adjustment may prevent airtight closure and cause steam leaks.
How to dismantle the dishwasher?
Disconnect the power supply and water inlet. Unscrew the side or top fixing screws. Slightly lift the appliance and remove it. The cabinet remains intact.
What to do in case of water overflow?
The dishwasher is equipped with an anti-overflow safety device that automatically cuts off the water supply and/or drains the excess. If the problem persists, contact a technician.

User questions about XI 6B0M4PDB HAIER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Dishwasher in PDF format for free! Find your manual XI 6B0M4PDB - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XI 6B0M4PDB by HAIER.

USER MANUAL XI 6B0M4PDB HAIER

Double movement hinges

with Ultra Dry system

Haier

From clean

to shine

EN | IT | FR | DE | ES | GR | NL | PT | SK | PL | CZ | RO | HU

SL | SR | LT | EE | LV | BG | HR | DA | FI | NO | SV | UA | TR

Interior view of a modern kitchen appliance with open rack and dish compartments (no visible text or symbols)

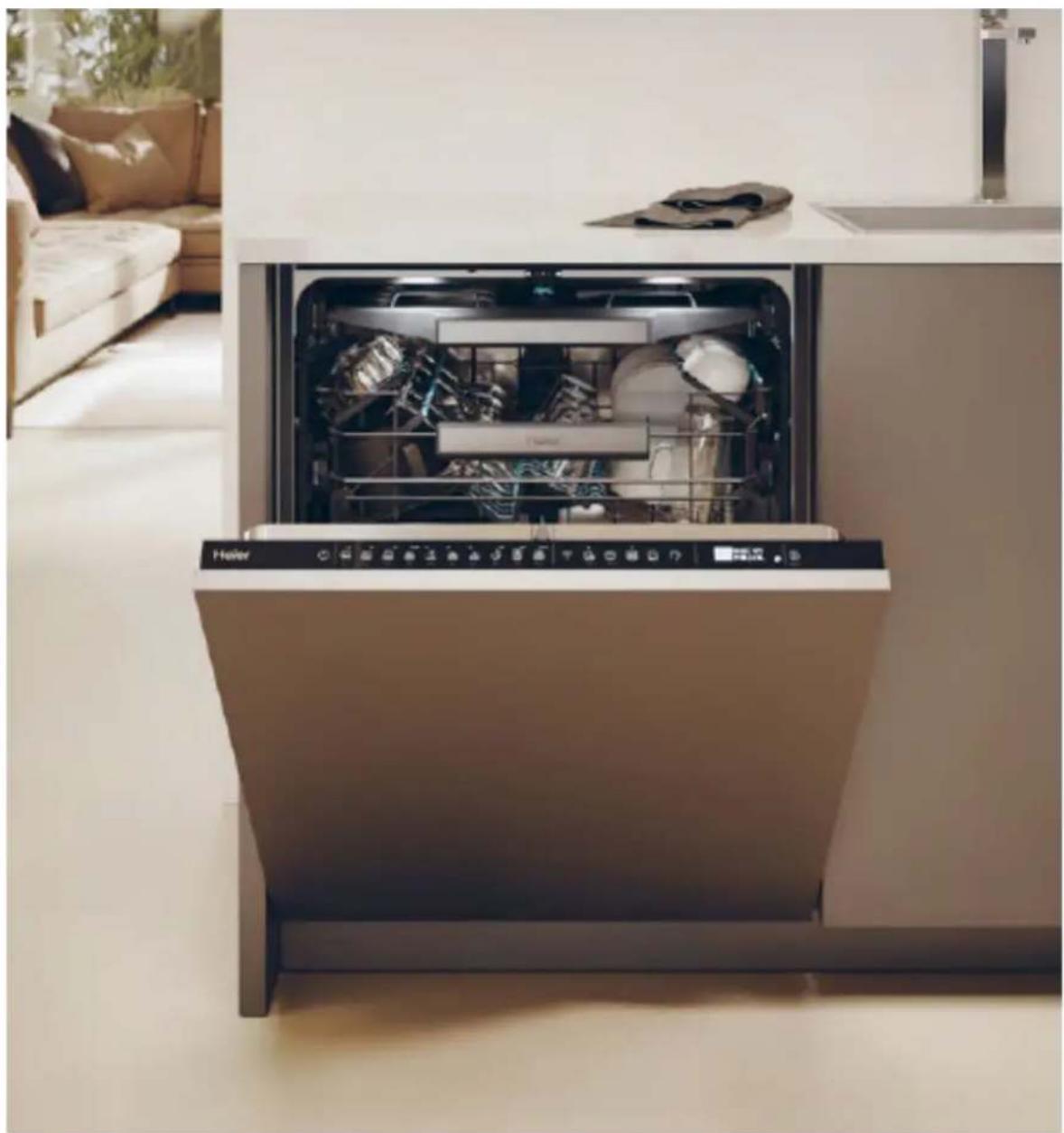

Exterior view of a Haier appliance in a modern kitchen setting, showing the open lid and interior compartments (no text or symbols visible on main subject)

WELCOME

This installation manual is designed for kitchen manufacturers who will deal with these products. To ensure safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference. Before proceeding with the installation, take note of the serial number, as you may need it in case of repairs. Check for any damage during transport and consult a technician when in doubt before using. Always keep all packing material away from children.

NOTE: Features, pictures in the manual and product accessories may vary depending on the model purchased.

Index

1 Safety warnings for installation p.2-3 2 Where to install the dishwasher p.3 3 Dishwasher dimensions p.4-5 4 Step-by-step installation video p.6 5 Installation tools p.6 6 Built-in dimensions p.7 7 Instructions for dishwasher installation p.8 - 19

7.1 Condenser component assembly 7.2 Steam band installation 7.3 Height adjustment 7.4 Rear foot adjustment 7.5 Front feet adjustment 7.6 Inclination adjustment 7.7 Insertion into the built-in compartment 7.8 Fixing the front feet 7.9 Panel preparation 7.10 Panel installation 7.11 Fixing the machine to the kitchen

8 Drain water and electricity connection p.20-21

8.1 Connection diagram 8.2 Safety devices

9 Delivery to the user p.21

10 Disassembling the dishwasher p.21

1 Safety warnings for installation

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

  • Installation must be carried out by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instructions.
  • If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the warranty.
  • Remove the packing material before operating the appliance.
  • After unboxing the appliance, always check it is not damaged. In case of issue, contact the customer service before installing and do not connect to the power supply.
  • A damaged product can be the cause of a short circuit, electric shock, fire start, and other hazards.
  • Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them.
  • Incorrect installation may cause harm or injury to people, animals, or belongings. The manufacturer cannot be held responsible for such harm or injury.
  • Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product.
  • During installation, the appliance must not be connected to the power supply.
  • It is recommended to wear protective gloves during installation to avoid cut injuries.
  • In case of incorrect installation, tampering with the device, and improper connection, the validity of the product warranty will expire.
  • Make sure that when the product's power supply cable is completed, it is not accessible;
  • After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stresses;
  • When delivering the product to the end user, the technician must ensure that it has been installed correctly;
  • Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard; • Take care during transport, the product is heavy;
  • Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;
  • Make sure the installation area is stable and solid;
  • Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity.;
  • Be careful when opening and closing the product;
  • Incorrect installation can cause the product to tip over;
  • The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

2

  • Install and use this product in a closed, covered, dry and well-ventilated environment;
  • Do not install the product in open environments exposed to atmospheric agents;
  • Mount the product near an electrical outlet;
  • Use the product only when placed in a recessed compartment, otherwise you risk injury and burns;
  • Do not install the dishwasher under a cooktop/hob;
  • Do not install the product near heat sources (radiators, stoves, etc.);
  • Do not place the product on carpets or similar surfaces;
  • Place the product on a clean, level, and stable surface.

3 Dishwasher dimensions

Dimensions in mm

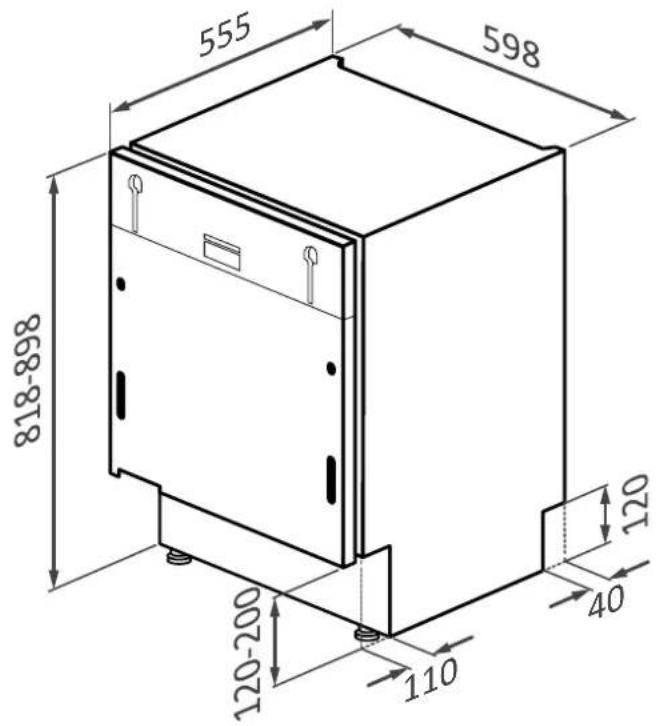

Front axonometric view of the product

555 598 818-898 120-200 110 40 120

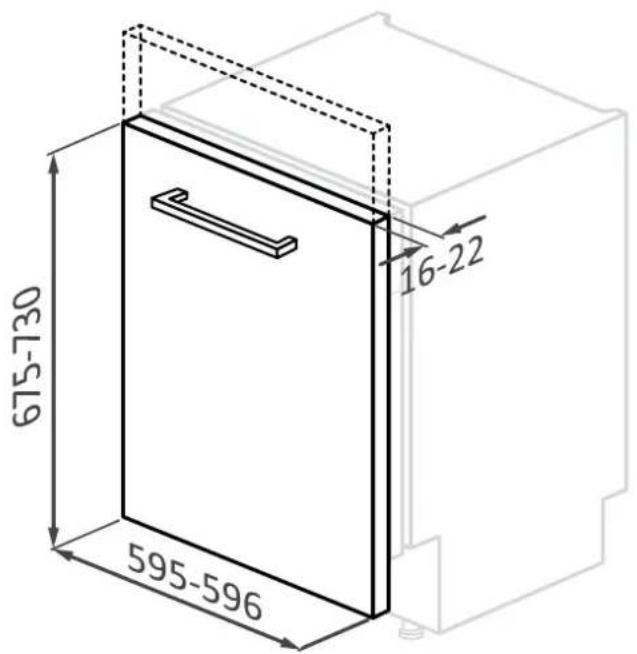

Front axonometric view with kitchen door

675-730 595-596 16-22

HAIER XI 6B0M4PDB - Dishwasher dimensions - 3

⚠ WARNING: If the kitchen panel is heavier than 9kg, contact the service center.

Dimensions in mm

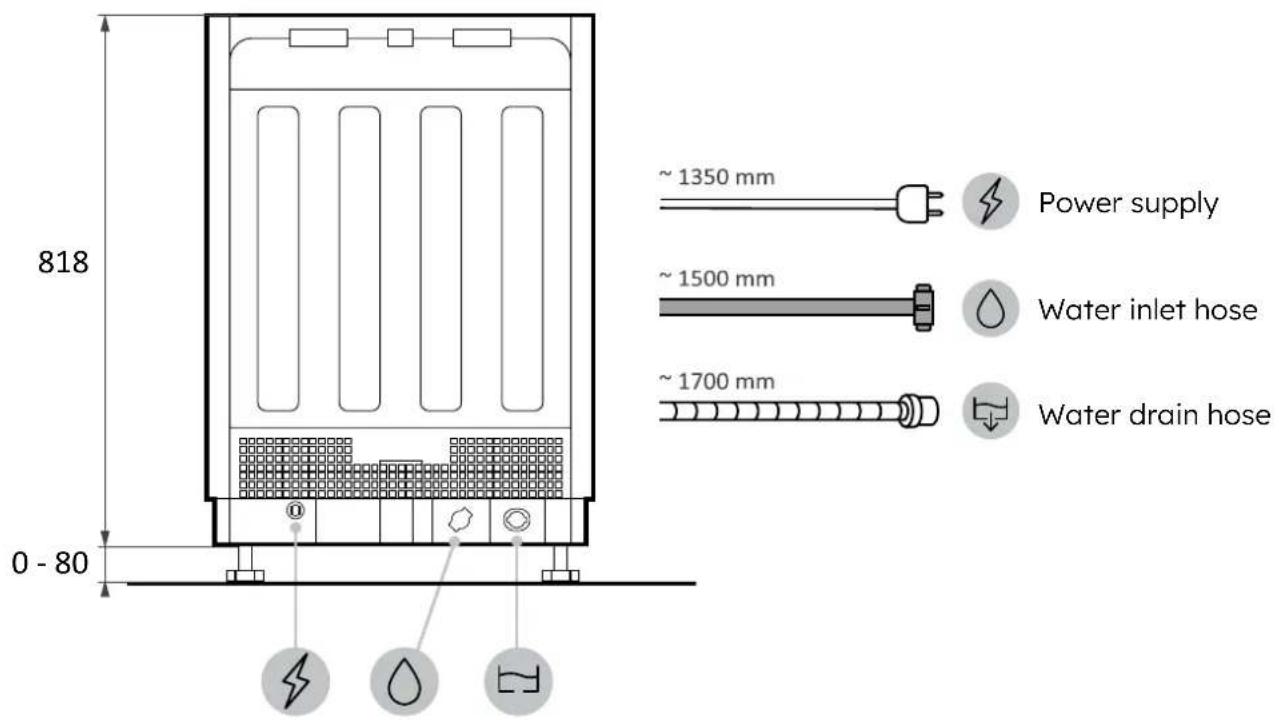

Back view818 0 - 80 ~ 1350 mm Power supply ~ 1500 mm Water inlet hose ~ 1700 mm Water drain hose

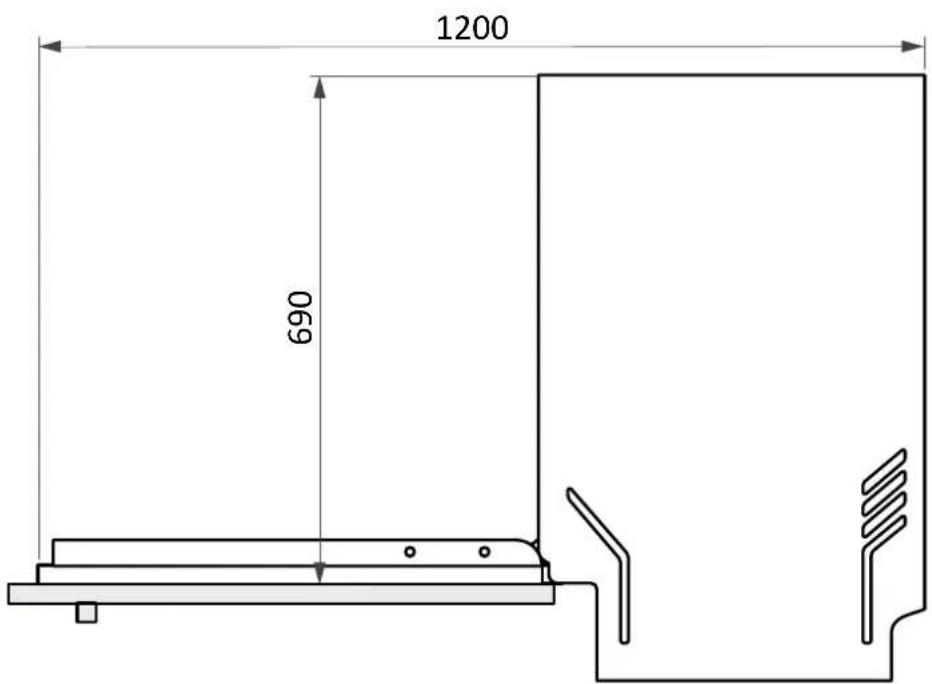

Side view1200 690

4 Step-by-step installation video

You can view the product installation video by scanning the QR code:

QR code image containing encoded data, no visible human-readable text

or by clicking this link

2-3h

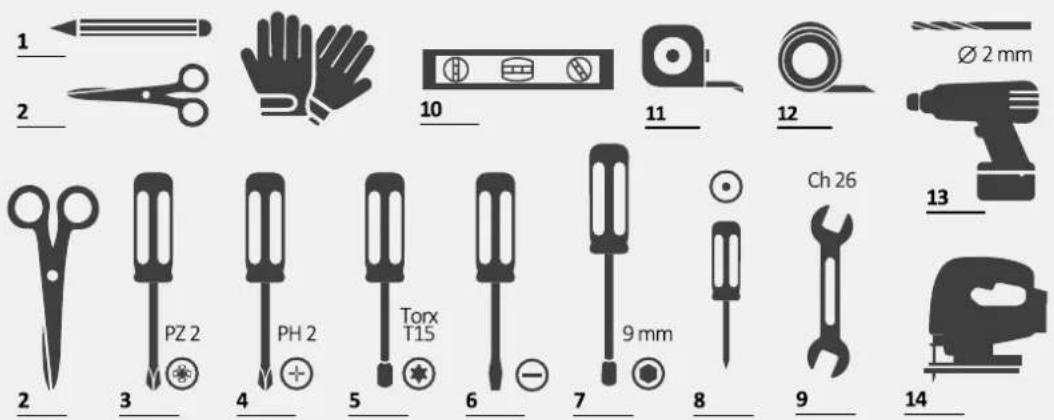

5 Installation tools

Tools needed1 2 3 4 5 6 7 8 9 10 11 12 Ø 2 mm PZ 2 PH 2 Torx T15 9 mm Ch 26 13 14

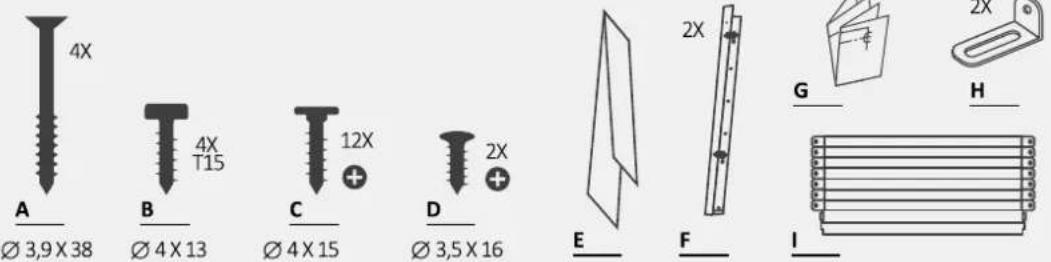

Tools provided with the product4X A 3,9 X 38 B 4 X 13 C 4 X 15 D 3,5 X 16 E 2X F G H I

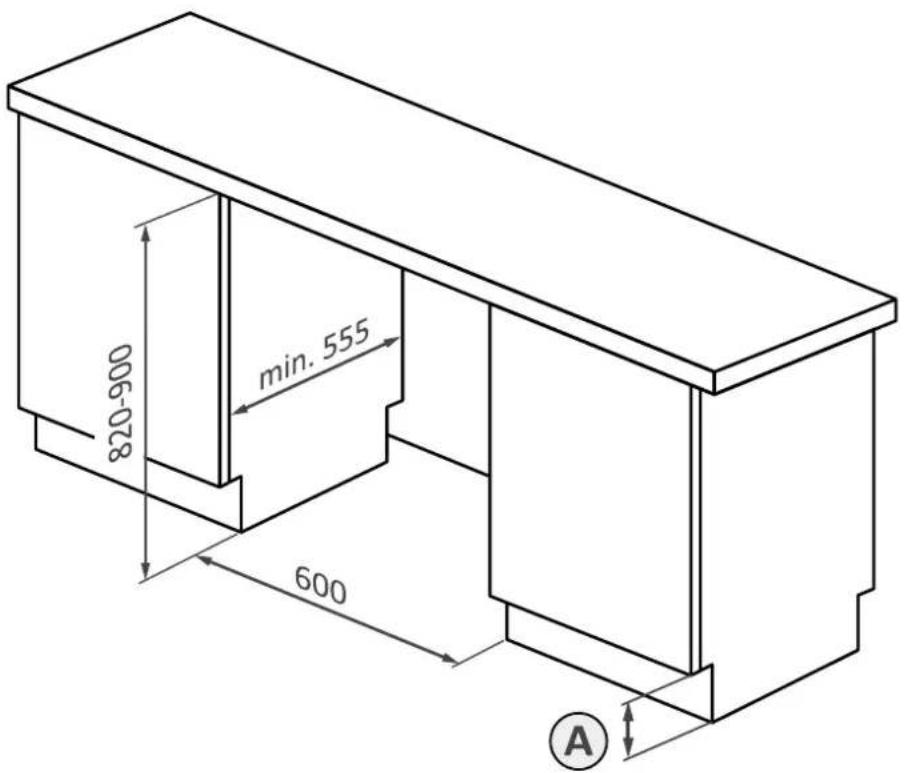

Dimensions in mm

Axonometric view

min. 555 820-900 600 A

A

Pure technical line drawing of a door or cabinet with a circular inset detail (no text or symbols)

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present)

WARNING: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 170 and 200 mm.

7 Instructions for dishwasher installation

7.1 Condenser component assembly

1.

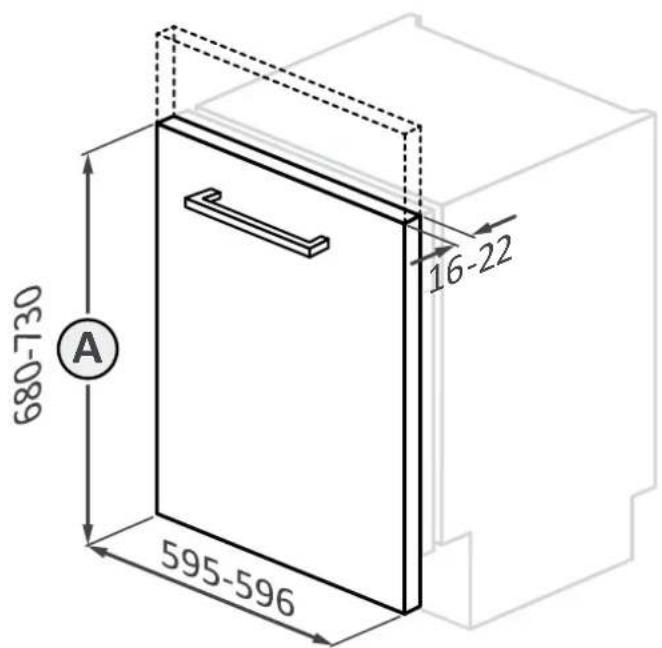

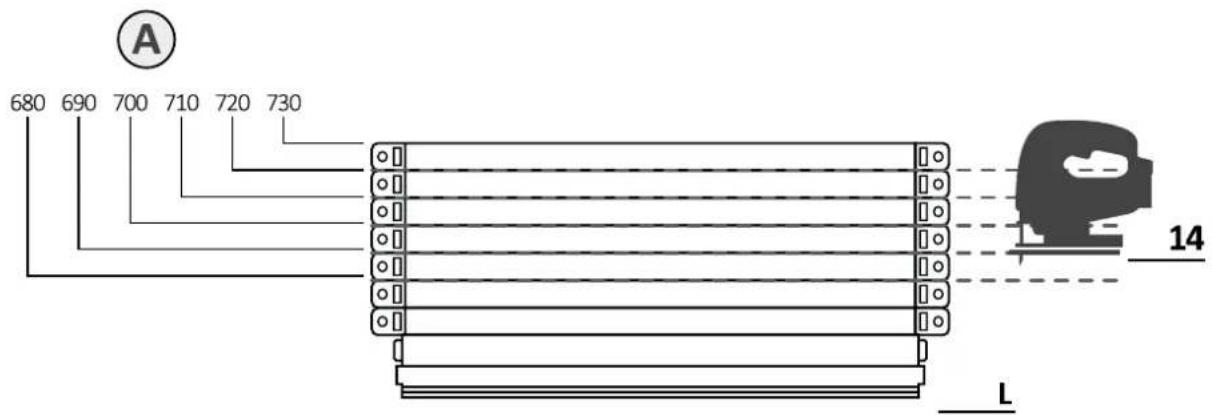

Adjust the size of the component (I), based on the height of the kitchen door;

680 690 700 710 720 730 A 14

680-730 A 16-22 595-596

7.1 Condenser component assembly

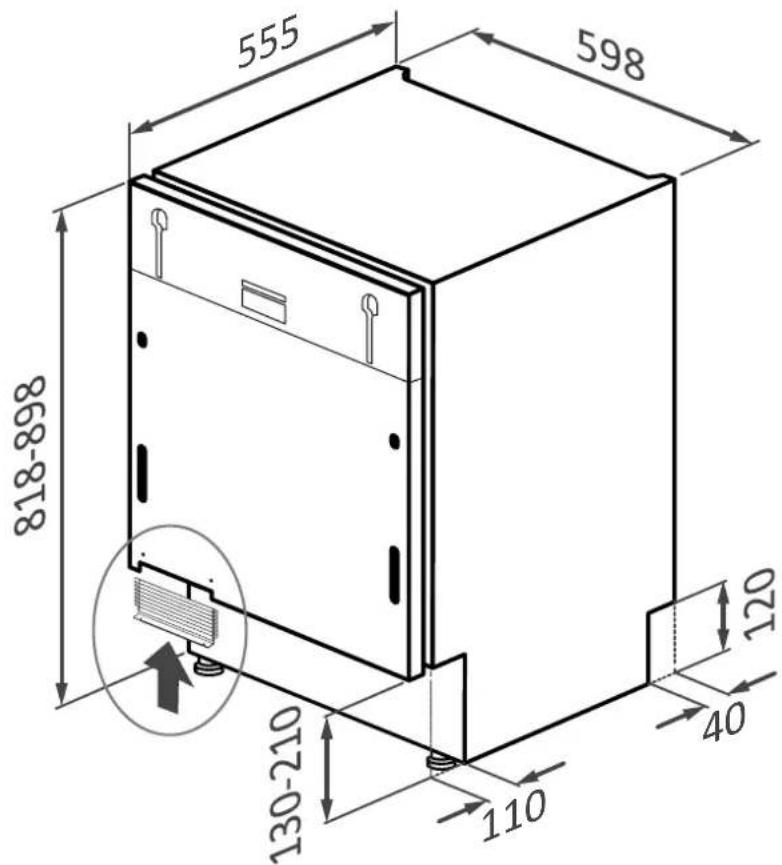

2.

Insert component (I) inside the provided space, as indicated in the figure below;

555 598 818-898 130-210 110 40 120

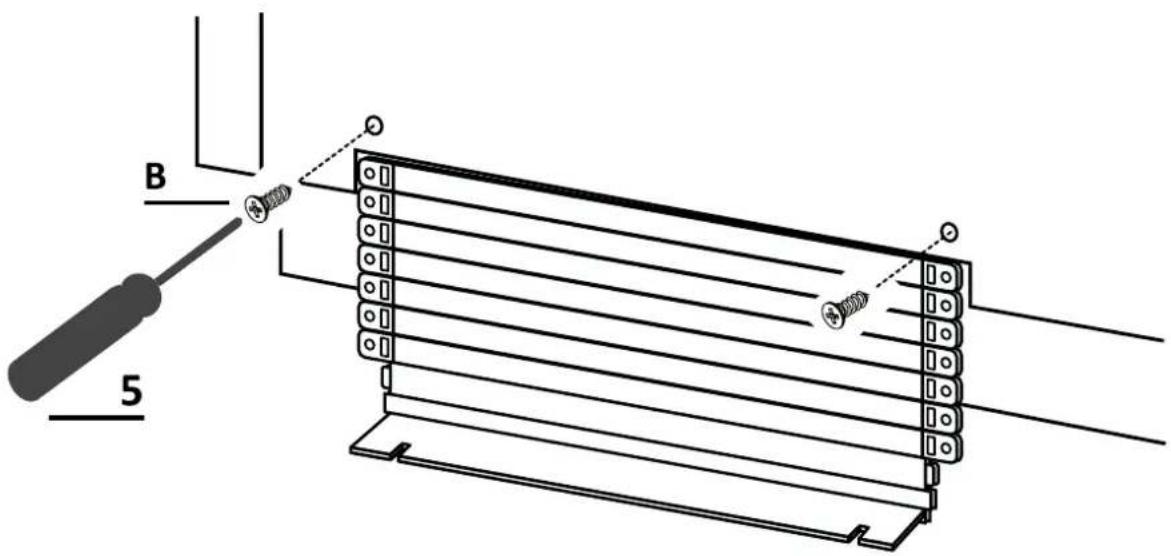

3.

Fix component (I) by screwing it using the included screws;

B 5

7 Instructions for dishwasher installation

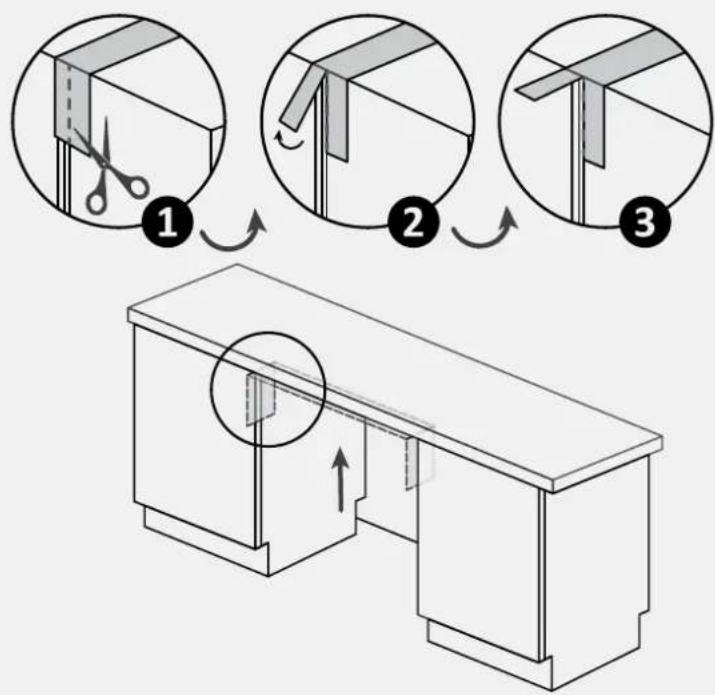

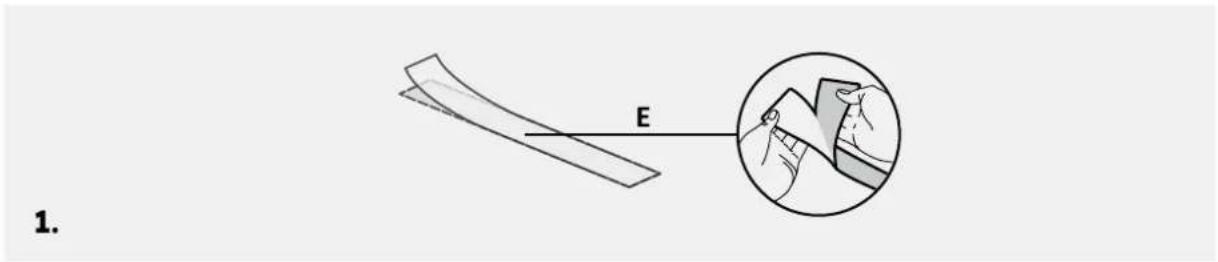

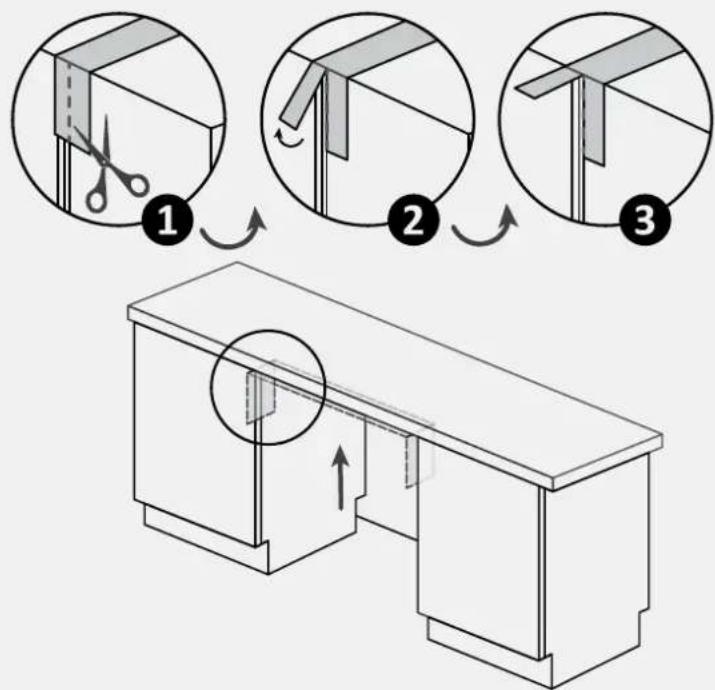

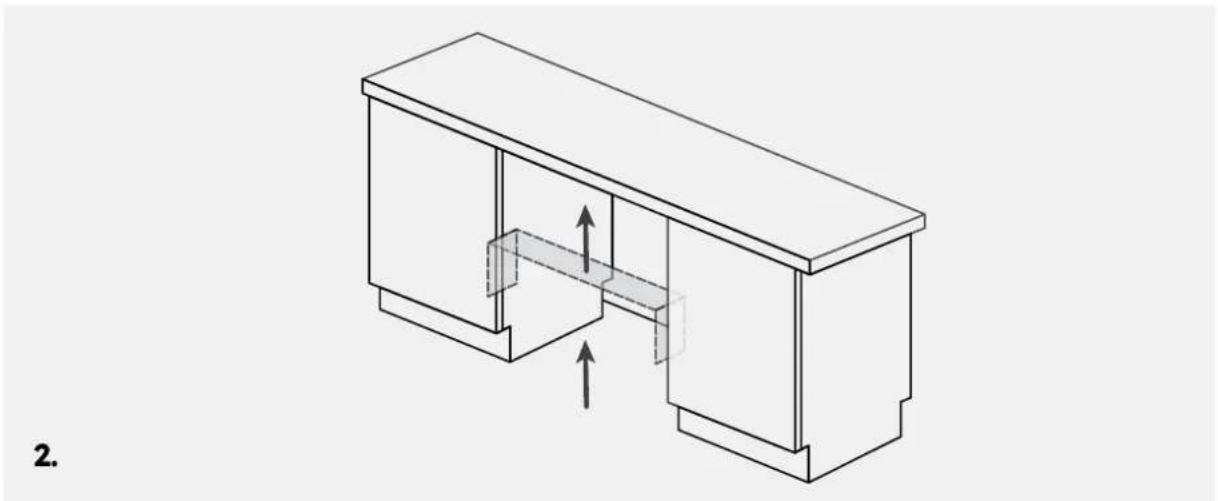

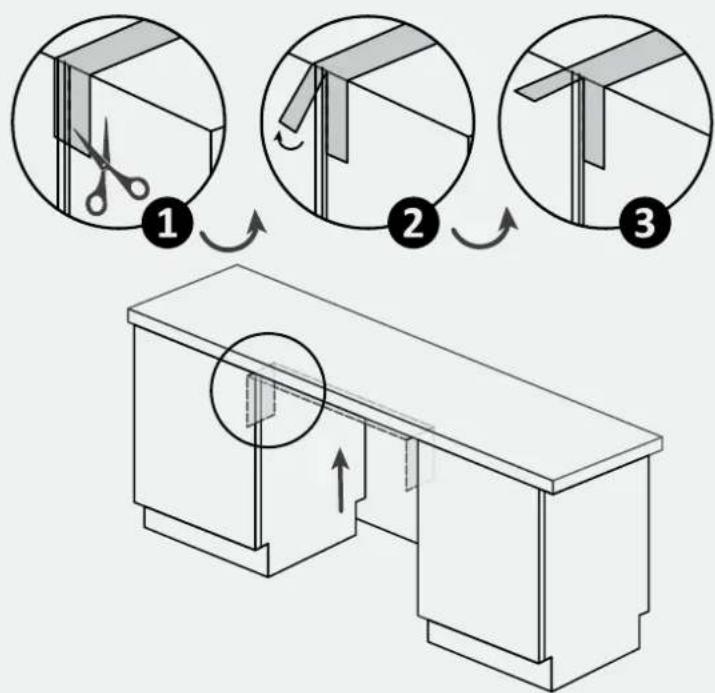

7.2 Steam band installation

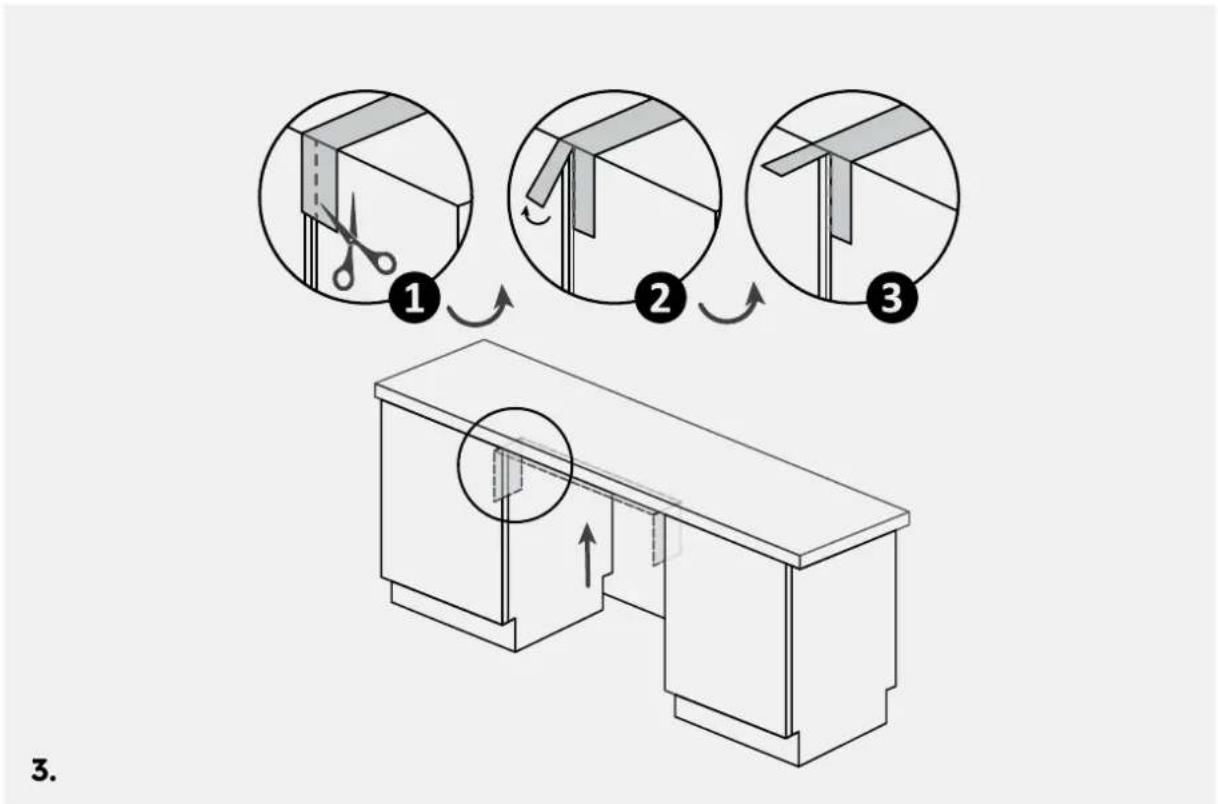

Apply the sticker band under the worktop and to the sides of the adjacent furniture.

E 1.

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols)

Diagram illustrating three-step folding process of a window frame, showing cutting and stretching steps with numbered annotations.

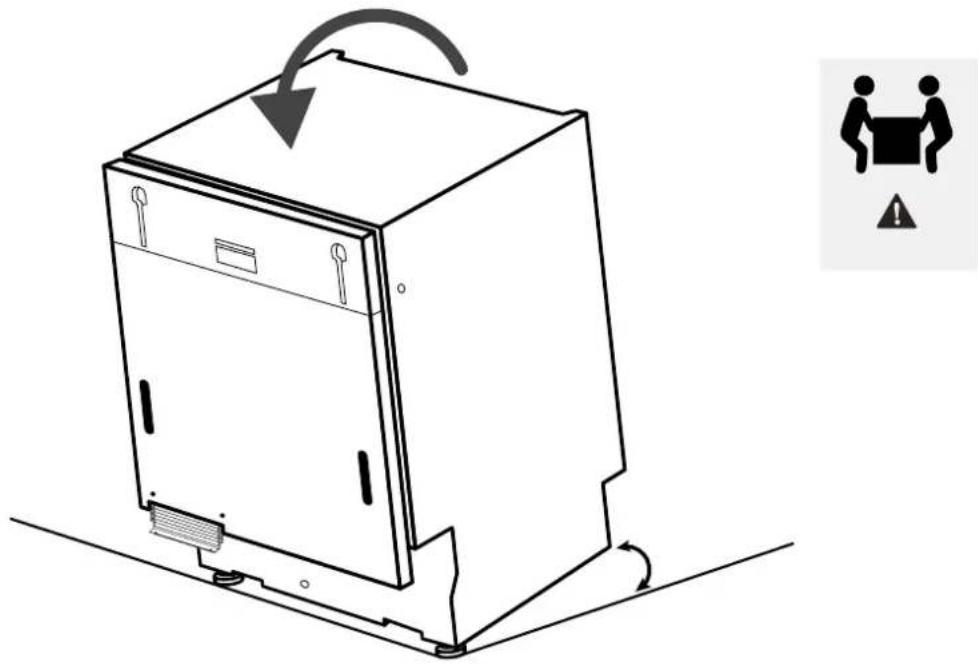

7.3 Height adjustment

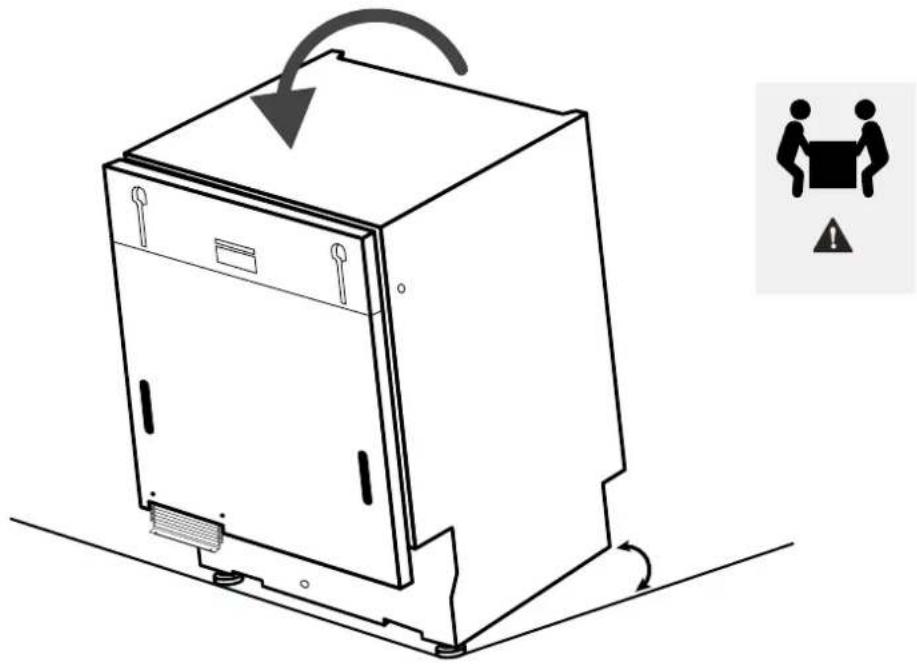

Incline the dishwasher by raising the back about 10 cm.

Line drawing of a kitchen appliance with directional arrows indicating motion, accompanied by a warning symbol (no text or labels)

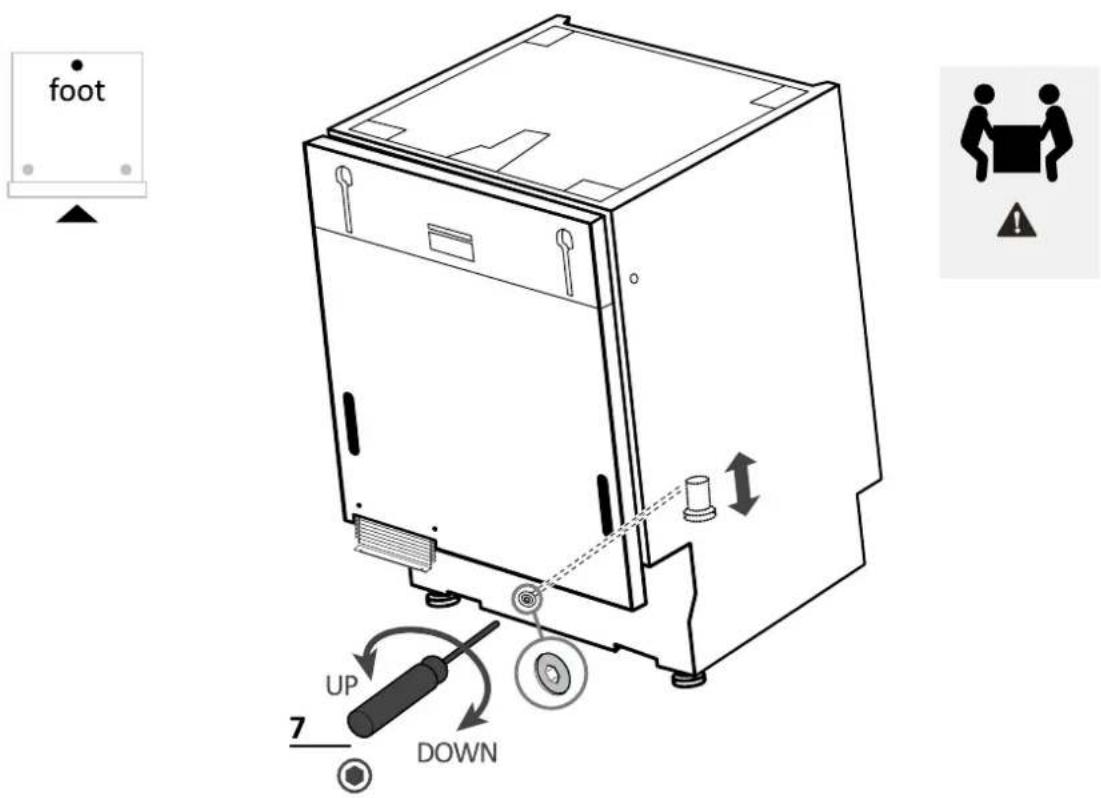

7.4 Rear foot adjustment

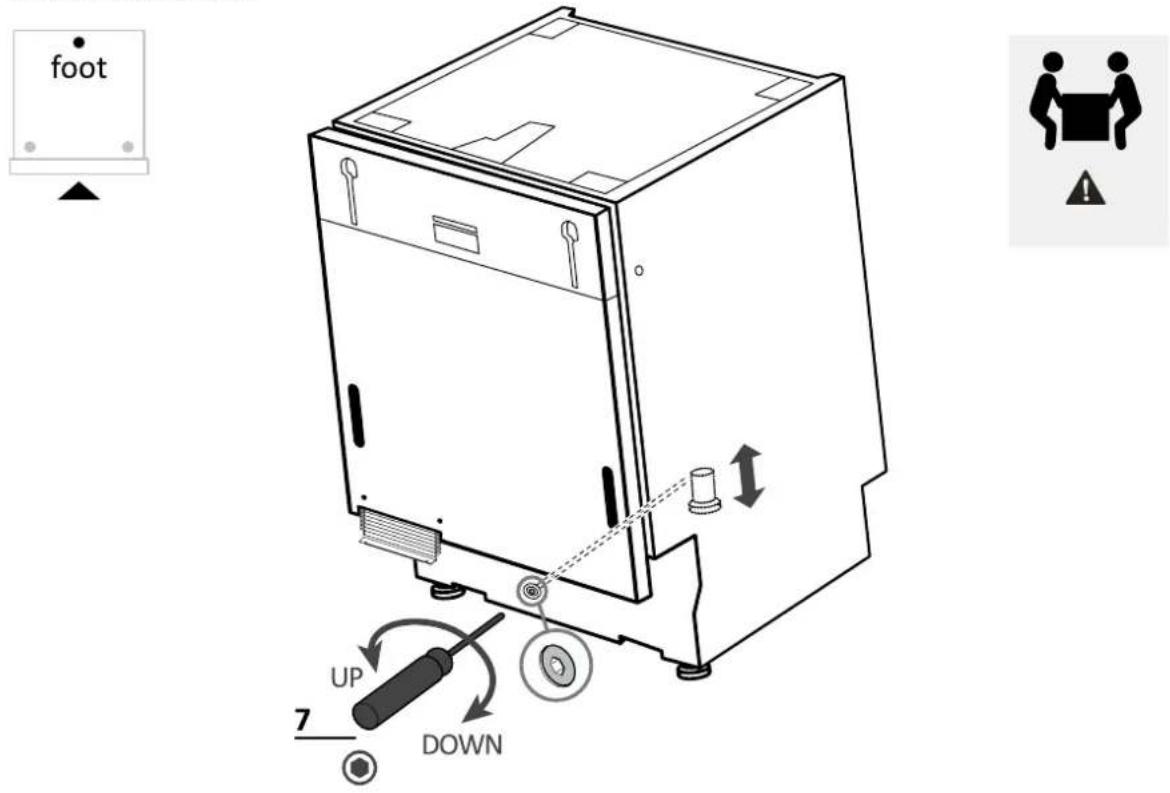

Adjust the rear foot height by operating from the front of the machine as indicated below.

foot UP DOWN 7

7 Instructions for dishwasher installation

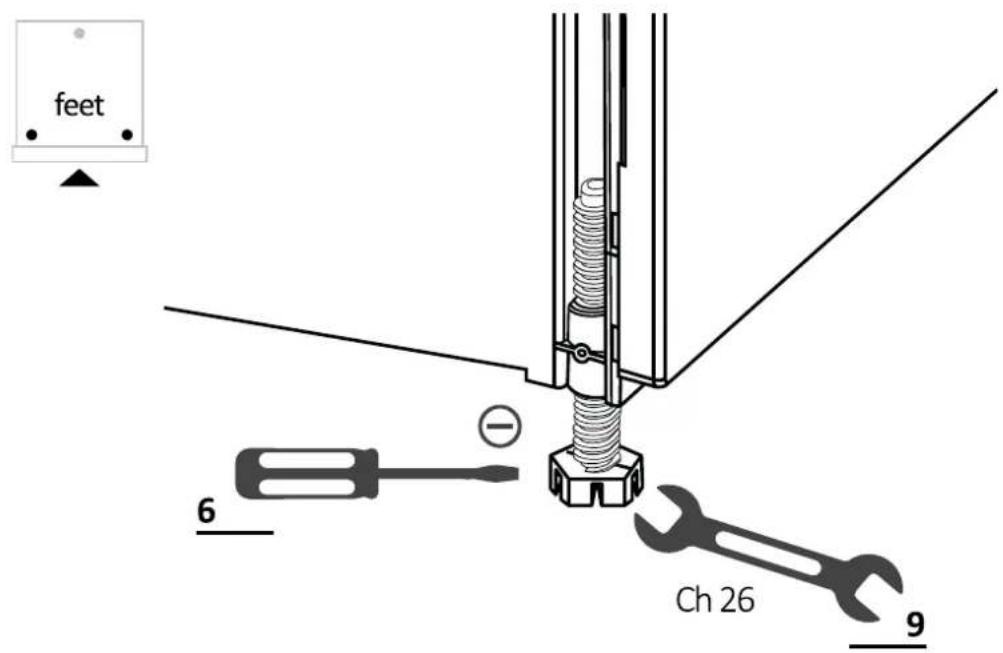

7.5 Front feet adjustment

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

feet 6 Ch 26 9

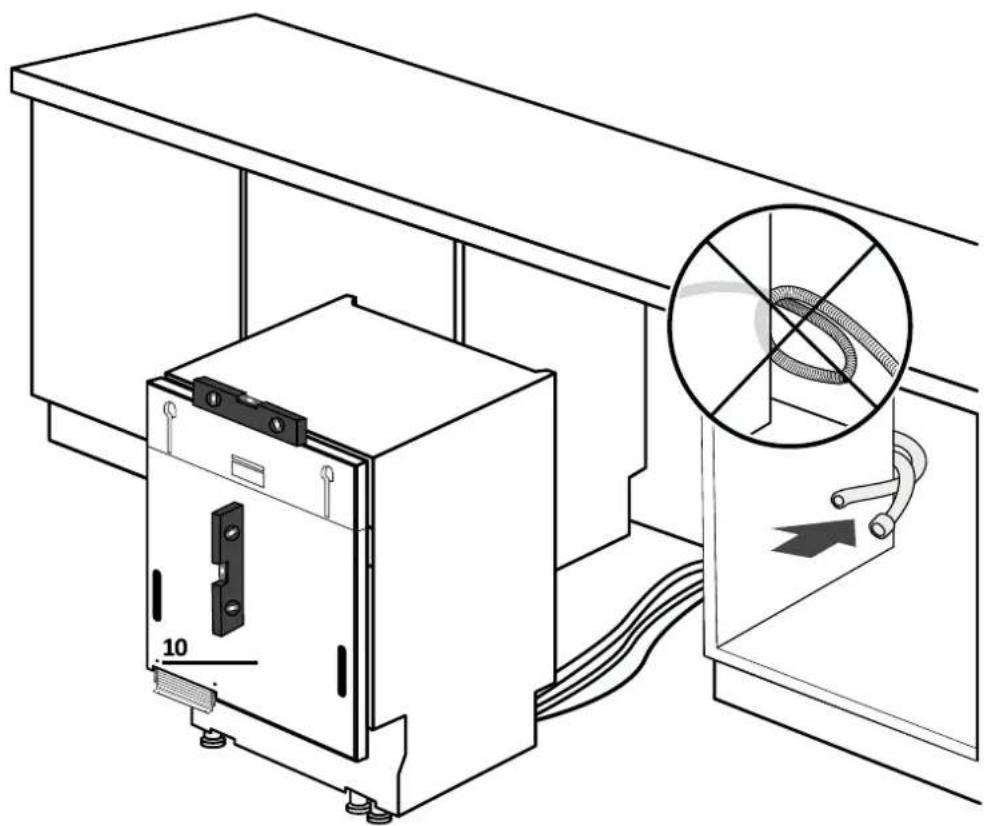

7.6 Inclination adjustment

Level the dishwasher by the vertical and horizontal planes.

Technical line drawing of an electrical enclosure with wiring and a circular component, no text or symbols present

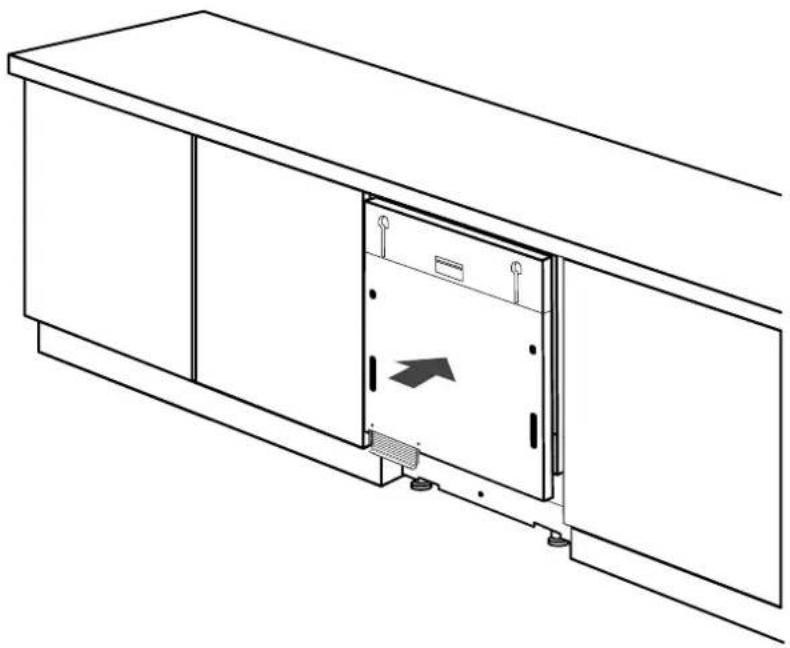

7.7 Insertion into the built-in compartment

Insert the dishwasher into the built-in compartment and verify measurements and tolerances.

Line drawing of a cabinet interior with an open door and directional arrow indicating movement (no text or symbols)

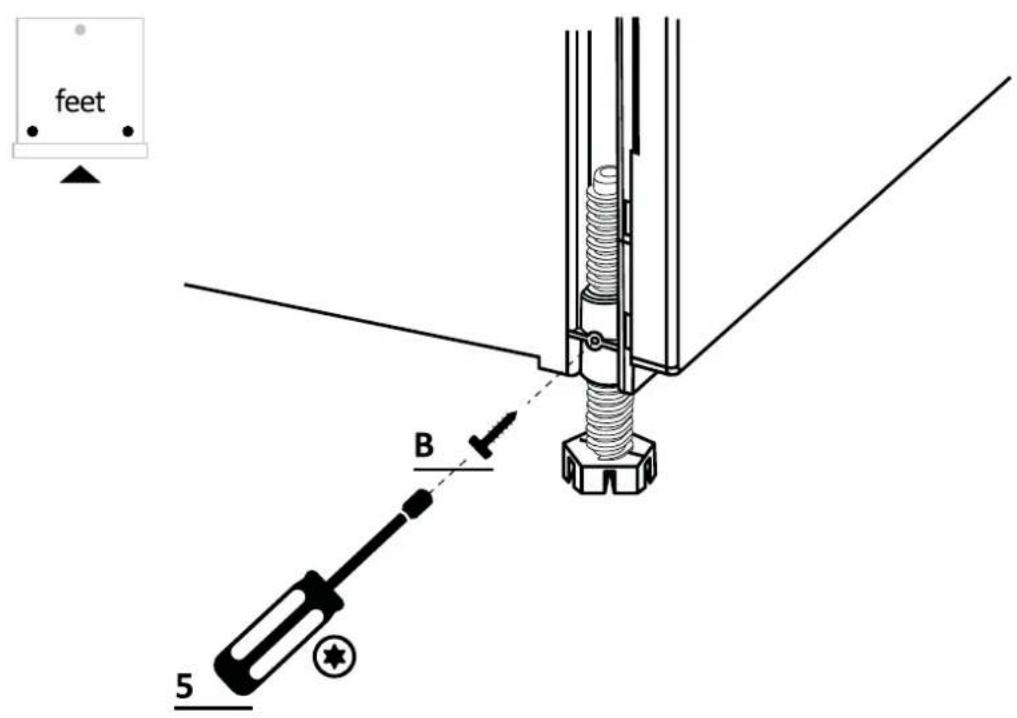

7.8 Fixing the front feet

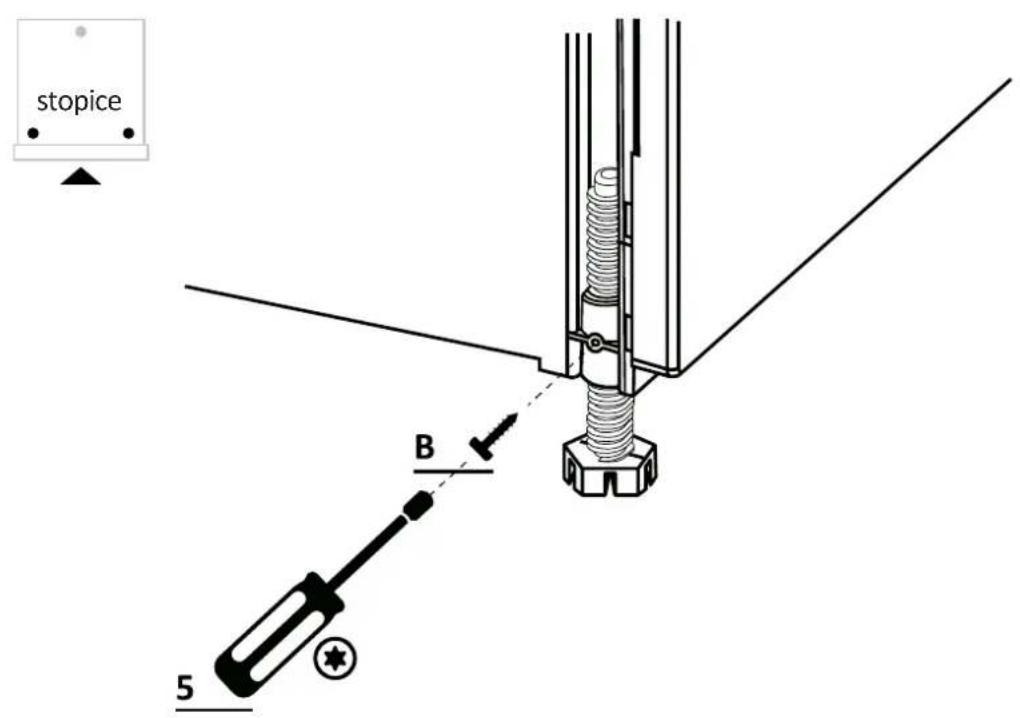

After checking all measurements, permanently secure the front feet to prevent them from loosening over time. This operation can also be performed after applying the kitchen panel.

feet B 5

7 Instructions for dishwasher installation

7.9 Panel preparation

1.

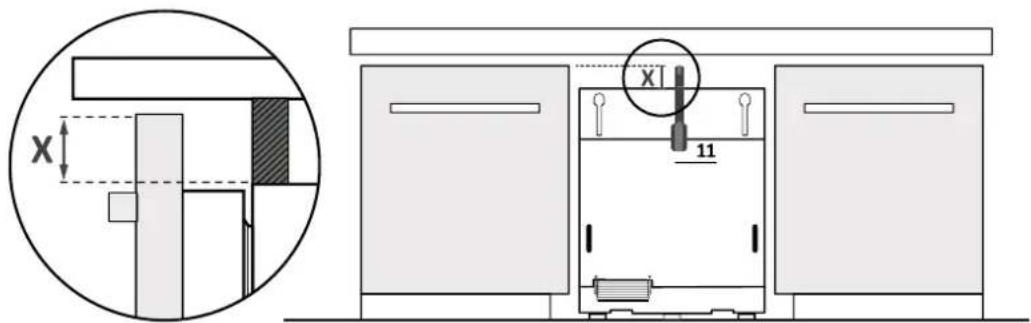

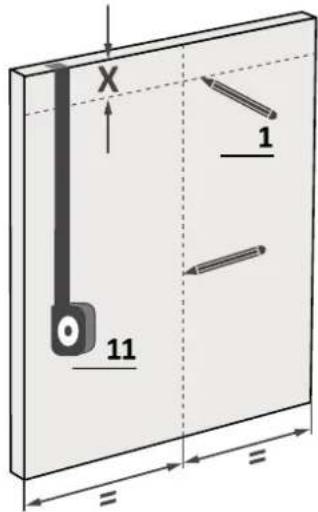

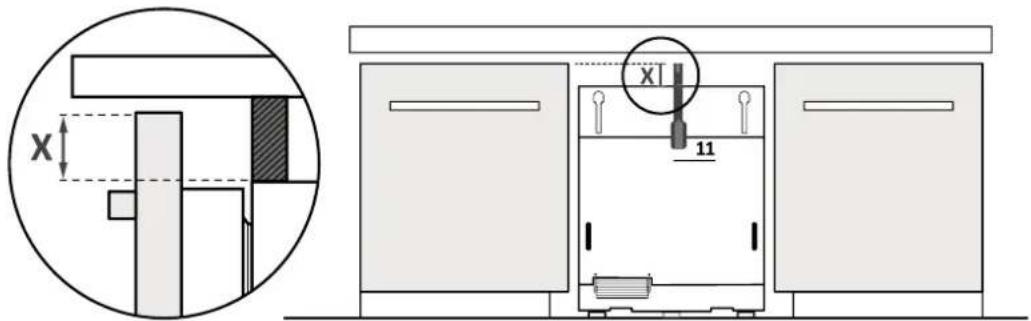

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a cross-sectional view and its internal components, including a magnified inset with dimension 'X' and a labeled component '11'.

2.

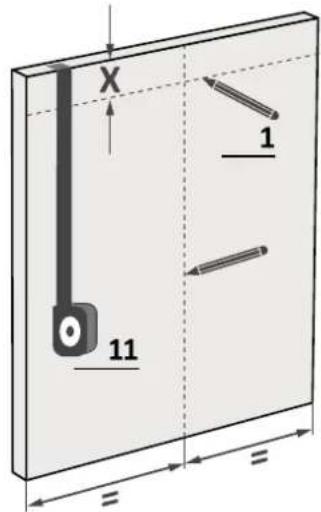

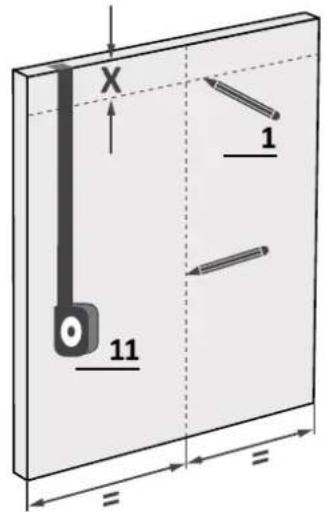

Transfer the measurement onto the kitchen panel and locate the center;

X 1 11

3.

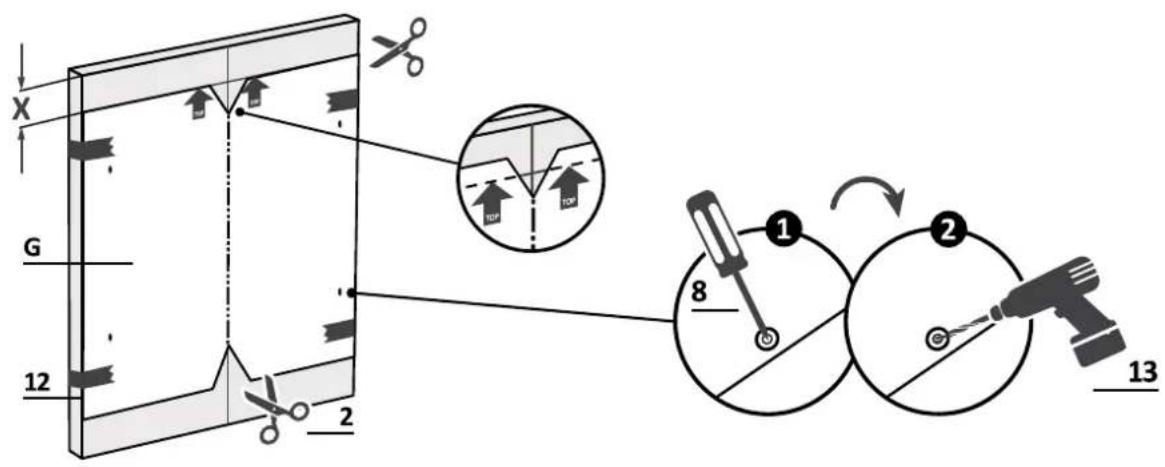

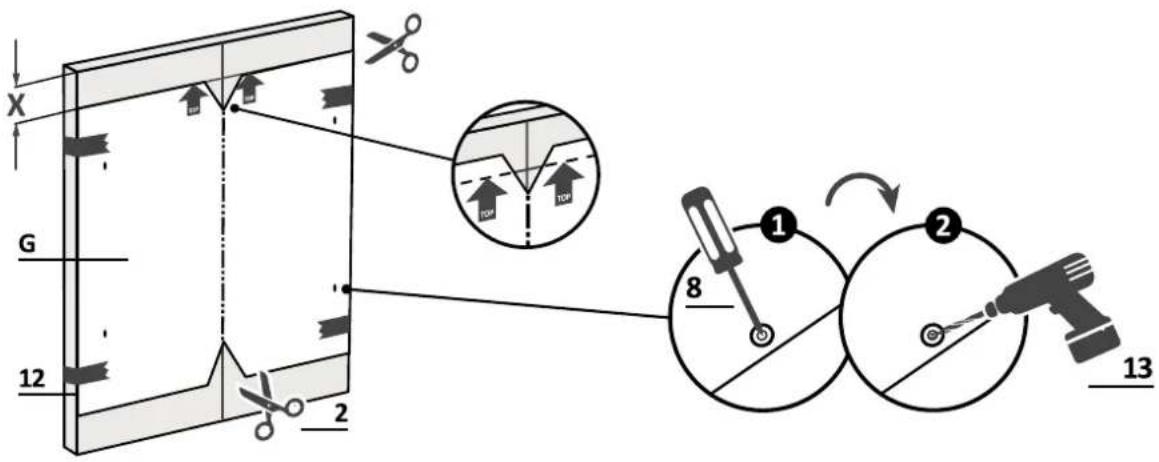

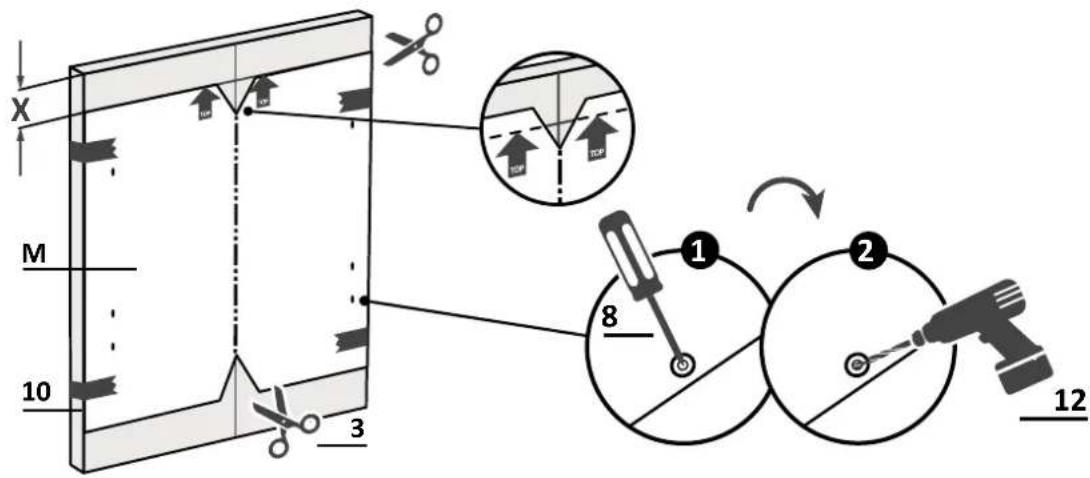

Apply the drilling template and follow the instructions provided;

Diagram illustrating a mechanical assembly with labeled parts and tool paths, including cutting, assembly, and disassembly steps.

7.9 Panel preparation

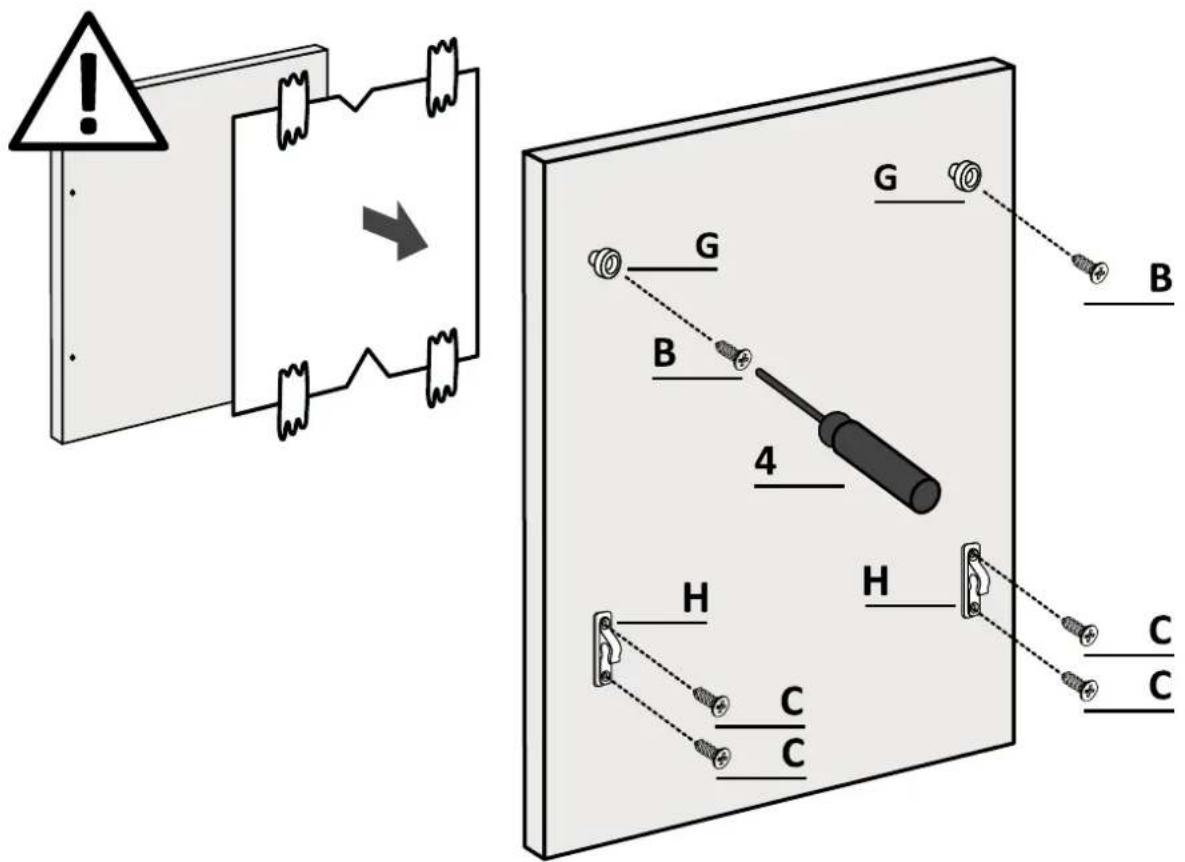

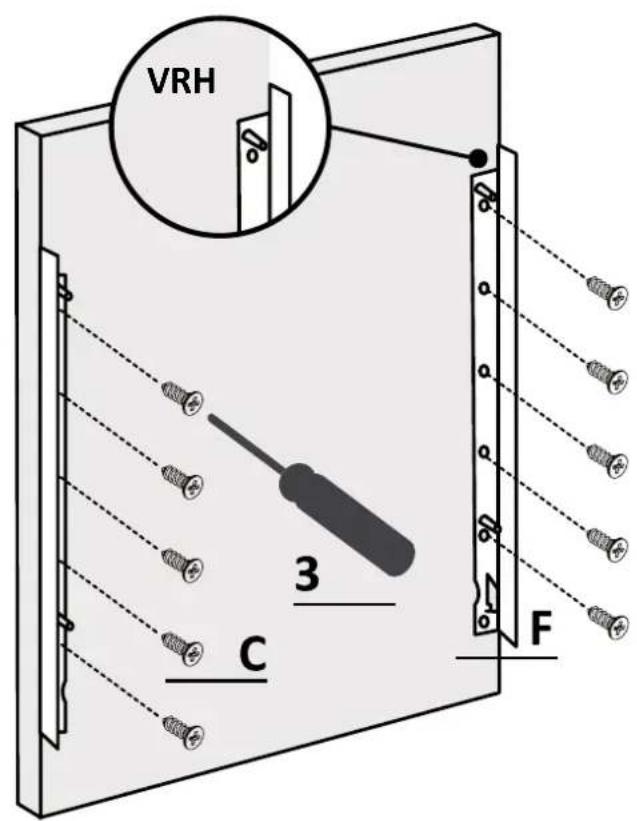

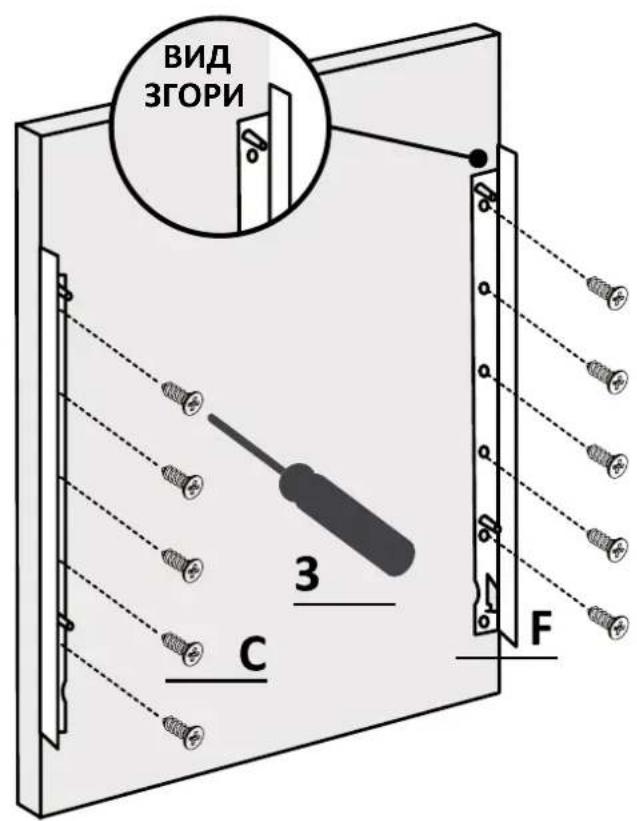

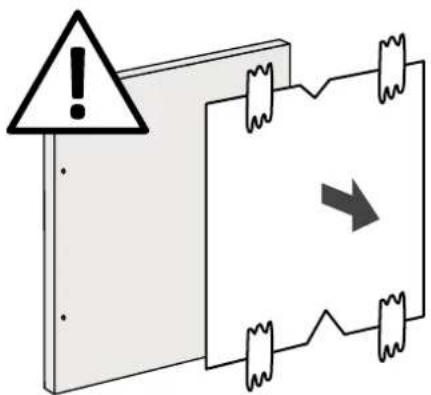

4.

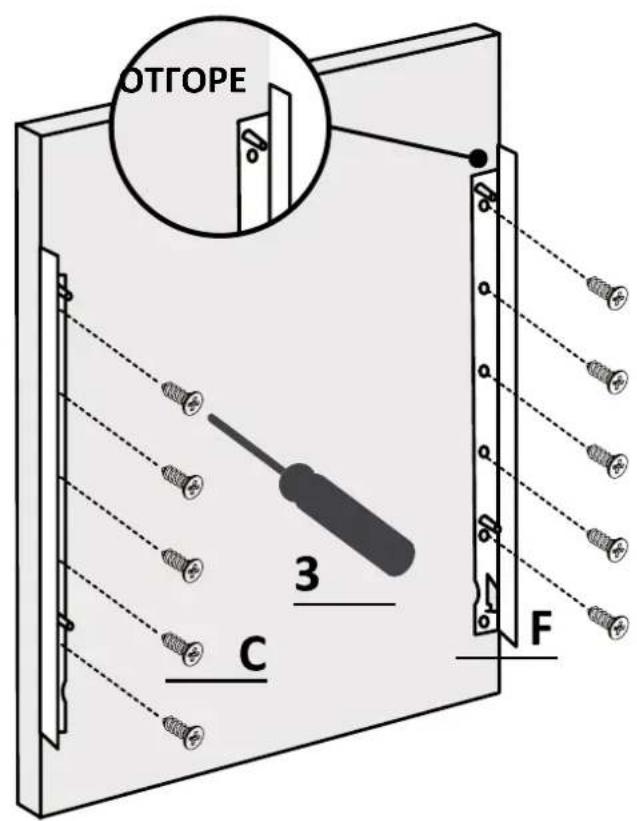

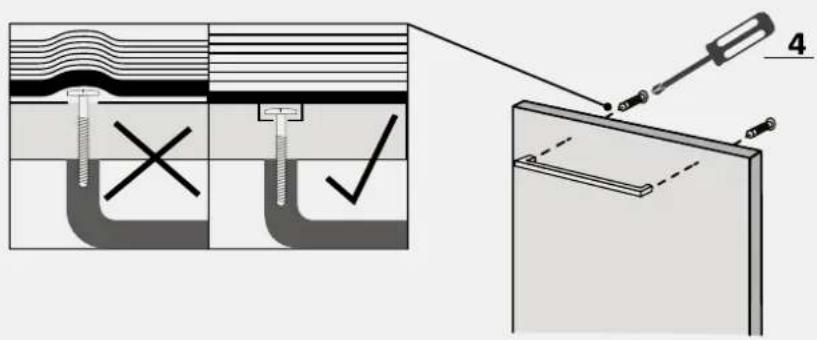

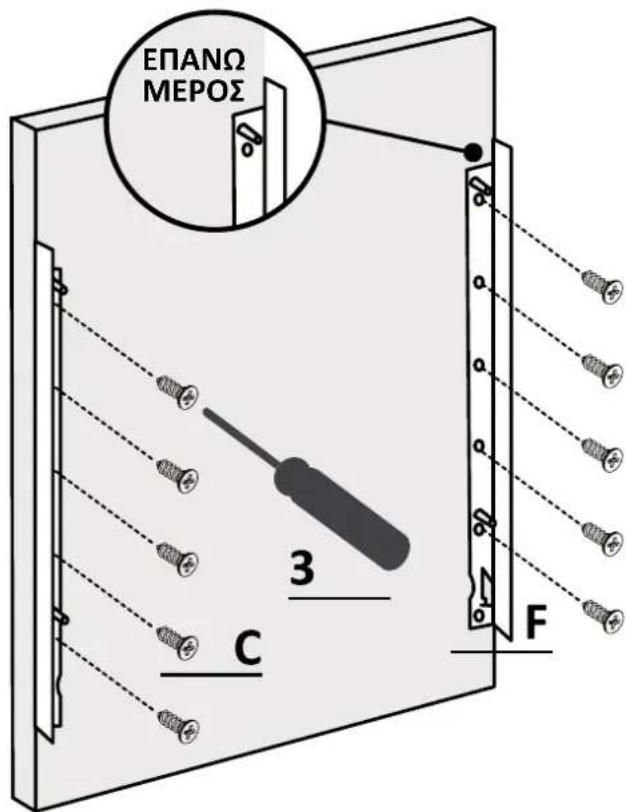

Remove the drilling template and apply the accessories.

Warning sign with exclamation mark and directional arrow, indicating hazard or caution in a safety or electrical hazard context

Top view, 3, C, F

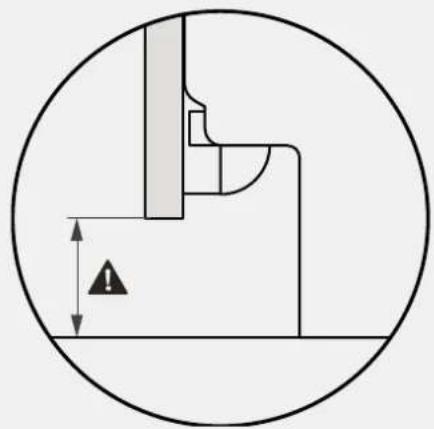

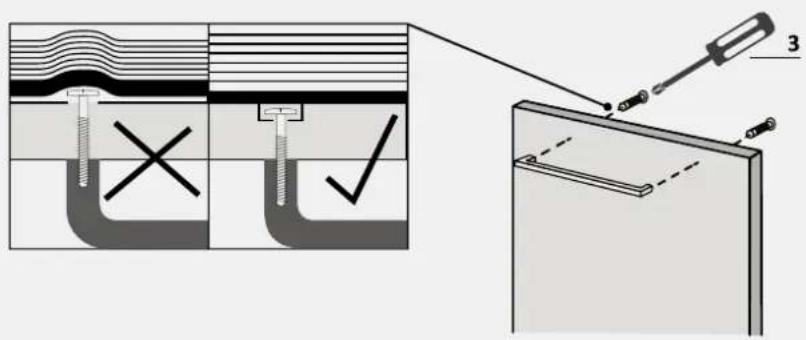

WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and labeled component '3'.

7 Instructions for dishwasher installation

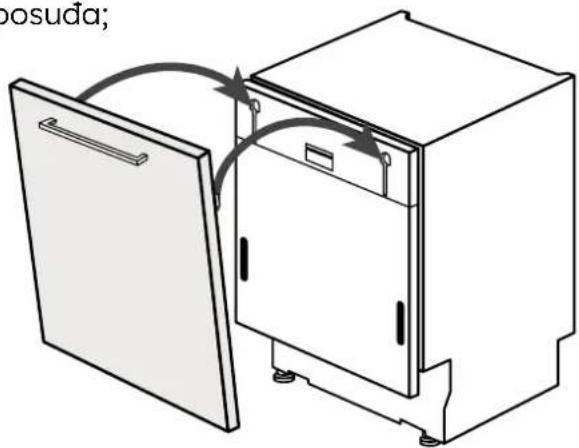

7.10 Panel installation

1.

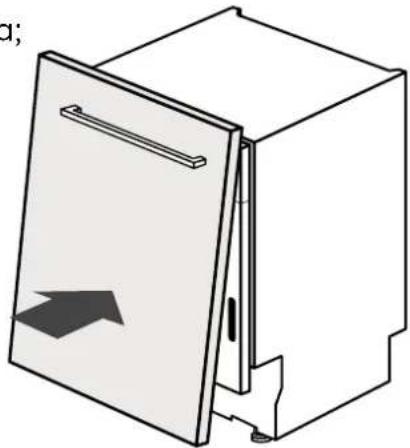

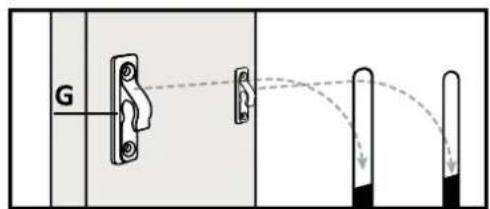

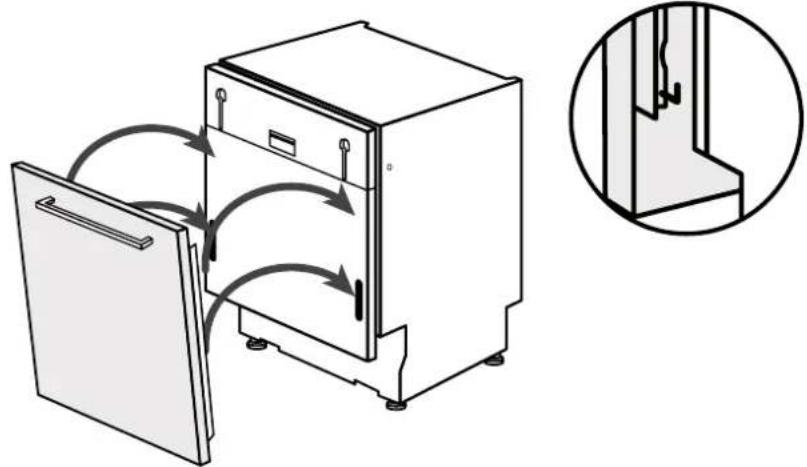

Fix the panel to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, alongside an inset showing the exterior wall detail (no text or symbols).

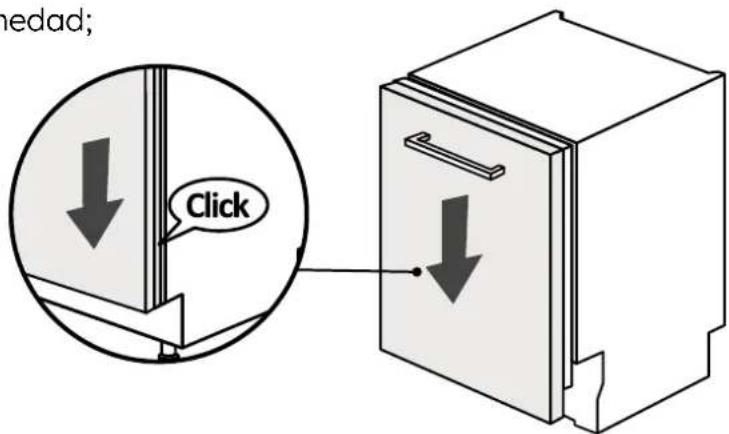

2.

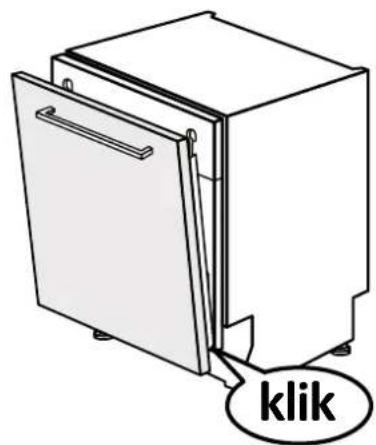

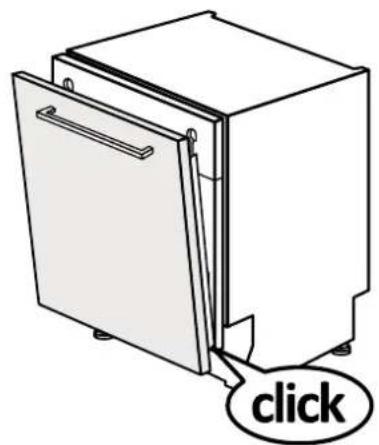

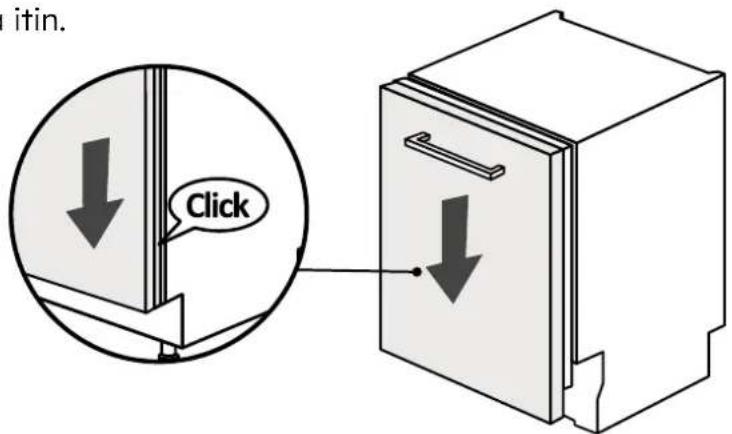

Fix the panel to the underside of the dishwasher;

Click

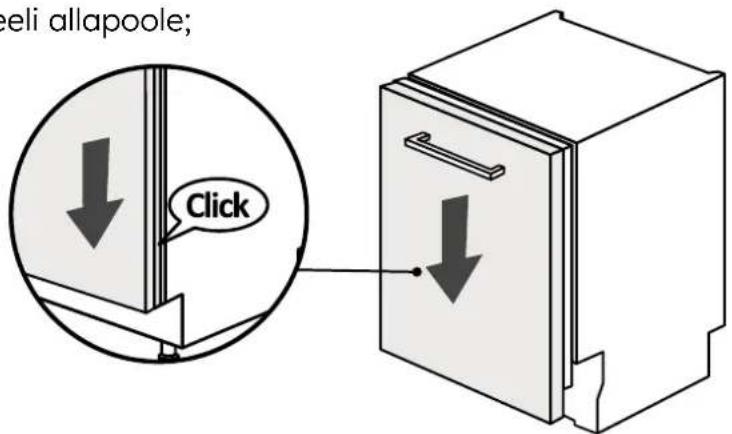

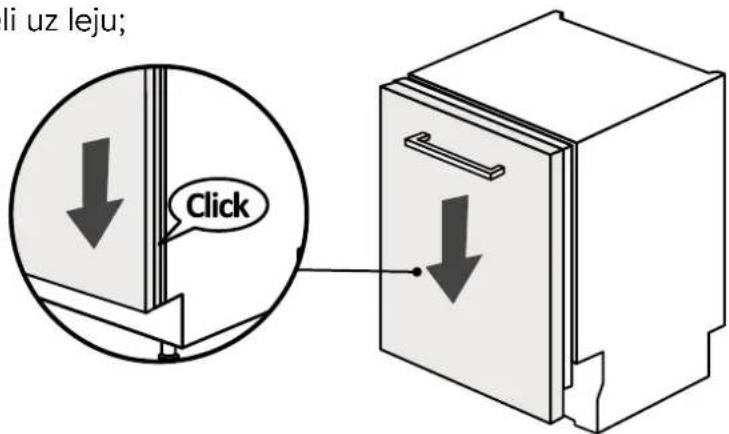

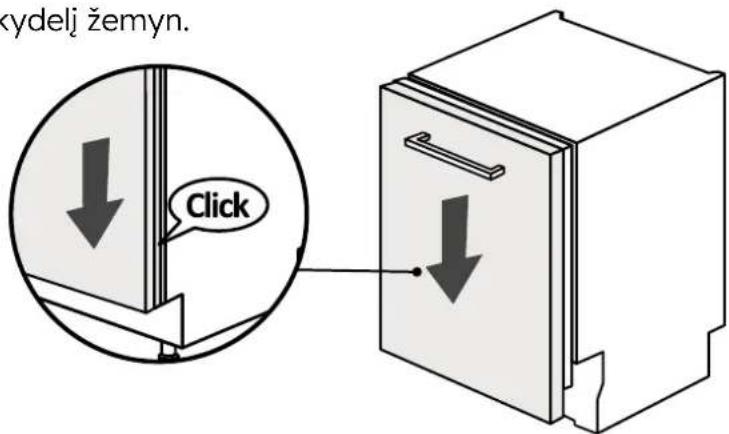

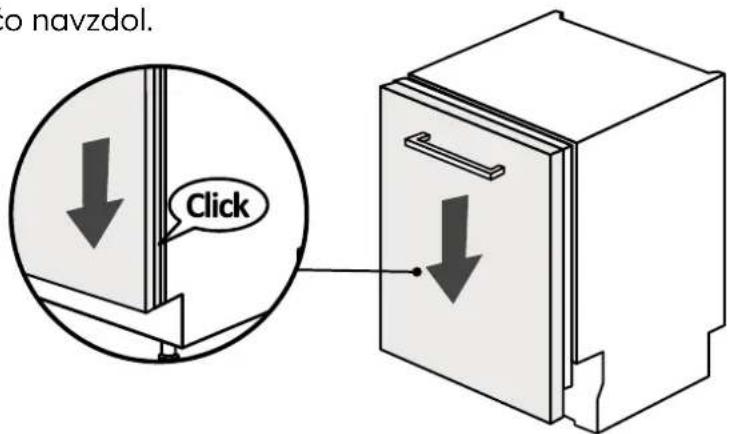

3.

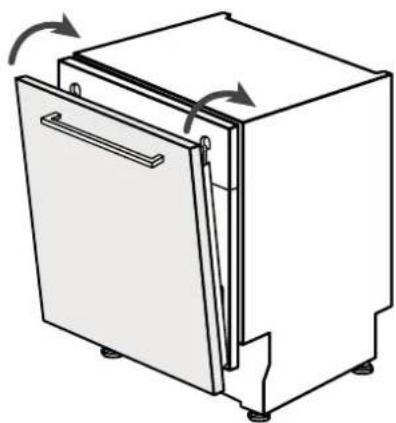

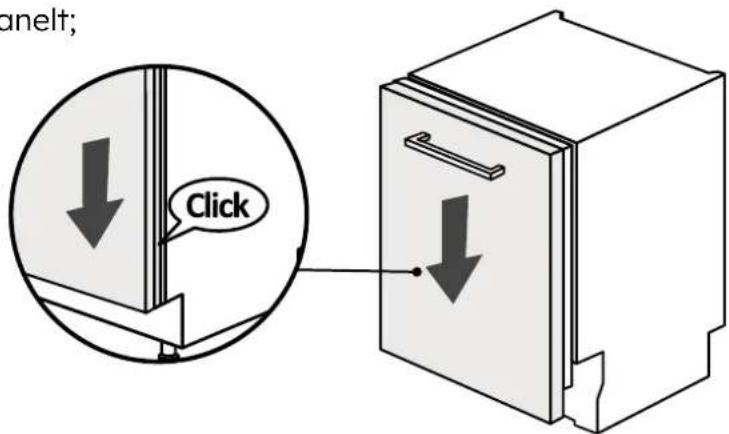

Fix the panel to the top of the dishwasher;

Line drawing of a refrigerator with doors, showing internal compartments and directional arrows indicating rotation (no text or symbols).

7.10 Panel installation

4.

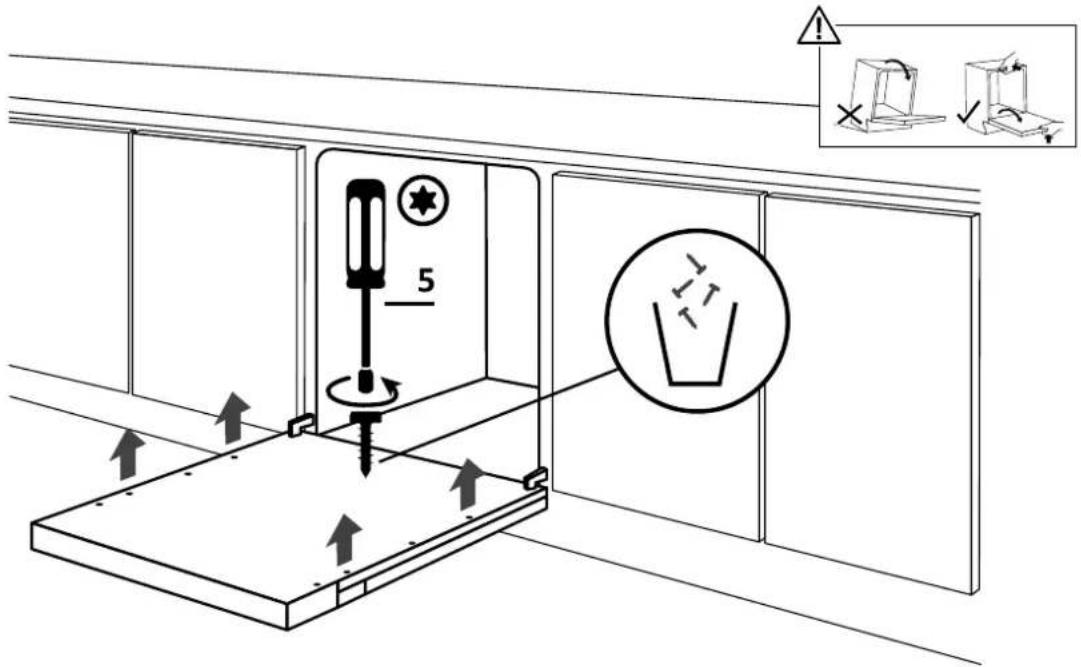

With the lower part of the kitchen panel held, open the dishwasher door and unscrew the bottom screws;

5

5.

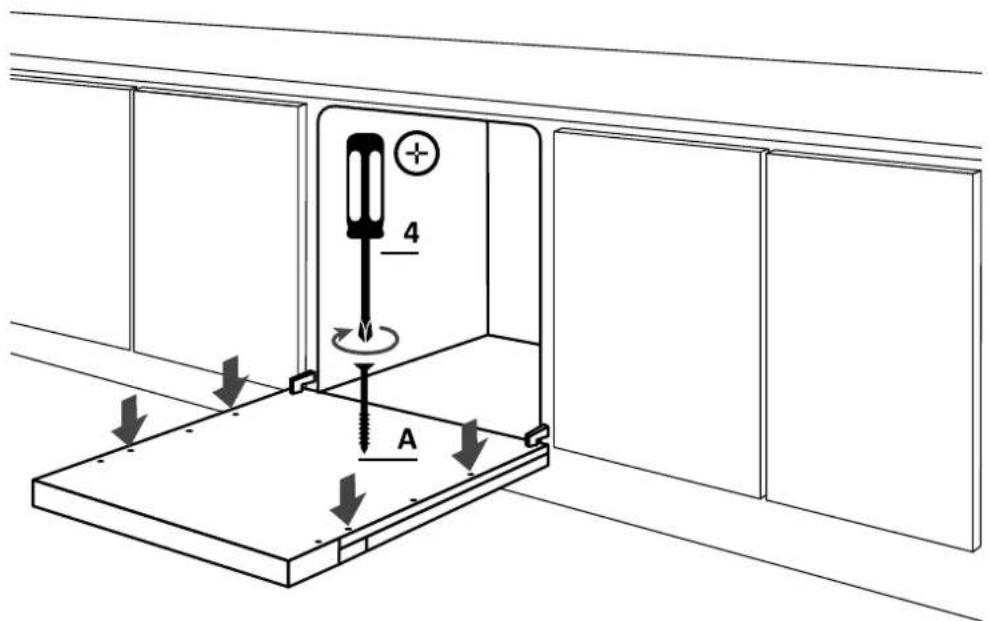

Make sure the panel is fully inserted; fix the kitchen panel to the dishwasher with the included screws.

4, A

HAIER XI 6B0M4PDB - 5. - 2

WARNING: Connect the dishwasher to the water and electrical mains at this time, observing the instructions provided in chapter 8.

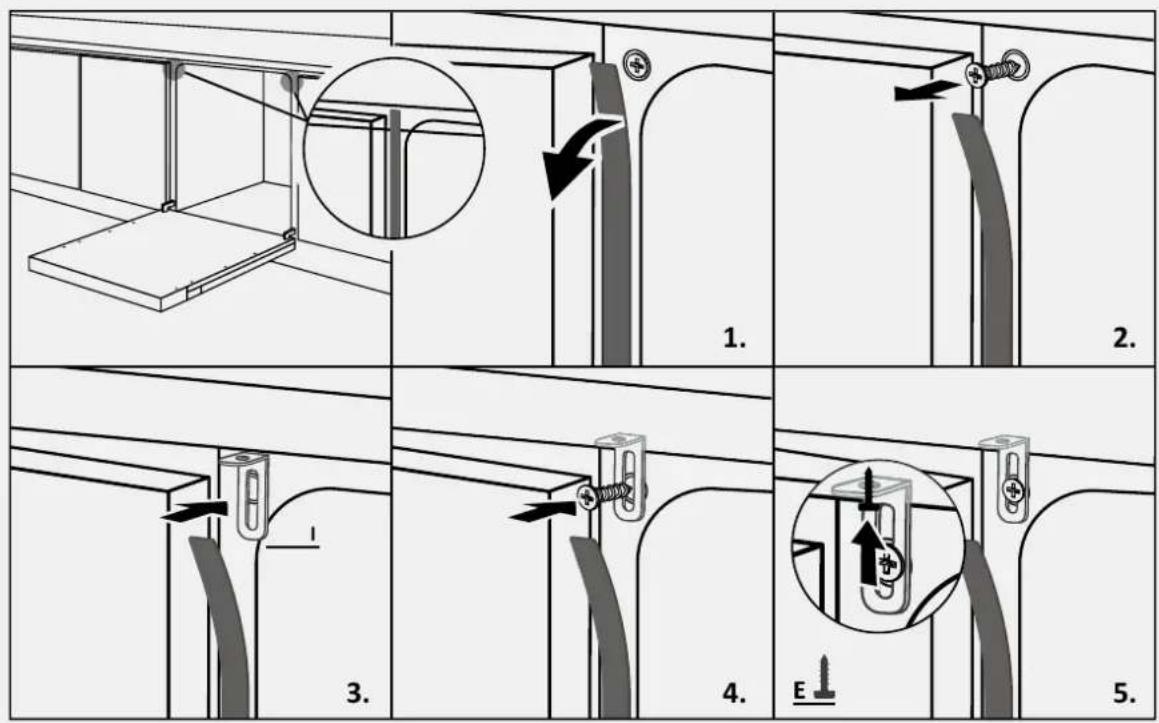

7.10 Fixing the machine to the kitchen

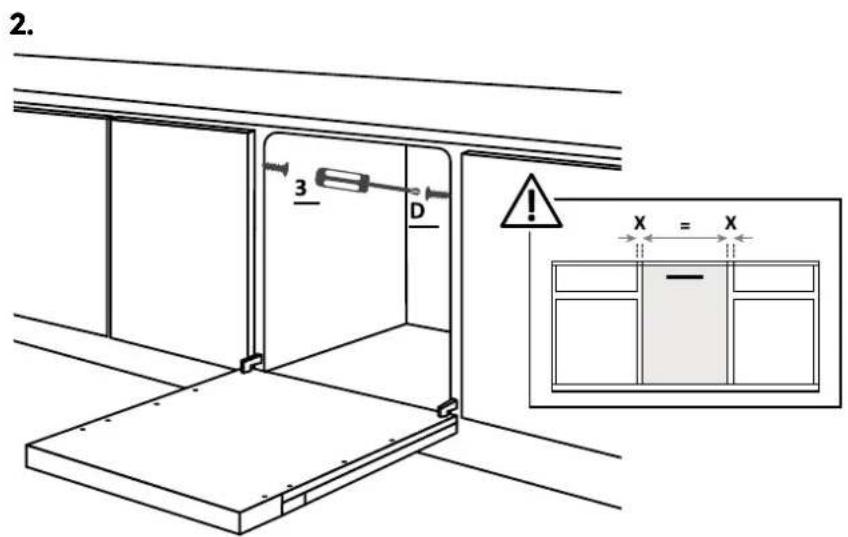

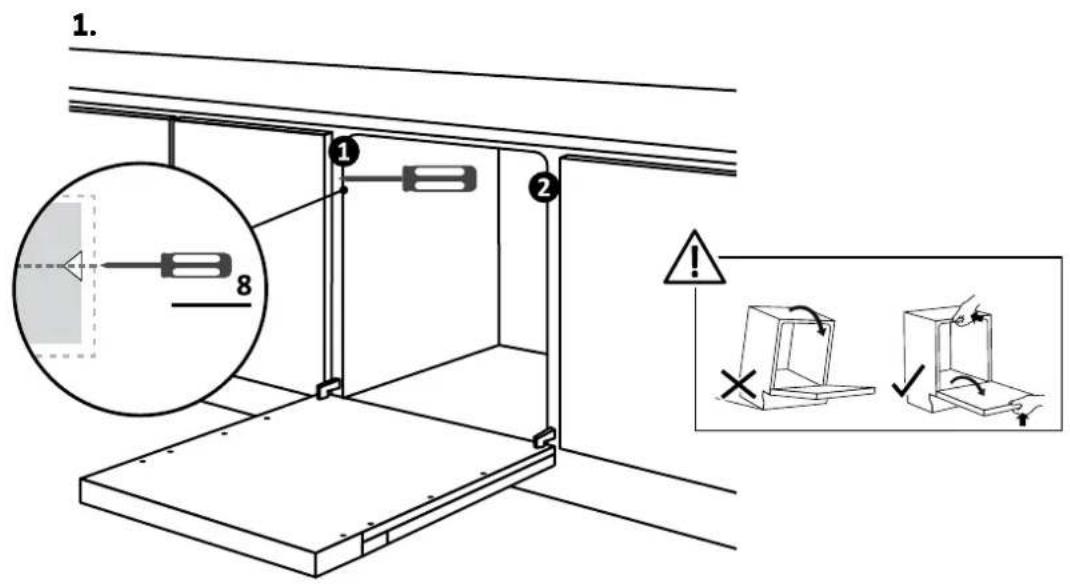

Instructions for fixing the dishwasher to the side of adjacent cabinets.

1. ① ② 8 ! X

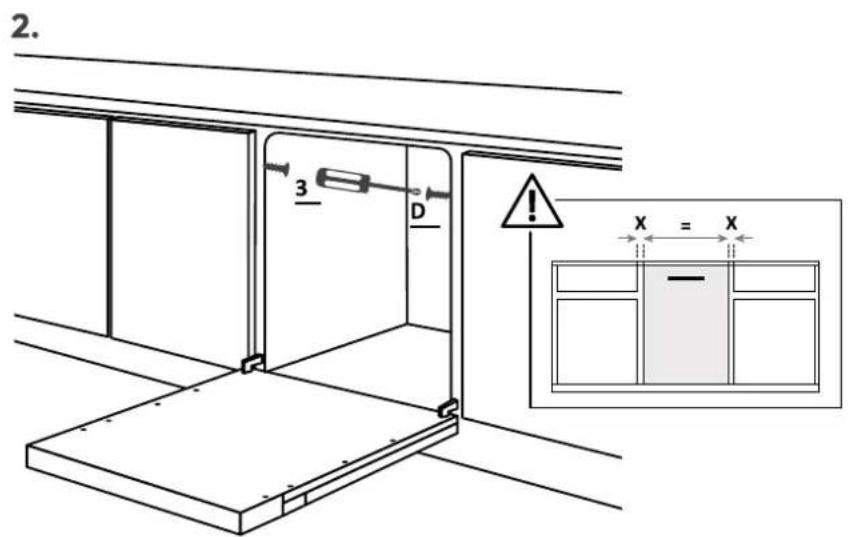

2. 3 D ! X = X

HAIER XI 6B0M4PDB - Fixing the machine to the kitchen - 3

Diagram of a device with two circular annotations highlighting a component or feature (no text or symbols present).

WARNING: If you can't fix the dishwasher laterally, use the brackets provided and secure it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps and directional arrows.

8 Drain water and electricity connection

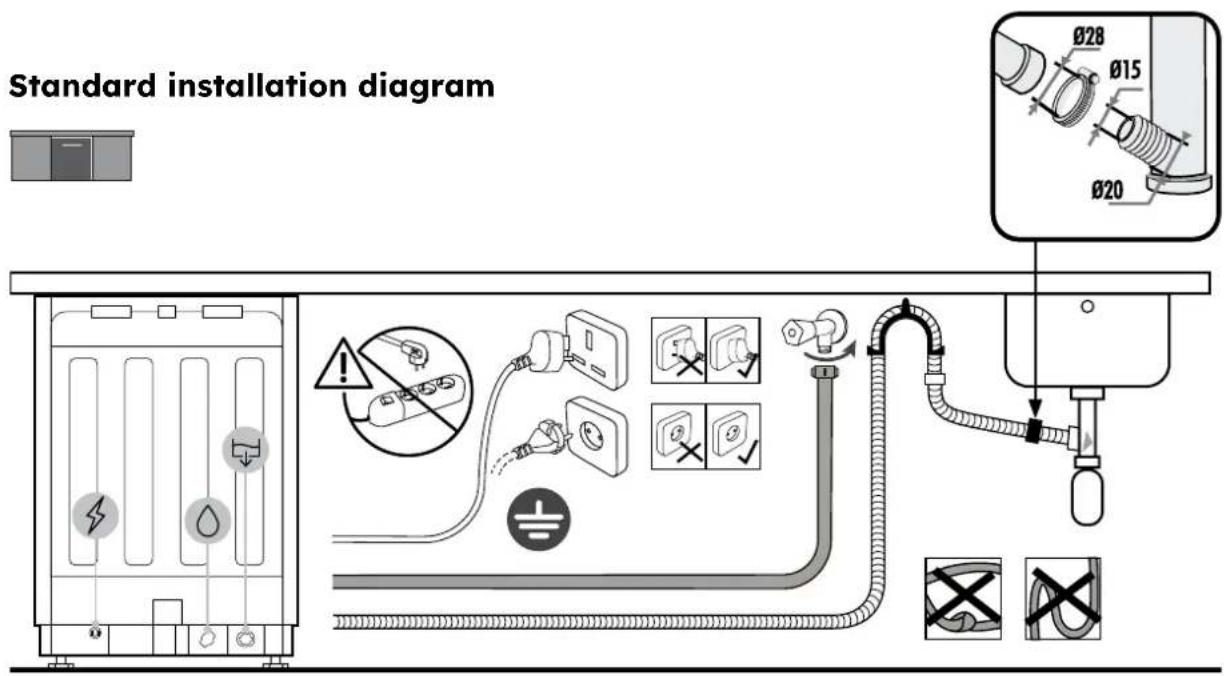

8.1 Connection diagram

Standard installation diagram: Ø28, Ø15, Ø20

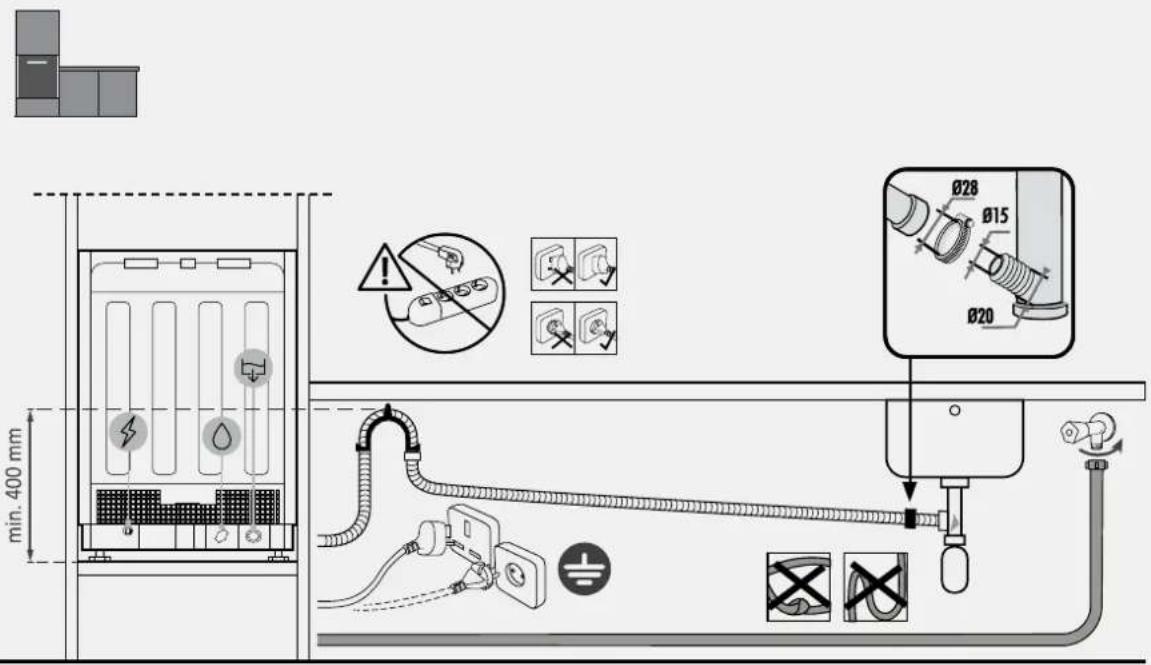

Column installation diagramMinimum 400 mm: Ø28, Ø15, Ø20

WARNING: Ensure that the water pressure is between 0.08 MPa and 1 MPa.

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user

9

At the end of installation:

  • Inform the user about essential functions;
  • Inform the user about all aspects relevant to safe use and handling;
  • Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

HAIER XI 6B0M4PDB - Delivery to the user - 1

NOTE: The actual appearance of the product depends on the model chosen.

Disassembling the dishwasher

10

  • Disconnect the product from the power supply;
  • Unscrew the fixing screws;
  • Lift the product slightly and pull it out completely;
  • This product will not damage the cabinet, which can also be used with a new appliance.

Exterior view of a Haier cleaning machine with white circular components and metal frame (no signage or text on main subject).

Haier

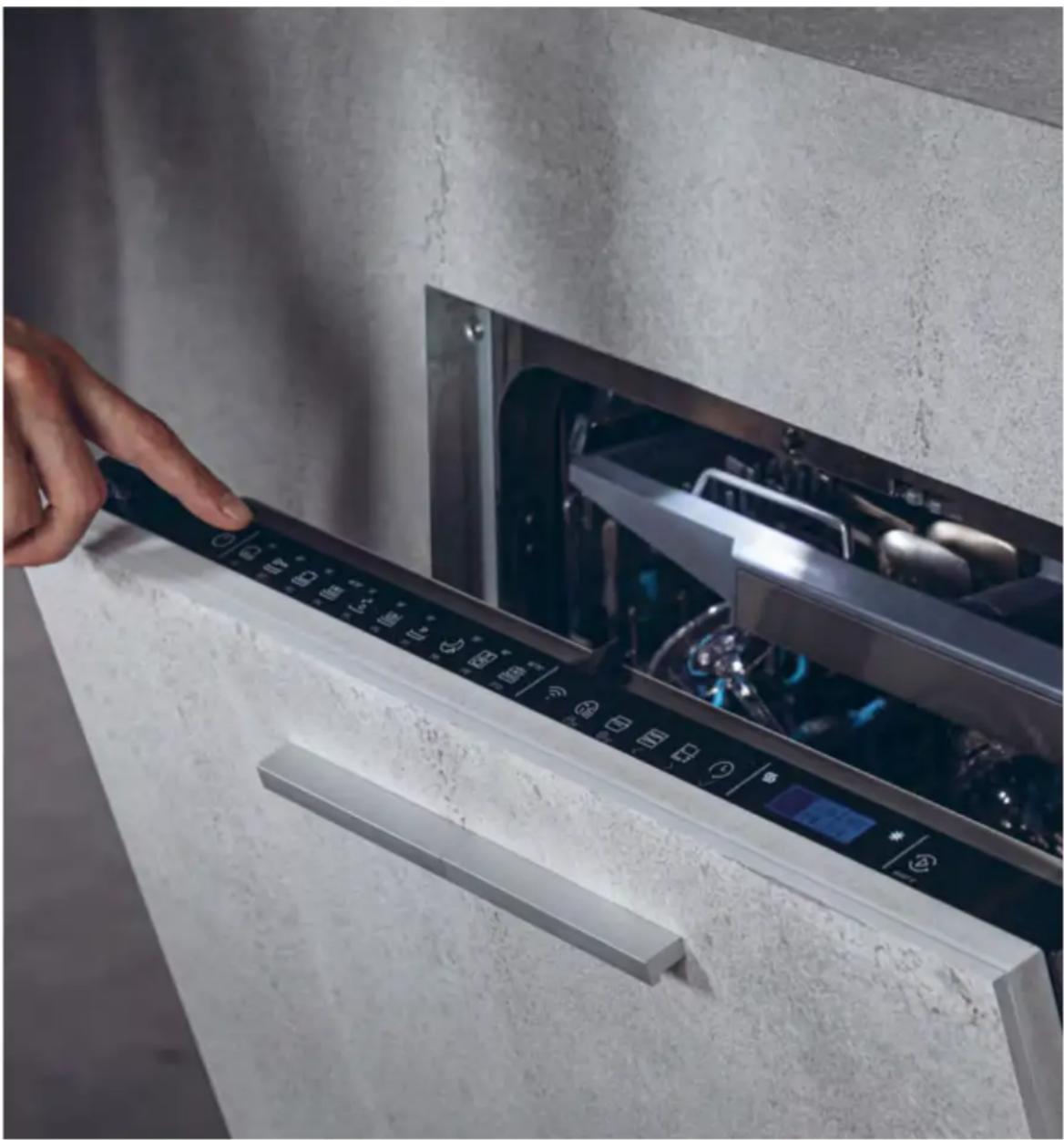

Hand pointing at a kitchen appliance with a digital scale and control buttons (no visible text or symbols).

BENVENUTI

Technical diagram of a mechanical assembly with a circular boundary and a vertical dimension line labeled 'A', no text or symbols.

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

2.

3.

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with a control panel and buttons. No visible text or symbols.

WELCOME

8.1 Connection diagram 8.2 Safety devices

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A'. No text or symbols present.

3.

Diagram illustrating a three-step folding process of a mechanical part, showing cutting and assembly steps with numbered annotations.

2.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A'.

  1. HAIER XI 6B0M4PDB - WELCOME - 2

2.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.4 Adjusting the rear foot

2.

2.

3.

Haier

Interior view of a modern kitchen appliance with a large stainless steel counter and open lid (no visible text or symbols).

WELCOME

  1. HAIER XI 6B0M4PDB - WELCOME - 1

7.3 Height adjustment

2.

Technical diagram showing installation steps with a screwdriver and checkmark indicators, including cross and check symbols.

2.

HAIER XI 6B0M4PDB - Height adjustment - 2

Diagram of a device with two circular arrows pointing to a central screen (no text or symbols).

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with a control panel and buttons. No visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'. No text or symbols beyond the label.

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.3 Height adjustment

7.6 Tilt adjustment

Level the dishwasher with respect to the vertical and horizontal plane.

Technical line drawing of a cabinet with an electrical enclosure and coiled tubing. No text or symbols present.

2.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A'.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

2.

3.

Haier

Hand pointing at a kitchen appliance with a digital display and control panel (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.6 Setting the tilt

2.

Transfer the dimension to the kitchen panel and determine the center;

X 1 11

3.

7.9 Panel preparation

4.

2.

3.

Press the panel down.

Nadol. Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a rectangular container with two circular annotations pointing to its side (no text or symbols).

Haier

Hand pointing at a kitchen appliance with a digital display and control panel, no visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A', no text or symbols beyond the label.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

2.

Click

HAIER XI 6B0M4PDB - 2. - 2

Pure diagram of a rectangular device with two circular annotations pointing to its top section (no text or symbols).

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible).

WELCOME

5

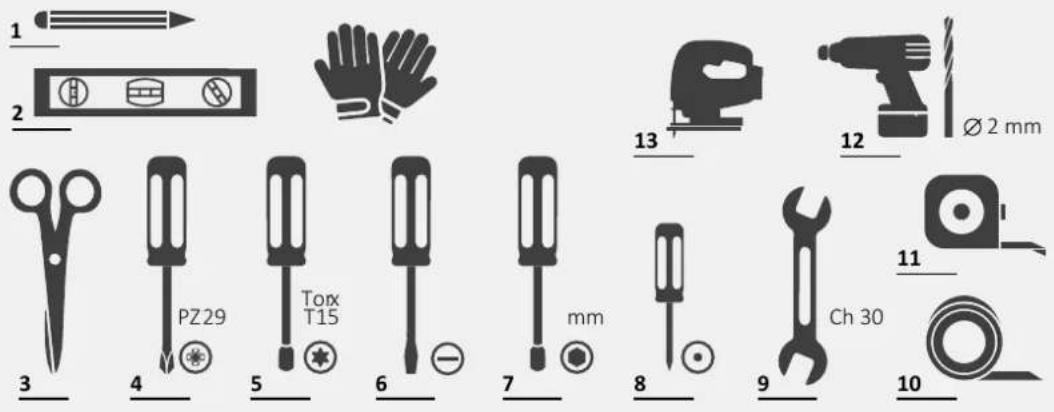

Required tools1 2 3 4 5 6 7 8 9 10 11 12 13 Ø 2 mm PZ29 Tox T15 mm Ch 30

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.3 Height adjustment

2.

7.9 Panel preparation

4.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance, no visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A', no text or symbols beyond the label.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

2.

2.

3.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.3 Height adjustment

2.

2.

3.

Press down on the panel;

anelt; Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a rectangular device with two circular annotations pointing to its top section (no text or symbols)

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

⚠ CAUTION: The minimum height of the dishwasher is 818 mm; in this case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance between the door and the floor must increase proportionally to a maximum of between 170 and 200 mm.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

2.

Transfer the measurement to the kitchen panel and determine the center;

X 1 11

3.

Install the drilling template and follow the enclosed instructions;

X M 10 3 8 12

7.9 Panel preparation

4.

Remove the template and install the accessories;

Diagram illustrating a battery circuit transformation with labeled components and warning symbol.

2.

3.

Press the panel down.

o navzdol. Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a rectangular device with two circular annotations pointing to its top section (no text or symbols).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five-step installation of a cabinet or enclosure with labeled components and directional arrows indicating assembly steps.

Haier

Interior view of a modern kitchen appliance with a large stainless steel counter and open lid (no visible text or symbols).

WELCOME

This installation guide is designed for kitchen manufacturers who will work with these products. To ensure safety and achieve the best results, carefully read this guide, including the safety instructions, and keep it for future reference. Before proceeding with the installation, note the serial number, as you may need it in case of repairs. Check for transport damage and consult a technician if you are in doubt before use. Always keep all packaging materials away from children.

i NOTE: Features, images in the manual, and additional equipment may vary depending on the purchased model.

Index

1 Safety warnings for installation p. 2-3 2 Where to install the dishwasher p. 3 3 Dishwasher dimensions p. 4-5 4 Video for detailed installation p. 6 5 Tools for installation p. 6 6 Installation dimensions p. 7

7 Instructions for installing the dishwasher p. 8-19

7.1 Assembly of condenser components 7.2 Installation of anti-condensation strip 7.3 Height adjustment 7.4 Adjusting the rear foot 7.5 Adjusting the front feet 7.6 Adjusting the tilt 7.7 Inserting into the built-in compartment 7.8 Securing the front feet 7.9 Preparing the panel 7.10 Installing the panel 7.11 Securing the machine to the kitchen

8 Water drain and electrical power connection p. 20-21

or by clicking on thisHAIER XI 6B0M4PDB - Index - 1

2-3 h

5 Installation tools

Required tools1 2 3 4 5 6 7 8 9 10 11 12 Ø 2 mm PZ 2 PH 2 Torx T15 9 mm Ch 26 13 14

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), the distance from the door to the floor must also increase proportionally, up to a maximum of 170 and 200 mm.

7 Instructions for installing the dishwasher

7.1 Assembly of the condenser components

1.

7.8 Securing the front feet

After checking all measurements, permanently secure the front feet to prevent them from loosening over time. This action can also be performed after installing the kitchen worktop.

Stop ice. B. 5.

7 Instructions for installing the dishwasher

7.9 Preparing the worktop

1.

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a cross-section of a mechanical assembly with dimension X and a close-up of the internal components.

2.

Transfer the measurement to the kitchen worktop and locate the center;

X. 1. 11.

3.

Use the drilling template and follow the instructions provided;

X. G. 12. 2. 100. 100. 8. 13.

7.9 Preparing the worktop

4.

VRH. 3. C. F.

⚠ WARNING: Make sure that the screw heads do not protrude from the back of the worktop, especially if you are installing a handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool labeled '3'.

7 Installation instructions for the dishwasher

7.10 Installing the worktop

1.

Attach the worktop to the dishwasher;

Diagram of a refrigerator with airflow arrows indicating internal movement, shown in an inset close-up (no text or symbols).

2.

Attach the worktop to the underside of the dishwasher;

Click.

3.

Attach the worktop to the top of the dishwasher;

Line drawing of a refrigerator with doors and door, showing internal compartments and directional arrows indicating rotation (no text or symbols).

7.10 Installing the worktop

4.

While holding the lower part of the kitchen worktop, open the dishwasher door and unscrew the lower screws;

Technical diagram showing a screwdriver pressing down on a workbench with directional arrows and a warning icon, accompanied by explanatory labels.

5.

Check that the panel is fully inserted; secure the kitchen panel to the dishwasher using the provided screws.

Technical diagram showing a screwdriver inserted into a panel with labeled components A and 4, indicating assembly or installation.

7 Installation instructions for the dishwasher

HAIER XI 6B0M4PDB - Installation instructions for the dishwasher - 1

⚠ WARNING: Connect the dishwasher to the water and electrical supply at this point, following the instructions given in chapter 8

7.11 Securing the machine to the kitchen

Instructions for securing the dishwasher laterally to adjacent kitchen units.

1. ① ② 8 ! X ✓

2. 3 D ! X = X

HAIER XI 6B0M4PDB - Securing the machine to the kitchen - 3

Diagram of a device with two circular arrows pointing to a central screen (no text or symbols).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the provided brackets and secure it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five-step installation of a door frame with labeled components and directional arrows indicating assembly or repair.

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

3.

Diagram illustrating three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.6 Leveling adjustment

2.

7 Dishwasher installation instructions

7.10 Panel installation

1.

2.

3.

Press the panel downward.

Diagram of a device with two circular annotations highlighting a component.

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with a control panel and buttons.

TERE TULEMAST

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.4 Adjusting the rear foot

7.6 Adjusting the tilt angle

7.8 Securing the front legs

2.

7.9 Preparing the panel

4.

2.

3.

Press the panel downward;

eli allapoole; Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a rectangular container with two circular annotations pointing to its side (no text or symbols).

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols)

LAIPNI LŪDZAM

Or by clicking on this linkHAIER XI 6B0M4PDB - LAIPNI LŪDZAM - 1

2-3h

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

2.

2.

3.

Press the panel downwards;

Up and down; Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a rectangular container with two circular annotations on its side (no text or symbols).

Haier

Interior view of a modern kitchen appliance with a large stainless steel counter and open lid (no visible text or symbols).

WELCOME

  1. HAIER XI 6B0M4PDB - WELCOME - 1

2.

OTROPE 3 C F

2.

5.

HAIER XI 6B0M4PDB - 5. - 1

Diagram of a device with two circular arrows pointing to a central screen (no text or symbols).

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

⚠ WARNING: The minimum height of the dishwasher is 818 mm; in that case, the distance between the kitchen door and the floor must be between 90 and 120 mm. If the dishwasher is raised (max. 898 mm), this distance must also be increased proportionally, up to a maximum of between 170 and 200 mm.

7 Instructions for installing the dishwasher

7.1 Assembling the condenser component

1.

Adjust the size of the component (I) according to the height of the kitchen door;

680 690 700 710 720 730 A 14 L

680-730 A 16-22 595-596

7.1 Assembling the condenser component

2.

Insert the component (I) into the designated space, as shown in the figure below;

555 598 818-898 130-210 110 40 120

3.

Secure the component (I) with the screws provided.

B 5

7 Instructions for installing the dishwasher

7.2 Installing the steam strip

3.

Diagram illustrating three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.3 Adjusting the height

7.4 Adjusting the rear foot

Adjust the height of the rear foot from the front of the machine according to the instructions.

foot UP DOWN 7

7 Installation Instructions for the Dishwasher

7.5 Adjusting the Height of the Front Feet

Act directly on the front feet. If necessary, slightly lift the dishwasher.

feet 6 Ch 26 9

7.6 Adjusting the Tilt

Align the dishwasher vertically and horizontally.

Technical line drawing of a cabinet with an electrical enclosure and coiled tubing, no text or symbols present

7.7 Inserting into the Built-in Space

2.

7.9 Preparing the Panel

4.

Remove the template and install the accessories.

Diagram illustrating a battery circuit transformation with labeled components and warning symbol

⚠️ CAUTION: Avoid having the screw heads protrude from the back of the panel when installing the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool labeled '4' pointing to a panel.

7 Installation Instructions for the Dishwasher

7.10 Installing the Panel

1.

Insert the upper pins into the slots of the dishwasher;

F

Dishware;

2.

Attach the panel to the lower part of the dishwasher;

G

Diagram of a cabinet with an open lid and internal compartments, showing a directional arrow (no text or symbols)

3.

HAIER XI 6B0M4PDB - 3. - 1

Diagram of a device with two circular annotations highlighting a component (no text or symbols present)

⚠ WARNING: If you cannot secure the dishwasher laterally, use the provided brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five-step installation of a cabinet or enclosure with labeled components and directional arrows indicating assembly steps.

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons (no visible text or symbols)

WELCOME

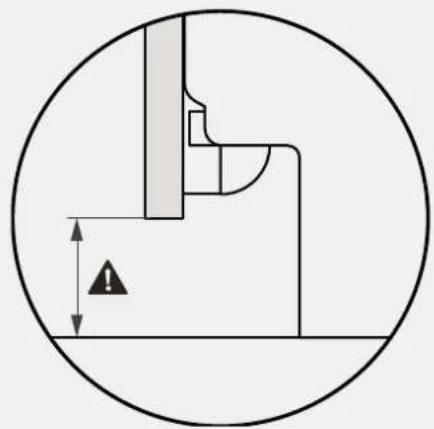

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

7.3 Height adjustment

7.6 Angle adjustment

2.

7.10 Installation of the panel

1.

2.

3.

Press the panel downwards.

HAIER XI 6B0M4PDB - 3. - 1

HAIER XI 6B0M4PDB - 3. - 2

Diagram of a device with two circular annotations highlighting a component (no text or symbols present).

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.3 Height adjustment

Tilt the dishwasher by lifting the rear about 10 cm.

Diagram of a kitchen appliance with directional arrows indicating motion, accompanied by a warning symbol (no text or labels)

7.4 Rear foot adjustment

2.

2.

3.

Press the panel downwards.

alaspäin. Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a rectangular container with two circular annotations on its side (no text or symbols)

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with a control panel and buttons. No visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'. No text or symbols beyond the label.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.3 Height adjustment

7.6 Angle adjustment

2.

2.

3.

Push the panel downwards.

edover. Click

HAIER XI 6B0M4PDB - 3. - 2

Pure diagram of a mechanical or electrical component with two circular annotations highlighting features.

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'.

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.3 Height adjustment

7.6 Angle adjustment

2.

3.

Haier

Interior view of a modern kitchen appliance with a large stainless steel counter and open lid, no visible text or symbols.

WELCOME!

  1. HAIER XI 6B0M4PDB - WELCOME! - 1

2.

View from above, 3, C, F

2.

5.

HAIER XI 6B0M4PDB - 5. - 1

Pure diagram of a container with two circular arrows indicating flow or movement, no text or symbols present.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.3 Height adjustment

7.6 Tilt adjustment

2.

3.

Push the panel downward.

Itinerary. Click.

HAIER XI 6B0M4PDB - 3. - 2

Diagram of a device with two circular annotations highlighting a component (no text or symbols present).

Haier

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HAIER

Model : XI 6B0M4PDB

Category : Dishwasher
