USER MANUAL Aroma Misty 2800 UFESA

White laboratory water heater with digital display showing 23 o'clock and 3 o'clock (no text or symbols on body)

Technical diagram of a refrigerator with numbered parts and internal components labeled in Chinese

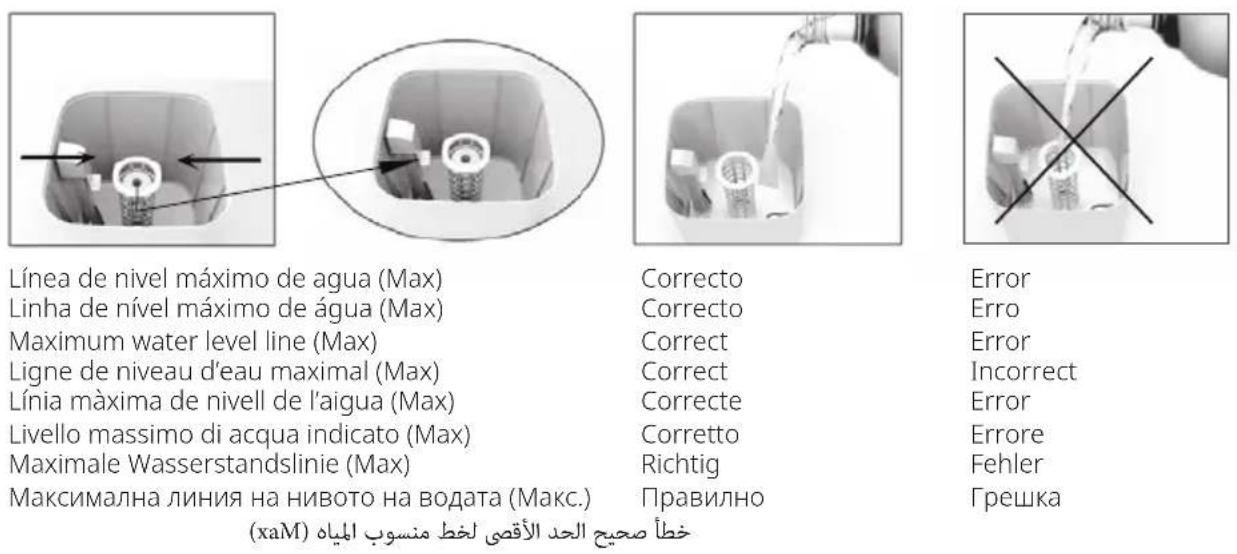

Fig.1

Línea de nivel máximo de agua (Max) Linha de nivel máximo de água (Max) Maximum water level line (Max) Ligne de niveau d'eau maximal (Max) Línia máxima de nivell de l'aigua (Max) Livello massimo di acqua indicato (Max) Maximale Wasserstandslinie (Max) Максimalна линия на нивото на водата (Mакс.) Correcto Correcto Correct Correct Correcte Corretto Richtig Правилно Error Erro Error Incorrect Error Errore Fehler Грешка خطأ孫حیج الحد الأقصى لخط منسوبハイاه (xaM)

Fig.2

A H I J B G E K 88 °C 88 %RH 1 2 4 8 8 F C D

ATENCIÓN

CÓMO USAR EL PRODUCTO

WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Mist output
2. Water tank cover
3. Water tank
4. Control panel
5. Floating ball
6. Grid tube
7. Aroma oil container
8. Air outlet
9. Water shortage protection float
10. Power cord
11. Color light
12. Atomizer transducer

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard. This appliance is designed for use at a maximum altitude up to 2000m above sea level. High humidity rates can contribute to the development of biological organisms in the environment. The area surrounding the humidifier should not be wet or humid. In case of humidity, lower the humidifier flow rate. If it is impossible to regulate the humidifier flow rate, use it intermittently. Do not let absorbent materials, such as carpets, curtains, blankets, or tablecloths, become damp. Unplug the appliance while filling and cleaning the tank. Never leave water in the tank when the appliance is not in use. Empty and clean the humidifier before storing it. Clean the humidifier before next use.

WARNING: Microorganisms that may be present in the water or in the environment in which the appliance is used or stored can grow in the water tank and be projected into the air, causing a serious health risk when the water is not replenished and the tank is not cleaned properly every three days. Follow the relative sections of the manual for filling, cleaning and descaling of the appliance.

This symbol means that the water tank must be cleaned every three days.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial purposes under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void. Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label. The mains connection cable must not be tangled or wrapped around the product during use. Do not use the device or connect and disconnect to the supply mains with the hands and / or feet wet. Do not pull on the mains connection cable in order to unplug it or use it as a handle. Never attempt to turn off the humidifier by disconnecting the plug. To avoid risk of fire or explosion, do not spray anything to the humidifier. Do not put any inflammables or chemicals near the unit. To prevent plastic parts from melting or catching on fire, do not place the humidifier near heating appliances. The humidifier must be used on a level and stable surface. Do not use the humidifier and the drain hose at ambient temperatures below 0°C to prevent the water from freezing. Do not use outdoors. Be careful that a heating appliance is not exposed to the wind from the humidifier. Do not cover the unit with washed clothes or similar. Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B Trends, S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Installation

1. Make sure the humidifier is disconnected from the mains.
2. Put the humidifier on a flat surface and remove the water tank cover. Make sure the floating ball is inside the grid tube in "UP" position. Tighten the grid tube clockwise and remove the rectangular pearl cotton.
3. Fill in the tank with a proper amount of clean tap water or pure water. Be sure the total amount of water never exceeds the "MAX" level mark. Do not pour water in the air outlet cover and the grid tube to avoid water splashing out in all directions. (Fig. 1)
4. If you wish, add a small amount of aroma oil (around 2.5-3 ml) in the container provided for this purpose.
5. Attach the water tank cover back on the water tank and plug the humidifier into the power supply. Before connecting the power supply ensure that the operating voltage of the machine and the power supply voltage are the same.

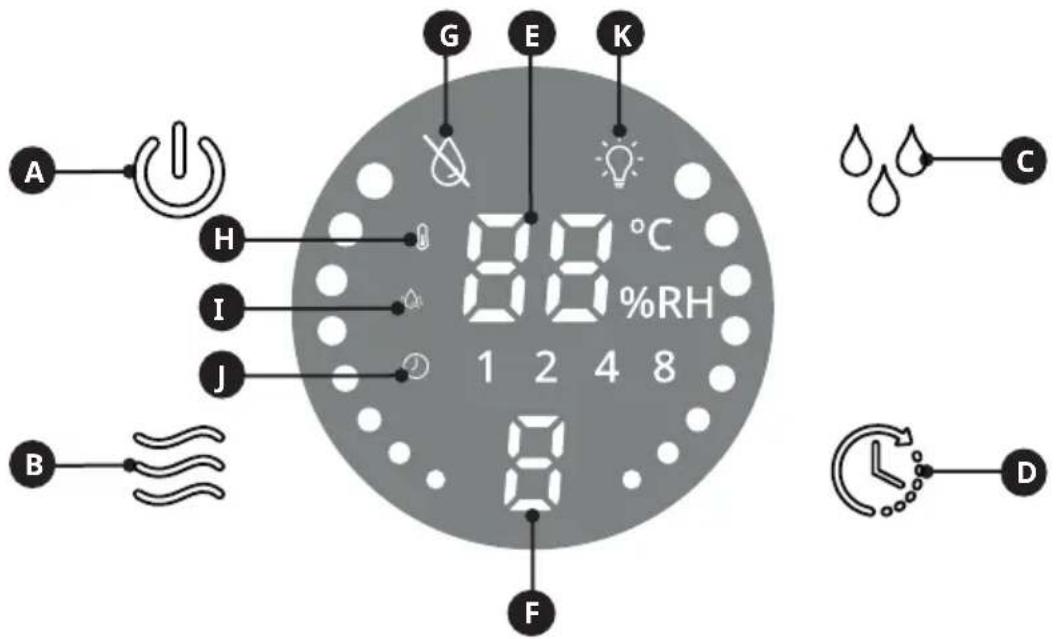

CONTROL PANEL (FIG. 2)

A Standby button G Empty water tank indicator
B Hygrostat button H Temperature indicator
C Mist button I Relative humidity indicator
D Timer button J Timer indicator
E	Ambient temperature (°C) / Relative Humidity (%RH)	K Decorative warm light indicator
F Operating humidity level

HOW TO USE

1. Plug in the unit. All digital display icons will turn on for a second and you will hear a long "beep" sound which means the humidifier has entered into standby.
2. Press the power on/off button to start operation, the digital control panel will turn on and you will hear a short "beep" sound. Press it again to stop operation.

Note: when the water tank level of the humidifier is too low, the empty water tank indicator will blink in red and the humidifier will automatically shut off. Please unplug the humidifier to refill with water.

1. The digital control panel will show the real-time room temperature (°C) and humidity (%RH), alternating every 3 seconds. The default operating mist level is 3.

OPERATION MODES

The humidifier allows you to set special functions as per your convenience:

- Mist button: press this button to adjust the corresponding operating mist output level. You can select three different levels (1-low, 2-mid, 3-high) by each pressing.

- Timer button: when the humidifier is running, press the timer button to set the scheduled power-off function. You can choose 1 hour, 2 hours, 4 hours or 8 hours by each press. When time is up to your setting the unit will turn off. To cancel the timer selection at any time, press the timer button repeatedly until the timer digital numbers indicator will disappear.

- Hygrostat button: press this button to adjust the desired relative humidity (%RH) in the room. You can select between ten levels from 45% to 90% at intervals of 5%. The unit automatically turns off once the room reach the pre-programmed level of humidification. When the humidity falls below the desired level the unit starts again automatically.

- Sleep mode: In order to provide a warmer and more pleasant environment, especially during the night, this humidifier has the option to switch off the digital display, by long pressing the timer button for three seconds. The humidifier will operate as normal during sleep mode setting. Press any button or push the timer button for three seconds again to get back to normal operation.

- Decorative warm light: long press the hygrostat button for three seconds to enter into this mode. The decorative warm light indicator will be on. Seven colored lights will alternate in order to provide a more relaxed atmosphere. Long press the hygrostat button for three seconds again, it turns off the light.

- Aromatherapy: add a small amount of aroma oil (around 2.5-3 ml) in the aroma oil container and enjoy the therapeutic scents.

MAINTENANCE AND CLEANING

Turn off the unit and disconnect the power plug before starting any cleaning task.

Cleaning the body

Wipe the humidifier with a dry and soft cloth. To remove heavy dirt, wipe it with a cloth wrung tightly. Never use a wet cloth for cleaning the control panel. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.

To avoid any deformation or cracking, do not use benzene, thinner or liquid cleaners. Chemical cloth may cause the change in the color of the unit.

Cleaning the water tank

The water tank must be cleaned every three days in order to avoid water in the tank get stale and keep the inside of humidifier clean and in good condition. When the unit is not being used for a long period of time, please keep inside of the humidifier dry and store in a cool and dry place.

Descaling method

Pour the descaling agent into the machine base, then add about 60^ C warm water to make the descaling agent all dissolved. Leave it soak for 5-10 minutes. Use a soft cleaning brush to brush the surface of the atomizer transducer until the scale is removed and clean the base at the same time. Rinse the machine seat and the surface of the atomizer transducer with clean water.

TROUBLE-SHOOTING

Problem Possible	Cause Solution
The unit doesn't operate (display off and no mist)	Is the power cord connected?	Connect the appliance to the mains
	Operation temperature is too low or too high	Operating temperature: 5-40 °C
The humidifying function doesn't work (display on but no mist)	Is the water tank too full?	Remove some water from the tank
The unit expels a low level of mist	The atomizer transducer may be clogged	Clean the water tank and atomizer transducer to remove all impurities and embedded lime.
Operation is noisy	Is the unit tilted or unsteady?	Move the unit to a stable, sturdy location
	Is the water in the water tank too little?	Fill in the water tank

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment center.

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA. NOUS ESPÉRONS

Two black-and-white icons: a trash bin with cross symbol and a circular diagram showing a person walking with arrows.

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
