USER MANUAL AS3100 UFESA

05 1 Chemicals and Coatings

(1) 2017年1月1日

[Unreadable]

[Unreadable]

The image is too blurry to recognize any text content.

VANAT 420

baccless vacuum cleaner

espirador sem saco

aspirateur sans sac

Pink and gray vacuum cleaner against a red polka-dot background (no text or symbols visible)

www.ufesa.es

A

B

D

©

F

[Unreadable]

Congratulations on your choice of our appliance, and welcome among the users of ufesa products. In order to achieve best possible results we recommend using exclusively original ufesa accessories. They have been specially designed for this product. Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety instructions

DANGER! / WARNING!

Health hazard

- Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

• Always unplug the appliance before cleaning, assembling or dismantling.

Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

- Do not use the vacuum cleaner to clean people or animals, pay special attention to keep the nozzles away from eyes and ears.

Do not use the vacuum cleaner to clean liquids or other damp dirt.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION!

Not observance can result in damage to possessions

Connect the vacuum cleaner only to a 230 V mains supply equipped with a 16 A fuse.

Do not unplug by pulling on cord.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.

Do not use the vacuum cleaner without the filters installed in the vacuum cleaner or if the filters are damaged.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.

Check the suction hose, the tubes and the nozzles – remove the dirt from the inside.

Do not vacuum fine dust such as: flour, cement, gypsum, toners for printers and copy machines etc. It is forbidden to cover up the air holes of the vacuum cleaner while it is working. Otherwise, the hot air has no way of exiting the vacuum cleaner, and this may lead to motor overheating causing a failure or a deformation of the plastic parts.

SUGGESTION Information on the product and suggestions for its use

The vacuum cleaner is for household use only. Operate the appliance only in indoor spaces and vacuum only dry surfaces. Before vacuuming dry the carpets that were wet cleaned. Vacuum cleaner is a universal device with a switchable sucking brush nozzle, which is used for vacuuming hard floors and carpets.

Technical parameters

The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A.

Does not cause interferences with audio/video devices. Does not require grounding ☐

Vacuum cleaners meet the requirements of the applicable norms.

The appliance is in conformity with the requirements of the directives:

–Electrical equipment designed for use within specific voltage limits (LVD) – 2006/95/EC.

-Electromagnetic compatibility (EMC) - 2004/108/EC.

The device meets the requirements of Commission Regulation (EU) No. 666/2013 on implementing the Directive of the European Parliament and of the Council 2009/125/EC with regard to eco-design requirements for vacuum cleaners.

The device complies with the requirements of the Commission Delegated Regulation (EU) No. 665/2013 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of vacuum cleaners.

Noise level: 84 dB(A).

The appliance was marked by a CE sign on the rating label.

Static electricity

In the process of vacuuming of some surfaces in areas of low air humidity the device may become electrically charged. It is a natural phenomenon – it does not damage the device, and it is not considered to be a fault. In order to minimize the phenomenon, we recommend you to:

- discharge the device by touching metal items in the room with the pipe,

- increase air humidity in the room, - use widely available antistatic agents.

Appliance elements

1 Outlet filter cover
2 Fastening for the nozzle brush
3 Plug with the power cord
4 Locker for the crevice nozzle
5 Fastening of the upper cover
6 ON/OFF button
7 Suction power regulation dial
8 Cord winder button
9 Handle
10 Bolt - a mechanic controller of suction power
11 Suction hose
12 Telescopic suction pipe
13 Outlet microfilter (installed in the vacuum cleaner)
14 EPA E12 basic filter (installed in the "CYKLON" dust container)
15 EPA E12 basic filter protective casing (installed in the "CYKLON" dust container)
16 "CYKLON" dust container (a removable part of the vacuum cleaner)
17 "CYKLON" dust container cover
18 Switchable combination brush
19 Crevice nozzle
20 Small nozzle
21 BNB (Brush Natural Bristle) floor brush

Before first use

1 Put the end of the suction hose to the inlet of the vacuum cleaner. Pay attention to insert the protrusions situated on the end of the hose into the special incisions in the inlet of the vacuum cleaner.
2 With a clockwise movement turn the end of the suction hose tight.
3 Attach the other end of the hose (the handle) to the suction tube. In order to do this, press the lock A in the telescopic suction tube and put the tube in the handle, so the lock A is fastened in hole B.
4 Select the needed length of the telescopic suction pipe by sliding the slider according to the arrow, and pulling the pipe out/in.
5 Install a nozzle or a brush on the other end of the suction pipe.

6 Use combination carpet & floor brush for vacuuming both hard surfaces and carpets. To clean hard surfaces – wooden floors, plastic floors, ceramic tiles etc. pull out the brush by pressing the switch on the combination brush according to the figure . Extract the brush when vacuuming carpets (set the switch in “).
7 Grab the plug of the cord (3), and pull it out of the vacuum cleaner.

When pulling out the cord pay attention to the yellow band which marks the end of the cord. Any attempts to unwind the cord further (especially forcefully pulling may lead to damaging it.

8 Put the plug of the cord in an electric socket.

Before turning the vacuum cleaner on, make sure the "CYKLON" dust container is installed in the chamber of the vacuum cleaner, and also the basic filter and the outlet filter are installed in the vacuum cleaner.

9 Press the on/off button to start the vacuum cleaner.
10 The vacuum cleaner is equipped with an electronic controller of suction power, which enables smooth regulation of suction power of the vacuum cleaner. Turn the dial up or down to respectively increase or decrease suction power.
11 The vacuum cleaner is also equipped with a mechanic suction power controller, which is situated on the hose handle. You may use it to slightly regulate the suction power without the need to use the dial.

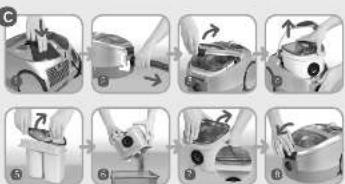

Installing/deinstalling the "CYKLON" dust container

The vacuum cleaner is equipped with a removable "CYKLON" dust container (which is a removable part of the vacuum cleaner) responsible for collecting dirt. After the "CYKLON" dust container is full, it has to be emptied.

The vacuum cleaner is equipped with a safety valve situated in the chamber of the vacuum cleaner. It opens up automatically when the suction hose or any elements attached to it are completely clogged up, and when the "CYKLON" dust container is overfilled. After the valve is open, you will hear a characteristic fluttering in the vacuum cleaner.

1 Press the on/off button (6) to stop the vacuum cleaner. Remove the plug of the cord from the socket.

2 Turn the end of the suction hose counter-clockwise, and remove the end of the hose from the inlet of the vacuum cleaner.
3 Release the fastening of the upper cover (5), and open it.
4 Remove the "CYKLON" dust container from the vacuum cleaner. In order to do this hold the body of the vacuum cleaner by one hand, grab the special handgrip situated on the cover of the dust container by the other, and by holding it like that gently remove the "CYKLON" dust container out of the vacuum cleaner.
5 Pull the fastenings on the cover of the "CYKLON" dust container aside, and remove the cover from the container.
6 Move the "CYKLON" dust container over a dustbin, and empty its contents.

After doing this, check the EPA E12 basic filter, and clean or replace it, if necessary.

7 Place the cover of the "CYKLON" dust container on the container in such a way that the fastening situated in the front part of the cover is inserted into the projection of the container. Press the back part of the cover in such a way that the fastenings are shut tight on the body of the container.

The "CYKLON" dust container has to be shut tight. Otherwise, the suction power of the vacuum cleaner is going to drop.

8 Place the emptied "CYKLON" dust container into the chamber of the vacuum cleaner. Close the upper cover of the vacuum cleaner by pressing it, until you hear a characteristic "click."

It is necessary to empty the "CYKLON" dust container, if you notice that:

a) the vacuum cleaner works less efficiently, b) the "CYKLON" dust container is full.

Deinstalling the filters

The vacuum cleaner is equipped with the "CYKLON" dust container based on cyclone filtration, making it possible to use the vacuum cleaner without a dust bag. A cyclone filter uses air stream swirling to separate solid dirt. Separation of dirt is done in an O-shaped part of the container, where the swirling air casts away dirt on the wall of the container, and then through the hole into the adjacent chamber of the container.

This pre-filtered air is directed into the washable EPA E12 conical filter stopping the tiniest fractions of dust. A special filtration material used in the washable EPA E12 filter makes it possible to rinse the filter with running water, if it is dirty, and reuse it later. At the outlet of the vacuum cleaner there is a microfilter installed.

In case the EPA E12 basic filter (14) or the outlet microfilter (13) are dirty, they can be replaced with new ones, cleaned or rinsed with running water.

It is forbidden to wash filters in washing machines or dishwashers.

Filters may be dried only naturally.

Do not use hairdryers, heaters or radiators to dry filters.

Before replacing the filters make sure the vacuum cleaner is off, and the plug of the cord is unplugged from the socket.

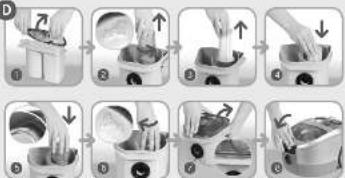

EPA E12 BASIC FILTER

It is necessary to periodically clean the EPA E12 basic filter to remove small fractions of dust.

Remove the "CYKLON" dust container and empty it, as described in para. C.

1 Pull the fastenings on the cover of the "CYKLON" dust container aside, and remove the cover from the container. If the "CYKLON" dust container is full, empty it as described in para. C.

2 Remove the protective casing of the EPA E12 basic filter out of the dust container. In order to do this turn the protective casing of the EPA E12 basic filter in the direction given on the symbol "☐" it is situated along with an arrow on the protective casing of the EPA E12 basic filter).

- Clean, wipe, and carefully dry the casing.

3 Remove the EPA E12 basic filter from the container.

- Clean the pleats of the EPA E12 basic filter (14), and if the filter is damaged, it should be definitely replaced with a new one. If the EPA E12 basic filter (14) is dirty, you may replace it with a new one, clean it or rinse it with running water. Before reinstalling the filter, make sure it is dry.

For safety reasons it is unacceptable to install a wet or damaged EPA E12 basic filter (14).

4 Place the new/rinsed EPA E12 basic filter (14) in the previously determined spot in the dust container.
5 Situate the protective casing of the EPA E12 basic filter in the chamber of the container, in the previously determined spot. Pay attention that the protrusions situated on the flange of the container are inserted in the sockets of the body of the container.
6 Turn the protective casing of the EPA E12 basic filter in the direction given on the symbol "hit is situated along with an arrow on the protective casing of the EPA E12 basic filter).
7 Place the cover of the "CYKLON" dust container on the container in such a way that the fastening situated in the front part of the cover is inserted into the projection of the container. Press the back part of the cover in such a way that the fastenings are shut tight on the body of the container.
8 Situate the "CYKLON" dust container with the installed EPA E12 basic filter (14) in the chamber of the vacuum cleaner. Close the upper cover of the vacuum cleaner by pressing it, until you hear a characteristic "click."

We advise you to replace the EPA E12 basic filter (14) with a new one every 6 months of use.

Always replace a damaged EPA E12 basic filter with a brand new, original one.

OUTLET MICROFILTER

1 In order to replace the outlet microfilter (13) press the blocking mechanism on the cover of the outlet filter, and then remove the cover of outlet filter out of the vacuum cleaner.
2 Remove the outlet filter from the cover.

If the outlet microfilter (13) is dirty, you may replace it with a new one, clean it or rinse it with running water. Before reinstalling the filter, make sure it is dry.

For safety reasons, it is unacceptable to install a wet or damaged outlet microfilter.

3 Situate the new/rinsed filter carefully onto the 4 fastenings of the outlet filter cover with the foam sides towards themselves.

4 Place the filter cover in such a way that the two protrusions situated in the lower part of the cover are inserted into the holes in the body of the vacuum cleaner, and then press the filter cover to snap the fastening in the body shut. A characteristic "click" signalizes the filter cover has been properly installed.

Always replace a damaged microfilter with a brand new, original one.

After-work procedures, cleaning and maintenance

1 Press the on/off button to stop the vacuum cleaner.
2 Remove the plug of the cord from the socket.
3 Wind the cord by pressing the cord winder button (8). Hold the cord when doing it to avoid tangling the cord up or letting the plug hit the vacuum cleaner.
4 Disconnect the telescopic suction pipe from the nozzle or brush.
5 Disconnect the suction tube from the hose. In order to remove the telescopic tube from the hose handle, simultaneously press the lock "A" and pull the tube in the direction indicated by the arrow.
6 Turn the end of the suction hose counter-clockwise, and remove the end of the hose from the inlet of the vacuum cleaner.
7 The vacuum cleaner may be store in a horizontal position. In order to do this place the hook of the nozzle brush into the fastening of the nozzle brush situated at the back of the vacuum cleaner, near the entrance of the power cord. The hose may stay attached to the vacuum cleaner as long as it is not bent too much during storage.
8 If necessary, clean the casing and the chamber of the vacuum cleaner with a damp cloth (it may be damped in dishwashing liquid), dry it off, and wipe it dry.

Do not use any scrubbing agents or solvents.

Examples of problems you may encounter when using the vacuum cleaner

PROBLEM SOLUTION

A characteristic fluttering in the vacuum cleaner is heard.

• Check the "CYKLON" dust container and other accessories. Remove the reason for the clog-up or empty and clean the "CYKLON" dust container.
• Replace or clean the filters.

The vacuum cleaner works less efficiently.

Empty and clean the "CYKLON" dust container, replace or clean the filters, check the suction pipe, the hose, and the nozzle - remove the reason for the clog-up.

The cut-out of the wiring system has been triggered.

Check if there are any other devices, besides the vacuum cleaner, plugged into the same electrical circuit. If the cut-out is triggered again, have the vacuum cleaner repaired in a servicing center.

The vacuum cleaner does not work; the body or the power cord is damaged.

Have the vacuum cleaner repaired in a servicing center.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/EC. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it

must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take

discarded appliances to special refuse collection points may be penalised. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused.

For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling. The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
