USER MANUAL GC-PW 1215 EINHELL

GB Original operating instructions Petrol water pump

Hand operating a mechanical pump assembly with a hand adjusting the shaft (no visible text or symbols)

Close-up of a mechanical pump assembly with a hand adjusting the shaft (no visible text or symbols)

6 B A C D

7 A B

8 H L

Close-up of a mechanical device with internal components and a hand holding a tool (no visible text or symbols)

Close-up of a hand inserting a plastic component into an electronic device (no visible text or symbols)

Close-up of a hand placing a textured component into an electronic device (no visible text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Close-up of a mechanical engine component with no visible text or symbols

Close-up of a mechanical assembly with visible components and wiring (no text or symbols)

Close-up of a hand adjusting a mechanical component with a circular arrow indicating rotation (no visible text or symbols)

16

1

2

Warning symbol and pictogram showing a triangular warning sign with an exclamation mark and a person reading a book.

Safety warning sign showing a person moving a rectangle with bidirectional arrow and a warning triangle indicating heating.

Two safety symbols: a fuel pump and a vehicle with a crossed-out valve, commonly used in parking or emergency services.

Warning sign with exclamation mark and crossed-out house symbol

3

4

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Explanation of the warning signs on the equipment (Fig. 16)

1. Important! Read the operating instructions.
2. Important! Hot parts. Keep your distance.
3. Important! Switch off the engine before refueling.
4. Important! Never operate in non-ventilated rooms.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1 Petrol tank
2 Carry handle
3 Filler neck
4 Pressure connection
5 Suction connection
6 Drain screw
7 Oil fi ller screw / Oil dipstick
8 Oil drain plug
9 Starter cord
10 On/Off switch
11 Air filter
12 Intake cage
13 Oil fi ller funnel
14 Spark plug wrench
15 Open-ended spanner (8/10 mm)

16 Screwdriver
17 2x Union nut
18 2x Seal
19 2x Hose connector 1.5"
20 3x Hose clip

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions

• Safetyinstructions

3. Proper use

The machine is suitable for irrigating and watering landscaped areas, vegetable beds and gardens and for operating lawn sprinklers. The water can be taken from ponds, streams, rainwater butts, rainwater cisterns and springs if an initial filter is fitted. The maximum temperature of the fluid must not exceed +35^ if the machine is operated permanently. Clean water (sweet water), rainwater and low concentrations of washing lye can be used as the transport medium. The machine must not be used to transport infl ammable, gassing, explosive and aggressive fl uids (such as petrol, acids, lyes, silo percolating juice, etc.) and fl uids that contain abrasive substances (such as sand).

GB

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Engine type: 4-stroke engine; air-cooled Max. engine output: 1.2 kW / 1.6 bhp Displacement: 98 cc Fuel: Regular unleaded petrol Tank capacity: 1.4 l Oil volume: 400 ml Spark plug: Torch E5RTC Max. intake head: 7 m Max. delivery head: 16 m Max. pressure: 1.6 bar Weight (with empty tank): 12.4 kg Intake/Discharge connector: 1.5" hose connection

5. Before starting the equipment

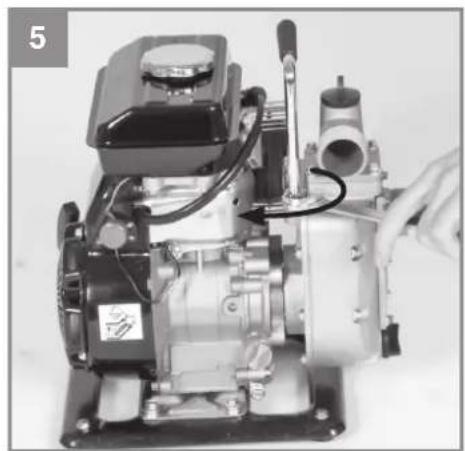

Fit the carry handle as shown in Figure 4-5.

As a basic principle, we recommend the use of a preliminary fi-Iter and a suction set with suction hose, suction strainer and non-return valve, in order to prevent long priming periods and unnecessary damage to the pump as a result of stones and solid foreign bodies.

5.1 Preparing the machine

• Fill the engine with engine oil (see also point 7.2.1 Oil change).
  • Fill the tank with petrol.
• Place the machine on a flat, firm surface.

5.2 Connecting and routing the intake and discharge lines

• Connect the intake line to the intake connection (Figure 1 / Item 5) and the discharge line to the discharge connection (Figure 1 / Item 4).
• Position the intake line so that it rises from the water withdrawal point to the pump. It is essential that you do not route the intake line above the height of the pump. Air bubbles in the intake line will slow down and prevent the intake process.
  • Install the intake and discharge lines in such a way that they do not exert any mechanical pressure on the pump.
• The intake valve should be low enough in the water to ensure that if the water level falls, the pump will not run dry.
• A leaking intake line will draw in air and therefore not draw in any water.
• Do not draw in any foreign bodies (sand, etc.). If necessary install an initial filter.

6. Operation

The pump must be filled with the transport fluid at the filler neck (Figure 1 / Item 3) before the engine is started.

Note: We advise that you install a non-return valve in the intake line and fill it with water before you start the machine for the first time.

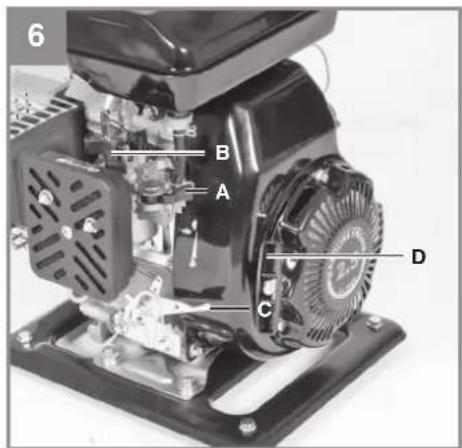

6.1 Starting the engine

1. Set the On/Off switch (Figure 1 / Item 10) to "ON".
2. Set the petrol cock (Figure 6 / Item A) to the "ON" position.
3. If the engine is cold, set the choke lever (Figure 6 / Item B) to "Choke".
4. Move the throttle lever (Figure 6 / Item C) to the center position.
5. Pull the starter cord (Figure 6 / Item D) until the engine starts.
6. When the engine has been running for approx. 30 seconds, move the choke lever to "Run".
   If the engine is warm, leave the choke lever in the "Run" position when starting.

GB

Explanation of the positions of the throttle lever (Figure 6 / Item C):

"Tortoise":

Engine in idling

"Hare":

Maximum delivery rate

6.2 Intake process

• During the priming process, the shut-off devices present in the pressure pipe (spray nozzles, valves etc.) must be completely open so that the air in the suction pipe can escape freely.
• Depending on the suction height and the air quantity in the suction pipe, the initial priming process can last for approx. 0.5 min. – 5 min. In the case of longer priming periods, top up again with water.
• If the pump is removed after use, it is essential that it is filled with water again the next time it is connected and started.

6.3 Stopping the engine

- Set the On/Off switch to "OFF".

- Close the petrol cock.

7. Cleaning, maintenance, storage and ordering of spare parts

Danger!

Disconnect the spark plug boot before doing any cleaning and maintenance work!

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

7.2 Maintenance

In this connection, please also read the attached service information

7.2.1 Changing the oil

The engine oil is best changed when the engine is at working temperature

• Use only engine oil.
- Place the machine on a slightly inclined surface so that the oil drain plug is at the lower end (Figure 7 / Item A).

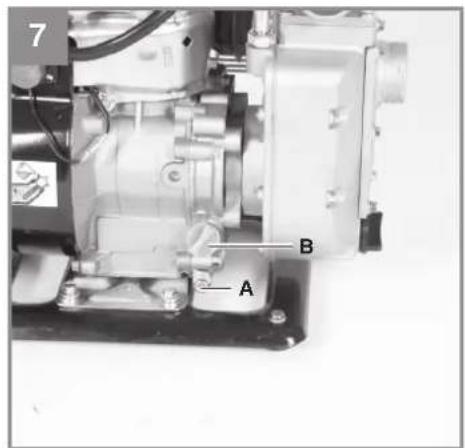

- Remove the oil filler screw (Figure 7 / Item B).
- Remove the oil drain plug and drain the warm engine oil into a suitable container.
• After all the oil has drained, screw in the oil drain plug and place the machine on a flat surface.

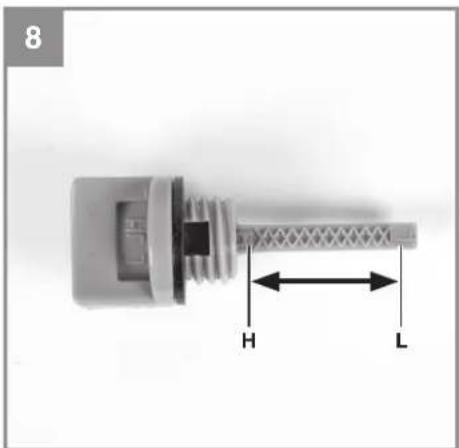

- Insert fresh engine oil up to the top mark on the oil dipstick (Figure 8 / Item H). Important. Only inset the oil dipstick to check the oil level. Do not screw it in.

While the machine is working, the oil level must be between the two marks "L" and "H" (Figure 8). Dispose of the waste oil properly.

7.2.2 Air fi Iter

Clean the air filter at regular intervals, and replace it if necessary.

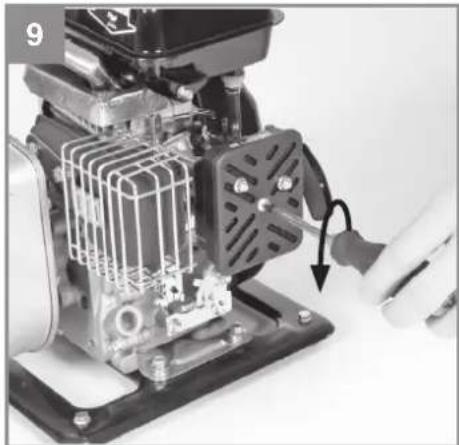

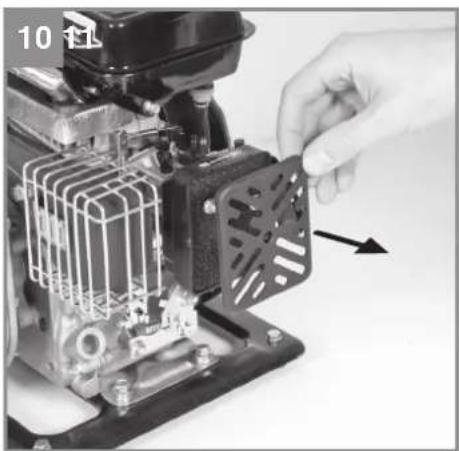

• Remove the air filter cover (Figure 9-10)

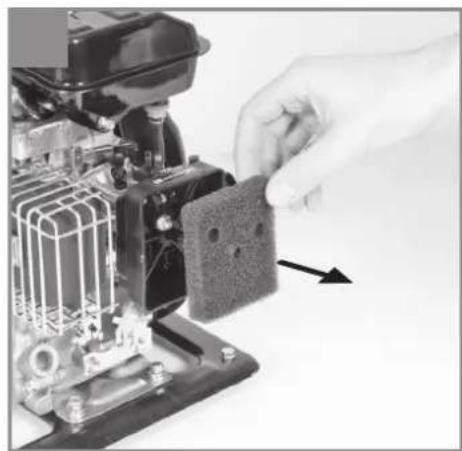

• Remove the filter insert (Figure 11)
• Clean the air filter by tapping it, blowing it out with compressed air or by washing it with soap suds. Important. Leave the air filter to dry before you refit it.
  • Assemble in reverse order.

7.2.3 Spark plug

Clean the spark plug at regular intervals, and replace it if necessary. Set the electrode gap to 0.6 mm.

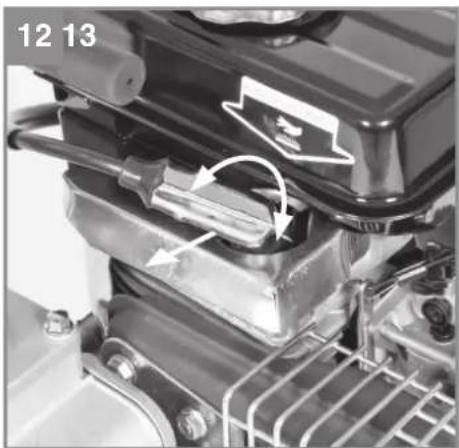

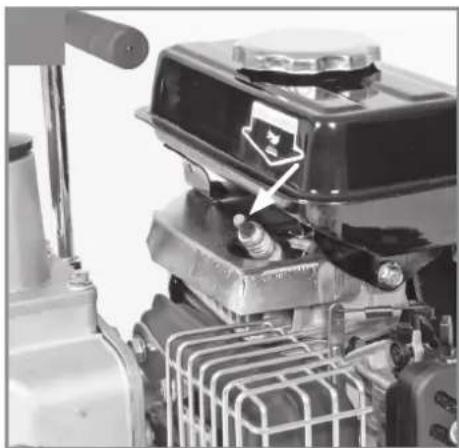

• Remove the spark plug boot by twisting it (Figure 12)
• Remove the spark plug using a spark plug wrench (Figure 13)
• Clean the spark plug with a copper wire brush or fit a new one.
  • Assemble in reverse order.

GB

7.2.4 Fuel fi Iter

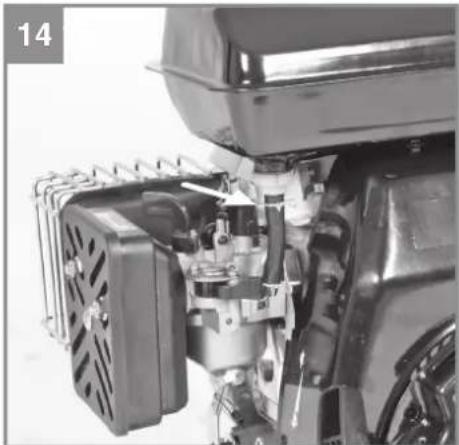

- Remove the fuel line (Figure 14)

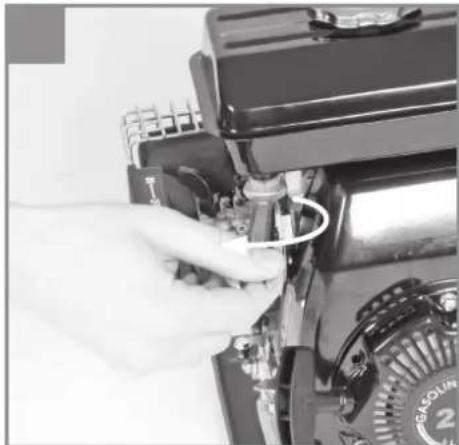

• Unscrew the fuel filter from the tank (Figure 15)
- Clean the fuel filter with compressed air. Ensure that you do not damage the filter.
• Assemble in reverse order.

7.3 Storage

• Rinse the pump thoroughly with water before lengthy periods of inactivity or winter storage.
• Close the petrol cock and allow the engine to run until it stops to empty the carburetor.
  • Fill the tank fully to prevent rust formation.
• Remove the drain plug (Figure 1 / Item 6) and fully drain the pump housing.
• Store the machine in a dry place out of the reach of children.

7.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

GB

9. Troubleshooting

Fault Cause	Remedy
Engine does not start	- Spark plug fouled- Air fi liter dirty- No fuel in the tank- Automatic oil cut-out has not responded	- Clean or replace the spark plug- Clean the air fi liter.- Top up fuel.- Check oil level, top up engine oil
Pump fails to prime -	Intake valve not in the water- No water in the pump chamber- Air in the intake line- Intake cage (intake valve) blocked- Max. intake head exceeded	- Place the intake valve in the water- Fill the pump chamber with water through the fi ller neck- Check the intake line for leaks and seal it if necessary.- Clean intake cage- Check intake head and reduce it if necessary
Insuffi cient pumping rate	- Intake head too high- Intake cage soiled- Water level falling rapidly and intake line is out of the water- Pump performance reduced by deposits	- Check intake head and reduce it if necessary- Clean intake cage- Place the intake line at a deeper level- Clean pump

Important. The pump must not run dry.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*	Spark plug, air filter, fuel filter
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
