USER MANUAL PerfectView CAM 60ADR DOMETIC

Technical line drawing of a mechanical housing or enclosure with visible gears and mounting holes (no text or symbols)

PerfectView CAM60ADR

EN 23 Rear View Video Camera

Installation and operating manual

Technical diagram showing a mechanical assembly with intersecting lines and arrows indicating motion (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and cross marks, no readable text or symbols present.

4

Illustration of a hand using a tool to lift a cylindrical device with a handle, surrounded by motion lines (no text or symbols)

6 1 2 Ø 16 mm 3

7 1 3 2

8 90°

Technical line drawing of a mechanical device with internal components and a hanging rod (no text or symbols)

Technical line drawing of a mechanical bracket with screw fasteners and a curved structural element (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and a curved rail (no text or symbols)

Technical line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

13

14 ~50°

15 1. 1. 2.

16 17 A B

18

Technical line drawing of a mechanical assembly with wheels, gears, and a cable (no text or symbols)

Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols 23
2 Safety and installation instructions.... 24
3 Scope of delivery 27
4 Accessories 27
5 Intended use 27
6 Technical description 27
7 Information on the electrical connections. 28
8 Mounting the camera 29
9 Cleaning and caring for the camera. 34
10 Guarantee 34
11 Disposal 34
12 Technical data 35

1 Explanation of symbols

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
√This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety and installation instructions

The manufacturer accepts no liability for damage in the following cases:

● Faulty assembly or connection
● Damage to the product resulting from mechanical influences and excess voltage
- Alterations to the product without express permission from the manufacturer
● Use for purposes other than those described in the operating manual

Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops.

NOTICE!

To prevent the risk of short circuits, always disconnect the negative terminal of the vehicle's electrical system before working on it. If the vehicle has an additional battery, its negative terminal should also be disconnected.

WARNING!

Inadequate supply cable connections could result in short circuits, which could have as a consequence that:

• Cable fires occur
  ● The airbag is triggered
  ● Electronic control devices are damaged
• Electric functions fail (indicators, brake light, horn, ignition, lights)

Please observe the following instructions:

• When working on the following cables, only use insulated cable lugs, plugs and flat push-on receptacles:
• 30 (direct supply from positive battery terminal)
• 15 (connected positive terminal, behind the battery)
• 31 (return line from the battery, earth)
• L (indicator lights left)
• R (indicator lights right)

Do not use terminal strips.

- Use a crimping tool to connect the cables.

- When connecting to cable 31 (earth), screw the cable

- to the vehicle's earth bolt with a cable lug and a gear disc or

- to the sheet-metal bodywork with a cable lug and a self-tapping screw.

Ensure that there is a good earth connection.

If you disconnect the negative terminal of the battery, all data stored in the volatile memories will be lost.

- The following data must be set again, depending on the vehicle equipment options:

- Radio code

- Vehicle clock

- Timer

- On-board computer

- Seat position

You can find instructions for making these settings in the appropriate operating instructions.

Observe the following installation instructions:

CAUTION!

• Secure the parts of the parking aid installed in the vehicle in such a way that they cannot become loose under any circumstances (sudden braking, accidents) and cause injuries to the occupants of the vehicle.
• Secure any parts of the system covered by the bodywork in such a manner that they cannot be come loose or damage other parts and cables or impair vehicle functions (steering, pedals, etc).

- Always follow the safety instructions of the vehicle manufacturer. Some work (e.g. on retention systems such as the AIRBAG etc.) may only be performed by qualified specialists.

NOTICE!

• To prevent damage when drilling, make sure there is sufficient space on the other side for the drill head to come out.
  ● Deburr all drill holes and treat them with a rust-protection agent.

Observe the following instructions when working with electrical parts:

NOTICE!

• When testing the voltage in electrical cables, only use a diode test lamp or a voltmeter.
  Test lamps with an illuminant take up voltages which are too high and which can damage the vehicle's electronic system.
• When making electrical connections, ensure that:
  – they are not kinked or twisted
  – they do not rub on edges
  – they are not laid in sharp edged ducts without protection.
  ● Insulate all connections.
• Secure the cables against mechanical wear with cable binders or insulating tape, for example to existing cables.

The camera is watertight in accordance with IP69K. The seals on the camera can therefore withstand a high-pressure cleaner. Nevertheless, keep a distance of at least 50 cm between the nozzle of the high pressure cleaner and the camera.

Always observe the following instructions when handling the camera:

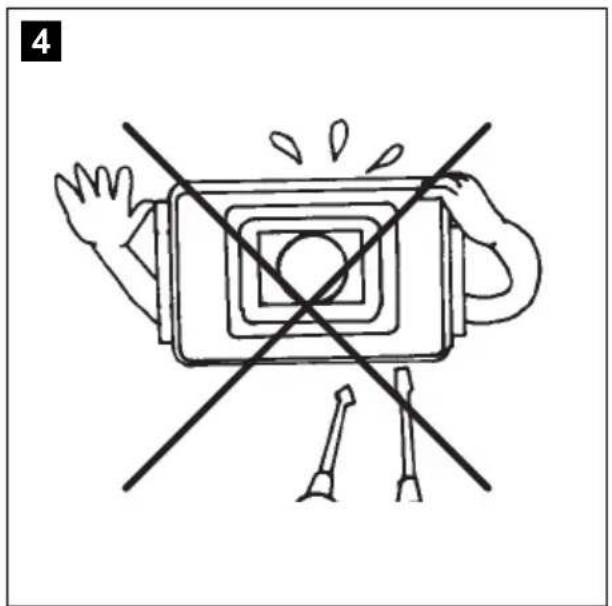

• Do not open the camera, as this impairs the sealing and the function of the camera (fig. 4, page 4).

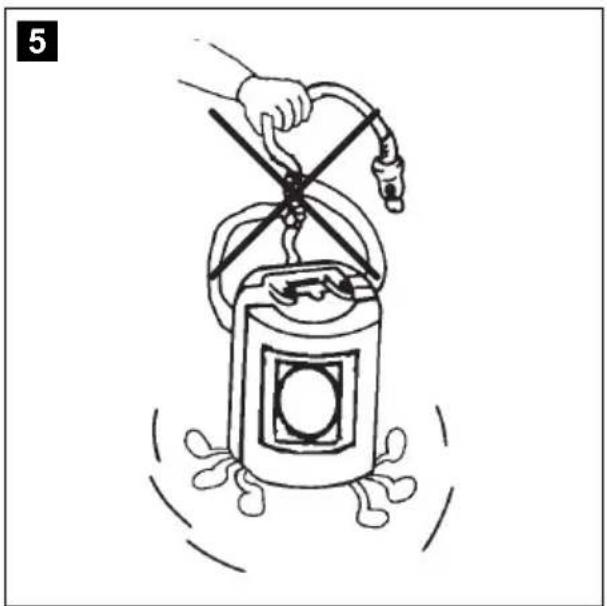

• Do not pull at the cables, as this impairs the sealing and the function of the camera (fig. 5, page 4).
  ● The camera is not suitable for submerged operation.

3 Scope of delivery

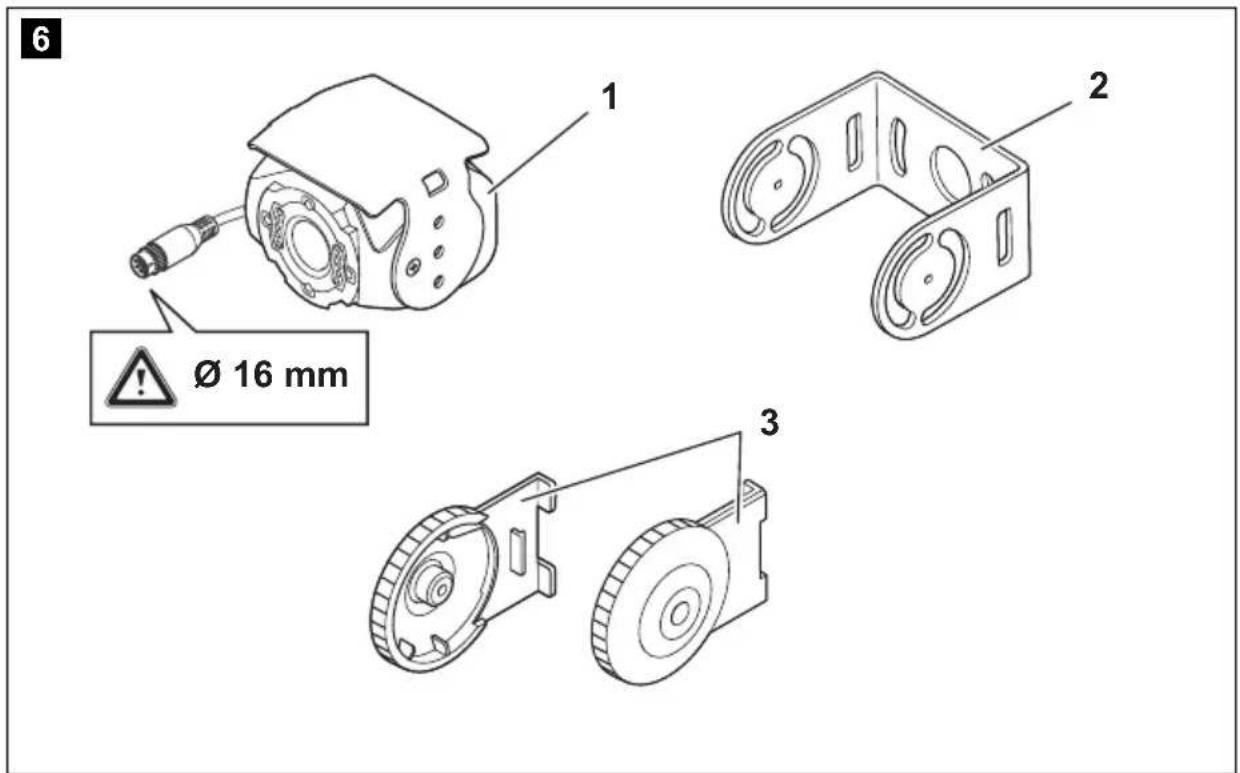

No. in fig. 6, page 5

Quantity Description Item number

1 1 CAM60ADR (compliant to ADR) 9102000065

2 1 Camera bracket 9102200166

3 2 Side covers

-- Fastening material

4 Accessories

Available as accessory (not included in scope of delivery):

Description Item number

Heavy duty system cable 20 m, compliant to ADR 9102200071

5 Intended use

The CAM60ADR camera (item no. 9102000065) is designed primarily for use in vehicles under extreme conditions. It can be used in video systems to observe the space around the vehicle from the driver's seat when manoeuvring or parking, for example.

CAM60ADR is compliant to ADR and can be used in vehicles for transport of hazardous goods.

WARNING!

Risk of injury!

Since rear view systems are designed merely as an additional aid for reversing, it does not relieve you of the duty to take proper care when reversing.

6 Technical description

The camera with integrated microphone, which is encased in aluminium housing, transmits image and sound to a monitor via a cable. The infrared LEDs improve night vision.

The camera transmits the image as if you are looking in the rear mirror.

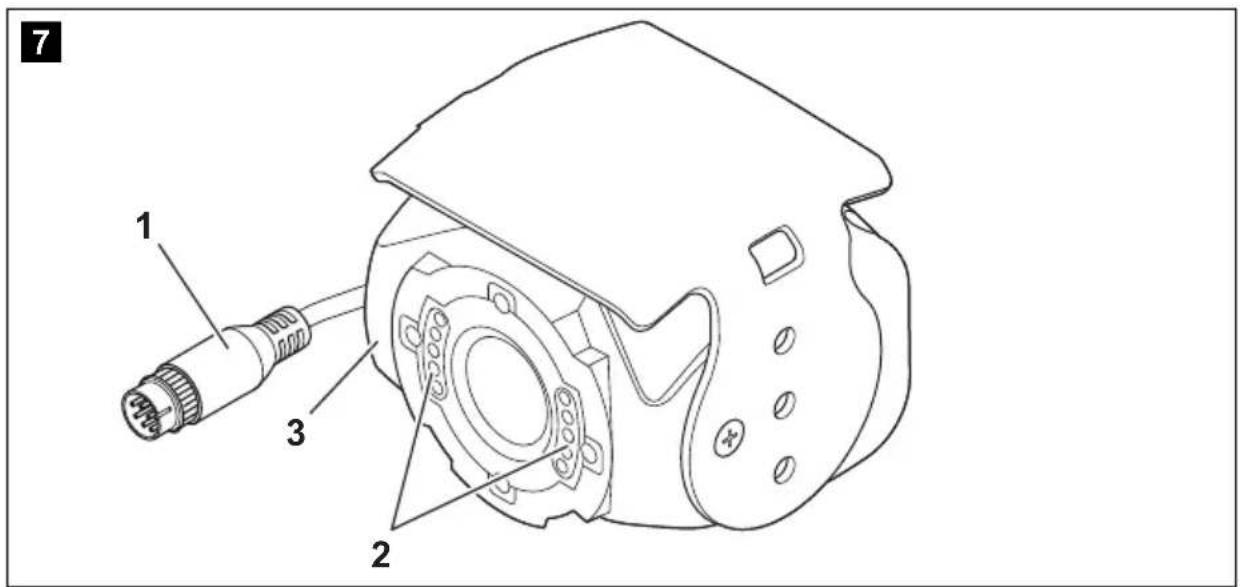

The camera consists of the following main elements:

No. in fig. 7, page 5	Description
1 6-pin connection cable
2 Infrared LEDs
3 Microphone

7 Information on the electrical connections

7.1 Laying cables

NOTICE! Risk of damage!

• To prevent damage, when drilling ensure that there is sufficient space on the other side for the drill head to come out.
• Cables and connections which are not properly installed will cause malfunctions or damage to components. Correct installation of cables and connections is the basic prerequisite for lasting and trouble-free operation of the retrofitted components.
• The cables may not be exposed for long periods to solvents such as benzine, as the solvents can damage the cable.

Please observe the following instructions:

• As far as possible, use original openings or alternative openings for the connecting cable duct, e.g. the paneling edges, ventilation grilles or blank panels. If no openings are available, you must drill holes for the cables. Check beforehand that there is sufficient room for the drill head to come out on the other side.

• Wherever possible lay cables inside the vehicle, as they are better protected inside than outside the vehicle. If you do need to lay a cable outside the vehicle, ensure that it is well secured (use additional cable ties, insulating tape, etc.).

• To prevent damage to the cables, when laying them ensure that there is sufficient distance to hot or moving vehicle components (exhaust pipes, drive shafts, light systems, fans, heater etc.). Use corrugated piping or other protective materials to protect against mechanical wear.

• Screw on the plug connections of the connecting cables to protect against water penetration (fig. 15, page 7).
• When laying electric connections, ensure that

– They are not kinked or twisted
– They do not rub on edges

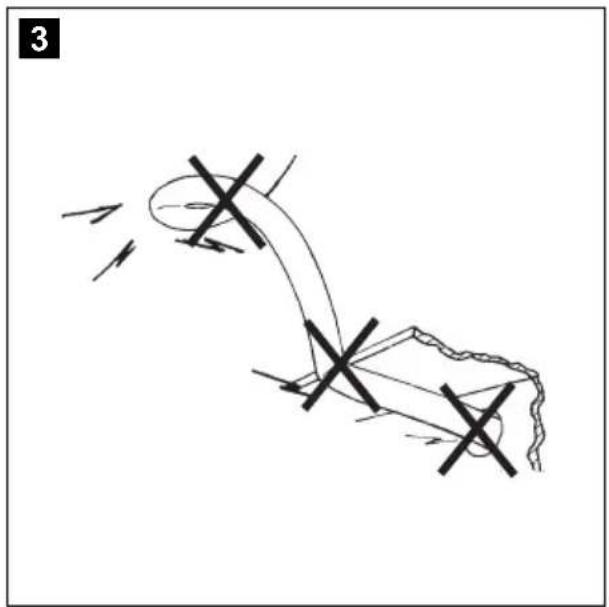

- They are not laid in sharp edged ducts without protection (fig. 3, page 4)

• Attach the cables securely in the vehicles to prevent tripping hazards. Use cable binders, insulating tape or glue the cables in place.
• Protect every through-hole made in the bodywork against water penetration, e.g. by using a cable with a sealant and by spraying the cable and the the cable sleeve with sealant.

NOTE

Do not start sealing the through-holes until all installation work has been finished for the camera, and the required cable lengths have been established.

8 Mounting the camera

8.1 Tools required

For installation and assembly you will require the following tools:

• Drill bit set (fig. 1 1, page 3)
• Drill (fig. 1 2, page 3)
• Screwdriver (fig. 1 3, page 3)
• Set of ring or open-ended spanners (fig. 1 4, page 3)
  ● Measuring ruler (fig. 1 5, page 3)
  ● Hammer (fig. 1 6, page 3)
• Centre punch (fig. 1 7, page 3)

To make and test the electrical connection, the following tools are required:

- Diode test lamp (fig. 1 8, page 3) or voltmeter (fig. 1 9, page 3)

● Insulating tape (fig. 1 11, page 3)

● Cable bushing sleeves, if necessary

To fasten the cables you may require additional cable binders.

8.2 Mounting the camera

CAUTION!

Select a location for the camera and attach it so securely that it cannot under any circumstances fall off and injure bystanders (e.g. by being knocked off by branches brushing over the roof of the vehicle).

NOTE

If installing the camera alters the vehicle height or length specified in the vehicle documents, your vehicle must be inspected by the appropriate authorities.

Make sure that you are in possession of documents verifying that your vehicle has passed this inspection.

Observe the following installation instructions:

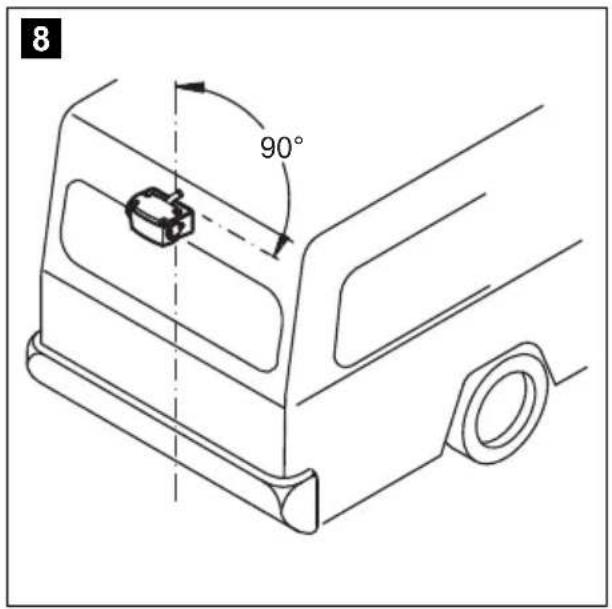

• To provide a suitable viewing angle, the camera must be attached at a height of at least 2 m.
  Ensure that you have a firm place from which to work when mounting the camera.
• Ensure that the installation location of the camera is sufficiently firm (e.g. to prevent the camera from being knocked down by branches that may brush over the roof of the vehicle).
• Mount the camera bracket horizontally and in the middle of the rear of the vehicle (fig. 8, page 6).

- The most secure type of attachment is with screws fitted through the body. Please observe the following instructions:

• There must be sufficient space for the mounting procedure behind the chosen installation location.
• Suitable measures must be taken to prevent water penetrating through any holes made (e.g. by using screws and sealant and/or spraying the outer attachment parts with a sealant).
• The location on the body where you wish to attach the camera must be rigid enough to allow the camera to be tightly fastened.

- Check beforehand that there is sufficient room for the drill head to come out on the other side (fig. 2, page 4).

- If you are not sure about the location you have chosen, consult the vehicle manufacturer or dealer.

NOTE

We recommend greasing the threads of the bolts to prevent corrosion.

When mounting the camera, proceed as follows:

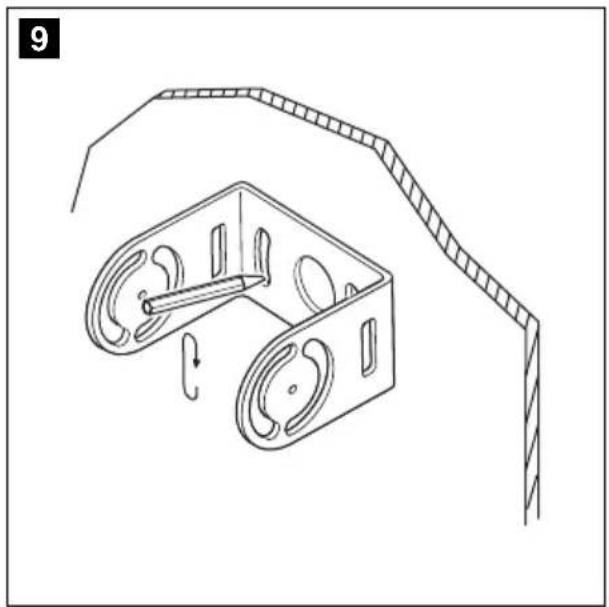

▶Hold the camera on the chosen location and mark at least two different points for the drill holes (fig. 9, page 6).
▶ Using a hammer and centre punch, gently pre-punch the previously marked points to prevent the drill head from slipping off.

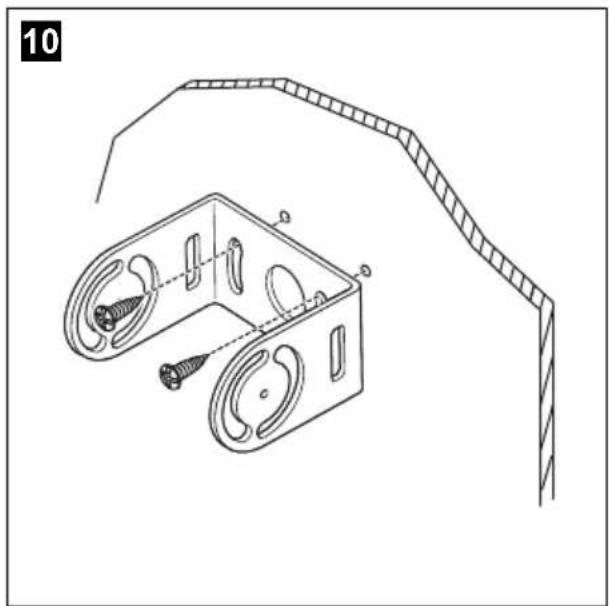

If you want to screw on the camera with self-tapping screws (fig. 10, page 6)

NOTICE! Risk of damage!

The holder may only be attached to steel panels with a minimum thickness of 1.5 mm using self-tapping screws.

▶ Drill ∅ 4 mm holes at the points you have just marked.
▶ Deburr all drill holes and apply rust-protection.
▶ Screw the camera bracket on with the 5 x 20 mm self-tapping screws.

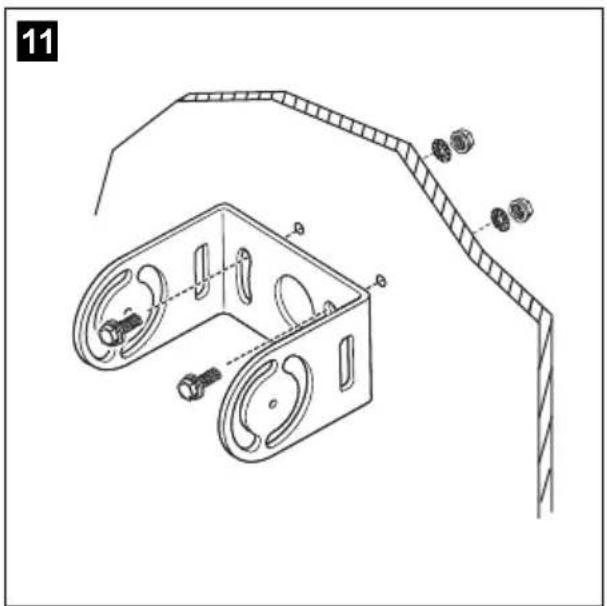

If you would like to attach the camera with threaded screws fitted through the construction (fig. 11, page 6)

NOTICE! Risk of damage!

Ensure that that nuts cannot be pulled through the body shell when they are tightened.

Use larger washers or metal plates if necessary.

▶ Drill ∅ 6.5 mm holes at the points you have just marked.
▶ Deburr all drill holes and apply rust-protection.
▶ Screw the camera bracket on with the M5 x 20 mm threaded screws. Depending on the thickness of the construction, you may require longer threaded screws.

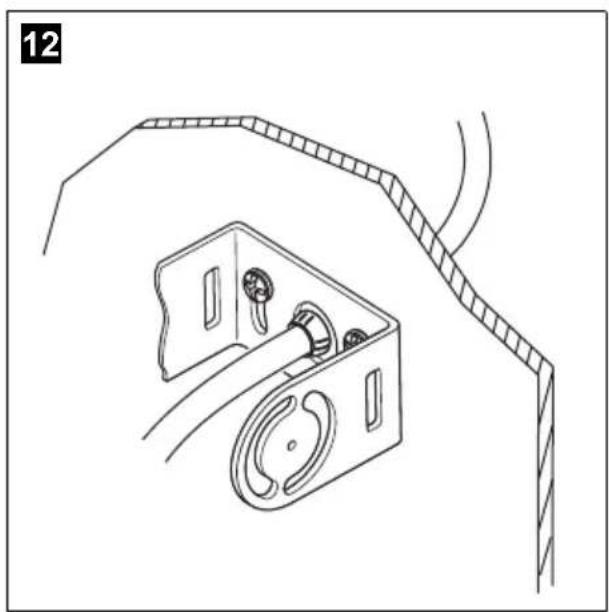

Creating a through-hole for the camera connection cable (fig. 12, page 6)

NOTE

If possible, use available openings – such as ventilation grilles – to feed the connection cables through. If there are no existing openings, you must drill a hole with a 16 mm diameter.

NOTICE! Risk of damage!

Ensure that there is sufficient space on the other side for the drill head to come out

▶ Drill a hole of ∅ 16 mm near the camera.
▶ Deburr all drill holes that have been made in the sheet metal and apply rust-protection.
▶Place cable sleeves in all sharp edged ducts.

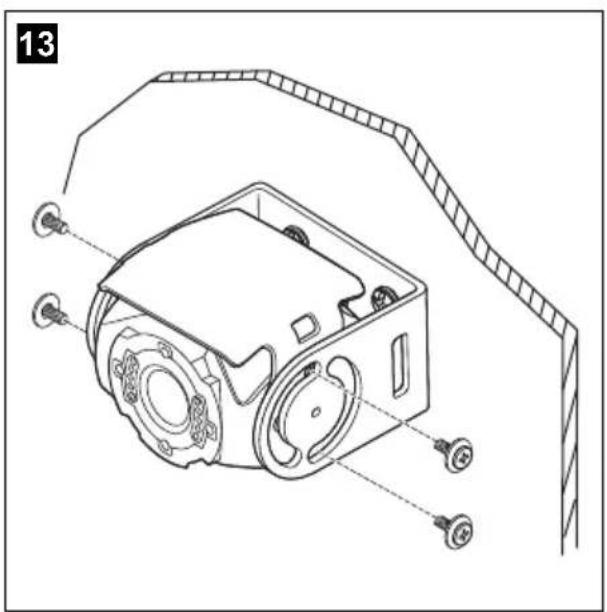

Mounting the camera

NOTICE! Risk of damage!

Only use the screws supplied to mount the camera in the camera bracket. Longer screws will damage the camera.

▶Push the camera into the camera bracket.
▶ Attach the camera loosely with the two screws M3 x 8 mm in the slots (fig. 13, page 6).

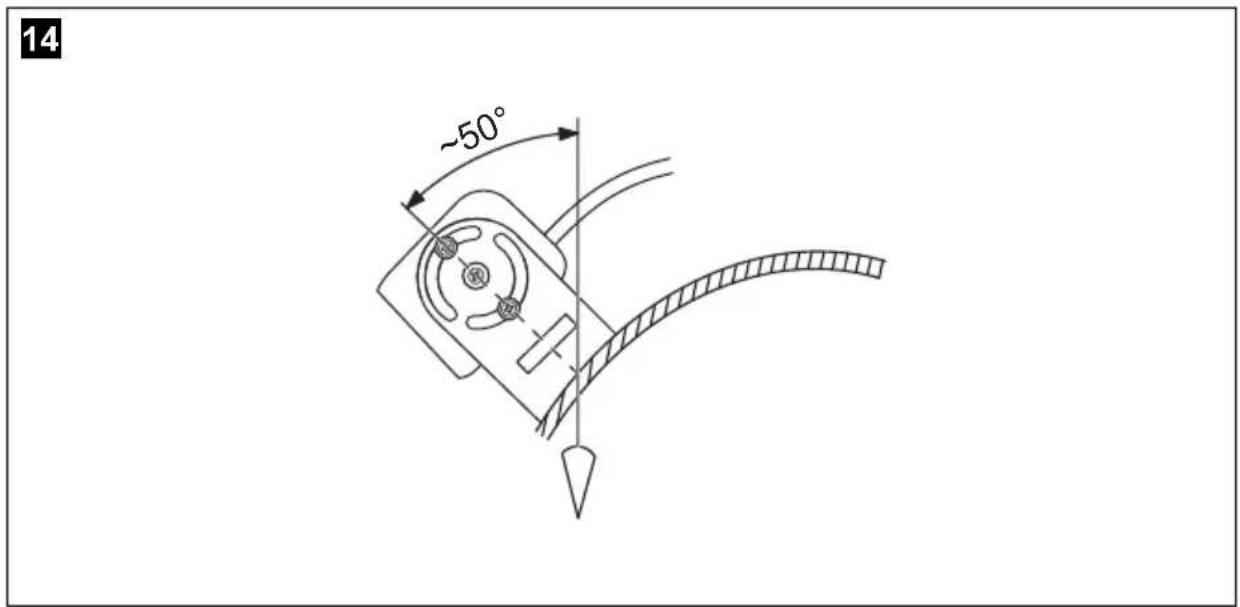

▶Align the camera provisorily so that the lens is at an angle of approx. 50° to the perpendicular axis of the vehicle (fig. 14, page 7).

NOTICE! Risk of damage!

Never mount the camera without the camera guard.

Connecting the camera

NOTE

• Lay the camera cable so that should you need to remove the camera, you can access the plug connection between the camera and the extension cable easily. This considerably eases dismantling work.
• To minimise corrosion in the plug, apply a small amount of grease – such as pin grease – inside the plug.
• Additional extension cables are available on request (see "Accessories" on page 27).

▶Guide the camera cable into the vehicle interior.
▶ Insert the plug of the camera cable into the socket of the extension cable.

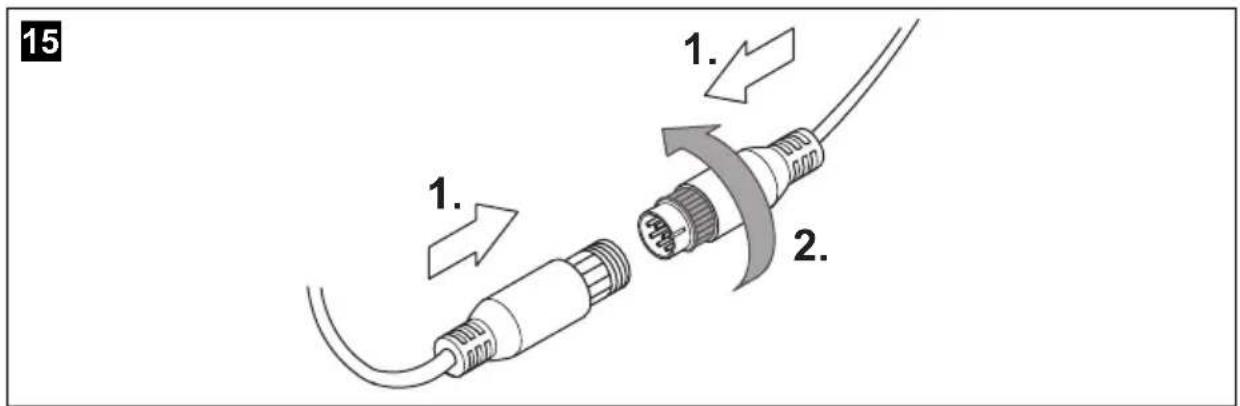

▶Screw on the plug connections of the connecting cables to protect against water penetration (fig. 15, page 7).

Aligning the camera

NOTE

If necessary before aligning the camera connect the camera to a monitor and to a power supply (see connecting diagram, fig. 16, page 7

▶Use the monitor image to align the camera:

The monitor image should show the bottom edge of the rear or the bumper of your vehicle (A). The middle of the bumper should be in the middle of the screen. (fig. 17, page 7).

▶ Check the function of the camera after you have connected it to a monitor.

Fastening the camera

▶Thighten the two screws in the slots of the camera bracket.

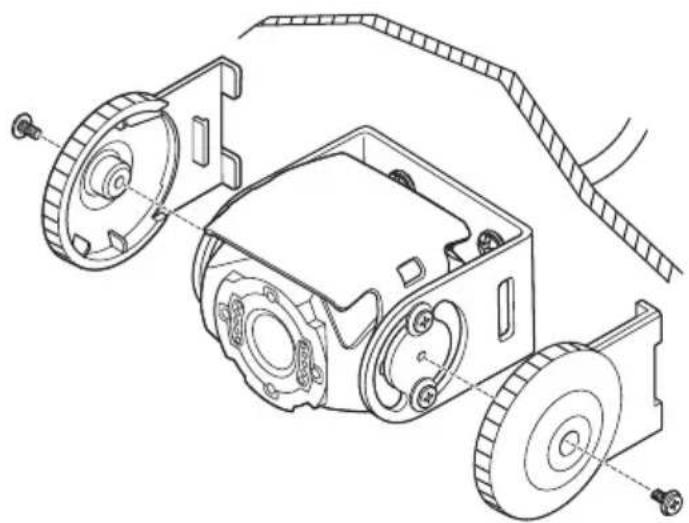

Mount the side covers with the two screws M3 x 8 mm in the middle drill holes (fig. 18, page 8).

9 Cleaning and caring for the camera

NOTICE! Risk of damage!

Do not use sharp or hard objects to clean the device as these may damage the device.

▶Clean the camera with a soft, damp cloth from time to time.

10 Guarantee

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please send the following items:

• Defect components
  ● A copy of the receipt with purchasing date
  ● A reason for the claim or description of the fault

11 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	PerfectView CAM60ADR
Item no.: 9102000065
Image sensor: 1/3" CCD
Pixels: Approx. 290,000 pixels
Video standard: PAL, 1 Vpp
Sensitivity: < 0.5 lux
Viewing angle: Approx. 69° vertical	Approx. 92.5° horizontalApprox. 120° diagonal
Operating voltage: 11 – 16 V==
Consumption: 4.8 W
Operating temperature: -30 °C bis +70 °C
Protection class: IP69K
Vibration resistance: 10 g
Dimensions W x H x D (with bracket):	80 x 75 x 62 mm
Weight:	Approx. 0.3 kg

Approvals

The device has E13 certification.

6 Description technique

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

[phone]

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Commercial : [e-mail]

SAV/Technique : [e-mail]

HONG KONG

WAECO Impex Ltd.

Suites 2207-2211 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

Hong Kong

[phone]

吕 [phone]

Mail: [e-mail]

HUNGARY

Dometic Plc. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

[phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47100 Forli

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

Skolmar 24

N-3232 Sandefjord

[phone]

吕 [phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

02-801 Warszawa

Poland

[phone]

[phone]

Mail: [e-mail]

RUSSIA

Dometic RUS LLC

Komsomolskaya square 6-1

107140 Moscow

Russia

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o.

Tehelná 8

SK-98601 Fil'akovo

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang (Zürich)

[phone]

[phone]

Mail: [e-mail]

TAIWAN

WAECO Impex Ltd.

Taipei Office

2 FL-3 · No. 56 Tunhua South Rd, Sec 2

Taipei 106, Taiwan

[phone]

昌 [phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House · The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

昌 [phone]

Mail: [e-mail]

UNITED ARAB STATES

Dometic Middle East FZCO

P. O. Box 17860

S-D 6, Jebel Ali Freezone

Dubai, United Arab Emirates

[phone]

[phone]

Mail: [e-mail]

UNITED STATES OF AMERICA

Dometic Marine Division

2000 N. Andrews Ave. Extension

Pompano Beach, FL 33069 USA

[phone]

[phone]

Mail: [e-mail]
