USER MANUAL Pico FTC 2X2 TC DOMETIC

Three identical 3D illustrations of a tent with different canopy structures, shown from different angles (no text or symbols)

Santorini FTK4X8/2X4, Reunion FTG5X5/4X4, Pico FTC2X2/1X1TC-I

Tent EN Installation and Operating Manual .... 10
DE Zelt Montage- und Bedienungsanleitung ..... 14
Tente FR Instructions de montage et d'utilisation ..... 18
TIenda ES Instrucciones de montaje y de uso ..... 22
PT Tenda Instruções de montagem e manual de instruções 26
Tenda Istruzioni di montaggio e d'uso ....30
Tenda NL Montagehandleiding en gebruiksaanwijzing ... 34
Telt DA Monterings- og betjeningsvejledning ....38
SV Tält Monterings- och bruksanvisning....42
NO Telt Monterings- og bruksanvisning ....46
Telta Asennus- ja käyttöohje....50
Namiot PL Instrukcja montażu i obsługi ....54

SK Stan Návod na montáž a uvedenie do prevádzky.... 58
CS Stan Návod k montáži a obsluze.... 62
Sátor HU Szerelési és használati útmutató .... 66
HR Šator Upute za montažu i rukovanje .... 70
TR Çadır Kurulum ve İşletme Kılavuzu....74
SL Šotor Navodila za montažo in uporabo. 78
Cort RO Manual de instalare și de utilizare .... 82
BG Палатка Ръководство за инсталация и работа ..... 86
ET Telk Paigaldus- ja kasutusjuhend .... 90
EL Σκηνή Εγχειρίδιο τοποθέτησης και χρήσης .....94
Palapinė Montavimo ir naudojimo vadovas .... 98
Telts Uzstādīšanas un lietošanas rokasgrāmata .....102

© 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

1

Santorini FTK 4X8

215 425 625

Santorini FTK 2X4

215 455

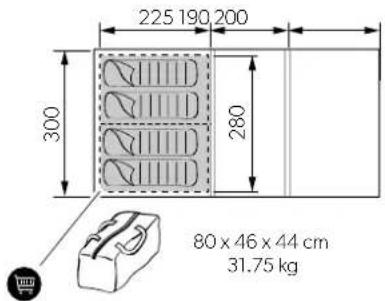

225 190 200 300 280 80 x 46 x 44 cm 31.75 kg

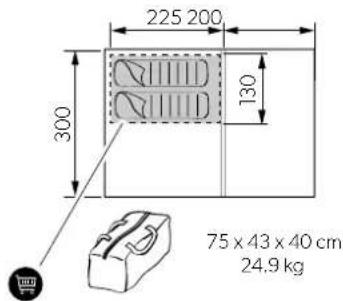

225 200 300 130 75 x 43 x 40 cm 24.9 kg

Ref. No. 9120002121
Ref. No. 9120002124

Reunion FTG 5X5

160 330 375

Reunion FTG 4X4

156 280 325

28545 45 285

23545 45 235

70 × 30 × 30 cm 14.22 kg

60 × 30 × 30 cm 12.52 kg

Pico FTC 2X2 TC-i

90 255

Pico FTC 1X1 TC-i

215 2020 140

68 × 29 × 29 cm 10.98 kg

65 × 28 × 28 cm 9.34 kg

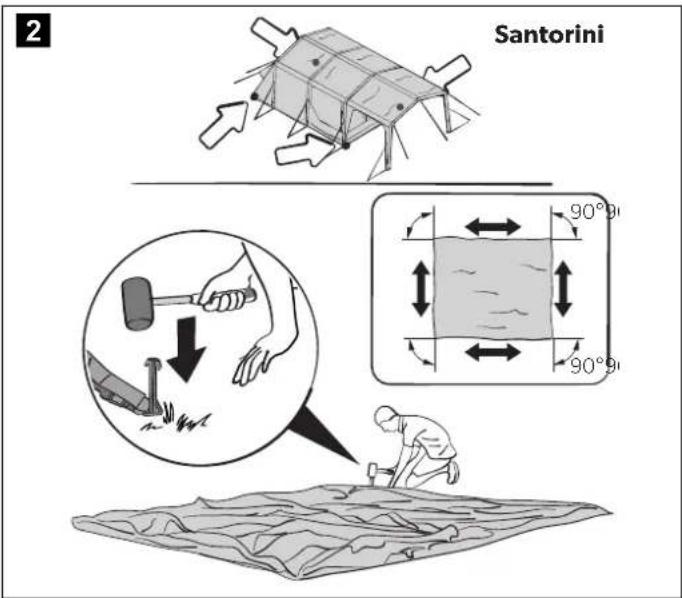

2 Santorini 90°91 90°91

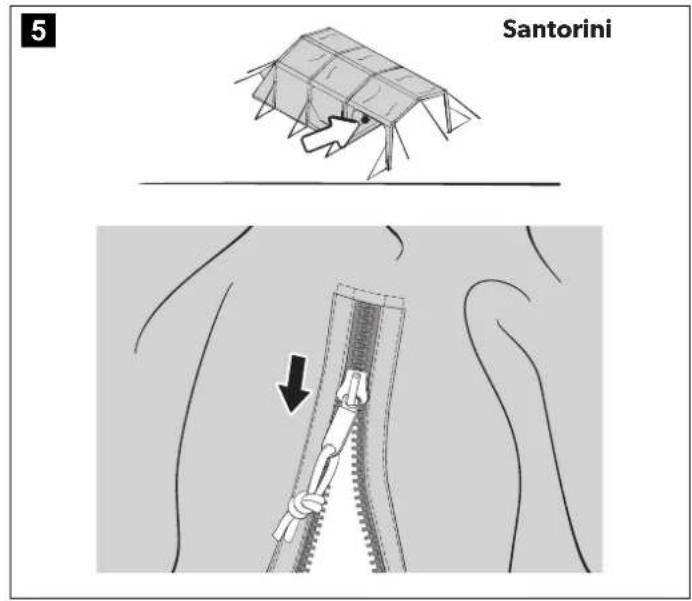

5 Santorini

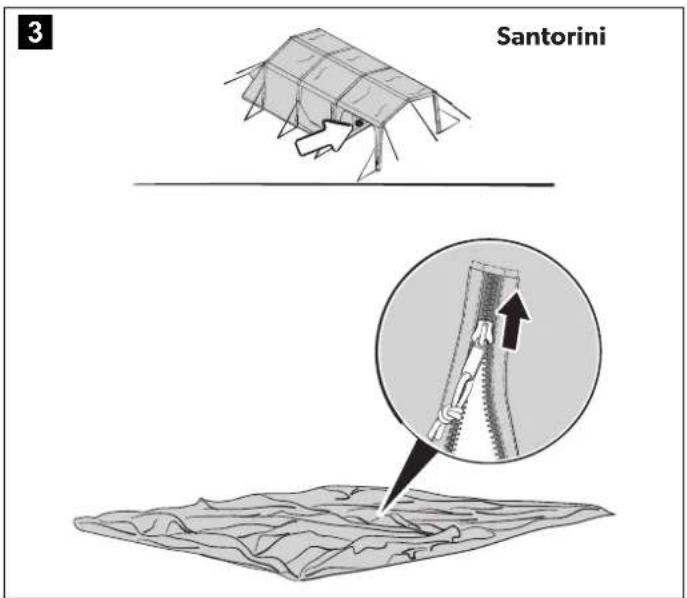

3 Santorini

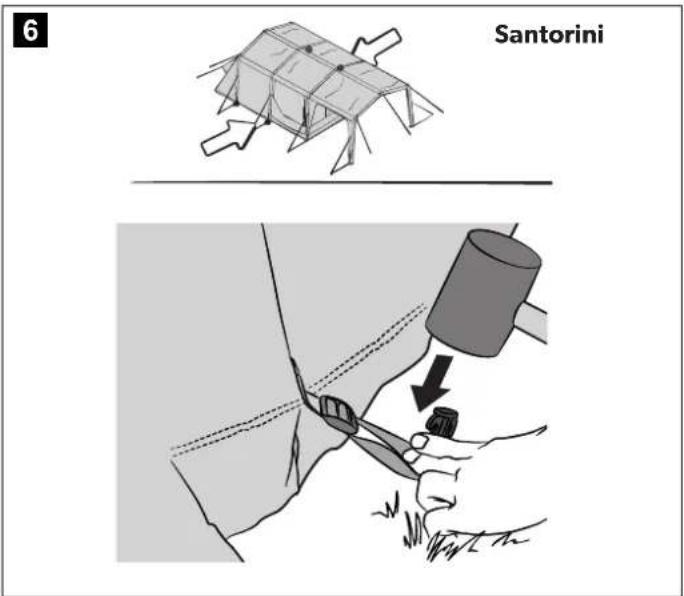

6 Santorini

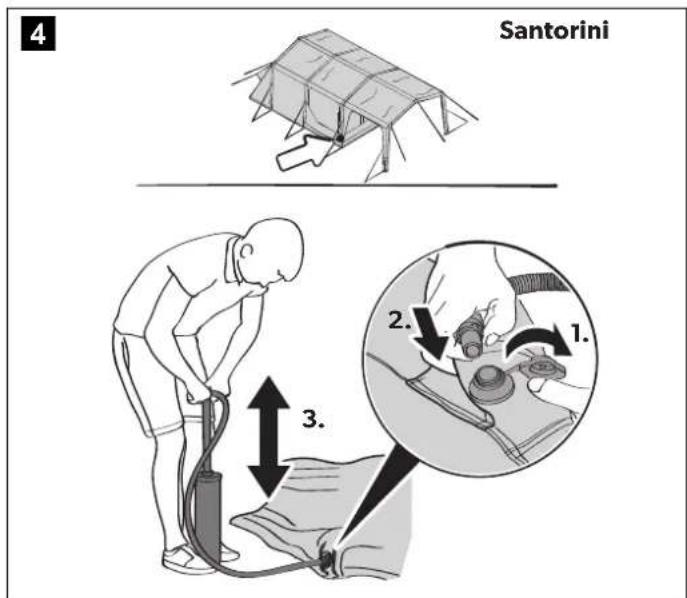

4 Santorini 2. 3. 1.

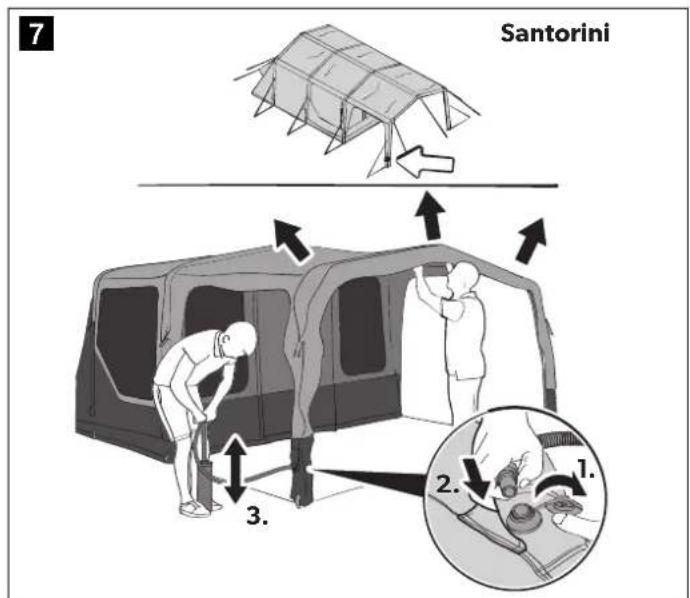

7 Santorini 2. 3. 1.

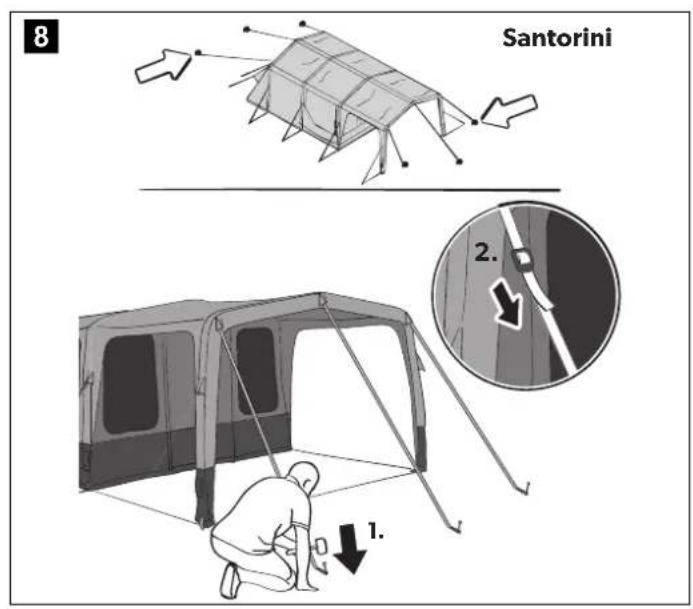

8 Santorini 1. 2.

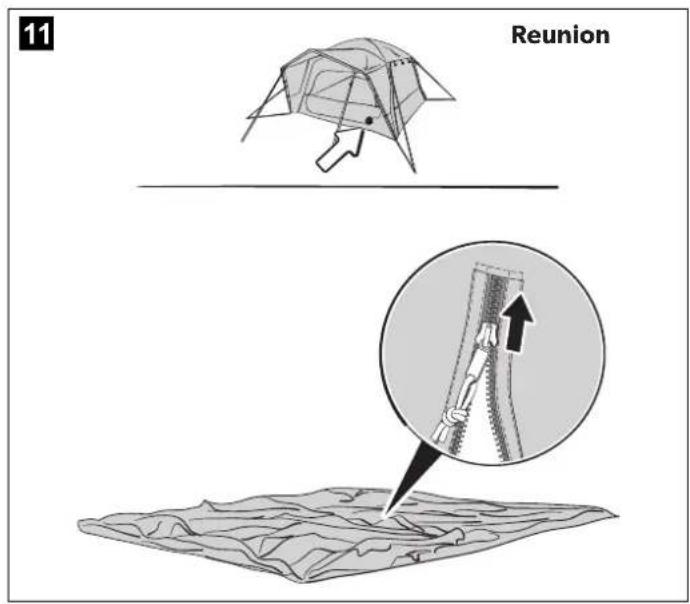

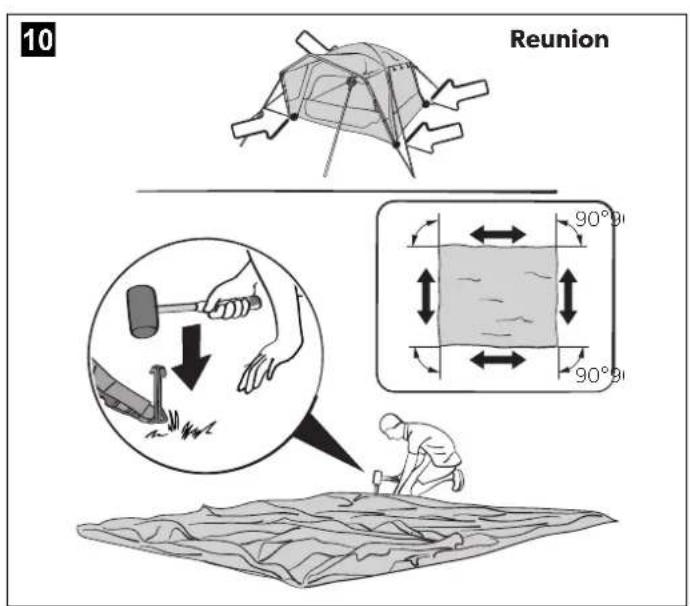

11 Reunion

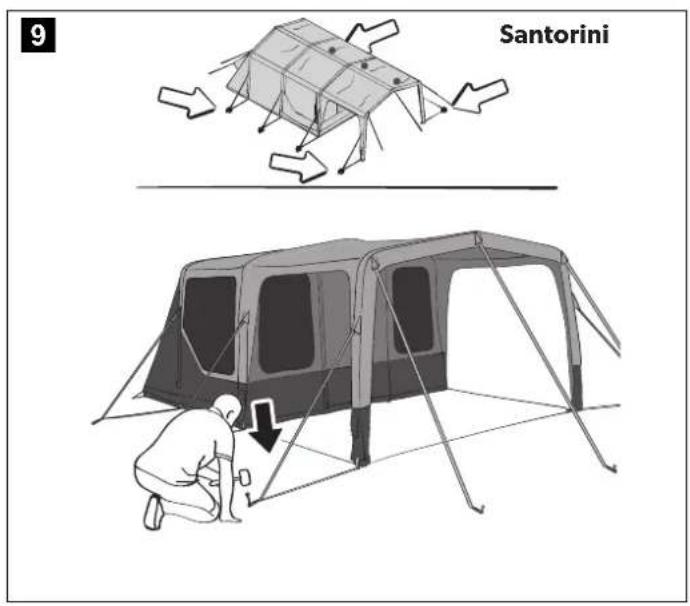

9 Santorini

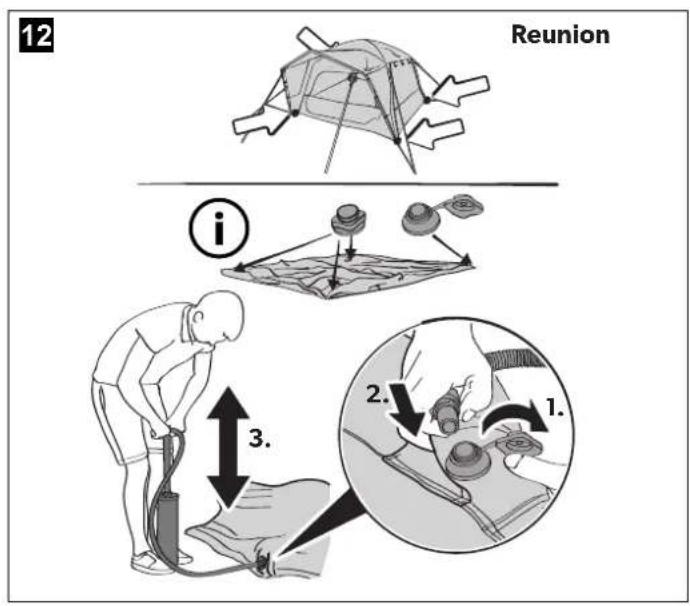

12 Reunion i 2. 3. 1.

10 Reunion 90°9' 90°9'

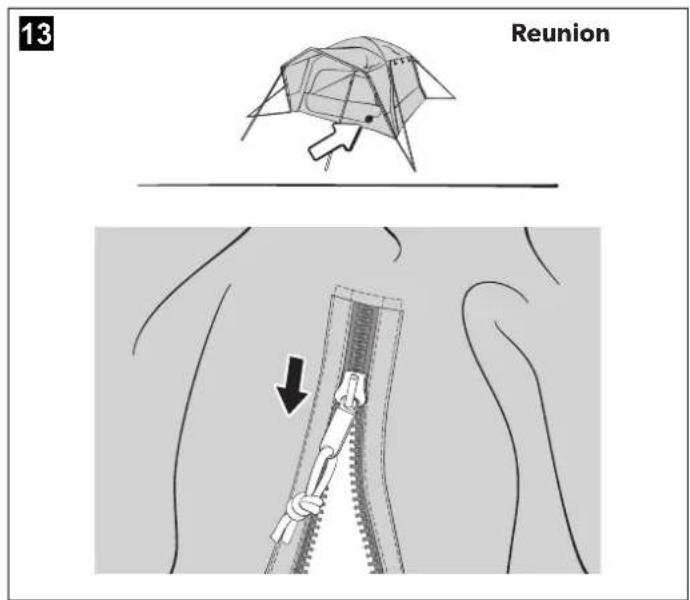

13 Reunion

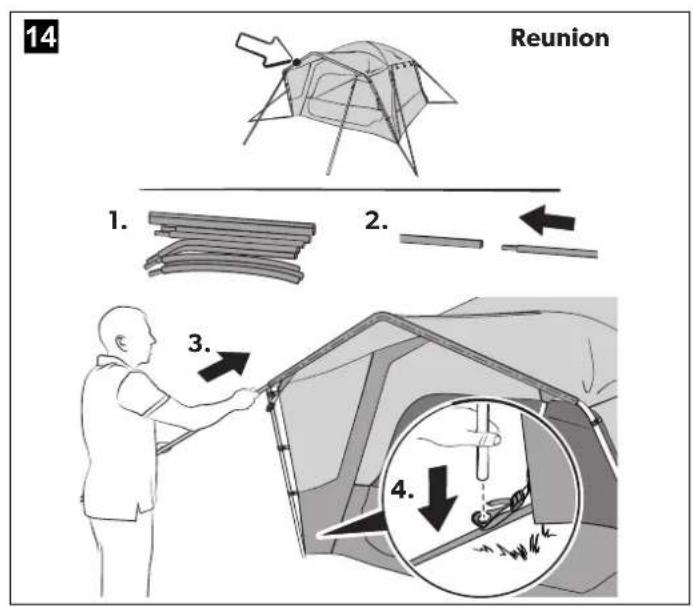

14 Reunion 1. 2. 3. 4.

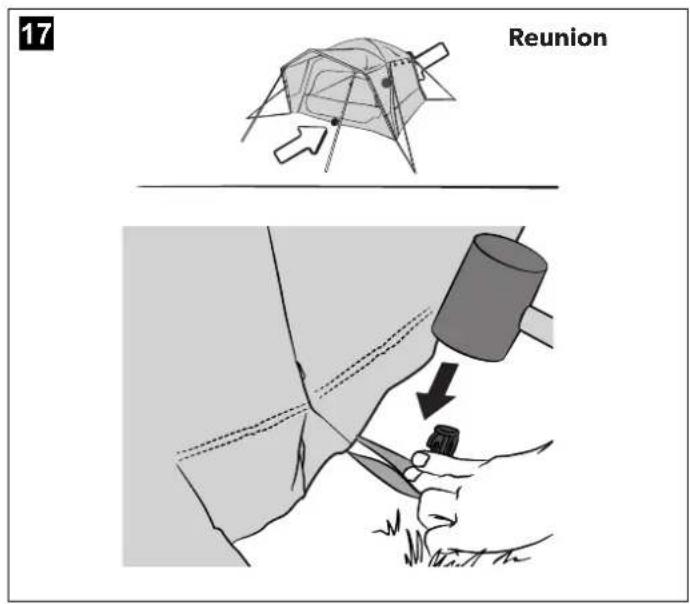

17 Reunion

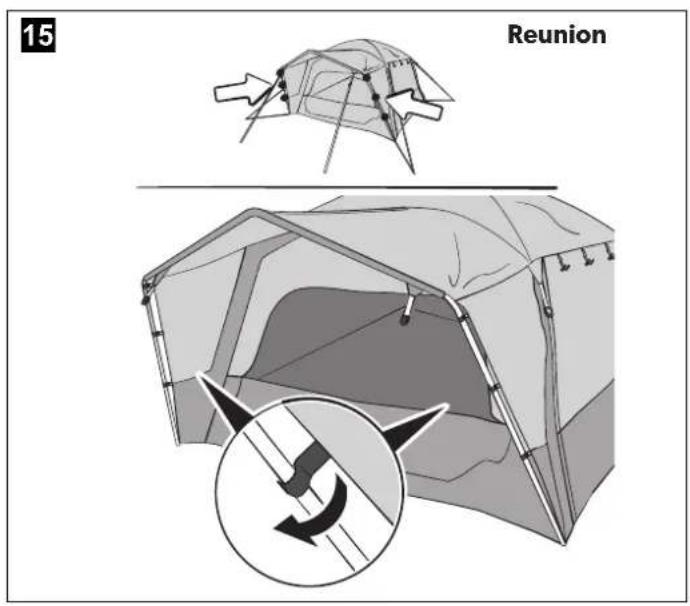

15 Reunion

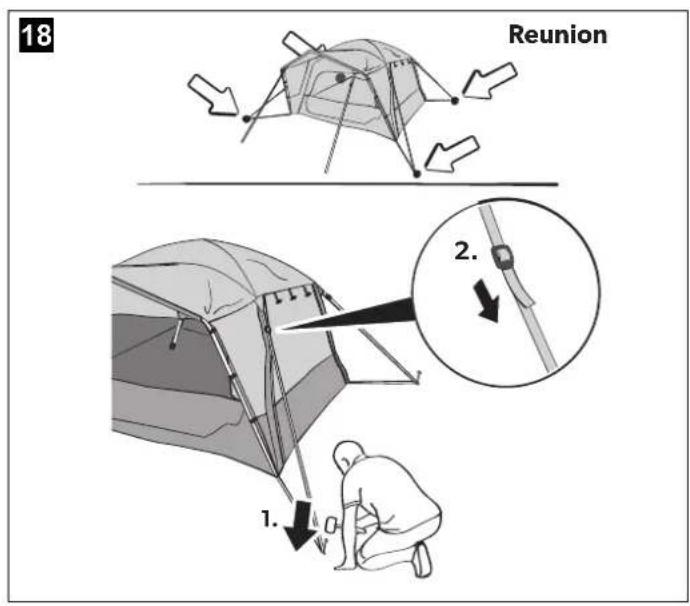

18 Reunion 1. 2.

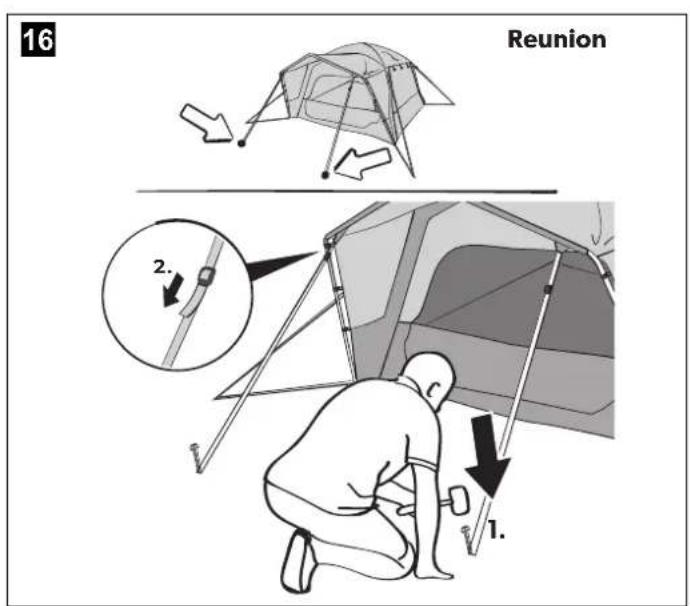

16 Reunion 2. 1.

19 Reunion 2. 1.

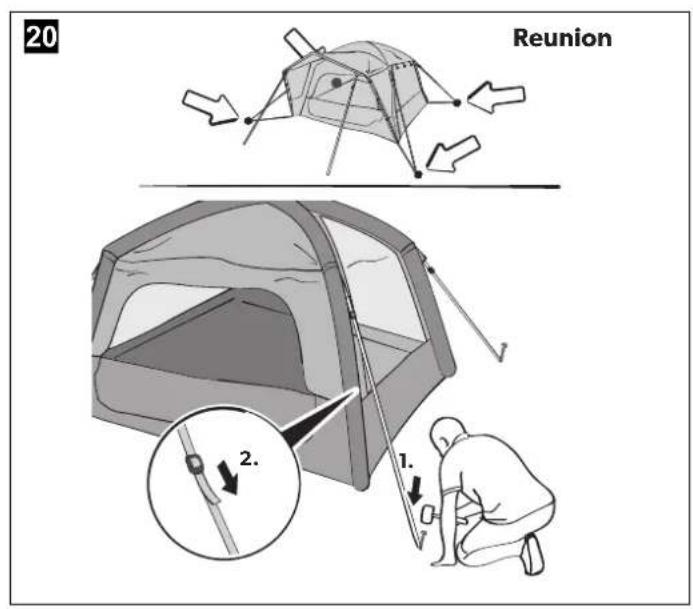

20 Reunion 1. 2.

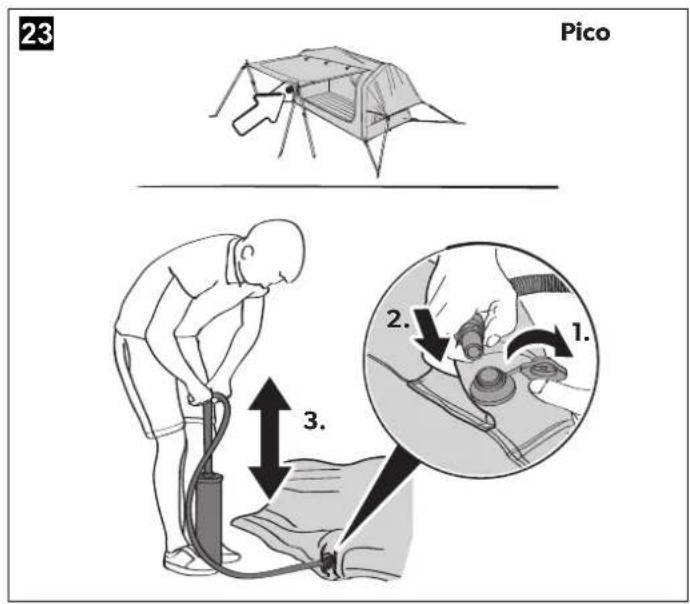

23 Pico 2. 1. 3.

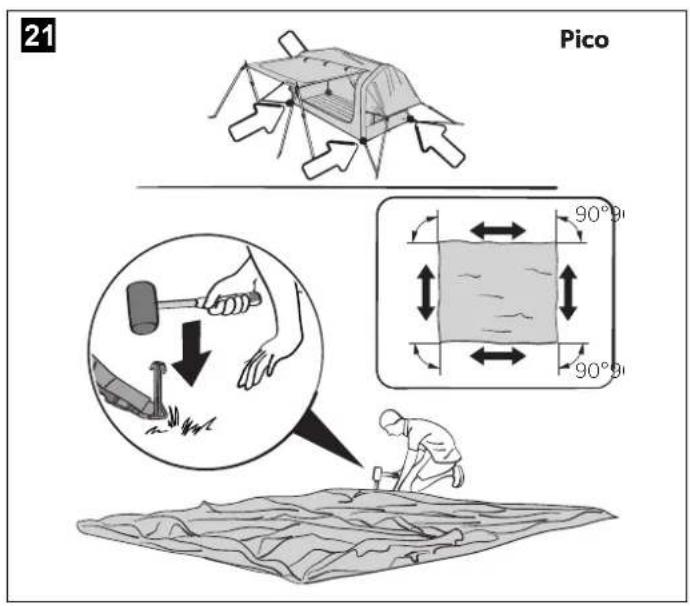

21 Pico 90°9' 90°9'

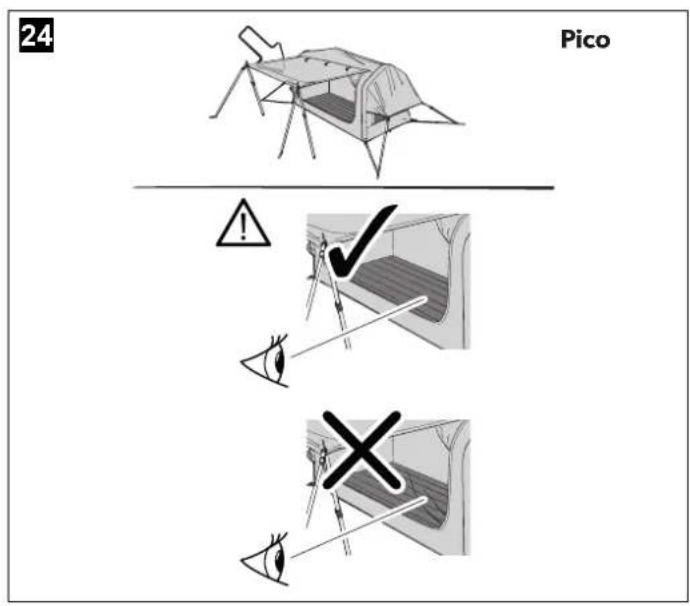

24 Pico !

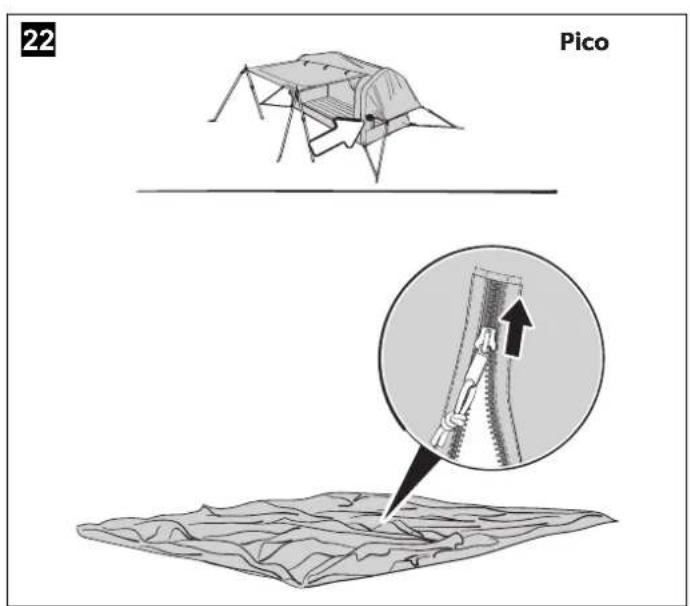

22 Pico

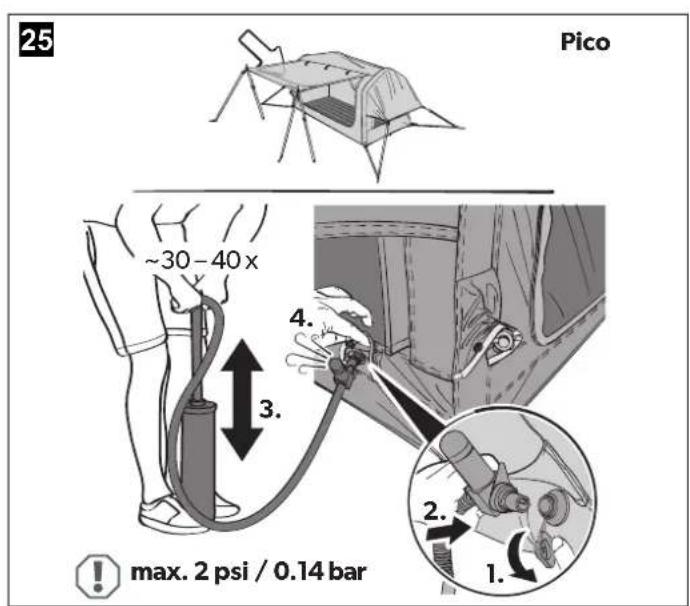

25 Pico ~30 - 40 x 4. 3. 2. 1. max. 2 psi / 0.14 bar

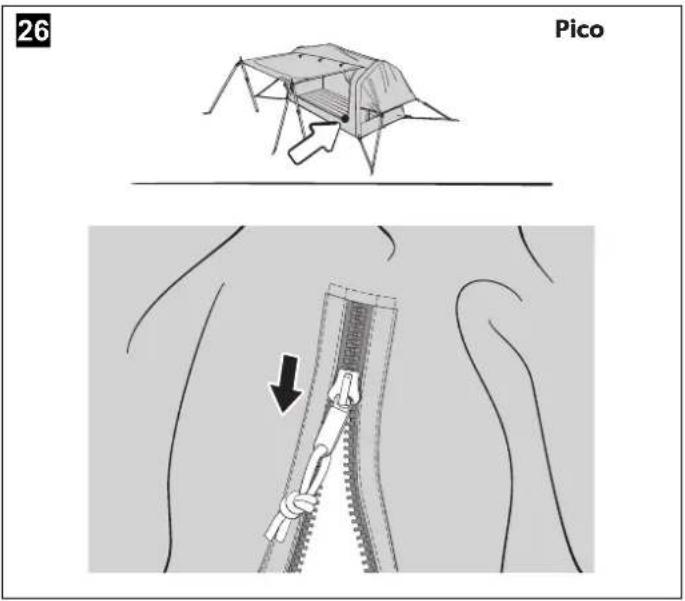

26 Pico

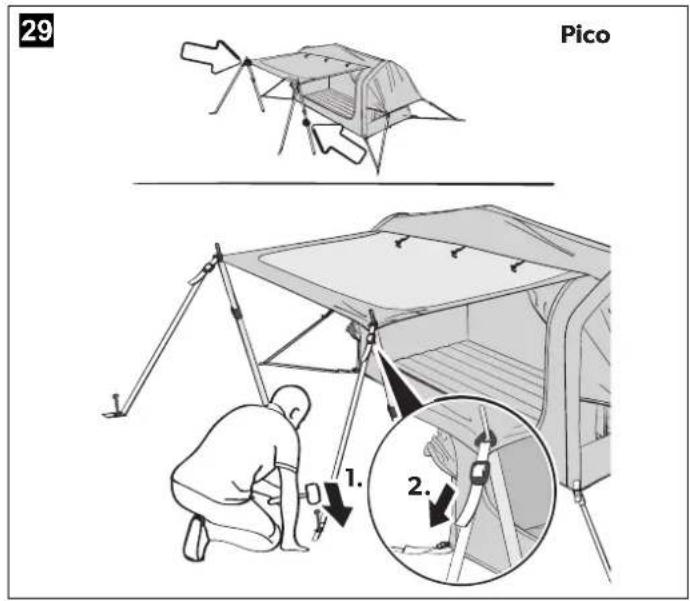

29 Pico 1. 2.

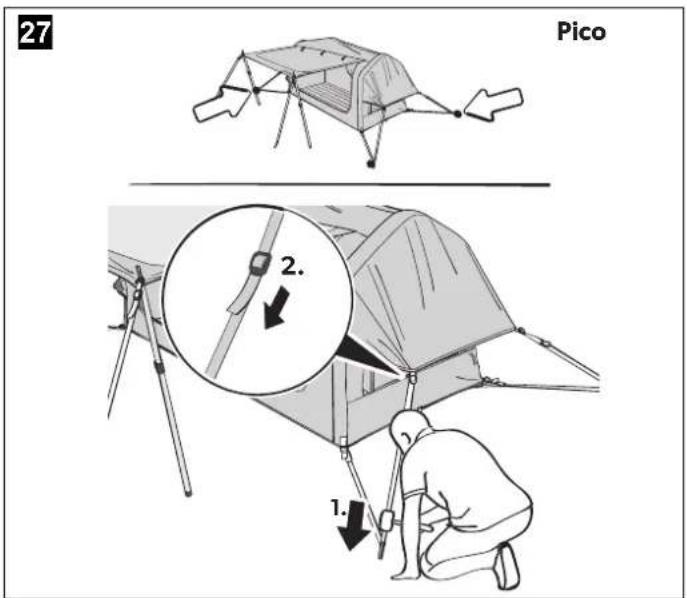

27 Pico 2. 1.

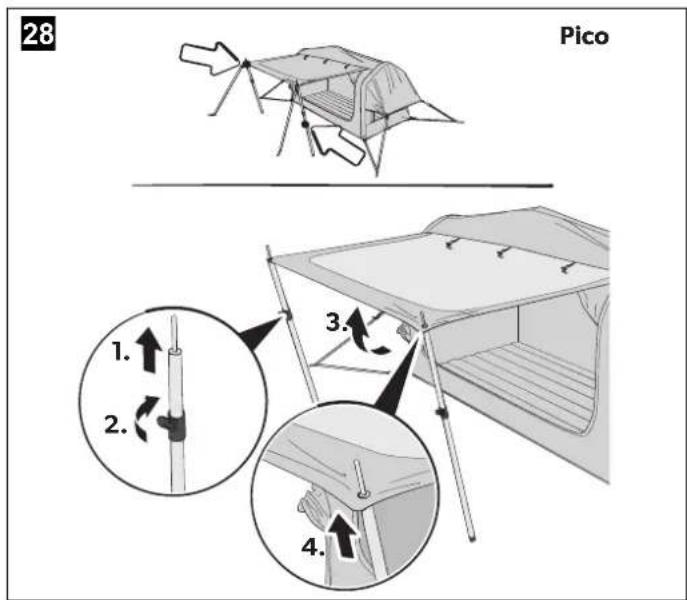

28 Pico 1. 2. 3. 4.

30

Diagram illustrating eight steps of climbing a tent using a tool, with numbered instructions and labeled diagrams.

Please read those instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com, dometic.com.

Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

General safety instructions

DANGER! Failure to obey this instruction will cause death or serious injury.

Hazard of carbon monoxide poisoning

- Never use a fuel-burning appliance such as barbecues or gas heaters inside the tent. The burning process produces carbon monoxide which accumulates inside the tent as there is no flue.

WARNING! Failure to obey these warnings could result in death or serious injury.

Fire hazard

• Ensure you know the fire precaution arrangements on the site.
• Do not cook inside the tent or use open flames.
• Leave the tent immediately in case of fire.

Beware of suffocation

- Ensure ventilation openings are open and clear all the time to avoid suffocation.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Risk of injury

• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Do not allow children to play around the tent and ensure that suitable protective footwear is worn. Guy lines are a trip hazard and pegs can be sharp.
• Cleaning and user maintenance may not be carried out by unsupervised children.
• Keep passage ways clear.

Scope of delivery

Santorini FTK 4X8/2X4

Component Quantity

Tent 1

Hand pump 1

Peg bag 1

Carry bag 1

Repair kit 1

Installation and operating manual 1

Reunion FTG 5X5/4X4

Component Quantity

Tent 1

Aluminium canopy pole 1

Hand pump 1

Peg bag 1

Carry bag 1

Repair kit 1

Installation and operating manual 1

Pico FTC 2X2/1X1 TC-I

Component Quantity

Tent 1

Adjustable poles 2

Hand pump 1

Peg bag 1

Carry bag 1

Repair kit 1

Installation and operating manual 1

Accessories

Santorini FTK 4X8/2X4

Description Ref. no.

4X8 inner tent	9120002121
4X8 carpet	9120002122
4X8 footprint	9120002123
2X4 inner tent	9120002124
2X4 carpet	9120002125
2X4 footprint	9120002126

Reunion FTG 5X5/4X4

Description Ref. no.

5X5 carpet	9120002127
5X5 footprint	9120002128
4X4 carpet	9120002129
4X4 footprint	9120002130

Pico FTC 2X2/1X1 TC-I

Description Ref. no.

2X2 footprint 9120002131

1X1 footprint 9120002132

Intended use

This tent is suitable for:

• Light to moderate weather
- Touring

This tent is not suitable for:

• Very strong winds or snowfall

• Seasonal pitch or commercial use

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect installation, assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Using the tent

CAUTION! Risk of injury and material damage

Never open the zipper on the protective sleeve while an air pole is inflated. This will result in the air pole bursting.

Before first use

Familiarize yourself with the product by carrying out a test set up before the product is used for the first time. Check if the scope of delivery is complete.

Santorini, Pico only:

Weathering your product before first use

The product is manufactured with materials that require preparation before use to maximize its weatherproofing.

1. Fully set up the product outside when rain is expected or where you can hose the outside of the product to become thoroughly wet.

This process is known as weathering. The weathering process tightens the fabric, and allows the cotton in the sewing thread to swell and fill the holes made by the sewing needle during the manufacturing process.

1. Allow the product to dry thoroughly before packing away.

By following this process before first use, will ensure that the product weatherproofing will improve with subsequent soakings.

Choosing a site

Choose a flat site that is protected from wind:

1. If necessary, use a windbreak.
2. Choose a shaded site to avoid UV degradation of the fabric.
3. Avoid pitching under trees as falling branches, resin, etc. can damage the product.
4. Clear the site of sharp stones and debris to avoid damaging the groundsheet.
5. Set up the product with the doors facing away from the wind.

Setting up the tent

CAUTION! Risk of injury and material damage

• Do not use any type of compressor designed to inflate car tires.
• Only inflate the mattress (if available) to a maximum of 2 psi/0.14 bar.
• Only inflate the air poles into the green zone of the pressure gauge of the supplied hand pump (10 psi/0.69 bar).

NOTICE! Material damage

Do not open or close the zippers by force.

NOTE

• The tent comes with general purpose pegs. These will be suitable for many sites but for some types of ground special pegs will be needed. Ask your dealer.
• Drive the pegs at a 45^ angle away from the tent into the ground.
• Peg the guy lines in line with the seam it starts from.

Keep the following tips in mind while setting up the tent:

• The figures provide a general overview of the set-up. The actual set-up will vary slightly based on the model of tent.
• Get help. The set-up is easier with more people.
• Inflate the air poles from front to rear.
• After standing the tent upright, check the corner pegs and re-peg if necessary. The groundsheet on the inside should be taut and in a rectangular shape.
• Peg the guy lines so that the tent is under tension without distorting the shape.
• If available, attach the storm straps.
• Check the guy lines from time to time to ensure adequate tension, if necessary use the runners to adjust.

Set up the tent as follows:

1. To protect the tent from dirt and damage, lay down a groundsheet or footprint before unpacking.
2. Unpack the tent.
3. Separate and identify the different components.
4. Proceed as shown to set up the tent:

- Santorini: fig. 2, page 4 to fig. 9, page 5.

- Reunion: fig. 10, page 5 to fig. 20, page 7.

- Pico: fig. 21, page 7 to fig. 29, page 8.

Removing the flysheet (Reunion only)

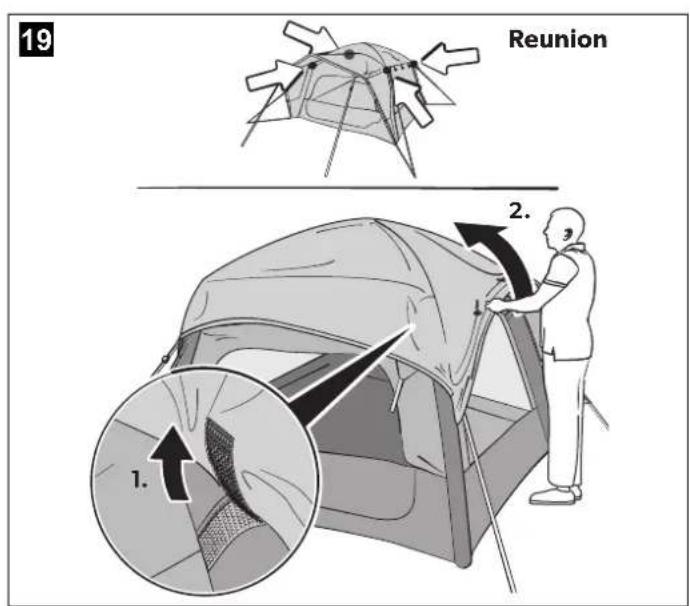

▶ Proceed as shown to remove the flysheet: fig. 19, page 6.
▶ Attach the flysheet before dismantling the tent.

Dismantling the tent

NOTICE! Material damage

Do not use force when dismantling the tent. Otherwise you might damage any material.

1. Remove any dirt on the outside.
2. Close all window blinds or remove curtains.
3. Close all doors and openings.
4. If installed, push the canopy pole out of the sleeve, do not pull.
5. Remove all lines and straps.
6. Remove all pegs between the corner pegs.
7. Open the valves on each pole.
8. Wait until most of the air has been expelled.
9. Remove the four corner pegs.
10. Fold/roll the tent towards the valves to expel more air.
11. When deflated, roll the tent to fit into the carry bag.
12. Ensure that all parts are clean before packing them into the carry bag.
13. If the tent is wet or damp when packing away, dry fully as soon as possible. Otherwise the fabric may start to show signs of mold.

Cleaning and maintenance

NOTICE! Damage hazard

• Do not use sharp or hard objects or cleaning agents for cleaning.
• Do not use alcohol based materials, chemicals, soap and detergents for cleaning.

• Remove bird droppings and tree resin as soon as possible to avoid permanent damage to the material.

• If necessary, clean the product with clean water and a soft brush.

• Apply impregnation against water and UV radiation before each trip.

Storing the tent

NOTE

• Fully set up the tent for cleaning.
- Choose a sunny day for cleaning to ensure the material will dry thoroughly.

1. Clean the tent.

2. Air fully and ensure the tent is totally dry before packing away.

3. Store in a well ventilated dry place.

Troubleshooting

NOTE

• During first exposure to water there may be some moisture at the seams. Through this moisture the threads will swell and fill the holes that are created in the sewing process.
• A fully equipped spare parts kit should include:
• Waterproof
  – Repair tape and repair solution
  – Silicone spray for the zippers
• Spare pegs

Problem Solution

Tent only inflates with difficulties	▶ Check that the valve is fully screwed into the air pole.▶ Check if the inflation tube is twisted at the valve. This may be indicated by noise. Untwist the inflation tube
Air leak	▶ Check that the valve is fully screwed into the air pole and the ring seal is in place.▶ Check that the cap of the valve is done up tightly.▶ Check for punctures, see chapter “Repairing a puncture in the air pole” on page 12.
Water leak	▶ Check for leaky seams, damaged tapings and moist areas.▶ If you cannot find any leaks, see chapter “Condensation” on page 12.▶ If you find any leaks, apply seam sealant.
Rip in the fabric	▶ Use repair tape to seal the fabric.▶ Have repairs carried out by an authorized specialist.

Condensation

All tents suffer from internal condensation if one or more of the following conditions apply:

• High air humidity
  • High ground moisture
• A drop in temperature

Severe condensation can run down the inside of the roof and drip off ties, tapes and other internal fittings and can be mistaken for leaking.

▶ Increase ventilation by opening doors and/or windows.
▶ Install a waterproof groundsheet.

Repairing a puncture in the air pole

If the air pole loses air, proceed as follows:

1. Unzip the outer sleeve holding the air pole.
2. If installed, close isolation valves.
3. Remove the air pole.
4. Deflate the air pole.
5. Unzip the protective sleeve to expose the inflatable tube.
6. Blow some air into the inflatable tube.
7. Submerge the tube in water.
8. Locate the puncture.
9. Use repair tape and repair solution to seal the hole.
10. Zip the inflatable tube back into the protective sleeve.
11. Zip the air pole back into the outer sleeve.

Replacing the aluminum pole (if available)

▶ Replace damaged aluminum poles immediately, if any. Please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

Note that self-repair or non-professional repair can have safety consequences and might void the warranty.

Warranty conditions

The warranty covers manufacturing defects, materials and parts. The warranty does not cover fading of the cover and wear and tear due to UV radiation, misuse, accidental damage, storm damage, or permanent, semi-permanent or commercial use. It does not cover any resulting damage. Please contact your dealer for claims. This does not affect your statutory rights.

Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.
▶ Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.

dometic.com/sales-offices
