USER MANUAL VK 1099/201 GROTHE

Installation of Mini Dome Cameras 23

IPCAMERA CONFIGURATIONS 25

Connection to IP network with DHCP service 25

ADDENDUM 73

General information

Dear Customer,

Thank you for purchasing this product.

This quick start guide was written to help you set up H.265 IP Camera Series rapidly and easily.

Read this quick start guide which contains information for correct, safe use carefully before using the device.

Keep this guide at hand so that you can refer to it when needed.

\*NOTE

For more detailed information about the devices, refer to the complete user manual available on the Umet website (see QR code printed on the Addendum sheet).

WARNING

Electricity

Before connecting to electrical outlet, verify the electrical specifications of the device are suitable for the available power source.

We suggest to connect the device to electrical outlet via a switch disconnector.

In case of malfunctioning, disconnect electrical power from the general switch.

Use only the provided power supply.

Safety precautions

Do not expose the device to rain or humidity and do not insert any solid or liquid object in it to prevent the risk of fire or electrocution. In these events disconnect the device from the electrical outlet and call technical assistance to check it.

Do not open the device. Any repair must be made by qualified personnel or by calling the nearest authorized technical assistance center (www.urmet.com Contacts).

Keep the device away from children to prevent any, even involuntary, damaging.

Do not touch the device with wet hands as it might cause electrical shock or mechanical damages.

If the device falls down while working or if the salesbox is damaged, do not continue using it. If usage is continued under such circumstances electrical shocks might take place.

Contact the authorized retailer or installer.

Installation precautions

Do not install the camera in places with possible exposure to rain or humidity without the proper protective case.

Do not point the camera directly to sunlight or other intense sources of light, even when turned off. The subject of recording must not be against the light.

Do not point the camera against reflective objects.

Some light conditions (such as fluorescent color) can affect the recorded colors.

Use AUTO-IRIS lens when operating the camera in changing light environments.

Do not use this device on any unstable support such as lurching or sloping table to

prevent the device from falling and be damaged.

If water or any other material should penetrate the camera, stop using it as it might cause fire or electrical shock and contact the authorized retailer or installer.

Do not cover the device with any cloth while using to prevent deformation of the external part and inner components heating which might provoke fire, electrical shock or mechanical damages.

Do not put magnets or magnetized objects close to the device to prevent functional anomalies.

Do not use this device in presence of smoke, steam, humidity, dust or intense vibrations.

Do not use the device shortly after moving it from warm to cold environment and vice versa. After moving the device wait three hours before using it: this time is necessary for the device to adapt to the new environment (temperature, humidity, etc.).

Usage precautions

Check the device is not damaged after removing the packaging.

Check the working environment is not too humid and the temperature is within the indicated range.

Do not point the camera against sunlight to prevent sensor damages.

Device cleaning

Use a dry cloth to remove dust and dirt from the device.

If dirt cannot be removed with a dry cloth, use a humid cloth and a neutral cleanser.

Do not use spray cleanser for device cleaning. Do not use volatile liquids such as gasoline, alcohol, solvents etc. or chemical treated cloth to clean the device to prevent deformations, damages or scars on the finishing paint.

Disconnect the device from the electrical outlet before cleaning.

Video recording

This device is not designed as a burglar system but mainly to transmit and record video images. URMET S.p.A. is not in any way responsible for loss or damages of the user consequent to theft.

Before using the device, record a demo video to verify the correct functionality of this feature. URMET S.p.A. is not in any way responsible for loss of recorded data consequent to wrong setting or usage, device malfunctioning or failure.

This device is composed by electronic precision components. Do not hit the device while recording as it might affect the video.

Privacy and Copyright

The IP camera is designed for surveillance systems. Video recording is subject to the laws applicable to the Country where used. It is forbidden to record images with Copyright.

The User is responsible to check and respect all local laws and norms for video signal recording. The manufacturer is NOT in any way liable for any usage of the product which might result not compliant to the relevant norms.

Firmware upgrade

Contact Customer Service Technical Assistance URMET S.p.a. in order to check availability of firmware upgrades.

Network configuration

Camera default setting is DHCP mode. If the network does not support dynamic addressing (DHCP), the device will automatically switch to factory IP 192.168.1.168. Use Umet "Device Config. Tool" software provided with IP Camera CD in order to modify the IP address and other network settings to prevent any conflict with other devices on the network.

Network connections

When connecting a PC (using Software Client or Browser), any video channel on the PC will be using "unicast" connection (TCP, RTP, UDP).

The device can support up to 10 "unicast" connections so it is possible to show the video on maximum 10 remote devices (PC or smartphone) at the same time depending on the available network band.

Installation

INSTALLATION OF BULLET CAMERAS

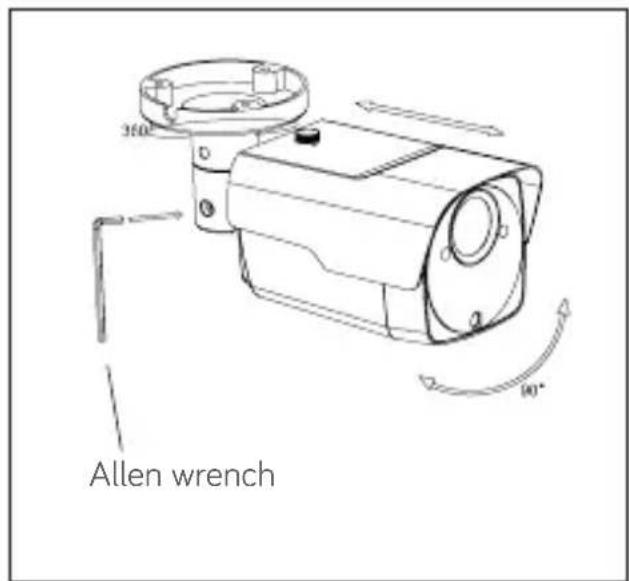

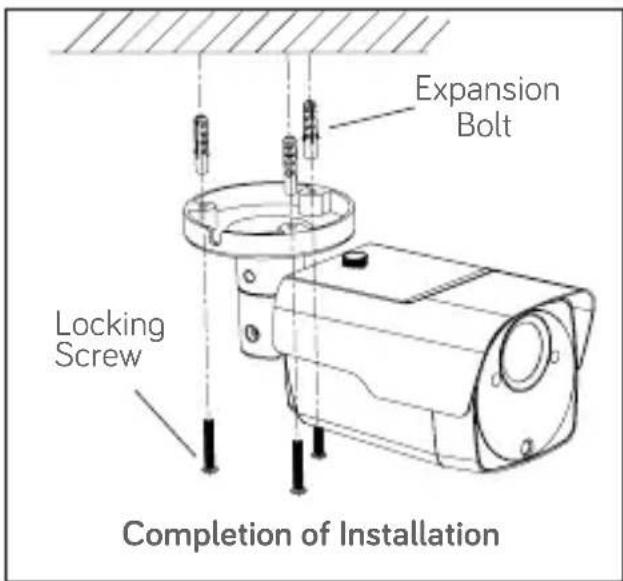

Ceiling Mounting

Insert three expansion bolts in place into the ceiling and fix the equipment with three locking screws.

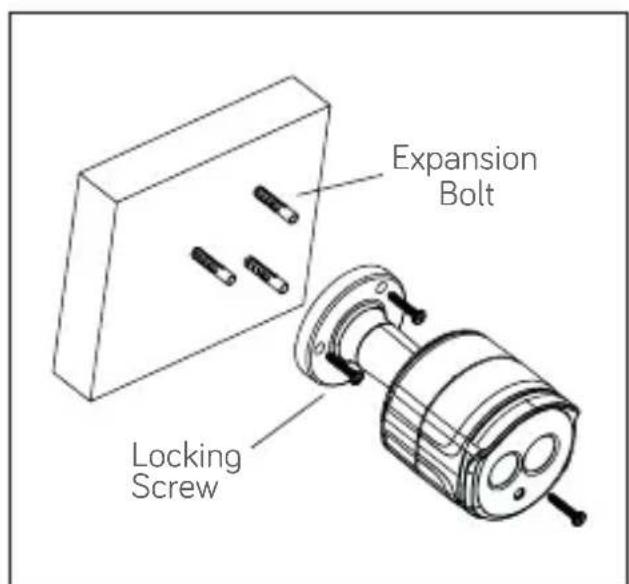

Wall Mounting

Insert three expansion bolts in place into the wall and fix the equipment with three locking screws.

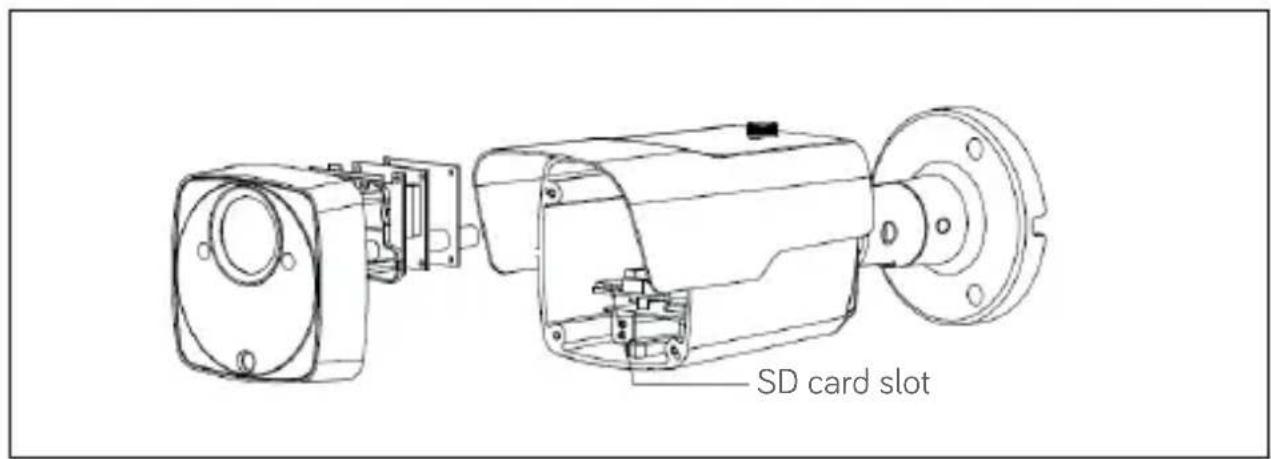

SD Card Installation

INSTALLATION OF VANDAL-PROOF DOME CAMERAS

Ceiling Mounting

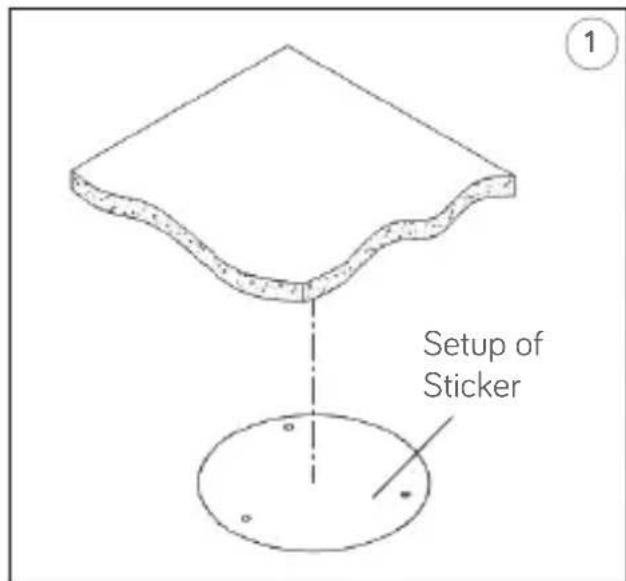

1. Paste the sticker in place at the proper position as selected.

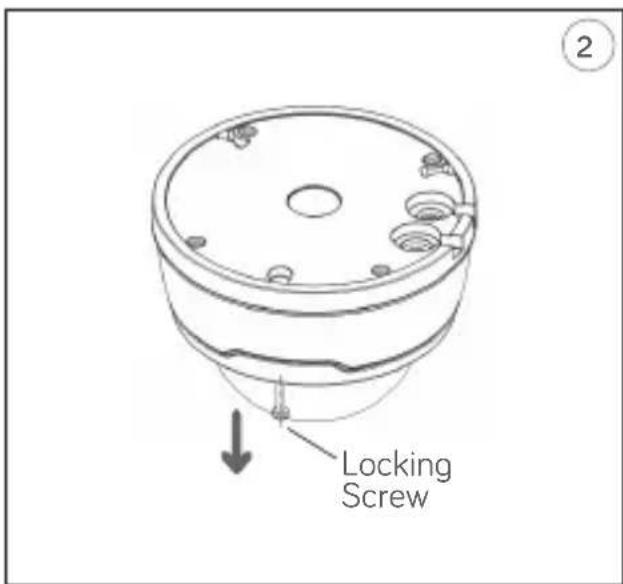

2. Remove the front component by loosening the three locking screws with a screwdriver

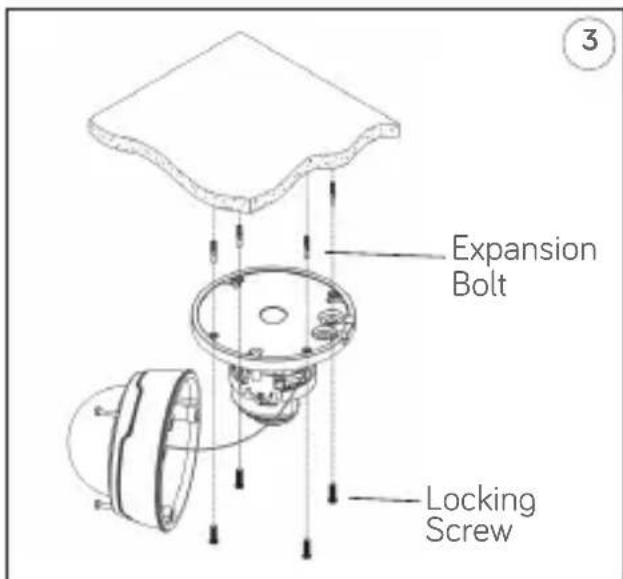

3. Fix the pedestal by drilling locking holes around the sticker and inserting four expansion bolts into the holes and fastening it with four locking screws. Adjust it to an appropriate angle.

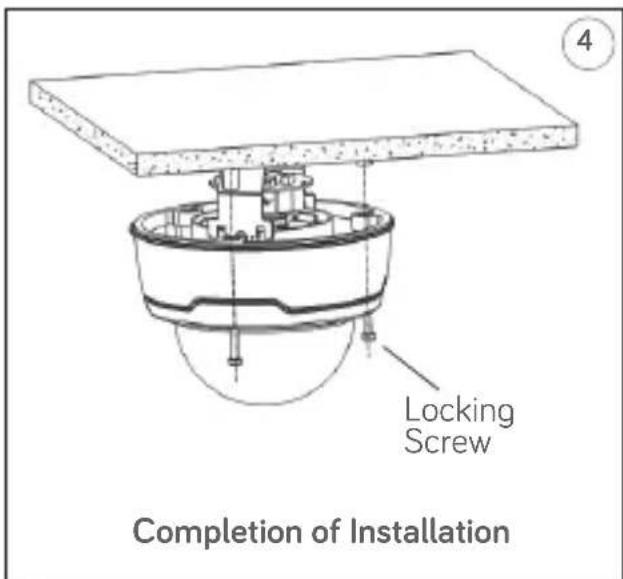

4. Fix the front component on the pedestal by tightening the three locking screws.

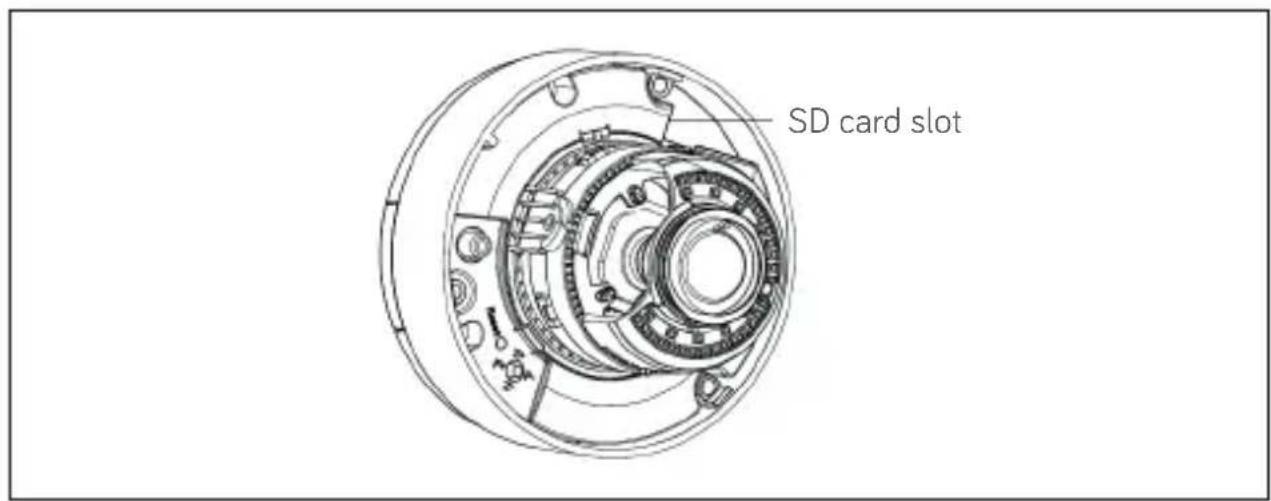

SD Card Installation

INSTALLATION OF MINI DOME CAMERAS

Ceiling Mounting

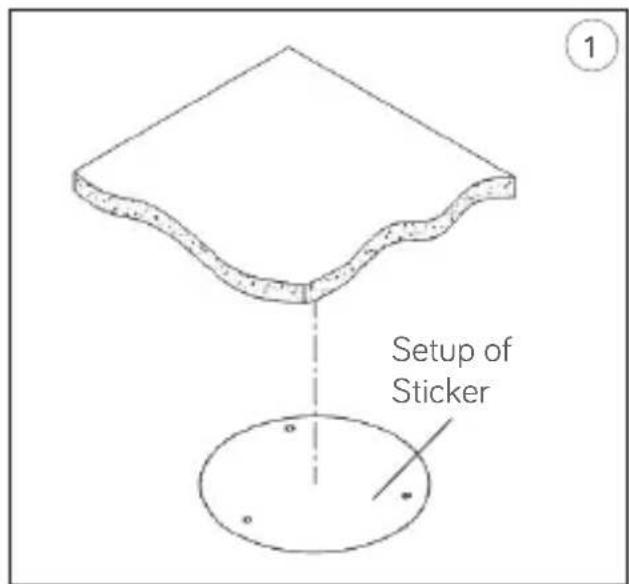

1. Paste the sticker in place at the proper position as selected.

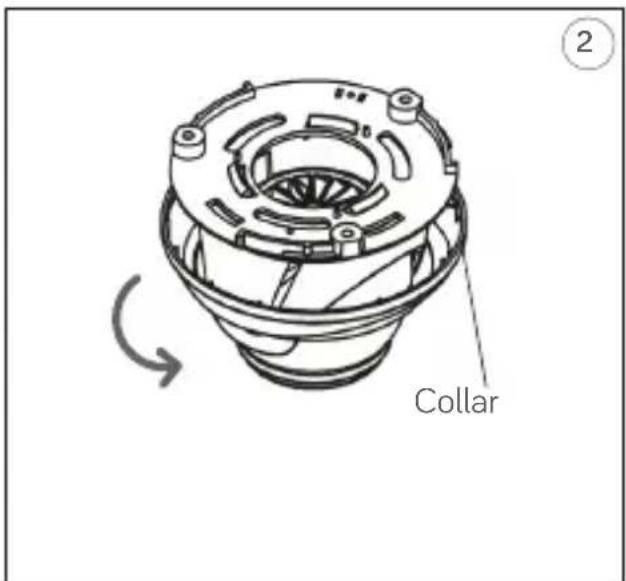

2. Remove the collar off the camera by rotating it down.

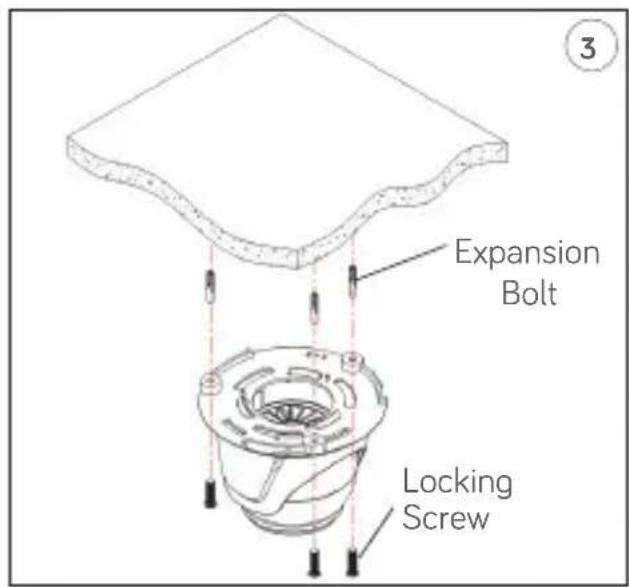

3. Fix the pedestal by drilling locking holes around the sticker and inserting three expansion bolts into the holes and fastening it with three locking screws.

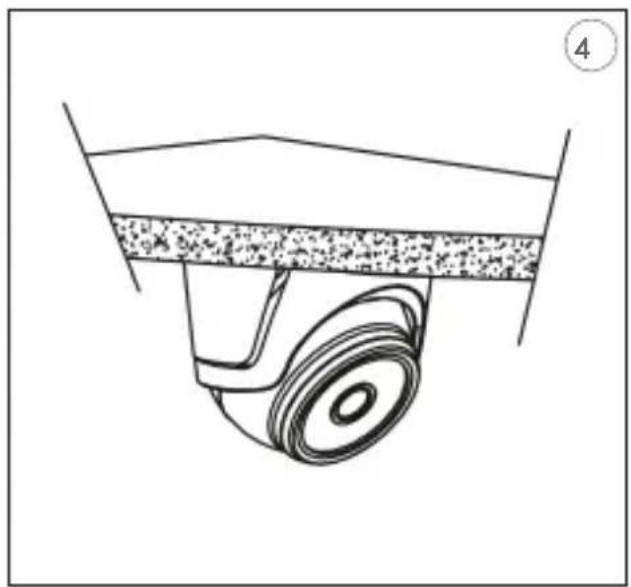

4. Adjust it to an appropriate angle.

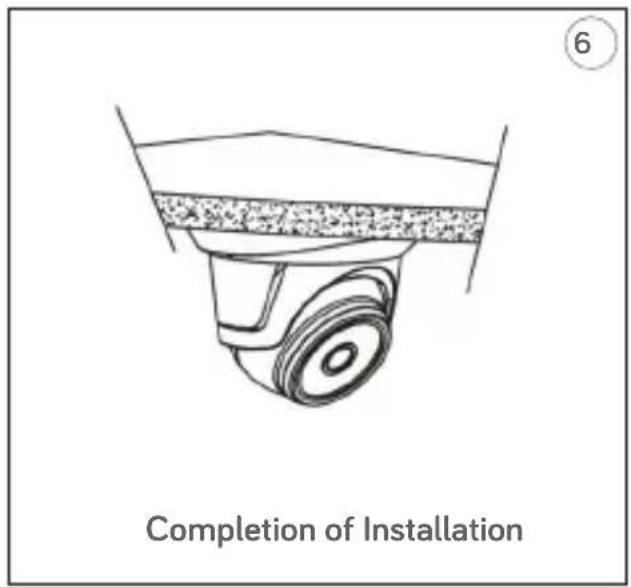

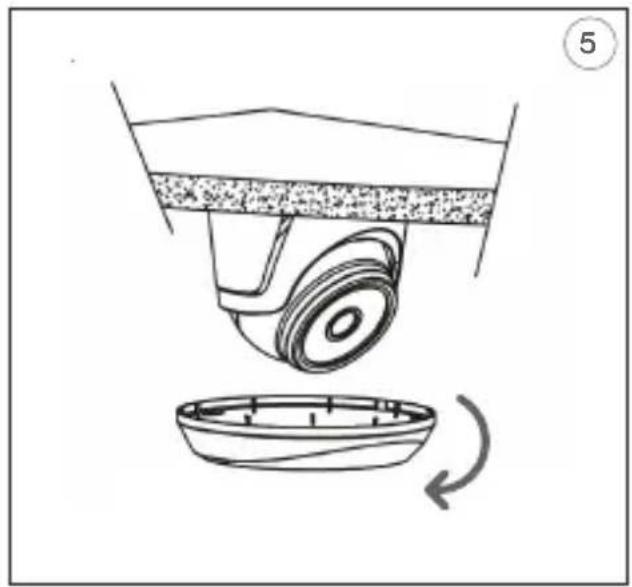

5. Mount the collar back by rotating it up.

IP Camera Configurations

The camera must be configured for the home or office network after it has been powered. It is advisable to install and configure one camera at a time if you are installing multiple cameras on the same network.

CONNECTION TO IP NETWORK WITH DHCP SERVICE

For Quick installation about IP camera with dynamic host configuration (DHCP) on the network will be assigned an IP address automatically. IF DHCP Service is not supported, the default IP Address of IP Camera will be 192.168.1.168.

IP Camera Configuration:

1. Install the Software "Device Config. Tool" provided by CD and follow the installation instructions displayed at monitor.

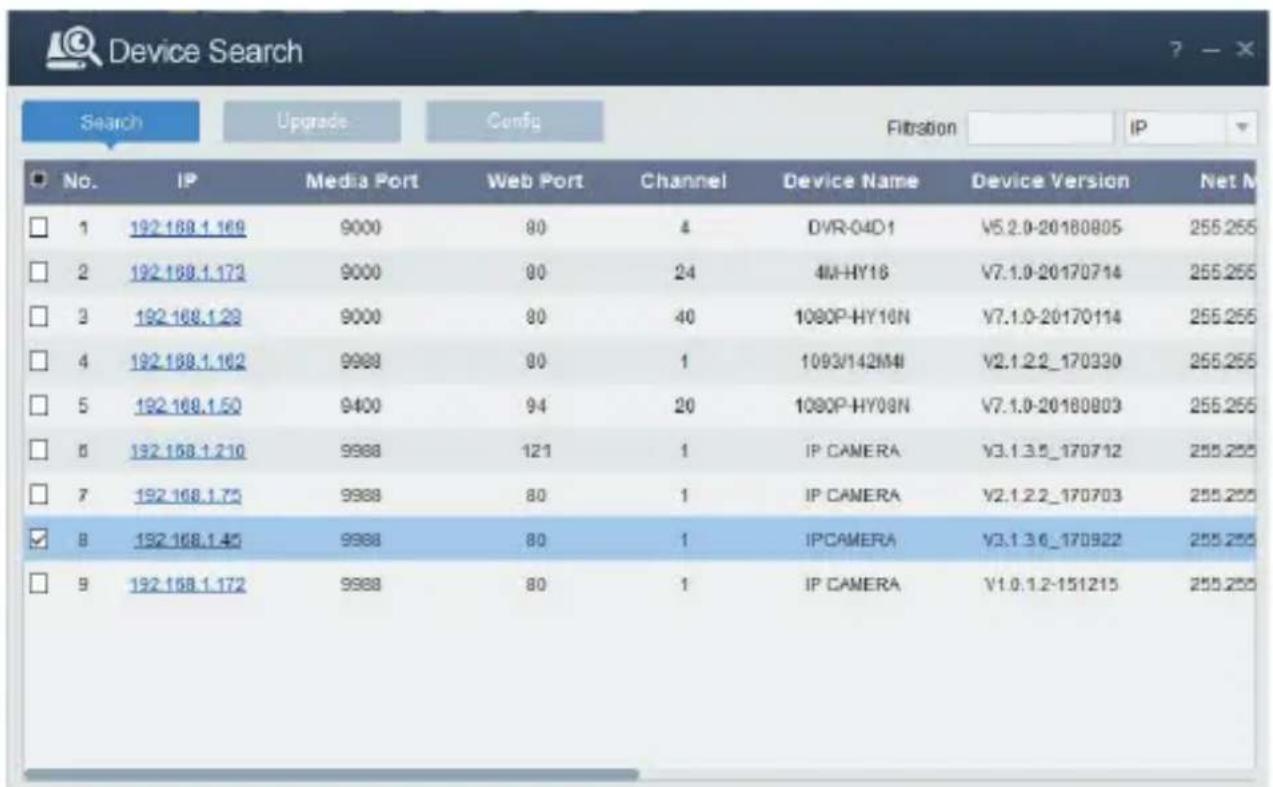

1. Launch the "Device Config. Tool" Software, selecting editing tool it will be displayed automatically IP Address, Subnet Mask, Gateway, and MAC Address for each IP Camera detected in LAN, as shown in picture below.

If the searched IP address and PC IP address are not in the same network segment, user may modify IP address, subnet mask, and other parameters of IP camera by using "Device Config. Tool" software.

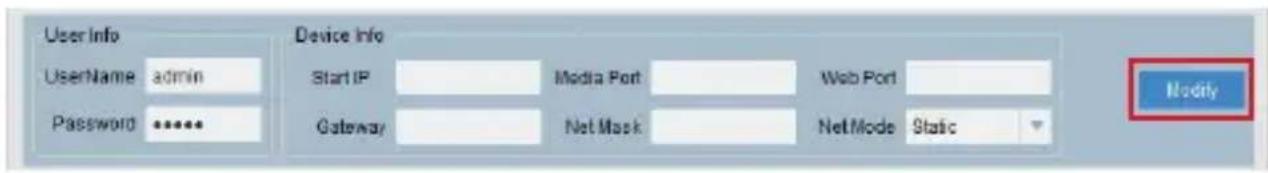

First select the device to modify IP address and then input new IP address, subnet mask, gateway and username/password. Insert the password and click "Modify" button to change IP address of the device.

*IMPORTANT NOTE: IP camera Default Settings Default Static IP Address:192.168.1.168

Username: admin

Password: admin

Media port: 9988

1. Before using IE (Internet Explorer) browser to access the IP camera for the first time, related plug-in components must be installed by following the procedure below:

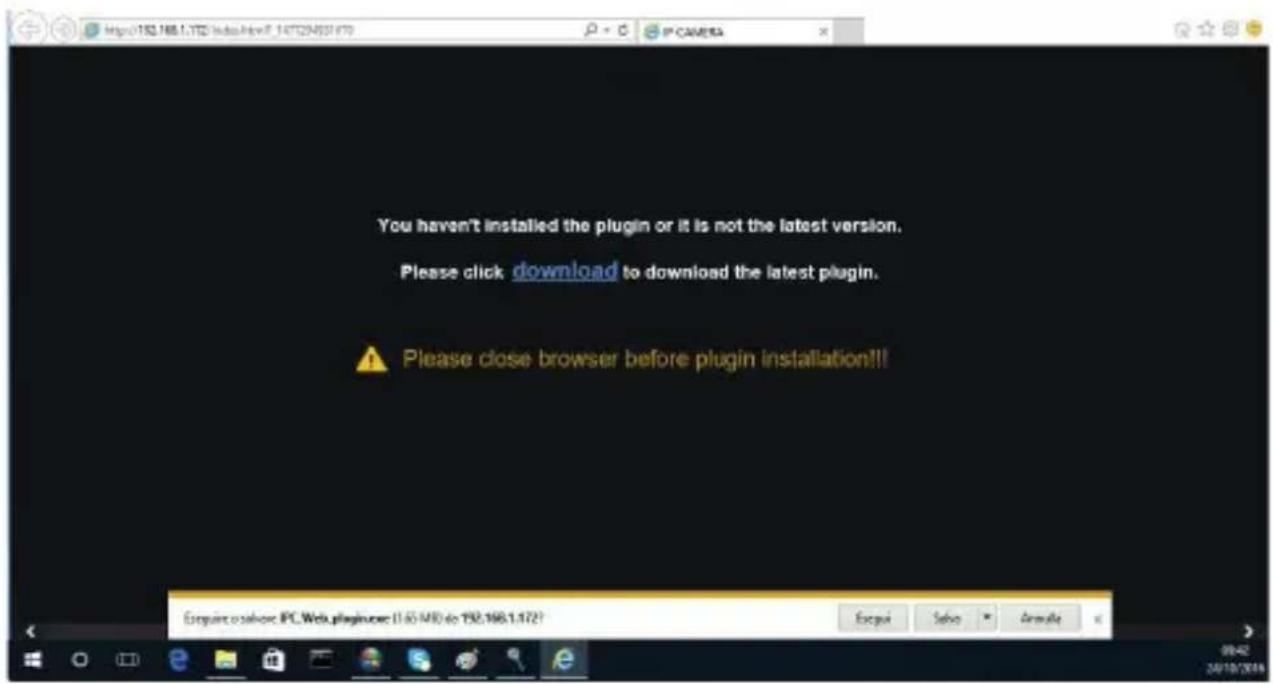

2. Access IP address of the IP camera for installing plug-in only for the first time. In the Web Page opened select "Download", after that select "Run" in the pop-up below.

• Wait for plug-in download, after that confirm the ActiveX Installation.

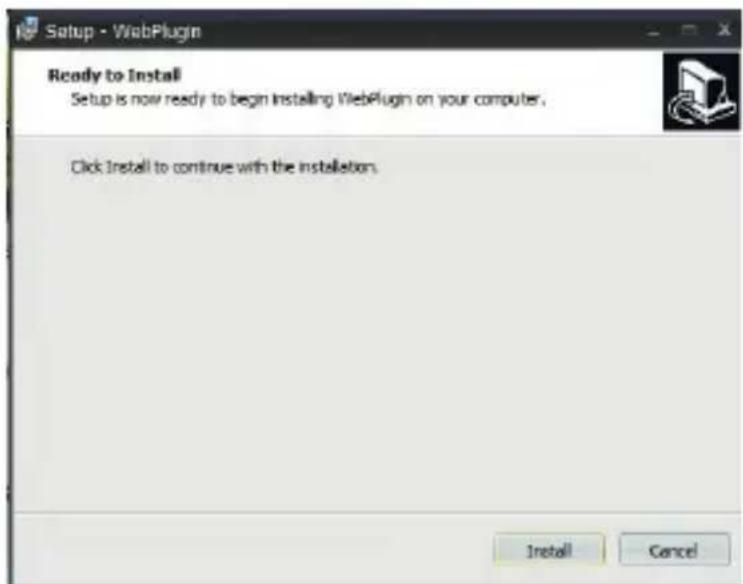

• Select "Install" and wait for the installation is completed.

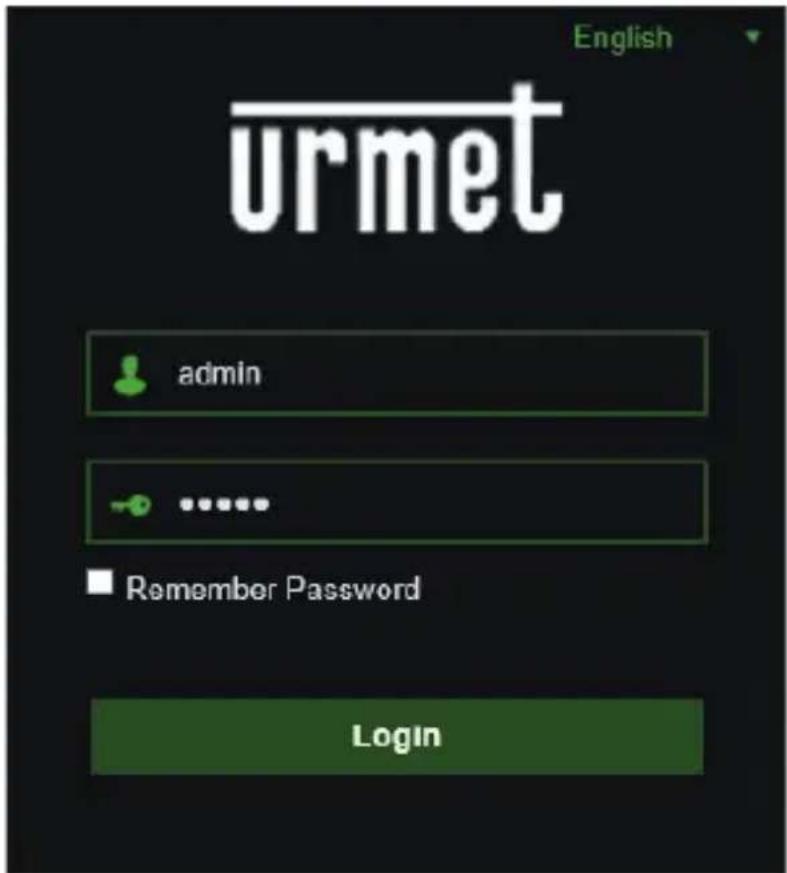

1. After completed the Active X installation, close the Internet Explorer Web Page and launch it again, put the IP Camera Address and the Login screen will be displayed. SelectUsername (default:admin), a Password (default:admin) and Language.

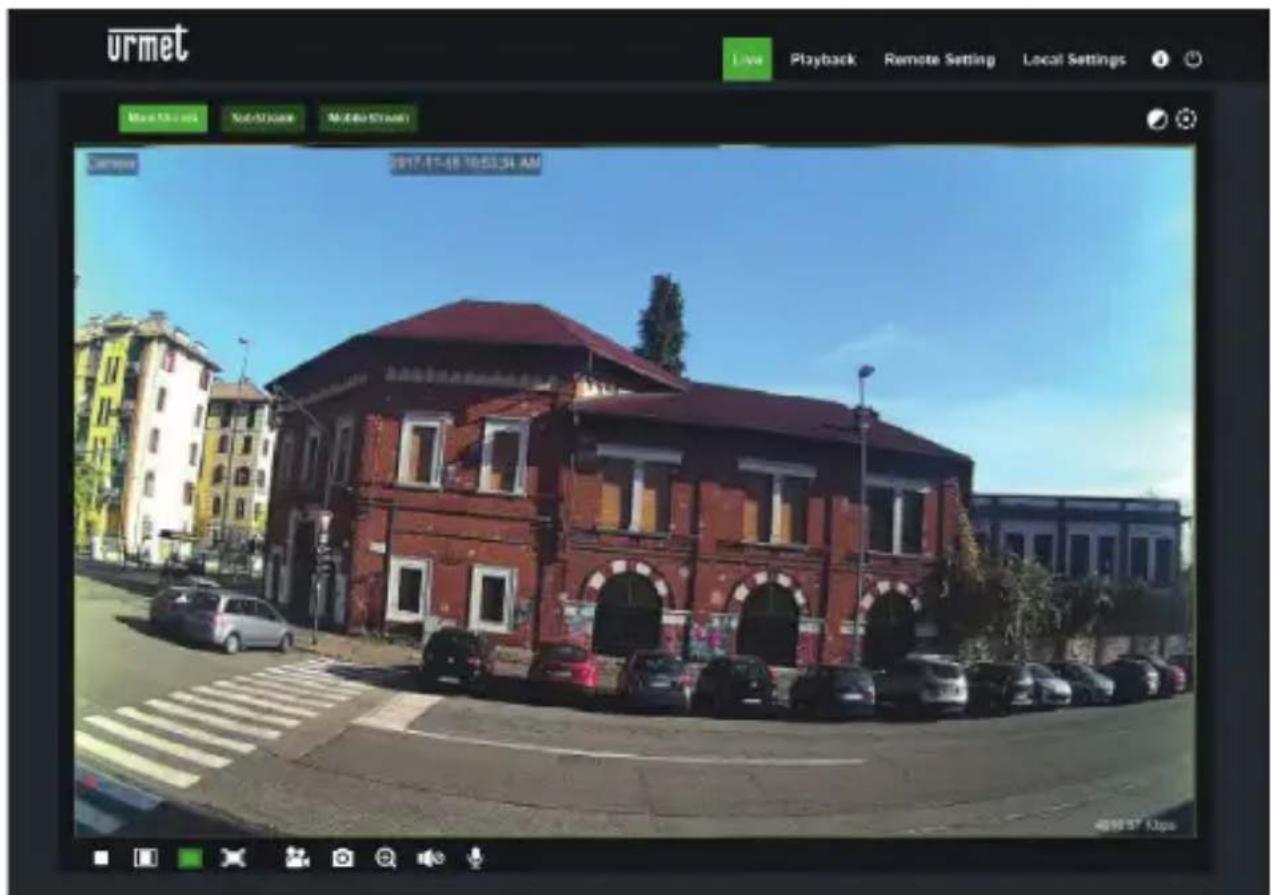

1. Select "Login" in order to enter in LIVE screen.

1. Click the buttons on the top left corner in the Web Page to select the stream to display (Main Stream, Sub Stream or Mobile Stream).

Index

GENERALITES 31

31

INSTALLATION 34

Installation Bullet Camera 34

InstallationVandal-ProofDome Camera 36

Installation Mini Dome Camera 37

CONFIGURATIONS IP DE L'UNITE DE FILMAGE 39

Identifant (UserName): admin

Mot de passer (Password): admin

Port Client (Media Port): 9988

Nutzername (UserName): admin

Password (Password): admin

Media Port: 9988

Quick guide and complete user manual of the product are available at the following QR code.

Quick guide and complete user manual of the product are also available for DOWNLOAD from the URMET website under the section USER MANUALS.

FR

For assistance and information about Umet products and systems you can scan this QR code with your smartphone or visit

www.urmet.com Contacts Export Sales Network

Umet S.pA. reserves the right to make changes to its products at any time, without prior notice.

Released in November 2017.

www.urmet.com | [e-mail]

All Umet products bear the mark C E

Made in China to Umet specifications.
