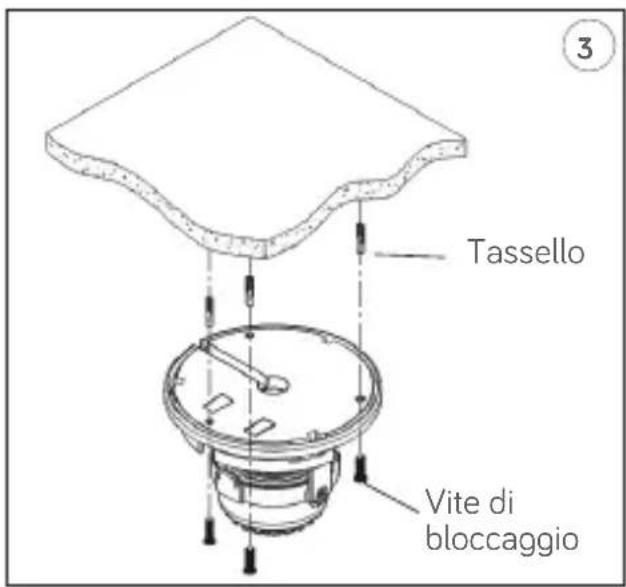

INSTALLAZIONE INDOOR DOME CAMERA

Diagram of a mechanical device showing a cylindrical component being processed into a housing, with no visible text or symbols.

Slot SD card

INSTALLAZIONE VANDAL-PROOF DOME CAMERA

Slot SD card

INSTALLAZIONE MINI DOME CAMERA

Technical line drawing of a mechanical component with layered structure and a circular component (no text or symbols)

Diagram of a mechanical device with a rotating base and a curved component, no text or symbols present

RS-485 A R IN OUT V-OUT LAN A-IN A-OUT DC 12V PWR TF CARD RESET Slot SD card

Auto-Iris plug PIN definition

PIN	DC
1	DAMP (+)
2	DAMP (-)
3	DRIVER (-)
4	DRIVER (+)

You haven't installed the plugin or it is not the latest version. Please click download to download the latest plugin. Please close browser before plugin installation!! Configure a volume IPC, Web, pluginuser (1.63.102) in 190.168.1.572? Europe Sahen Canada 09:42 24/10/2016

Setup - WebPlugin Ready to Install Setup is now ready to begin installing WebPlugin on your computer. Click Install to continue with the installer. Install Cancel

Installation of Indoor Dome Cameras 23

Installation of Vandal-Proof Dome Cameras 25

Installation of Mini Dome Cameras 26

Installation of Box Cameras 28

IP CAMERA CONFIGURATIONS 30

Connection to IP network with DHCP service 30

General information

Dear Customer,

Thank you for purchasing this product.

This quick start guide was written to help you set up H.265 IP Camera Series rapidly and easily.

Read this quick start guide which contains information for correct, safe use carefully before using the device.

Keep this guide at hand so that you can refer to it when needed.

\*NOTE

For more detailed information about the devices, refer to the complete user manual available on the Urmet website (see QR code printed on the Addendum sheet).

WARNINGS

Electricity

Before connecting to electrical outlet, verify the electrical specifications of the device are suitable for the available power source.

We suggest to connect the device to electrical outlet via a switch disconnector.

In case of malfunctioning, disconnect electrical power from the general switch.

Use only the provided power supply.

Safety precautions

Do not expose the device to rain or humidity and do not insert any solid or liquid object in it to prevent the risk of fire or electrocution. In these events disconnect the device from the electrical outlet and call technical assistance to check it.

Do not open the device. Any repair must be made by qualified personnel or by calling the nearest authorized technical assistance center (www.urmet.com >> Contacts).

Keep the device away from children to prevent any, even involuntary, damaging.

Do not touch the device with wet hands as it might cause electrical shock or mechanical damages.

If the device falls down while working or if the salesbox is damaged, do not continue using it. If usage is continued under such circumstances electrical shocks might take place.

Contact the authorized retailer or installer.

Installation precautions

Do not install the camera in places with possible exposure to rain or humidity without the proper protective case.

Do not point the camera directly to sunlight or other intense sources of light, even when turned off. The subject of recording must not be against the light.

Do not point the camera against reflective objects.

Some light conditions (such as fluorescent color) can affect the recorded colors.

Use AUTO-IRIS lens when operating the camera in changing light environments.

Do not use this device on any unstable support such as lurching or sloping table to

prevent the device from falling and be damaged.

If water or any other material should penetrate the camera, stop using it as it might cause fire or electrical shock and contact the authorized retailer or installer.

Do not cover the device with any cloth while using to prevent deformation of the external part and inner components heating which might provoke fire, electrical shock or mechanical damages.

Do not put magnets or magnetized objects close to the device to prevent functional anomalies.

Do not use this device in presence of smoke, steam, humidity, dust or intense vibrations. Do not use the device shortly after moving it from warm to cold environment and vice versa. After moving the device wait three hours before using it: this time is necessary for the device to adapt to the new environment (temperature, humidity, etc.).

Usage precautions

Check the device is not damaged after removing the packaging.

Check the working environment is not too humid and the temperature is within the indicated range.

Do not point the camera against sunlight to prevent sensor damages.

Device cleaning

Use a dry cloth to remove dust and dirt from the device.

If dirt cannot be removed with a dry cloth, use a humid cloth and a neutral cleanser.

Do not use spray cleanser for device cleaning. Do not use volatile liquids such as gasoline, alcohol, solvents etc. or chemical treated cloth to clean the device to prevent deformations, damages or scars on the finishing paint.

Disconnect the device from the electrical outlet before cleaning.

Video recording

This device is not designed as a burglar system but mainly to transmit and record video images. URMET S.p.A. is not in any way responsible for loss or damages of the user consequent to theft.

Before using the device, record a demo video to verify the correct functionality of this feature. URMET S.p.A. is not in any way responsible for loss of recorded data consequent to wrong setting or usage, device malfunctioning or failure.

This device is composed by electronic precision components. Do not hit the device while recording as it might affect the video.

Privacy and Copyright

The IP camera is designed for surveillance systems. Video recording is subject to the laws applicable to the Country where used. It is forbidden to record images with Copyright.

The User is responsible to check and respect all local laws and norms for video signal recording. The manufacturer is NOT in any way liable for any usage of the product which might result not compliant to the relevant norms.

Firmware upgrade

Contact Customer Service Technical Assistance URMET S.p.a. in order to check availability of firmware upgrades.

Network configuration

Camera default setting is DHCP mode. If the network does not support dynamic addressing (DHCP), the device will automatically switch to factory IP 192.168.1.168. Use Urmet "Device Search" software provided with IP Camera CD in order to modify the IP address and other network settings to prevent any conflict with other devices on the network.

Network connections

When connecting a PC (using Software Client or Browser), any video channel on the PC will be using "unicast" connection (TCP, RTP, UDP).

The device can support up to 10 “unicast” connections so it is possible to show the video on maximum 10 remote devices (PC or smartphone) at the same time depending on the available network band.

Installation

INSTALLATION OF BULLET CAMERAS

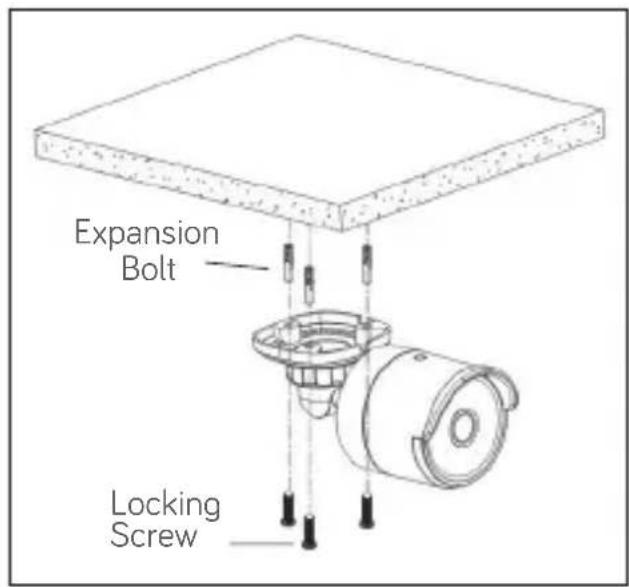

Ceiling Mounting

Insert three expansion bolts in place into the ceiling and fix the equipment with three locking screws.

Expansion Bolt Locking Screw

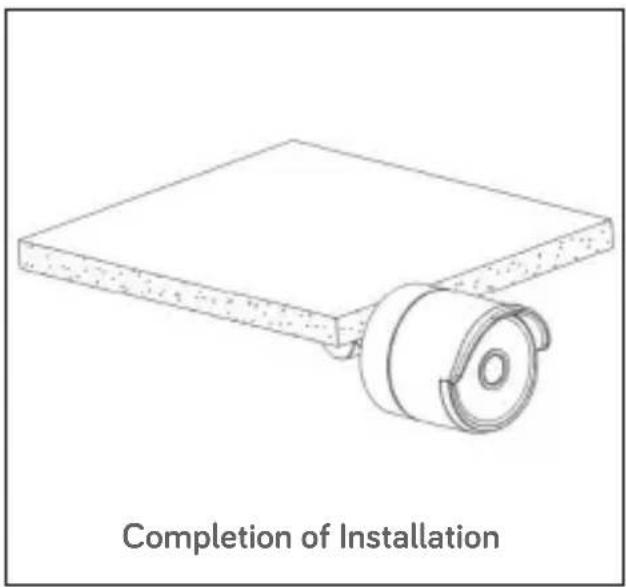

Completion of Installation

Wall Mounting

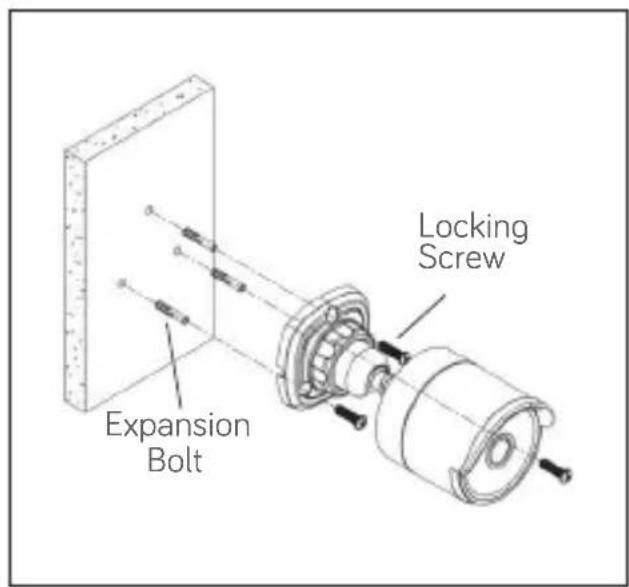

Insert three expansion bolts in place into the wall and fix the equipment with three locking screws.

Expansion Bolt Locking Screw

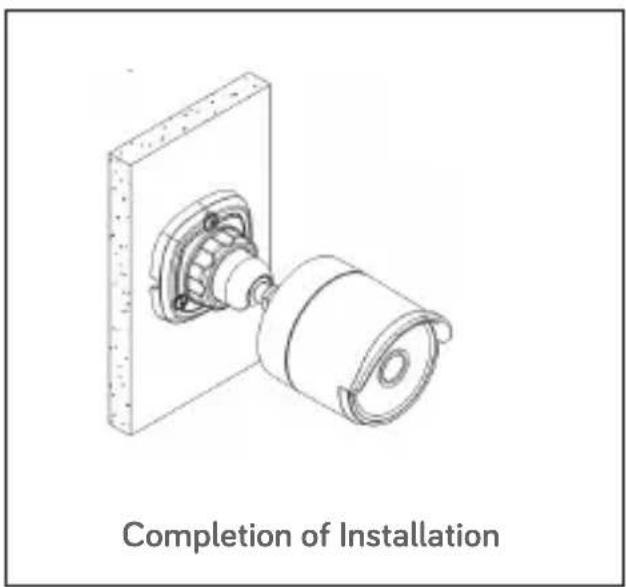

Completion of Installation

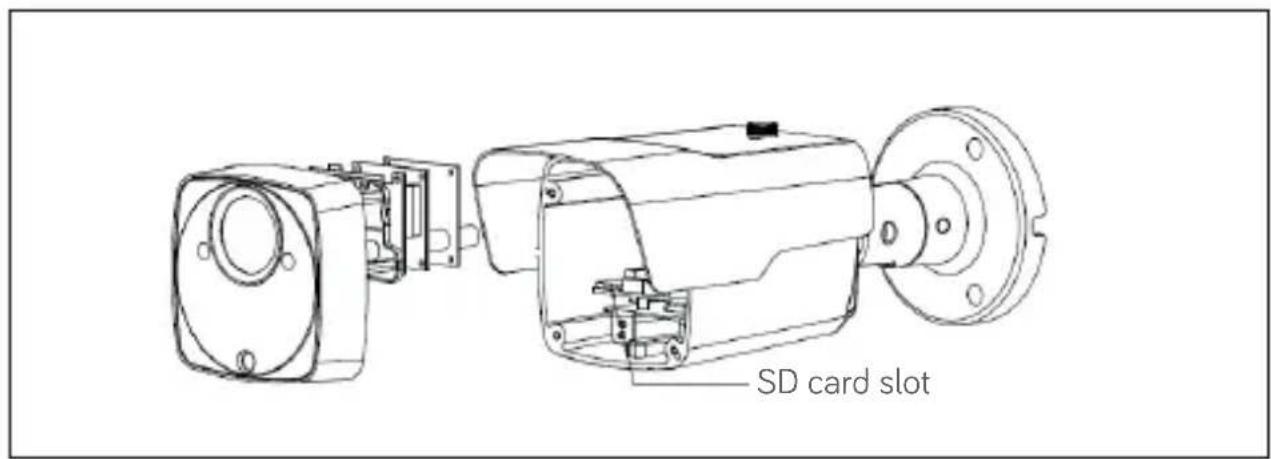

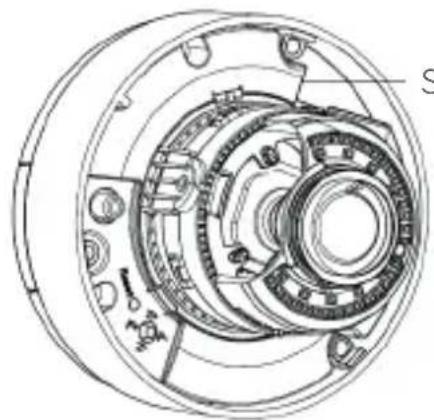

SD Card Installation

SD card slot

INSTALLATION OF INDOOR DOME CAMERAS

Ceiling Mounting

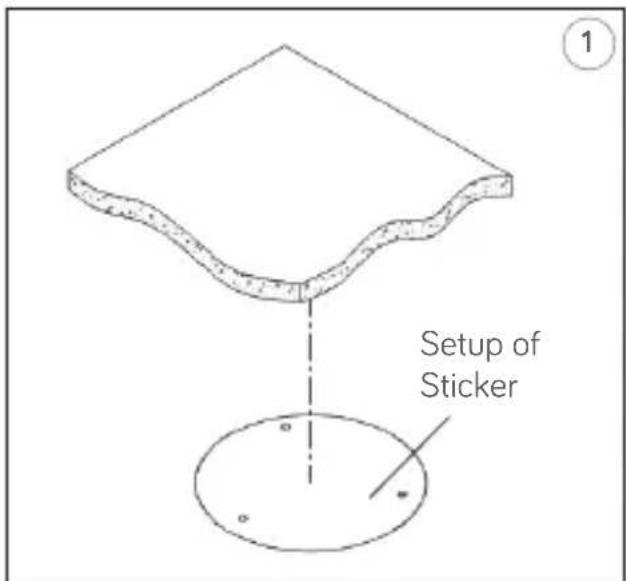

1. Paste the sticker in place at the proper position as selected.

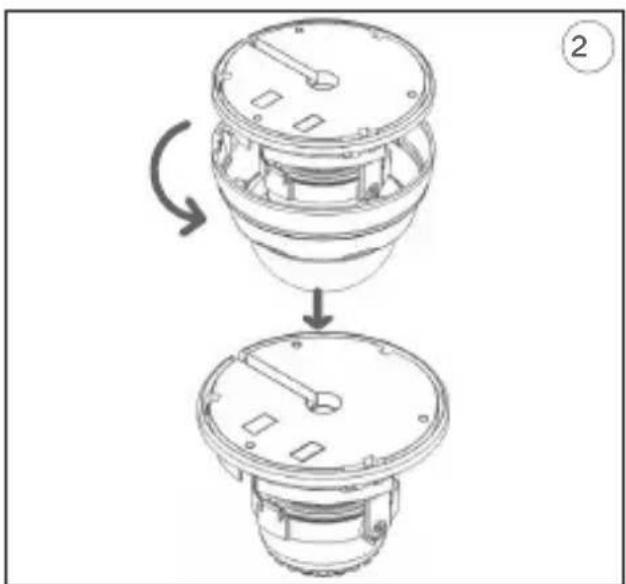

2. Remove the shield off the camera by rotating in counterclockwise the collar down.

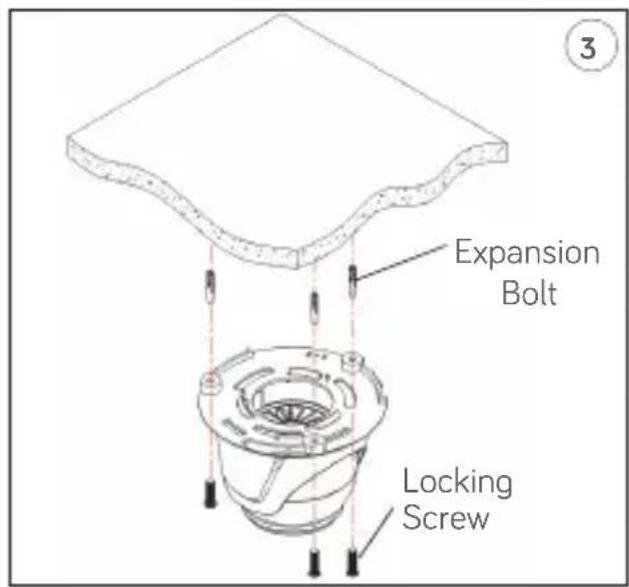

3. Fix the base by drilling locking holes around the sticker and inserting three expansion bolts into the holes and fastening it with three locking screws. Adjust it to an appropriate angle.

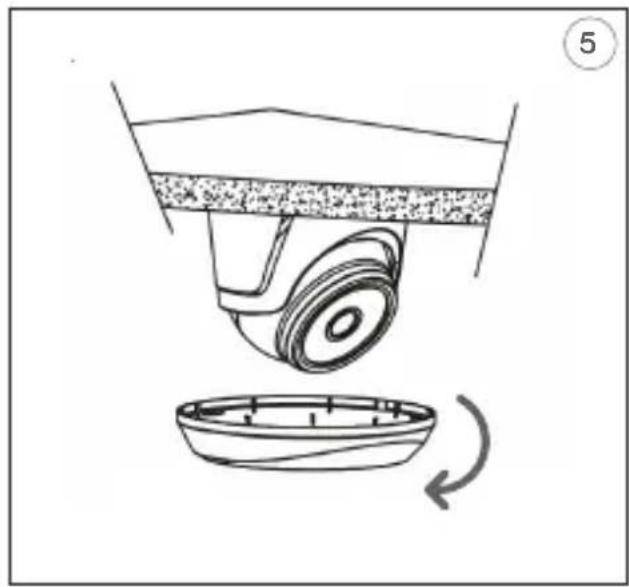

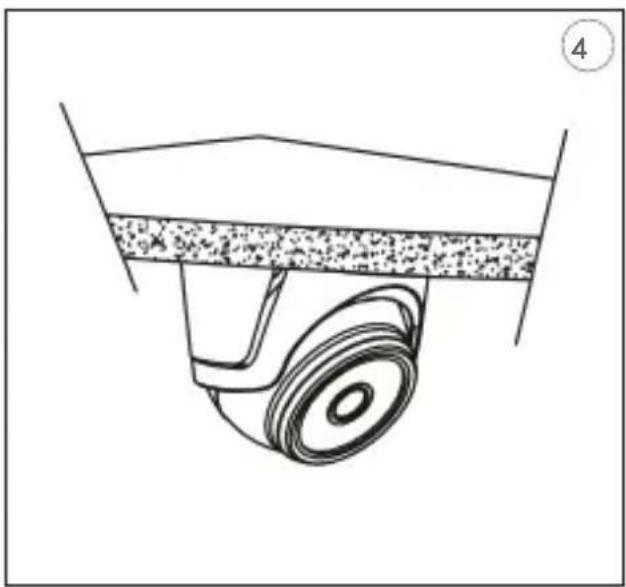

4. After angle adjustment, mount the shield back by rotating in clockwise the collar up.

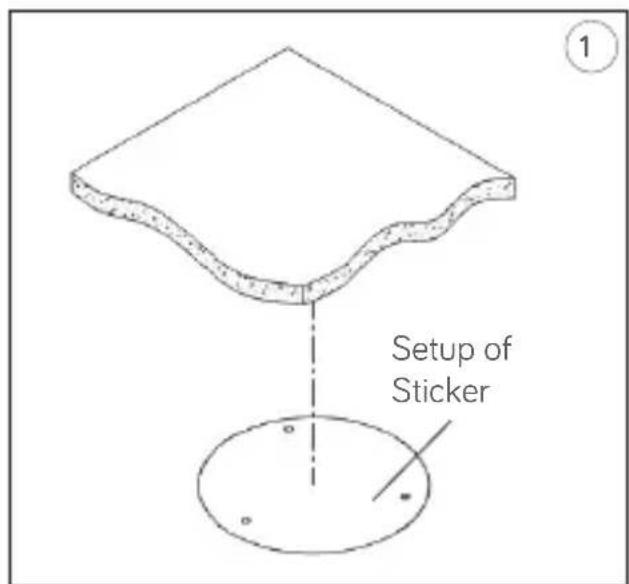

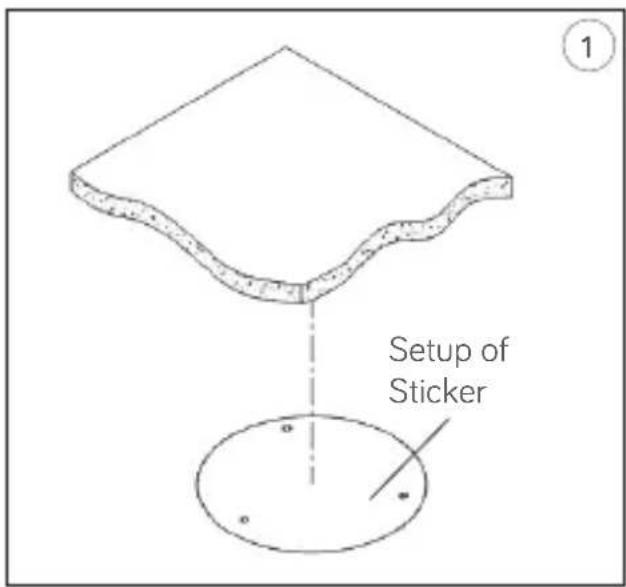

Setup of Sticker

Diagram of a device's internal structure showing a top-down assembly and a close-up view (no text or symbols)

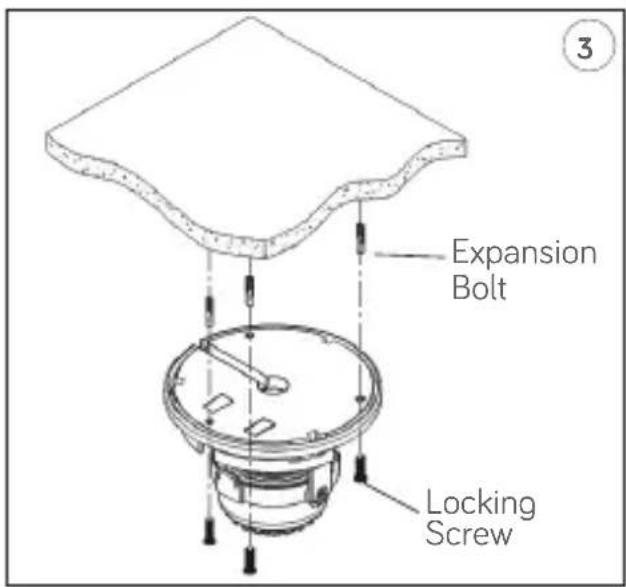

Expansion Bolt Locking Screw

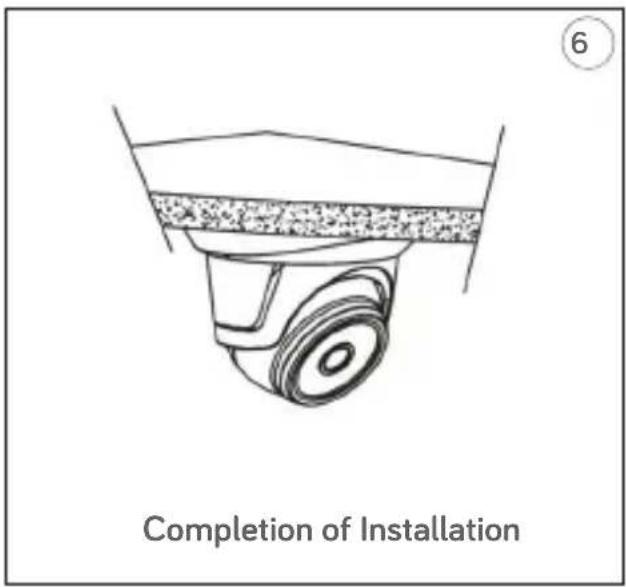

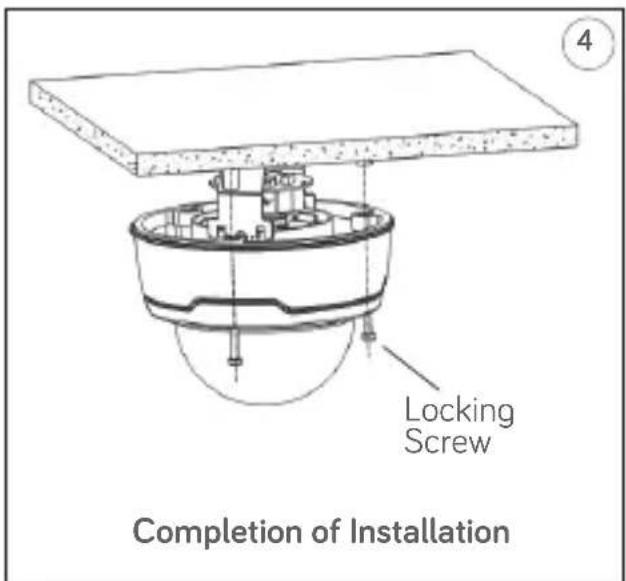

Completion of Installation

SD Card Installation

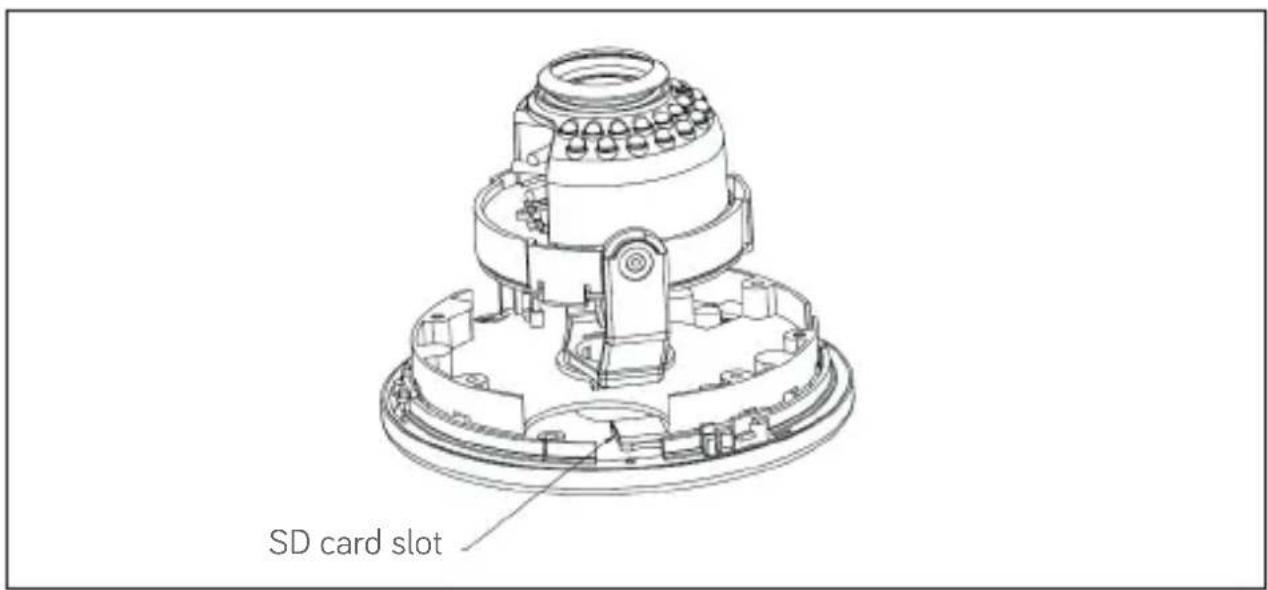

SD card slot

INSTALLATION OF VANDAL-PROOF DOME CAMERAS

Ceiling Mounting

1. Paste the sticker in place at the proper position as selected.

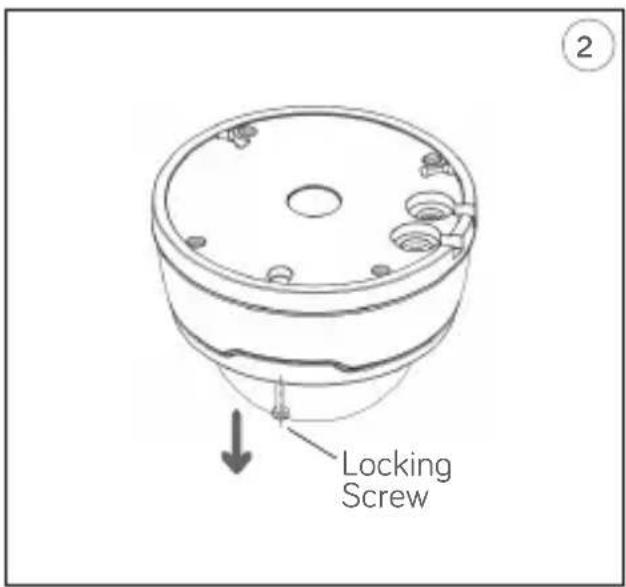

2. Remove the front component by loosening the three locking screws with a screwdriver.
3. Fix the pedestal by drilling locking holes around the sticker and inserting four expansion bolts into the holes and fastening it with four locking screws. Adjust it to an appropriate angle.
4. Fix the front component on the pedestal by tightening the three locking screws.

Setup of Sticker

Locking Screw ②

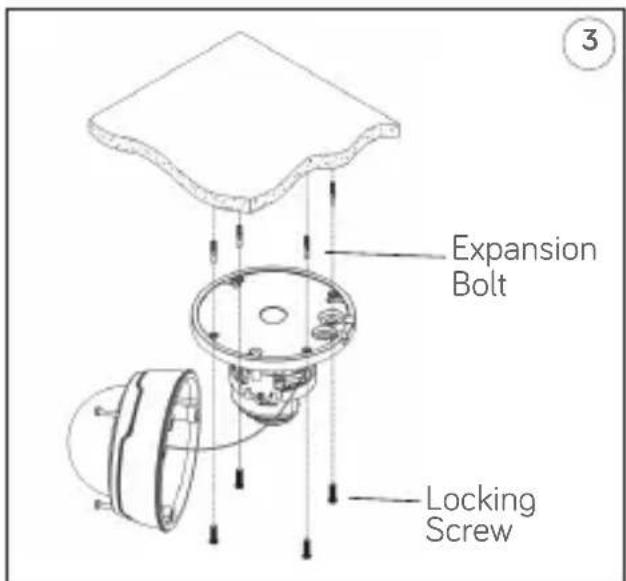

Expansion Bolt Locking Screw

Locking Screw Completion of Installation

SD Card Installation

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

SD card slot

INSTALLATION OF MINI DOME CAMERAS

Ceiling Mounting

1. Paste the sticker in place at the proper position as selected.
2. Remove the collar off the camera by rotating it down.
3. Fix the pedestal by drilling locking holes around the sticker and inserting three expansion bolts into the holes and fastening it with three locking screws.
4. Adjust it to an appropriate angle.
5. Mount the collar back by rotating it up.

Setup of Sticker

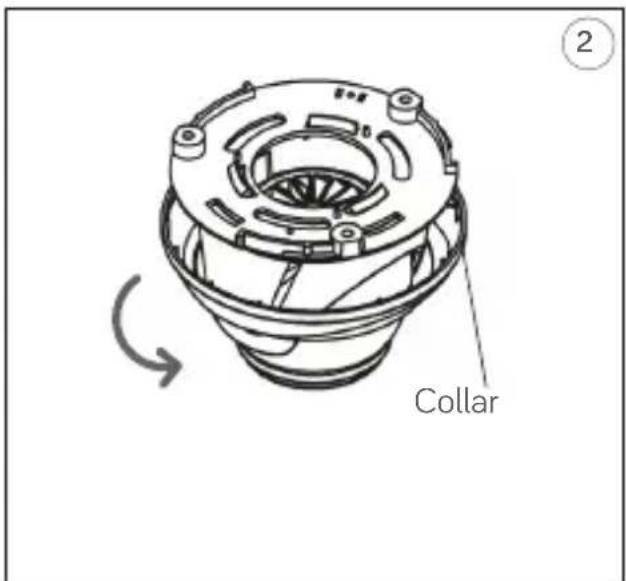

Collar ②

Expansion Bolt Locking Screw

Technical line drawing of a mechanical component with layered structure and a circular component (no text or symbols)

Diagram of a mechanical device with a rotating base and a curved component, no text or symbols present

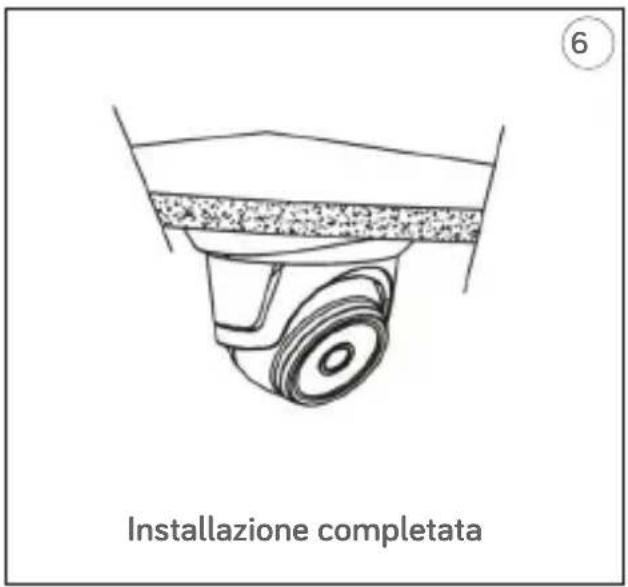

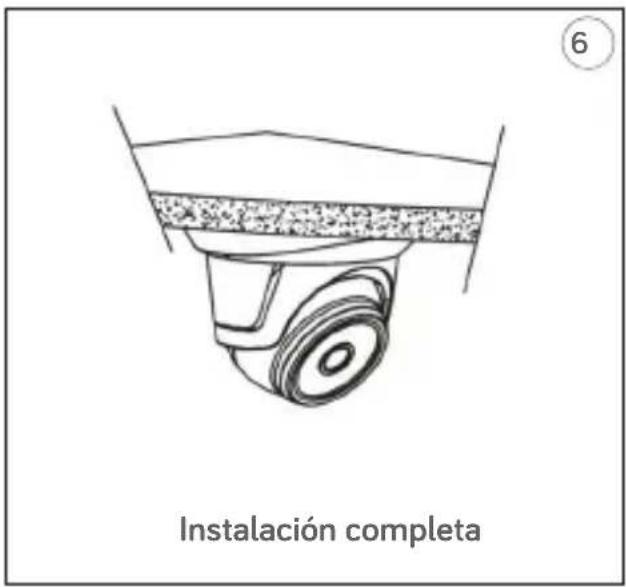

Completion of Installation

INSTALLATION OF BOX CAMERAS

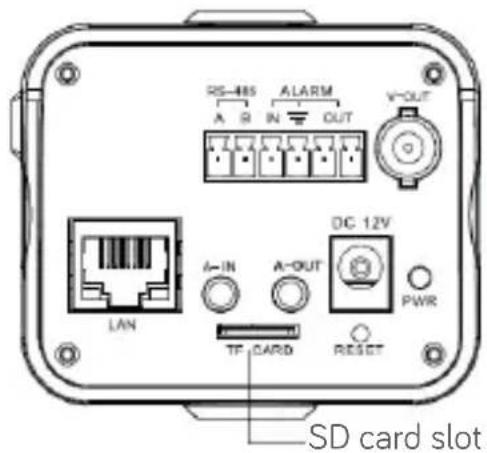

Box Camera structure diagram

RS-485 A R IN OUT V-OUT LAN A-IN A-OUT DC 12V PWR TF CARD RESET SD card slot

• PWR: Indicator light
• Reset Button: Device will reset to defaults after pushing the button 3 seconds.
  • A-IN: can connect with input devices, such as microphone.
  • LAN: Network signal output, support POE power supply.
  • V-OUT: for local video signal output.
  • Power Interface: DC 12V.
  • RS-485: A and B are the 485 connecting line.
• ALARM: Including alarm input and alarm output interface, IN and G is a set of alarm input, and the red bos in up picture is a set of alarm output.

NOTE:

Backfocus function not supported.

AUTO-IRIS PLUG

Auto-Iris plug PIN definition

PIN	DC
1	DAMP (+)
2	DAMP (-)
3	DRIVER (-)
4	DRIVER (+)

IP Camera Configurations

The camera must be configured for the home or office network after it has been powered. It is advisable to install and configure one camera at a time if you are installing multiple cameras on the same network.

CONNECTION TO IP NETWORK WITH DHCP SERVICE

For Quick installation about IP camera with dynamic host configuration (DHCP) on the network will be assigned an IP address automatically. IF DHCP Service is not supported, the default IP Address of IP Camera will be 192.168.1.168.

IP Camera Configuration:

1. Install the Software "Device Search" provided by CD and follow the installation instructions displayed at monitor.

1. Launch the "Device Search" Software, selecting it will be displayed automatically IP Address, Subnet Mask, Gateway, and MAC Address for each IP Camera detected in LAN, as shown in picture below.

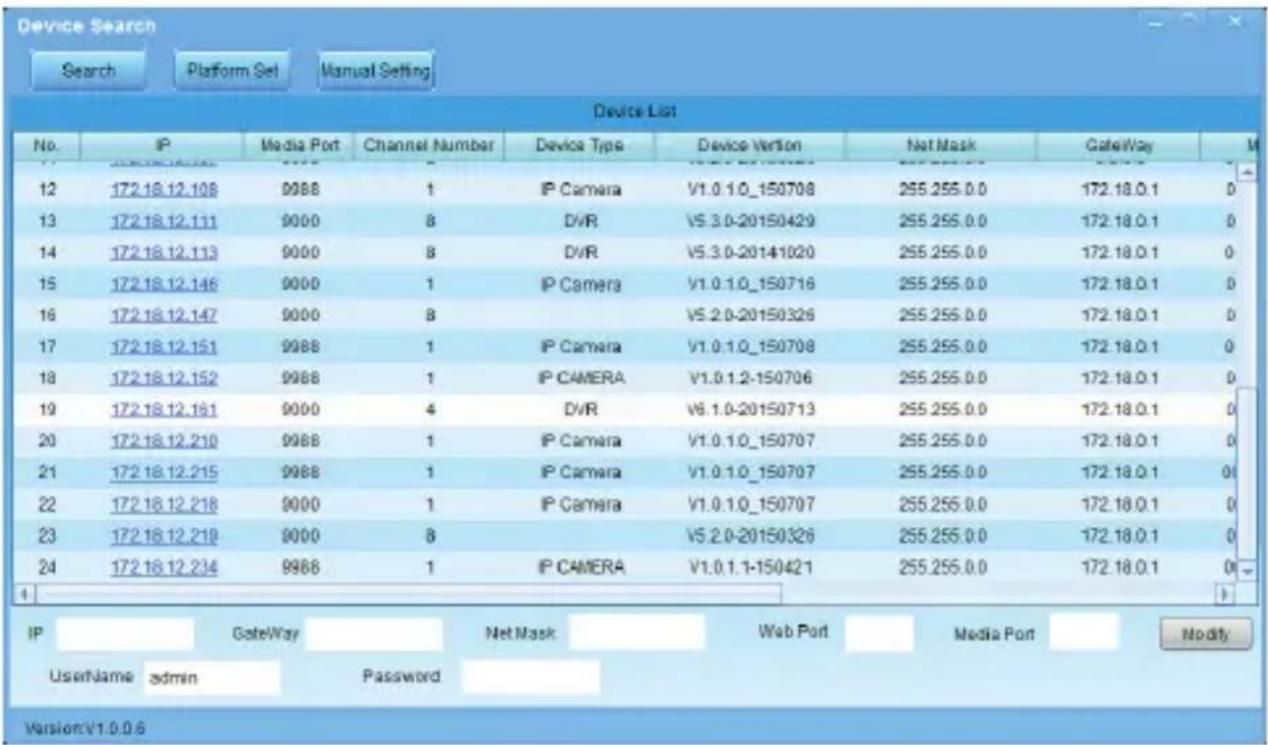

Device List No. IP Media Port Channel Number Device Type Device Version Net Mask GateWay 12 172.18.12.108 9988 1 IP Camera V1.0.1.0_150708 255.255.0.0 172.18.0.1 0 13 172.18.12.111 9000 8 DVR VS.3.0-20150429 255.255.0.0 172.18.0.1 0 14 172.18.12.113 9000 8 DVR VS.3.0-20141020 255.255.0.0 172.18.0.1 0 15 172.18.12.146 9000 1 IP Camera V1.0.1.0_150716 255.255.0.0 172.18.0.1 0 16 172.18.12.147 9000 8 V5.2.0-20150326 255.255.0.0 172.18.0.1 0 17 172.18.12.151 9988 1 IP Camera V1.0.1.0_150708 255.255.0.0 172.18.0.1 0 18 172.18.12.152 9988 1 IP CAMERA V1.0.1.2-150706 255.255.0.0 172.18.0.1 0 19 172.18.12.161 9000 4 DVR V6.1.0-20150713 255.255.0.0 172.18.0.1 0 20 172.18.12.210 9988 1 IP Camera V1.0.1.0_150707 255.255.0.0 172.18.0.1 0 21 172.18.12.215 9988 1 IP Camera V1.0.1.0_150707 255.255.0.0 172.18.0.1 0 22 172.18.12.218 9000 1 IP Camera V1.0.1.0_150707 255.255.0.0 172.18.0.1 0 23 172.18.12.219 9000 8 V5.2.0-20150326 255.255.0.0 172.18.0.1 0 24 172.18.12.234 9968 1 IP CAMERA V1.0.1.1-15042 255.255.0.0 172.18.0.1 0 IP GateWay Net Mask Web Port Media Port Modify Username adults BasiclPassword A#

If the searched IP address and PC IP address are not in the same network segment, user may modify IP address, subnet mask, and other parameters of IP camera by using “Device Search” software.

First select the device to modify IP address and then input new IP address, subnet mask, gateway and username/password. Insert the password and click "Modify" button to change IP address of the device.

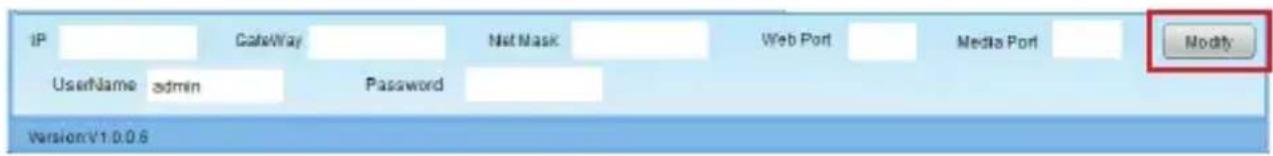

IP Gateway Net Mask Web Port Media Port Modify Username admin Password Version:V1.0.0.6

*IMPORTANT NOTE: IP camera Default Settings

Default Static IP Address:192.168.1.168

Username: admin

Password: admin

Media port: 9988

1. Before using IE (Internet Explorer) browser to access the IP camera for the first time, related plug-in components must be installed by following the procedure below:

- Access IP address of the IP camera for installing plug-in only for the first time. In the Web Page opened select "Download", after that select "Run" in the pop-up below.

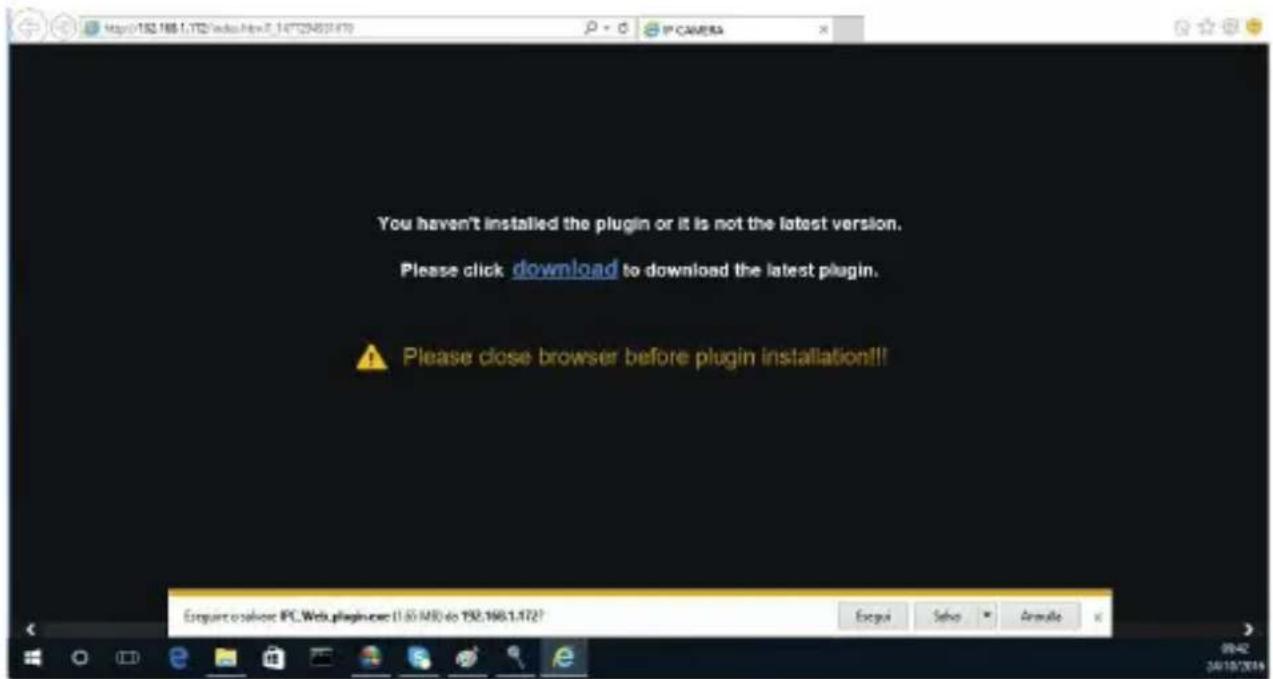

You haven't installed the plugin or it is not the latest version. Please click download to download the latest plugin. Please close browser before plugin installation!! Expiry: save PC.Web plugincase (1.65 MB) do 192.168.1.472? Expiry: Save Analyze

- Wait for plug-in download, after that confirm the ActiveX Installation.

- Select "Install" and wait for the installation is completed.

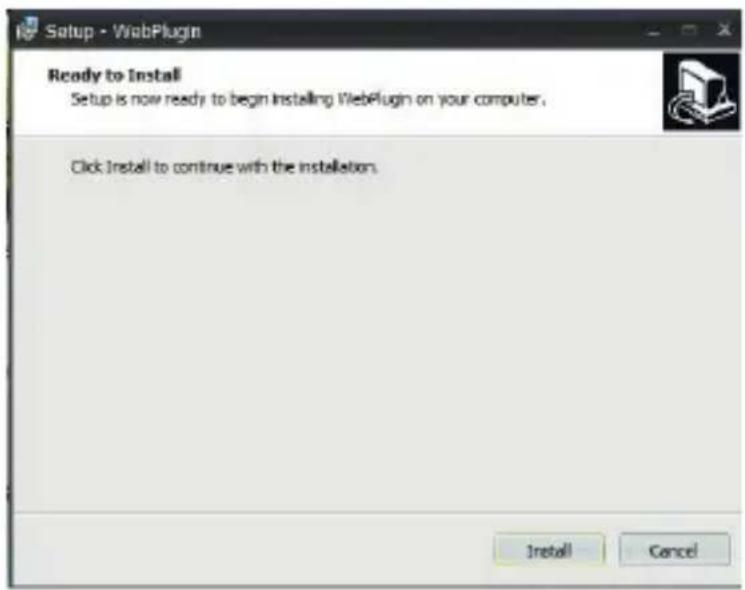

Setup - WebPlugin Ready to Install Setup is now ready to begin installing WebPlugin on your computer. Click Install to continue with the installation. Install Cancel

1. After completed the Active X installation, close the Internet Explorer Web Page and launch it again, put the IP Camera Address and the Login screen will be displayed. Select Username (default: admin) Password (default: admin) and Language.

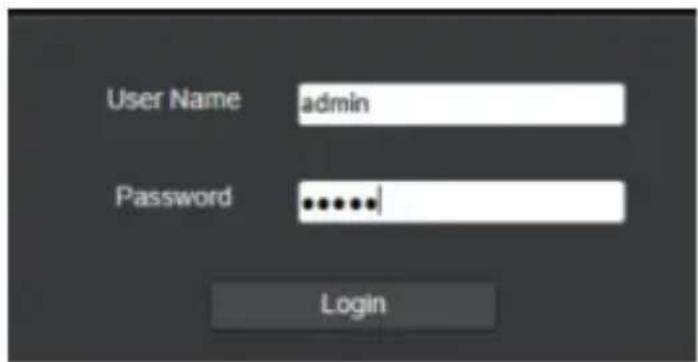

User Name admin Password ••••••| Login

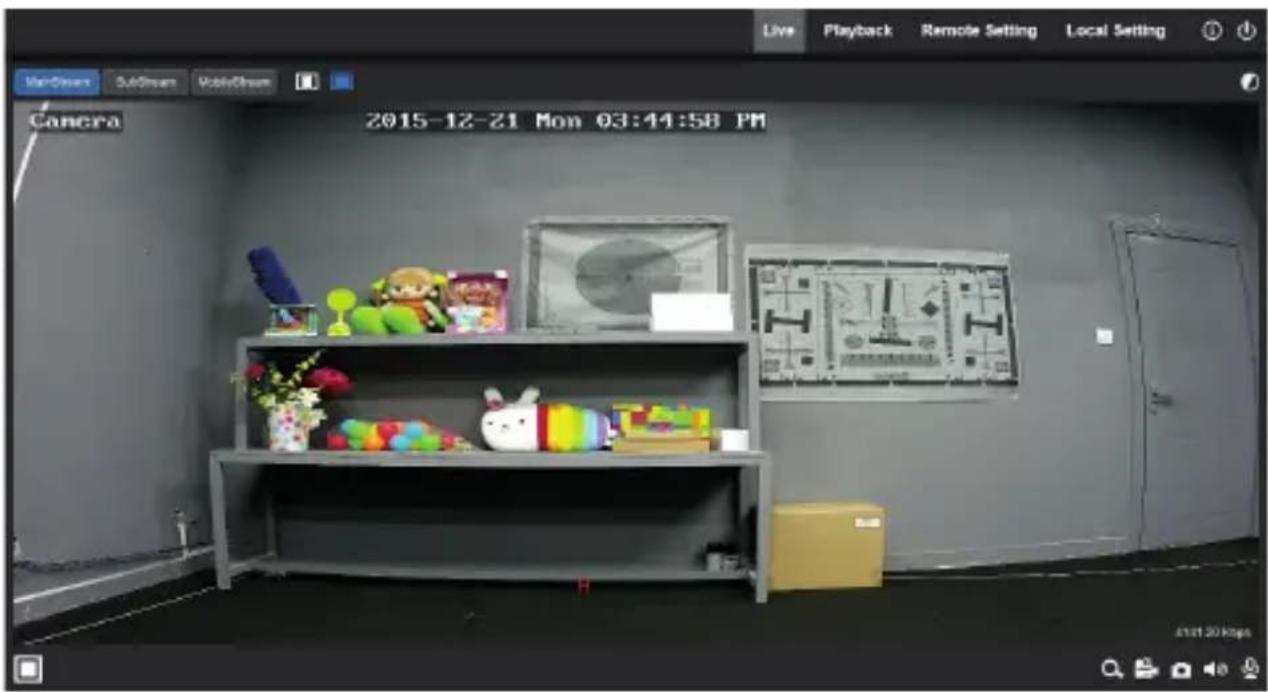

1. Select "Login" in order to enter in LIVE screen.

Live Playback Remote Setting Local Setting Mar-Drawn SubDream MobileDream Canera 2015-12-21 Mon 03:44:58 PM 1:11:30 kbps

1. Click the buttons on the top left corner in the Web Page to select the stream to display (Main Stream, Sub Stream or Mobile Stream).

Index

GENERALITES 35

Avertissements 35

INSTALLATION 38

Installation Bullet Camera 38

Installation Indoor Dome Camera 39

Installation Vandal-Proof Dome Camera 41

Installation Mini Dome Camera 42

Diagram showing a mechanical assembly with a cylindrical component being processed into a housing, indicated by an arrow (no text or symbols present)

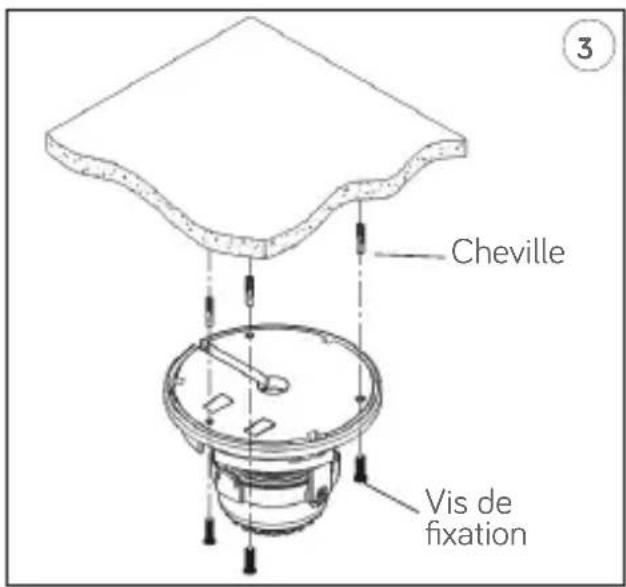

Cheville Vis de fixation

Installation terminée

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Slot pour carte SD

INSTALLATION MINI DOME CAMERA

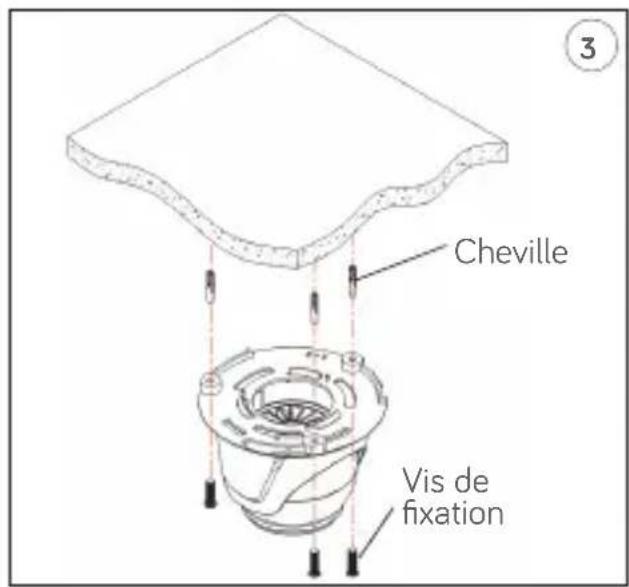

Fixation au plafond

Collier ②

Cheville Vis de fixation

Technical line drawing of a mechanical component with layered structure and a circular component (no text or symbols)

Diagram of a mechanical device with a rotating base and a curved component, no text or symbols present

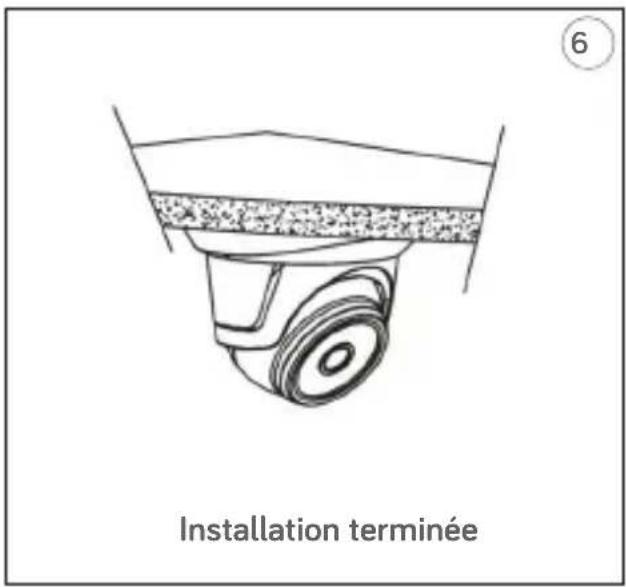

Installation terminée

INSTALLATION DE LA CAMÉRA BOX

Auto-Iris plug PIN definition

PIN	DC
1	DAMP (+)
2	DAMP (-)
3	DRIVER (-)
4	DRIVER (+)

Configurations IP de l'unite de filmage

IP GateWay Net Mask Web Port Media Port Modify Username admin Password Version:V1.0.0.6

Identifiant (UserName): admin

Mot de passe (Password): admin

Port Client (Media Port): 9988

You haven't installed the plugin or it is not the latest version. Please click download to download the latest plugin. Please close browser before plugin installation!!! Explain: save IPC. Web plugin: (1.65 M3) do 192.166.1.172? Explain: save IPC. Web plugin: (1.65 M3) do 192.166.1.172?

Setup - WebPlugin Ready to Install Setup is now ready to begin installing WebPlugin on your computer. Click Install to continue with the installation. Install Cancel

Diagram showing a mechanical assembly with a cylindrical component being processed into a base plate (no text or symbols present)

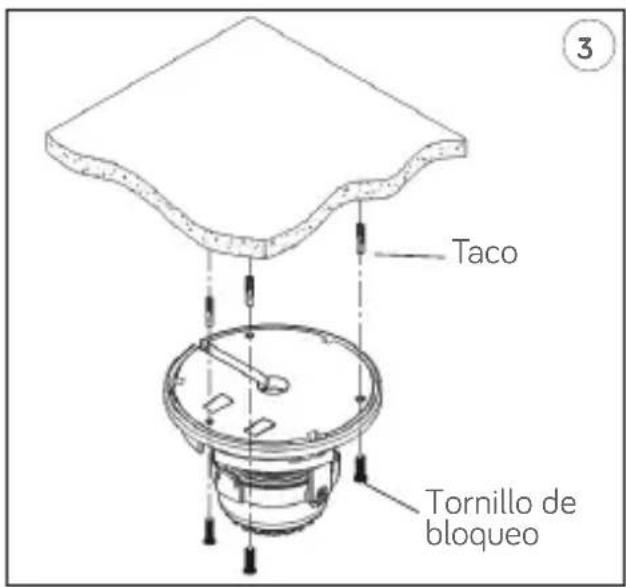

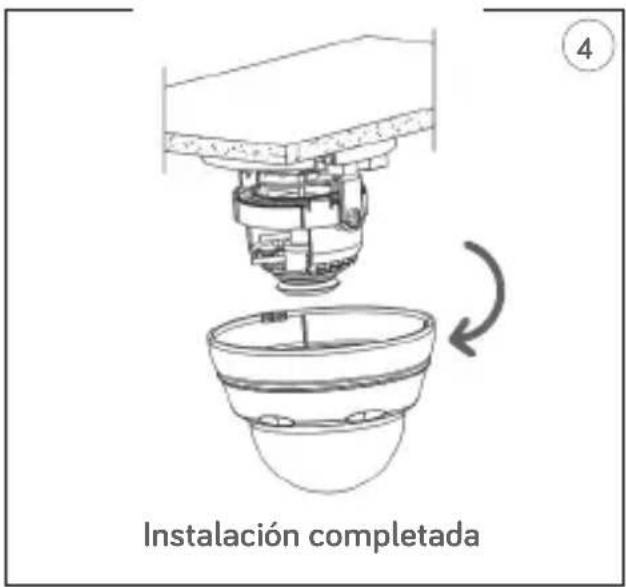

Taco Tornillo de bloqueo 3

Technical line drawing of a mechanical component with layered structure and a circular component (no text or symbols)

Diagram of a mechanical device with a rotating base and a curved component, no text or symbols present

Auto-Iris plug PIN definition

PIN	DC
1	DAMP (+)
2	DAMP (-)
3	DRIVER (-)
4	DRIVER (+)

IP GateWay Net Mask Web Port Media Port Modify Username admin Password Version: V1.0.0.6

You haven't installed the plugin or it is not the latest version. Please click download to download the latest plugin. Please close browser before plugin installation!! Explain: where PC, Web plugin: (1.65 MB) do 192.168.1.172? Explain: Select Create 09:42 24/18/2019

Setup - WebPlugin Ready to Install Setup is now ready to begin installing WebPlugin on your computer. Click Install to continue with the installation. Install Cancel

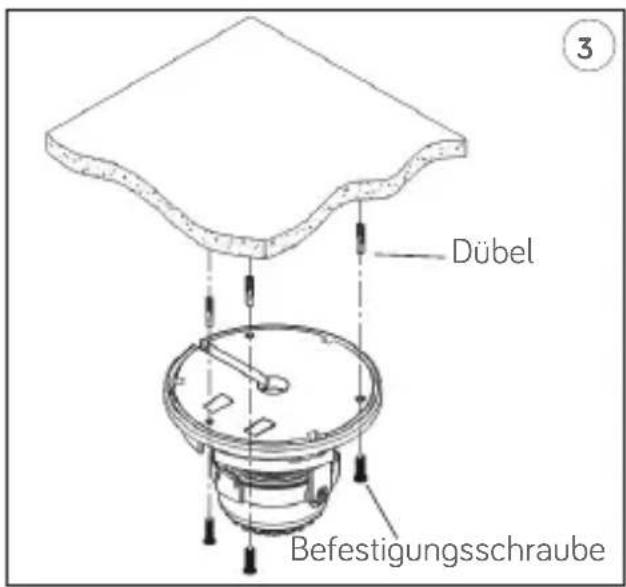

Diagram showing a mechanical assembly with two steps: top-down view and bottom-down view, no text or symbols present.

Technical line drawing of a mechanical clutch assembly (no text or symbols)

SD-Karteneinschub

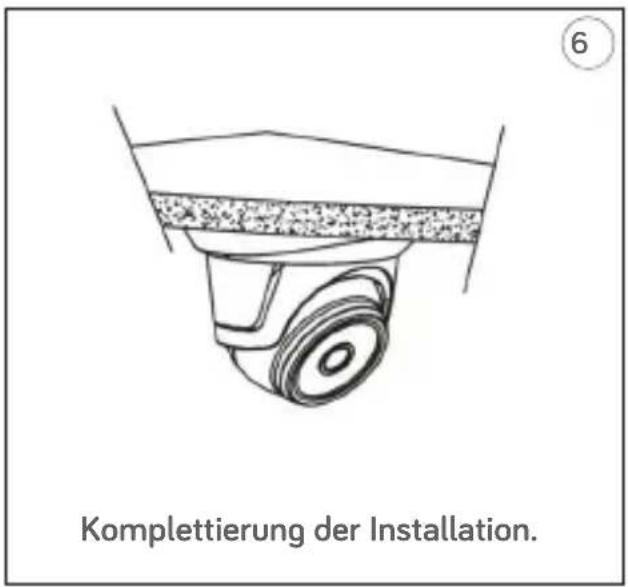

INSTALLATION DER MINI-DOME-KAMERAS

Deckenmontage

Technical line drawing of a mechanical component with layered structure and a circular component (no text or symbols)

Diagram of a mechanical device with a rotating base and a curved component, no text or symbols present

Auto-Iris plug PIN definition

PIN	DC
1	DAMP (+)
2	DAMP (-)
3	DRIVER (-)
4	DRIVER (+)

IP GateWay Net Mask Web Port Media Port Modify Username admin Password Version: V1.0.0.6

Nutzername (UserName): admin

Passwort (Password): admin

Media Port: 9988

Setup - WebPlugin Ready to Install Setup is now ready to begin installing WebPlugin on your computer. Click Install to continue with the installation, or click Back if you want to review or change any settings. Destination location: C:\Users\wenneburg\AppData\Roaming\WebPlugins\IPC2\EFFChrome Start Menu folder: WebPlugins\IPC2 Web Plugin Install Cancel

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

For assistance and information about Urmet products and systems you can scan this QR code with your smartphone or visit

www.urmet.com >> Contacts >> Export Sales Network

Urmet S.pA. reserves the right to make changes to its products at any time, without prior notice.

Released in April 2017.

www.urmet.com | [e-mail]

All Urmet products bear the mark C€

Made in China to Urmet specifications.
