USER MANUAL Nighthunter C35 Gen I Steiner

Thank you for purchasing the Steiner thermal clip-on. Please read this manual first and retain it for future reference.

IMPORTANT

Steiner reserves the right to modify product specifications at any time without prior notice.

FCC WARNING

This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation.

IMPORTANT

Danger

1. Please follow the method described in this Manual for charging the batteries, and follow proper charging procedures and precautions. Improper charging may cause overheating, damage and even personal injury;
2. Do not attempt to open or disassemble batteries at any time.

Warning

1. Do not use or store the device in an environment with the temperature higher than the permitted level;
2. Do not expose the device directly to high-intensity heat sources, such as the sun, laser, spot welding machinery, etc.;
3. Do not knock, throw or excessively vibrate the device and/or its accessories to avoid damage;
4. Do not attempt to disassemble the unit by yourself, which may cause damage to the device and loss of warranty rights;

5. Please observe the following rules when wiping this device:

6. Non-optical surface: if necessary, use a clean and soft cloth to wipe any non-optical surfaces of the thermal imaging camera;

7. Optical surface: avoid getting dirt / debris / oils (including oil from your hands) on the optical surfaces of the thermal imaging camera. When an optical lens surface is contaminated, use a professional lens cloth to carefully clean it;

Notes

1. Avoid exposing the device to excessive dust or moisture.
2. The lens should be covered when the device is not in use;

List of Parts

• Micro USB 18650 Charger
• Micro HDMI Cable

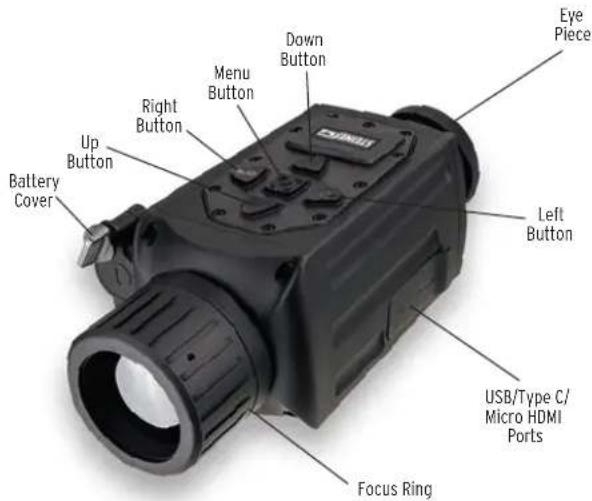

PRODUCT COMPONENTS

1. Focus ring

After the thermal imaging camera is turned on and aimed at the target, the focus ring should be turned until optimum image clarity is attained. When the distance to the target changes, the image may be blurred. Therefore, it may be necessary to turn the lens focus ring to refocus until the target image is clear.

2. Lens cover

Please cover the lens for protection when the unit is not in use.

3. USB Type-C port

The unit can be connected to external power, via the provided USB-C cable. When connected in this manner, the unit will operate but will NOT charge the battery inside the battery compartment. The battery must be removed from the device in order to be recharged.

4. Micro HDMI

By attaching the provided micro-HDMI cable to the video-out port (marked "HDMI"), an external monitor may be connected. The image from the thermal camera will then be displayed on this remote monitor. Please note that only one display (internal microdisplay or external monitor) can be active at a time.

5. Battery cover

Insert one 18650 battery into the battery compartment, accessed via the battery cover. No tools are necessary to access this compartment. Battery must be inserted with the proper polarity, as indicated on the outside of the battery cover.

QUICK START INSTRUCTIONS

Buttons	Device current status	Short press Long press
Power button (left button)	Power on (menu not displayed)	Non-Uniformity Correction (NUC)	Display off / Power off
	Power off / Power on
	Display off Display	ay on	When the button is lifted Display on
	Power (menu displayed)	Back to previous menu
▲ Up button	Menu bar is not displayed	Switch scene mode	/
	Menu bar is displayed	Switch menu options /
Right button	Menu bar is not displayed	Take photos Video	recording
	Menu bar is displayed	Enter sub-menu /
	Video recording	Take a photo Stop recording
Menu button	Menu bar is displayed	Enter sub-menu /
	Menu bar is not displayed	Enter the menu /
Down button	Menu bar is displayed	Confirm current option and return to previous menu	Return to or exit the menu without saving current settings
	Menu bar is not displayed	Switch color palette	/
NOTE: Users can adjust the device language according to their individual needs, English/German/French/Italian/Spanish.

BUTTON DESCRIPTION

1. Power button (left button) - Power on

Press and hold the power button for 4 seconds until the startup image appears in the eye lens. At that point the imager is started successfully. The full bootup process takes approximately 18sec.

Power off

Manual power-off: press and hold the power button. The power-off progress bar will be displayed in the eyepiece, and the power will turn off when the button is released after the progress bar is full.

Automatic power-off: the user may set an automatic power-off time via the menu system. If set, in the absence of any button presses within the chosen time period, the unit will automatically power off.

Display off

Long press on the power button. The power-off progress bar will be displayed in the eyepiece. Before the progress bar is full, if the button is released, the power-off will be cancelled and Display Off mode will be entered.

Display on

In Display Off mode, press any button to wake the screen.

Non-Uniformity Correction (NUC)

During normal operation, the imager will occasionally and automatically perform a NUC. During this operation, a shutter momentarily drops in front of the sensor, freezing the image and resetting any fixed-pattern noise in the image. If excessive pattern-noise is noted in the image in between the system's automatic NUC functions, a manual NUC can be implemented. To perform this function, utilize a short press on the left button. The image will momentarily freeze and reset.

2. Record button (right button)

Take photos

With no menu displayed on the screen, utilize a short press on the right button. A photo will be stored of the current scene. The image on the display may briefly freeze while the image is saved to internal storage.

Video recording

With no menu displayed on the screen, utilize a long press on the right button. A video will start recording. Another long press will stop the recording.

During video recording, a short press may be utilized to take photos as well.

3.Up button

Switch scene mode

With no menu displayed on the screen, utilize a short press on the up button to switch between the three preset modes: standard, enhanced, and highlight (or detect*).

4. Down button

Switch color palettes

With no menu displayed on the screen, utilize a short press on the down button to switch between the various color palettes: white hot, black hot, (adjustable) red hot, iron, blue hot (or fire), amber.

Zoom out

With no menu displayed on the screen, utilize a long press on the down button to electronically zoom out the scene.

5. Menu button

When the device is powered on and the menu is not displayed, utilize a short press on the menu button to display the menu.

Confirm and return / exit

When inside a menu, utilize a short press on the menu button to confirm the current option and return to the previous menu. When inside a menu, utilize a long press on the menu button to exit the menu without saving the current settings.

FUNCTION DESCRIPTION

These key features can be accessed via the menu system, to allow further user customization:

Scene mode: There are three preset scene modes that can be selected: standard, enhanced, and highlight (or detect*).

Color Palettes: There are multiple color palettes: white hot, black hot, (adjustable) red hot, iron, blue hot (or fire) and amber.

Brightness: This is the scene brightness, and is adjustable from levels 1-10. Note: the adjusted brightness value will be saved in the current scene mode.

Screen brightness: This is the amount of light coming out of the microdisplay, and is adjustable from levels 1-10. At night, it may be more comfortable to look at a dim display. During the day, the user may prefer a brighter display.

Contrast: Adjustable for user preference, from levels 1-10.

Calibration mode: This modifies how often the imager performs its Non-Uniformity Correction (NUC). The default is Automatic.

Stadiametric Rangefinder: Utilizing the distance between the two stadia lines on the screen, the distance to targets of known size can be estimated. The position of the bottom line remains unchanged. Use the up/down buttons to move the upper line, bracketing the target. Distance is then displayed in the upper left corner of the screen.

WiFi: WiFi can be used to transmit real-time video to a mobile device. Turn on WiFi using the menu system on the imager, noting the network name displayed at the top of the screen. Then, connect to this network via Settings on your mobile device.

At this point, a user can utilize the Steiner Connect App to access photos/videos on the imager, stream live video, or modify device settings.

Auto Stand-by: The Automatic Stand-by timer can be set to 5/10/15 minutes. If no buttons are pressed within the pre-set time, Sleep Mode will be entered. During Stand-by (Sleep Mode) the display will be off, but the thermal camera will remain on (and drawing battery power) to ensure a quick restart.

Automatic power-off: The automatic power-off timer can be set to 15/30/60 minutes. If no buttons are pressed within the pre-set time, the imager will automatically power itself off.

Energy saving (Power saving*: This mode can be turned on when the user desires extended runtime. When enabled, the internal microprocessor will switch into a low power mode, which may effect image processing speed. Additionally, the display brightness will remain fixed at 20% output (it cannot be adjusted higher) and the WiFi will be disabled.

Watermark setting: When enabled, the user can select between time only, date only, or both date and time. Watermark can also be turned off. There are several options for time and date format to suit user preference.

Time adjustment: The user can adjust the device's internal clock, setting the time and date.

Language setting: English / German / French / Italian / Spanish.

Memory (card*) formatting: The user can re-format the internal memory. CAUTION-performing this operation deletes all saved photos and videos from the device. Select "No" to cancel the operation.

Restore default: This operation restores all parameters to factory settings (but does not affect stored photos / videos). Select "No" to cancel the operation.

• depending on firmware version

Battery power display: When the imager is turned on, a battery indicator will be displayed in the lower left corner of the screen highlighting an estimate of power remaining. Note: When the power is low, please replace the batteries with freshly charged ones.

MOUNTING OF THE CLIP ON

Please note that you need an adapter to connect the Nighthunter C35 with your scope. While sourcing the adapter, please check the diameter of the scope tube (objective side) and choose the adaptor size accordingly to the diameter.

Below an example of Ranger 4 objective tube diameter and a values table for the Steiner riflescopes:

Ranger 4 / Predator 4 Ranger 6
Magnification	Objective tube Ø	Magnification	Objective tube Ø
... x24 30 mm	... x24 30 mm
... x42 51,2 mm
... x50	57,2 mm
... x56	64,1 mm	... x56	63,5 mm

Please note that the adapter needs a thread of M33,5 X 0,75 to be compatible with the Steiner clip-on thermal device.

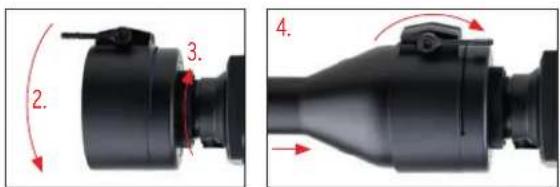

1. Prepare the clip on: twist clockwise the counter screw until it reaches the bottom.
2. Screw the adapter clockwise onto the clip-on, until the adapter's clamp reaches the 12 o'clock position (upward-most position).
3. Once the adapter is correctly positioned, back out (turn counter-clockwise) the counter-screw towards the adapter until it is tight, locking them together.
4. Position the opened adapter next to the scope, insert the scope in, ensure everything is straight and then close the adapter clamp.

Visit our website www.steiner.de to view our "how to mount the Nighthunter C35 clip on" video and even more.

First step is to have a zeroed riflescope with the corresponding rifle and to mount the clip on on the riflescope (see MOUNTING OF THE CLIP ON section).

Please note that for zeroing the clip-on, aiming either a 100m or 50m target.

Once you have your shot done, it's necessary to measure in cm the distance of the bullet from the aim, in both vertical and horizontal direction.

See example of a 100m shoot:

Now you need to go into: Menu Image location adjust

The interface will show you 3 options and you can choose between A, B, C and register to any letter a different riflescope/rifle.

Example:

letter A is Ranger 4 letter B is Ranger 6 and letter C is a M7Xi.

Up on the screen there are 2 values:

Example: 7 A v 16

You can change these values easily moving up, down, left and right using the arrows or you can adjust the values also from the Steiner Connect App.

Assuming that, every push of the bottom corresponds to 1 MOA (which is 2.9cm if you shoot 100m and 1.45cm if you shoot 50m distance) in the specific case we use as example, you will need to push 1 time the down arrow (circa 3cm ) and 2 times the left arrow (circa 6cm )

Afterwards push Menu button _ again and the device will ask you to cancel or confirm.

M Menu

right button

M Menu to confirm

M Menu

left button

M Menu to cancel

To check the updated values you need to go again through

M Menu

Image location adjust

M Menu to confirm

Select the device between A, B, C options. You will now see the new values at the top of the screen.

Example:

< > 5 15

We now recommend you shoot again to check if the bullet hits the aim if it is still distant repeat the process.

Visit our website www.steiner.de to view our "how to zeroing the Nighthunter C35 clip on" video and even more.

BATTERY

Steiner recommends the use of a type 18650 Li-ion battery, 3.7V 3000mAh (18× 65mm) .Note that the unit will operate but will not charge the battery inside the battery compartment when connected to USB. The battery must be removed from the device in order to be recharged.

TROUBLESHOOTING

1. Device fails to start

Solution: Replace the battery or connect an external power supply. Ensure the power-on button is held for the full 4 seconds.

2. The device cannot take photos/record videos

Solution: the internal storage space of the device may be full. Delete photos / videos that are unnecessary, or format the memory card.

3. The device time/date does not match the actual time/date

Solution: Reset the time and date of the device in the menu.

4. Screen blacks out during use

Solution: Short-press any button to wake up the device from Standby Mode. The display will light up.

5. The image of the device is blurred during use

Solution: Check the diopter adjustment to ensure a clear view of the micro-display through the eyepiece. Then, manually turn the objective lens until objects are in clear focus.

STORAGE AND TRANSPORT

Please store and/or transport the imager within the following environmental parameters.

To prevent danger, property loss, etc., please read the manual carefully before using the device.

Storage

1. The packaged product shall be stored in a well-ventilated room at a temperature between -30^ and 60^ and relative humidity not exceeding 95% .
2. Do not store batteries inside the unit.

Transport:

The unit should be protected against rain, water immersion, severe vibrations, and impact during transportation.

STEINER CONNECT APP

Download the Steiner Connect App from the App Store or Google Play to view recorded photos and video on a connected device.

Downloadlink Steiner Connect App for iOS

Downloadlink Steiner Connect App for Android

System requirements:

Android 8.0 and newer
iOS 13 and newer

The version of the manual will be updated after the technical improvement of the product.

TECHNICAL SPECIFICATIONS

Nighthunter C35
Detector	Resolution 640 x 480@12 μm
	Spectrum 8	~14μm
	NETD	≤50mK @ 25 °C
Lens	Focal length 35mm F/1.0
	Focus Manual
	Field of view @ 100m	12.5 x 9.4 m
	Output frame rate 50Hz
	System magnification	1x-8x
	Thread specification M33.5x0.75
Power supply	Battery 18650, 3000 mAh, changeable
	Adaptor	Standard USB power adaptor 5VDC, max, 10W
	Working time	Battery continuous working time ≥4.5 hours @25 °C (only watching)
Interface	USB	TYPE C (USB 2.0 standard), support data transmission
	Video interface Micro	HDMI
	WiFi	Support WiFi (APP) communication, realtime video transmission
Display	Display 0.39 inch, colorful OLED
	Resolution 1024 x 768
	Video output format Digital video

TECHNICAL SPECIFICATIONS DISPOSAL OF ELECTRICAL

Nighthunter C35
System Memory capacity 16GB
Environment	Working temp -30 °C	50 °C
	Storage temp -40 °C	60 °C
	Humidity 10%	~ 95%, not-condensing
	Shock	800G / 1 ms semi-sinosoidal IEC60068-2-27
	Vibration	10Hz ~ 150Hz ~ 10Hz 0.15 mm IEC60068-2-6
	Drop lm drop
	Waterproof Yes
	Certification UN38.3, RoHS, CE, FCC, EAC
Detection	1,8x0,5 m size target 1800 m
	Vehicle 4400 m
	Red Deer 3200 m
	Roe Deer 2000 m
Recognition	1,8x0,5 m size target 450 m
	Vehicle 1100 m
	Red Deer 825 m
	Roe Deer 500 m
Identification	1,8x0,5 m size target 225 m
	Vehicle 550 m
	Red Deer 400 m
	Roe Deer 250 m

AND ELECTRONIC EQUIPMENT

(applies to the EU, and other European countries with separate collection systems)

User information on the disposal of electrical and electronic equipment (private households).

This symbol on our products and/or accompanying documents means that used electrical and electronic products should not be mixed with unsorted municipal waste (ordinary household waste). For proper treatment, recovery and recycling, take these products to the appropriate collection points where they will be accepted without charge.

Before handing over the waste equipment to a collection point, please remove used batteries and accumulators and dispose of them separately from the waste equipment at the appropriate collection points.

In some countries, it may also be possible to dispose of these products at your local retailer when purchasing an equivalent new product.

Proper disposal of this product will help protect the environment and prevent potential harm to people and the environment which could result from inappropriate waste handling.

For more detailed information on the nearest collection point, please contact your local government. In accordance with provincial legislation, penalties may be imposed for improper disposal of this type of waste.

For business customers in the European Union

Please contact your dealer or supplier if you wish to dispose of electrical and electronic equipment. He will have more information for you.

Information on disposal in other countries outside the European Union

This symbol is only valid in the European Union. Please contact your local council or distributor if you wish to dispose of this product and ask for a disposal option.
