Product Type	Riflescope
Brand	Steiner
Model	T6Xi 2.5-15x50
Magnification	2.5-15x
Objective Lens Diameter	50 mm
Tube Diameter	34 mm
Field of View	44 – 8.1 ft @ 100 yds / 48.5 – 9 m @ 100 m
Eye Relief	3.5 – 3.3 in (91 – 84 mm)
Exit Pupil	9.5 – 3.8 mm (low/high)
Diopter Adjustment	+2 to -3
Focal Plane	First Focal Plane (FFP)
Reticle Options	SCR-MIL or SCR-MOA (depending on model)
Illumination	Rotary dial with 11 levels and battery saver positions
Battery Type	CR2450 (3V lithium)
Windage Adjustment	0.1 mRAD or 1/4 MOA per click (depending on model)
Total Elevation Range	34 MIL / 60 MOA
Total Windage Range	30 MIL / 50 MOA
Parallax Adjustment	Side focus, adjustable from 25 m to infinity
Weight (without caps)	32 oz (895 g)
Length	12.8 in (325 mm)
Operating Temperature	-15°F to +165°F (-26°C to +74°C)
Waterproof/Fogproof	Yes, fogproof and waterproof to 33 ft
Warranty	Steiner Heritage™ Warranty (lifetime, no questions asked)
Made in	USA
Included Accessories	Sunshade, flip-up lens covers, throw lever, hex wrench

Frequently Asked Questions - T6Xi 2.5-15x50 Steiner

What type of rings are required for the T6Xi 2.5-15x50?

The T6Xi 2.5-15x50 requires 34 mm rings. Steiner recommends high-quality rings such as the Steiner T-Series rings.

How do I adjust the eyepiece focus for the reticle?

Loosen the diopter locking ring by turning it counter-clockwise. Then, with quick glances, rotate the focus ring until the reticle appears sharp and black. Finally, tighten the locking ring clockwise. Do not look through the scope while turning to avoid eye accommodation.

How are windage and elevation adjustments made?

Windage and elevation knobs are located on the right side and top of the scope, respectively. Each click equates to 0.1 mRAD (MIL models) or 1/4 MOA (MOA models) at 100 meters/yards. Turn clockwise to move impact down (elevation) or left (windage); counter-clockwise for opposite.

How do I lock the windage and elevation turrets?

Turn the top ring on the turret (marked with a lock symbol) counter-clockwise until the locked symbol appears in the window. To unlock, turn clockwise. This prevents accidental adjustment.

How do I set the zero click stop?

Lock the turret, then use the supplied 2mm hex wrench to loosen the two set screws just below the knob top. Turn the knob to zero and retighten the screws. Repeat for windage. Do not remove the turret.

How do I adjust parallax on the T6Xi 2.5-15x50?

Use the side focus knob on the left side of the scope. Rotate until the image is sharp and the reticle does not move when you shift your eye. The knob has distance markings for known ranges; the minimum parallax setting is 25 m.

How do I change the battery for the illuminated reticle?

Unscrew the battery cap on the illumination switch. Replace with a CR2450 3V lithium cell, flat side (+) up. For long-term storage, remove the battery to prevent corrosion.

What cleaning methods are recommended for the lenses?

First, remove coarse debris with a soft brush or compressed air. Then use a lens cloth with gentle pressure. Avoid cleaning when dirt is present to prevent scratching the lens coatings. The scope is weatherproof but external cleaning only.

What is the Steiner Heritage™ Warranty coverage?

The Heritage™ Warranty covers repair or replacement at no charge for any defect or damage (except theft or deliberate misuse), no questions asked. It is transferable and lifetime. Disassembly by non-factory voids warranty.

Is the reticle illuminated for night vision use?

Yes, the illuminated reticle has 11 intensity levels. Positions 1-7 are for night operations, with positions 1-3 specifically suitable for use with night vision devices. There are also battery saver off positions between each level.

USER MANUAL T6Xi 2.5-15x50 Steiner

MOUNTING THE SCOPE 4

Eyepiece Focusing

WINDAGE/ELEVATION ADJUSTMENT 5

Locking Windage/Elevation Turrets

PARALLAX/FOCUS ADJUSTMENT 7

STEINER RETICLES 8

Illuminated Reticle Adjustment

Replacing Battery

ACCESSORIES 9

CARE & MAINTENANCE 10

SPECIFICATIONS 11

HERITAGETM WARRANTY

Two black precision optical targets with visible lenses and adjustment knobs (no text or symbols)

1-6×24 2.5-15×50

INTRODUCTION

Steiner is one of the largest manufacturers of high-quality optics in the world. Steiner products represent the highest level of precision and technology. Your T6Xi riflescope is proudly designed, machined, and assembled in the USA for precision shooters who demand the best.

This manual outlines the basic operation and maintenance of the scope.

WARNING! Make sure your firearm is unloaded before attempting to mount the scope on your firearm. Practice safe firearms handling at all times.

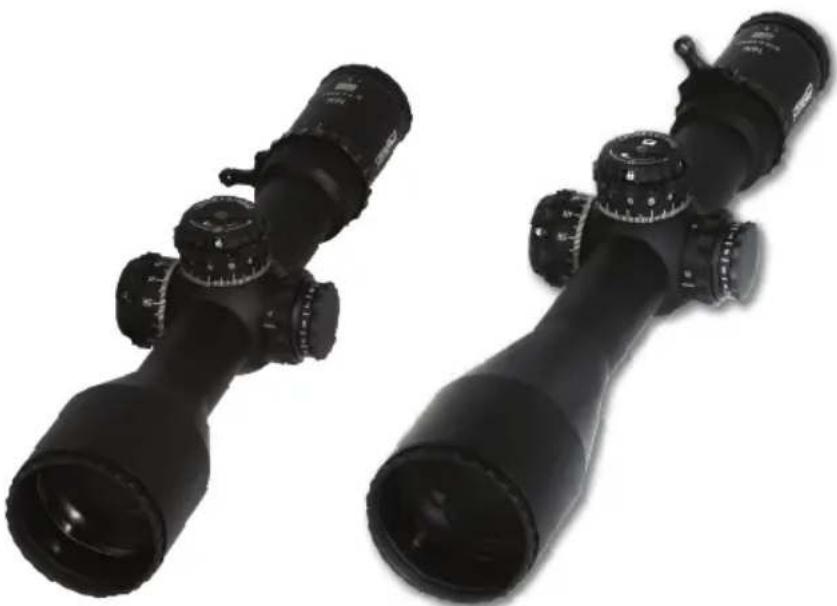

Two black precision optical tools with scope lenses and adjustment knobs, shown against a white background (no text or symbols visible)

3-18×56 5-30×56

MOUNTING THE SCOPE

Quality components ensure that your scope will remain safely and securely mounted and will provide the maximum accuracy. The 1-6x24mm model requires 30mm rings. The 2.5-15x50mm. 3-18x56mm and 5-30x56mm require 34mm rings. Steiner recommends using high-quality rings and bases such as the Steiner T-Series rings.

Read the ring manufacturer's directions regarding the installation of mounts and rings.

EYEPIECE FOCUSING

The eyepiece can be focused so that the reticle appears sharp and black to your eyes. Adjusting the focus is quick and easy to do. The T6Xi riflescopes feature a diopter locking ring that ensures it cannot be moved once the reticle is focused for your eye. To adjust the eyepiece, follow this procedure.

1. Loosen the diopter locking ring by turning it counter-clockwise.
2. With the locking ring loosened, the diopter can be easily adjusted.
3. Point the scope at the sky or a plain wall and take a quick glance through the scope. If the reticle appears sharp and black, no further adjustment is necessary.
4. If not, use quick glances through the scope while rotating the focus ring until the reticle is sharp and clear.
5. When the reticle is focused for your eye, tighten the locking ring by turning clockwise. Do not over-tighten.

NOTE: Do not look through the eyepiece as you turn the focus ring. Your eyes will adjust to the out-of-focus condition.

WINDAGE / ELEVATION ADJUSTMENT

The windage and elevation knobs are designed for precise adjustment. The dials are calibrated so that 1 click = 1 cm @ 100 meters or 0.1 mRAD for MIL models, or 1/4 MOA @ 100 yards for MOA models. The windage turret is located on the right side of the tube and elevation turret is on the top. Adjustments are indicated by detents and audible clicks.

The T6Xi Series offer low-profile Never-Lost elevation turrets. MIL / MOA of elevation is shown through the indication window on the elevation turret. After the first revolution of 120 clicks, the MIL / MOA numbers on the scale automatically change preventing the shooter from getting lost on the dial.

	1-6 2.5-15 3-18 5-30
WINDAGE RANGE@ 100 M	30 Mil 15	Mil /50 MOA	15 Mil 14	Mil
ELEVATION RANGE@ 100 M	30 Mil 35	Mil /120 MOA	35 Mil 26	Mil

LOCKING WINDAGE/ELEVATION TURRETS

The T6Xi models with adjustable turrets feature a new reticle lock ensuring windage and elevation adjustments cannot be moved accidentally. To lock the turn the top ring on the turret (indicated by the lock symbol) counter-clockwise until the locked symbol appears in the window.

Unlock to make windage or elevation adjustments. Windage and elevation adjustment chart shown above shows how many MOA / Mil's of adjustment are here for windage and elevation.

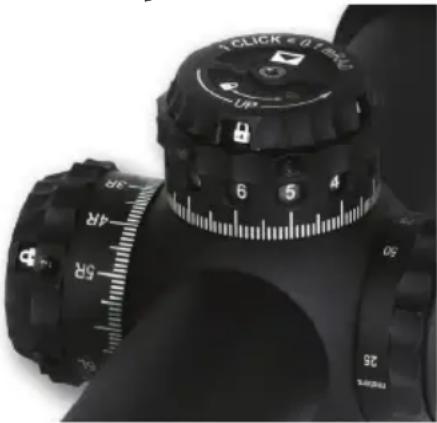

LOCKING WINDAGE/ELEVATION TURRETS (CONT)

• Turning the elevation turret clockwise moves the point of impact down.
• Turning the elevation turret counterclockwise moves the point of impact up.
• Turning the windage dial clockwise moves the point of impact left.
• Turning the windage dial counterclockwise moves the point of impact right.

The T6Xi series is shipped from the factory with the optical center (knob at 'O' position) set below center.

Without tapered bases the initial sight-in or bore-

sighting will likely produce an initial point of impact considerably high. For best results, Steiner recommends a 25 MOA canted base for the 3-18x and 5-30x models.

Close-up of a black camera caliper with adjustment knobs and a 50-degree scale, no visible text or symbols on the device itself.

Zero Click Stop is factory set so the scope has no extended capability for downward point of impact adjustment. For additional negative elevation adjustment, reset the zero using the next step.

If the Desired Zero is Below the Zero Click Stop Location

1. Use the 2mm hex wrench supplied with the scope to loosen the set screws on the elevation adjustment knob located just under the top of the knob. The knob should free spin without any click engagement.
2. Turn the knob in the direction of "up" as indicated on your elevation knob slightly more than the number of Mil's / MOA needed to achieve zero.
3. Retighten the set screws.
4. Adjust the elevation down the required amount.

Setting the Windage Zero and Elevation Zero Click Stop

1. Place the turret in the locked position.
2. Using the 2 mm hex wrench supplied with your scope loosen the two set screws located just below the top of the knob, one-half turn.
3. Turn the knob to zero.
4. Tighten the two set screws on the knob. DO NOT OVERTIGHTEN.
5. Repeat for the windage knob.

NOTE: Do not attempt to remove the turret as it may damage the locking system.

PARALLAX/FOCUS ADJUSTMENT

Images from different distances can focus in front of or behind the scope's reticle causing a blurry image or reticle. The Parallax/Side Focus adjustment allows adjusting image focus forward or backward so the reticle and image both appear sharp and clear.

To use the parallax/focus adjustment, rotate the knob on the left side of the adjustment turret, closest to the main scope tube until the numbers corresponding to the known target distance lines up with the reference mark. If the distance is unknown, rotate the adjustment knob clockwise or counterclockwise until the target image is sharply focused.

When the scope is set parallax free for the distance you are viewing, you should be able to move your eye slightly side-to-side or up and down without seeing the reticle move in relation to the target.

STEINER RETICLES

Steiner offers a selection of reticles in the T6Xi line of riflescopes.

For more information on these reticle designs, www.steiner-optics.com/reticle-guide

STEINER RETICLE GUIDE

Illuminated Reticle Adjustment

The T6Xi series of riflescopes feature illuminated reticles for optimum viewing in low light or on dark targets. The rotary illumination dial is located on the left side of the riflescope adjacent to parallax adjustment.

There are 11 illumination intensity levels and a “battery saver” position in-between each level that turns off the illumination to prevent battery drain. Additionally, each level has a detent to prevent unintended changes during use.

- Positions 8-11 are for daylight operations.

- Positions 1-7 are used during night ops.

- Positions 1-3 are suitable when utilizing night vision devices.

Replacing the Battery

The reticle is powered by a 3-volt lithium cell battery #CR2450. To install a new battery, unscrew the battery cap on the illumination switch and install the new battery flat side (+) up. It is advisable to remove the battery for long-term storage (over a month).

Close-up of a black optical instrument with a circular dial and globe display (no visible text or symbols)

ACCESSORIES

The T6Xi scopes offer a range of accessories depending upon the model purchased.

Flip-Up Lens Covers

The objectives and eye pieces on all four T6Xi scopes are designed to accommodate Tenebraex flip up lens covers. Installation is quick and easy. Just snap them on over the knurled rings.

Sunshades

The 2.5-15x, 3-18x and 5-30x come with sunshades to reduce glare on the objective lenses. To install, align the threads on the sunshade and objective bell and turn the sunshade clockwise until snug.

Throw Lever

The machined aluminum throw lever is designed to work on all T6Xi scopes. The lever clamps over the magnification ring. The lever provides extra leverage for fast, precise changes to the magnification setting. To install, place the lever over the magnification power ring and secure with the two hex screws.

CARE & MAINTENANCE

Your Steiner T6Xi is fogproof and waterproof to 33ft. To protect the objective and ocular lenses, it comes equipped with flip-up scope caps. If the lenses are subjected to dust, dirt or mud, follow these steps to clean and protect the lens surface.

CAUTION - Remove all foreign material from the lens before cleaning with cloth to prevent damage to the lens.

Failure to remove grit before final cleaning is sure to damage lens coatings. Coarse dirt/debris must be removed from the lens surface. Position the scope so particles will fall away from the lens, and then use a soft brush to gently whisk away the debris, while blowing on the lens to dislodge the particles.

For heavy dirt, like dried mud, an air compressor or air can is recommended. Your T6Xi riflescope will provide a reliable performance given reasonable care and treatment.

All moving assemblies are permanently lubricated. Only occasional cleaning of the outside of the scope and the exterior lenses is required.

SCOPE SPECIFICATIONS

	1-6x24 2.5-15x50 3-18x56		5-30x56
Item No.	5103 5116/5117 5118/5119 5124/5125
Magnification	1-6x 2.5-15x 3-18x 5-30x
Objective Lens Diameter (mm)	24 50 56 56
Tube Diameter (mm)	30	34	34	34
Field of View (ft. @ 100 yds)	114 - 19 44 - 8.1 36 - 6.8 21.5 - 4.1
Field of View (ft. @ 100 m.)	124.5 - 20.5	48.5 - 9 40 - 7.5	24 - 4
Eye Relief (in./ mm)	3.9-3.4 / 100-88	3.5-3.3 / 91 - 84	3.5-3.3 / 91 - 84	3.5-3.3 / 91 - 84
Exit Pupils (mm) LOW /HIGH	10.3 - 4.5	9.5 - 3.8	9.7 - 3.7	9.5 - 2.4
Diopter Setting	+2 to -3	+2 to -3	+2 to -3	+2 to -3
Focal Plane	First First	First	First
Reticle	KC-1	SCR-MIL SCR-MOA	MSR2-MIL SCR2-MIL	MSR2-MIL SCR2-MIL
Illumination	Rotary Dial	Rotary Dial	Rotary Dial	Rotary Dial
Battery	CR2450 CR2450 CR2450 CR2450
Weight (w/o caps) (oz./G)	20 / 576	32 / 895	34.4 / 976	34.5 / 978
Length (in./ mm)	10.4 / 265	12.8 / 325	13.6 / 345 15.75 / 400
Windage Adjustment	0.1 mRAD	0.1 mRAD / 1/4 MOA	0.1 mRAD	0.1 mRAD
Total Elevation Range	30 Mil	34 Mil/ 60 MOA	34 Mil	28 MIL
Total Windage Range	30 Mil	30 Mil/ 50 MOA	30 Mil	25 MIL
Parallax Focus	None	Side Focus	Side Focus	Side Focus
Parallax/Focus Range	100 M	25 M	25 M	25 M
Operating Temperature	-15°F / +165°F	-15°F / +165°F	-15°F / +165°F	-15°F / +165°F

STEINER HERITAGE™ WARRANTY

HERITAGE

WARRANTY

GENERATION TO GENERATION

Your Steiner riflescope is covered by Steiner's Heritage Warranty and will provide years of reliable performance given reasonable care and treatment. However, should your T6Xi riflescope become damaged or defective, for any reason other than theft or deliberate misuse, we will repair or replace it at no charge - no questions asked.

Never disassemble your scope. Disassembly by anyone other than our factory will void the warranty. If you have any other problems with the riflescope, return it to the factory for repair. Complete warranty and repair information can be found at www.steiner-optics.com.

STEINER

Nothing Escapes You

STEINER OPTICS

331 East 8th Street • Greeley, CO 80631

Tel: [phone] · Fax: [phone]

Customer Service: [e-mail]
