AOJ-30C - Blood pressure monitor Huslog - Free user manual and instructions

Product type	Upper arm blood pressure monitor
Brand	Huslog
Model	AOJ-30C
Measurement method	Oscillometric
Measurement site	Arm
Measurement range - Pneumatic pressure	0 to 295 mmHg
Overpressure protection limit	300 mmHg
Measurement range - Systolic pressure	57 to 255 mmHg
Measurement range - Diastolic pressure	25 to 195 mmHg
Measurement range - Pulse	40 to 199 beats/min
Precision - Pressure	±3 mmHg
Precision - Pulse	±5%
Power supply	4 AAA 1.5V batteries or AC adapter 5V = 1A (not included, USB-C)
Auto shut-off	1 minute of inactivity
Memory	99 results per user (2 users)
Special functions	Arrhythmia detection, voice function, correct cuff indicator, WHO classification
Dimensions (L × W × H)	108 × 139 × 62 mm
Weight	Approximately 316 g (without batteries)
Display size	81.4 × 82.9 mm (4.6" diagonal)
Cuff circumference	22 to 42 cm
Protection rating	IP21
Electrical protection type	Type BF (internal or class II with adapter)
Operating conditions	Temperature 5 to 40 °C, humidity 15 to 90% RH
Storage conditions	Temperature -20 to 55 °C, humidity 10 to 93% RH
Expected service life	5 years

Frequently Asked Questions - AOJ-30C Huslog

How to install batteries on the AOJ-30C blood pressure monitor?

Open the battery compartment cover on the back of the device. Insert 4 AAA 1.5V batteries following the indicated polarity (+/-). Close the cover until it clicks. Always use batteries of the same type.

How to perform a correct blood pressure measurement?

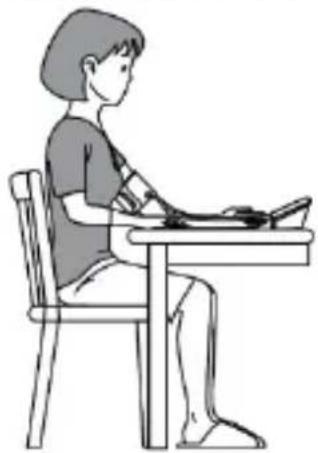

Sit comfortably with your back and arm supported, feet flat on the floor. Place the cuff 2-3 cm above the elbow on the left arm. Press the start button. Stay still and do not speak during the measurement. The result displays automatically.

What does the arrhythmia symbol on the display mean?

The arrhythmia symbol (irregular heartbeat) appears if the heart rate varies by more than 25% from the detected average. This may indicate a rhythm disorder. Consult a doctor if the symbol appears regularly.

How to view the measurement history?

Turn off the device, then press the memory button (folder icon). The screen displays the average of the selected user's measurements. Press again to view individual measurements from the most recent to the oldest.

How to clear the blood pressure monitor's memory?

In the display mode of recorded results, press and hold the memory button for about 3 seconds. All measurements will be erased.

What to do in case of error Er 1 or Er 2?

Er 1 means the pulse was not detected correctly; Er 2 indicates disturbances (movement, speech). Wait 3 minutes, then take another measurement while staying still and quiet.

How to clean the blood pressure monitor and cuff?

Turn off the device. Clean the external parts with a dry or slightly damp cloth (well wrung out). For the cuff, use a damp cloth with a little soap if needed, then air dry. Never immerse the device.

Can the blood pressure monitor be used during pregnancy?

It is not recommended for pregnant women or those suspected of being pregnant to use this product. Results may be inaccurate and effects on the fetus are unknown. Consult your doctor.

How to set the date and time on the device?

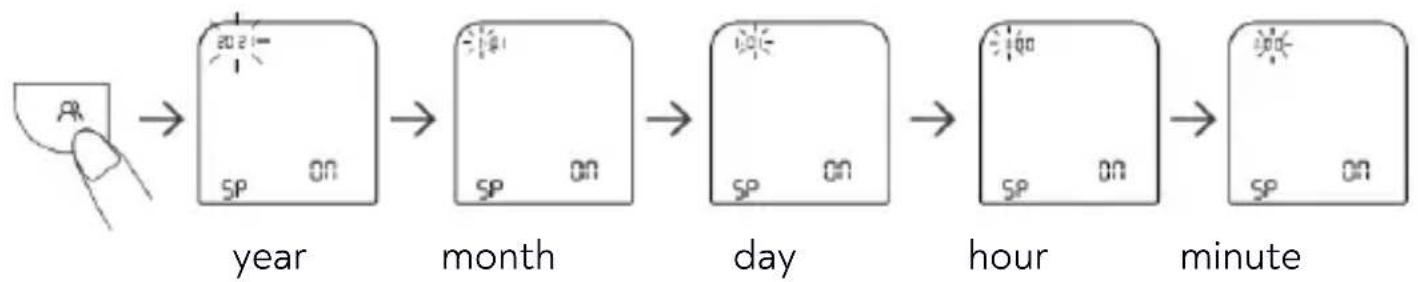

Press and hold the setting button (gear icon) for about 3 seconds. Use the buttons to set year, month, day, hour, and minute. Confirm each step with the appropriate button. You can also enable/disable the sound.

What is the warranty of the Huslog AOJ-30C blood pressure monitor?

The product comes with a 2-year warranty from the date of purchase. In case of defect, return it to the store with proof of purchase, preferably in its original packaging.

USER MANUAL AOJ-30C Huslog

QR code image with a central circular logo, likely linking to a digital resource or website.

Illustration showing two steps of a blood pressure measurement: one being held and the other in a hand holding a tablet (no text or symbols present)

Line drawing of a person sitting at a desk using a computer (no text or symbols)

Warning symbol: a glass above a triangle with an exclamation mark (no text or numbers present)

Ostrożnie, kruche.

Warning symbol with exclamation mark and factory silhouette, commonly used to indicate industrial hazard or safety warning.

Uwaga.

Ostrzeżenie

Producent

Simple line drawing of a factory chimney and a globe with an arrow (no text or symbols)

Data wyprodukowania

Silhouette of a factory with three peaks and one chimney (no text or symbols)

PRODUCENT: Shenzhen AOJ Medical Technology Co., Ltd. Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, CHINA

EC REP

Share Info GmbH Heerdter Lohweg 83, 40549 Düsseldorf, GERMANY

Simple line drawing of a globe with a box and arrow, no text or symbols present.

USER MANUAL Blood pressure monitor

TABLE OF CONTENTS

1. Safety of use....23
2. Specification 27

2.1 Technical data 27
2.2 Contents of the package....28

1. Device construction ......29
2. Device use....29
3. Troubleshooting....35
4. Cleaning and maintenance ....36
5. Symbol explanation ....37
6. Using the manual.... 38
7. Warranty and service 38
8. Declaration of conformity with UE directives.... 38
9. Manufacturer....39
10. Electromagnetic compatibility instructions....39

1. Safety of use

-INTENDED USE-

This device is intended for private use and may not be used for commercial purposes. The device is designed to measure blood pressure (systolic and diastolic) as well as heart rate. Memory capacity allows to save up to 199 test results for each of the two users. Voice messages allow for easier operation even for people with sight problems. The blood pressure measured by this product is equivalent to that measured by auscultation of an artery. The device can be used even when the pulse is irregular, i.e. it differs by 25% from the average detected during the measurement. If the instrument detects an irregular pulse and a blinking symbol appears on the display, it is recommended to see a doctor. This device is designed to monitor blood pressure and pulse rate of adults in a domestic environment.

What is blood pressure?

Arterial pressure is the pressure exerted by the flowing blood on the arterial

EN © 2024 huslog All rights reserved

Blood pressure monitor

walls. Systolic blood pressure occurs when the heart contracts and the blood is pumped into the veins. Diastolic pressure when the blood returns to the heart. Blood pressure is measured in manometric unit of pressure - millimetres of mercury (mmHg).

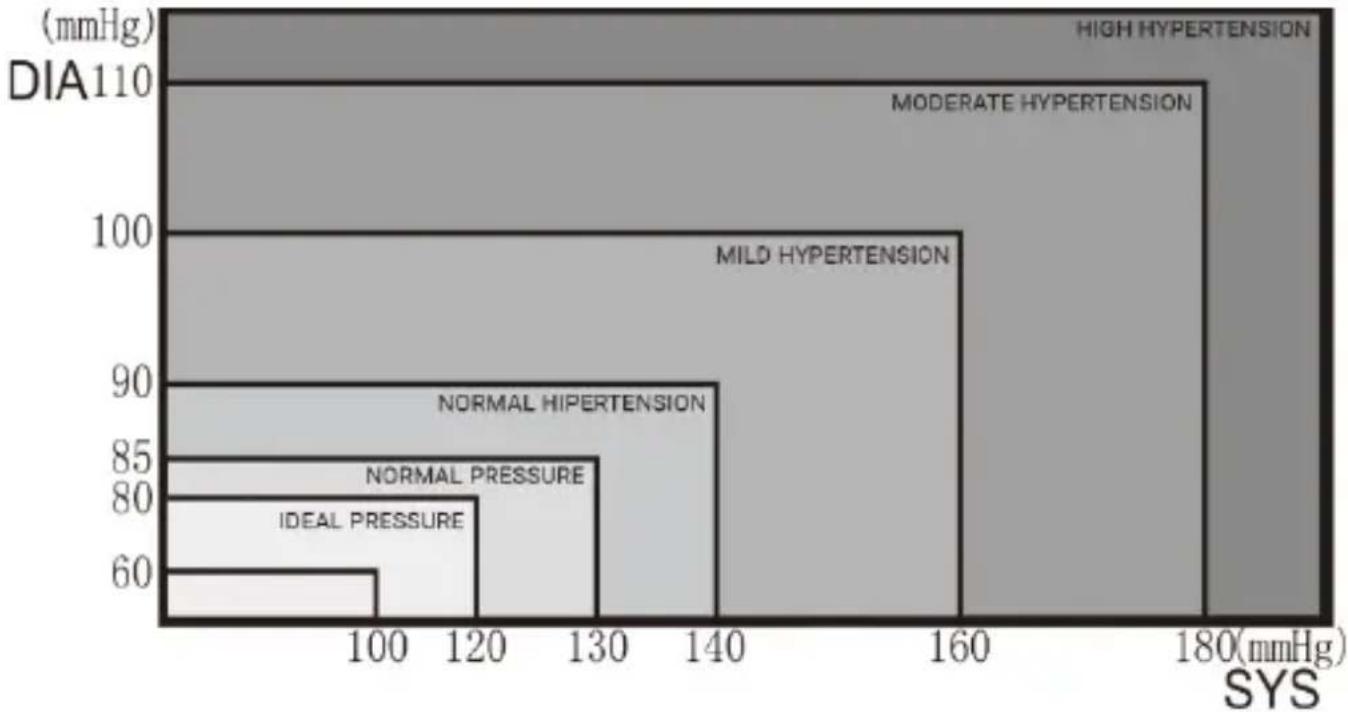

What is hypertension and how to control it?

Hypertension is an extremely high blood pressure. Blood pressure should be checked regularly to detect hypertension as early as possible, as disregarding this can lead to serious illnesses such as heart attacks and strokes. To prevent or reduce the hypertension:

o do not smoke
- avoid stress
- maintain correct

weight

- exercise regularly

○ reduce consumption of salt and fats

Why is it worth to measure blood pressure at home?

Pressure measurement in a hospital or doctor's office may cause anxiety (the so-called white coat syndrome) and affect the increase in pressure by up to 25-30 mmHg. Measurement at home reduces all external factors.

Read the entire user manual carefully before use. Keep it for future reference.

Any serious incident related to the device should be reported to the manufacturer and the competent authority of the Member State, where the patient or user resides.

CAUTION!

Do not charge non-rechargeable batteries (other than accumulators).

- Do not short-circuit the battery power terminals.

- Use batteries of the same type as recommended for this device.

When installing new batteries, remember to check the +/- polarity of the batteries.

- Remove discharged batteries immediately from the unit, as they may leak and cause damage.

- Always remove the batteries when not in use - this will prevent the product from being damaged if the electrolyte leaks from the battery.

- Always replace the entire battery pack with a functional one.

- Keep batteries away from children and animals.

EN © 2024 huslog All rights reserved

Blood pressure monitor

- Do not dispose of your used batteries in a waste bin, but in special containers for used batteries and accumulators.

- Avoid exposing the battery to very high/low temperatures (below 0°C/32°F and over 40°C/104°F). Extreme temperatures can affect their service life.

- Avoid contact with liquids and metal objects, as this may result in total or partial damage to the battery.

- Place worn or damaged batteries in a special container.

- Never expose batteries to direct sunlight, radiators, fire or excessive heat.

- Never dispose of batteries into a fire - they may explode.

- Never immerse batteries in water. Do not touch the batteries with wet hands.

- If hands come into contact with acid from the battery, rinse hands under running water. If electrolyte gets into your eyes, contact your doctor. Acid contained in batteries may cause skin irritation or chemical burns.

- Swallowing batteries can be fatal! Keep batteries away from children and pets. Immediately seek medical attention if the battery is swallowed.

Warning!! In order to ensure adequate safety measures and operating conditions, the battery should be mounted only by adults.

1. Always abide by any kinds of prohibitions, regulations and warnings conveyed by the staff of the entity where you wish to use the device.

2. Do not use the device near flammable fabrics.

3. This appliance may be used only by adults.

4. Children must not play with this device.

5. Unattended children must not clean or maintain the unit. Cleaning and maintenance of the appliance must be carried out as described in section: 6. CLEANING AND CONSERVATION.

6. Avoid exposing the unit to very low or very high temperatures (below 5^ C / 41^ F or above 40^ C / 104^ F during work and below -20^ C / -4^ F or above 55^ C / 131^ F during storage and transportation). Extreme temperatures can affect service life of the device.

7. The device should not be used in dusty conditions. Make sure that animals do not have access to the product. Damaged product can have cracks or broken parts with dangerous sharp edges. Do not expose the device to sunlight and do not place it in close proximity to heat-generating devices. Plastic parts may deform, which may affect the operation of the device or cause it to break down completely.

EN © 2024 huslog All rights reserved

Blood pressure monitor

1. Do not immerse the device in water or other liquids, as wetting will harm the electronics and may damage the equipment.

2. Do not use the unit if it has fallen to the ground or is visibly damaged.

3. The manufacturer is not responsible for any problems caused by unauthorized modifications to the equipment.

4. Only qualified personnel or an authorized service centre may install or repair this product. Repairing by an unauthorized or unqualified service may cause device damage and warranty loss. The manufacturer is not responsible for problems caused by unauthorized modifications to the equipment made by the user.

5. The device is used to measure and control of blood pressure. It can be used solely on the upper-arm. It cannot be used on other parts of the body or for purposes other than blood pressure measurement.

6. Taking a measurement is not equivalent to a professional diagnosis. The diagnosis can only be made by a doctor or a trained and authorized person. Always consult your doctor if you are treating abnormal blood pressure or heart rate.

7. If you are taking medication, it is important to consult your doctor to determine the right time to take your blood pressure measurements.

8. You are not allowed to change the dosage of medicines by yourself, without consulting your doctor, only on the basis of the measurement.

9. If you suffer from abnormal heart rhythm (premature ventricular contractions, atrial contractions, atrial fibrillation), the device may give erroneous results. Be sure to consult your doctor about the results.

10. Make sure that the device is not exposed to magnetic field interference, as this may affect the measurement results.

11. It is not advisable for pregnant women or women suspecting of being pregnant to use the device. The results may be distorted and the influence of such devices on the foetus is not known.

12. The device should not be used for continuous measurements during procedures, as it may cause changes in pressure and swelling in the limb on which the cuff is placed. This can also lead to cardiac arrest.

13. The material used for the cuff is intended for direct contact with the skin and should not cause any sensitization or irritation. However, if any skin reactions occur, immediately stop using the cuff and device and consult a physician as soon as possible.

14. Use accessories and equipment from the set or received from the manufacturer (service/replacement), because otherwise erroneous measurements may occur, the user's health may be endangered or the device may be damaged.

15. Continuous cuff compression due to kinking of the connection tubing can lead to blood flow interference and subsequent patient injury.

EN © 2024 huslog All rights reserved

Blood pressure monitor

1. Placing the cuff and compressing it on any limb where there is intravascular access or therapy or an arterio-venous (A-V) shunt may lead to temporary interference with blood flow and may result in patient injury.

2. Avoid pumping the cuff on the mastectomy side of the arm.

3. Inflating the cuff may cause temporary loss of function of concurrently used ME equipment placed on the same limb as the cuff.

4. The automatic blood pressure monitor needs to be checked to ensure that its operation does not cause prolonged impairment to the patient's blood circulation.

5. Small parts – choking hazard.

2. Specification

2.1 Technical data

Model	AOJ-30C
Measuring method	Oscillometric measurement
Measuring part	Upper arm
Pneumatic pressure measuring range	0-295 mmHg
Overpressure protection limit	300 mmHg
Measuring range	Pressure value	SYS: 57-255 mmHgDIA 25-195 mmHg
	Pulse rate	40-199 bpm
Accuracy	Pressure value	±3 mmHg
	Pulse rate	±5%
Low battery	4,2V---±0,1V---: low battery<4V---±0,1V---: item will be turned off
Auto power-off	1 minute without operation
Power supply	6V---, 4 x AAA 1,5V--- batteryOr external power adaptor- input 5V = 1A- not included
Protection against electric shock.	= typ BF
Operation mode	Continuous operation

EN © 2024 huslog All rights reserved
Blood pressure monitor

Ingress protection	IP21
Weight	ok. 316 g (without batteries)
Dimensions	108 x 139 x 62 mm (L x W x H)
Screen size	81,4 x 82,9 mm (L x W x H), 4,6"
Cuff size	22-42 cm (8,66"-16,53")
Service life	5 years
Protection against electric shock	Internally powered medical equipment (when using batteries)Class II medical equipment (mains powered, pow supply not included)
Operating environment	Temperature	5-40°C	The product will no function properly if used or stored in other conditions.
	Humidity	15-90%RH
	Atmospheric pressure	70-106kPa
Transportation and storage environment	During transportation, avoid strong and direct impacts and exposure to rain. The packed blood pressure monitor should be stored indoors at a temperature of -20-55°C and a relative humidity of 10-93%, atmospheric conditions: 70-106 kPa. without corrosive gases and with good ventilation.

2.2 Contents of the package

Blood pressure monitor

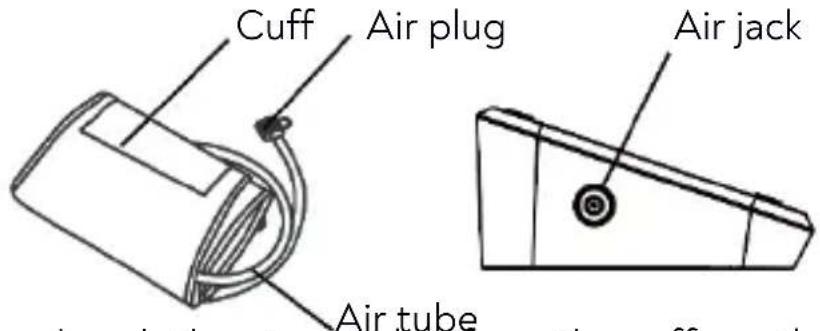

Cuff with an airway tube.
Storage case for the device
4 x AAA 1.5 V battery =
○ User manual

If any of the above items is missing or damaged, please contact your dealer.

We advise to keep the container in case of any complaints. Keep the container out of reach of children.

You can obtain a free printed version of the manual with the large font size or download it from the web address below:

https://huslog.eu/

or by scanning the QR code:

QR code image containing encoded data, no visible human-readable text

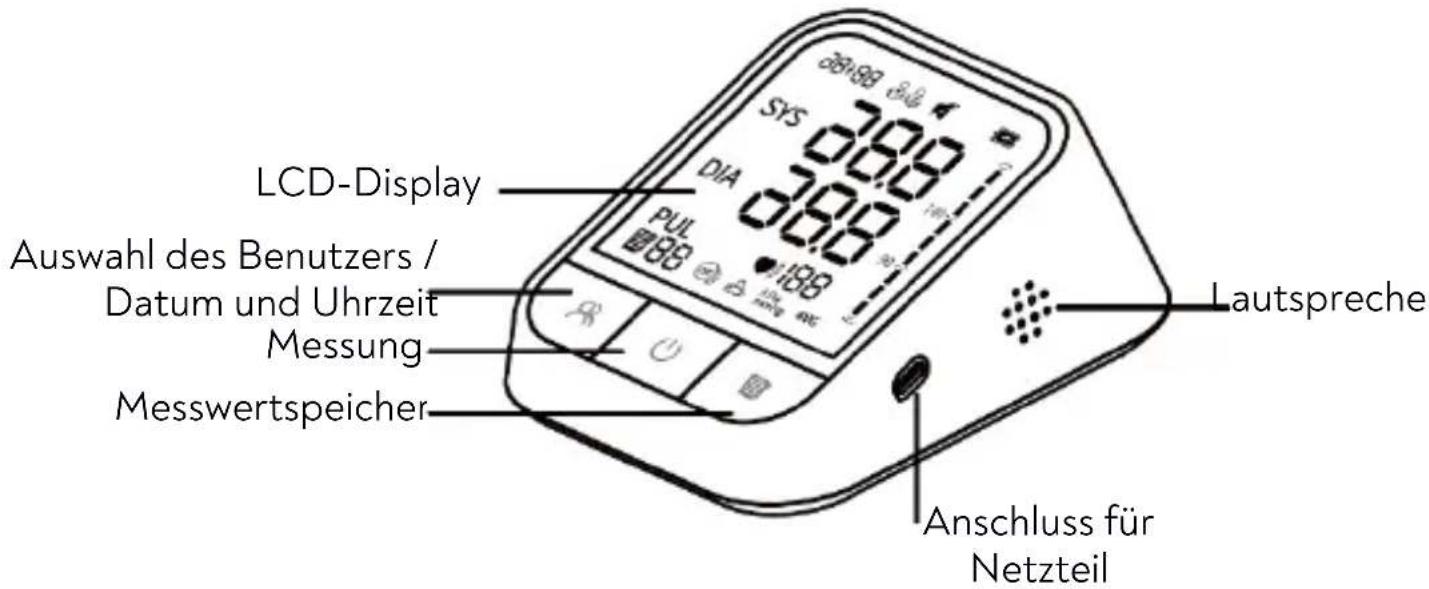

3. Device construction

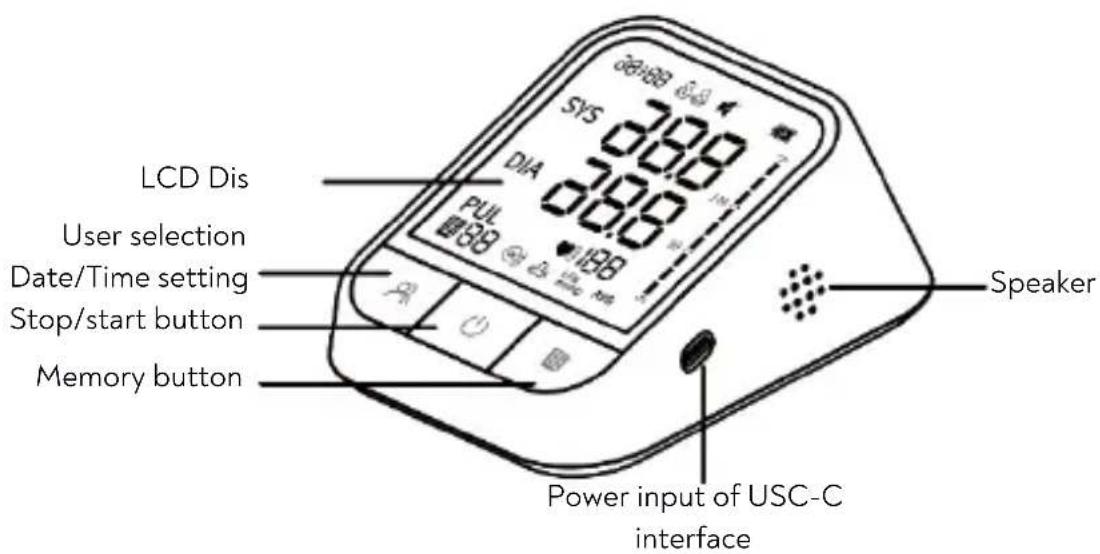

BLOOD PRESSURE MONITOR BASE

LCD Dis User selection Date/Time setting Stop/start button Memory button SYS 78.0 DIA 78.0 PUL 128 Speaker Power input of USC-C interface

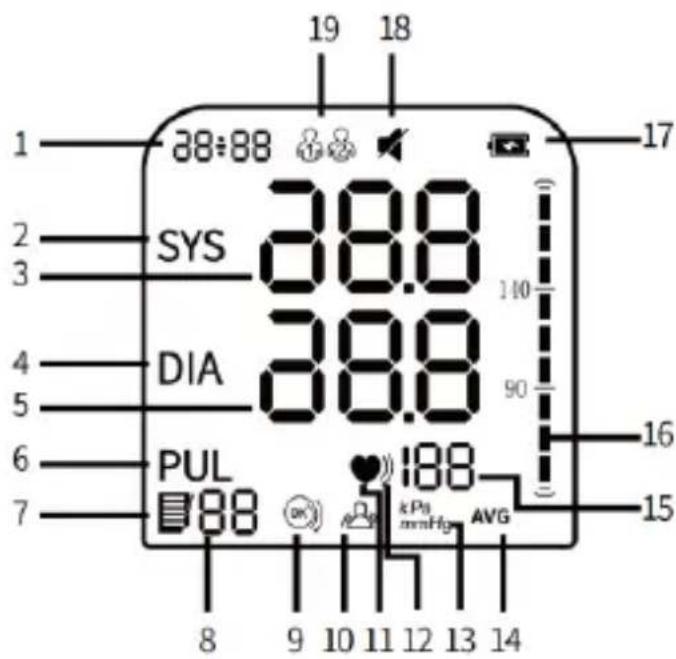

LCD SCREEN

19 18 38:88 SYS 38.8 DIA 38.8 PUL 188 8 9 10 11 12 13 14 17 16 15 kPa mmHg AVG

1. Date and time
2. SYS blood pressure icon
3. SYS blood pressure value
4. DIA blood pressure icon
5. DIA blood pressure value
6. Pulse icon
7. Memory icon
8. Memory number
9. Detection for cuff wrapping icon
10. Indication for wrong operation
11. Pulse icon
12. Irregular heartbeat icon
13. Pressure unit
14. Average value icon
15. Pulse value
16. Blood pressure classification
17. Low battery icon
18. Voice on/off icon
19. User icon

4. Device use

All operations should be carried out gently so as not to damage the components.

4 × 1.5 V = AAA battery included in the set.

INSTALLATION AND REPLACEMENT OF BATTERIES

Incorrectly inserting the battery will only result in a malfunctioning device.

Unpack the device. Check whether any of the components are damaged. Place the device on a soft and delicate surface (blanket, towel, etc.) so that you have free access to the battery compartment.

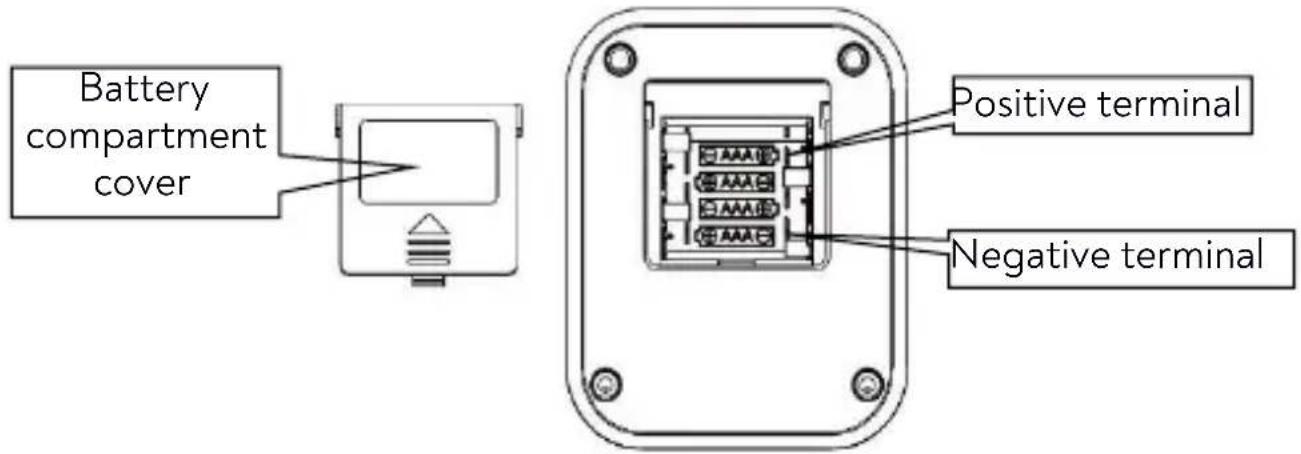

Battery compartment cover Positive terminal Negative terminal

Open the battery compartment cover by sliding and removing the cover as illustrated.

When replacing the batteries, remove the entire set of 4 batteries and dispose of them according to the regulations.

Insert the whole new set of 4 AAA 1.5V= batteries according to the polarity marked with the drawings inside the chamber.

Close the battery compartment cover until the latch closes, preventing the batteries from falling out.

TAKING A MEASUREMENT

Immediately before the pressure measurement, we recommend that you do not eat, drink, smoke or exercise. Sit down and relax for about

10 minutes before the test.

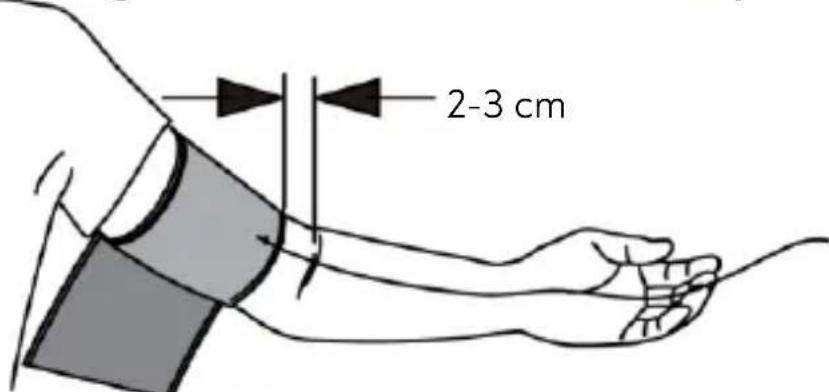

Remove clothing tightly adjacent to the arm on which the cuff is to be worn. In order to maintain the same measurement conditions, to

compare values, the cuff must be worn over the same arm. We recommend that you take measurements on your left shoulder at the same time of day, if possible.

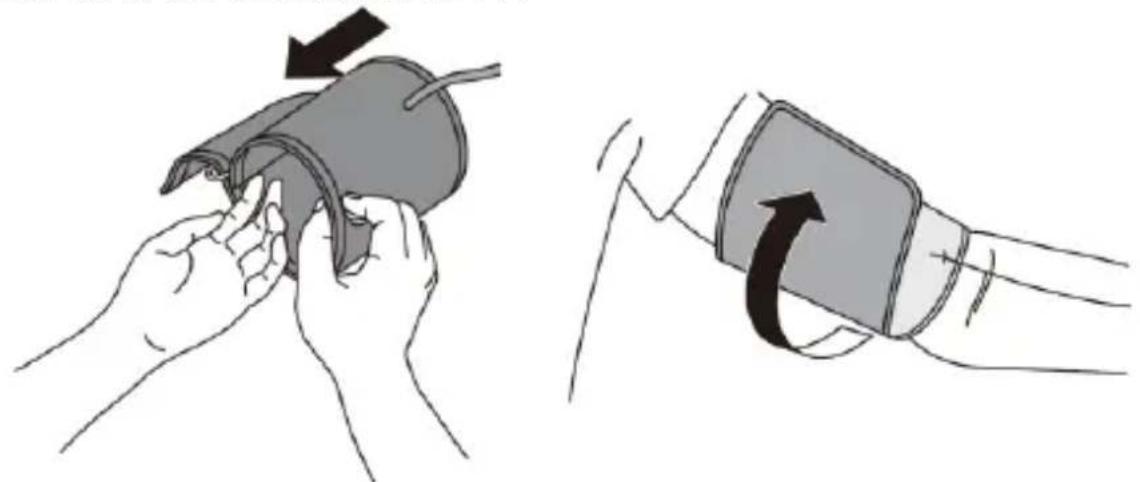

Prior to measurement, the cuff on the arm in which the muscles are relaxed should be carefully adjusted. Incorrectly adjusted and fastened cuffs may cause an incorrect measurement.

If the measurement is to be repeated, wait 2-3 minutes between them. It is best to remove the cuff and lift the arm so that the amount

EN © 2024 huslog All rights reserved

Blood pressure monitor

of blood and its flow in the arm can normalize. The measurement results may be incorrect otherwise.

If it is not possible to adjust the cuff on the left upper arm, it can be placed on the right upper arm as well. However, all measurements shall be made on the same arm.

Measurement results may be influenced by the measurement site, patient position, exercise, or physiological condition of the patient.

Too frequent measurements can cause injury to the patient due to blood flow interference. Placing the cuff over a wound may cause further injury.

PREPARATION AND APPLYING THE ARM CUFF

Cuff Air plug Air jack Air tube

1. Insert and push the airway plug from the cuff gently into the device shown in the illustration above

Illustration showing two steps of a blood pressure measurement: one being held and the other in use, with no visible text or symbols.

1. If the cuff is already prepared, ignore this point. Insert the end of the cuff (including the rubber clip) into the metal band so that it forms a loop. The Velcro should be on the outside.

2. Place the cuff on the left shoulder so that the tube extends towards the forearm - see above.

3. Attach the cuff to the shoulder as shown in the illustration.

2-3 cm

1. Make sure the lower edge of the cuff is about 2-3 cm above the elbow and that the tube is on the inside of the arm.

2. Wrap the cuff firmly in place around your arm using the cloth fastener as shown in the previous illustration. Air tube coming out of the cuff should be located above the brachial artery (\~3cm long strap), on the inside of the arm.

3. There should be no space between the cuff and arm, as this may affect the readings. Rolled up sleeves must not press down on the shoulder and must therefore be rolled up or removed. The adjustable cuff size allows it to be applied to an arm circumference of 22 to 42 cm.

4. Secure the cuff with Velcro so that it is comfortable and not too tight. Remember to sit comfortably with your legs uncrossed and feet flat on the floor, back and arm supported. Lay your arm on the table (palm up) with the centre of the cuff on the same height as the right atrium of your heart as shown in the figure below

Line drawing of a person sitting at a desk using a computer (no text or symbols)

1. Make sure that the air tube is not bent or pressed.

2. Stay in this position for five minutes before starting the measurement.

MEASUREMENT PROCEDURE

Once the cuff is properly attached to your arm, you can start measuring your blood pressure. After performing the correct measurement, the result

EN © 2024 huslog All rights reserved

Blood pressure monitor

will be saved automatically. The device's memory can store a maximum of 199 results for two different users. The memory for users 1 and 2 is selected before starting the measurement, when the device is turned off, by pressing the button as many times as necessary to select the appropriate memory.

Press the button. All symbols on the display will turn on for 1 second. The measurement will start automatically. The display will show an increasing pressure value until the maximum cuff inflation value is reached.

Once the band begins to deflate, the symbol will flash to indicate that your heart rate has been detected.

ATTENTION! If you feel great discomfort when inflating the cuff, immediately unfasten and remove the cuff and turn the device off by pressing the button.

The icon visible on the display during measurement means that the cuff has been applied correctly. When the icon is visible, the cuff is too loose. After the measurement is completed correctly, the screen will display the values (looking from the top) of systolic (SYS), diastolic (DIA) and heart rate (PUL). The result of a correct measurement will be saved in the memory set for a given user.

When the user does not sit still during the measurement (moves the entire body or the hand on which the cuff is placed), the symbol may appear on the screen. This means that the measurement is incorrect and should be repeated. We recommend resting for at least 3 minutes and repeating the measurement.

If the measurement shows irregular heartbeat, the symbol will be displayed. Irregular heart rhythm is a condition in which the heart rate is 25% slower or faster than the average heart rate that was measured when measuring systolic and diastolic blood pressure. We recommend resting for at least 3 minutes and repeating the measurement. If the symbol appears again, please consult your doctor.

Once you have finished measuring, remove the cuff. Turn off the device with the ⏻ button. You can also leave the device on and it will turn off automatically after a minute.

Each measurement is automatically saved in the device's memory. When the memory is full, the oldest measurement will be overwritten.

VIEWING THE RESULTS SAVED IN THE DEVICE MEMORY

The device's memory can store 199 measurement results for two users. Saved results can be viewed. To do this, press the button with the device turned off. The average value of the stored measurements for the selected user will be displayed on the screen. Pressing the button again will show the measurement results, starting with the most recent one.

Pressing and holding the button for approximately 3 seconds while viewing the measurement memory will clear the device's memory. After finishing browsing, turn off the device by pressing the button.

ADDITIONAL SETTINGS

To set the measurement unit in which the result is to be presented, press and hold the button for about 10 seconds. By pressing the button you switch between measurement units - mmHg and kPa. Confirm your selection by pressing the button.

Holding the 🔒 button for about 3 seconds activates the settings menu, where you can change the date, time and turn the sound on or off.

After starting the menu, the year will flash first on the display. Set the desired value by pressing the button.

Confirm your selection by pressing the 🔒 button. After confirming the selection, the device will automatically go to the month, day and time settings

and minutes. After setting the date and time, you can turn the sound on or off.

POWER SUPPLY FROM AN EXTERNAL POWER SOURCE

In order to be able to use an external power supply, you must remove the entire set of batteries from the battery compartment.

The blood pressure monitor can be powered not only by battery power, but also by an external power supply via the USB-C socket. Simply connect the charger to your phone or smartphone, powerbank or computer with 5V ---

EN © 2024 huslog All rights reserved

Blood pressure monitor

1A current at its output (not included), with cable with a plug compatible with these energy sources and a USB-C plug-in.

WHO (WORLD HEALTH ORGANIZATION) BLOOD PRESSURE STANDARDS

The chart below presents the classification of blood pressure according to WHO.

5. Troubleshooting

In case of any problems with the device, please refer to the following tips.

The device cannot be turned on.	Check whether the batteries are inserted correctly - whether the polarity is maintained. Check if the batteries are functional. If not, replace the entire set with new, functional ones.
The symbol appears on the display	Weak batteries, the entire set should be replaced with a new, functional one.
LCD displays Er U	The cuff pressure did not reach 30 mmHg within 12 seconds.
LCD displays Er H	The cuff pressure reached 295 mmHg and was released after 30 ms.
LCD displays Er 1	Heart rate not detected correctly.
LCD displays Er 2	Too much interference – moving, talking ormagnetic interference during measurement.
LCD displays Er 3	The measurement result is not correct.
LCD displays Er 23	SYS value below 57 mmHg.
LCD displays Er 24	SYS value above 255 mmHg.
LCD displays Er 25	DIA value below 25 mmHg.
LCD displays Er 26	DIA value above 195 mmHg.
The reading result is too low (or too high).	The cuff is placed on the clothes and not directly on the skin.The cuff is not applied correctly or not tightened enough before fastening with Velcro.The user moved his arm during the measurement.
The pressure in the cuff decreases too quickly.	The cuff is too tight.
Other errors.	Turn off the device using the button and turn it on again.Replace the entire set of batteries with new, functional ones.
If the problem persists, contact the manufacturer's service department.

6. Cleaning and maintenance

Cleaning should only be performed when the unit is switched off.

Switch off the unit by pressing the button before cleaning. The outside of the unit and the rubber air tube may only be cleaned with a dry cloth or paper towel. Never immerse the unit in water or wash it under running water. In case of heavy soiling, you can wipe the outer parts of the unit with a damp, well wrung cloth and then immediately wipe it dry with a paper towel or a dry cloth. It is not allowed to use corrosive liquids, petrol, solvents, etc. for cleaning the device.

The cuff can be cleaned with a damp, heavily wrung cloth and a small

7. Symbol explanation

The packaging of the device can be recycled in accordance with local regulations.

WARNING! To reduce the risk of injury, the user must read the user manual.

Keep dry..

Lot number

Important information on the use of the device.

Sales representative within the EU.

CE0123 - 0123 denotes the number of the notified body examining the product.

Symbol indicating a medical device.

Symbol for cardboard (packaging material).

BF protection type. Protection against electric shock.

Device serial number designation.

Caution.

Warning

Manufacturer

Date of manufacture

Importer

The device is marked with a crossed-out garbage bin, in accordance with the European Directive 2012/19/UE on used electrical and electronic Equipment (Waste Electrical and Electronic equipment - WEEE). Products marked with this symbol should not be disposed of or dumped with other household waste after a period of use. The user is obliged to get rid of used electrical and electronic equipment by delivering it to designated recycling point in which dangerous waste are being recycled. Collecting this type of waste in designated locations, and the actual process of their recovery contribute to the protection of natural

EN © 2024 huslog All rights reserved

Blood pressure monitor

resources. Proper disposal of used electrical and electronic equipment is beneficial to human health and environment. To obtain information on where and how to dispose of used electrical and electronic equipment in an environmentally friendly manner user should contact their local government office, the waste collection point, or point of sale, where the equipment was purchased.

In accordance with directive 2013/56/UE on the disposal of batteries and accumulators, this product is marked with the symbol of a crossed-out waste bin. The symbol indicates that the batteries used in this product should not be disposed with regular household waste, but treated according to the legal directives and local regulations. It is not allowed to dispose of batteries and accumulators with unsorted municipal waste. Users of batteries and accumulators must use the available collection points of these items, which allows them to return, recycle and disposal. Within the EU, the collection and recycling of batteries and accumulators is a subject to separate procedures. To learn more about existing procedures of recycling of batteries and accumulators please contact your local office or an institution for waste disposal or landfill.

8. Using the manual

No part of this manual may be reproduced, distributed, translated or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storage in any information storage and access system, without the prior written consent of the manufacturer.

The device illustrations in this manual may differ from the actual product. All brand and product names are trademarks or registered trademarks of their respective companies.

9. Warranty and service

The product is covered by a 2-year warranty from the date of sale of the product. Batteries are not covered by the warranty - it is a consumable material. If you need warranty repair, please contact the manufacturer's hotline. The product returned for repair should be complete and preferably in its original packaging.

10. Declaration of conformity with UE directives.

CE 0123

This device complies with the conditions set out in Regulation (EU) 2017/745 of the European Parliament and of the Council on medical devices.

11. Manufacturer

Silhouette of a factory chimney with three chimneys (no text or symbols)

MANUFACTURER:

Cofoe Medical Technology Co., Ltd.

816 Zhenhua Road, Yuhua District

410000 Changsha, Hunan, PEOPLE'S REPUBLIC OF CHINA

SUNGO Europe B.V.

Fascinatio Boulevard 522, Unit 1.7, 2909VA Capelle aan den IJssel, The Netherlands

Simple line drawing of a globe with a box and arrow, no text or symbols present.

IMPORTER:

mPTech Sp. z o.o.

ul. Nowogrodzka 31

00-511 Warszawa

Polska

Helpline: ([phone]

Made in China

613103

Date of issue of the manual: 2023.11

12. Electromagnetic compatibility instructions

The blood pressure monitor meets the requirement of electromagnetic compatibility in IEC60601-1-2.
The blood pressure monitor is suitable for home healthcare environments.
The user needs to install and use according to electromagnetism compatibility information which is attached with it.
Guidance and manufacture's declaration stated in the appendix A.

Warning: Don't near active HF surgical equipment and the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high.

Warning: Use of this blood pressure monitor adjacent to or stacked with other equipment should be avoided because it could result in

EN © 2024 huslog All rights reserved

Blood pressure monitor

improper operation. If such use is necessary, the equipment and the other equipment should be observed to verify that they are operating normally.

Warning: Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.

Warning: Portable RF communications equipment may influence performance, it should be used no closer than 30 cm (12 inches) to any part of blood pressure monitor. Otherwise, degradation of the performance of this equipment could result.

Appendix A. EMC Information

Guidance and manufacturer's declaration – electromagnetic emissions
Emission test	Emission test
RF emissionsCISPR 11	RF emissionsCISPR 11
RF emissionsCISPR 11	RF emissionsCISPR 11
Harmonic emissionsIEC 61000-3-2	Harmonic emissionsIEC 61000-3-2
Voltage fluctuations/flicker emissionsIEC 61000-3-3	Voltage fluctuations/flicker emissionsIEC 61000-3-3

Guidance and manufacturer's declaration – electromagnetic immunity
Immunity test	IEC 60601-1-2 test level	Compliance level
Electrostatic discharge (ESD)IEC 61000-4-2	+/- 8 kV contact+/- 2 kV, +/- 4 kV,+/- 8 kV, +/- 15 kV air	+/- 8 kV contact+/- 2 kV, +/- 4 kV,+/- 8 kV, +/- 15 kV air
Electrical fast transient/burstIEC 61000-4-4	Not application	Not application
SurgeIEC 61000-4-5	Not application	Not application
Voltage dips, short interruptions and voltage variations on	Not application	Not application

EN © 2024 huslog All rights reserved
Blood pressure monitor

power supply input linesIEC 61000-4-11
Power frequencymagnetic fieldIEC 61000-4-8	30 A/m50/60 Hz	30 A/m50/60 Hz
Conducted RFIEC 61000-4-6	Not application	Not application
Radiated RFIEC 61000-4-3	10 V/m80 MHz – 2,7 GHz80% AM at 1 kHz	10 V/m80 MHz – 2,7 GHz80% AM at 1 kHz
NOTE: UT is the AC mains voltage prior to application test level.

Guidance and manufacturer's declaration - electromagnetic immunity
Radiated RF IEC 61000-4-3(Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment)
Test frequency (MHz)	Band (MHz)	Service	Modulation	Modulation (W)	Distance (m)	Immunity test level (V/m)
385	380-390	TETRA 400	Pulse modulation 18 Hz	1,8	0,3	27
450	430-470	GMRS 460, FRS 460	FM +/- 5 kHz Deviation 1 kHz sine	2	0,3	28
710	704-787	LTE band 13, 17	Pulse modulation 217 Hz	0,2	0,3	9
745
780
810	800-960	GSM 800/900, TETRA 800, iDEN 820, CDMA 850, LTE pasmo 5	Pulse modulation 18 Hz	2	0,3	28
870
930
1720	1700-1990	GSM 1800, CDMA 1900, GSM 1900, DECT,	Pulse modulation 217 Hz	2	0,3	28
1845
1970

EN © 2024 huslog All rights reserved
Blood pressure monitor

		LTE band1, 3, 4, 25, UMTS
2450	2400-2570	Bluetooth,WLAN802.11b/g/n,RFID2450, LTE pasmo 7	Pulse modulation217 Hz	2	0,3	28
5240	5100-5800	WLAN802.11 a/n	Pulse modulation217 Hz	0,2	0,3	9
5500
5785

Guidance and manufacturer's declaration – electromagnetic immunity

Radiated RFIEC61000-4-39(Testspecifications forENCLOSUREPORTIMMUNITY toproximitymagnetic fields)	Testfrequency	Modulation	IEC 60601-1-2Test Level(A/m)	Compliancelevel (A/m)
	30 kHz	CW	8	8
	134,2 kHz	Pulsemodulation2,1 kHz	65	65
	13,56 kHz	Pulsemodulation50 kHz	7,5	7,5

NOTE:

• The optional AC adapter should meet the requirements of IEC 60601-1
• Use only power supplies recommended by the manufacturer. Other power supplies may have different output parameters and output polarity and may pose a risk to life or may damage the device.

BEDIENUNGSANLEITUNG

QR code image containing encoded data, no visible human-readable text

Illustration showing two steps of a blood pressure measurement: one being held and the other in use, with no visible text or symbols.

Line drawing of a person sitting at a desk using a medical or examination device (no text or symbols present)

5. Problemebehebung

Warning symbol: a glass above a triangle with an exclamation mark (no text or numbers present)

Warning symbol with exclamation mark over factory silhouette (no text)

Achtung.

Warnung

Hersteller

Herstellungsdatum

Importeur

Silhouette of a factory chimney with mountain silhouettes (no text or symbols)

HERSTELLER: Shenzhen AOJ Medical Technology Co., Ltd. Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, CHINA

Share Info GmbH Heerdter Lohweg 83, 40549 Düsseldorf, DEUTSCHLAND

Simple line drawing of a globe with a box and arrow, no text or symbols present.

IMPORTEUR: mPTech Sp. z o.o. ul. Nowogrodzka 31 00-511 Warszawa Polen Hotline: [phone]

QR code image containing encoded data, no visible human-readable text

Illustration showing two steps of a blood pressure measurement: one being held and the other bending forward (no text or symbols present)

Line drawing of a person sitting at a desk using a medical or examination device (no text or symbols present)

Warning symbol: a glass above a triangle with an exclamation mark (no text or numbers present)

Cuidado, frágil

Atención.

Warning symbol with exclamation mark above a factory chimney, commonly used to indicate hazardous material or industrial hazard.

Advertencia

Fabricante

Silhouette of a factory chimney with three chimneys (no text or symbols)

FABRICANTE: Shenzhen AOJ Medical Technology Co., Ltd. Room 301&4F, Block A, Building A, Jingfa Intelligent Manufacturing Park, Xiaweiyuan, Gushu Community, Xixiang Street, Bao'an District, 518126 Shenzhen, CHINA

Share Info GmbH Heerdter Lohweg 83, 40549 Düsseldorf, GERMANY

Simple line drawing of a globe with a box and arrow, no text or symbols present.

IMPORTADOR: mPTech Sp. z o.o. ul. Nowogrodzka 31 00-511 Varsovia Polonia Atención al cliente: ([phone]

Fabricado en China

QR code image with a central circular logo, likely linking to a digital resource or website.

Illustration showing two steps of a blood pressure measurement: one being held and the other in use, with no text or symbols present.

Line drawing of a person sitting at a desk using a computer (no text or symbols present)

PROCÉDURE DE MESURE

5. Dépannage

Symbolic illustration of an umbrella with raindrops above two upward arrows (no text or labels)

Warning symbol: a glass above a triangle with an exclamation mark (no text or numbers present)

Attention : fragile

Warning symbol with exclamation mark above a factory silhouette, indicating industrial hazard or warning.

Note

Avertissement

Fabricant

Date de fabrication

Importateur

Silhouette of a factory chimney with three chimneys (no text or symbols)

FABRICANT :

Shenzhen AOJ Medical Technology Co., Ltd.

Room 301&4F, Block A, Building A, Jingfa Intelligent

Manufacturing Park, Xiaweiyuan, Gushu Community,

Xixiang Street, Bao'an District, 518126 Shenzhen,

CHINE

Share Info GmbH

Simple line drawing of a globe with a box and arrow, no text or symbols present.

IMPORTATEUR :

mPTech Sp. z o.o.

ul. Nowogrodzka 31

00-511 Warszawa

Pologne

QR code image containing encoded data, no visible human-readable text

Illustration showing two steps of a blood pressure measurement: one being held and the other in use, with no visible text or symbols.

Line drawing of a person sitting at a desk using a computer (no text or symbols present)

Symbolic illustration of an umbrella with raindrops above two upward arrows (no text or symbols)

Warning symbol: a glass above a triangle with an exclamation mark (no text or numbers present)

Silhouette of a factory with three peaks and one chimney (no text or symbols)

PRODUTTORE:

Shenzhen AOJ Medical Technology Co., Ltd.

Room 301&4F, Block A, Building A, Jingfa Intelligent

Manufacturing Park, Xiaweiyuan, Gushu Community,

Xixiang Street, Bao'an District, 518126 Shenzhen,

CHINA

Share Info GmbH

Simple line drawing of a globe with a box and arrow, no text or symbols present.

IMPORTATORE:

mPTech Sp. z o.o.

ul. Nowogrodzka 31

00-511 Warszawa

Polonia

Prodotto in Cina

613105
