USER MANUAL Ecofire for building in A70 air Palazzetti

INSTALLATION, USE AND MAINTENANCE MANUAL

This manual is an integral part of the product. Read the instructions carefully before installing, servicing or operating the product. Translation of the original instructions

FR

MANUELD INSTALLATION, D'UTILISATION NET DEMAINTECTION

8 PRIMA ACCENSIONE 32

1.1 Symbols 44
1.2 Intended use 44
1.3 Purpose and content of the manual 44
1.4 Preservation of the manual 44
1.5 Update of this manual 44
1.6 Overview 44
1.7 Compliance 45
1.8 Responsibility of the manufacturer 45
1.9 Technical assistance and maintenance 46
1.10 Spare parts 46
1.11 Serial plate 46
1.12 Delivery of the appliance 46

2 SAFETY WARNING 47

2.1Warnings for the installer 47
2.2Warnings for technical maintenance personnel 48
2.3Warnings for users 48

3 FUEL CHARACTERISTICS 51

3.1 Fuel characteristics 51
3.2 Pellet storage 51

4 BECOMING FAMILIAR WITH THE PRODUCT 52

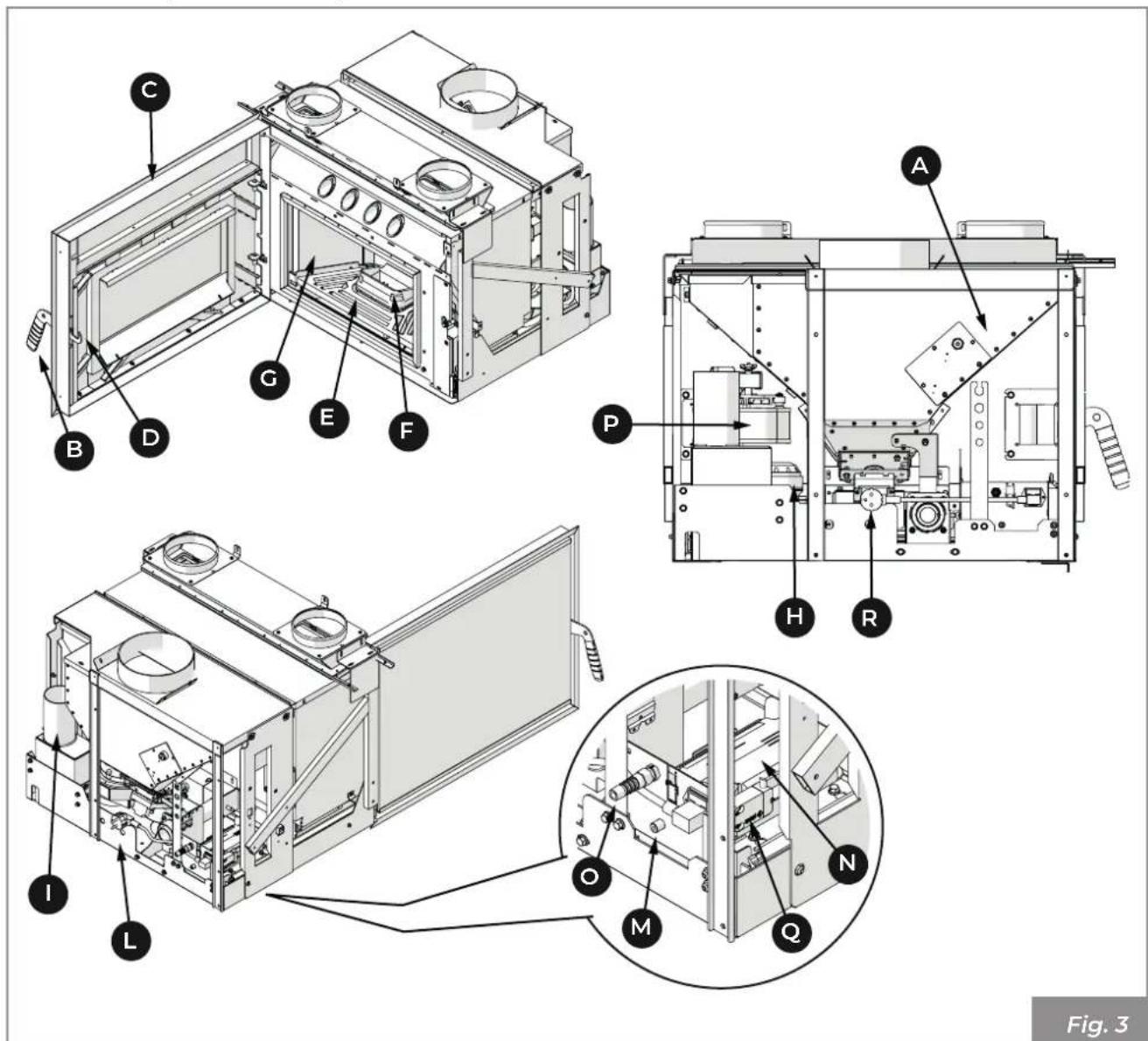

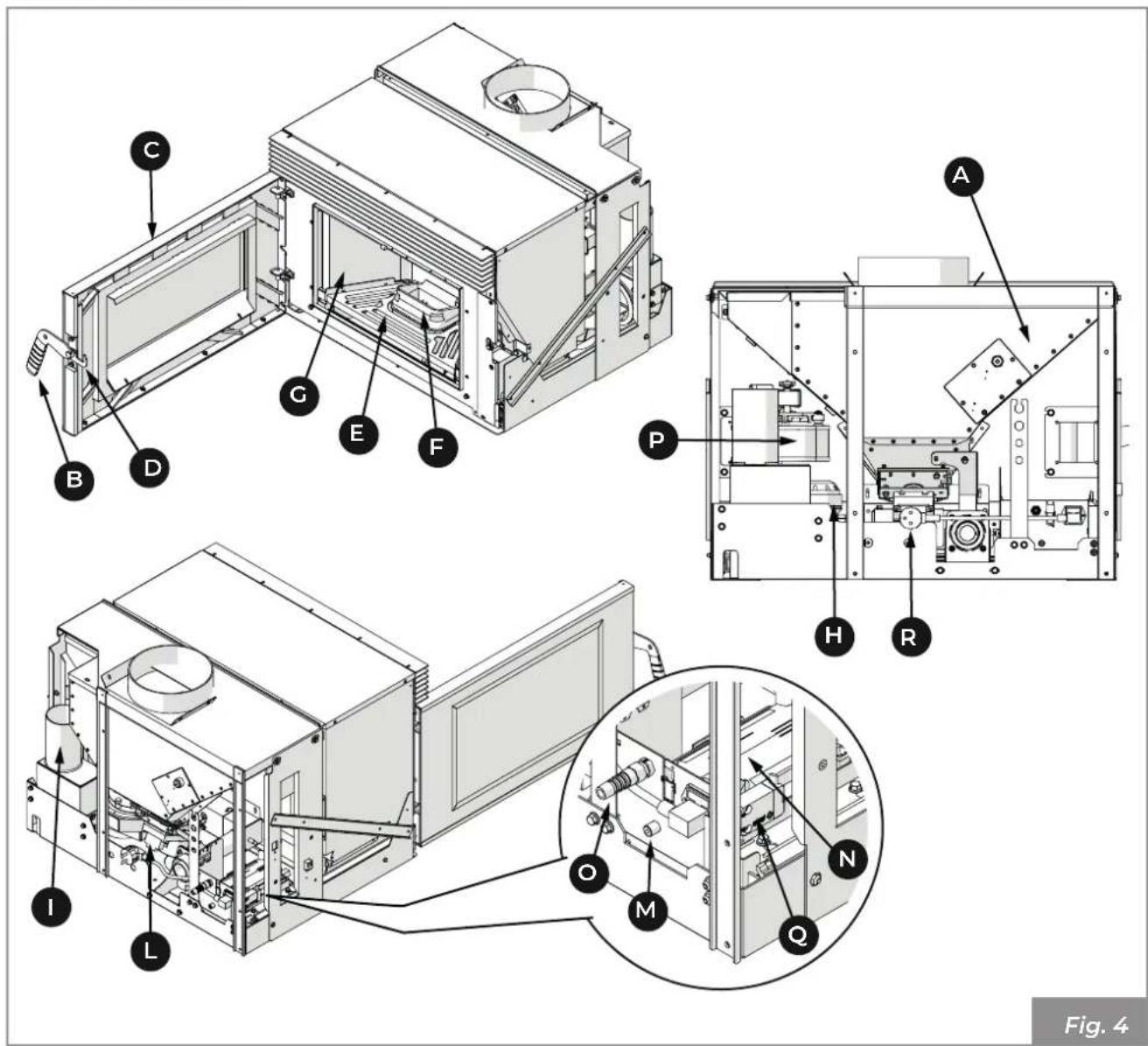

4.1 Description 52

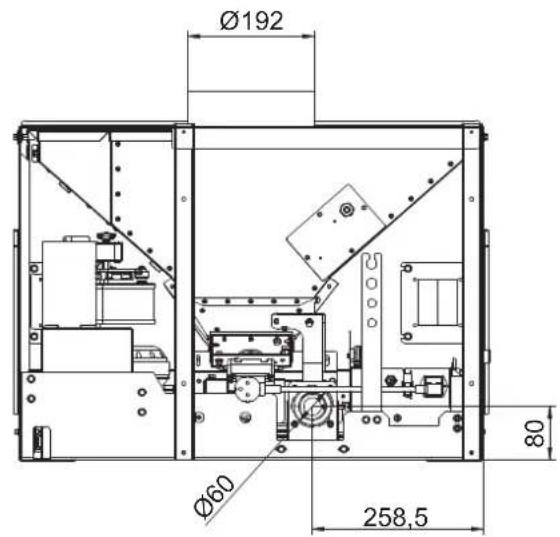

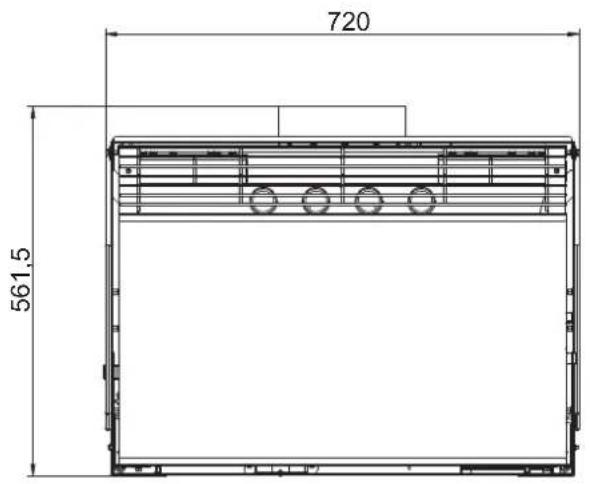

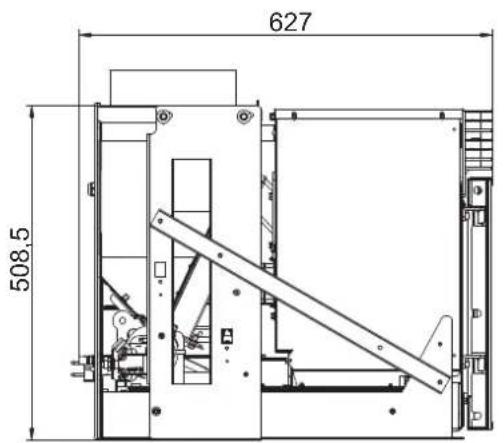

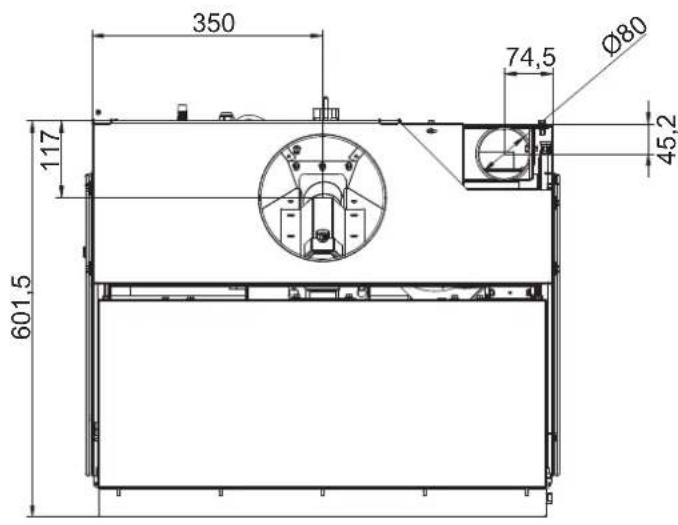

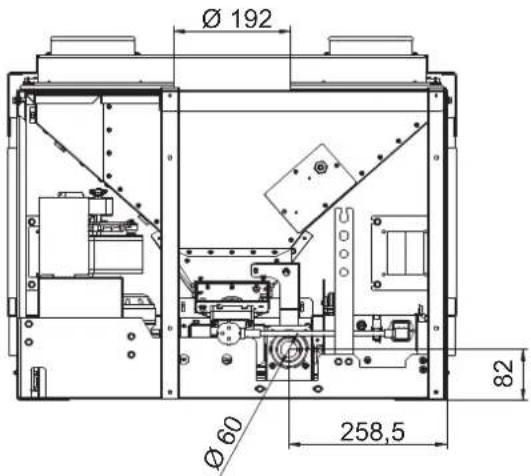

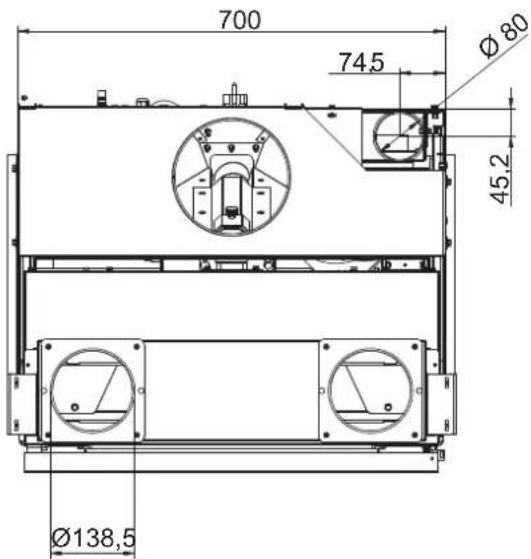

4.2 Dimensions 54
4.3 Technical features 56
4.4 Serial plate 57

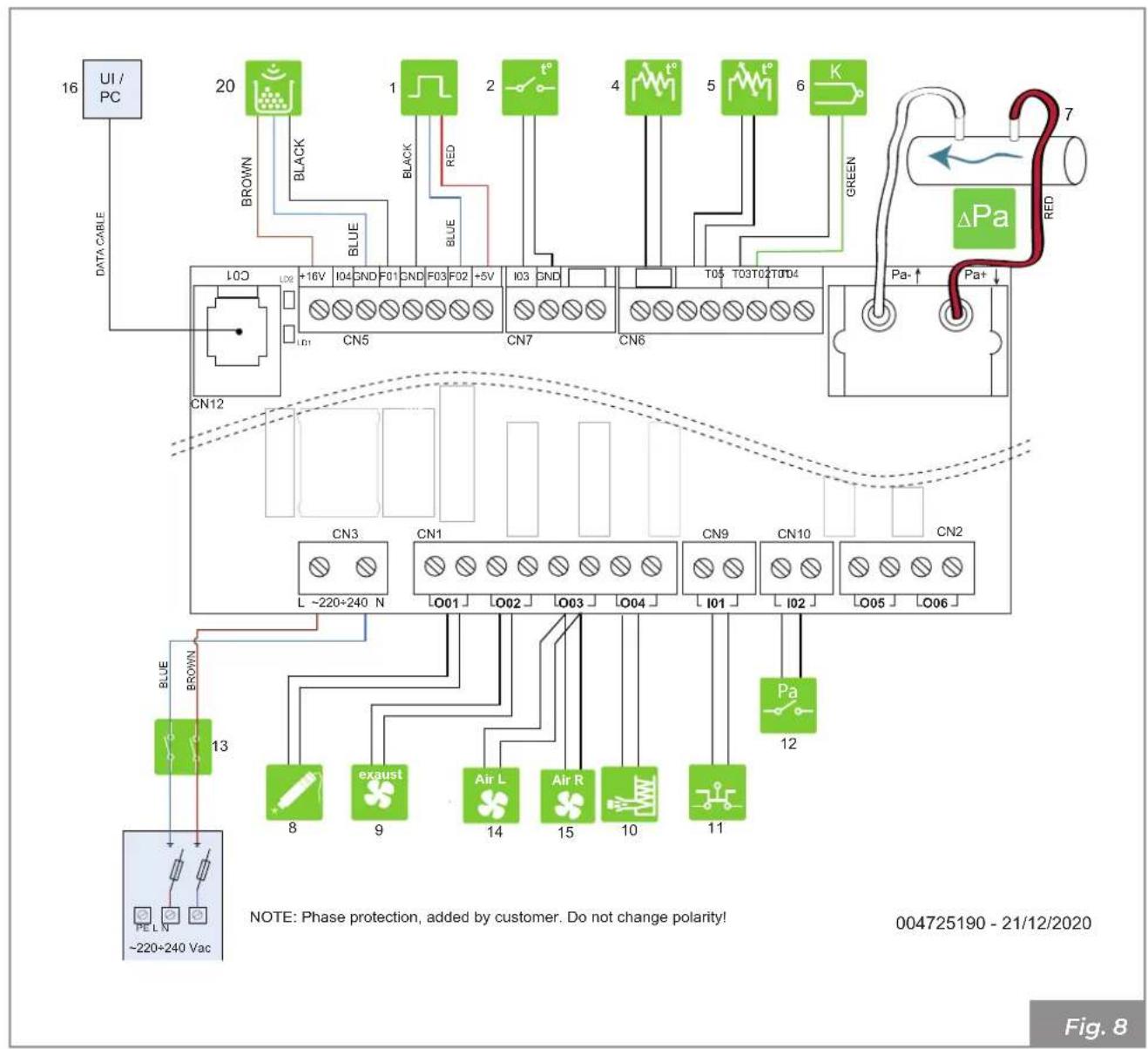

4.5 Wiring diagram 58

5 HANDLING AND TRANSPORTATION 59

5.1 Transportation 60

6 PREPARATION OF THE INSTALLATION SITE 61

6.1 General considerations 61
6.2 Safety Precautions 61

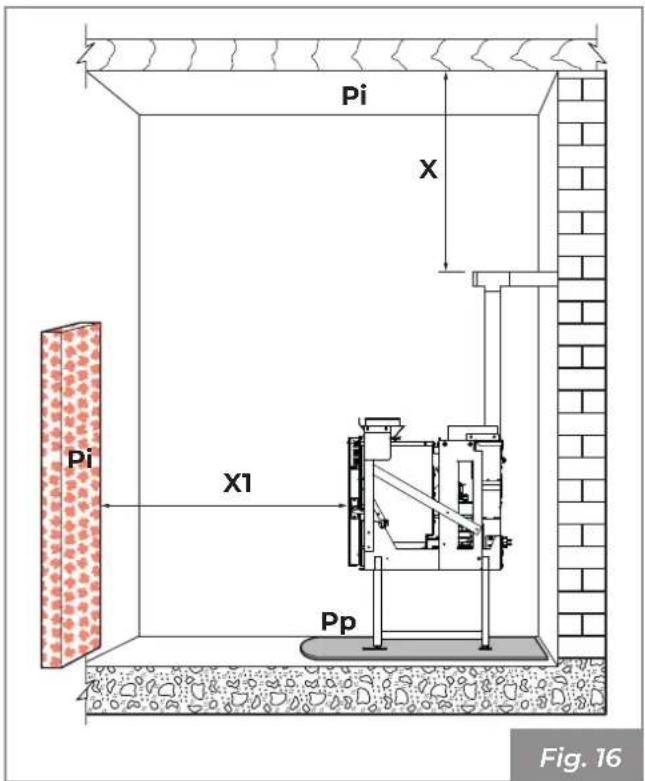

6.3 Place of installation 61

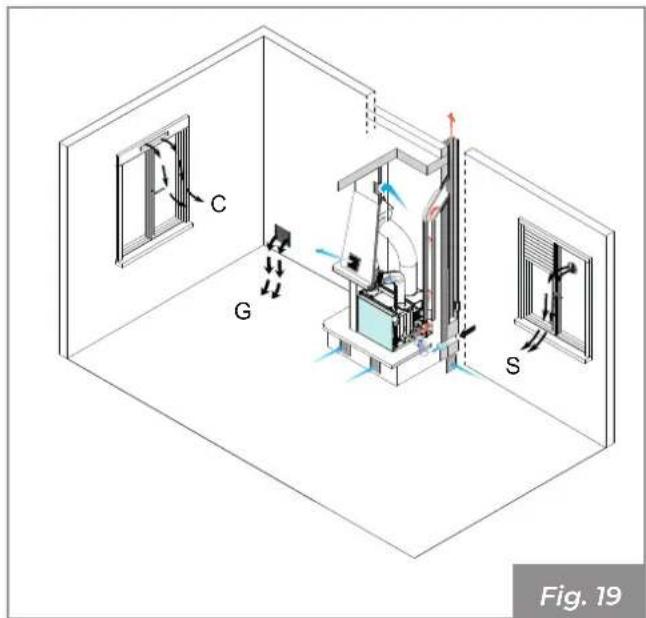

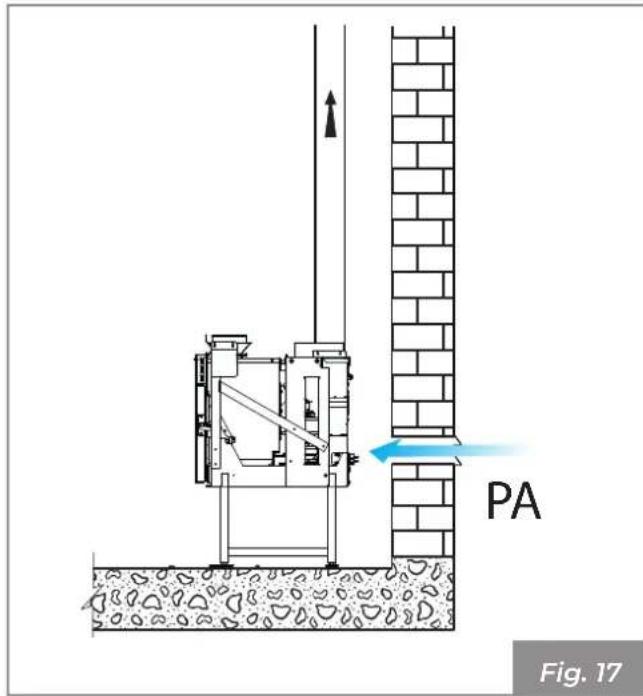

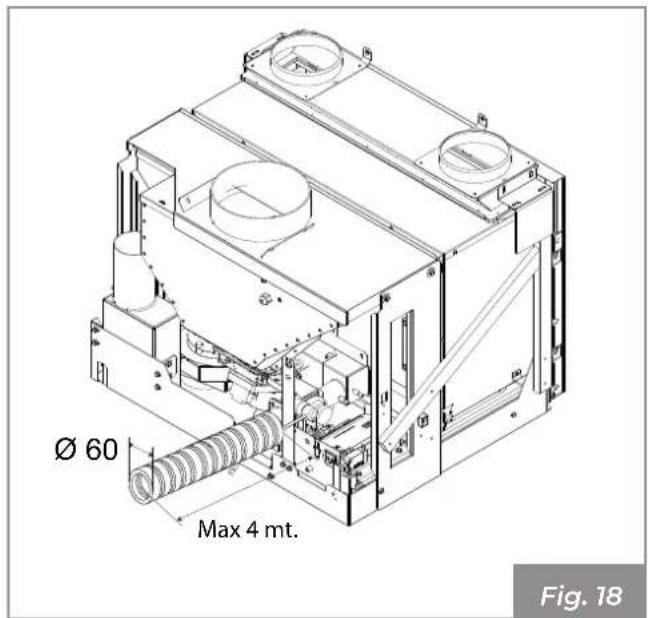

6.4Combustion air 62

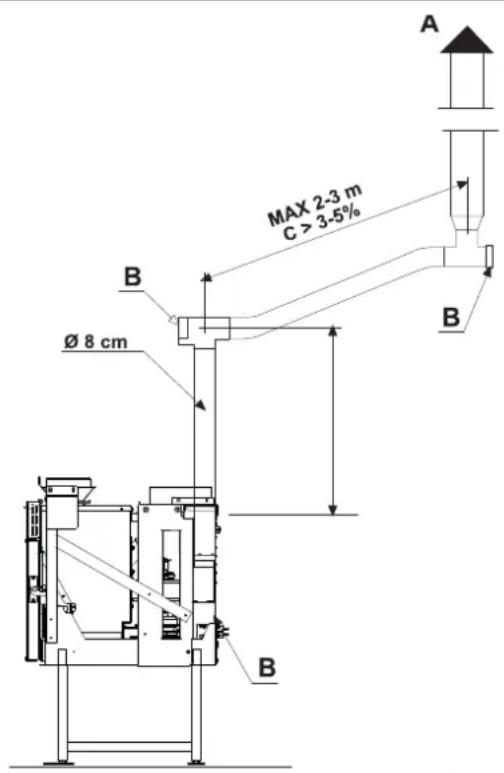

6.5 Flue gas fitting 64

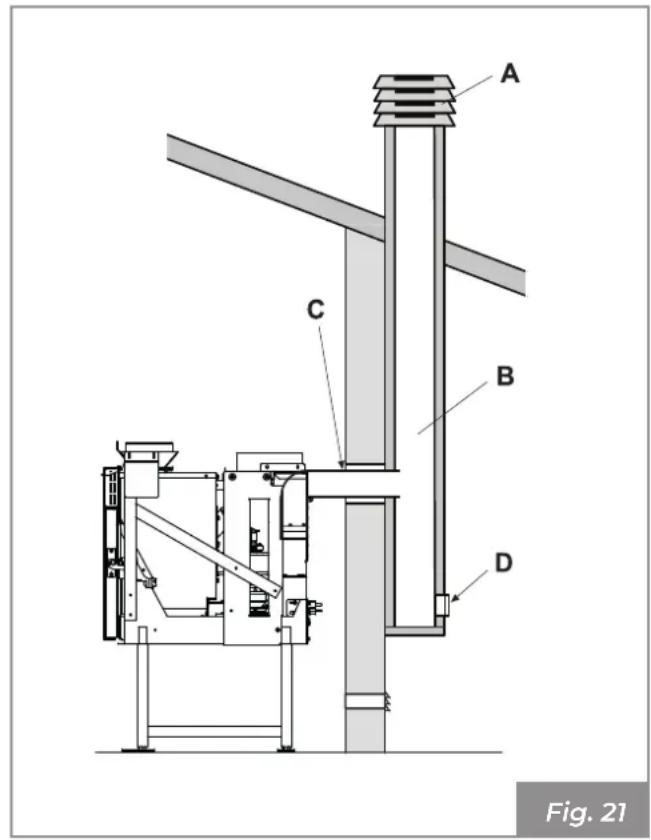

6.6 Roof exhaust with traditional fireplace 65

7 INSTALLATION 66

7.1 General considerations 66
7.2 Installation configurations A70 AC70 66

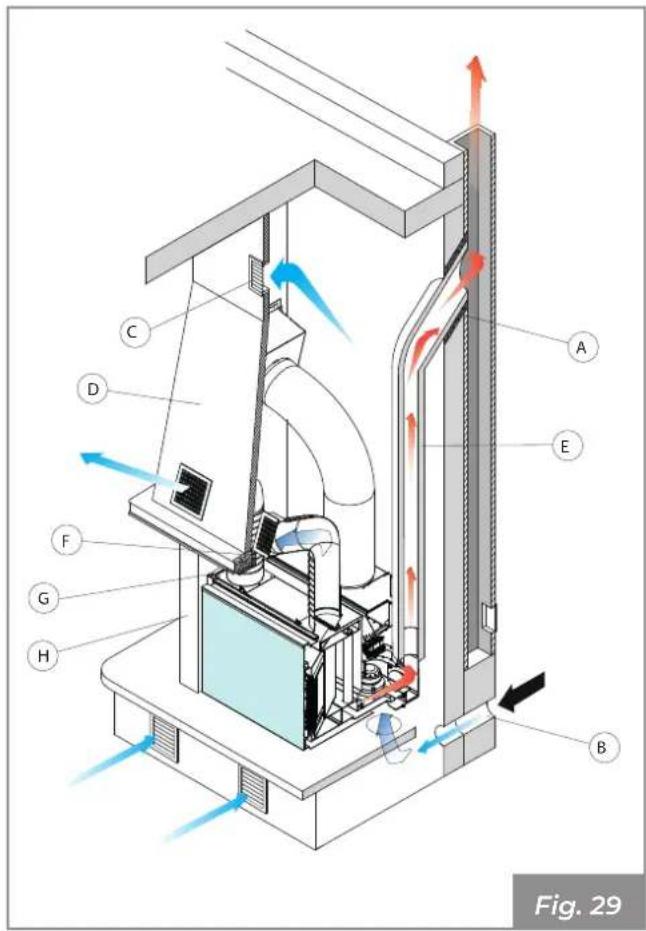

7.3Assembly diagram 67

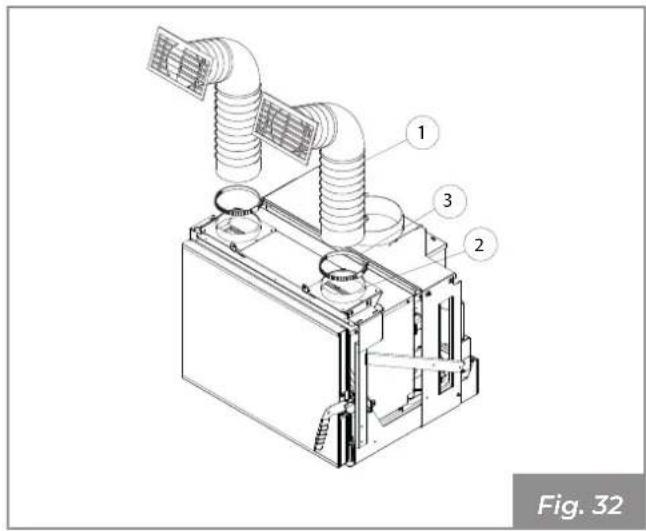

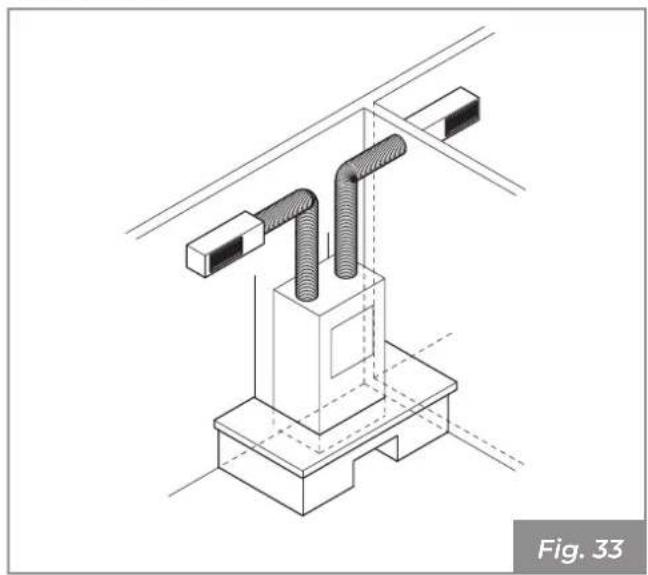

7.4 Hot air delivery connection 68
7.5 Making technical holes on the cladding 69
7.6 Electrical connection 70

8 FIRST IGNITION 71

8.1 Pellet loading 71
8.2 First start up 72

9 MAINTENANCE 73

9.1 Maintenance of the smoke system 73

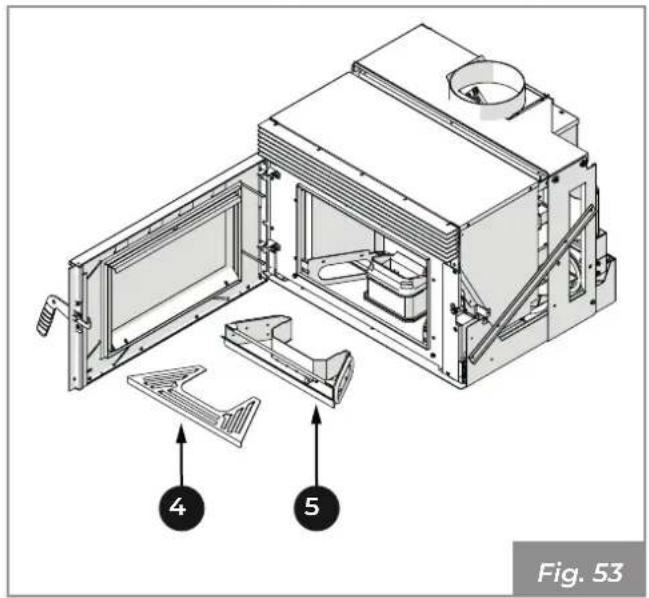

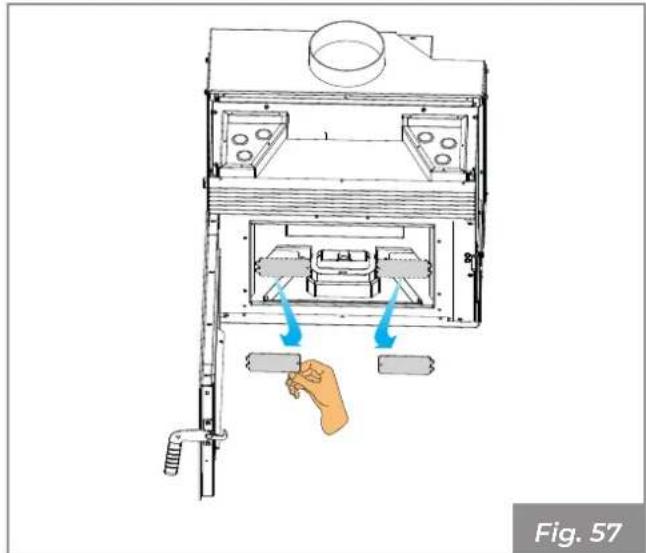

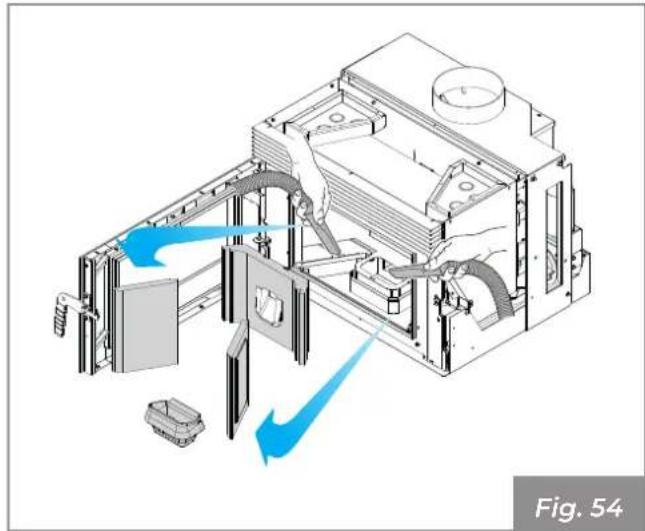

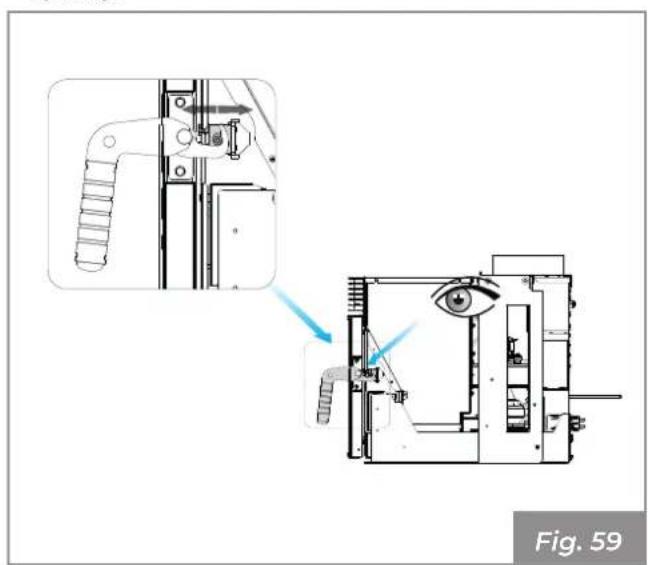

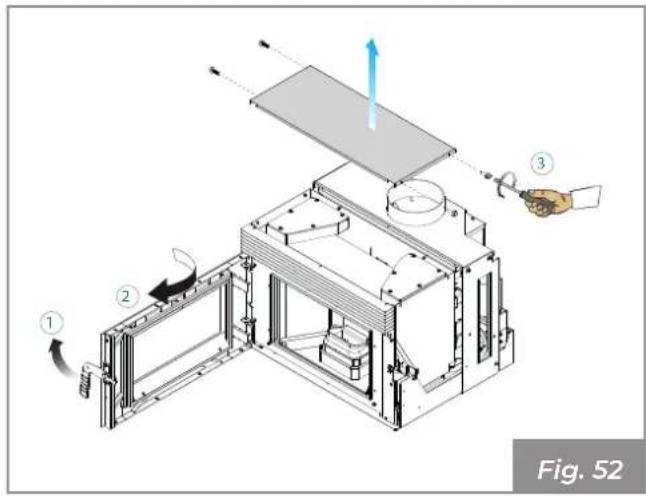

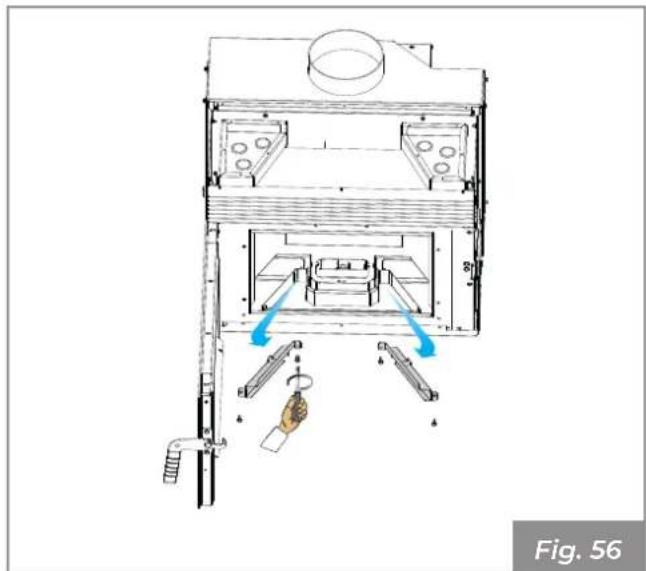

9.2 Appliance maintenance 73
9.3 Cleaning and maintenance program 74
9.4 Ordinary maintenance 75
9.5Extraordinary maintenance 76

10 DEMOLITION AND DISPOSAL 80

1 GENERAL INTRODUCTION

Palazzetti heating appliances are manufactured and tested in accordance with the safety requirements set forth in the reference European directives.

Even partial printing, translation and reproduction of this manual are bound by the authorisation from Palazzetti. Technical information, graphical representations and specifications in this manual may not be disclosed to third parties.

Do not operate if not all the information provided in the manual has been thoroughly understood; if in doubt always request the advice or intervention of Palazzetti specialised personnel.

Palazzetti reserves the right to change specifications and technical and/or functional characteristics of the product at any time without prior notice.

1.1 Symbols

In this manual the points of major importance are highlighted by the following symbols:

INDICATION: Indications concerning the correct use of the appliance and the responsibilities of those in charge.

ATTENTION: The point in which a note of particular importance is expressed.

HAZARD: Expresses an important note of behaviour for the prevention of injuries or damage to property.

1.2 Intended use

The appliance, which is the subject of this manual, is an indoor domestic heating insert, powered exclusively by wood pellets with automatic loading.

The appliance must only work with the fire box door closed.

The intended use indicated is valid only for appliances in full structural, mechanical and engineering efficiency.

1.3 Purpose and content of the manual

The purpose of this manual is to provide the fundamental and basic regulations for correct installation of the appliance.

Strict observance of that which is described herein guarantees a higher level of appliance safety and productivity.

1.4 Preservation of the manual

Preservation and consultation

The manual must be kept carefully and must always be available for consultation, both by the user and by the assembly and maintenance staff.

The installation manual is an integral part of the appliance.

Deterioration or loss

If needed, request an additional copy from Palazzetti.

Sale of the appliance

In the event of transferring the appliance the user is obliged to deliver even this manual to the new owner.

1.5 Update of this manual

This manual reflects the latest developments at the time the appliance was placed on the market.

The products already on the market with the relevant technical documentation, will not be considered by Palazzetti as deficient or inadequate due to possible modifications, adjustments or application of new technologies on newly marketed products.

1.6 Overview

The instructions in this manual apply as general rules; it is still necessary to comply with all the rules laid down by the local, national and European legislation in force in the country where the appliance is installed.

Information

In the event that you need to contact the Manufacturer of the appliance, refer to the serial number and the identification data indicated on the identification plate.

In case of problems, contact the dealer or a qualified technician authorised by the manufacturer; in case of repair, request the use of original spare parts.

Periodically check and clean the flue gas duct (connected to the chimney flue).

The pellet insert is not a cooking appliance.

Store this instruction manual, which is an integral part of the appliance, for its entire service life. If the appliance is sold or transferred to another user, always make sure it is accompanied by the product booklet.

In case of loss, contact the manufacturer or authorised retailer to receive another copy.

Maintenance

Maintenance operations must be carried out by qualified personnel authorised to work on the appliance to which this manual refers.

Responsibility for the works of installation

Responsibility for the works carried out for the installation of the appliance cannot be considered to be taken on by Palazzetti; it is and remains the responsibility of the installer, who is responsible for carrying out the checks relating to the flue, the air intake and how right the proposed installation solutions are.

1.7 Compliance

The appliances covered by this manual comply with the legislative provisions of the following European directives:

2014/30/EU: Electromagnetic Compatibility Directive

2014/35/EU: Low Voltage Directive

2017/2102/EU: RoHS Directive

2009/125/EC: Eco-Design Requirements for Energy-Related Products Directive

2014/53/EU: RED (Radio Equipment Directive)

REGULATION (EU) N. 305/2011 (CPR)

REGULATION (EU) 2015/1185 (ECODESIGN)

The following harmonised standards and/or regulations have been applied:

EMCD:

• EN 55014-1:2017
• EN 61000-3-2:2015
• EN 61000-3-3:2014/EC:2016
• EN 55014-2:2015

EMF:

• EN 62233:2008/EC:2008

LVD:

• EN 60335-1:2013 /EC:2014 /A11:2015 /A13:2017
• EN 60335-2-102:2007 /A1:2011

CPR:

• EN 14785:2006

1.8 Responsibility of the manufacturer

With the delivery of this manual, Palazzetti declines all responsibility, both civil and criminal, direct or indirect, due to:

• installation that does not comply with standards in force in the country and with safety directives;
• partial or total non-compliance with the instructions contained in this manual;
• installation by unqualified and/or untrained personnel;
• use not in compliance with the safety directives;
• modifications and/or repairs carried out on the appliance that are not authorised by the manufacturer;
• lack of maintenance;
• exceptional events.

1.9 Technical assistance and maintenance

Palazzetti has a dense network of service centres with specialised, trained and skilled technicians.

The headquarters and our sales network is at your disposal to direct you to the nearest authorised service centre.

1.10 Spare parts

Use only original spare parts.

Do not wait until the components are worn by use before proceeding to their replacement.

Replace a worn component before its breaking favours the prevention of accidents arising from accidents caused by the sudden breakage of components which may cause serious damages to persons and objects.

1.11 Serial plate

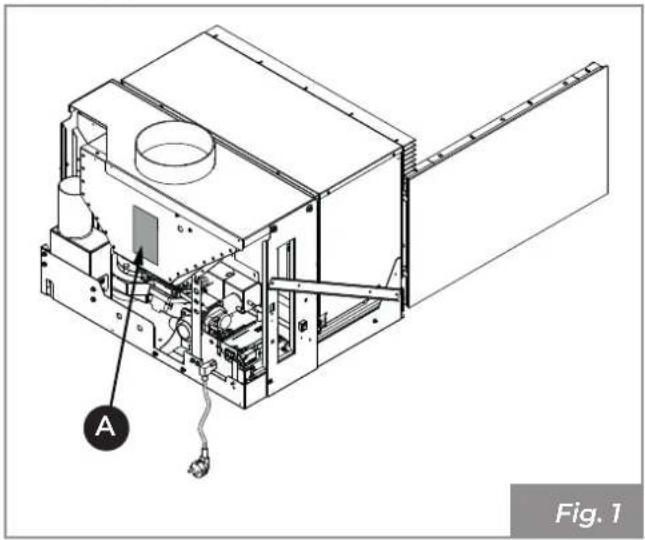

The serial identification plate (A) is positioned on the rear (Fig. 1) and shows all the characteristic data relating to the appliance, including details of the Manufacturer, the Serial number and brand

The Serial number must always be indicated for any type of request regarding the appliance.

1.12 Delivery of the appliance

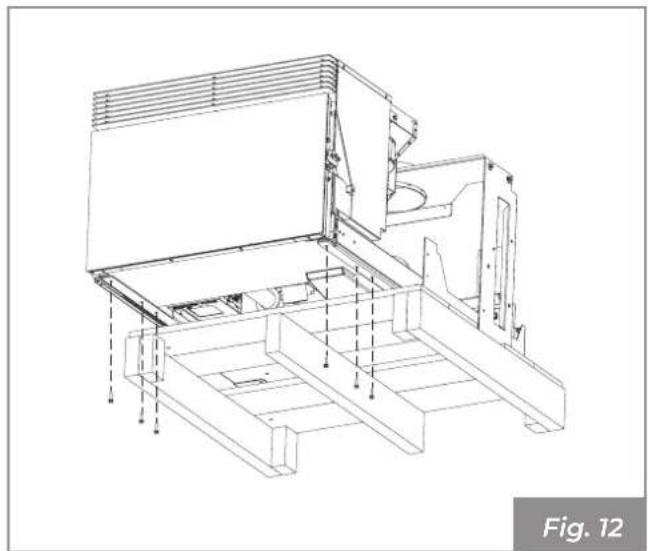

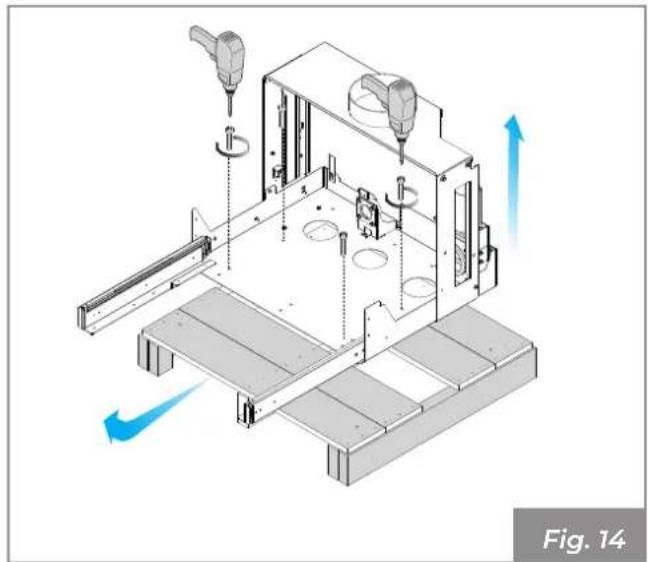

The appliance is delivered perfectly packaged and fixed to a wooden platform which allows handling it using fork lift trucks and/or other means.

The following material accompanies the appliance:

• manual for use, installation and maintenance;
• bar code label;
• display booklet.
• remote control (only for the relevant models);
• opening handle (only for the relevant models).

2 SAFETY WARNING

2.1Warnings for the installer

Observe the prescriptions contained in this manual.

The instructions for assembly and disassembly of the appliance are reserved for specialist technicians only.

The installation, use and maintenance of the product must be in accordance with the manufacturer's instructions and in compliance with the regulations. Failure to comply with the instructions and any incorrect operations may give rise to hazardous situations, damage to property, animals, health problems or malfunctioning.

Installation, electrical connection, operational testing and maintenance must be carried out exclusively by authorised and qualified personnel.

The installation and maintenance of the product must be carried out exclusively by qualified personnel with suitable knowledge of the product itself. Use only original spare parts recommended by the manufacturer.

Responsibility for the works carried out in the location of the appliance is, and remains, with the user; the latter is also responsible for carrying out the checks relating to the proposed installation solutions.

The installer must comply with all local, national and European safety regulations.

The appliance must be installed on floors with adequate load bearing capacity.

Check that the chimney flue and air inlet set-ups conform to the type of installation.

Do not carry out on-the-fly electrical connections with temporary or uninsulated cables.

Check that the earthing of the electrical system is efficient.

Before starting the assembly or disassembly phases of the appliance, the installer must observe the safety precautions required by law and the following indications in particular:

• do not operate in adverse conditions;
  they must operate in perfect psychophysical conditions and must check that the personal protective equipment is intact and functioning perfectly;
  they must wear gloves and safety shoes;
  they must use tools with electrical insulation;
  they must make sure that the area used during assembly/dismantling is free from obstacles.

The product must only be installed in rooms that are not at risk of fire and equipped with all the necessary services including air and electrical supplies and smoke exhausts.

Evaluate the static conditions of the surface bearing the weight of the product and provide suitable insulation if it is composed of flammable materials (e.g. wood, carpet, plastic).

Live electrical parts: power the product only once it has been completely assembled.

2.2Warnings for technical maintenance personnel

Maintenance operations must be carried out only by authorised and qualified personnel.

Observe the prescriptions contained in this manual.

Always use personal protective equipment and other means of protection.

Before starting any maintenance work ensure that the appliance, if it has been used, has cooled down.

Even if only one of the safety devices is not working, the appliance is to be considered not working.

Disconnect the appliance from the mains before carrying out any maintenance operations.

Disconnect the appliance from the electrical mains before working on electrical and electronic parts, connectors and moving parts (pellet loading systems, automatic burn pot cleaning systems, etc.).

2.3Warnings for users

To ensure correct use of the product and electronic appliances connected thereto and to prevent accidents, it is important to always follow the instructions provided in this manual.

The appliance has particularly hot external surfaces (door, handle, glass, smoke outlet pipes, etc.). Contact with these parts must therefore be avoided unless wearing suitable protective clothing or equipment, such as heat resistant gloves or in the presence of "cold handle" operating systems.

For this reason, maximum caution is recommended during operation and in particular:

Do not touch and do not get close to the glass of the firebox door, it may cause burns, do not look at the flame for a long time.

Do not hang laundry directly over the appliance for drying: fire hazard.

• do not touch the smoke outlet;

• do not perform any type of cleaning;

• do not remove the ashes;

• do not open the firebox door;
• do not open the ash drawer (where provided).

The appliance cannot be used by children under the age of 8 and by people with reduced physical, sensory or mental abilities, or without experience or the necessary knowledge, unless they are under supervision or after they have received instructions relating to the safe use of the appliance and to understanding the inherent dangers. Children must not play with the appliance. Cleaning for which the user is

responsible must not be carried out by unsupervised children.

Before performing any type of operation, the user or whoever is operating the product must have read and fully understood the contents of this installation and use manual. Errors or bad settings may cause hazardous conditions and/or irregular operation.

Unskilled users must be protected from access to any part that could expose them to danger. Therefore, they must not be allowed to intervene on internal parts at risk (electrical or mechanical), even if the disconnection of the power supply is required.

Respect the instructions and warnings highlighted on the sign plates displayed on the appliance.

The sign plates are accident prevention devices, therefore they must always be perfectly legible. If these are damaged and unreadable, it is mandatory to replace them, requesting the original spare parts from the Manufacturer.

Follow the routine and extraordinary maintenance schedule carefully.

Do not use the appliance without having first carried out daily cleaning.

Do not use the appliance if operation is abnormal, you suspect a breakage or if there are unusual noises.

In case of failure or malfunction, turn the appliance off and immediately contact your specialised technician.

Do not throw water on the appliance in operation or to extinguish the fire in the burn pot.

Do not switch the appliance off by disconnecting the mains electrical connection.

Do not lean on open doors, this could compromise the stability of the appliance.

Do not use the appliance as an anchor support of any kind.

It is prohibited to use the product as a ladder or support structure.

Do not clean the appliance until the structure and ashes have completely cooled.

Only touch the door when the appliance is cold.

In case of flue gas leaks in the room or explosions detrimental to the device, turn it off, ventilate the room and immediately contact your installer/service technician.

In case of fire in the chimney flue, turn the appliance off, disconnect it from the power supply and do not open the door. Then call the competent authorities.

In case of failure of the ignition system, do not ignite the appliance with flammable materials.

In electrically powered devices, if unburned gas/fumes accumulate inside the fire box, do not disconnect the electrical power supply and move as far away from the appliance as possible.

In case of malfunction of the appliance due to a poor flue draught, clean the flue in accordance with the procedure described in section "9.1 Maintenance of the smoke system" on page 73.

Do not touch the painted parts during operation to avoid damage to the paintwork.

All responsibility for improper use of the product is fully borne by the user, who relieves the manufacturer of any civil and criminal liability.

It is prohibited to operate the appliance with the door open.

It is prohibited to use the appliance if the door glass or gaskets are damaged.

Any type of unauthorised handling or replacement with non-original spare parts shall place the safety of the operator at risk and relieve the manufacturer of any civil and criminal liability.

It is prohibited to manually load pellets into the burn pot; this type of incorrect behaviour may generate an abnormal amount of unburned gas, giving rise to the risk of explosion inside the chamber.

Unburned pellet deposits in the burn pot after a failed ignition must be removed before making a new ignition attempt.

If the burn pot is not cleaned and regularly serviced, malfunctions and explosions may occur inside the appliance. Be sure to remove all traces of material and deposits from the holes of the burn pot and to clean them each time the ash is emptied or after each failed ignition attempt. Make sure the burn pot holes don't decrease in size as this may have a negative effect on the safe operation of the appliance.

Do not wash the product with water. Water may infiltrate the unit and damage the electrical insulation, causing electric shocks.

Do not sit/stand in front of the product in operation for long periods.

Incorrect use of the product or incorrect maintenance works may create a serious risk of explosion in the combustion chamber.

Only use the fuel recommended by the manufacturer. The product must never be used as an incinerator.

It is prohibited to use benzene, lamp fuel, kerosene, liquid firelighter for wood, ethyl alcohol or similar liquids to light or rekindle a flame in this appliance. Keep these liquids at a due distance from the appliance during

operation.

It is prohibited to insert other types of fuels in the tank other than wood pellets.

Some tips to avoid corrosion phenomena:

• carry out routine cleaning operations to avoid the build-up of ash deposits;
• feed the appliance only with fuel having the characteristics described in the section "Fuel characteristics";
• Do not use solvents, acids, aggressive detergents or products to directly clean the glass or other components of the product;
• avoid leaving the product in unfavourable ambient conditions (humidity, airborne salinity, storms, etc.);
• if the appliance is not used for long periods (e.g. during the summer), disconnect the combustion air inlet pipe and place dessicant bags in the combustion chamber to absorb the humidity in the air, making sure to remove them when the product is re-ignited.

3 FUEL CHARACTERISTICS

3.1 Fuel characteristics

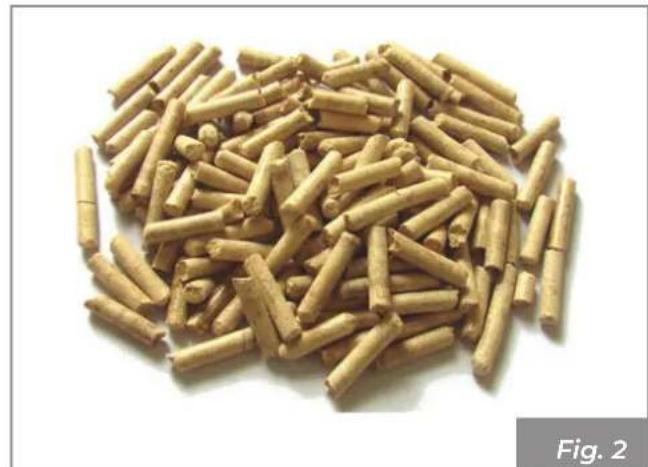

The pellet (Fig. 2) is a compound made from various types of wood pressed together with mechanical procedures in compliance with environment protection regulations, and it is the only fuel required for this type of appliance.

The efficiency and thermal potential of the appliance may vary according to the type and quality of the pellets used.

We recommend the use of class A1 pellets (ISO 17225-2 standard, ENplus A1, DIN Plus or NC 444 category "High Performance NF Pellets Biofuel Quality").

Use pellets with standard length between 3 and 40mm

The appliance is equipped with a pellet container tank of the capacity indicated in the characteristic data table in the attached Product Booklet.

The loading compartment is positioned at the top, it must always be open for loading of the pellets and must remain closed while the appliance is operating.

It is prohibited to use the appliance as an incinerator to burn rubbish.

3.2 Pellet storage

Pellets must be kept in a dry place, not too cold and the bags must be kept sealed.

It is advisable to keep a number of bags of pellets in the room where the appliance is being used or in an adjacent room provided it is at the correct temperature and humidity and at a safe distance

(at least one meter) away from heat sources.

Wet and/or cold pellets (5^) reduce the thermal potential of the fuel resulting in the need for more cleaning maintenance of the burn pot (unburned material) and of the fire box.

Pay particular attention to the storage and handling of pellet bags. Their crushing and the formation of sawdust must be avoided.

If sawdust is placed in the appliance tank it could cause the pellet loading system to block.

The use of poor quality pellets can compromise the normal functioning of the appliance and lead to losing the guarantee.

4 BECOMING FAMILIAR WITH THE PRODUCT

4.1 Description

INSERT AC70 (CHANNELLED)

Fig. 3

A Pellet hopper

B Opening handle

C Door

D Closing hook

E Ash compartment

F Burn pot

G Combustion chamber

H Flue gas fan

I Smoke outlet pipe

L Loading system

M Manual reset thermostat

N Faulty

○ Room sensor

P Room fan

Q Microswitch

R Power cable

INSERT A70 (FRONT)

A Pellet hopper

B Opening handle

C Door

D Closing hook

E Ash compartment

F Burn pot

G Combustion chamber

H Blue gas fan

I Smoke outlet pipe

L Loading system

M Manual reset thermostat

N Faulty

O Room sensor

P Room fan

Q Microswitch

R Power cable

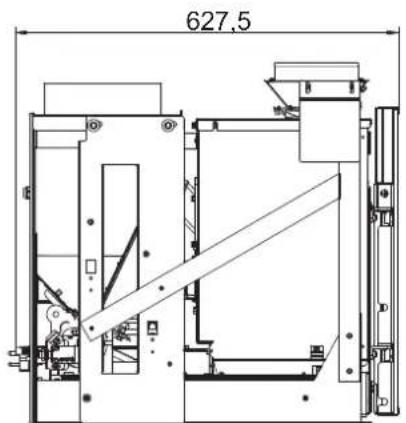

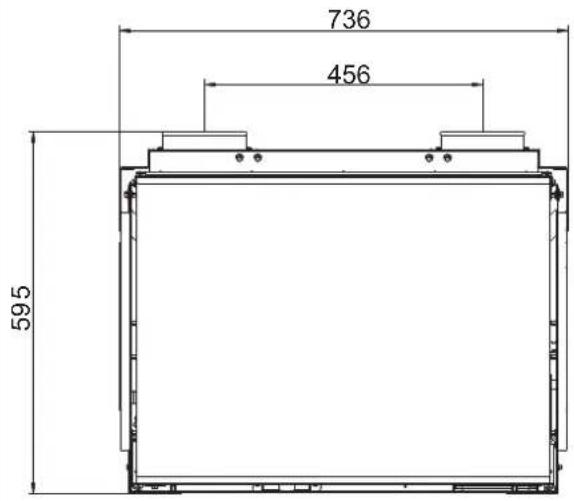

4.2 Dimensions

INSERT A70 (FRONT)

Fig.5

Dimensions in mm

INSERT AC70 (CHANNELLED)

Fig. 6

Dimensions in mm

4.3 Technical features

A70 AC70		AC70 A70
		Min Max Min Max
Overall thermal power (output)	kcal/h 2	493 7739	2493 7739
	kW 2.9 9	2.9 9
Yield % 94.5 90.7 94.5 90.7
Flue gas temperature	°C	64.9	124.4	64.9	124.4
Flue gas flow rate	g/s	4.13	8.8	4.13	8.8
Hourly fuel consumption	kg/h	0.643	2.05	0.643	2.05
CO emissions (at 13% of O2)	mg/Nm3	360	127	360	127
Flue gas outlet	mm	Ø 80
Outside air intake	mm	Ø 60
Fuel		Wooden pellets
Flue draught	Pa	12 (±2)
Minimum draught for chimney sizing	Pa	0.0
Appliance suitable for rooms no smaller than m	3	30		30
Feeding tank capacity	kg	15
Weight	kg	110

Electrical data		AC70 A70
Voltage	V	230
Frequency	Hz	50
Max power absorbed during operation	W	115
Power absorbed at electric ignition	W	330

4.4 Serial plate

Fig.7

F	Fuel
Plmax	Max. thermal power input
Plmin	Min. thermal power input
Pmax	Rated thermal power
Pmin	Reduced thermal power
EFFmax	Efficiency at rated power
EFFmin	Efficiency at reduced power
COmax	CO emissions at rated power (13% O2)
COmin	CO emissions at reduced power (13% O2)

Dust	Dusts at nominal power (13% O2)
Tf	Flue gas temperature
X1/X2/Y	Minimum distance from flammable materials
V Voltage
f	Frequency
Wmin	Max power absorbed during operation
Wmax	Max power absorbed during ignition

4.5 Wiring diagram

A70 AC70

1	Hall sensor
2	External thermostat
4	Room sensor
5	Pellet probe
6	Flue gas probe
7	Pressure differential
8	Incandescence resistance
9	Flue gas exhaust fan

10	Loading dispenser
11	Safety thermostat
12	Pressure switch
13	Micro-switch
14	Left room fan
15	Right room fan
20	Pellet sensor
Control panel

5 HANDLING AND TRANSPORTATION

The appliance is delivered complete with all the parts required.

Pay attention to the tendency for the appliance to become unbalanced.

The centre of gravity of the appliance is carried towards the front.

Bear in mind the above also when moving the appliance on the transport stand. It is advisable to unpack the appliance only when it has arrived at the installation site.

The product must be handled and unpacked using suitable means.

Make sure that children do not play with the packaging components (e.g. films and polystyrene):

Danger of suffocation!

During moving, lifting, and unpacking of the appliance the following is absolutely necessary:

• always keep it upright;
• never tip it over into a horizontal position;
• never tilt it on the front to avoid breaking the glass of the fire box door.

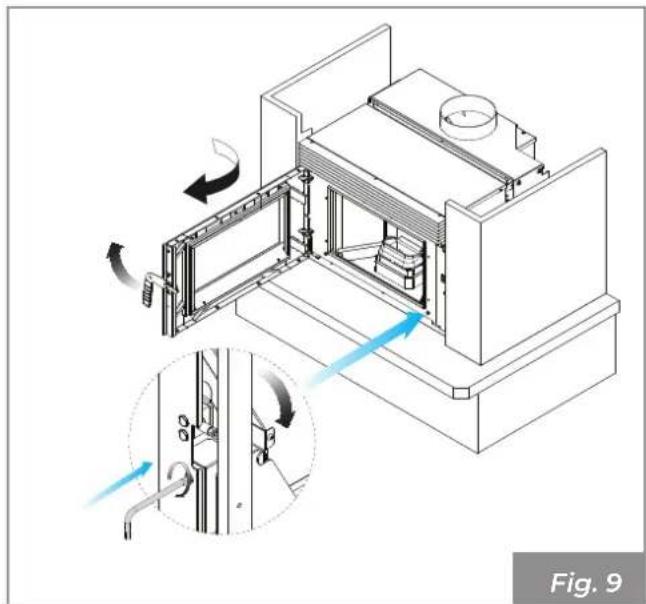

- Removal of the transport pallet

Disposal can be entrusted to a third party, provided only companies authorised for the recovery and elimination of the materials in question are used.

Always follow the regulations in force in the country in which the appliance is being used for disposal of materials and possibly for the disposal report.

To remove the appliance from the transport pallet:

• Open the door with the handle
• Insert the Allen key in the stop release seat, turn counterclockwise and release the stop

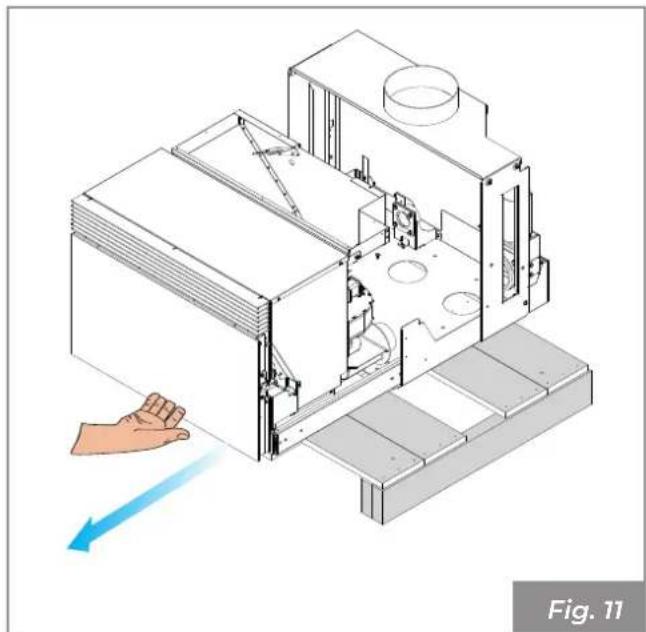

• Pull the machine outwards until the guides reach their end positions

• Unscrew the six guide fixing bolts located on the bottom of the machine
• Disconnect the display cable connector, with its relative mass, from the board and the power cable.
• Cut the cable ties that group the cables and prevent the machine from being pulled out.

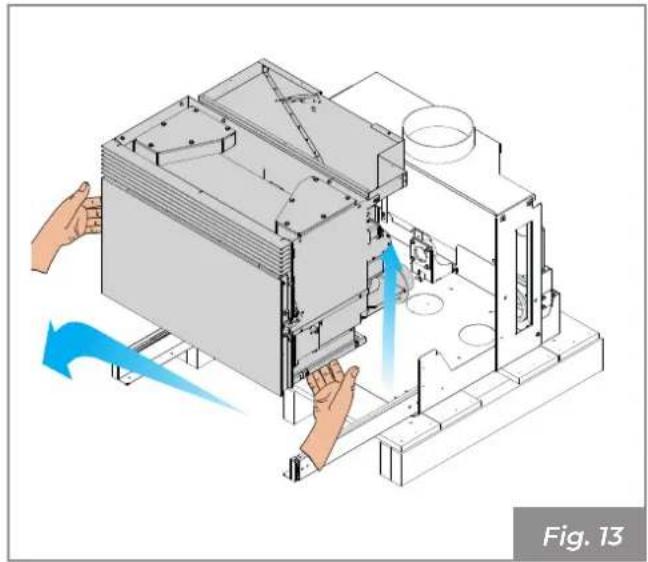

• Lift the machine and remove it from the guides

• Remove the pallet fixing screws from the base and remove the pallet

5.1 Transportation

Make sure that the lifting carriage has a payload higher than the weight of the appliance to be lifted. The full responsibility of the lifting of loads lies with the person handling the lifting equipment.

Ensure wood or timber floors are properly protected in order to prevent the weight of the appliance from damaging them during movement.

During lifting, avoid jerking or abrupt movements.

6 PREPARATION OF THE INSTALLATION SITE

6.1 General considerations

The following paragraphs contain some guidelines to be followed to obtain the maximum efficiency of the product purchased and to ensure safe operation. The following indications are however subject to compliance with any possible national, regional and municipal laws and regulations in force in the country where the appliance is installed.

In Italy, installation must be performed by qualified personnel in compliance with the EN 10683 standard.

6.2 Safety Precautions

The operations for assembly and disassembly of the appliance are reserved for specialist technicians only.

It is recommended to be sure of their qualifications and their actual capacity.

For Italy, these technicians must be in possession of the letter "C" qualification issued by the chamber of commerce based on the Ministerial Decree. 37/08.

6.3 Place of installation

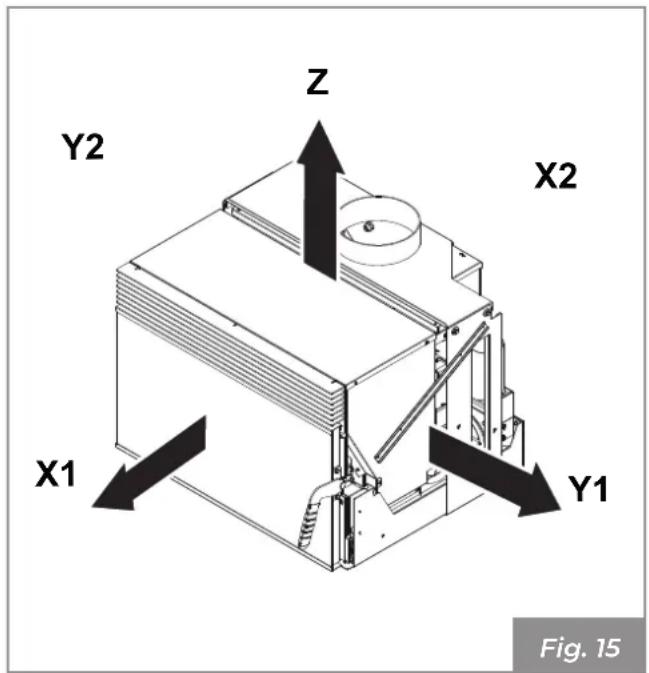

For the minimum distances that must be respected when positioning the appliance with respect to flammable materials and objects, refer to the instructions in Fig. 15.

Model X1	X2 Y1	Y2 Z
A70 AC70	800	100	200	200	600	mm

Floors made of flammable material such as wood, parquet, linoleum, laminate or floors covered with carpets must be protected by a fireproof base under the appliance that also protects the front during cleaning from any falling burning residues.

The manufacturer declines all responsibility for any variations in the characteristics of the material constituting the floor under the protection.

Set up an accessible technical space for any maintenance work.

Remember to respect the minimum distance from flammable materials (X), shown on the identification plate of the pipes used to make the chimney (Fig. 16).

$$ \mathbf {P i} = \text {F l a m m a b l e w a l l} $$

$$ \mathbf {P p} = \text {F l o o r} $$

Set up the electricity supply line to arrive near the appliance for the connection of the power cable.

6.4 Combustion air

The appliance, during its operation, requires combustion air.

The inflow of combustion air can be obtained through an air intake outside the room itself (PA = Air Intake).

Extraction of combustion air in the room

Create the air intake on the wall (Fig. 17 - PA = Air Intake), and leave the appliance to withdraw the room air, making sure to connect the section of corrugated pipe on the air inlet pipe, if supplied, fixing it with the tie and folding it slightly downwards to prevent any resonance effects.

It is possible to use a rear combustion air pipe to the machine with a pipe diameter of 80mm max length 4 m. equivalent for external direct connection.

If the rear wall of the appliance is an external wall, make a hole for the intake of combustion air at a height of about 20-30 cm from the ground, respecting the dimension indications given on the technical data sheet at the end of the booklet.

A non-closable permanent aeration grid must be placed externally; in areas that are particularly windy and exposed to weathering, provide rain and wind protection.

Ensure that the air intake is positioned so that it won't be accidentally obstructed.

If it is impossible to create an external air intake in the wall behind the appliance (non-perimeter wall), a hole must be made in an external wall of the room where the appliance is positioned.

If it is not possible to make an external air intake in the room, it is possible to make the external hole in an adjacent room as long as it permanently connects via passage grille (Fig. 19 - C = Container, G = Grille, S = Damper).

It is forbidden to take combustion air from garages, warehouses of combustible material or places with activities at risk of fire.

If there are other heating appliances in the room, the combustion air inlets must guarantee the necessary volume of air for the correct operation of all devices.

If one or more extraction fans (extractor hoods) are present and operating in the installation room, combustion malfunctions may occur due to lack of combustion air.

6.5 Flue gas fitting

The appliance works with the combustion chamber at negative pressure. It is therefore essential to make sure that the flue gas evacuation is airtight (this is the responsibility of the installer).

The appliance must be connected to its own flue gas duct, not shared, and which is suitable for ensuring adequate dispersion of the combustion products into the atmosphere, in accordance with the regulations in force in the country of installation.

The components making up the flue gas ducting system must be declared suitable for the specific operating conditions and provided with CE marking.

It is mandatory to create a first vertical section measuring at least 1.5 meters to guarantee correct expulsion of the flue gases.

It is advisable to make a maximum of 3 direction changes, in addition to that resulting from the rear connection of the appliance to the chimney, using 45 - 90^ bends or Tee fittings (Fig. 20).

Always use a Tee fitting with inspection cap at each horizontal and vertical change of the flue gas route (Fig. 20).

The horizontal sections must have a maximum length of 2-3 m with an upward slope of 3 - 5% (Fig. 20).

Anchor the pipes with suitable collars to the wall. The flue gas fitting MUST NOT BE connected:

• to a chimney used by other generators (boilers, stoves, fireplaces, etc. ...);
  to air extraction systems (hoods, vents etc. ... even if "ducted".

It is forbidden to install shut-off and draught valves.

Fig. 20

With a flue gas discharge path of more than 5 meters and in conditions of poor draft (presence of many curves, inadequate exhaust terminal, etc.) the expulsion of fumes may not be the best. In these cases it will be necessary to change the operating parameters (flue gas expulsion and pellet loading) to adapt the appliance to the real system characteristics of the flue. In this regard, please contact the technical assistance service.

6.6 Roof exhaust with traditional fireplace

The flue for flue gas discharge must be carried out by qualified personnel in compliance with the UNI 10683- EN 1856-1-2- EN 1857- EN 1443- EN 13384-1-3- EN 12391-1 standards both regarding the dimensions and the materials used in its construction.

The flue gas discharge through a traditional chimney (Fig. 21) can be carried out as long as the following rules are complied with:

• check the state of maintenance of the chimney; in the case of an old chimney, it is advisable to restore it by introducing a suitably insulated steel pipe (rockwool, vermiculite).
• the flue gas can be discharged directly into the chimney only if the latter has a maximum section of 15 × 15 cm or a diameter of 15 cm and is equipped with an inspection door.

The flue gas exhaust must be on the roof.

A) Wind-proof cowl
B) B) Maximum section of 15 × 15 cm or diameter 15 cm and maximum height of 4 - 5 meters
C) Seal
D) Inspect

If the chimney has a larger section, it must be "intubated" with a suitably insulated steel pipe (with diameter suitable for the route) (Fig. 22).

1. Make sure that the connection to the brickwork in chimney is properly sealed.

Avoid contact with combustible materials (e.g. wooden beams) and in any case insulate them with fireproof material.

In case of pipes that pass through wooden roofs or walls, it is recommended to use special certified ducting kits commonly available on the market.

1) Vermiculite and/or rockwool.
2) Steel piping
3) Closing panel

7 INSTALLATION

7.1 General considerations

In the following paragraphs some indications are provided to be respected in order to obtain the maximum performance from the purchased product.

The following indications are however subject to compliance with any possible national, regional and municipal laws and regulations in force in the country where the appliance is installed.

7.2 Installation configurations A70 AC70

It is possible to install the appliance:

with front air distribution
- channelled onto the top of a fireplace with or without optional frame.

7.2.1 Generator installation on the floor of a fireplace

In the event of installation in structures with marble cladding or other materials, the insert has sliding guides to assist with extracting the equipment for attaching to the fixing surface and for carrying out inspections and checks on the mechanical and electrical components.

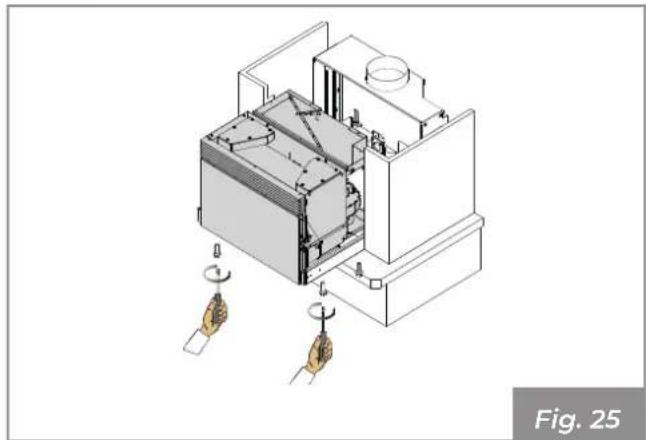

Positioning the generator without pedestal

• Once the pallet has been removed (refer to paragraph: "HANDLING AND TRANSPORTATION") proceed as follows:

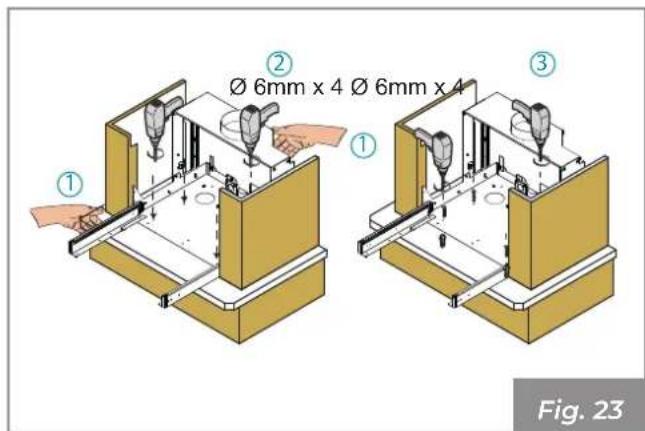

• Rest the base on the floor of the chimney (1), trace and make 4 holes (diameter 6) for fixing (2) - use the base itself as a template - then drill the holes with a bit with a diameter of 6mm .
• Insert 6 mm dowels in the drilled holes and fix the base with the screws.

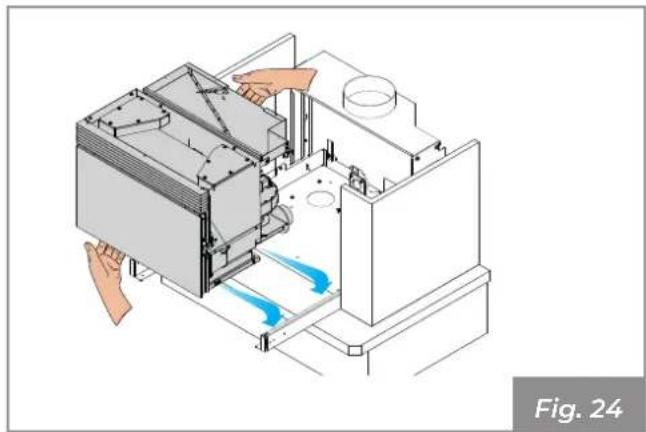

• Reposition the machine in the sliding guides

• Re-assemble the fixing bolts removed previously

• Re-connect the display cable connector, with its relative mass, to the board and the power cable.

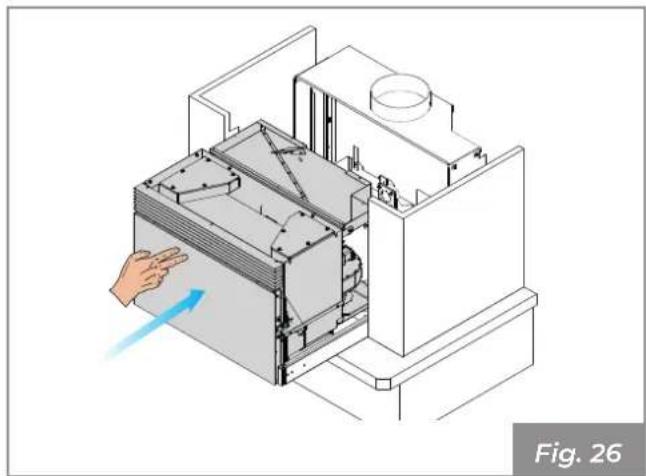

• Push the machine to the end position of the guides, paying attention to any interference caused by the cables. Then group these cables together through the application of a tie

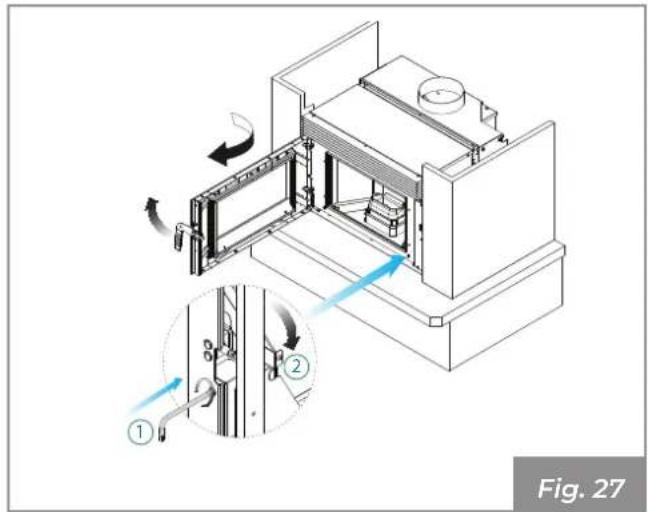

• Open the door, insert the Allen key (1) in the stop release seat; turn the locking lever clockwise to position (2) to lock the guides

• Close the door

7.3 Assembly diagram

A) For correct installation, all the joints of the smoke ducting between the fireplace and the flue must be sealed.
B) Rear external air intake, ensure a minimum distance of 5cm between cladding and combustion air intake pipe.
c) UNI standards require the installation of a heat recovery grille as close as possible to the ceiling.
D) Counter-hood and fireproof load-bearing structure
E) Cladding in ceramic fibre or rock wool with external aluminium foil
F) Protect any wooden parts with fireproof material.
G) Min distance. 1 cm between cladding and fireplace stove
H) The cladding must be made of fireproof material.

7.3.1 Insertion of room sensor

The sensor must be installed near the side or front suction holes of the cladding base.

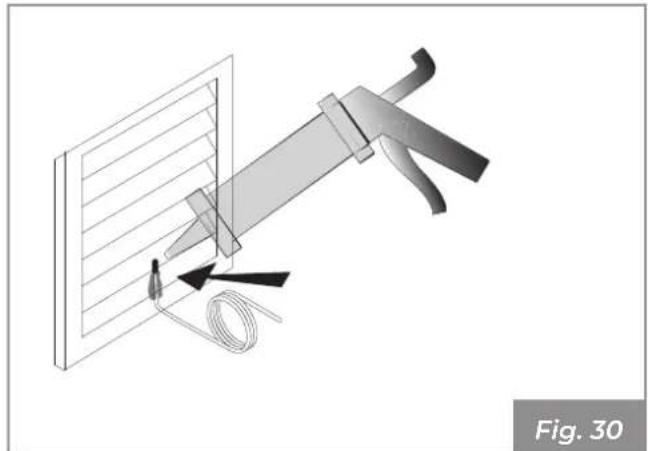

Glue the probe wire in correspondence with the air intakes

7.4 Hot air delivery connection

Only for the channelled model.

7.4.1 Hood liner fitting for heating in a single room

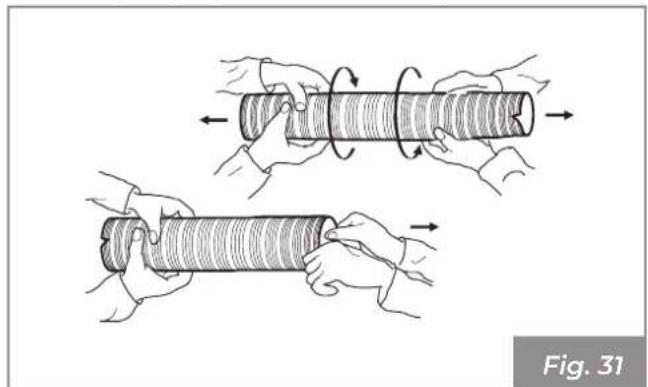

Take the flexible pipe at the ends and stretch it, accompanying it with a twisting motion.

• Cut it to the desired length (no more than 200 cm) and mount the vents in the desired points.
• Fasten the tube (1) to the collars (3) with the clamps (2)
• Insulate the pipes with insulating material.

The vents are fixed on the hood or on a wall at a height of at least 1.8 ÷ 2.0m from the floor in order to prevent that the outgoing hot air invests people.

IT is not recommended to have ducts longer than 7÷ 8m

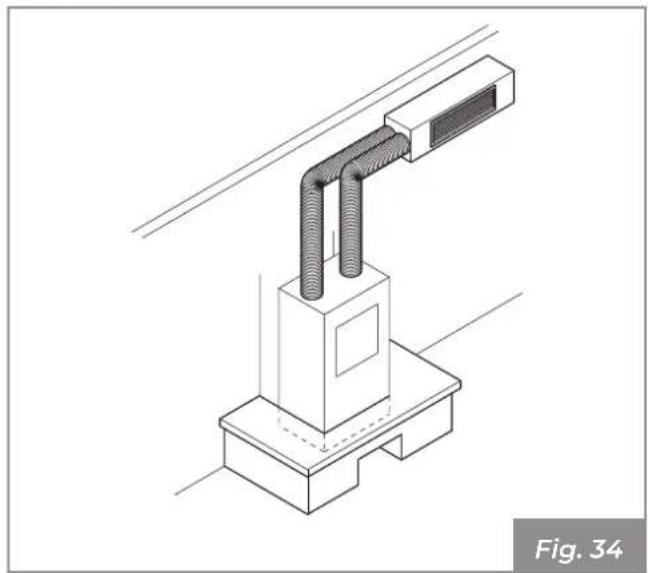

7.4.2 Channelled pipelines fitting for heating in multiple rooms

To heat several rooms, it is possible to create metal pipelines for air distribution according to the following diagram:

• flexible aluminium hose - maximum length 7 ÷ 8 m per duct;
• smooth metal pipe or canalisation - length up to 12 m on a single pipe; of 8 ÷ 9 m on double duct.

Install a vent in the same room as the fireplace and the second in another room of the house.

IT is possible to connect the hot air delivery with a flexible pipe up to the mouth of the distribution channels.

The air distribution ducts must have an internal section of 20 × 20 cm and be made of smooth galvanised sheet metal and insulated 30~mm insulating material to avoid noise and heat dispersion.

When the fireplace is used to heat two or more adjacent rooms, it is essential to promote the recirculation of ambient air to even out the temperature in the different rooms, therefore provide the doors with grilles or keep them ajar.

Double duct

Single duct

7.5 Making technical holes on the cladding

The cladding must only be done by qualified personnel.

Technical holes must be made on the cladding and on the hood for:

A) the display housing;
B) the air vents;
c) the heat exhaust ventilation in the hood;
D) the ventilation of the cladding on the base;
E) pellet loading opening

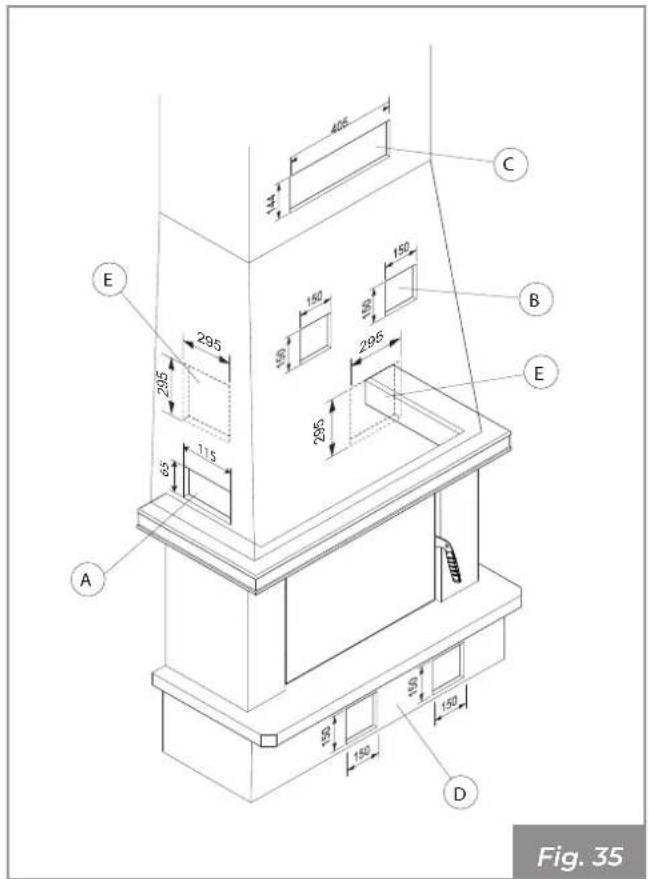

The holes must comply with the measurements indicated in the figure:

7.6 Electrical connection

Simply connect the appliance to the electrical system using the supplied plug (Fig. 36).

The electrical connection (plug) must be easily accessible after appliance installation as well.

If the power supply cable is damaged it must be replaced by the technical assistance service or a qualified technician in order to prevent any risk.

Fig. 36

It is mandatory that the system is equipped with an earth connection and a differential switch in compliance with the laws in force.

The flue gas evacuation duct must be equipped with its own earth connection.

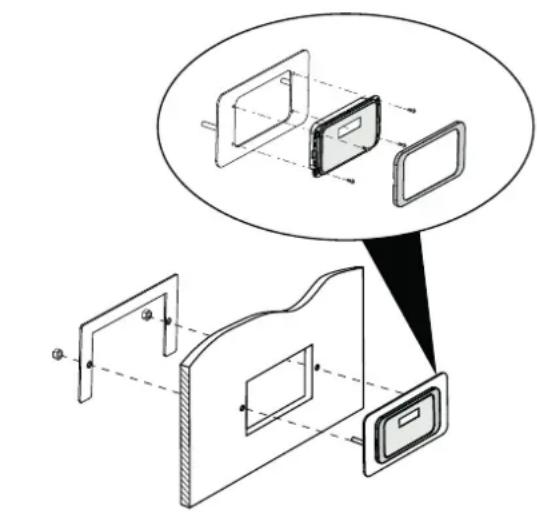

7.6.1 Installation of the control panel

The control panel of the appliance can be applied to the wall.

Fig. 37

Do not install the recessed box on hot areas of the hood.

Arrange the passage of the cable between the panel and the electronic board, so that it is not damaged by the high temperature during normal operation of the appliance.

Connect the cable between the terminals of the electronic board and the control panel before closing the boxes.

7.6.2 Connection to the room thermostat

The appliance can be connected to an external thermostat or chronothermostat that switches it on and off.

For the connection, refer to the wiring diagram in the technical specifications.

8 FIRST IGNITION

The first ignition must be carried out by the installer.

8.1 Pellet loading

The pellets must be loaded from a door which must be provided in the hood of the cladding and connected to the appliance through the appropriate accessories (optional), carefully following the assembly instructions

Do not use the extraction system of the appliance as a means to load the pellet hopper.

The use of non-original accessories is not recommended.

Pellets falling outside the hopper may damage the operation of the appliance and cause fires.

The pipe for pellet loading (optional) must act exclusively as a ramp to fill the hopper of the appliance and not as an extension of the hopper itself; avoid loading more pellets than the hopper can hold.

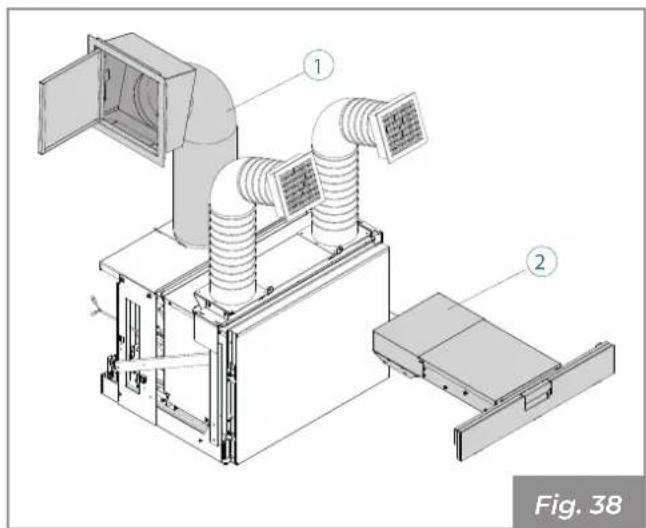

8.1.1 Options available

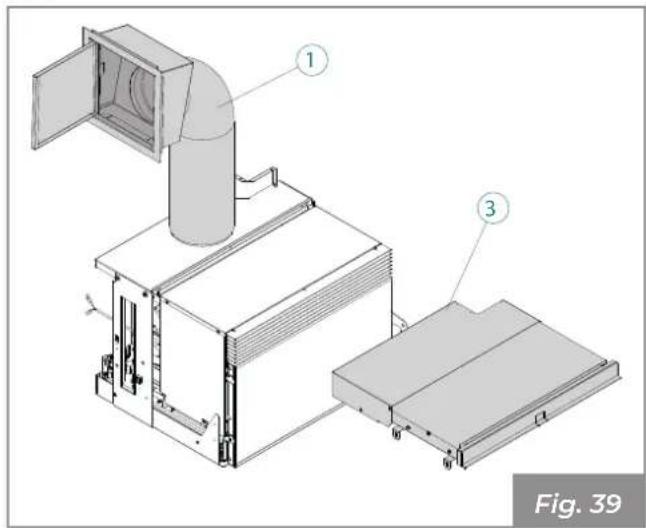

• Loading system with flexible metal pipe and loading door "1" (Fig. 38 - Fig. 39).
• Front loading drawer for channelled air outlet version "2" (Fig. 38).
• Front loading drawer for front air outlet version "3" (Fig. 39).

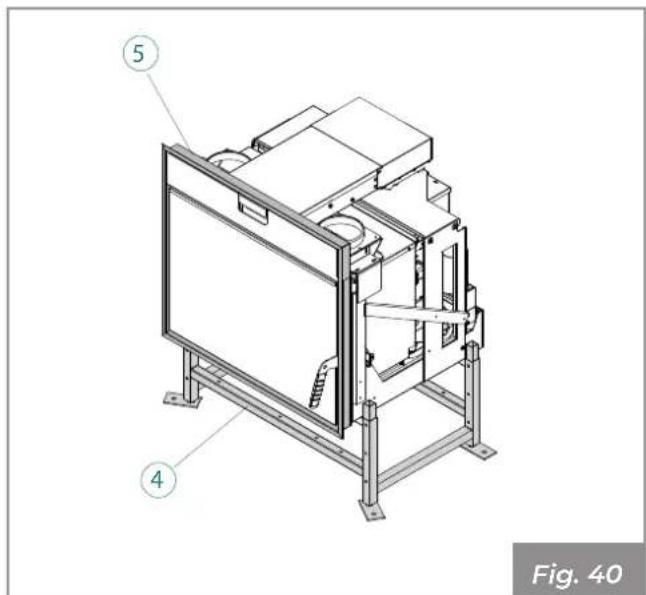

• Pedestal kit "4" and finishing frames for plasterboard "5" (Fig. 40).

AC70
Fig. 38

A70

A70 AC70

8.2 First start up

During the first ignition of the appliance, make sure the rooms are properly ventilated as unpleasant odours or fumes may be generated due to the evaporation or drying of certain materials used. This phenomenon will gradually disappear.

Connect the appliance to the mains, operate the power switch on the back of the appliance by turning it to "I".

Fig. 41

If the connection is correct, the appliance emits a series of intermittent noises and the display lights up.

See the display manual.

9 MAINTENANCE

Maintenance operations must be performed by an authorised technical assistance centre.

Before performing any maintenance operation, take the following precautions:

• Ensure that all appliance parts are cold.
• Make sure that the ashes are completely extinguished.
• Use personal protective equipment provided for by Directive 89/391/EEC.
• Make sure that the general line switch is turned off.
• Make sure that the power supply cannot be accidentally reactivated. Remove the plug from the wall socket.
• Always use appropriate equipment for maintenance.
• Once maintenance or repair operations have been completed, before putting the appliance back into service, reinstall all the safety guards and reactivate all the safety devices.

9.1 Maintenance of the smoke system

To be performed at least once a year, or every 4000kg of burned pellets.

If there are horizontal sections, it is necessary to check and remove any deposits of ash and soot before they obstruct the passage of fumes.

In the event of failure to clean or inadequate cleaning the appliance may have operating problems including:

• bad combustion;
• blackening of the glass;
• blockage of the burn pot with accumulation of ash and pellets;
• deposit of ash and excessive deposits on the exchanger with consequent poor performance.

9.2 Appliance maintenance

To be carried out at least once a year, or every time the appliance signals maintenance request.

During the maintenance operation, the technician must:

• clean the flue gas transit area thoroughly and completely;
• check the condition and tightness of all the seals;
• check the condition of all internal components and make sure they are clean;
• make sure the flue gas outlet connection is sealed and clean;
• remove any deposits of pellet residues in the tank;
• check that there are no pellets or pellet residues in the appliance installation space;
• check the correct operation of the appliance;
• reset any warnings or alarms.

9.3 Cleaning and maintenance program

9.3.1 Ordinary maintenance (User)

	EACH IGNITION EVERY WEEK 1 MONTH
Burn pot (Fig. 42) X
Ash drawer/compartment (Fig. 44 - Fig. 45) X
Glass (Fig. 46) X
Flue manifold X

9.3.2 Extraordinary maintenance (authorised technical assistance centre)

	1 YEAR (*)
Door and burn pot seals X
Smoke exhaust duct	X
Fans	X
Door block springs	X

(*) At least once per year or every 4 tonnes of burned pellets.

9.4 Ordinary maintenance

9.4.1 Cleaning the inside of the firebox

Daily or before each ignition, it is necessary to check that the burn pot is clean to ensure the free flow of combustion air from the holes of the burn pot itself.

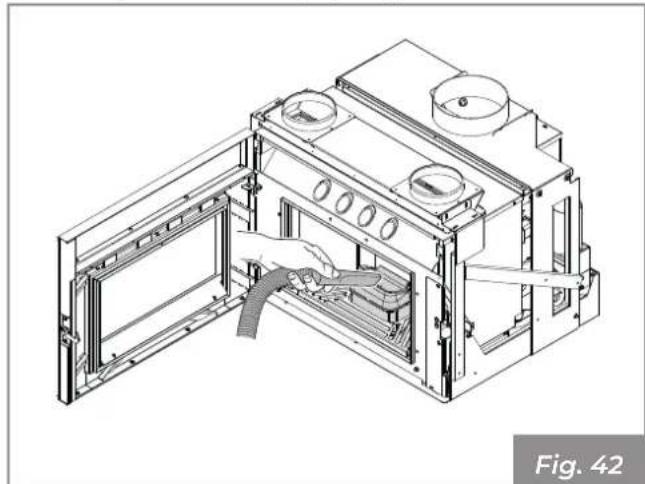

Vacuum the ash accumulated in the burn pot (Fig. 42).

ATTENTION: remove the ash from the combustion chamber because the salts present cause corrosion of the metal. In addition, the ash could block the passage of air, varying the development of the flame which, if it approaches the glass, would increase corrosion.

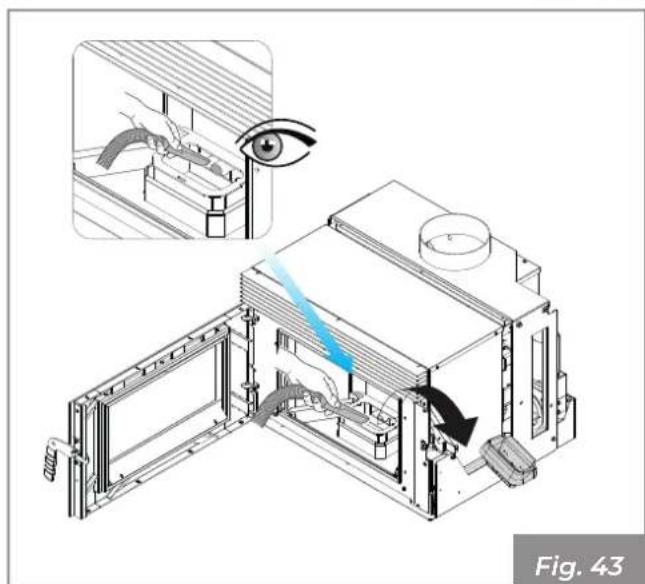

After cleaning the burn pot, remove it from its seat and clean the compartment that contains it including the resistor (Fig. 43).

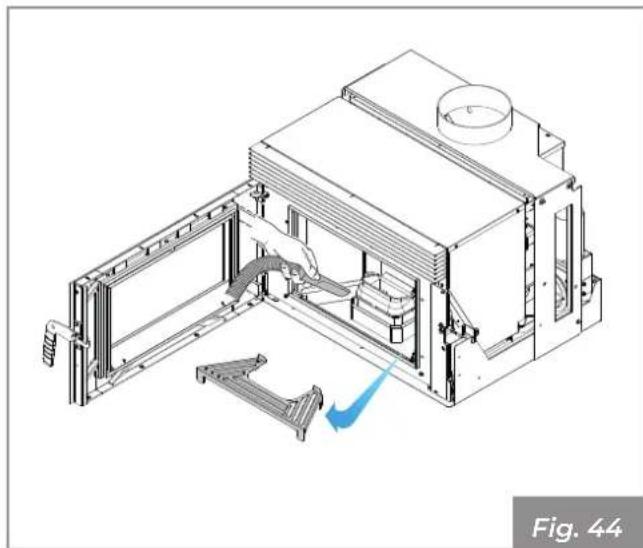

If necessary, remove the ash grate and empty it, taking care to clean any residue that may be contained in the compartment (Fig. 44).

Using an ash vacuum can simplify the cleaning operations

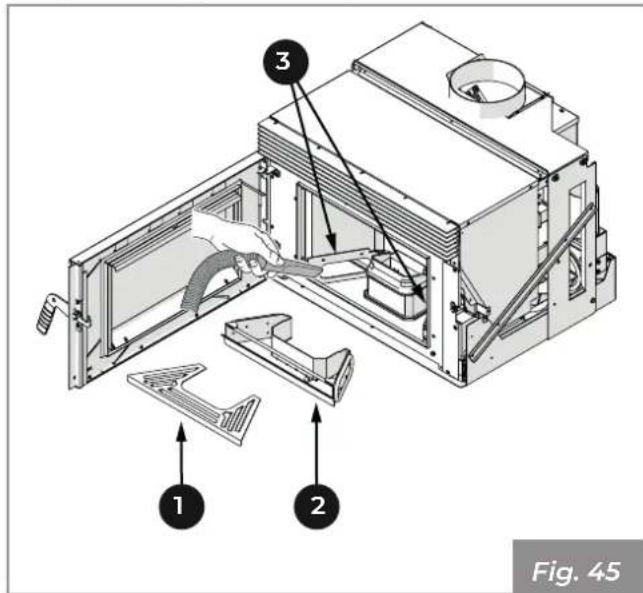

• Remove the grille (1)
• Remove the drawer (2) to access the vents (3).
• Using an ash vacuum cleaner, clean the passage of flue gas including the two lower vents.

Repeating the previous operations in reverse, reassemble the drawer and the grid.

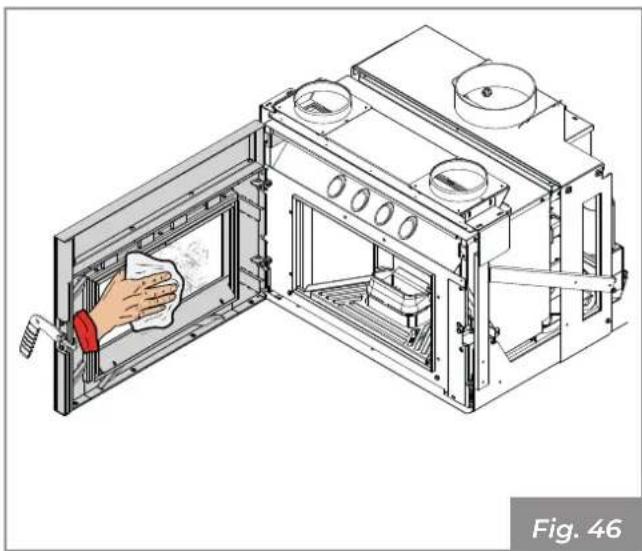

9.4.2 Cleaning the glass

It is carried out with a damp cloth or with dampened paper that is wiped over the ash.

Rub until the glass is clean.

Do not clean the glass while the appliance is operating and do not use abrasive sponges.

ATTENTION: do not use solvents, acids, soaps, liquid detergents or aggressive products.

Fig. 46

9.5 Extraordinary maintenance

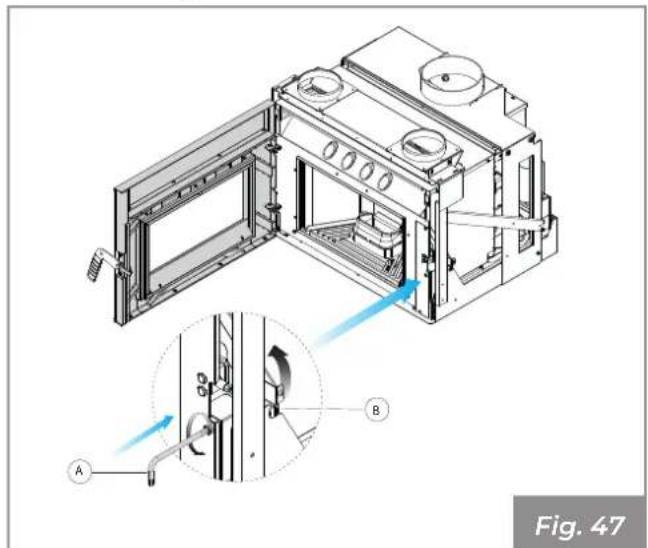

9.5.1 Cleaning the flue Tee

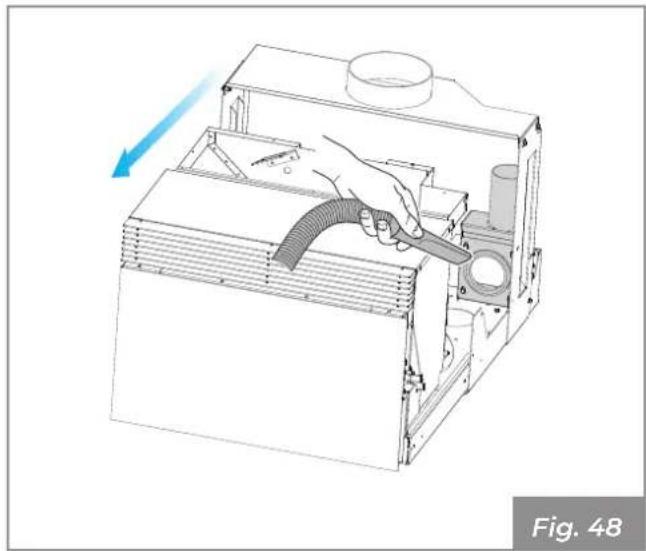

After every 500kg of pellets burned, it is necessary to clean the smoke evacuation tee by removing the appliance from its seat and vacuuming the residues contained inside the tee with an ash vacuum cleaner.

• Open the door, insert the Allen key (A) in the release mechanism.
• Turn the closing lever counterclockwise (B) to unlock the guides.

• Push the machine all the way to the end position of the guides.
• Use an ash vacuum cleaner to remove debris inside the Tee.

• Proceed in reverse order to reset the appliance.

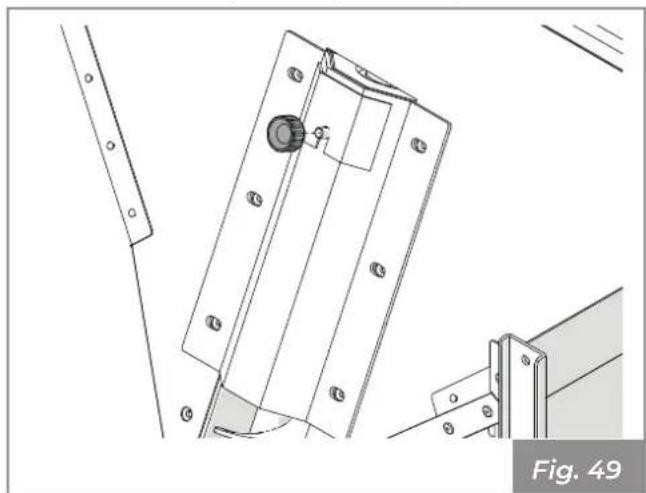

9.5.2 Feed cleaning

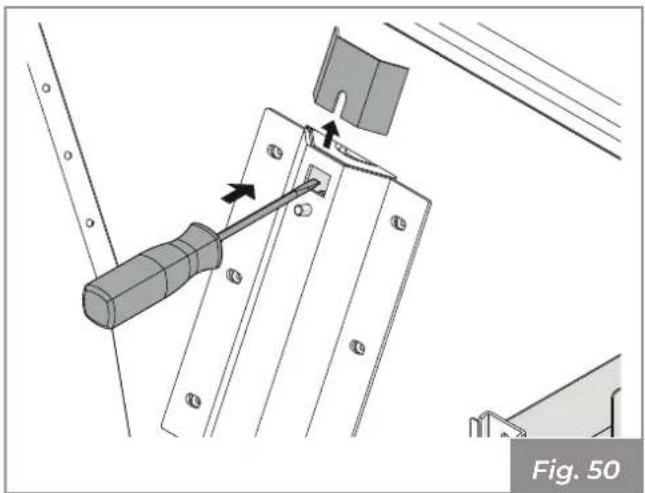

In case the feed pipe that takes the pellets from the hopper to the combustion chamber gets clogged, proceed as follows:

• Remove the protective grille inside the hopper by unscrewing the four Phillips screws with a screwdriver;
• Remove the inspection plate stop.

• Remove the inspection plate.
• Remove the pellet residues inside the feed pipe using a screwdriver.

The cleaning operation must only be performed by qualified personnel.

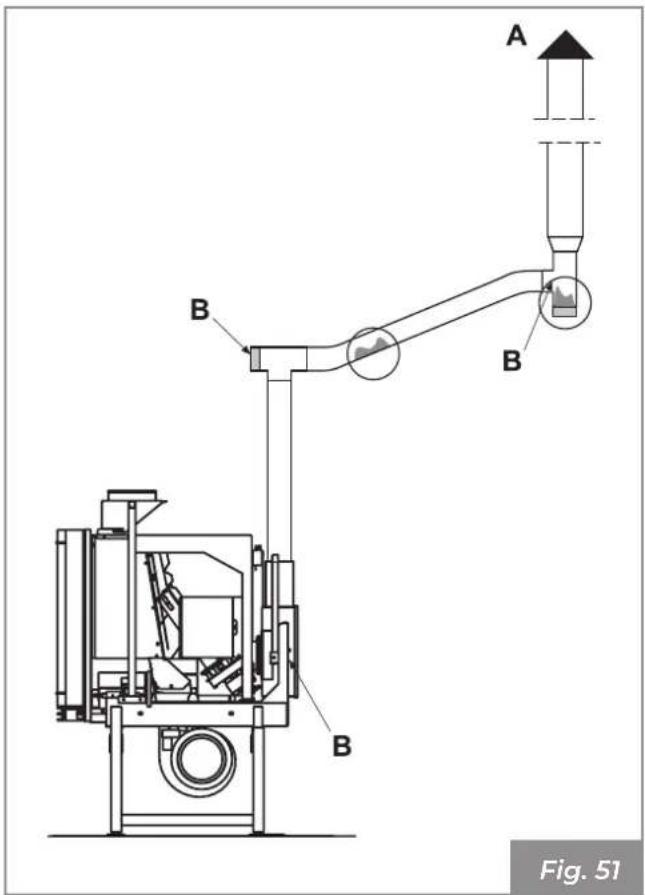

9.5.3 Cleaning the flue

It must be carried out at least twice a year, at the beginning and in the middle of the winter season, and in any case whenever necessary.

If there are horizontal sections, it is necessary to check and remove any deposits of ash and soot before they obstruct the passage of fumes.

In the event of failure to clean or inadequate cleaning the appliance may have operating problems including:

• Poor combustion;
• Blackening of the glass;
• Blockage of the burn pot with accumulation of ash and pellets;
• Deposit of ash and excessive deposits on the exchanger with consequent poor performance

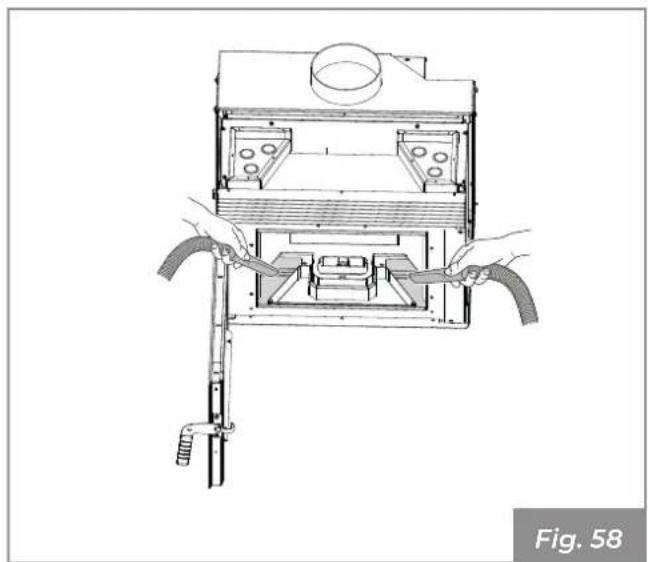

9.5.4 Appliance maintenance

To be carried out at least once a year, or every time the appliance signals maintenance request.

During the maintenance operation, the technician must:

• Open the door (2) with the opening lever (1) using the cold handle supplied.
• Unscrew and remove the top panel (3)

• Remove the grille (4) and the drawer (5)

• Remove the refractory panels from the fire compartment and vacuum the residual ash.

• Remove the upper boiler caps and vacuum the residual ash.

Re-assemble the upper boiler caps, ensuring to restore the tightness of the closure. If necessary, replace the seals

• Remove the lateral refractory supports

• Remove the flue gas fan compartment caps

Re-assemble the fan compartment caps, ensuring to restore the tightness of the closure. If necessary, replace the seals

Vacuum the residual ash

• Re-assemble all the components in reverse order
• Check the condition and tightness of all the seals
• Check the condition of all internal components and make sure they are clean
• Make sure the flue gas outlet connection is sealed and clean
• Remove any deposits of pellet residues in the tank
• Check the correct operation of the appliance
• Reset any warnings or alarms (the manual reset thermostats are on the rear of the appliance near the power cable).
• Check the correct functioning of the door block springs

10 DEMOLITION AND DISPOSAL

The demolition and disposal of the appliance are the sole liability and responsibility of the owner who must act in compliance with the laws in force in their country regarding safety, respect and protection of the environment.

Disposal can be entrusted to a third party, provided only companies authorised for the recovery and elimination of the materials in question are used.

Always follow the regulations in force in the Country where the appliance is in operation for the disposal of materials and possibly for the disposal notification.

All disassembly operations for demolition must take place with the appliance stopped and without the power supply.

• Remove all the electrical equipment.
• Separate the accumulators on the electronics boards.
• Scrap the structure of the appliance using authorised companies.

Leaving the appliance in accessible areas is a serious danger to people and animals.

The differentiated disposal of the product makes it possible to avoid potentially negative consequences on the environment and health, and also allows recycling of the materials making up the product in order to achieve significant energy and resource savings.

Any liability for damage to people and animals always falls on the owner. Upon demolition, the EC marking, this manual and other documents relating to this appliance must be destroyed.

The crossed-out wheelie bin symbol that appears on the label of the appliance indicates that, at the end of its useful life, the product must be disposed of separately from other waste.

Pursuant to art.13 of Italian Legislative Decree no. 151 of 25 July 2005 implementing the Directive 2002/96/EC of 23 February 2003 on Waste Electrical and Electronic Equipment relating to the measures and procedures designed to prevent the production of waste electrical and electronic equipment, called WEEE, promoting the reuse, recycling and other forms of recovery so as to reduce the quantity to be disposed of and improving the intervention of the parties involved in the life cycle of such products.

TABLE DES MATIÈRES

4 CONNAIRE LE PRODUIT 91

5 MANUTENTION ET TRANSPORT 98

5.1 Transport 99

6 PREPARATION DU LIEU D'INSTALLATION 100

2014/53/UE: Directive RED (Radio Equipment Directive)

RÉGEMENT (UE) N. 305/2011 (CPR)

RÉGEMENT (UE) 2015/1185 (ECODESIGN)

5 MANUTENTION ET TRANSPORT

4DAS PRODUKT KENNEN 130

4 DAS PRODUKT KENNEN

4.1 Beschreibung

EINSATZ AC70 (KANALISIERT)

6.3 Installationsort

2017/2102/UE: Directiva RoHS

2014/53/UE: Directive (Radio Equipment Directive)

REGLAMENTO (UE) N. 305/2011 (CPR)

REGLAMENTO (UE) 2015/1185 (ECODESIGN)

4 CONOCER EL PRODUCTO

4.1 Descripción

INSERCION AC70 (CANALIZADA)

Fig. 3

Palazzetti reserves the right to change its products at any time and without notice in order to improve them without compromising their essential characteristics.
