USER MANUAL IS-TC1A.1 i.safe Mobile

Document No. 1048MM01REV04

Version: 2022-11-28

(c) 2022 i.safe MOBILE GmbH

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel.[phone]

[e-mail]

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....10

Česky 16

Español....23

Suomi....29

Français....35

Magyar 42

Italiano 48

Nederlands 54

Norsk 61

Polski 66

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS-TC1A.1 (model MTC1A01). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol.
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
»Follow local safety regulations.

INTENDED USE

The IS-TC1A.1 is an intrinsically safe, rugged Thermal Camera for use in explosion hazardous areas of Zone 1/21 and 2/22, according to directive 2014/34/EU, SI 2016 No. 1107, 1999/92/EC and IECEx. In combination with the IS530.1 the IS-TC1A.1 can record and display temperatures.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

EX MARKINGS

> ATEX:

II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T135°C Db

EU Type Examination Certificate:

EPS 21 ATEX 1 197 X

CE-designation: 2004

IECEx:

Ex ib IIC T4 Gb

Ex ib IIIC T135°C Db

IECEx Certificate: IECEx EPS 21.0060X

UKEX:

④ II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T135°C Db

UK Type Examination Certificate:

CSAE 22UKEX1059X

UKCA-designation: 2503

> North America:

Class I Div 1 Groups A, B, C, D, T4

Class II Div 1 Groups E, F, G, T135°C

Class III Div 1

CSA22CA80115542X

> Temperature range:

-20°C ... +55°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

EU/UK DECLARATION OF CONFORMITY

You will find the EU/UK declaration of conformity at the end of this Operating Manual or at www.isafe-mobile.com/en/support/downloads

PRODUCT COMPLIANCE FOR NORTH AMERICA

Conforms to:

STD UL 62368-1, STD UL 913

Certified to:

CSA STD CSA C22.2#60079-0, CSA STD CSA C22.2#60079-11, CSA STD CSA C22.2#62368-1

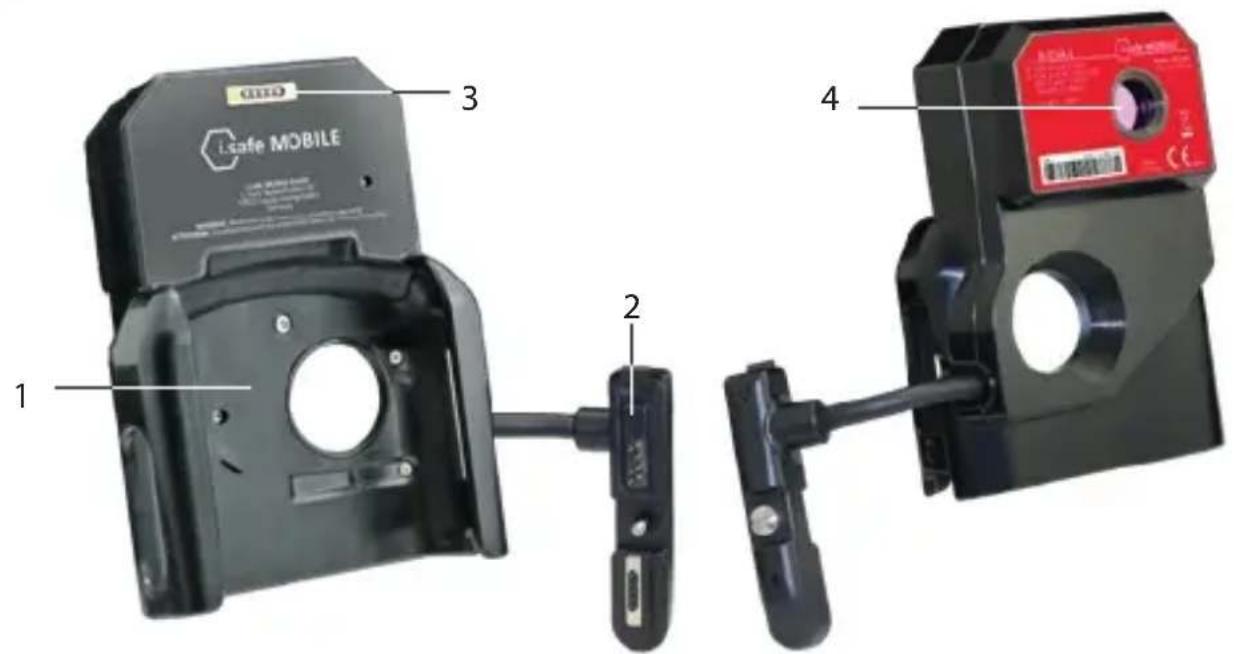

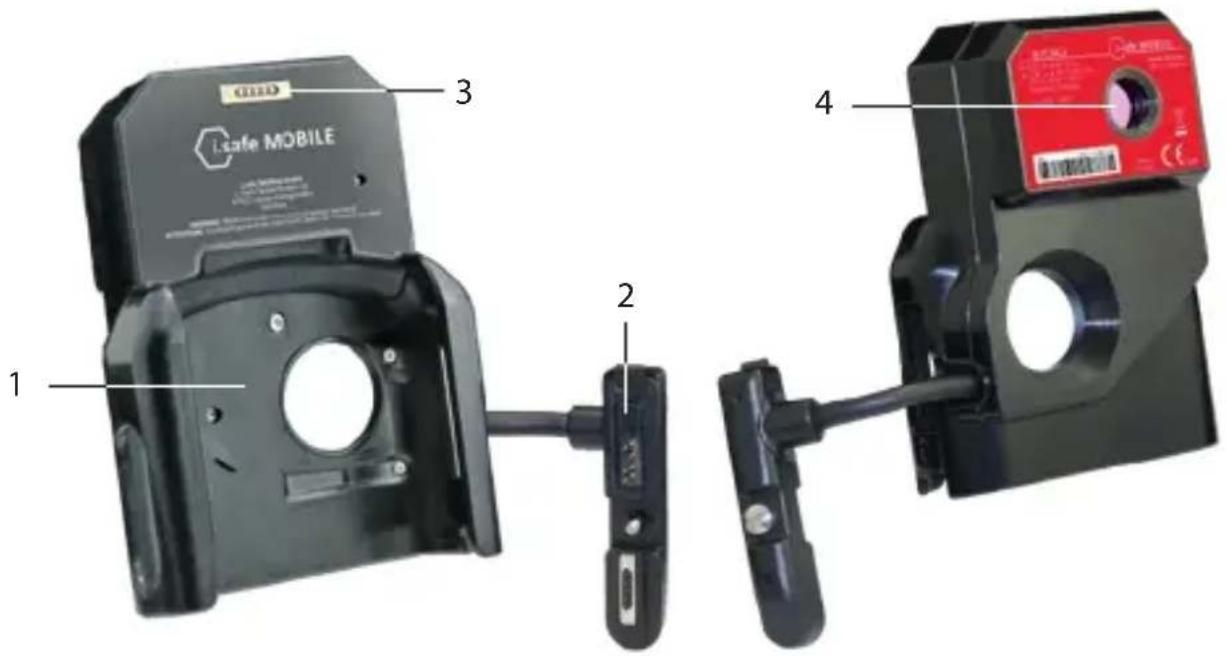

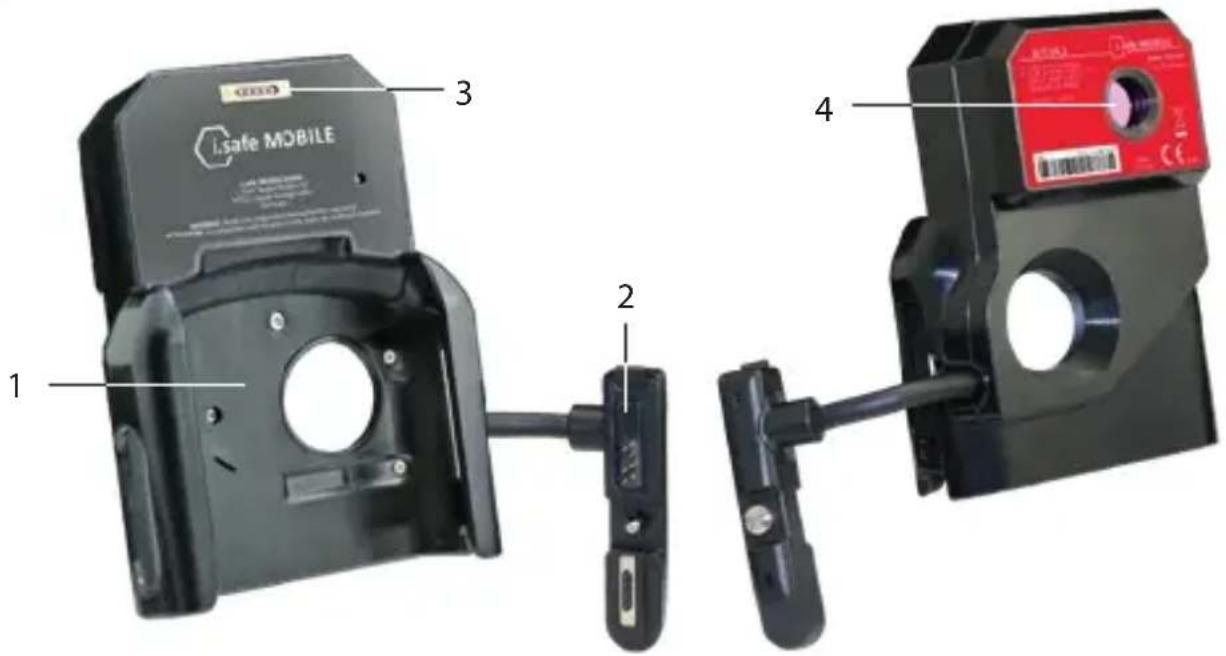

>DEVICE OVERVIEW

i safe MOBILE 1 2 3 4

1> HOLDER: Holder for IS530.1.
2> PLUG: Connecting to IS530.1.
3) MAGNETIC CHARGER PORT: Connection for the i.safe PROTECTOR 3.0 Magnetic Charger Cable (included in the IS530.1 package) for charging the IS530.1.
4) THERMAL CAMERA: Recording temperatures.

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who are qualified in the use of Ex devices in explosion hazardous areas and who have read and understood this Operating Manual may use this device.

EX-RELEVANT SAFETY REGULATIONS

Use of this device assumes that the operator observes the conventional safety regulations and has read and understood Operating Manual, Safety Instructions and certificate. When used in explosion hazardous areas, the following Safety Instructions must also be complied with:

» To ensure the IP-protection, it has to be ensured that all gaskets are present and functional. There must be no large gap between the two halves of the housing.
» The device must be securely fastened to the ISM interface when used in ex-hazardous areas.
» The device may not be exposed to any aggressive acids or alkalis.
» The device may only be used in zones 1, 2, 21, or 22.
» Only accessories approved by i.safe MOBILE GmbH may be used.
» Do not open the device or carry out any repairs yourself.

EX-RELEVANT SAFETY REGULATIONS FOR NORTH AMERICA

Conditions of Acceptability:

» The 13-Pin connector of the IS-TC1A.1 may only be assembled or disassembled from the ISM interface outside hazardous areas.
» The device must be protected from impacts with high impact energy, against excessive UV light emission and high electrostatic charge processes.
» The permitted ambient temperature range is -20 °C to +55 °C.
» Unauthorized repair is not allowed.
» Apparatus is for use in pollution degree 2 or better.
» Only designated charger may be connected to the charging contacts.
» Not suitable for hazardous locations when enclosure is damaged.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Only use the device in explosion hazardous areas of zones 1/21 and 2/22 or outside of explosion hazardous areas.

» Only connect the device outside explosion hazardous areas to the ISM interface of the IS530.1.

» Before entering an explosion hazardous area with the device,

• make sure that the device is securely fastened to the ISM interface of the IS530.1,
• make sure that no gap can be seen between the two halves of the device,
• make sure the device is not damaged,
• make sure that all the labels on the device are readable.

» If you use the device in an explosion hazardous area, read and follow the instructions in the "Possible User Errors" section.

» Switch off the device immediately and leave the explosion hazardous area without delay if

• malfunctions occur on the device,
• you have damaged the housing of the device,
• you have exposed the device to excessive loads,
• the labels on the device are no longer readable.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Do not modify the device structurally.
» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.
» Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

» Do not loosen the screws on the device.
» Do not open any interface cover.
» Do not charge the IS530.1.
» Do not open the device.
» Do not damage the device.

>SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS-TC1A.1
1 x Operating Manual Safety Instructions
1 x Screwdriver

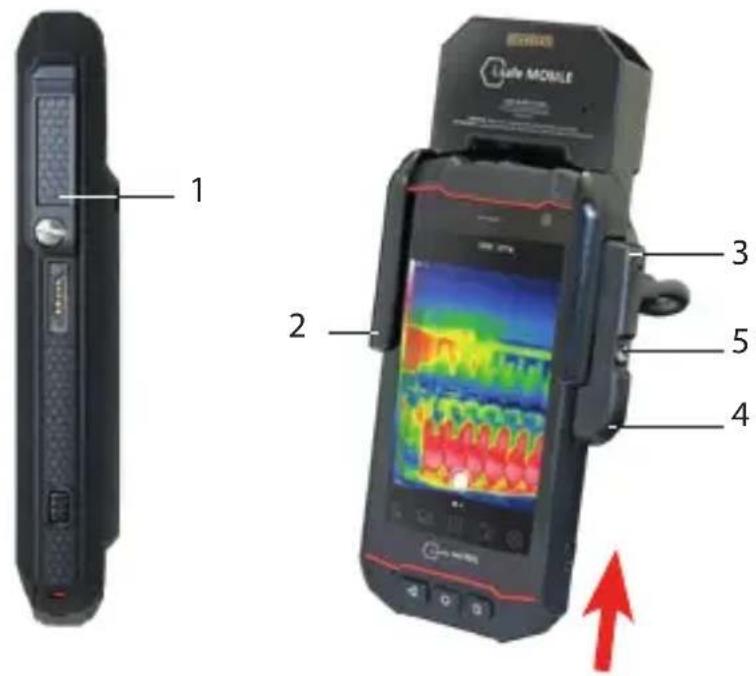

INSTALLATION

DANGER

Improper use can result in death or severe injuries! Only connect the device outside explosion hazardous areas to the ISM interface of the IS530.1.

1 2 3 4 5

» Unscrew the cover of the ISM interface (1) located on the IS530.1.
» Push the IS530.1 completely into the holder (2) of the device.
» Attach the plug on top of the ISM interface (3).
» Fix the plug by pressing the rounded end of the plug (4).
» Tighten the screw (5).
» Check whether the plug is correctly and firmly attached to the ISM interface.

The device can now be used together with the IS530.1 in explosion hazardous areas.

> INITIATION

NOTE:

The following information applies to IS-TC1A.1 in combination with the IS530.1.

» Download and install the Seek Thermal application from the Google Playstore.
» Open the Seek Thermal application at the IS530.1 and you can start immediately.

CHARGING THE IS530.1

You can charge the IS530.1 via the magnetic charger port on the IS-TC1A.1.

DANGER

An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries! Only charge the IS530.1 outside of explosion hazardous areas. Do not charge the IS530.1 in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device.

» Follow the instructions in the „Charging“ section of the IS530.1 operating manual.
» Only charge the IS530.1 using the i.safe PROTECTOR 3.0 Magnetic Charger Cable (included in the IS530.1 package).
» Connect the i.safe PROTECTOR 3.0 Magnetic Charger Cable to the magnetic charger port on the IS-TC1A.1.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

> CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Do not use chemical agents for cleaning.
» Clean the device with a soft, moistened antistatic cloth.

STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

»DO NOT throw away batteries with household waste.
» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH. All other trademarks and copyrights are the properties of their respective owners.
